ISUZU KB P190 2007 Workshop Repair Manual REAR AXLE 4B-21
Disassembly
1. Using holding fixture 5-8840-0275-0 and holding
fixture base 5-8840-0003-0, fix the differential
assembly to the bench.
425L100007

2.
Apply a setting mark to t

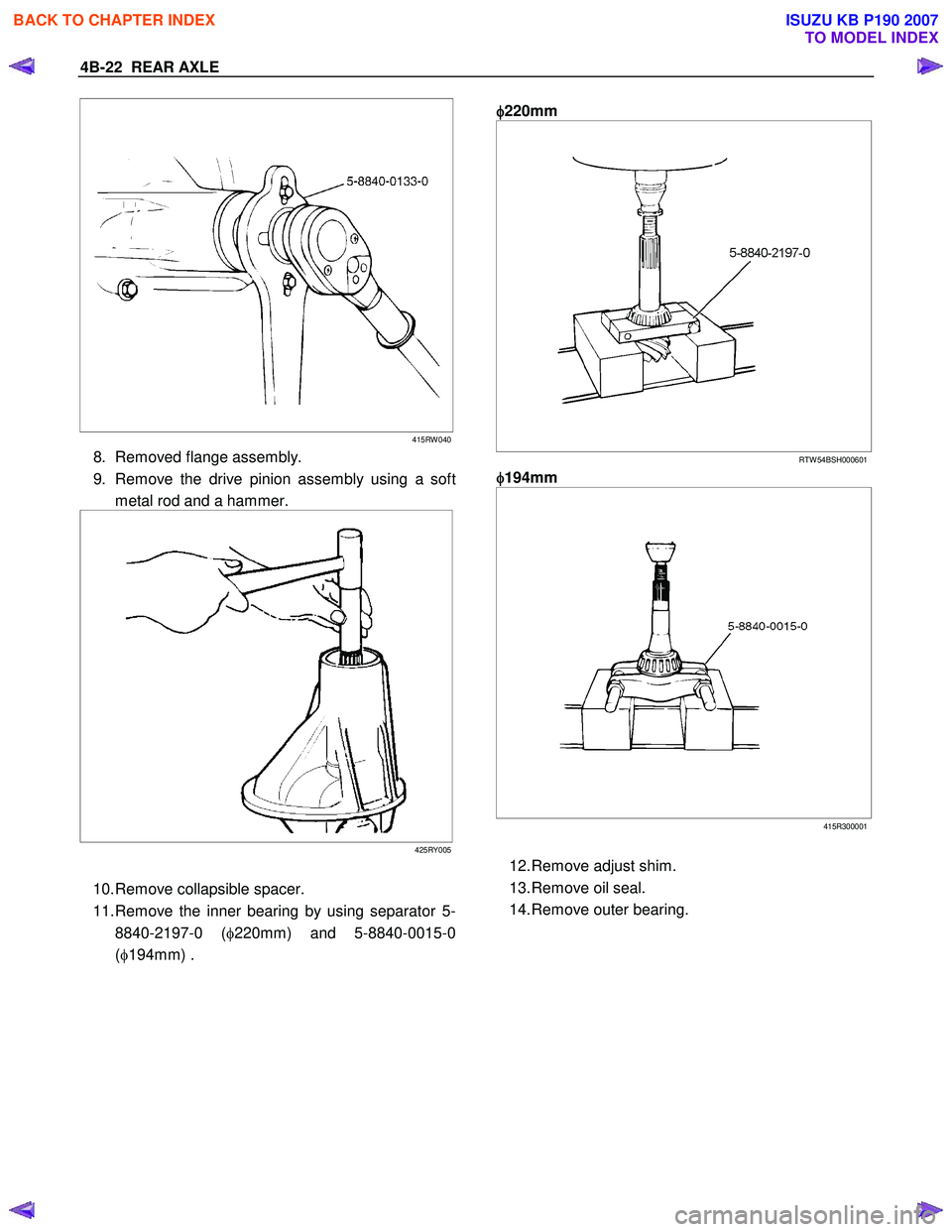

Page 466 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 4B-22 REAR AXLE

415RW 040
8. Removed flange assembly.
9. Remove the drive pinion assembly using a soft metal rod and a hammer.

425RY005

10. Remove collapsible spacer.
11. Remove

Page 467 of 6020

ISUZU KB P190 2007 Workshop Repair Manual REAR AXLE 4B-23
15. Remove the inner bearing outer race (1) and the
outer bearing outer race (2) by using a brass ba
r
and a hammer.

425RS014

425RS015

BACK TO CHAPTER INDEX
TO MODE

Page 468 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 4B-24 REAR AXLE
Reassembly
1. Install outer bearing outer race by using installer
5-8840-2164-0 (φ220mm), 9-8522-1141-0 ( φ194
mm) and grip 5-8840-0007-0.

φ
φφ
φ
220mm
425L100002
φ
φ

Page 469 of 6020

ISUZU KB P190 2007 Workshop Repair Manual REAR AXLE 4B-25
b. Tighten the nut to the specified torque.
Torque:
φ220mm : 2.7 N ⋅m (0.28 kgf ⋅m/24 lb ⋅in)
φ194mm : 2.3 N ⋅m (0.23 kgf ⋅m/20 lb ⋅in)

425RW 030

Page 470 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 4B-26 REAR AXLE

425RS02

f.
After the ZERO setting is obtained, rotate the
gauging arbor until the dial indicator rod does
not touch the gauging plate. Record the
number the dial indicator

Page 471 of 6020

ISUZU KB P190 2007 Workshop Repair Manual REAR AXLE 4B-27
h. Select the shim using table below.
[ φ
φφ
φ
220 mm]
mm (in) Pinion
marking
+10 +8 +6 +4 +2 0 -2 -4 -6 -8 -10 Dial indicator
reading (inches)

REAR AXLE 4B-27
h. Select the shim using table below.
[ φ
φφ
φ
220 mm]
mm (in) Pinion
marking
+10 +8 +6 +4 +2 0 -2 -4 -6 -8 -10 Dial indicator
reading (inches)
0.073 1.94 (0.0764) 1.96 (0.0772)0.074 1.94 (0.0764) 1.96 (0.0772) 1.98 (0.0780)0.075 1.94 (0.0764) 1.96 (0.0772) 1.98 (0.0780) 2.00 (0.0787)0.076 1.94 (0.0764) 1.96 (0.0772) 1.98 (0.0780) 2.00 (0.0787) 2.02 (0.0795) 2.04 (0.0803)0.077 1.96 (0.0772) 1.98 (0.0780) 2.00 (0.0787) 2.02 (0.0795) 2.04 (0.0803) 2.06 (0.0811)0.078 1.94 (0.0764) 1.96 (0.0772) 1.98 (0.0780) 2.00 (0.0787) 2.02 (0.0795) 2.04 (0.0803) 2.06 (0.0811) 2.08 (0.0819)0.079 1.94 (0.0764) 1.96 (0.0772) 1.98 (0.0780) 2.00 (0.0787) 2.02 (0.0795) 2.04 (0.0803) 2.06 (0.0811) 2.08 (0.0819) 2.10 (0.0827)0.080 1.94 (0.0764) 1.96 (0.0772) 1.98 (0.0780) 2.00 (0.0787) 2.02 (0.0795) 2.04 (0.0803) 2.06 (0.0811) 2.08 (0.0819) 2.10 (0.0827) 2.12 (0.0835) 2.14 (0.0843)0.081 1.96 (0.0772) 1.98 (0.0780) 2.00 (0.0787) 2.02 (0.0795) 2.04 (0.0803) 2.06 (0.0811) 2.08 (0.0819) 2.10 (0.0827) 2.12 (0.0835) 2.14 (0.0843) 2.16 (0.0850)0.082 1.98 (0.0780) 2.00 (0.0787) 2.02 (0.0795) 2.04 (0.0803) 2.06 (0.0811) 2.08 (0.0819) 2.10 (0.0827) 2.12 (0.0835) 2.14 (0.0843) 2.16 (0.0850) 2.18 (0.0858)0.083 2.00 (0.0787) 2.02 (0.0795) 2.04 (0.0803) 2.06 (0.0811) 2.08 (0.0819) 2.10 (0.0827) 2.12 (0.0835) 2.14 (0.0843) 2.16 (0.0850) 2.18 (0.0858) 2.20 (0.0866)0.084 2.04 (0.0803) 2.06 (0.0811) 2.08 (0.0819) 2.10 (0.0827) 2.12 (0.0835) 2.14 (0.0843) 2.16 (0.0850) 2.18 (0.0858) 2.20 (0.0866) 2.22 (0.0874) 2.24 (0.0882)0.085 2.06 (0.0811) 2.08 (0.0819) 2.10 (0.0827) 2.12 (0.0835) 2.14 (0.0843) 2.16 (0.0850) 2.18 (0.0858) 2.20 (0.0866) 2.22 (0.0874) 2.24 (0.0882) 2.26 (0.0890)0.086 2.08 (0.0819) 2.10 (0.0827) 2.12 (0.0835) 2.14 (0.0843) 2.16 (0.0850) 2.18 (0.0858) 2.20 (0.0866) 2.22 (0.0874) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898)0.087 2.12 (0.0835) 2.14 (0.0843) 2.16 (0.0850) 2.18 (0.0858) 2.20 (0.0866) 2.22 (0.0874) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.30 (0.0906) 2.32 (0.0913)0.088 2.14 (0.0843) 2.16 (0.0850) 2.18 (0.0858) 2.20 (0.0866) 2.22 (0.0874) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.30 (0.0906) 2.32 (0.0913) 2.34 (0.0921)0.089 2.16 (0.0850) 2.18 (0.0858) 2.20 (0.0866) 2.22 (0.0874) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.30 (0.0906) 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929)0.090 2.18 (0.0858) 2.20 (0.0866) 2.22 (0.0874) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.30 (0.0906) 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929) 0.091 2.22 (0.0874) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.30 (0.0906) 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929) 0.092 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.30 (0.0906) 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929) 0.093 2.26 (0.0890) 2.28 (0.0898) 2.30 (0.0906) 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929) 0.094 2.28 (0.0898) 2.30 (0.0906) 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929) 0.095 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929) 0.096 2.34 (0.0921) 2.36 (0.0929) 0.097 2.36 (0.0929)
[ φ
φφ
φ
194 mm]
mm (in) Pinion
marking
+10 +8 +6 +4 +2 0 -2 -4 -6 -8 -10 Dial indicator
reading (inches)
0.081 2.18 (0.0858)0.082 2.18 (0.0858) 2.20 (0.0866)0.083 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882)0.084 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890)0.085 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898)0.086 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0913)0.087 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0913) 2.34 (0.0921)0.088 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929)0.089 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937)0.090 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953)0.091 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961)0.092 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969)0.093 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0976)0.094 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0976) 2.52 (0.0992)0.095 2.28 (0.0898) 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0976) 2.52 (0.0992) 2.54 (0.1000)0.096 2.32 (0.0913) 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0976) 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008)0.097 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0976) 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008) 0.098 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0976) 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008) 0.099 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0976) 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008) 0.000 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0976) 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008) 0.001 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0976) 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008) 0.002 2.46 (0.0969) 2.48 (0.0976) 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008) 0.003 2.48 (0.0976) 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008) 0.004 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008) 0.005 2.54 (0.1000) 2.56 (0.1008) 0.006 2.56 (0.1008)

Note :
When ordering shims, find the part number in the
Parts Catalog by using the thickness of the shims
listed in the above table.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 472 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 4B-28 REAR AXLE
4. Place the shim on the drive pinion, then install the
inner bearing onto the pinion by using installer 9-
8522-1165-0 and a press.
Note:
Do not apply pressure to the roller ca

Load next 8 pages
