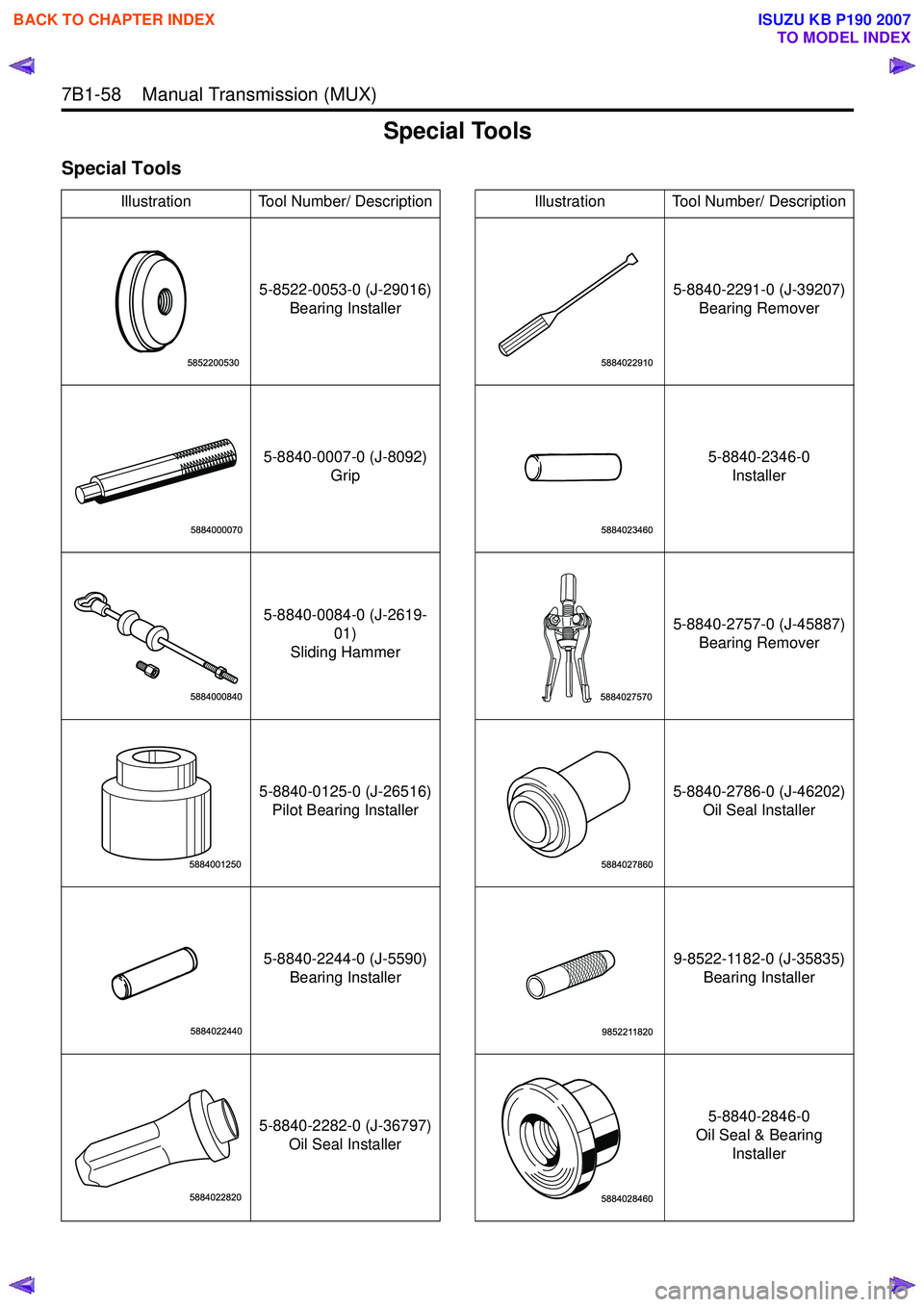

Page 4777 of 6020
7B1-58 Manual Transmission (MUX)
Special Tools
Special Tools
Illustration Tool Number/ Description5-8522-0053-0 (J-29016)Bearing Installer
5-8840-0007-0 (J-8092) Grip
5-8840-0084-0 (J-2619- 01)
Sliding Hammer
5-8840-0125-0 (J-26516) Pilot Bearing Installer
5-8840-2244-0 (J-5590) Bearing Installer
5-8840-2282-0 (J-36797) Oil Seal Installer
5852200530
5884022440
5-8840-2291-0 (J-39207)Bearing Remover
5-8840-2346-0 Installer
5-8840-2757-0 (J-45887) Bearing Remover
5-8840-2786-0 (J-46202) Oil Seal Installer
9-8522-1182-0 (J-35835) Bearing Installer
5-8840-2846-0
Oil Seal & Bearing Installer
Illustration Tool Number/ Description
5884022910
5884023460
5884027570
5884027860
9852211820
5884028460
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

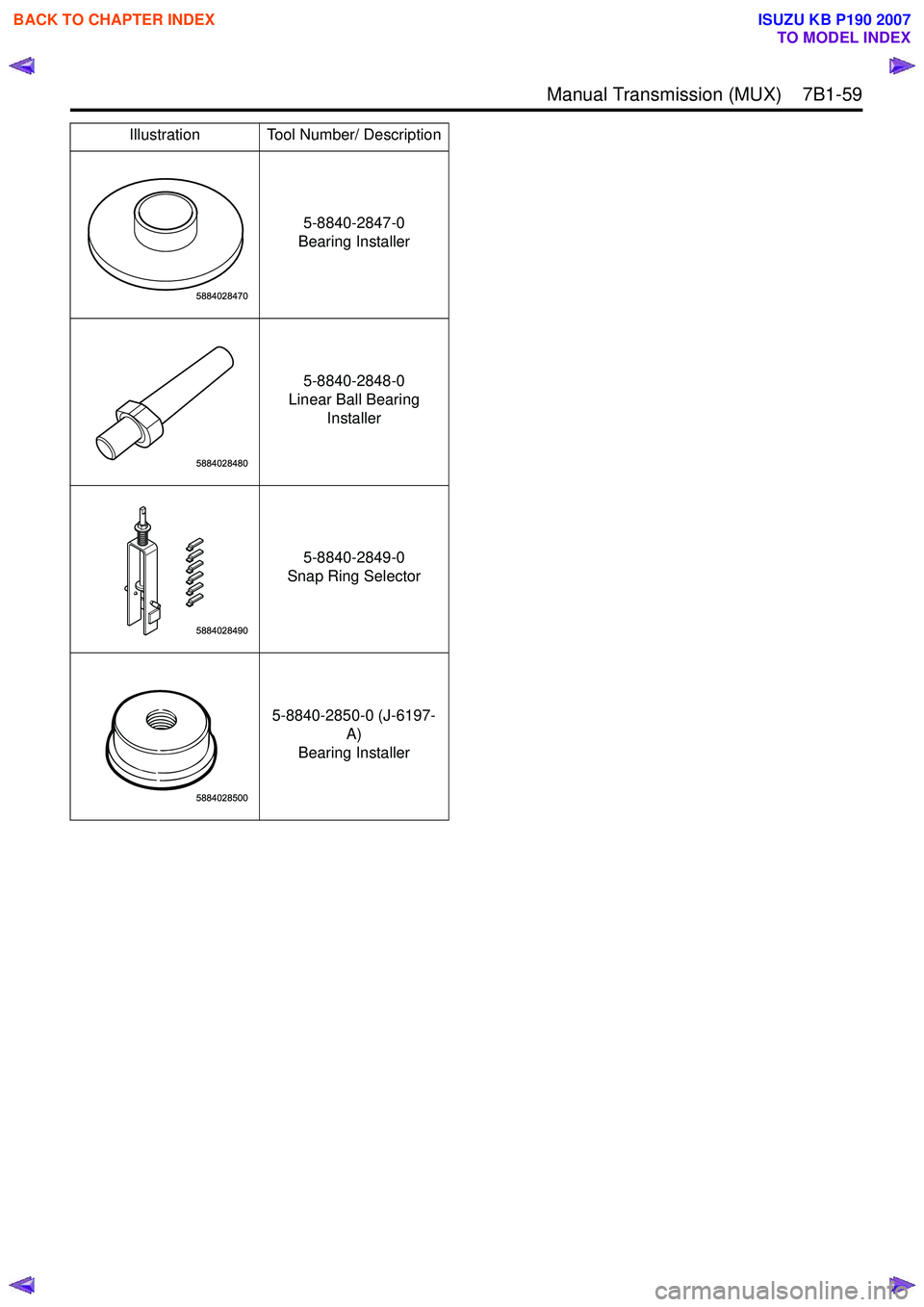

Page 4778 of 6020
Manual Transmission (MUX) 7B1-59
5-8840-2847-0
Bearing Installer
5-8840-2848-0
Linear Ball Bearing Installer
5-8840-2849-0
Snap Ring Selector
5-8840-2850-0 (J-6197- A)
Bearing Installer
Illustration Tool Number/ Description
5884028470
5884028480
5884028490
5884028500
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4779 of 6020

CLUTCH 7C-1
SECTION 7C
CLUTCH
TABLE OF CONTENTS
PAGE
Main Data and Specifications ......................................................................................... 7C- 2
General Description ........................................................................................................ 7C- 3
Torque Specification ....................................................................................................... 7C- 16
Servicing ...................................................................................................................... .... 7C-20
Clutch ......................................................................................................................... ...... 7C-22
Removal and Installation............................................................................................ 7C-22
Inspection and Repair ................................................................................................ 7C-26
Clutch Control................................................................................................................. . 7C-32
Removal and Installation............................................................................................ 7C-32
Master Cylinder................................................................................................................ 7C-33
Disassembly ................................................................................................................ 7C- 33
Reassembly ................................................................................................................. 7C- 34
Slave Cylinder (MSG, MUA) ............................................................................................ 7C-35 Disassembly ................................................................................................................ 7C- 35
Inspection and Repair ................................................................................................ 7C-36
Reassembly ................................................................................................................. 7C- 37
Slave Cylinder (MUX)....................................................................................................... 7C- 38
Disassembly ................................................................................................................ 7C- 38
Inspection and Repair ................................................................................................ 7C-39
Reassembly ................................................................................................................. 7C- 40
Hydraulic Damper Cylinder............................................................................................. 7C-41 Inspection and Repair ................................................................................................ 7C-41
Troubleshooting .............................................................................................................. 7 C-42
Special Service Tool........................................................................................................ 7C -51
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4780 of 6020
7C-2 CLUTCH
MAIN DATA AND SPECIFICATIONS
ENGINE 4JJ1
(High Output) 4JA1-T 4JK1-TC 4JJ1 (Standard Output)
4JH1-TC C24SE
TRANSMISSION MUX MSG MUA MUA
Clutch type
Dry single plate with diaphragm
Size mm (in) 275 (10.83) 225 (8.86) 250 (9.84) 240 (9.45)
Clamping force kg(lb) 700 (1544) 517 (1140) 640 (1411) 560 (1235)
(N) (6860) (5070) (6300) (5500)
Pressure plate
Outside diameter mm(in) 275 (10.83) 225 (8.86) 250 (9.84) 240 (9.45)
Inside diameter mm(in) 180 (7.087) 150 (5.906) 160 (6.299) 160 (6.299)
Driven plate
Thickness mm(in)
at free 8.8 (0.346) 8.4 (0.331) 8.3 (0.327) 8.7 (0.342)
at compressed 8.3 (0.327) 7.8 (0.307) 7.8 (0.307) 8.0 (0.315)
Clutch Cont. type Hydraulic
Pedal free play mm(in) 5.0-15.0 (0.2-0.6)
Master cylinder
Bore×Stroke mm(in) 15.87 × 35 (0.625 × 1.38)
Slave cylinder
Bore × Stroke mm(in) 22.22 × 18.9
(0.875 × 0.744) 19.05
× 23
(0.749 × 0.906) 20.64
× 23
(0.813 × 0.906) 19.05
× 23
(0.749 × 0.906)
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

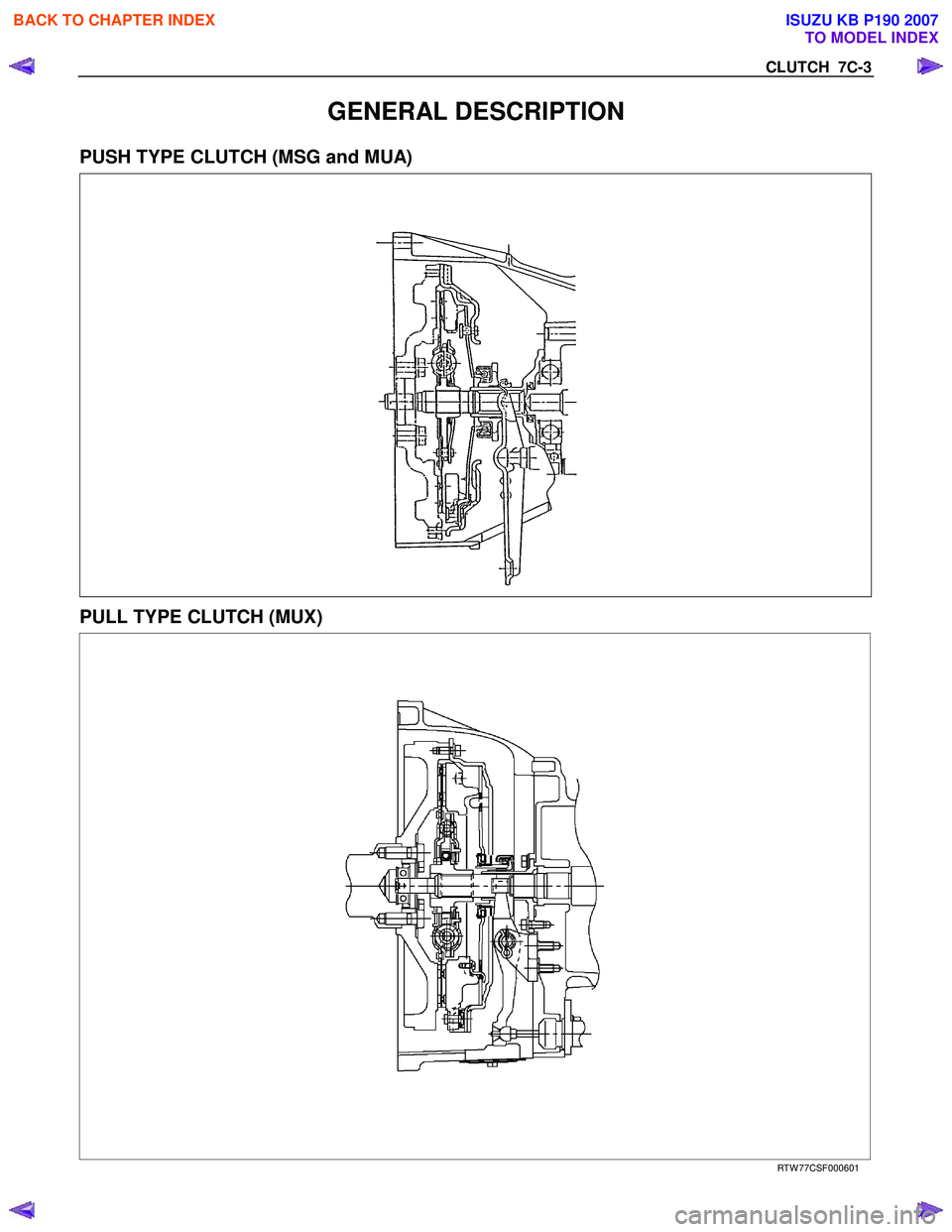

Page 4781 of 6020
CLUTCH 7C-3
GENERAL DESCRIPTION
PUSH TYPE CLUTCH (MSG and MUA)
PULL TYPE CLUTCH (MUX)
RTW 77CSF000601
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

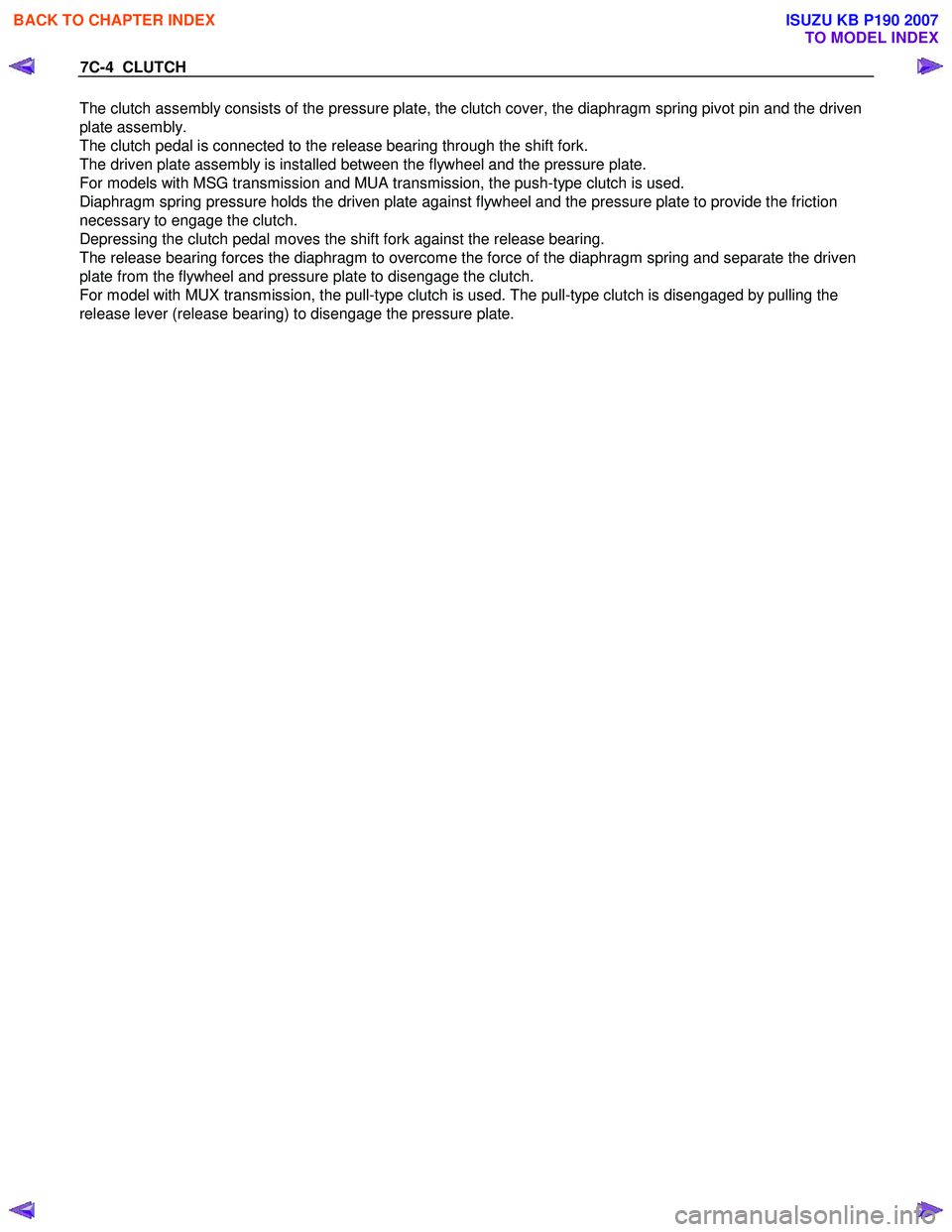

Page 4782 of 6020

7C-4 CLUTCH
The clutch assembly consists of the pressure plate, the clutch cover, the diaphragm spring pivot pin and the driven
plate assembly.
The clutch pedal is connected to the release bearing through the shift fork.
The driven plate assembly is installed between the flywheel and the pressure plate.
For models with MSG transmission and MUA transmission, the push-type clutch is used.
Diaphragm spring pressure holds the driven plate against flywheel and the pressure plate to provide the friction
necessary to engage the clutch.
Depressing the clutch pedal moves the shift fork against the release bearing.
The release bearing forces the diaphragm to overcome the force of the diaphragm spring and separate the driven
plate from the flywheel and pressure plate to disengage the clutch.
For model with MUX transmission, the pull-type clutch is used. The pull-type clutch is disengaged by pulling the
release lever (release bearing) to disengage the pressure plate.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

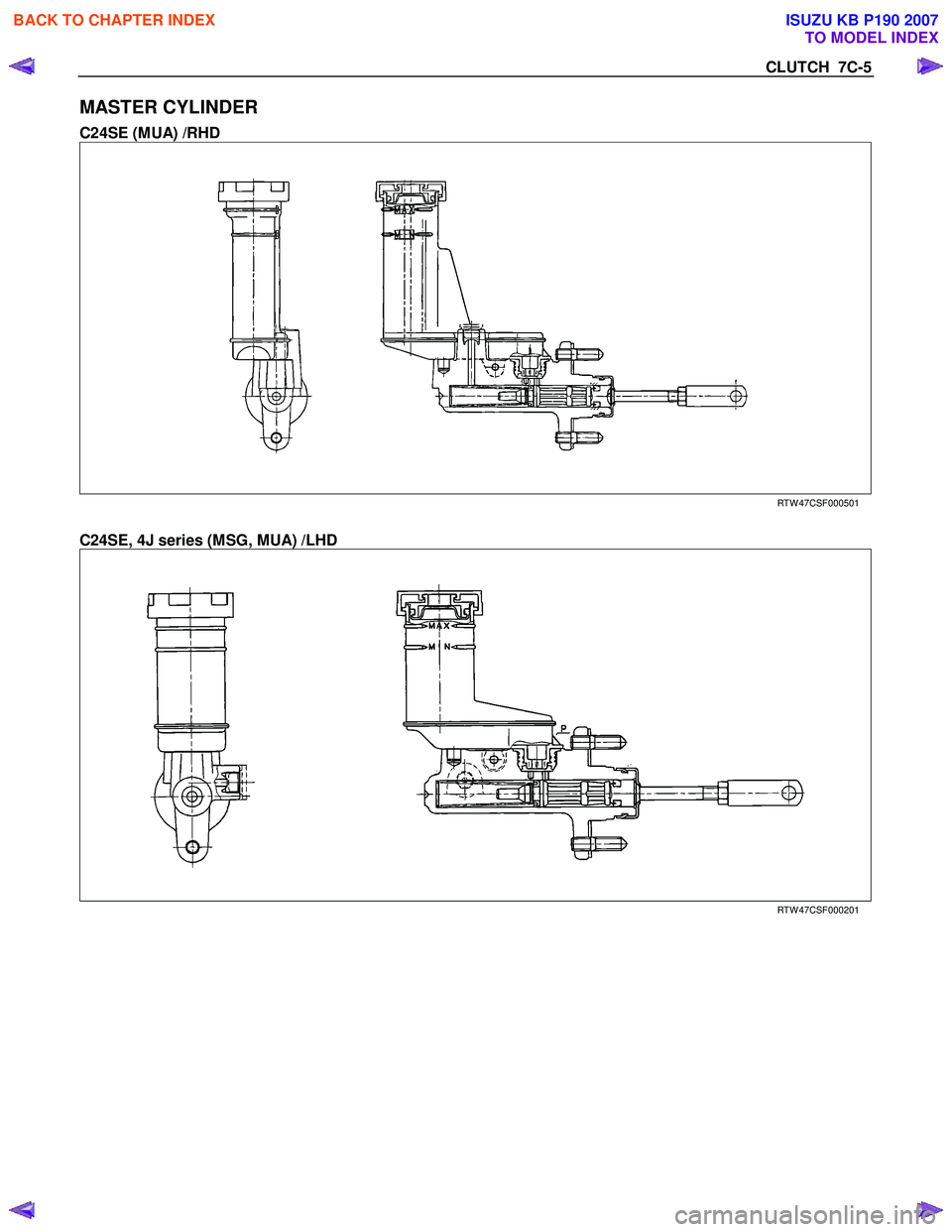

Page 4783 of 6020
CLUTCH 7C-5
MASTER CYLINDER
C24SE (MUA) /RHD
RTW 47CSF000501
C24SE, 4J series (MSG, MUA) /LHD
RTW 47CSF000201
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

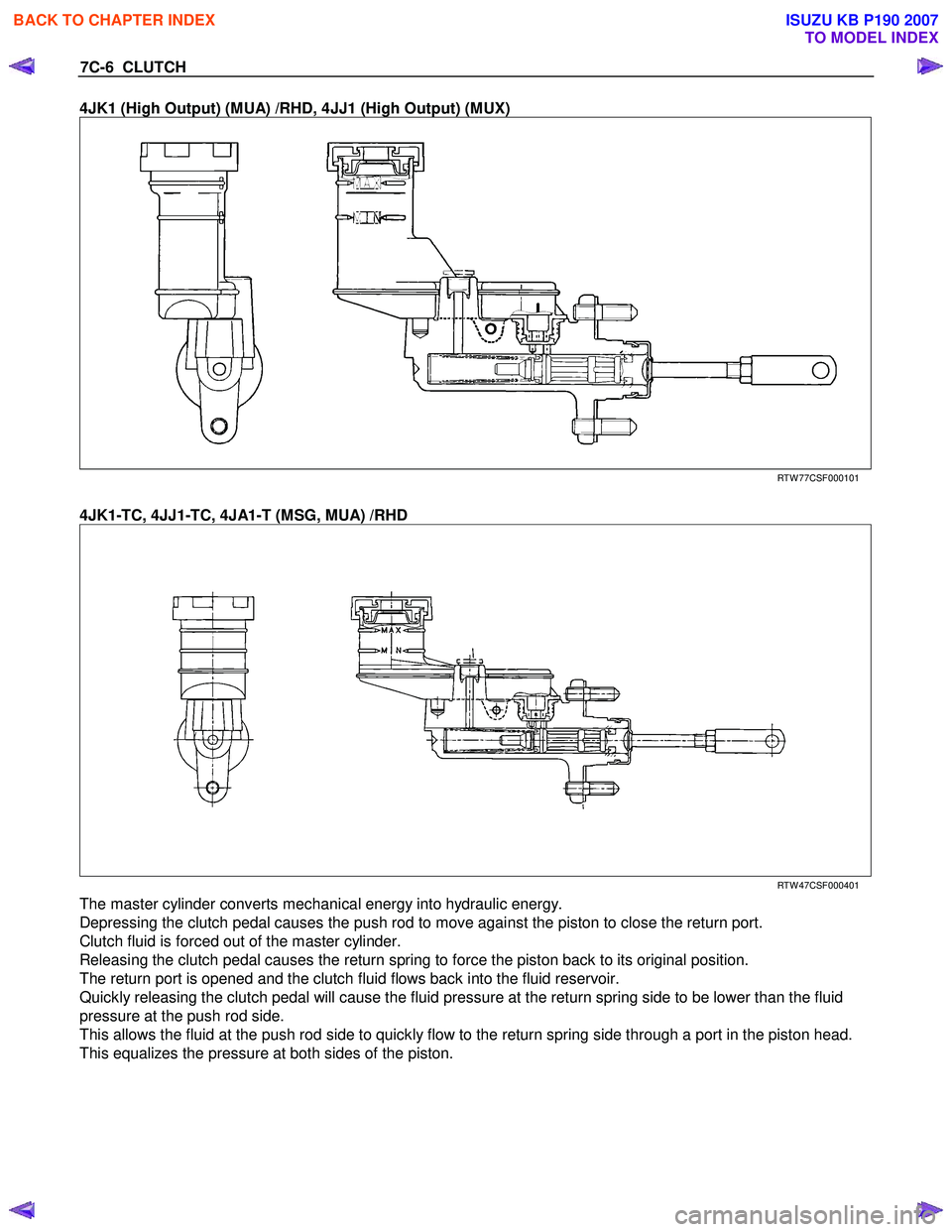

Page 4784 of 6020
7C-6 CLUTCH
4JK1 (High Output) (MUA) /RHD, 4JJ1 (High Output) (MUX)
RTW 77CSF000101
4JK1-TC, 4JJ1-TC, 4JA1-T (MSG, MUA) /RHD
RTW 47CSF000401
The master cylinder converts mechanical energy into hydraulic energy.
Depressing the clutch pedal causes the push rod to move against the piston to close the return port.
Clutch fluid is forced out of the master cylinder.
Releasing the clutch pedal causes the return spring to force the piston back to its original position.
The return port is opened and the clutch fluid flows back into the fluid reservoir.
Quickly releasing the clutch pedal will cause the fluid pressure at the return spring side to be lower than the fluid
pressure at the push rod side.
This allows the fluid at the push rod side to quickly flow to the return spring side through a port in the piston head.
This equalizes the pressure at both sides of the piston.
