Page 2937 of 6020

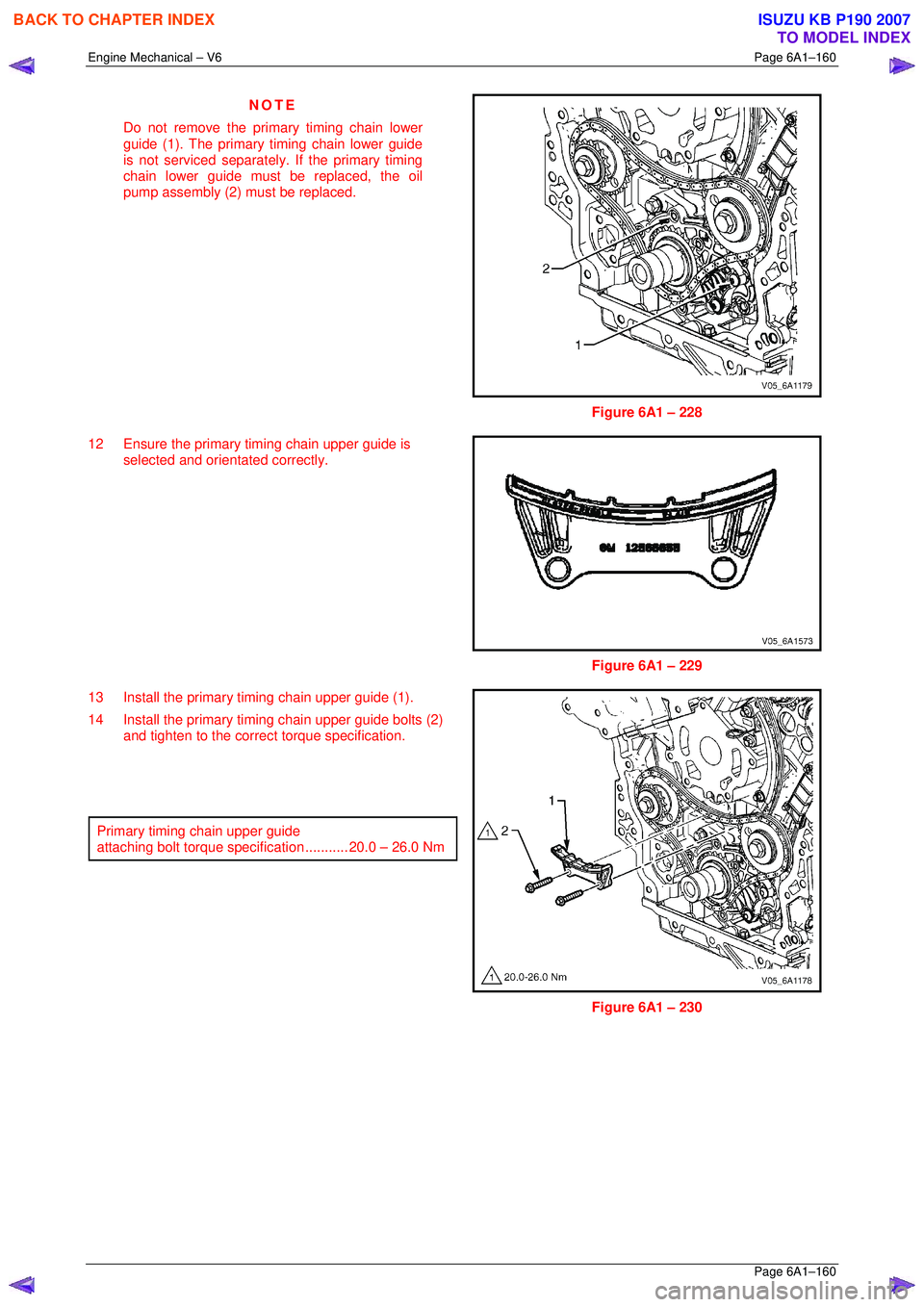

Engine Mechanical – V6 Page 6A1–160
Page 6A1–160
NOTE
Do not remove the primary timing chain lower
guide (1). The primary timing chain lower guide
is not serviced separately. If the primary timing
chain lower guide must be replaced, the oil
pump assembly (2) must be replaced.
Figure 6A1 – 228
12 Ensure the primary timing chain upper guide is selected and orientated correctly.
Figure 6A1 – 229
13 Install the primary ti ming chain upper guide (1).
14 Install the primary timing chain upper guide bolts (2) and tighten to the correct torque specification.
Primary timing chain upper guide
attaching bolt torque spec ification ........... 20.0 – 26.0 Nm
Figure 6A1 – 230
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2938 of 6020
Engine Mechanical – V6 Page 6A1–161
Page 6A1–161
15 Ensure that the primary timing chain tensioner is
being installed.
Figure 6A1 – 231
16 Reset the primary timing chain tensioner.
NOTE
To reset the tensioner, use a suitably sized flat
blade screwdriver (1) or Tool No. J 45027 (4) to
wind the plunger in a clockwise direction, into
the tensioner shaft (2).
Figure 6A1 – 232
17 Install the tensioner shoe assembly (1) into the primary timing chain tensioner body (2).
Figure 6A1 – 233
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2939 of 6020

Engine Mechanical – V6 Page 6A1–162
Page 6A1–162
CAUTION
If Tool No. EN 46112 (1) is not inserted into
the tensioner body, the plunger will remain
in the locked position and no tension will be
placed on the timing chain.
18 Compress the shoe assembly into the body (2) and lock the primary timing chai n tensioner by inserting
Tool No. EN 46112 into the access hole in the side of
the body.
19 Slowly release pressure on the primary timing chain tensioner. The primary timi ng chain tensioner should
remain compressed.
Figure 6A1 – 234
20 Install a new primary timing chain tensioner gasket (1) to the tensioner (2).
21 Install the primary timing chain tensioner bolts (3)
through tensioner and gasket.
22 Ensure the primary timi ng chain tensioner mounting
surface on the engine block does not have any burrs
or defects that would affe ct the sealing of the new
gasket.
Figure 6A1 – 235
23 Place the primary timing chain tensioner (2) into position and loosely install the bolts (1) to the engine
block.
Figure 6A1 – 236
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2940 of 6020

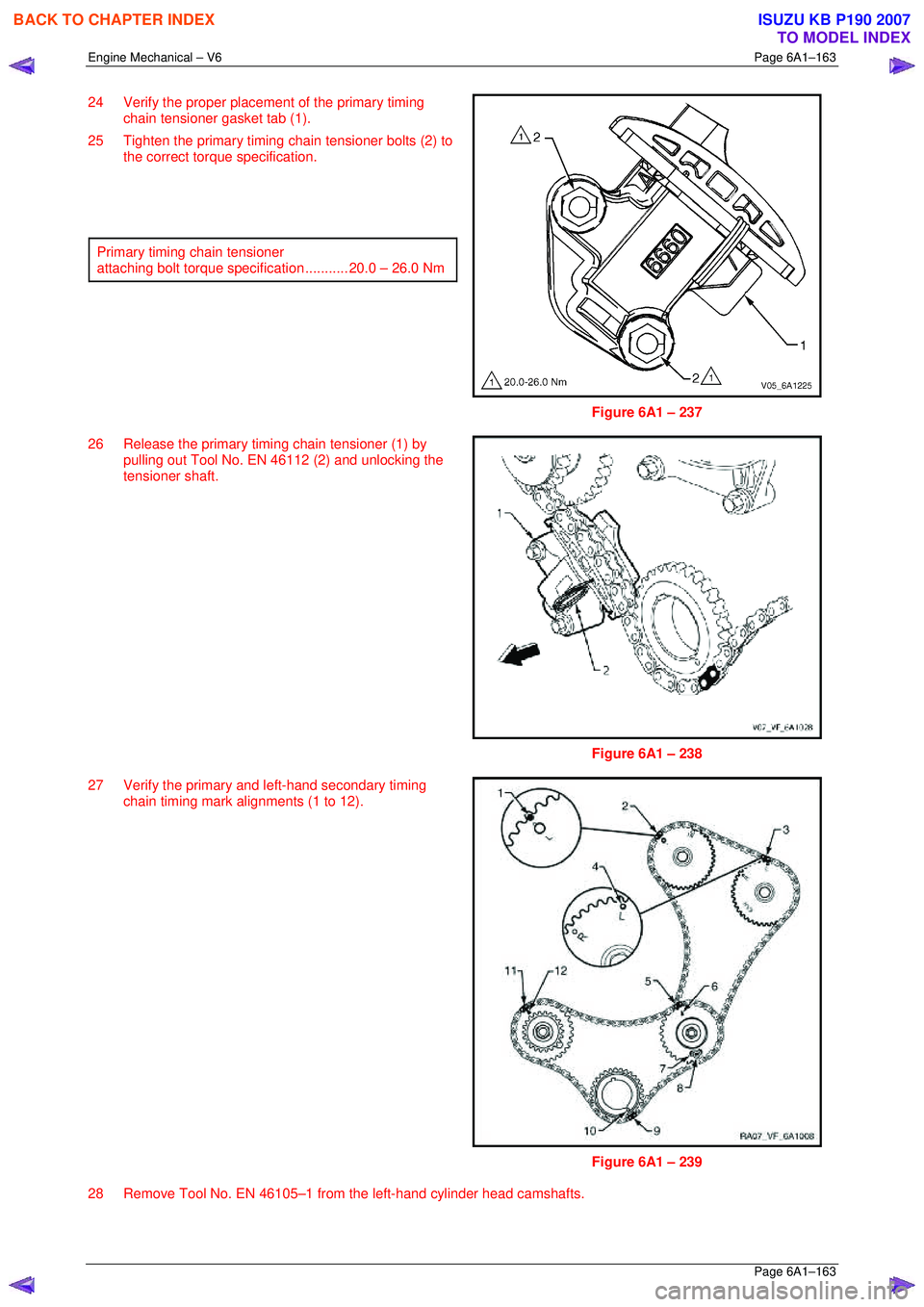

Engine Mechanical – V6 Page 6A1–163
Page 6A1–163
24 Verify the proper placement of the primary timing
chain tensioner gasket tab (1).
25 Tighten the primary timing c hain tensioner bolts (2) to
the correct torque specification.
Primary timing chain tensioner
attaching bolt torque spec ification ........... 20.0 – 26.0 Nm
Figure 6A1 – 237
26 Release the primary timing chain tensioner (1) by pulling out Tool No. EN 46112 (2) and unlocking the
tensioner shaft.
Figure 6A1 – 238
27 Verify the primary and left-hand secondary timing chain timing mark alignments (1 to 12).
Figure 6A1 – 239
28 Remove Tool No. EN 46105–1 from the left-hand cylinder head camshafts.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2941 of 6020

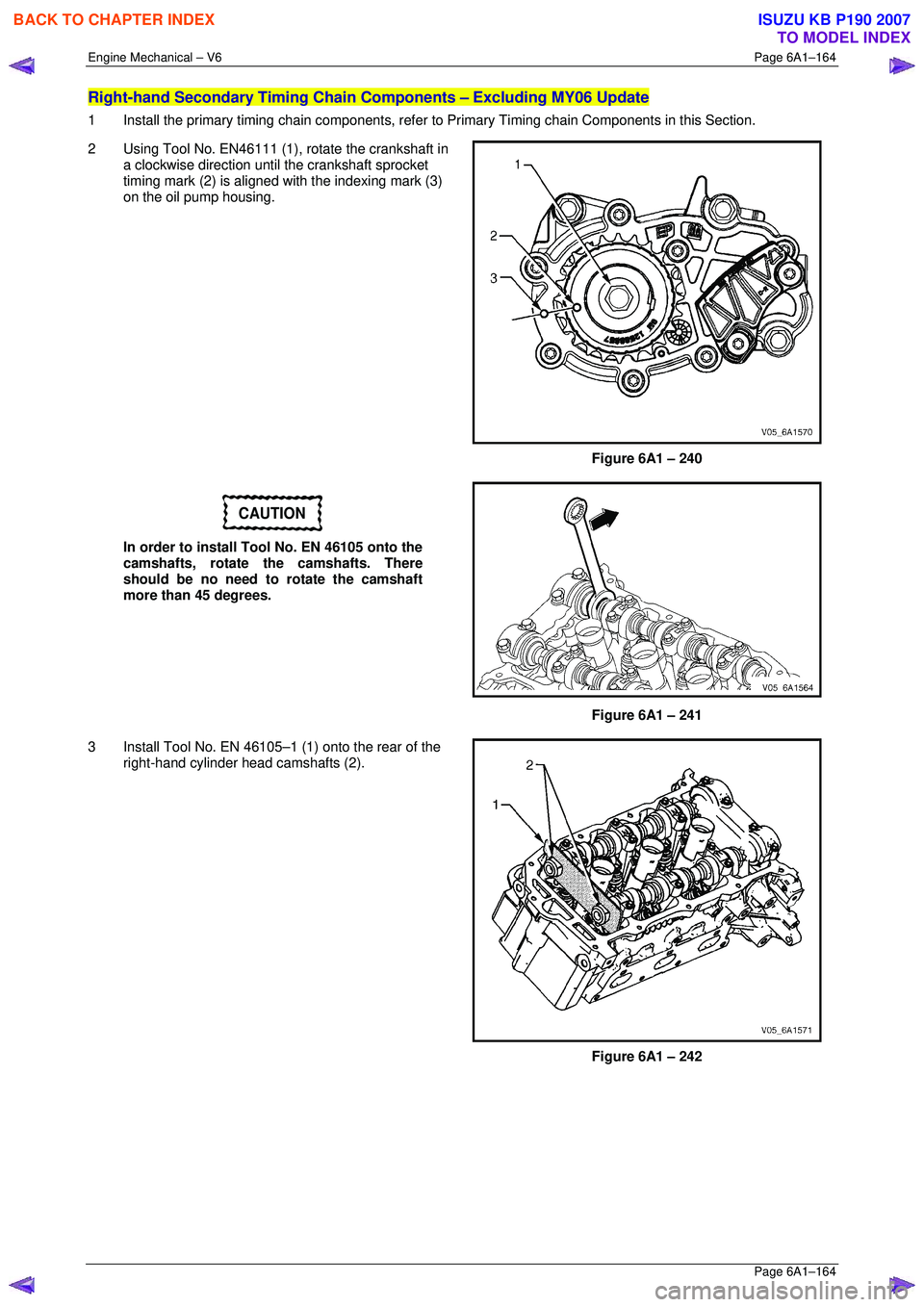

Engine Mechanical – V6 Page 6A1–164
Page 6A1–164
Right-hand Secondary Timing Chain Components – Excluding MY06 Update
1 Install the primary timing chain components, refer to Primary Timing chain Components in this Section.
2 Using Tool No. EN46111 (1), rotate the crankshaft in a clockwise direction until the crankshaft sprocket
timing mark (2) is aligned with the indexing mark (3)
on the oil pump housing.
Figure 6A1 – 240
CAUTION
In order to install Tool No. EN 46105 onto the
camshafts, rotate the camshafts. There
should be no need to rotate the camshaft
more than 45 degrees.
Figure 6A1 – 241
3 Install Tool No. EN 46105–1 (1) onto the rear of the right-hand cylinder head camshafts (2).
Figure 6A1 – 242
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2942 of 6020
Engine Mechanical – V6 Page 6A1–165
Page 6A1–165
4 Install Tool No. EN 46105–2 (1) onto the rear of the
left-hand cylinder head camshafts (2).
Figure 6A1 – 243
5 Install the right-hand sec ondary timing chain (1) onto
the camshaft sprockets (2) and the right hand
camshaft intermediate sprocket (3) aligning the chain
in the following manner:
Figure 6A1 – 244
6 Place the secondary timi ng chain around the right-
hand camshaft intermediate outer sprocket, aligning
the bright plated timing chain link (1) with the
alignment access hole (2) in the inner sprocket.
Figure 6A1 – 245
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2943 of 6020

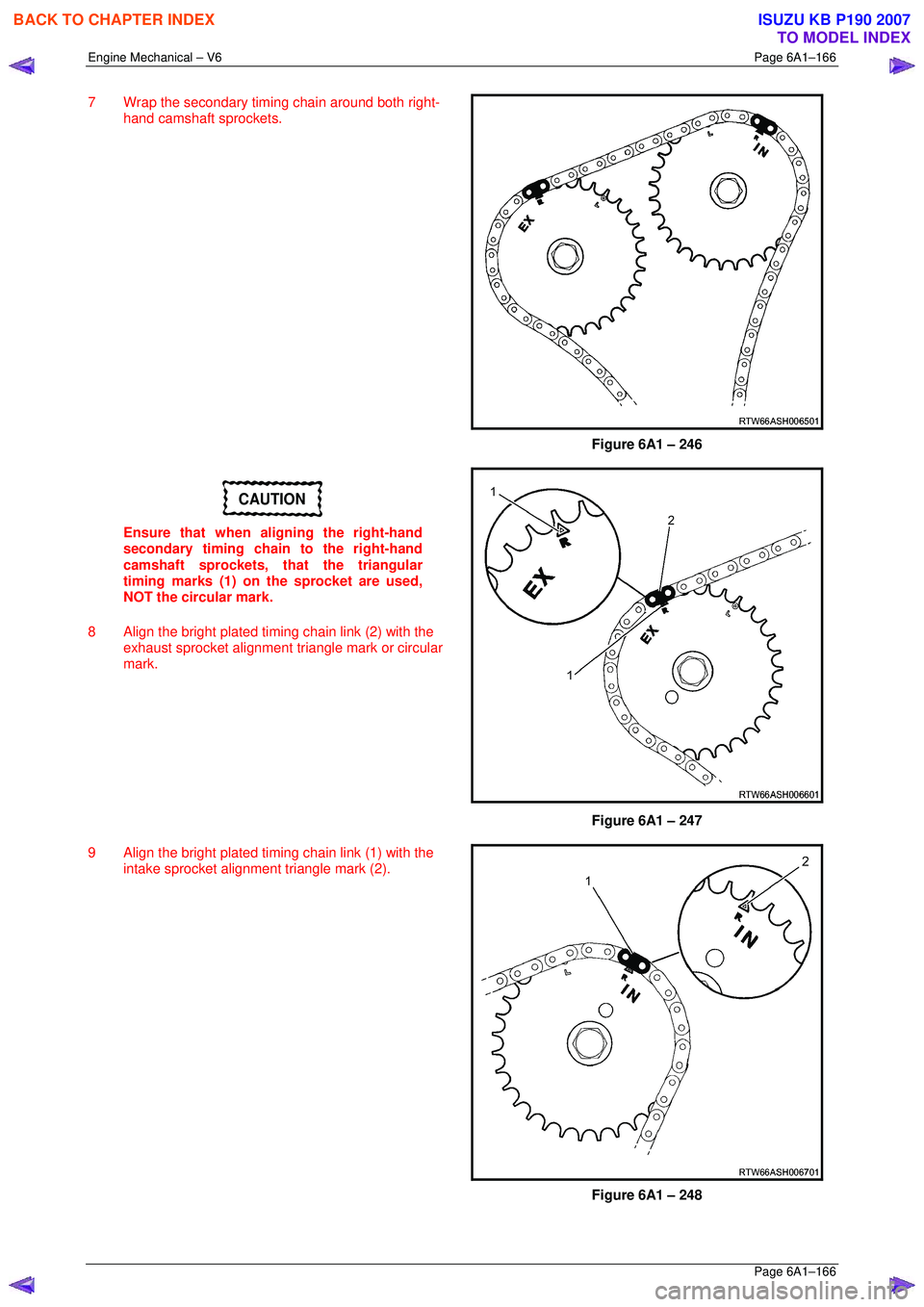

Engine Mechanical – V6 Page 6A1–166
Page 6A1–166
7 Wrap the secondary timing chain around both right-
hand camshaft sprockets.
Figure 6A1 – 246
CAUTION
Ensure that when aligning the right-hand
secondary timing chain to the right-hand
camshaft sprockets, th at the triangular
timing marks (1) on the sprocket are used,
NOT the circular mark.
8 Align the bright plated timing chain link (2) with the exhaust sprocket alignment triangle mark or circular
mark.
Figure 6A1 – 247
9 Align the bright plated timing chain link (1) with the intake sprocket alignment triangle mark (2).
Figure 6A1 – 248
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 2944 of 6020

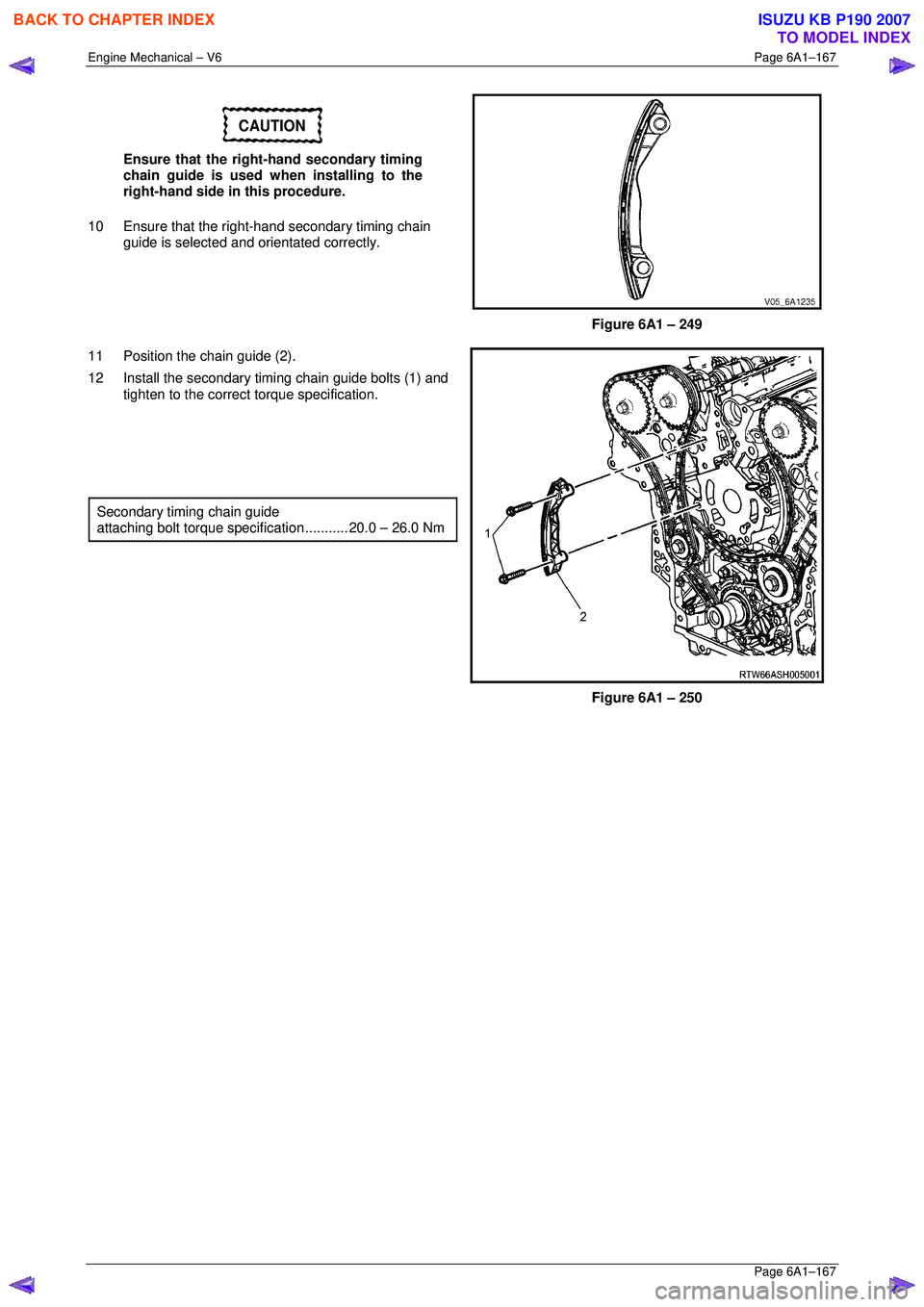

Engine Mechanical – V6 Page 6A1–167
Page 6A1–167
CAUTION
Ensure that the right-hand secondary timing
chain guide is used when installing to the
right-hand side in this procedure.
10 Ensure that the right -hand secondary timing chain
guide is selected and orientated correctly.
Figure 6A1 – 249
11 Position the chain guide (2).
12 Install the secondary timing chain guide bolts (1) and tighten to the correct torque specification.
Secondary timing chain guide
attaching bolt torque spec ification ........... 20.0 – 26.0 Nm
Figure 6A1 – 250
