ELECTRICAL-BODY AND CHASSIS 8A-191

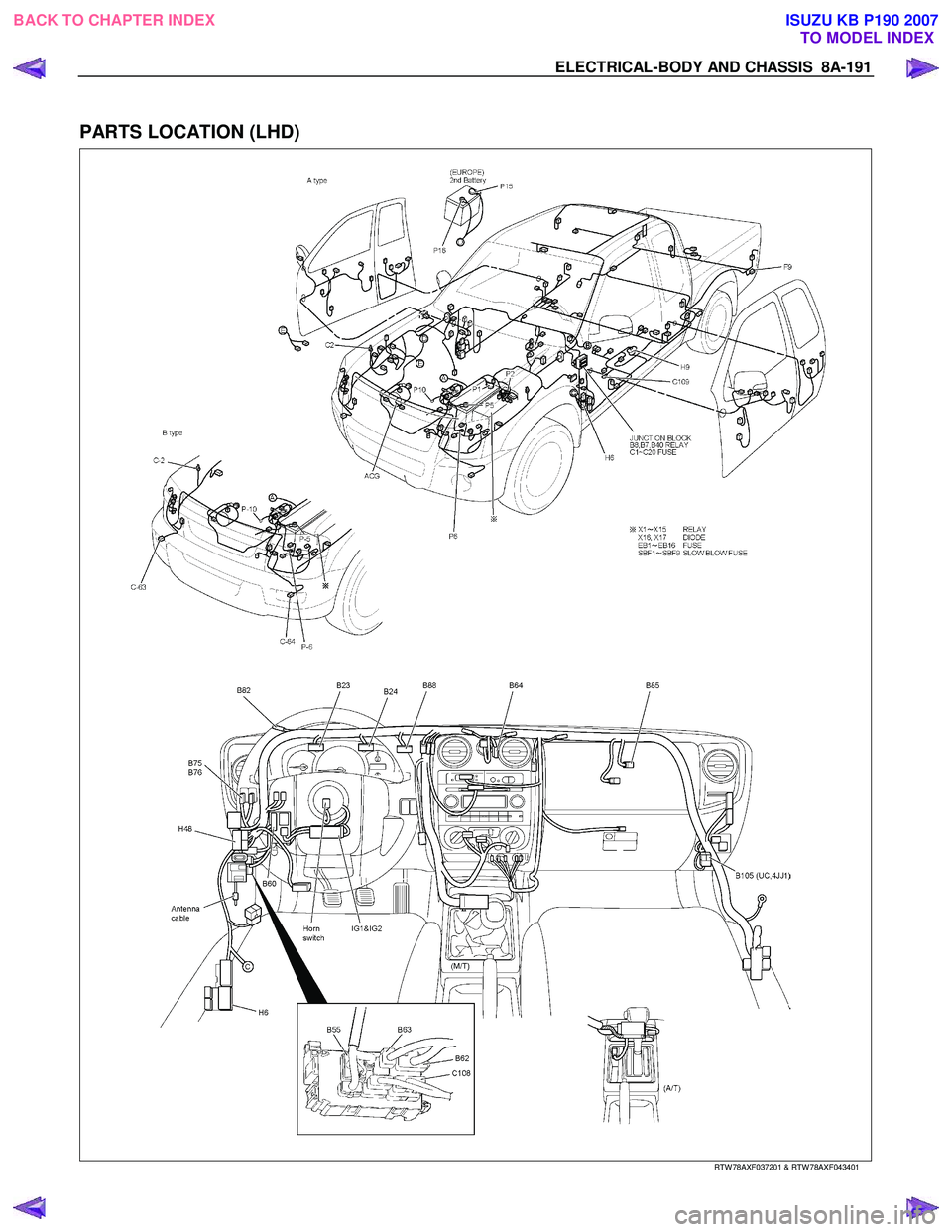

PARTS LOCATION (LHD)
RTW 78AXF037201 & RTW 78AXF043401
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5130 of 6020
8A-192 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (LHD) G.EXP
RTW 78AXF023101
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5131 of 6020

ELECTRICAL-BODY AND CHASSIS 8A-193
RTW 48ASH000701
REAR FOG LIGHT
Removal
1. Remove the screws 1.
2. Remove the lens cover
2.
3. Rear fog push turn the bulb
3 counterclockwise to
disconnect it from the light housing.
Installation
Follow the removal procedure in the reverse order to install the
rear fog light.
Pay close attention to the important points mentioned in the
following paragraphs.
Bulb
Be absolutely sure that the license plate light bulb is correctly
installed.
This will prevent a poor contact and open circuit.
RTW 78ASH000401
FRONT FOG & RR FOG SWITCH
RTW 48ASH000401
Inspection
Check to see if there is any continuity between the terminals of
the leveling switch.
Replace the switch when the result of inspection is found
abnormal.
Removal
Preparation:
Disconnect the battery ground cable.
1. Ventilation grille
2. Harness connector
3. Front fog light & Rear fog light switch To remove the switch, push the lock from the back side of
the cluster assembly.
4. Remove the bulb.
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5132 of 6020
8A-194 ELECTRICAL-BODY AND CHASSIS
HEADLIGHT LEVELING

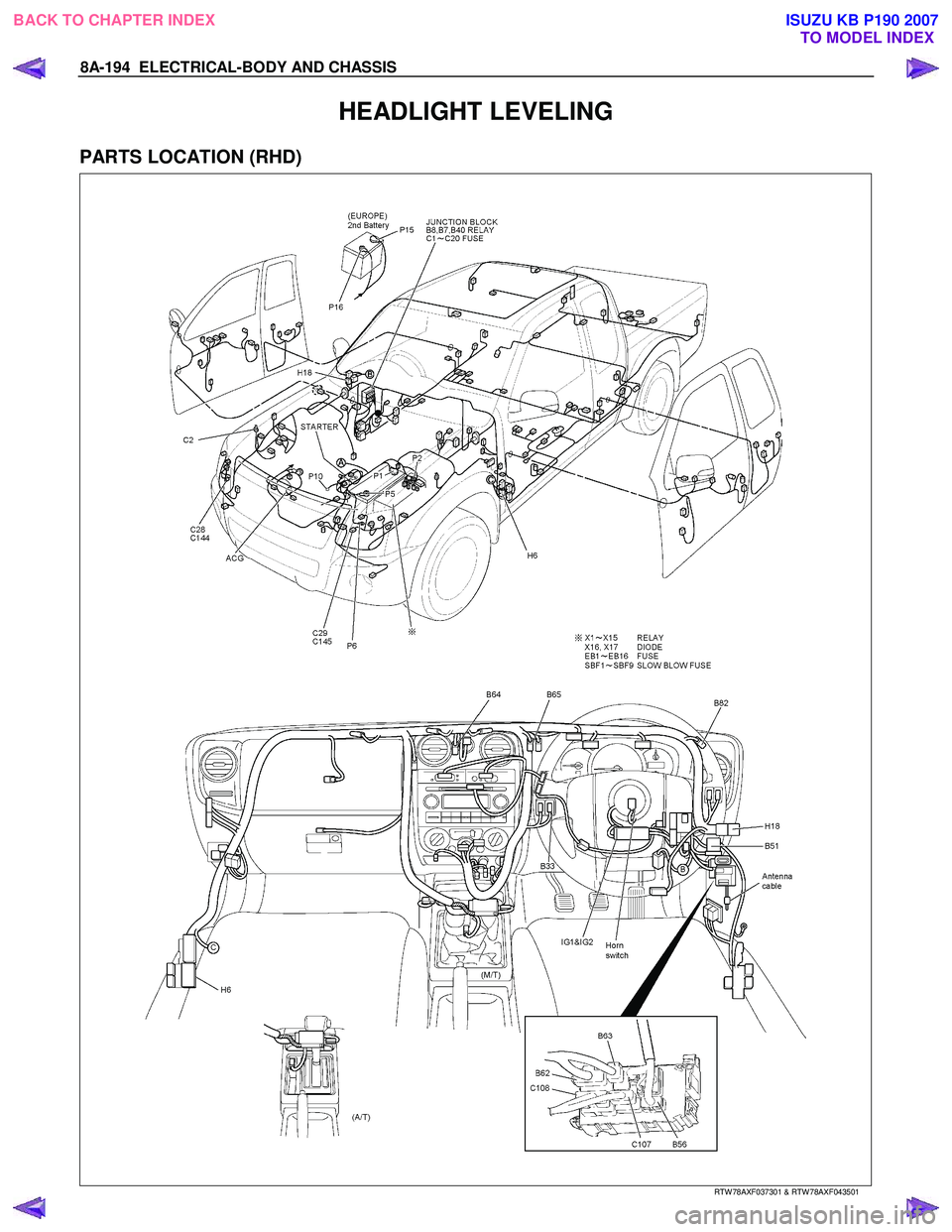

PARTS LOCATION (RHD)
RTW 78AXF037301 & RTW 78AXF043501
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5133 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-195

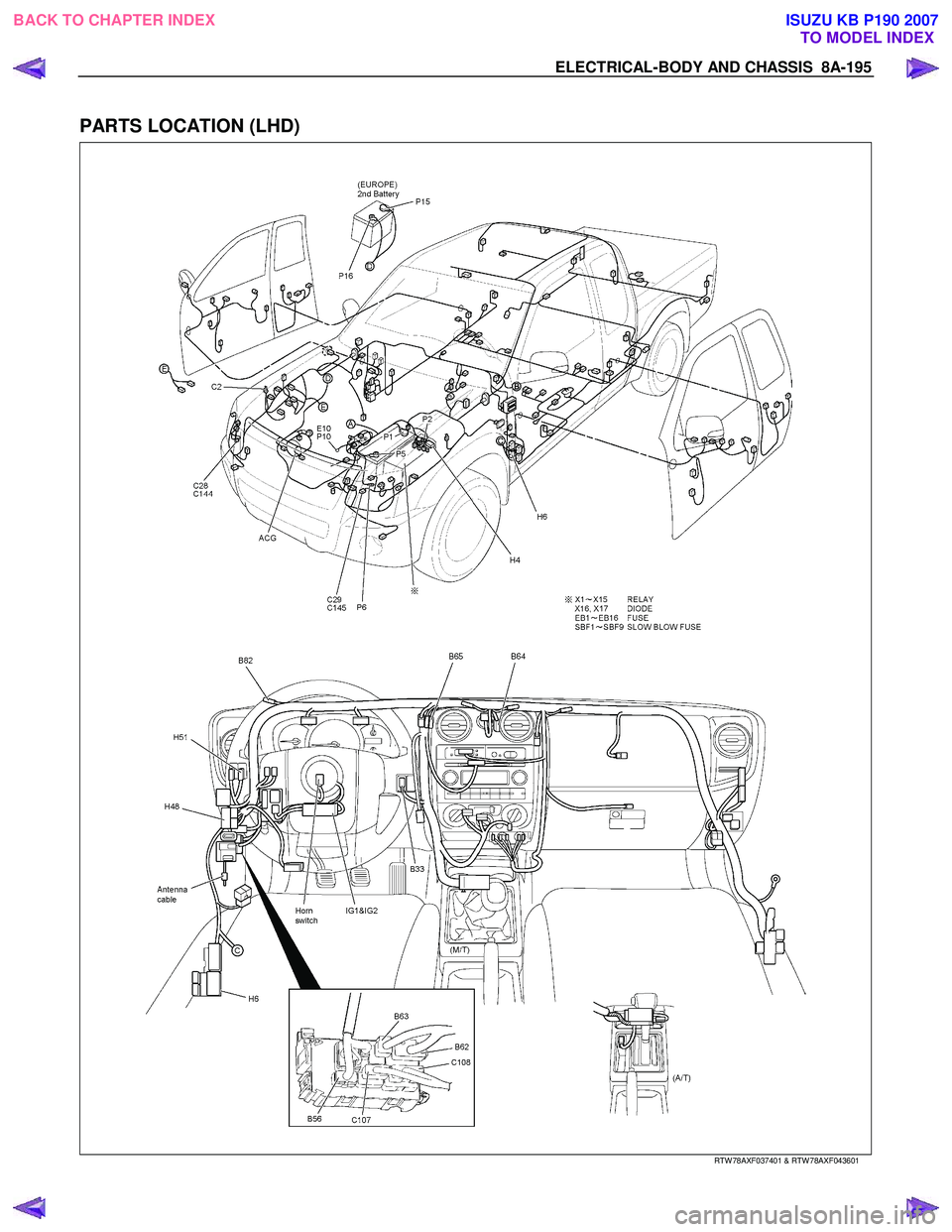

PARTS LOCATION (LHD)
