Page 5825 of 6020
CAB 10-67

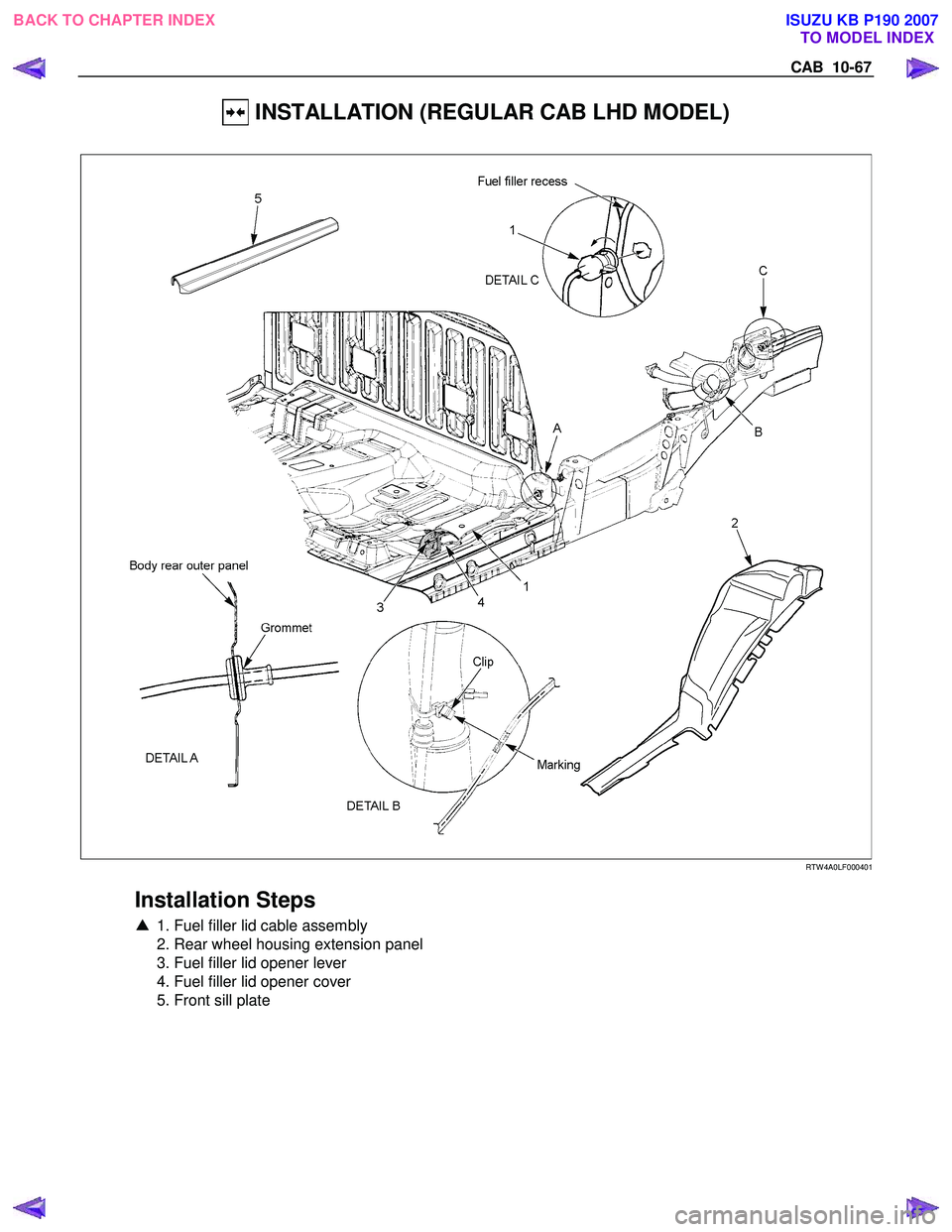

INSTALLATION (REGULAR CAB LHD MODEL)
RTW 4A0LF000401
Installation Steps
▲ 1. Fuel filler lid cable assembly
2. Rear wheel housing extension panel
3. Fuel filler lid opener lever
4. Fuel filler lid opener cover
5. Front sill plate
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5826 of 6020
10-68 CAB

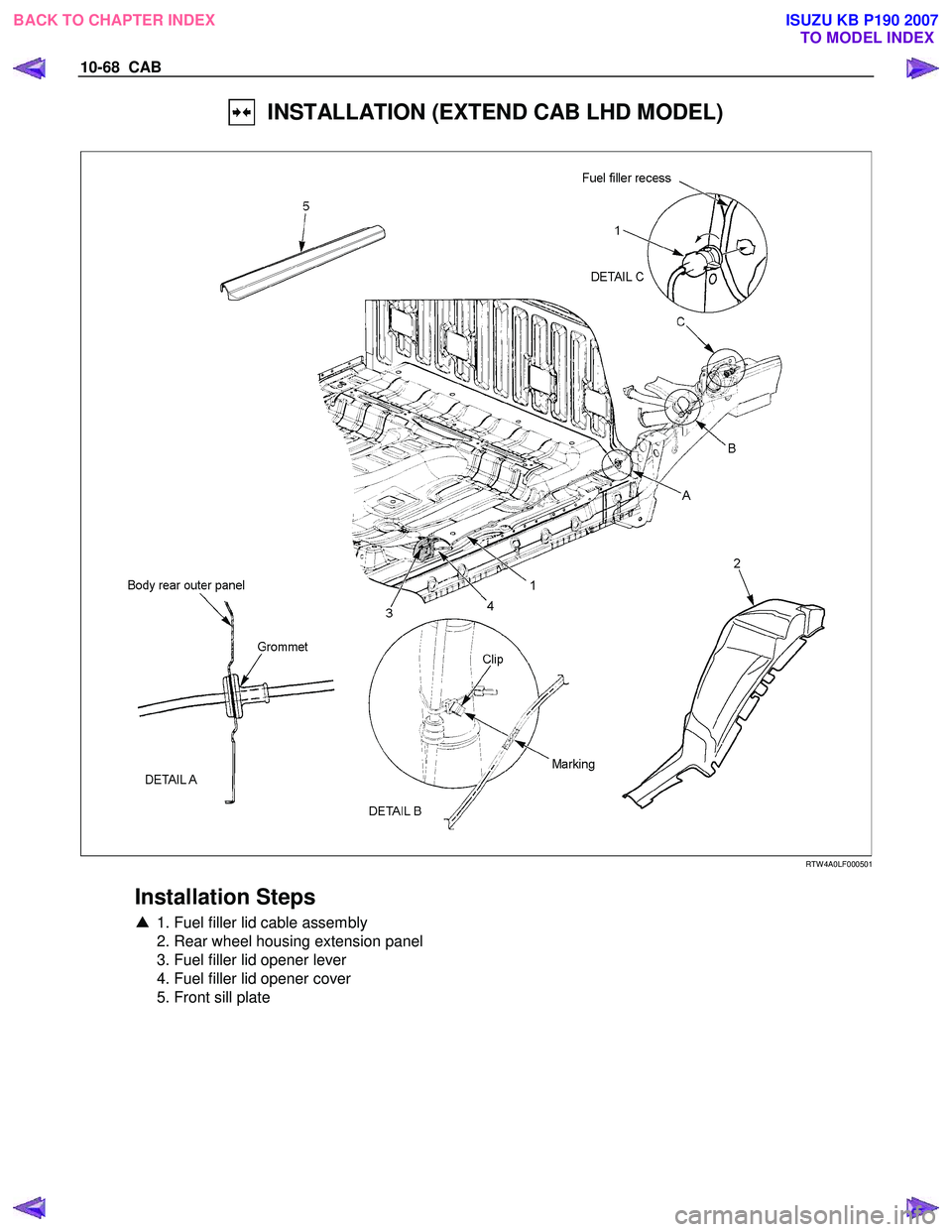

INSTALLATION (EXTEND CAB LHD MODEL)
RTW 4A0LF000501
Installation Steps
▲ 1. Fuel filler lid cable assembly
2. Rear wheel housing extension panel
3. Fuel filler lid opener lever
4. Fuel filler lid opener cover
5. Front sill plate
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5827 of 6020
CAB 10-69

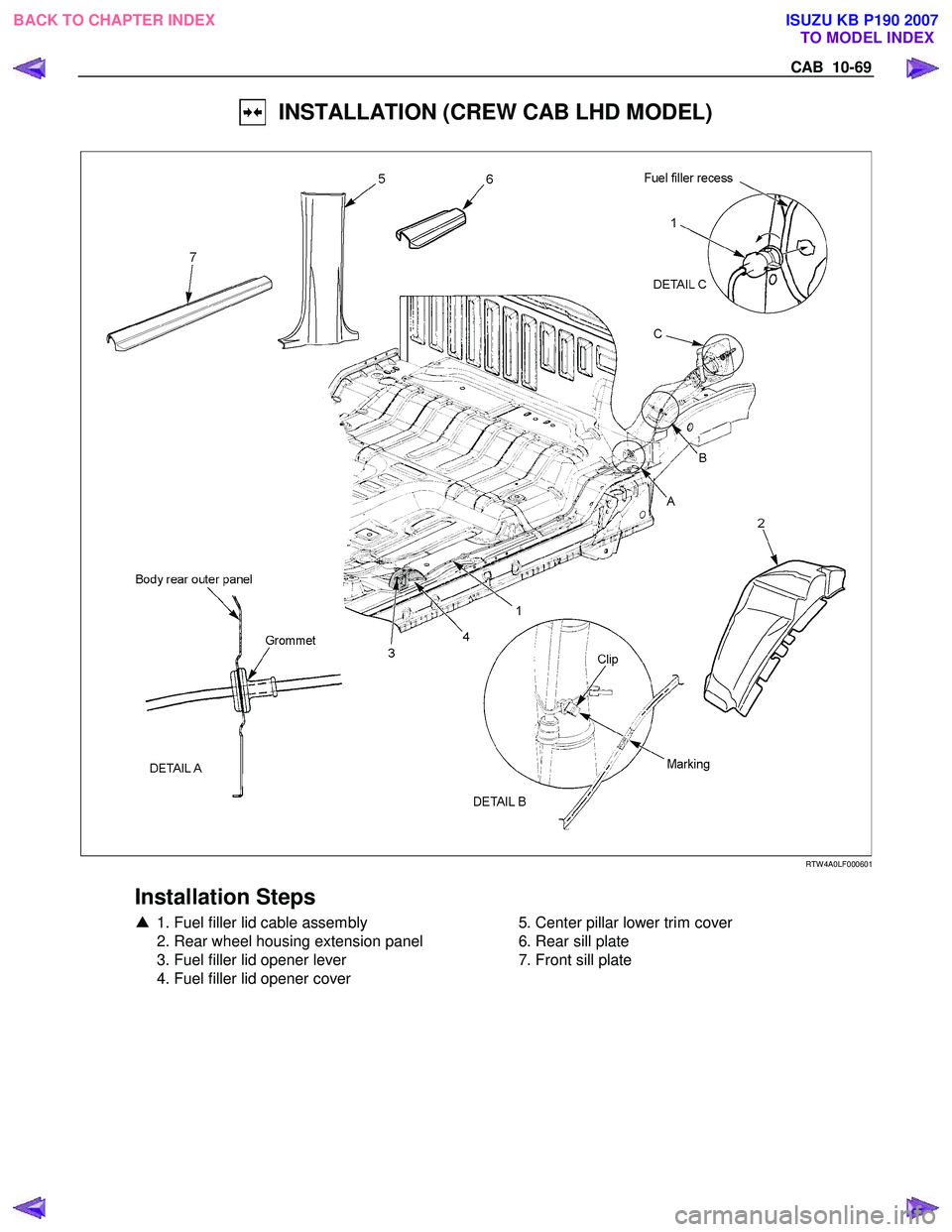

INSTALLATION (CREW CAB LHD MODEL)
RTW 4A0LF000601
Installation Steps
▲ 1. Fuel filler lid cable assembly
2. Rear wheel housing extension panel
3. Fuel filler lid opener lever
4. Fuel filler lid opener cover
5. Center pillar lower trim cover
6. Rear sill plate
7. Front sill plate
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5828 of 6020
10-70 CAB

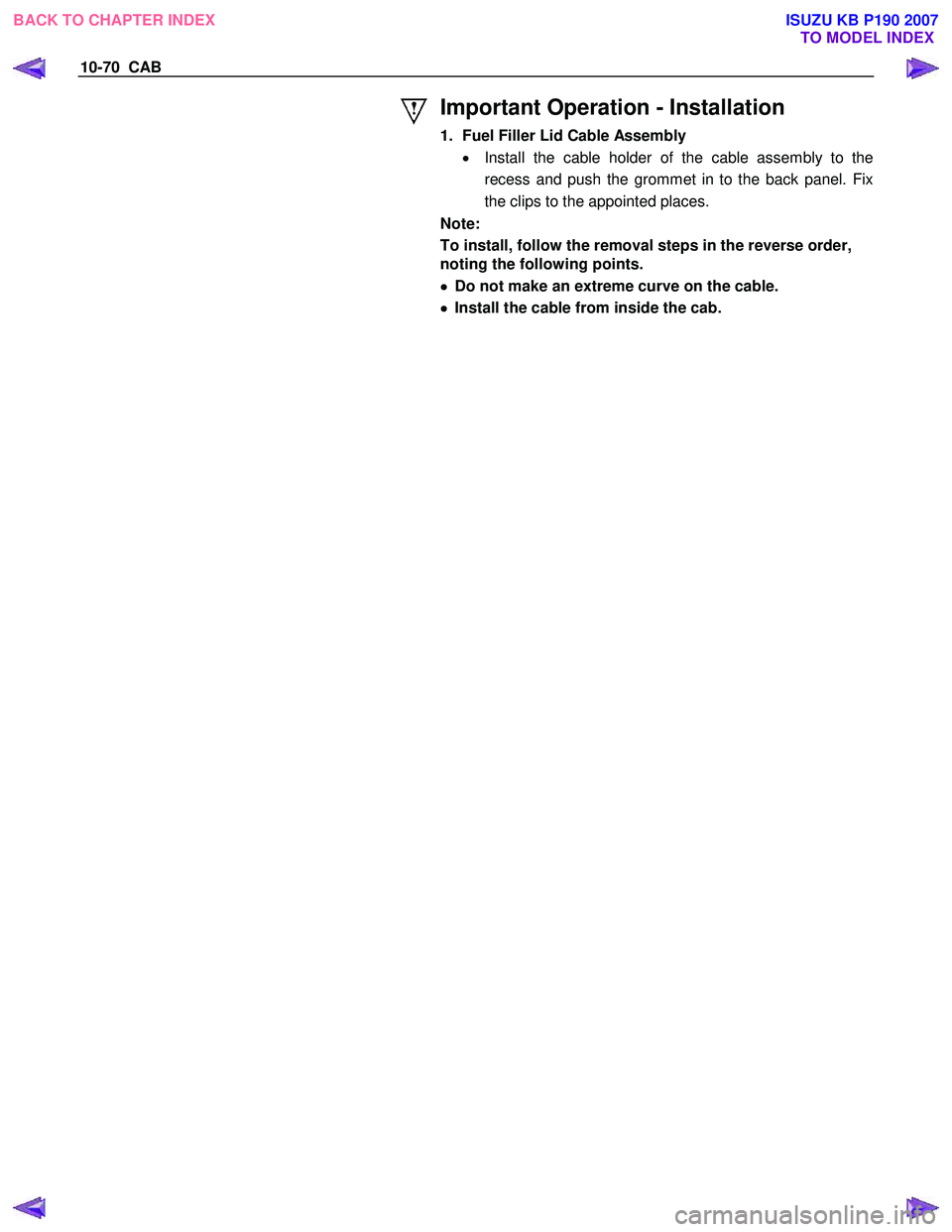

Important Operation - Installation
1. Fuel Filler Lid Cable Assembly • Install the cable holder of the cable assembly to the
recess and push the grommet in to the back panel. Fix
the clips to the appointed places.
Note:
To install, follow the removal steps in the reverse order,
noting the following points.
•
••
•
Do not make an extreme curve on the cable.
•
••
•
Install the cable from inside the cab.
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5829 of 6020
CAB 10-71

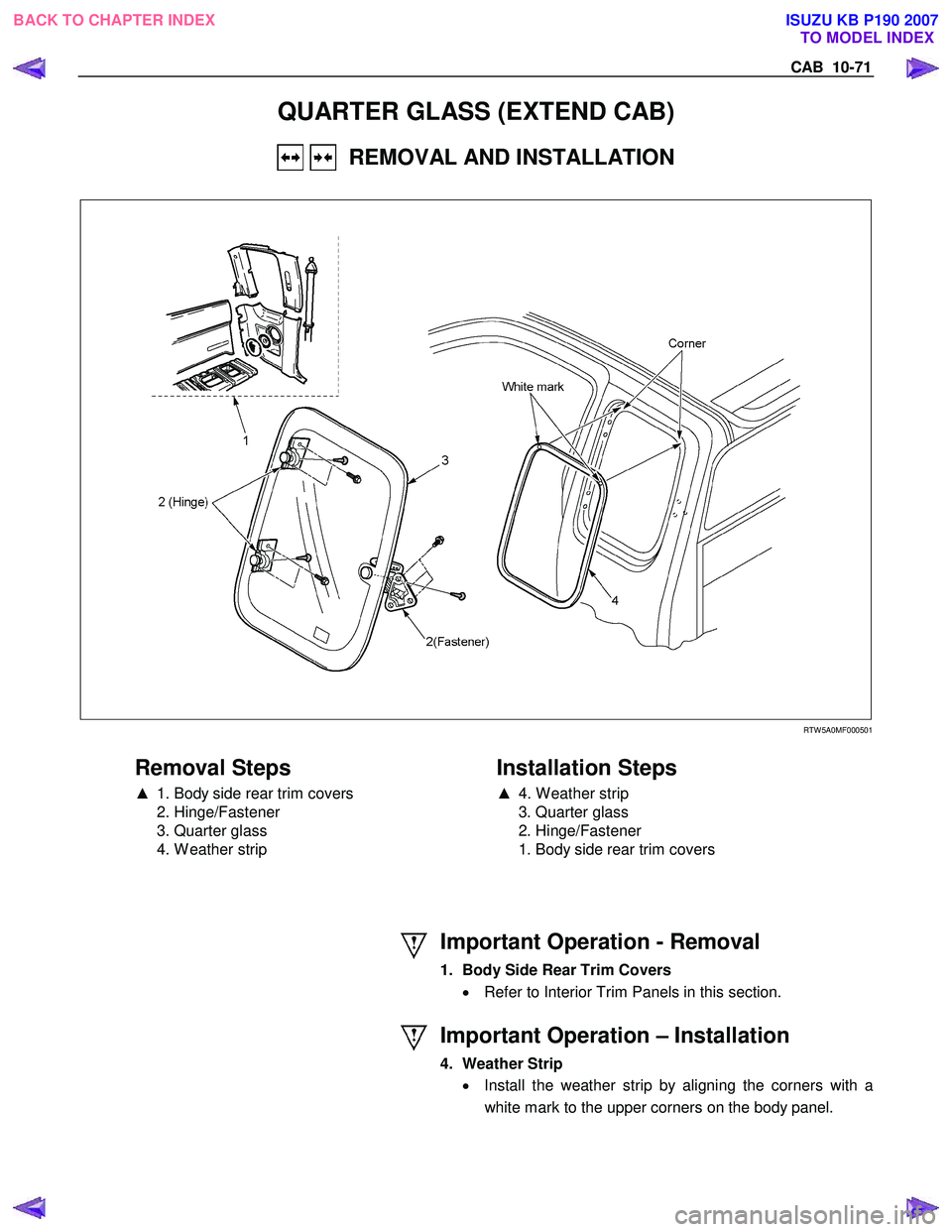

QUARTER GLASS (EXTEND CAB)
REMOVAL AND INSTALLATION
RTW 5A0MF000501
Removal Steps
▲ 1. Body side rear trim covers
2. Hinge/Fastener
3. Quarter glass
4. W eather strip
Installation Steps
▲
4. W eather strip
3. Quarter glass
2. Hinge/Fastener
1. Body side rear trim covers
Important Operation - Removal
1. Body Side Rear Trim Covers • Refer to Interior Trim Panels in this section.
Important Operation – Installation
4. Weather Strip • Install the weather strip by aligning the corners with a
white mark to the upper corners on the body panel.
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5830 of 6020
10-72 CAB

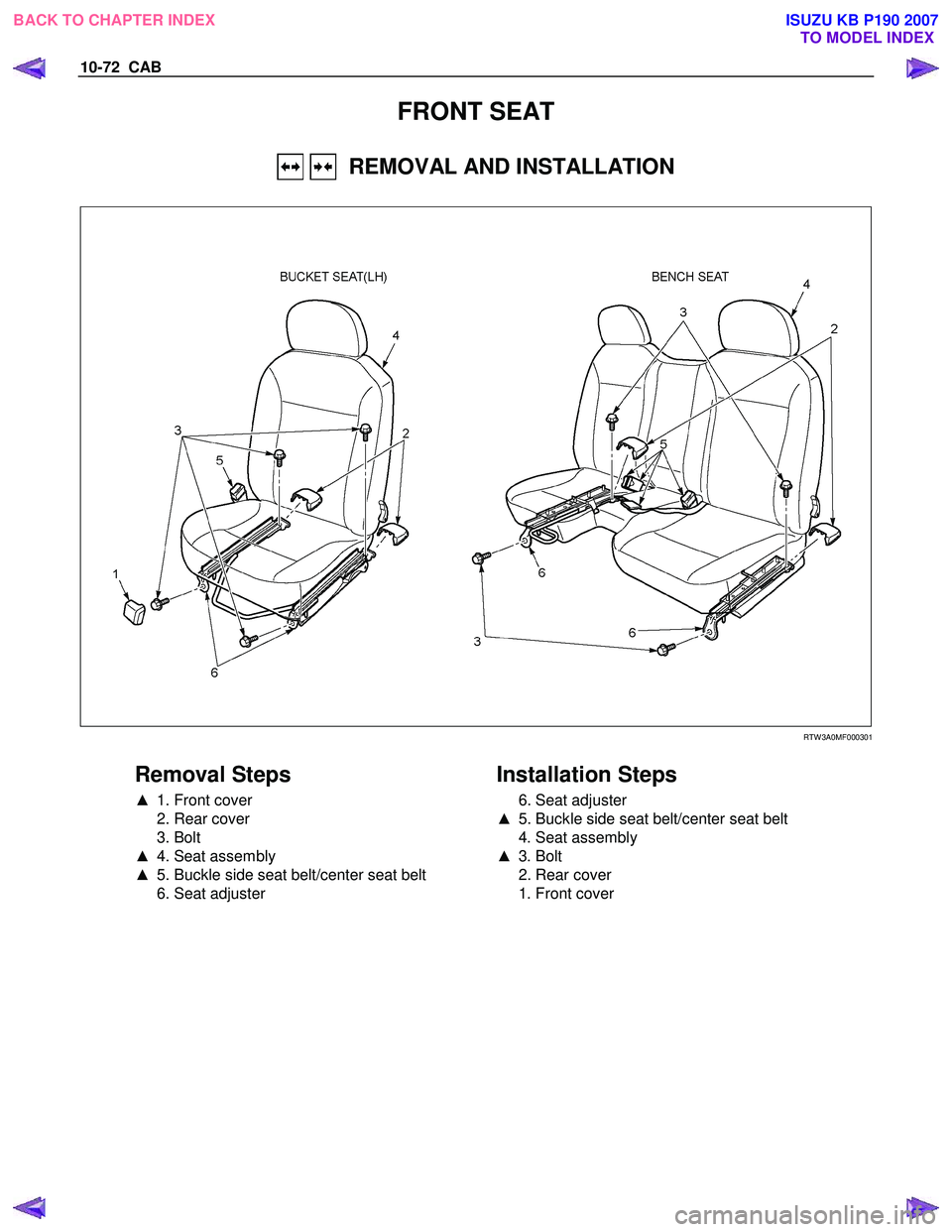

FRONT SEAT
REMOVAL AND INSTALLATION
RTW 3A0MF000301
Removal Steps
▲ 1. Front cover
2. Rear cover
3. Bolt
▲ 4. Seat assembly
▲ 5. Buckle side seat belt/center seat belt
6. Seat adjuster
Installation Steps
6. Seat adjuster
▲ 5. Buckle side seat belt/center seat belt
4. Seat assembly
▲ 3. Bolt
2. Rear cover
1. Front cover
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5831 of 6020
CAB 10-73

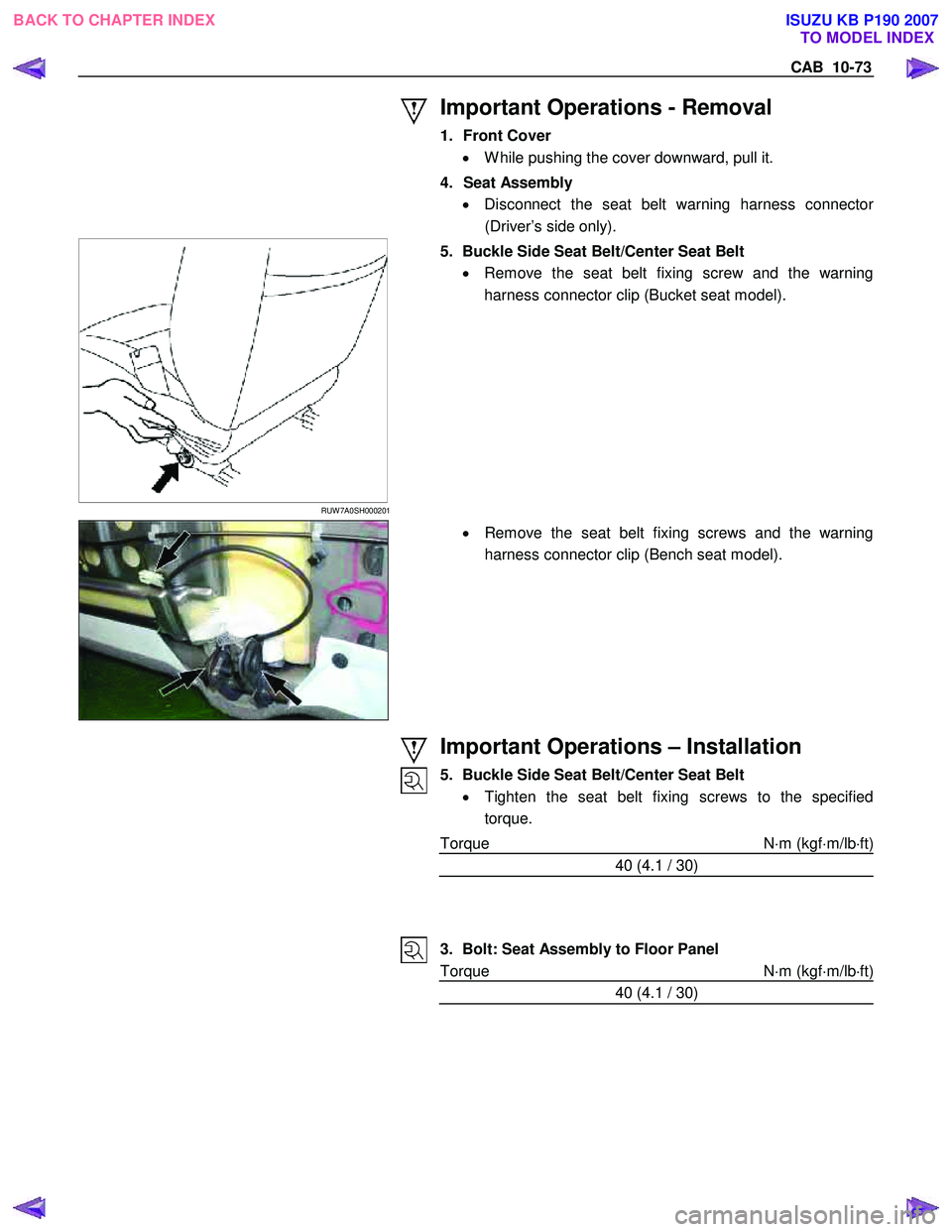

Important Operations - Removal
1. Front Cover • W hile pushing the cover downward, pull it.
4. Seat Assembly • Disconnect the seat belt warning harness connecto
r
(Driver’s side only).
RUW 7A0SH000201
5. Buckle Side Seat Belt/Center Seat Belt
• Remove the seat belt fixing screw and the warning
harness connector clip (Bucket seat model).
• Remove the seat belt fixing screws and the warning
harness connector clip (Bench seat model).
Important Operations – Installation
5. Buckle Side Seat Belt/Center Seat Belt • Tighten the seat belt fixing screws to the specified
torque.
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
40 (4.1 / 30)
3. Bolt: Seat Assembly to Floor Panel
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
40 (4.1 / 30)
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5832 of 6020
10-74 CAB

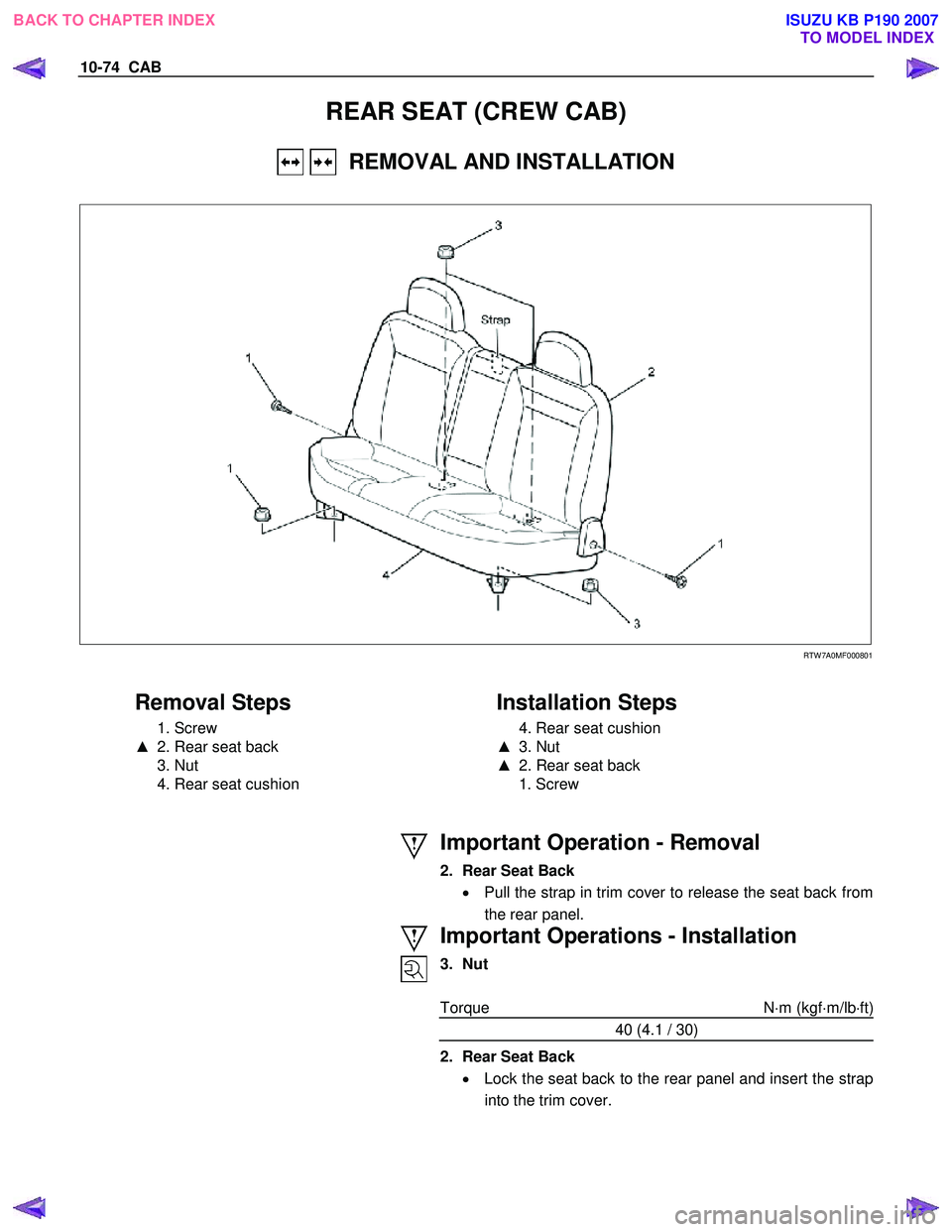

REAR SEAT (CREW CAB)
REMOVAL AND INSTALLATION
RTW 7A0MF000801
Removal Steps
1. Screw
▲ 2. Rear seat back
3. Nut
4. Rear seat cushion
Installation Steps
4. Rear seat cushion
▲ 3. Nut
▲ 2. Rear seat back
1. Screw
Important Operation - Removal
2. Rear Seat Back • Pull the strap in trim cover to release the seat back from
the rear panel.
Important Operations - Installation
3. Nut
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
40 (4.1 / 30)
2. Rear Seat Back • Lock the seat back to the rear panel and insert the strap
into the trim cover.
BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
