Page 5801 of 6020

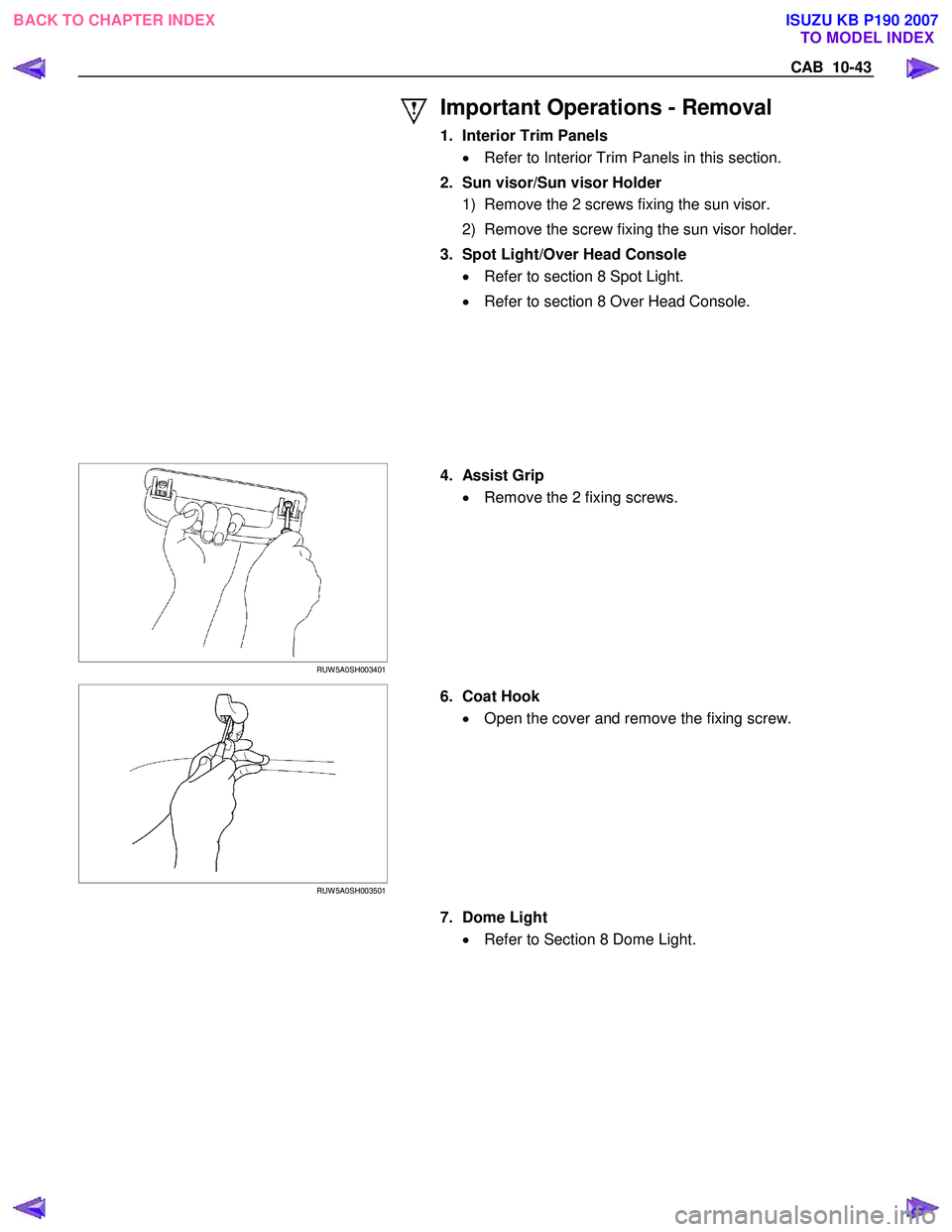

ISUZU KB P190 2007 Workshop Repair Manual CAB 10-43 Important Operations - Removal 1. Interior Trim Panels • Refer to Interior Trim Panels in this section. 2. Sun visor/Sun visor Holder 1) Remove the 2 screws fixing the sun vi

Page 5802 of 6020

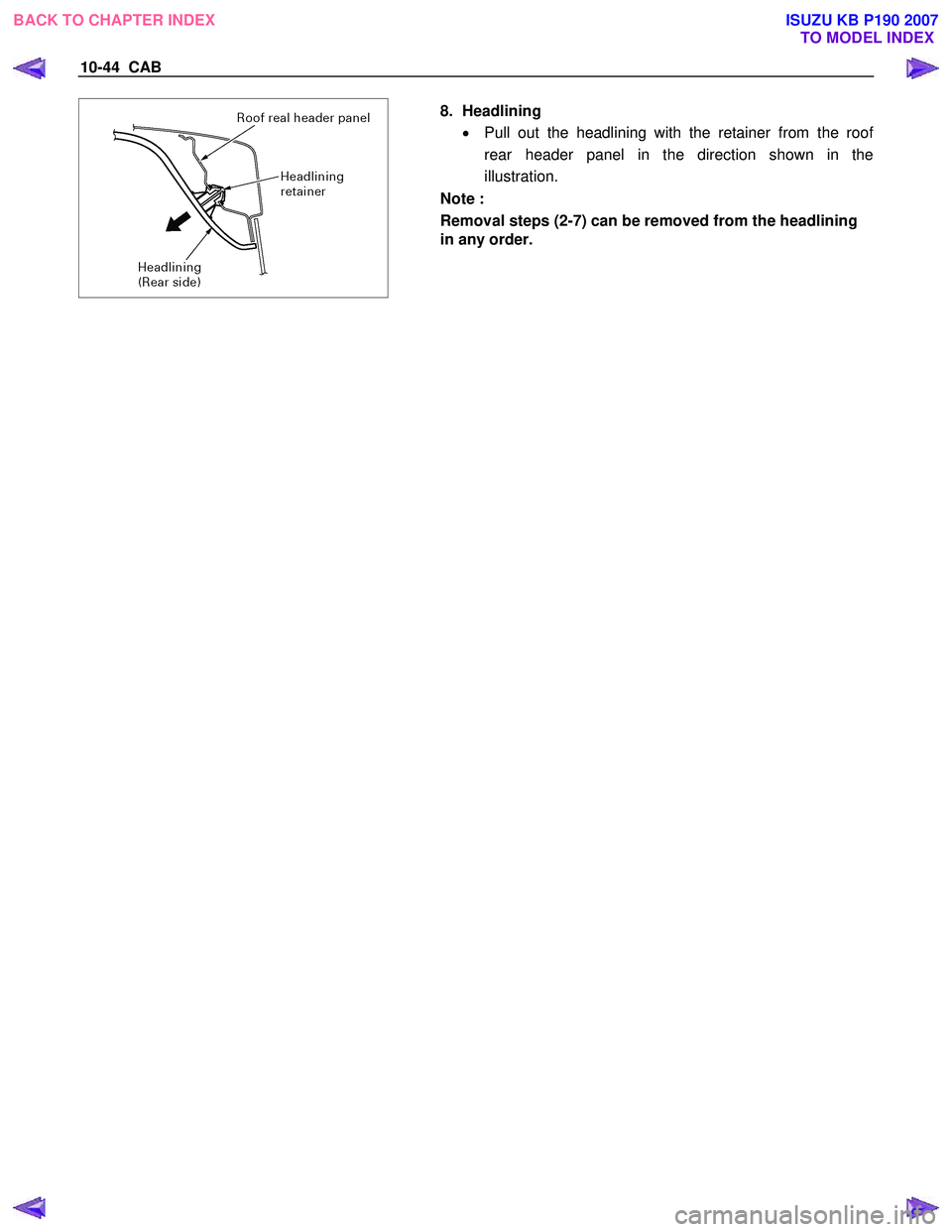

ISUZU KB P190 2007 Workshop Repair Manual 10-44 CAB 8. Headlining • Pull out the headlining with the retainer from the roo f rear header panel in the direction shown in the illustration. Note : Removal steps (2-7) can be removed fr

Page 5803 of 6020

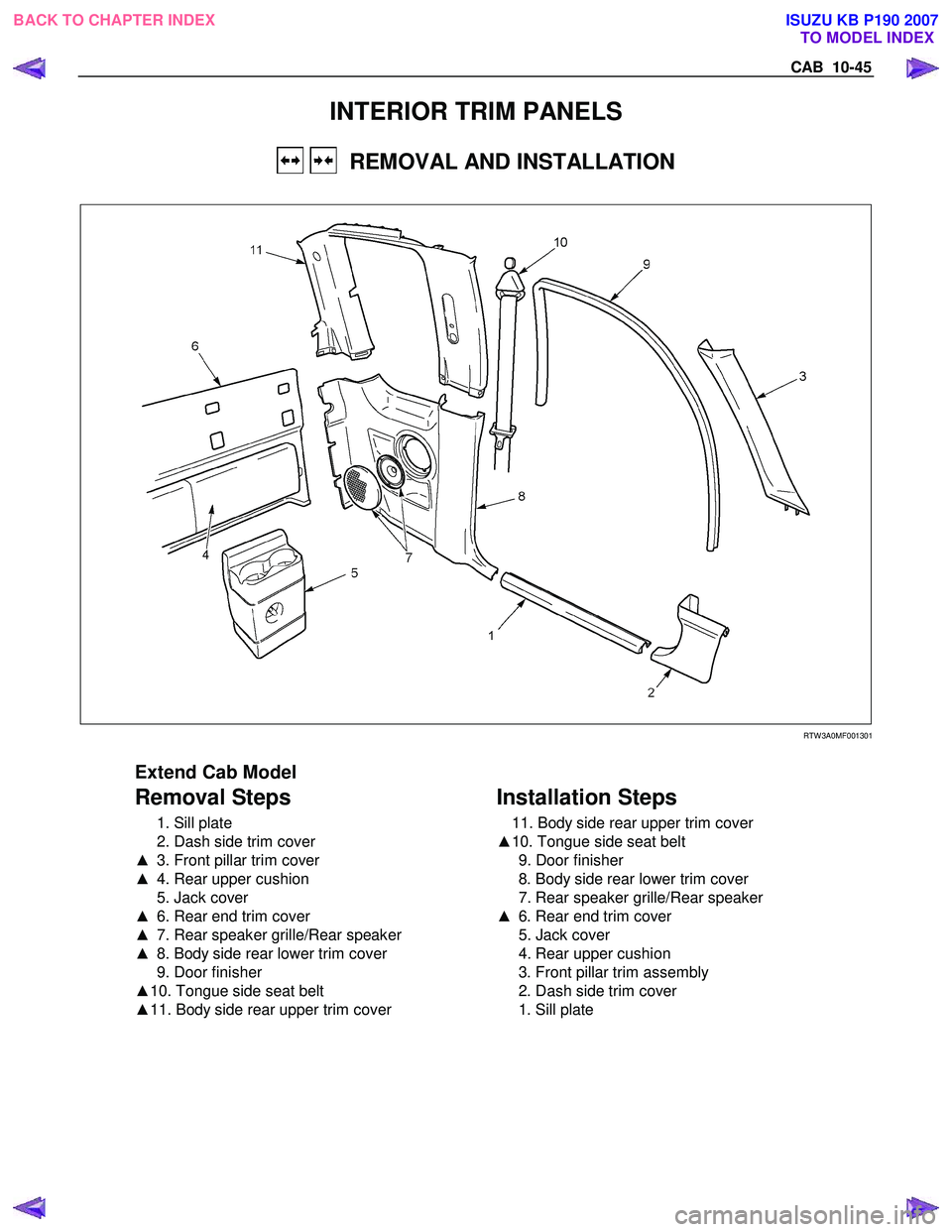

ISUZU KB P190 2007 Workshop Repair Manual CAB 10-45 INTERIOR TRIM PANELS REMOVAL AND INSTALLATION RTW 3A0MF001301 Extend Cab Model Removal Steps 1. Sill plate 2. Dash side trim cover ▲ 3. Front pillar trim cover

Page 5804 of 6020

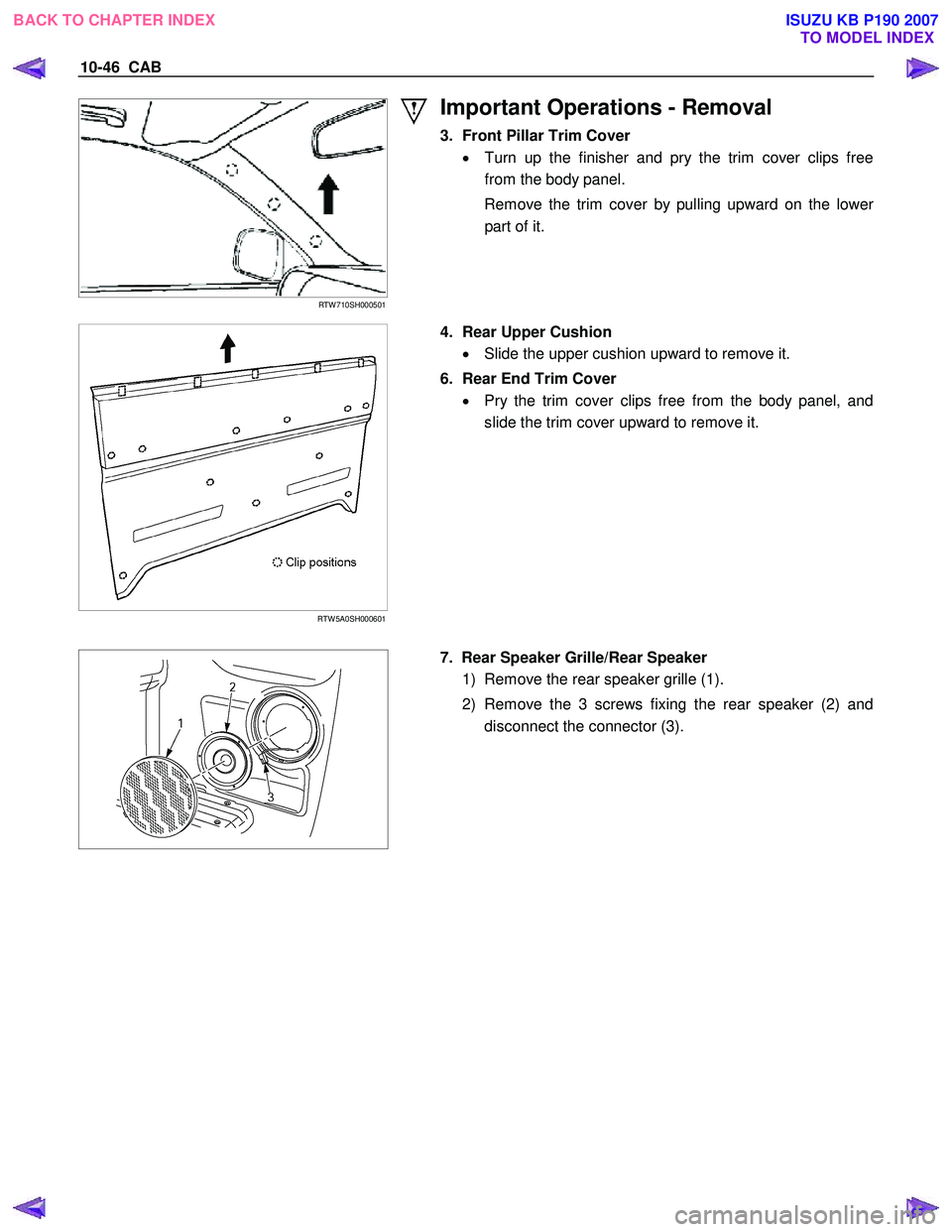

ISUZU KB P190 2007 Workshop Repair Manual 10-46 CAB RTW 710SH000501 Important Operations - Removal 3. Front Pillar Trim Cover • Turn up the finisher and pry the trim cover clips free from the body panel. Remove the trim cover by

Page 5805 of 6020

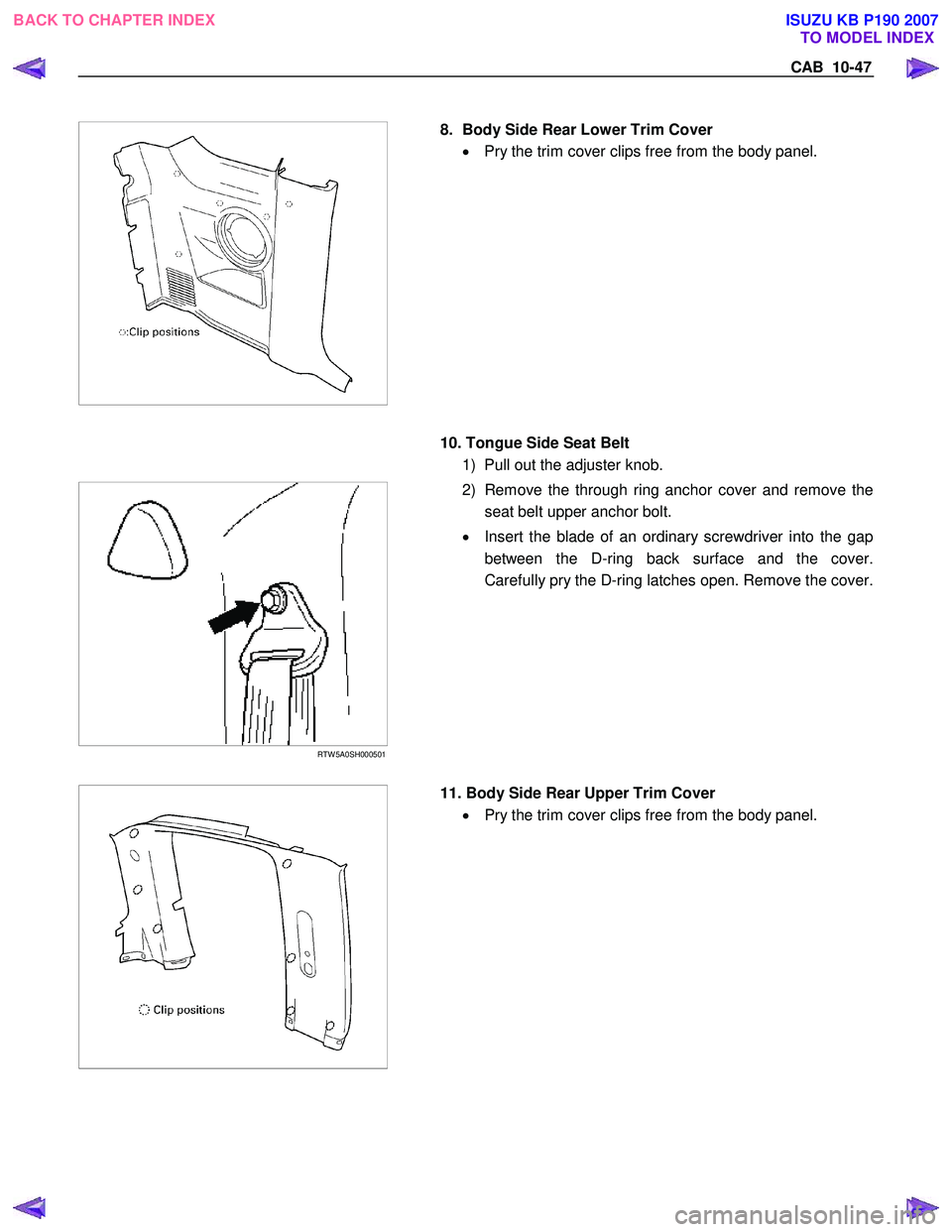

ISUZU KB P190 2007 Workshop Repair Manual CAB 10-47 8. Body Side Rear Lower Trim Cover • Pry the trim cover clips free from the body panel. 10. Tongue Side Seat Belt 1) Pull out the adjuster knob. RTW 5A0SH000501

Page 5806 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 10-48 CAB Important Operations - Installation 10. Tongue Side Seat Belt • Tighten the seat belt upper anchor bolt to the specified torque. Torque N ⋅m (kgf ⋅m/lb ⋅ft) 40 (4.1/30)

Page 5807 of 6020

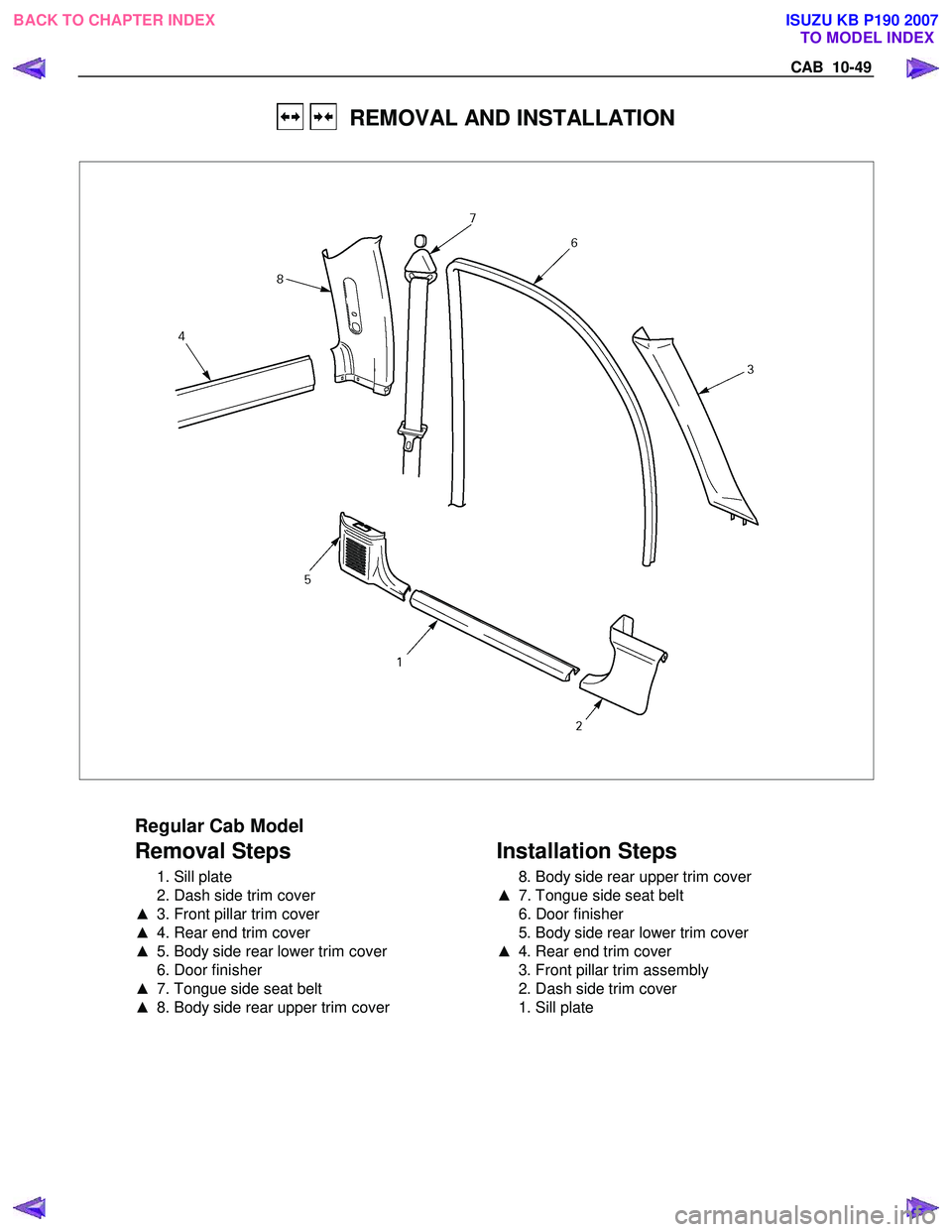

ISUZU KB P190 2007 Workshop Repair Manual CAB 10-49 REMOVAL AND INSTALLATION Regular Cab Model Removal Steps 1. Sill plate 2. Dash side trim cover ▲ 3. Front pillar trim cover ▲ 4. Rear end trim cover ▲ 5

Page 5808 of 6020

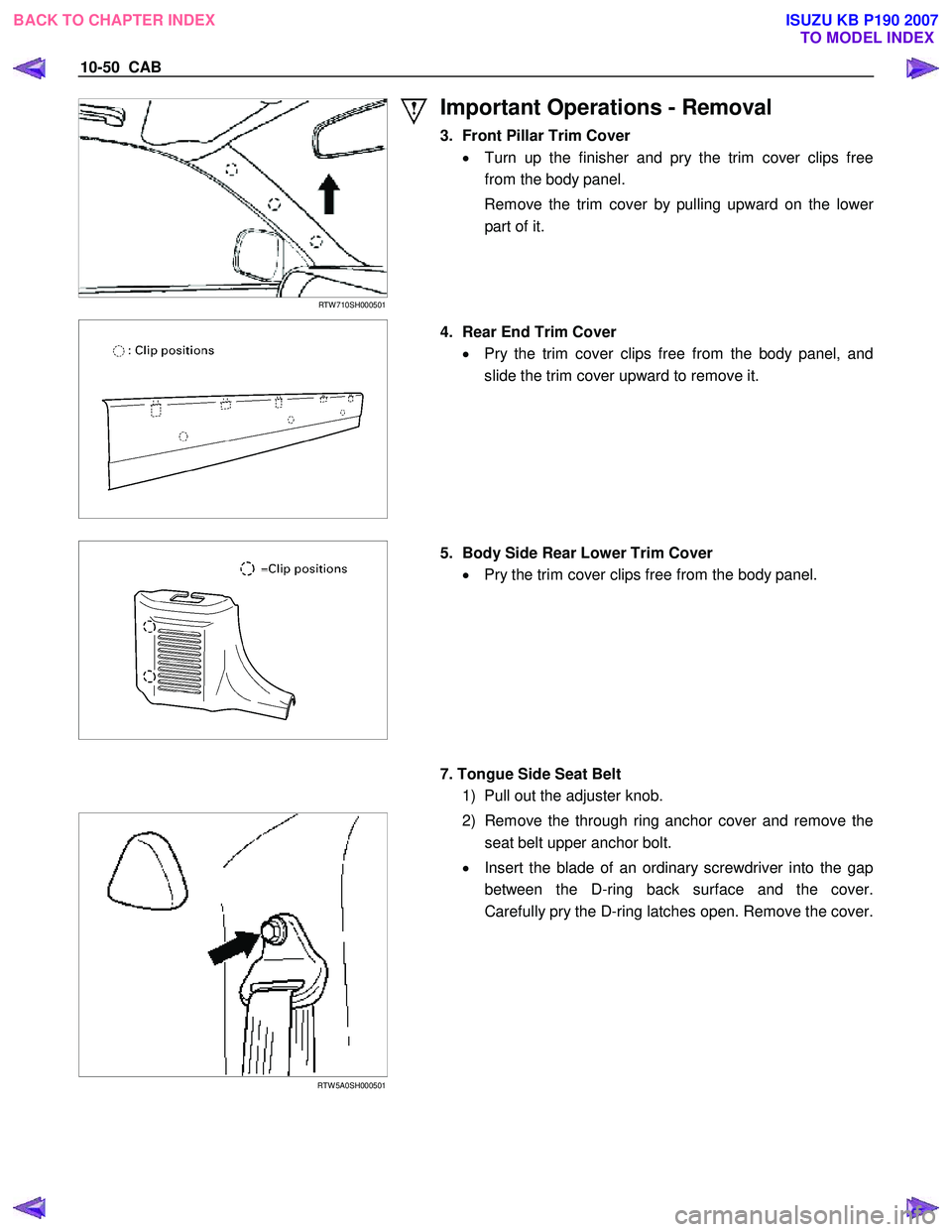

ISUZU KB P190 2007 Workshop Repair Manual 10-50 CAB RTW 710SH000501 Important Operations - Removal 3. Front Pillar Trim Cover • Turn up the finisher and pry the trim cover clips free from the body panel. Remove the trim cover by
