Page 3113 of 6020

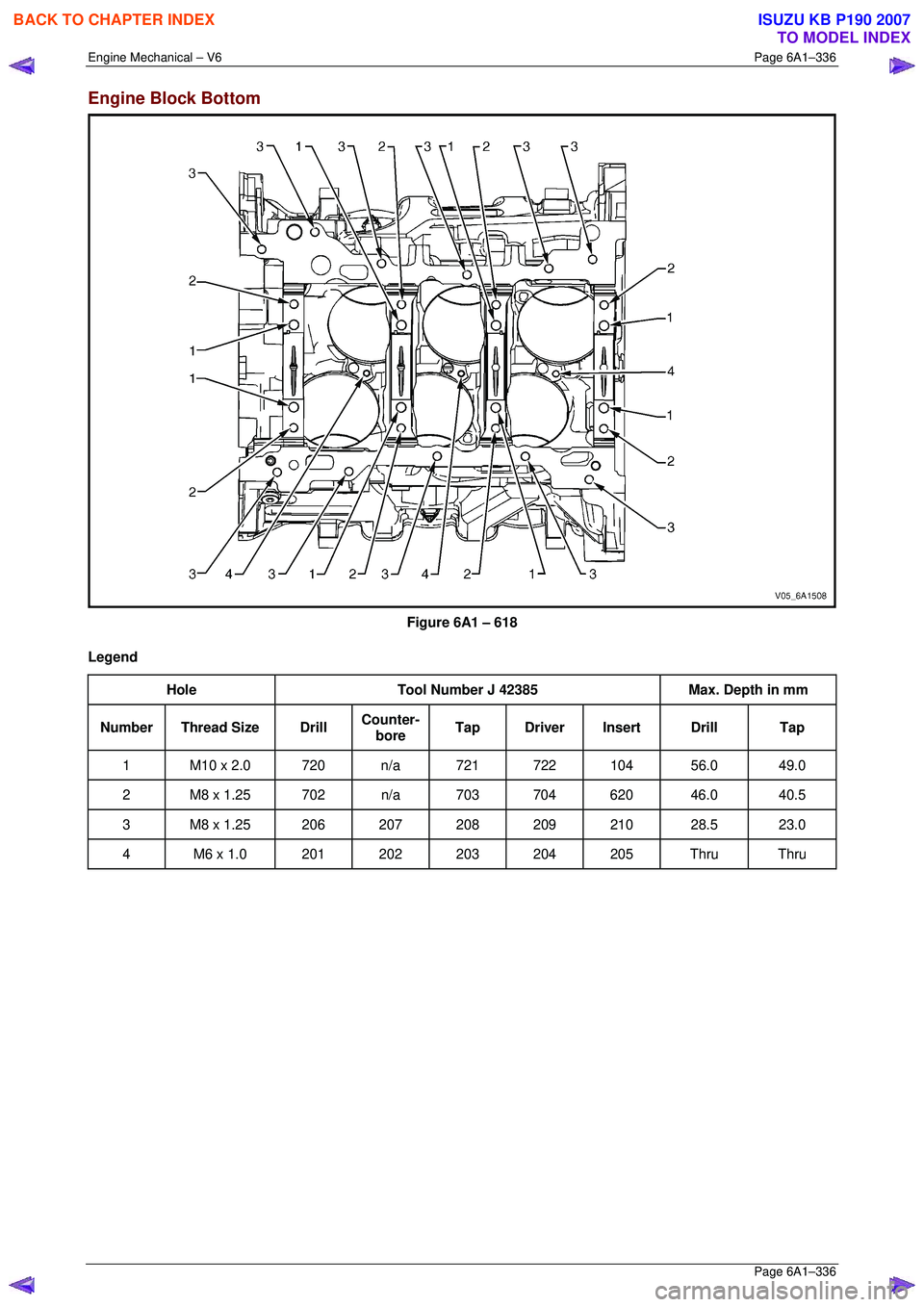

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–336 Page 6A1–336 Engine Block Bottom Figure 6A1 – 618 Legend Hole Tool Number J 42385 Max. Depth in mm Number Thread Size Drill Counter- bore Tap D

Page 3114 of 6020

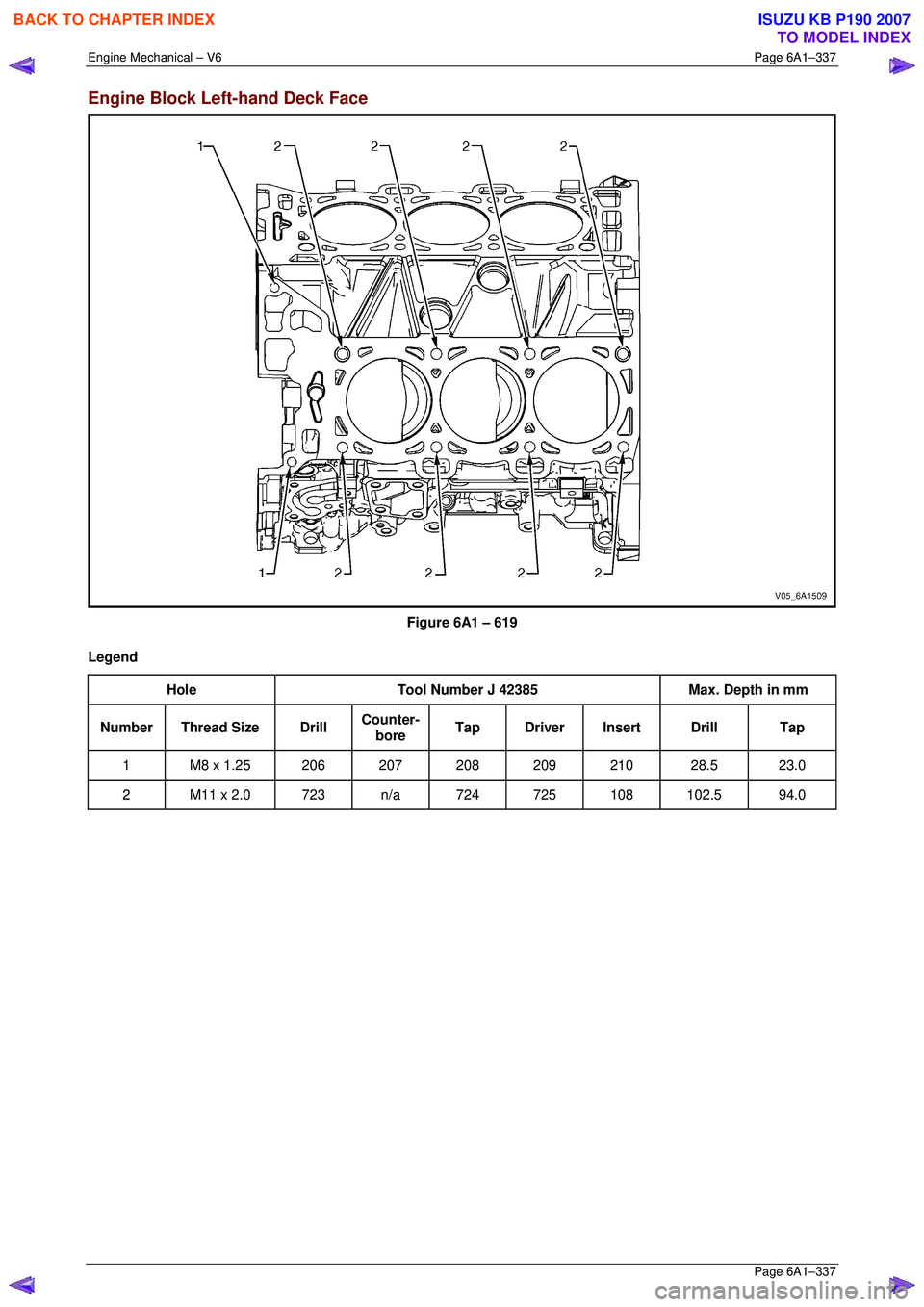

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–337 Page 6A1–337 Engine Block Left-hand Deck Face Figure 6A1 – 619 Legend Hole Tool Number J 42385 Max. Depth in mm Number Thread Size Drill Counter

Page 3115 of 6020

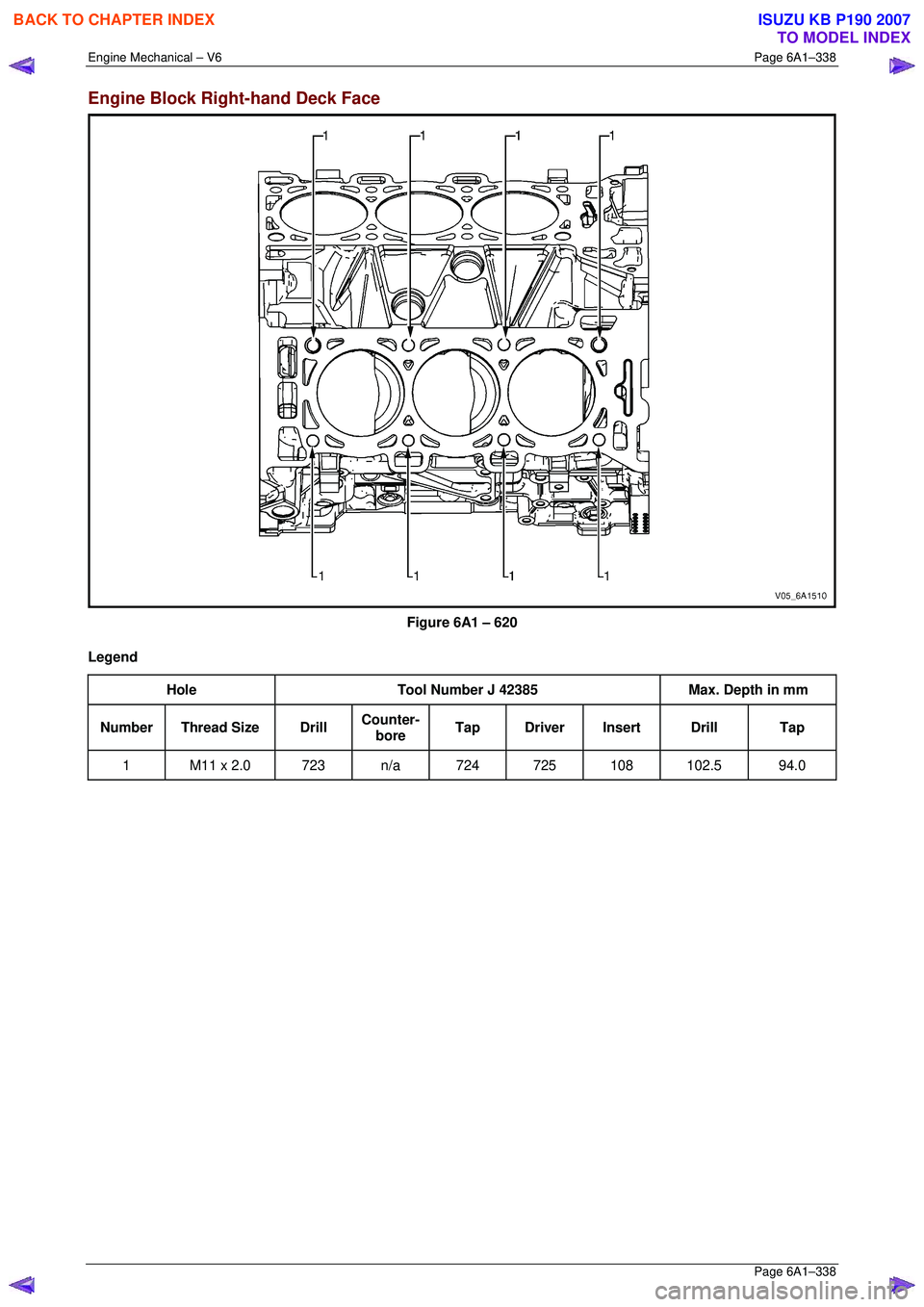

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–338 Page 6A1–338 Engine Block Right-hand Deck Face Figure 6A1 – 620 Legend Hole Tool Number J 42385 Max. Depth in mm Number Thread Size Drill Counte

Page 3116 of 6020

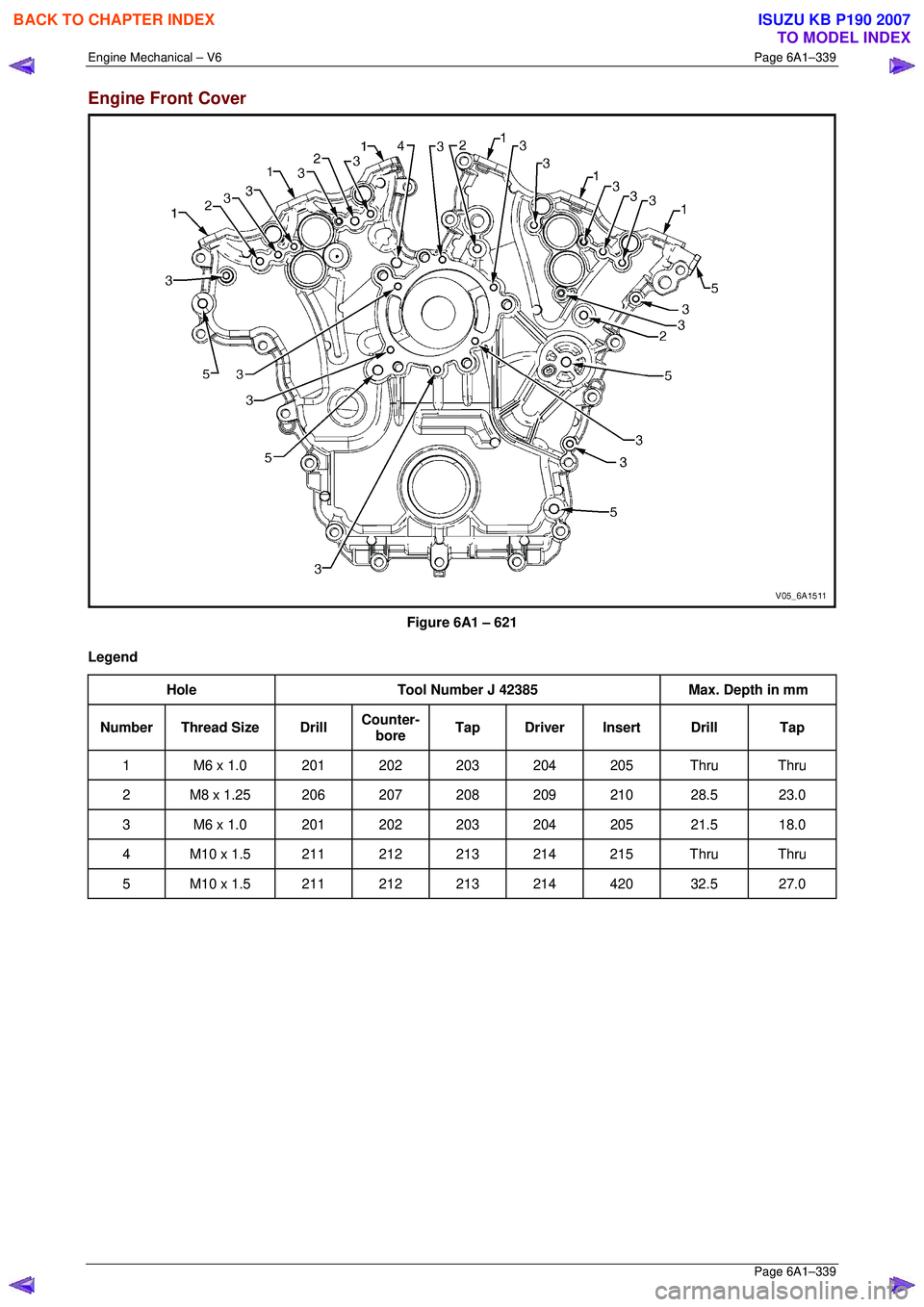

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–339 Page 6A1–339 Engine Front Cover Figure 6A1 – 621 Legend Hole Tool Number J 42385 Max. Depth in mm Number Thread Size Drill Counter- bore Tap Dr

Page 3117 of 6020

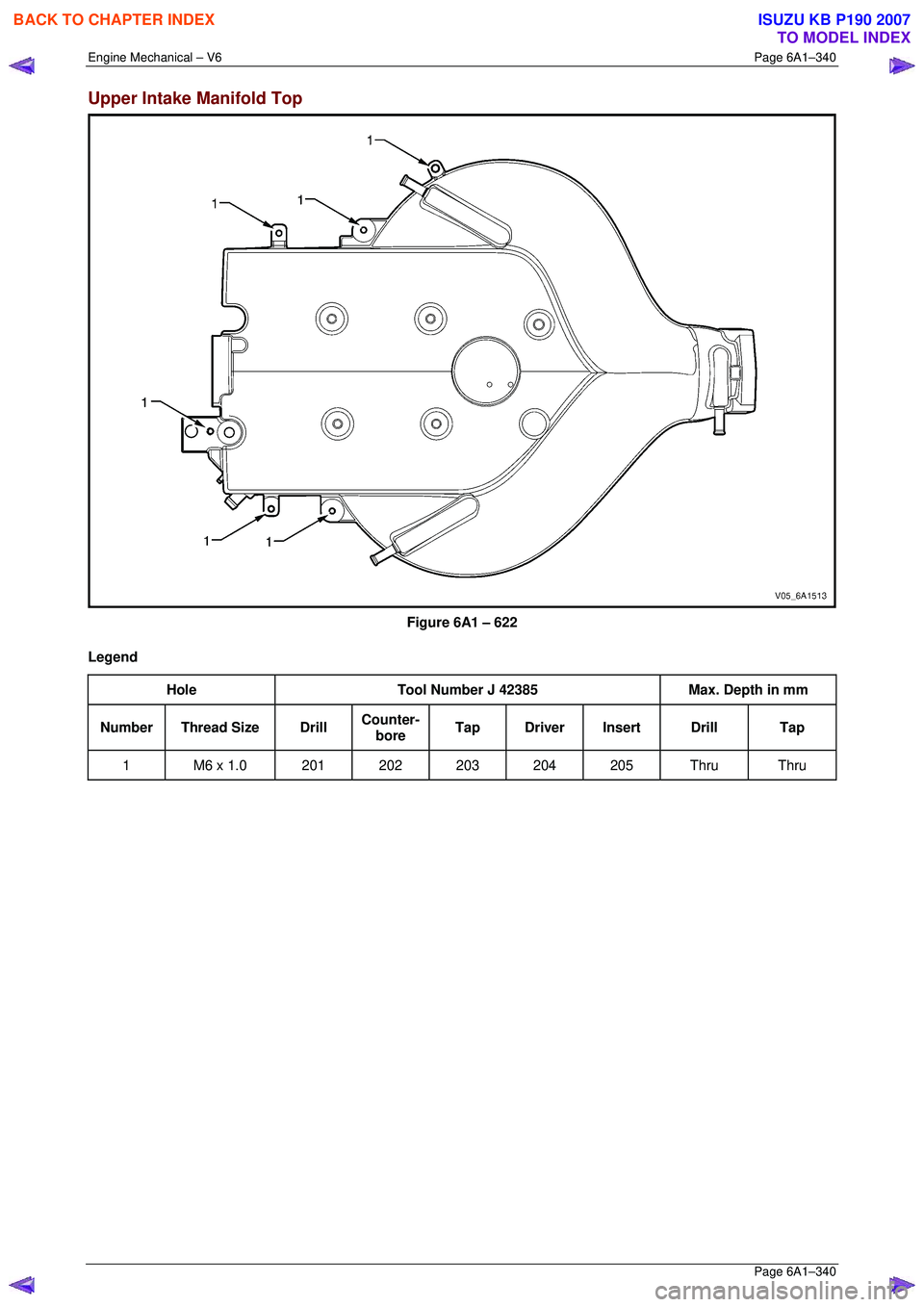

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–340 Page 6A1–340 Upper Intake Manifold Top Figure 6A1 – 622 Legend Hole Tool Number J 42385 Max. Depth in mm Number Thread Size Drill Counter- bore

Page 3118 of 6020

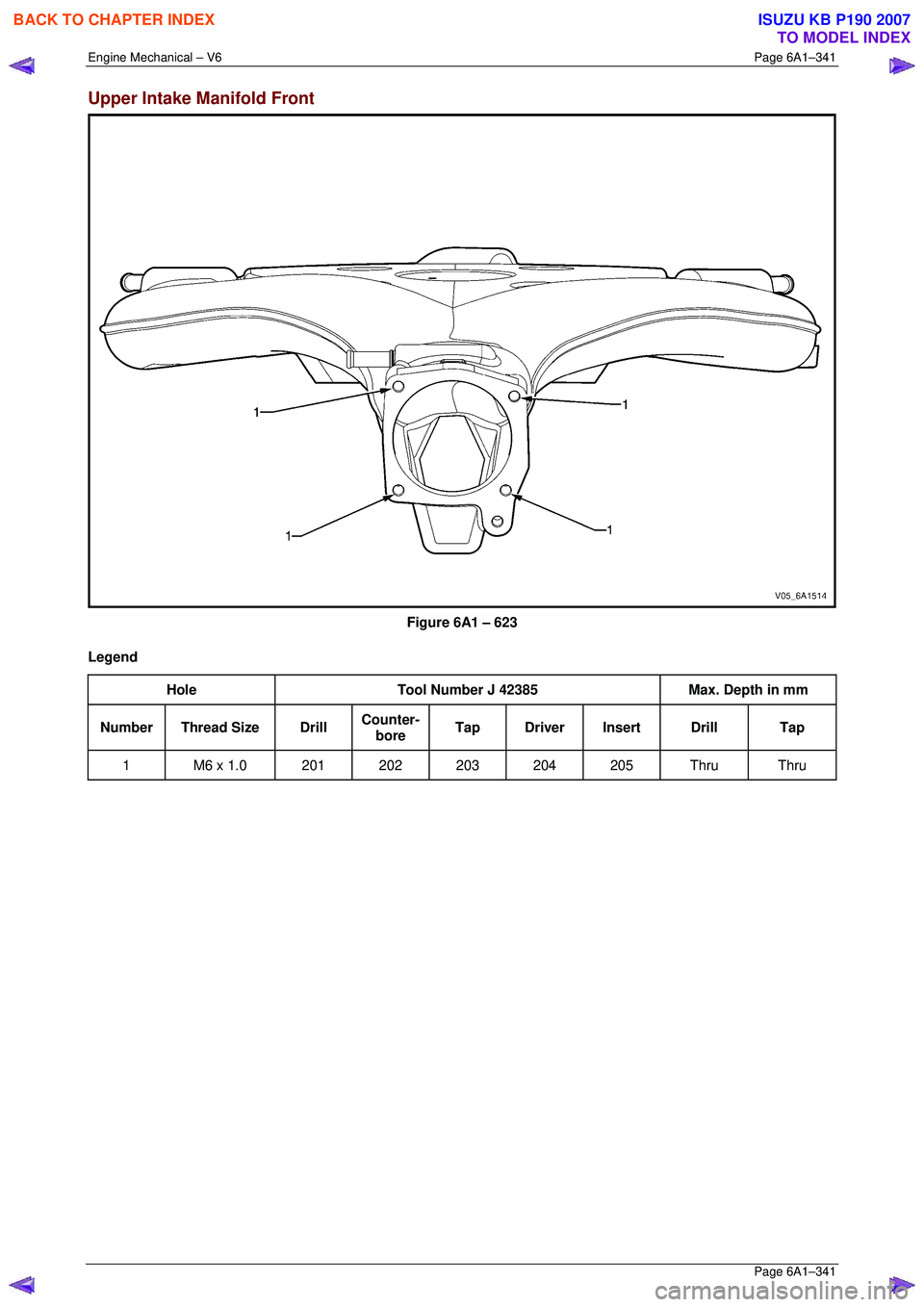

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–341 Page 6A1–341 Upper Intake Manifold Front Figure 6A1 – 623 Legend Hole Tool Number J 42385 Max. Depth in mm Number Thread Size Drill Counter- bor

Page 3119 of 6020

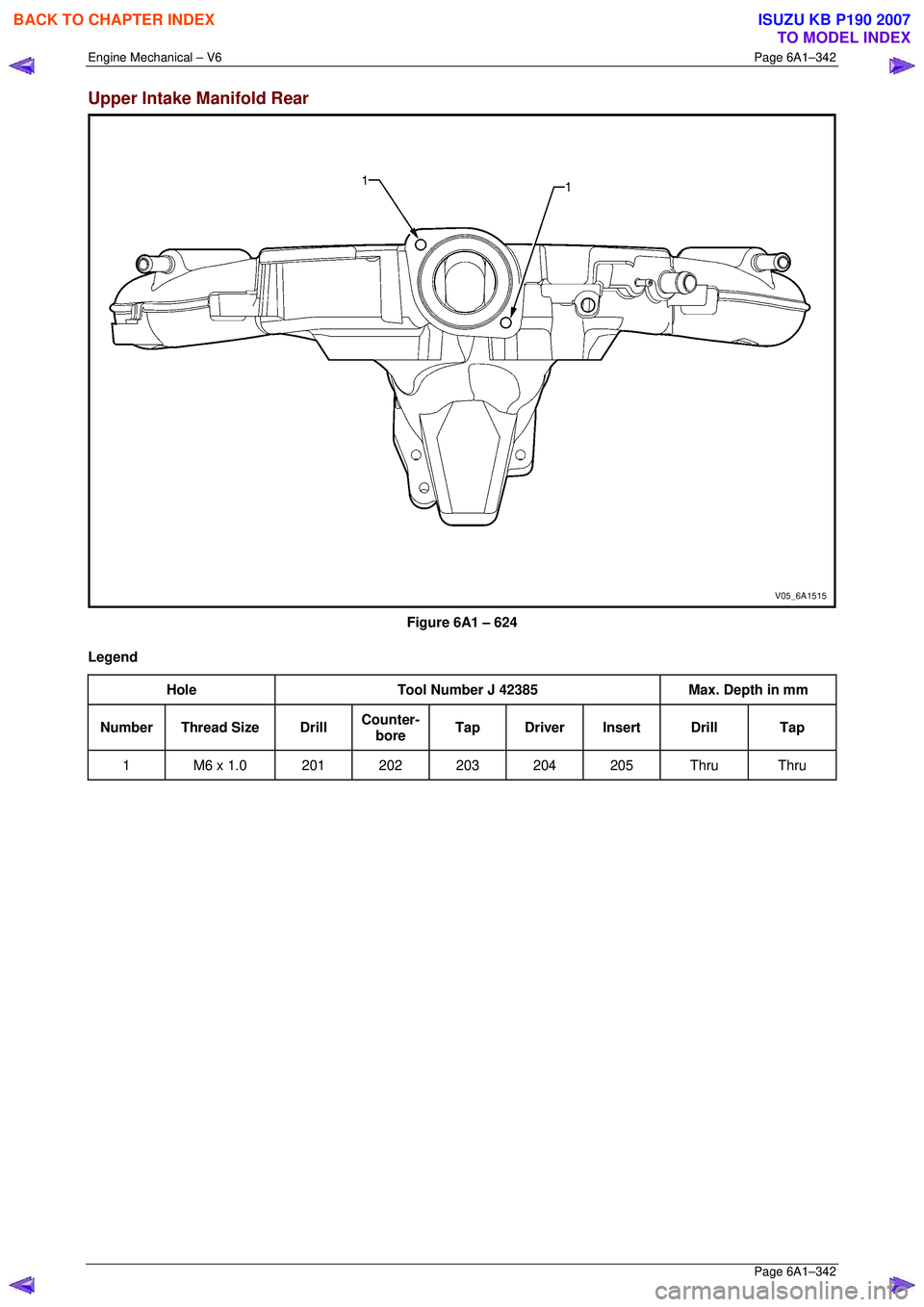

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–342 Page 6A1–342 Upper Intake Manifold Rear Figure 6A1 – 624 Legend Hole Tool Number J 42385 Max. Depth in mm Number Thread Size Drill Counter- bore

Page 3120 of 6020

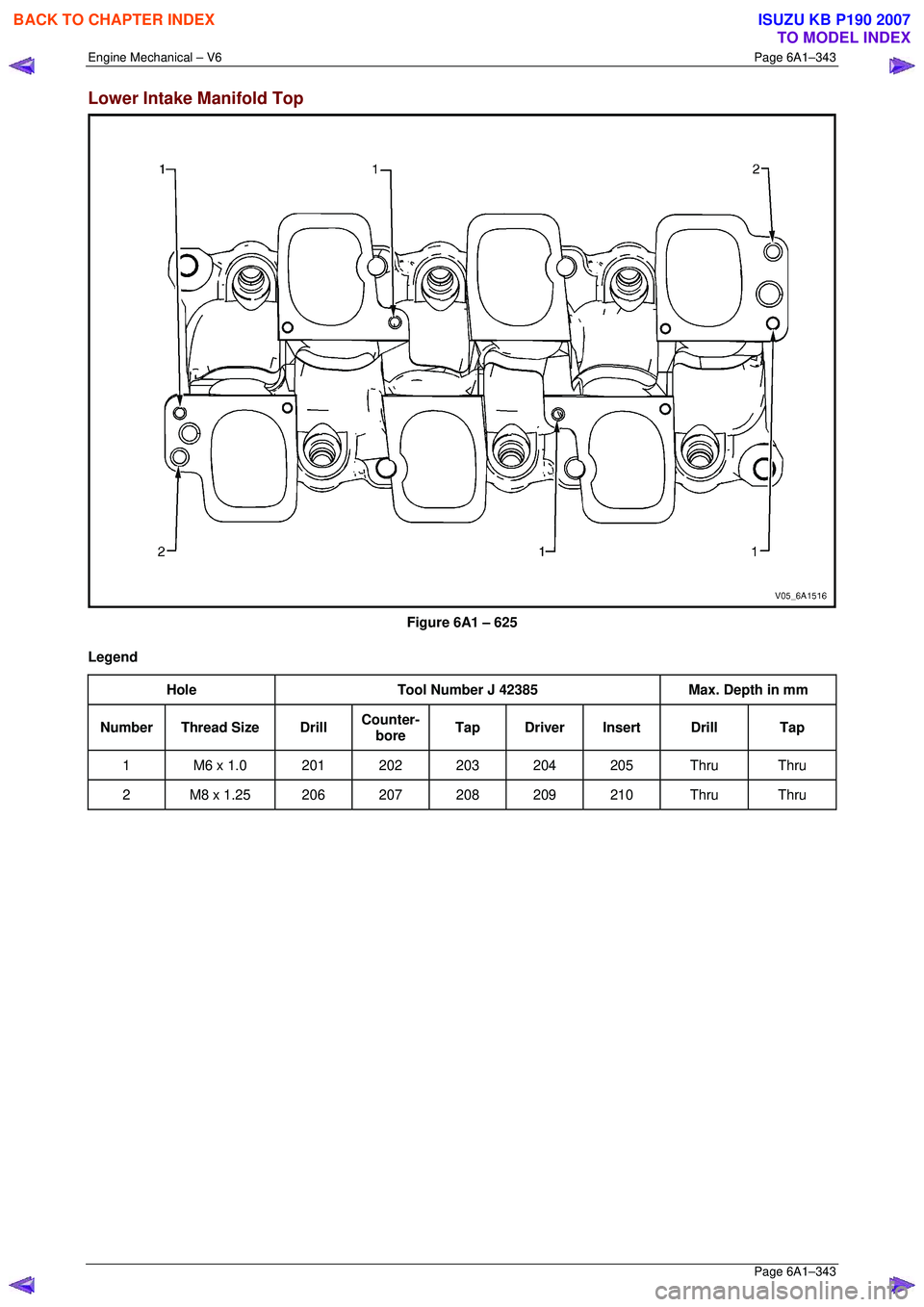

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–343 Page 6A1–343 Lower Intake Manifold Top Figure 6A1 – 625 Legend Hole Tool Number J 42385 Max. Depth in mm Number Thread Size Drill Counter- bore
