ISUZU KB P190 2007 Workshop Repair Manual CAB 10-3 RUW 5A0SH002901 Important Operations - Removal 3. Room Mirror Remove the screw and pull the room mirror to the upper side. 8. Windshield Remove the windshield, carefully

Page 5762 of 6020

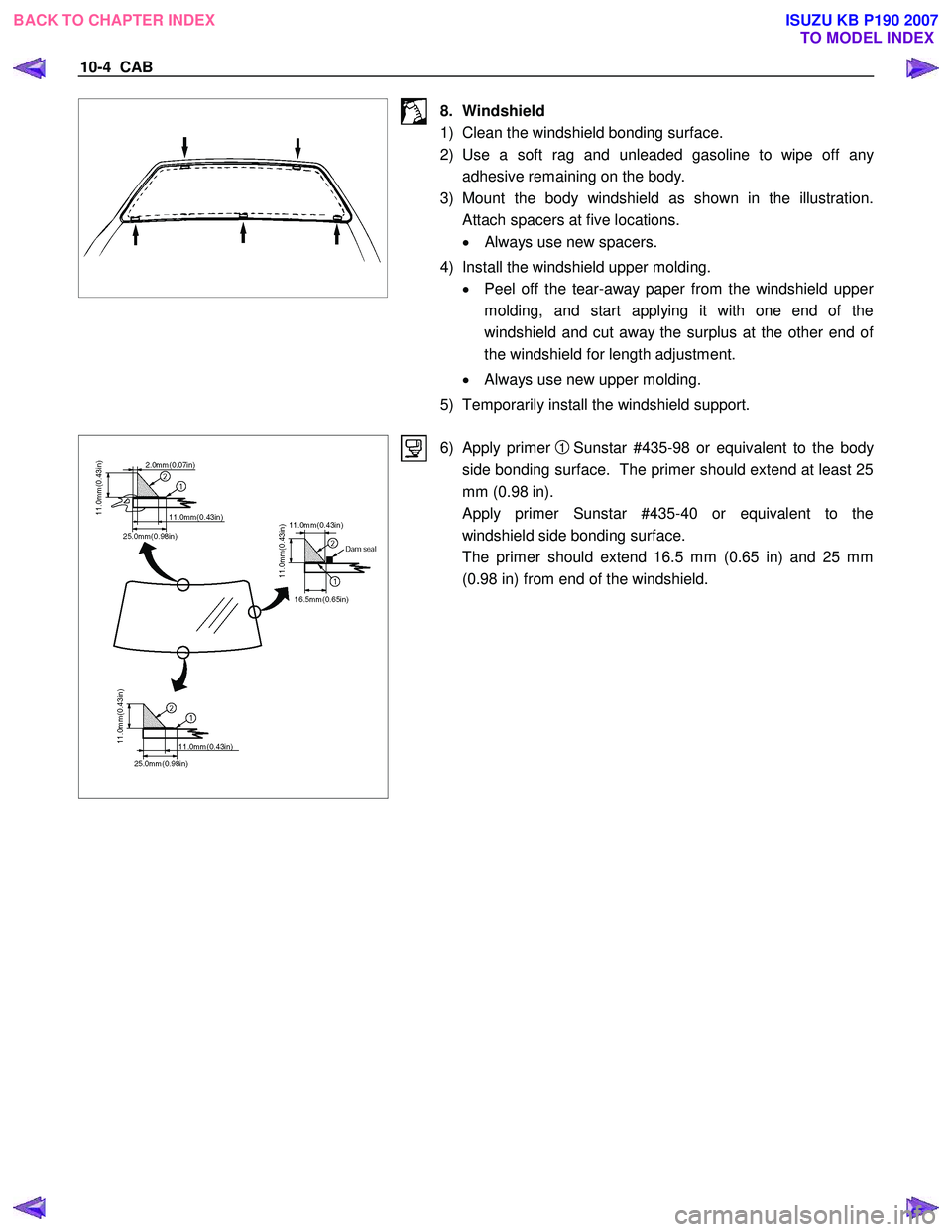

ISUZU KB P190 2007 Workshop Repair Manual 10-4 CAB 8. Windshield 1) Clean the windshield bonding surface. 2) Use a soft rag and unleaded gasoline to wipe off an y adhesive remaining on the body. 3) Mount the body windshield as sh

Page 5763 of 6020

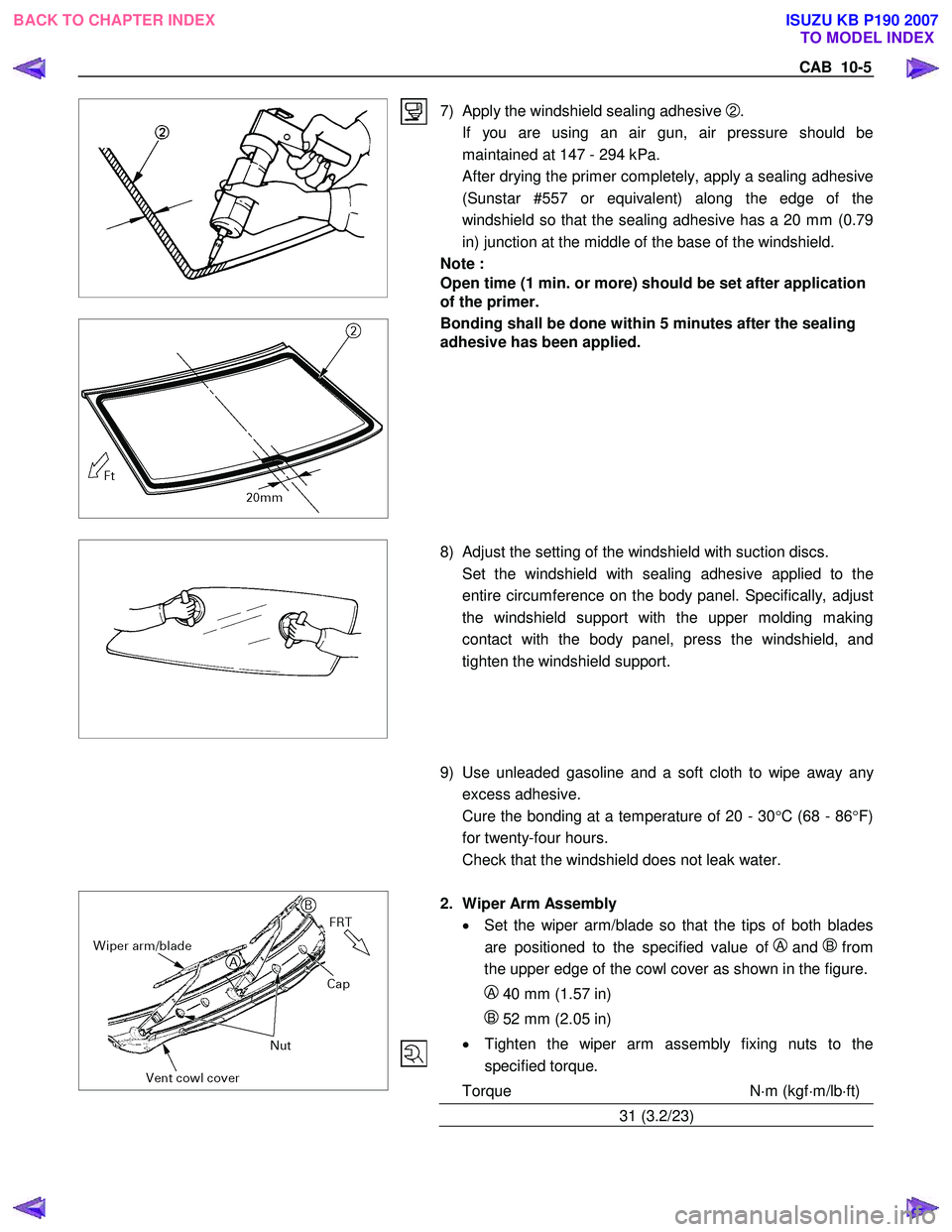

ISUZU KB P190 2007 Workshop Repair Manual CAB 10-5 7) Apply the windshield sealing adhesive 2. If you are using an air gun, air pressure should be maintained at 147 - 294 kPa. After drying the primer completely, apply a se

Page 5764 of 6020

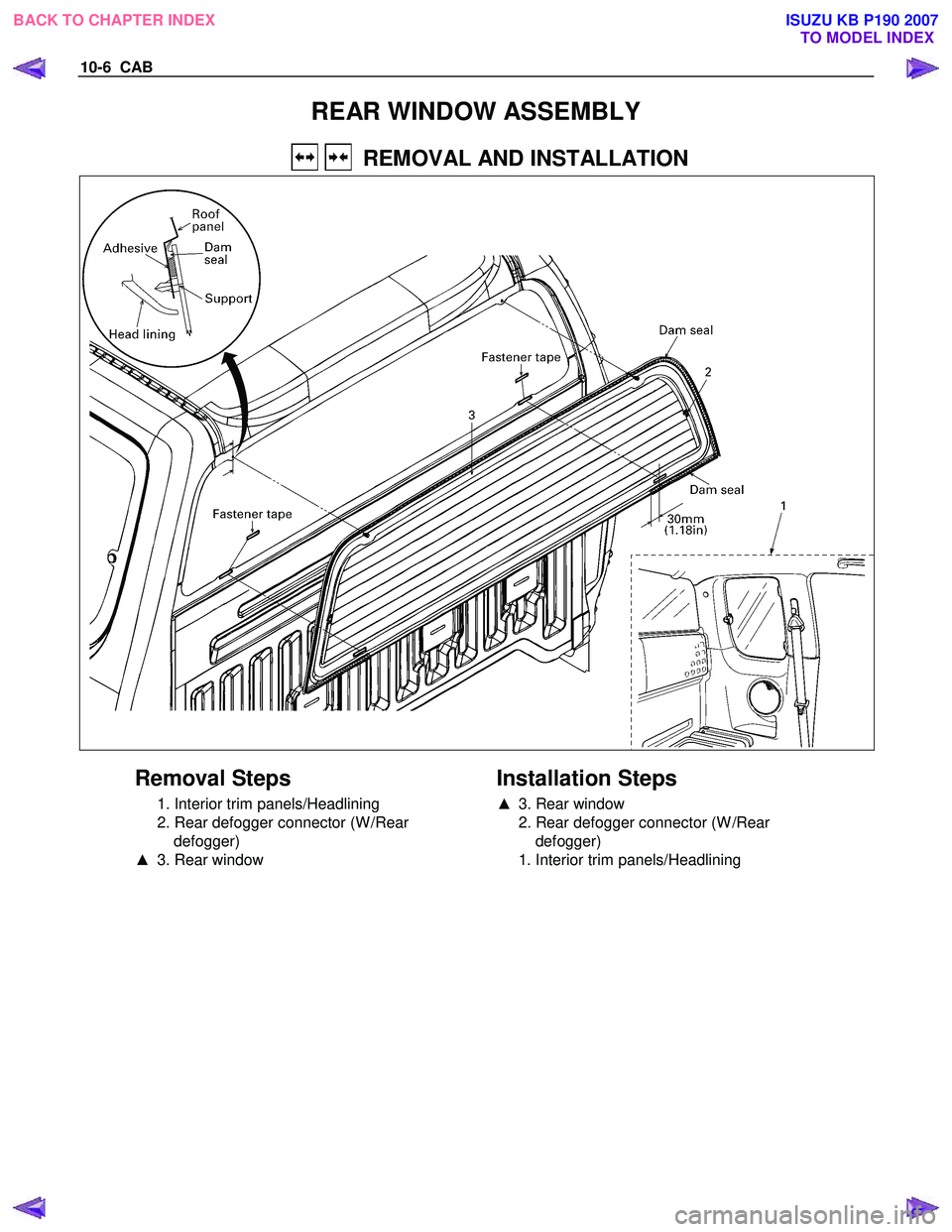

ISUZU KB P190 2007 Workshop Repair Manual 10-6 CAB REAR WINDOW ASSEMBLY REMOVAL AND INSTALLATION Removal Steps 1. Interior trim panels/Headlining 2. Rear defogger connector (W /Rear defogger) ▲ 3. Rear window Ins

Page 5765 of 6020

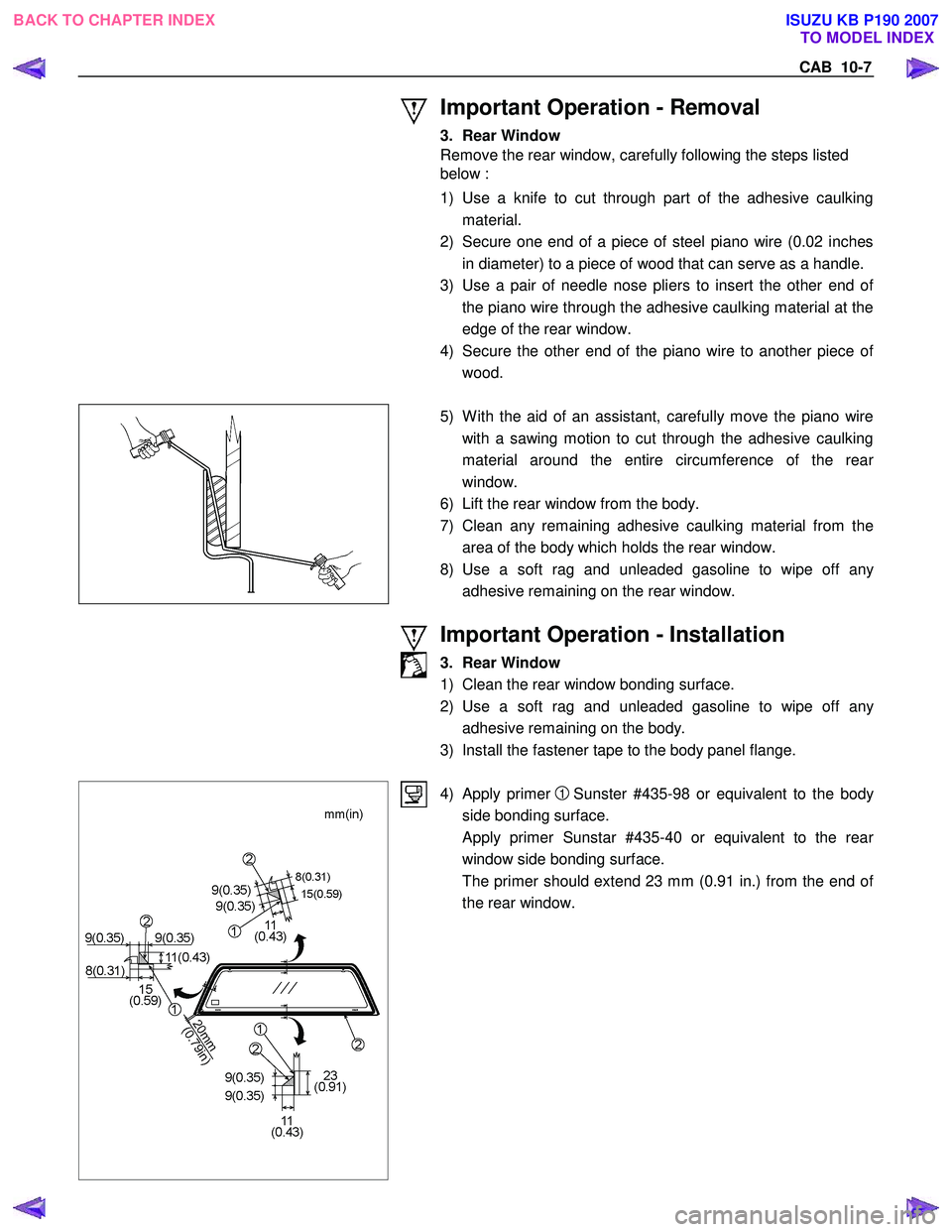

ISUZU KB P190 2007 Workshop Repair Manual CAB 10-7 Important Operation - Removal 3. Rear Window Remove the rear window, carefully following the steps listed below : 1) Use a knife to cut through part of the adhesive caulking mate

Page 5766 of 6020

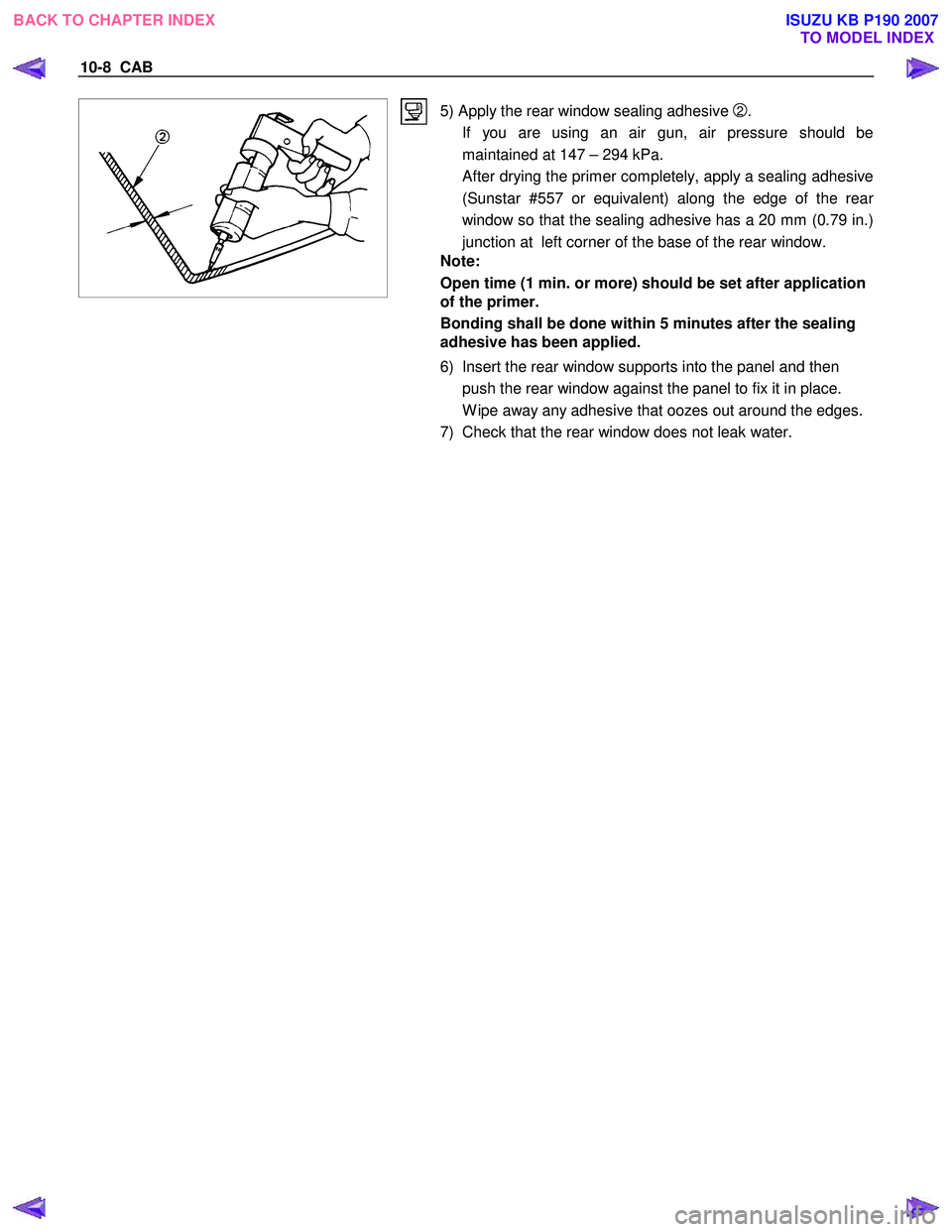

ISUZU KB P190 2007 Workshop Repair Manual 10-8 CAB 5) Apply the rear window sealing adhesive 2. If you are using an air gun, air pressure should be maintained at 147 – 294 kPa. After drying the primer completely, apply a sealing

Page 5767 of 6020

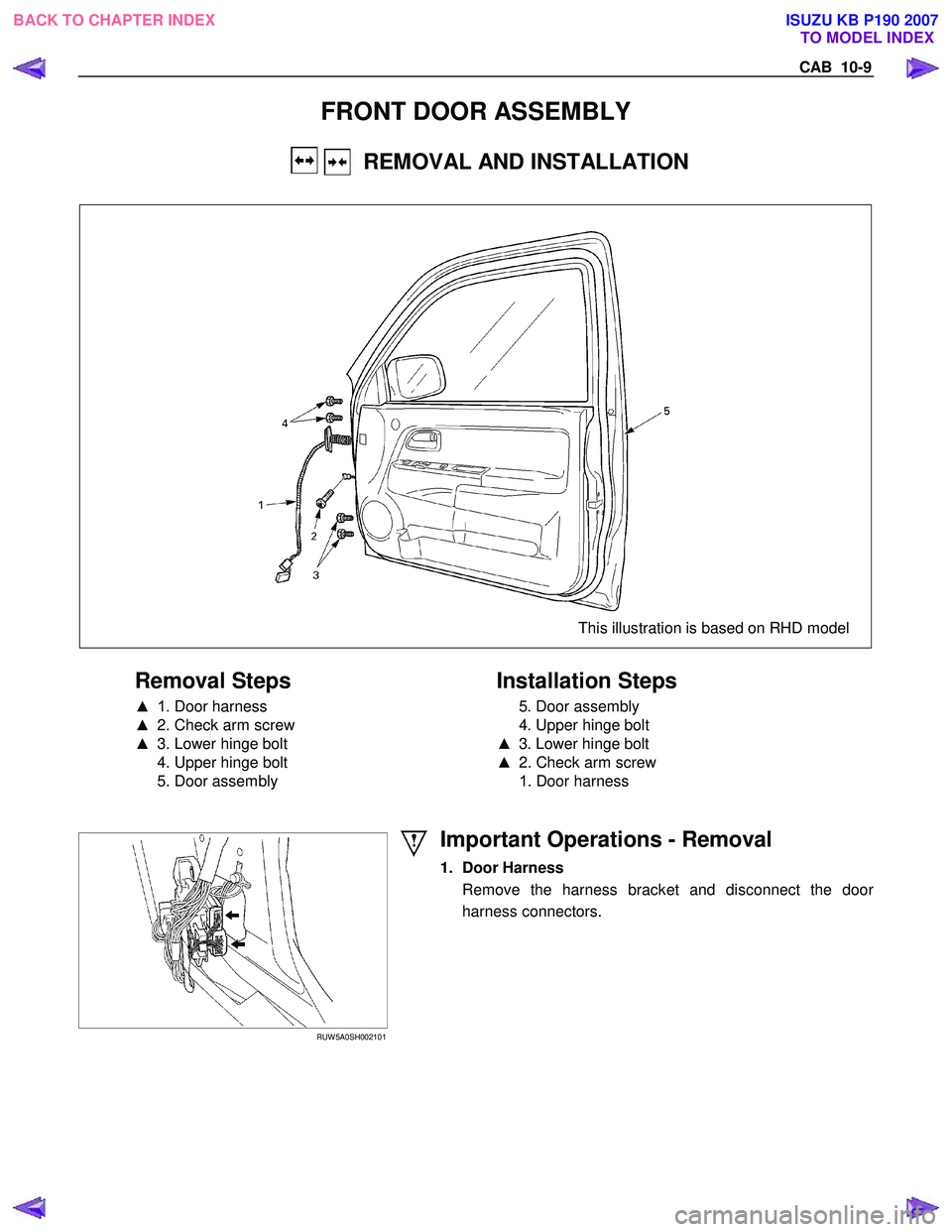

ISUZU KB P190 2007 Workshop Repair Manual CAB 10-9 FRONT DOOR ASSEMBLY REMOVAL AND INSTALLATION This illustration is based on RHD model Removal Steps ▲ 1 . Door harness ▲ 2. Check arm screw ▲ 3. Lower h

Page 5768 of 6020

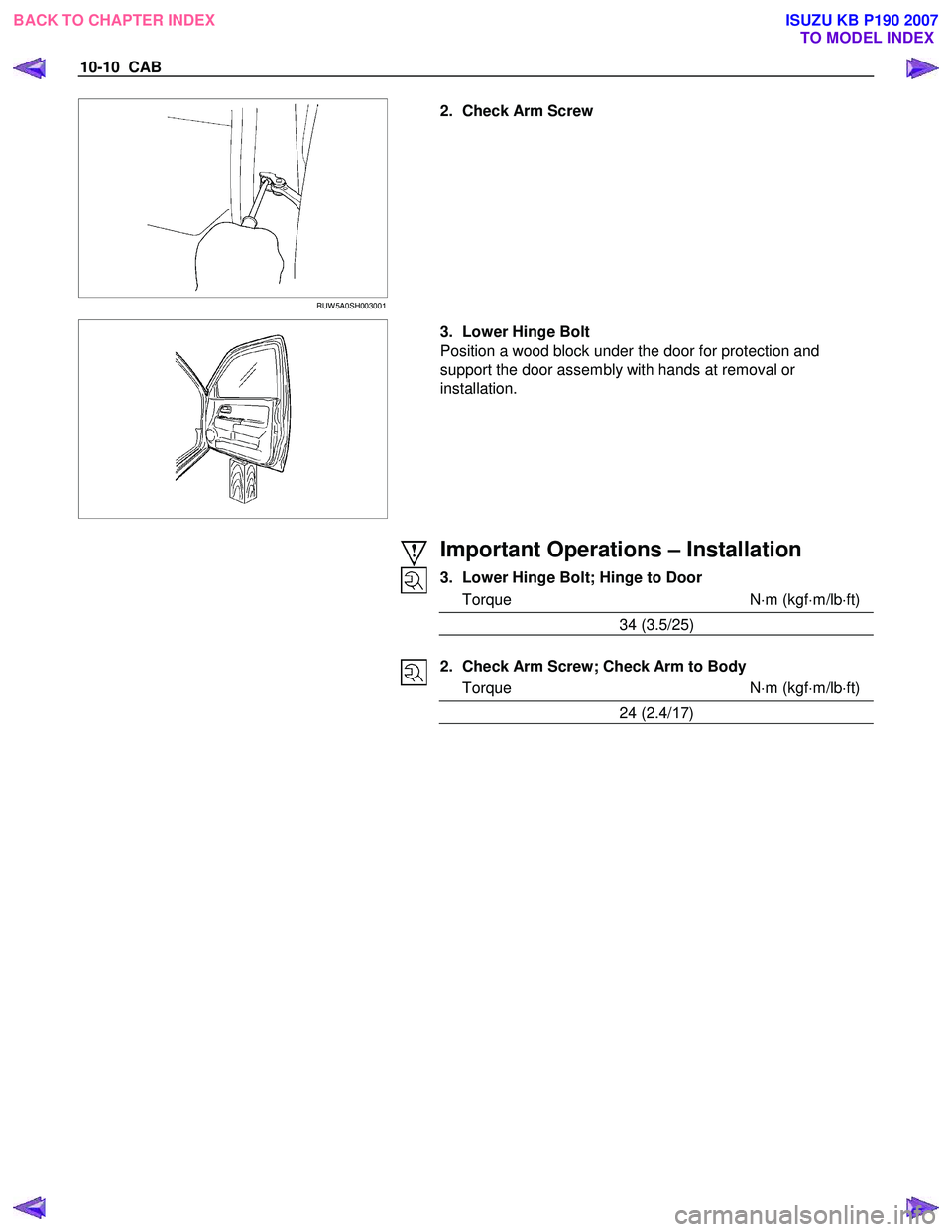

ISUZU KB P190 2007 Workshop Repair Manual 10-10 CAB RUW 5A0SH003001 2. Check Arm Screw 3. Lower Hinge Bolt Position a wood block under the door for protection and support the door assembly with hands at remova
