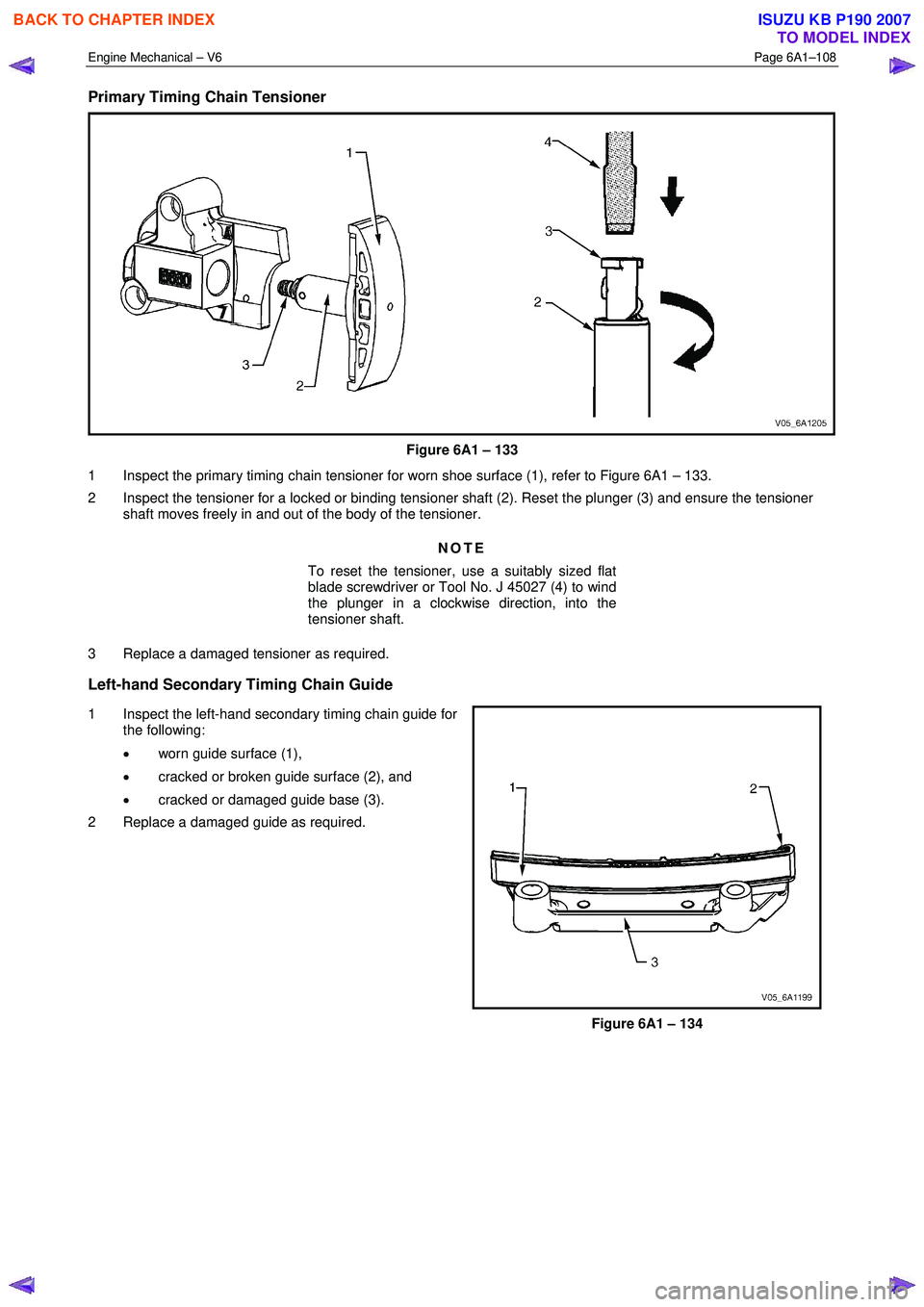

Engine Mechanical – V6 Page 6A1–108

Primary Timing Chain Tensioner

Figure 6A1 – 133
1 Inspect the primary timing chain tensioner for worn shoe surface (1), refer to Figure 6A1 – 133.
2 Inspect the tensioner for a locked or binding tensioner shaft (2). Reset the plunger (3) and ensure the tensioner shaft moves freely in and out of the body of the tensioner.
NOTE
To reset the tensioner, use a suitably sized flat
blade screwdriver or Tool No. J 45027 (4) to wind
the plunger in a clockwise direction, into the
tensioner shaft.
3 Replace a damaged tensioner as required.
Left-hand Secondary Timing Chain Guide
1 Inspect the left-hand secondary timing chain guide for the following:
• worn guide surface (1),
• cracked or broken guide surface (2), and
• cracked or damaged guide base (3).
2 Replace a damaged guide as required.

Figure 6A1 – 134

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

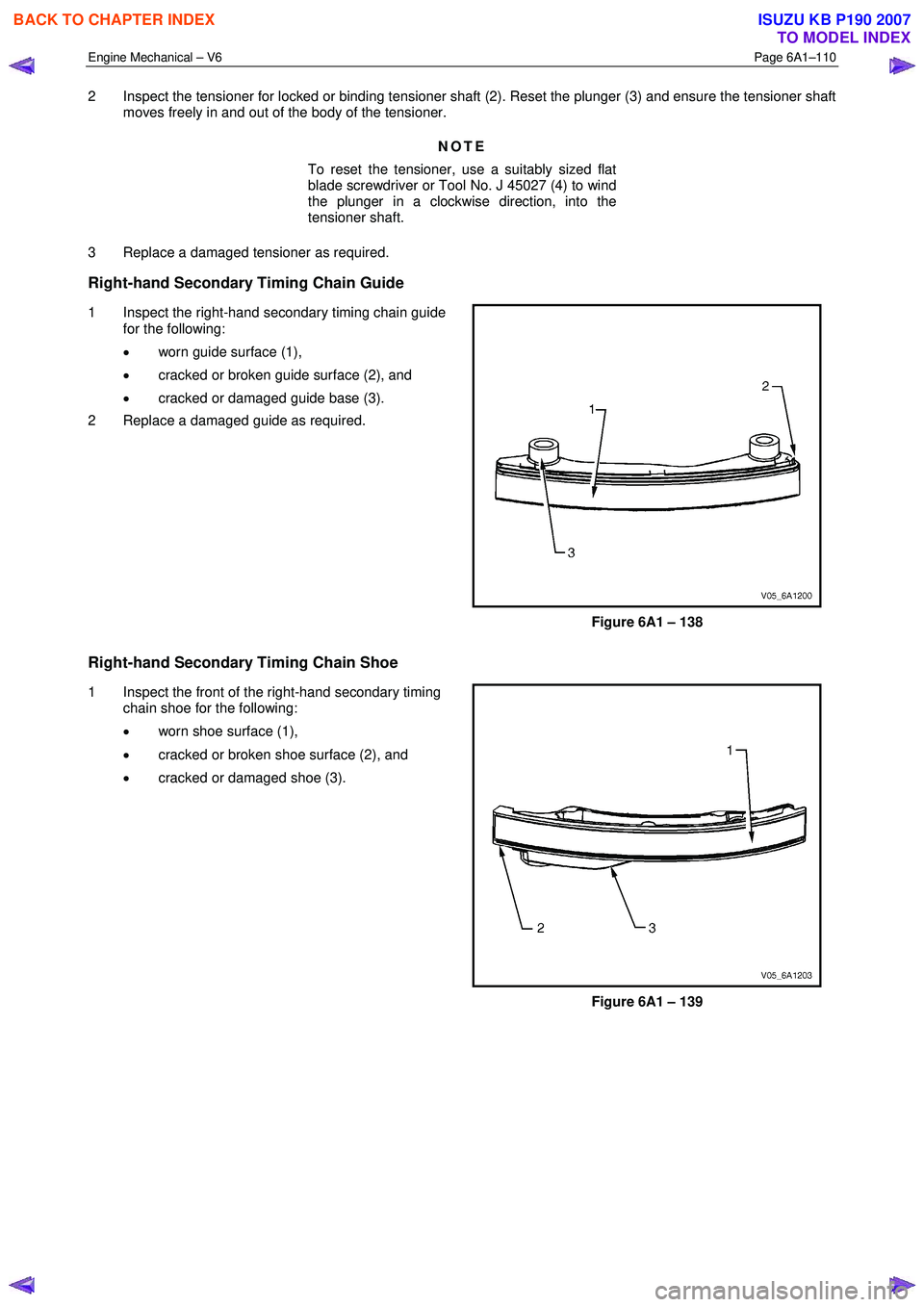

Engine Mechanical – V6 Page 6A1–110

2 Inspect the tensioner for locked or binding tensioner shaft (2). Reset the plunger (3) and ensure the tensioner shaft
moves freely in and out of the body of the tensioner.
NOTE
To reset the tensioner, use a suitably sized flat
blade screwdriver or Tool No. J 45027 (4) to wind
the plunger in a clockwise direction, into the
tensioner shaft.
3 Replace a damaged tensioner as required.
Right-hand Secondary Timing Chain Guide
1 Inspect the right-hand secondary timing chain guide for the following:
• worn guide surface (1),
• cracked or broken guide surface (2), and
• cracked or damaged guide base (3).
2 Replace a damaged guide as required.

Figure 6A1 – 138
Right-hand Secondary Timing Chain Shoe
1 Inspect the front of the right-hand secondary timing chain shoe for the following:
• worn shoe surface (1),
• cracked or broken shoe surface (2), and
• cracked or damaged shoe (3).

Figure 6A1 – 139

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

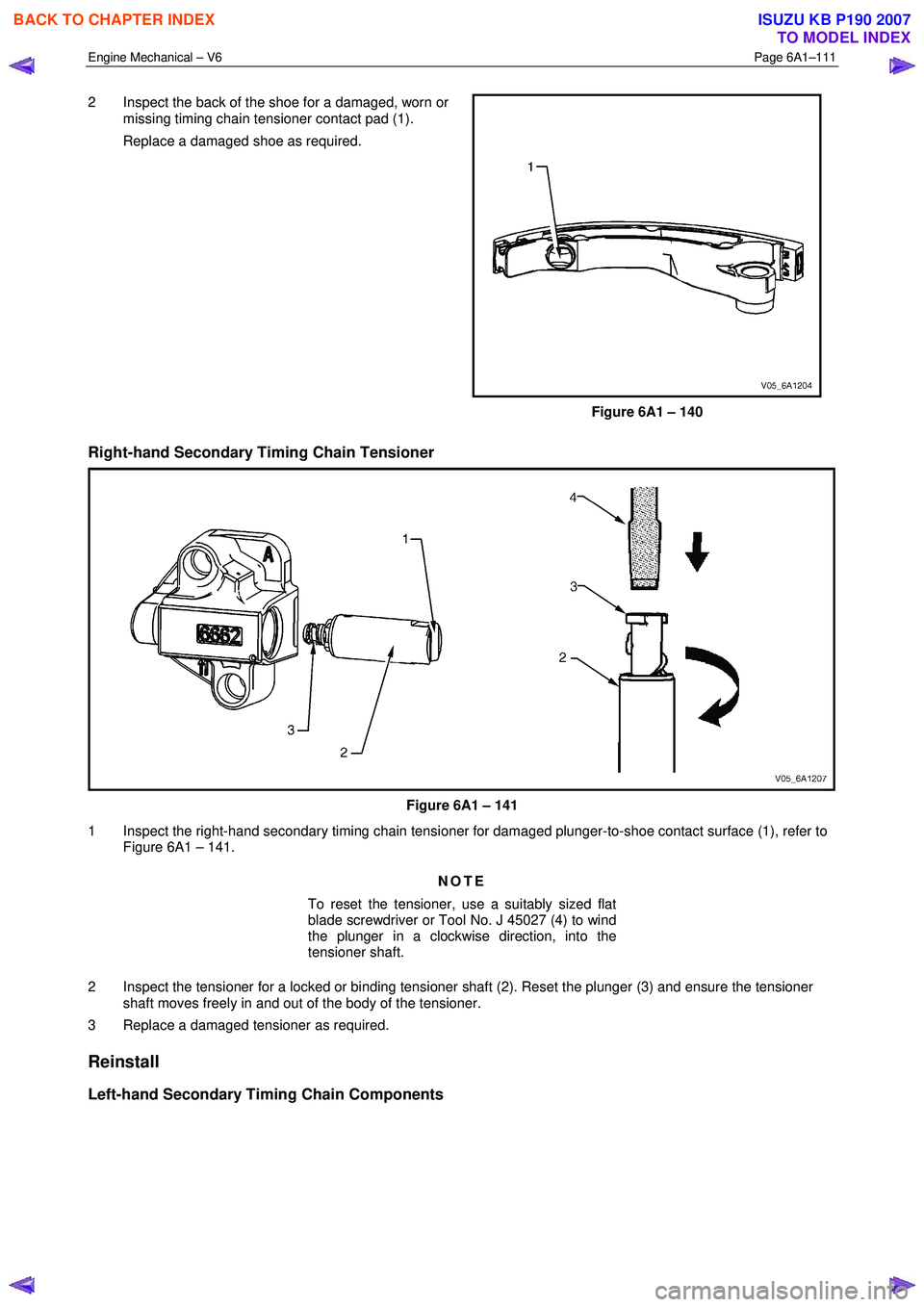

Engine Mechanical – V6 Page 6A1–111

2 Inspect the back of the shoe for a damaged, worn or
missing timing chain tensioner contact pad (1).
Replace a damaged shoe as required.
Figure 6A1 – 140
Right-hand Secondary Timing Chain Tensioner

Figure 6A1 – 141
1 Inspect the right-hand secondary timing chain tensioner for damaged plunger-to-shoe contact surface (1), refer to Figure 6A1 – 141.
NOTE
To reset the tensioner, use a suitably sized flat
blade screwdriver or Tool No. J 45027 (4) to wind
the plunger in a clockwise direction, into the
tensioner shaft.
2 Inspect the tensioner for a locked or binding tensioner shaft (2). Reset the plunger (3) and ensure the tensioner shaft moves freely in and out of the body of the tensioner.
3 Replace a damaged tensioner as required.
Reinstall
Left-hand Secondary Timing Chain Components


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

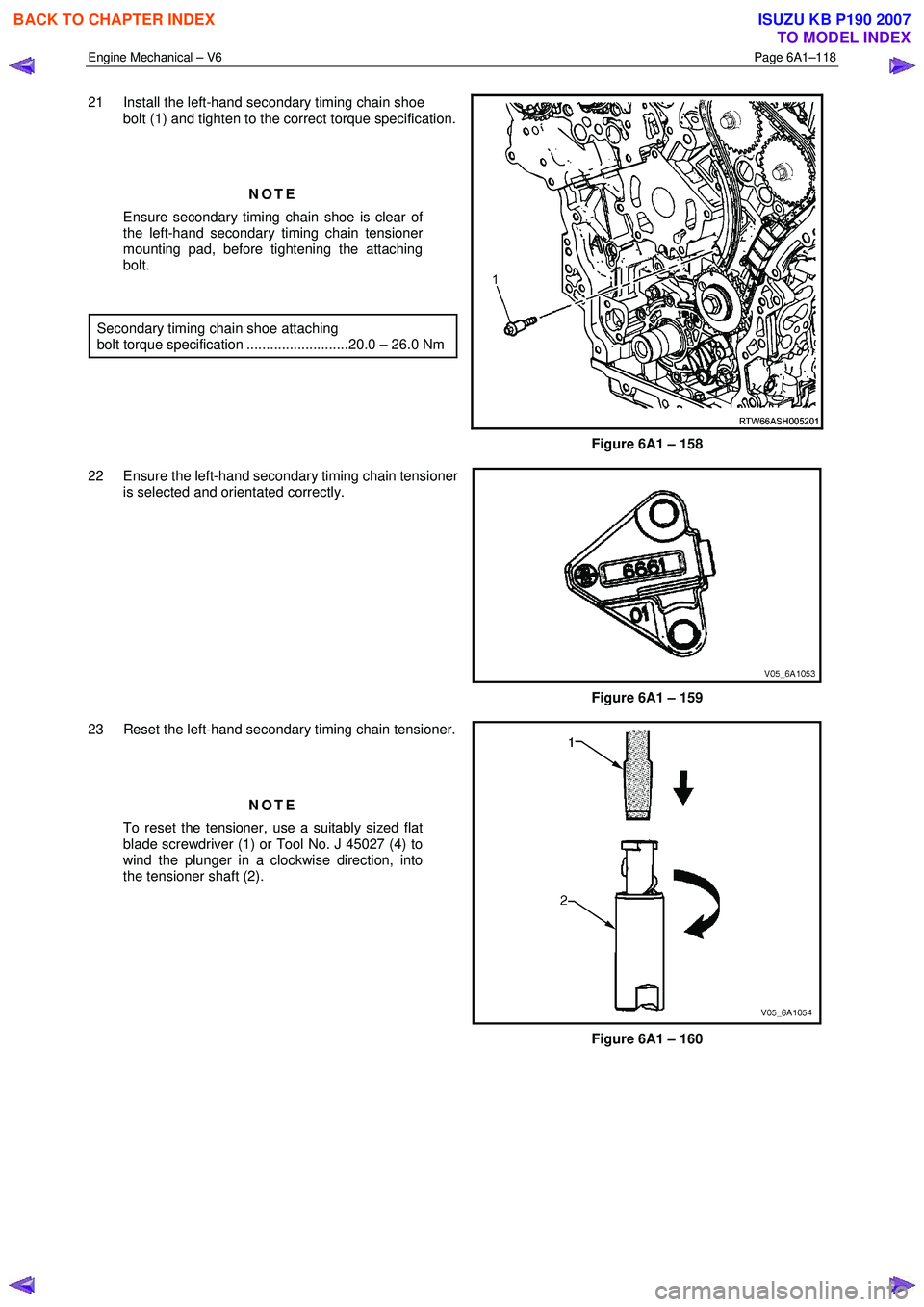

Engine Mechanical – V6 Page 6A1–118

21 Install the left-hand secondary timing chain shoe
bolt (1) and tighten to the correct torque specification.


NOTE
Ensure secondary timing chain shoe is clear of
the left-hand secondary timing chain tensioner
mounting pad, before tightening the attaching
bolt.
Secondary timing chain shoe attaching
bolt torque specification ..........................20.0 – 26.0 Nm

Figure 6A1 – 158
22 Ensure the left-hand secondary timing chain tensioner is selected and orientated correctly.

Figure 6A1 – 159
23 Reset the left-hand secondary timing chain tensioner.

NOTE
To reset the tensioner, use a suitably sized flat
blade screwdriver (1) or Tool No. J 45027 (4) to
wind the plunger in a clockwise direction, into
the tensioner shaft (2).

Figure 6A1 – 160

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

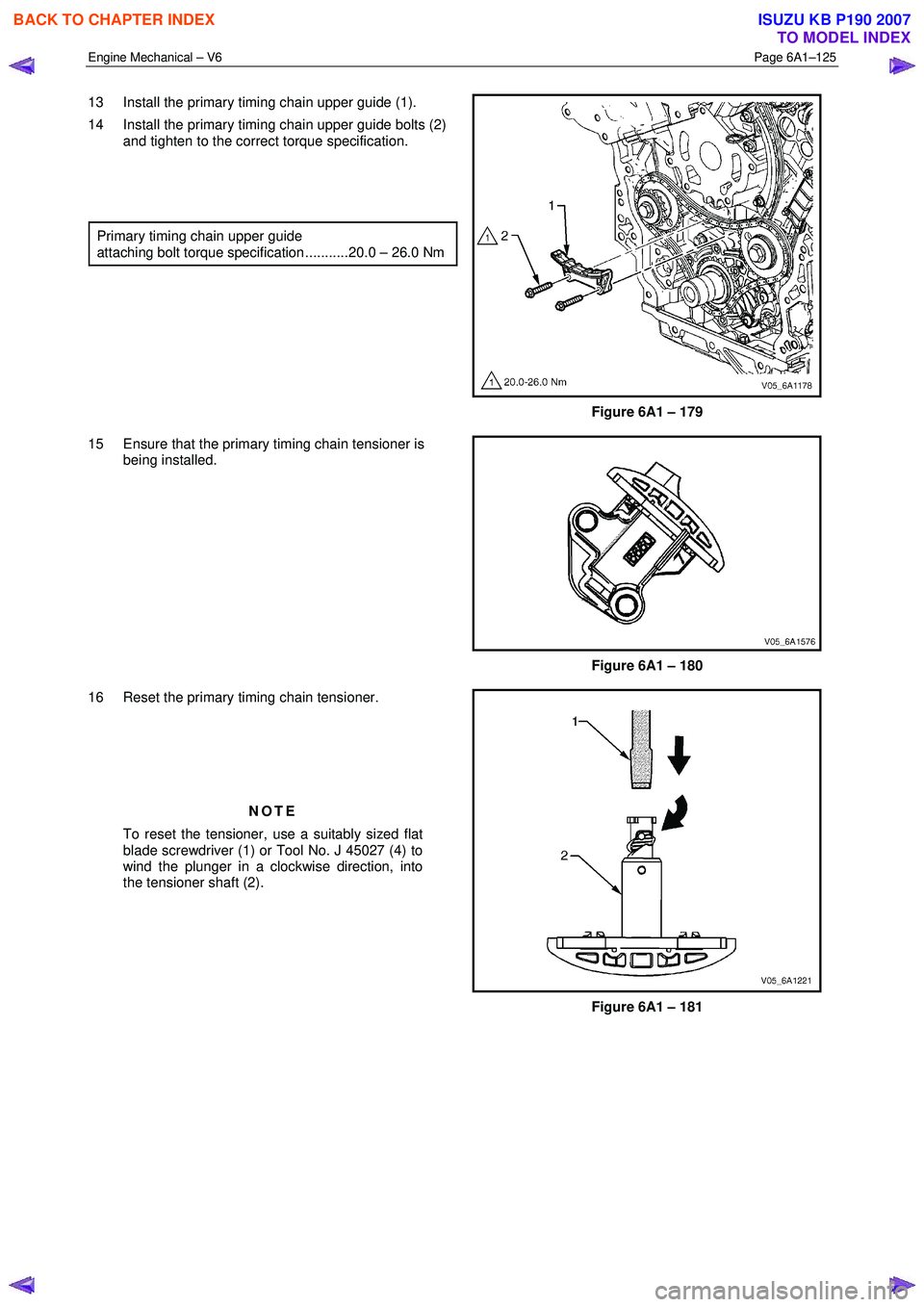

Engine Mechanical – V6 Page 6A1–125

13 Install the primary timing chain upper guide (1).
14 Install the primary timing chain upper guide bolts (2) and tighten to the correct torque specification.



Primary timing chain upper guide
attaching bolt torque specification ...........20.0 – 26.0 Nm

Figure 6A1 – 179
15 Ensure that the primary timing chain tensioner is being installed.
Figure 6A1 – 180
16 Reset the primary timing chain tensioner.




NOTE
To reset the tensioner, use a suitably sized flat
blade screwdriver (1) or Tool No. J 45027 (4) to
wind the plunger in a clockwise direction, into
the tensioner shaft (2).

Figure 6A1 – 181

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–133

15 Install the secondary timing chain shoe bolt (1) and
tighten to the correct torque specification.




Secondary timing chain shoe
attaching bolt torque specification ...........20.0 – 26.0 Nm

Figure 6A1 – 202
16 Ensure the right-hand secondary timing chain tensioner is selected and orientated correctly.

Figure 6A1 – 203
17 Reset the right-hand secondary timing chain tensioner.


NOTE
To reset the tensioner, use a suitably sized flat
blade screwdriver (1) or Tool No. J 45027 to
wind the plunger in a clockwise direction, into
the tensioner shaft (2).

Figure 6A1 – 204

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–126
Page 6A1–126
Primary Timing Chain Tensioner

Figure 6A1 – 135
1 Inspect the primary timing chain tensioner for wo rn shoe surface (1), refer to Figure 6A1 – 133.
2 Inspect the tensioner for a locked or binding tensioner shaft (2). Reset the plunger (3) and ensure the tensioner
shaft moves freely in and out of the body of the tensioner.
NOTE
To reset the tensioner, use a suitably sized flat
blade screwdriver or Tool No. J 45027 (4) to wind
the plunger in a clockwise direction, into the
tensioner shaft.
3 Replace a damaged tens ioner as required.
Left-hand Secondary Timing Chain Guide
1 Inspect the left-hand secondary timing chain guide for
the following:
• worn guide surface (1),
• cracked or broken guide surface (2), and
• cracked or damaged guide base (3).
2 Replace a damaged guide as required.


Figure 6A1 – 136

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–128
Page 6A1–128
2 Inspect the tensioner for locked or binding tensioner shaft (2). Reset the plunger (3) and ensure the tensioner shaft
moves freely in and out of the body of the tensioner.
NOTE
To reset the tensioner, use a suitably sized flat
blade screwdriver or Tool No. J 45027 (4) to wind
the plunger in a clockwise direction, into the
tensioner shaft.
3 Replace a damaged tens ioner as required.
Right-hand Secondary Timing Chain Guide
1 Inspect the right-hand secondary timing chain guide
for the following:
• worn guide surface (1),
• cracked or broken guide surface (2), and
• cracked or damaged guide base (3).
2 Replace a damaged guide as required.


Figure 6A1 – 140
Right-hand Secondary Timing Chain Shoe
1 Inspect the front of t he right-hand secondary timing
chain shoe for the following:
• worn shoe surface (1),
• cracked or broken shoe surface (2), and
• cracked or damaged shoe (3).


Figure 6A1 – 141

BACK TO CHAPTER INDEX
TO MODEL INDEX
