2007 ISUZU KB P190 Workshop Repair Manual

mileage air filter compression ratio AUX center console wheel alignment

Page 2017 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE MECHANICAL (C24SE) 6A-3
PAGE
ENGINE EXTERNAL PARTS ........................................................................................... 6A-65 Radiator ..............................

ENGINE MECHANICAL (C24SE) 6A-3
PAGE
ENGINE EXTERNAL PARTS ........................................................................................... 6A-65 Radiator ....................................................................................................................... 6A-65
Thermostat .................................................................................................................. 6A -66
Water Pump ................................................................................................................. 6A- 66
Coating sealing surfaces with Silicone Grease ....................................................... 6A-67
Alternator ..................................................................................................................... 6A-67
Starter ........................................................................................................................ .. 6A-67
V-belt Tension of Alternator ....................................................................................... 6A-68
FUEL INJECTION SYSTEM ............................................................................................. 6A-70 Map Sensor ................................................................................................................. 6A- 70
Pressure Regulator..................................................................................................... 6A-70
ECM (Engine Control Module) ................................................................................... 6A-70
ECT............................................................................................................................ ... 6A-71
Idle Air Control(IAC) Valve ......................................................................................... 6A-71
Ignition Coil ................................................................................................................. 6A-71
Crank Position Sensor ............................................................................................... 6A-72
FUEL INJECTOR .............................................................................................................. 6A- 73
Knock Sensor.............................................................................................................. 6A-7 3
Oxygen Sensor............................................................................................................ 6A-74
Throttle Valve Position Sensor .................................................................................. 6A-74
Acclelerator Pedal and Cable .................................................................................... 6A-74
Air Cleaner Filter ......................................................................................................... 6A- 75
Spark Plug Thread ...................................................................................................... 6A-76
TECHNICAL DATA ........................................................................................................... 6A-77
Recommended Troque Values .................................................................................. 6A-88
SPECIAL SERVICE TOOL ............................................................................................... 6A-89

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 2018 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6A-4 ENGINE MECHANICAL (C24SE)

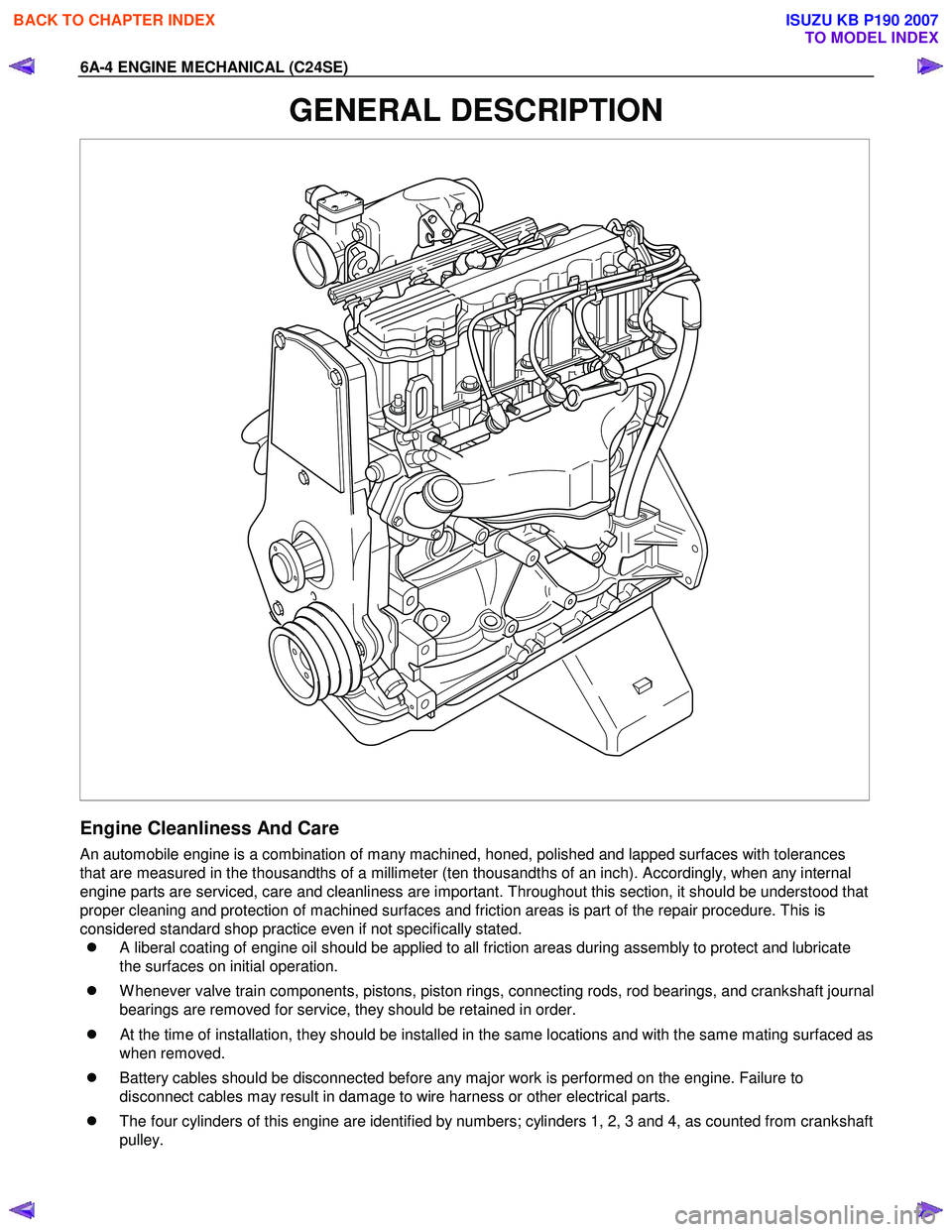

GENERAL DESCRIPTION

Engine Cleanliness And Care
An automobile engine is a combination of many machined, honed, polished and lapped surfaces with tolerances
that a

Page 2019 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE MECHANICAL (C24SE) 6A-5
General Information on Engine Service
The following information on engine service should be noted carefully, as it is important in preventing damage and
contributing

ENGINE MECHANICAL (C24SE) 6A-5
General Information on Engine Service
The following information on engine service should be noted carefully, as it is important in preventing damage and
contributing to reliable engine performance:
z W hen raising or supporting the engine for any reason, do not use a jack under the oil pan. Due to the small
clearance between the oil pan and the oil pump strainer, jacking against the oil pan may cause damage to the
oil pick up unit.
z The 12-volt electrical system is capable of damaging circuits. W hen performing any work where electrical
terminals could possible be grounded, the ground cable of the battery should be disconnected at the battery.
z Any time the intake air duct or air cleaner is removed, the intake opening should be covered. This will protect
against accidental entrance of foreign material into the cylinder which could cause extensive damage when
the engine is started.

Cylinder Block
The cylinder block is made of cast iron. The crankshaft is supported by five bearings. The bearing cap is made of
nodular cast iron.

Cylinder Head
The cylinder head is made of aluminum alloy casting with a spark plug in the center.

Valve Train
Valve system is a single over head camshaft.
The valves clearance adjustment are hydraulic.
Hydraulic valve lifter adjustment, no adjustment necessary.

Intake Manifold
The intake manifold is made of aluminum alloy.

Exhaust Manifold
The exhaust manifold is made of high Si-Mo nodular iron.

Pistons and Connecting Rods
Aluminum pistons are used after selecting the grade that meets the cylinder bore diameter. Each piston has two
compression rings and one oil ring. The piston pin is made of cast hardened steel. The connecting rod bearings are
made of modular cast iron. The connecting rod bearings are made of steel backed with tri-metal babbitt metal.

Crankshaft and Bearings
The crank shaft is made of modular cast iron. Pins and journal are graded for correct size selection for their bearing.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 2020 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6A-6 ENGINE MECHANICAL (C24SE)

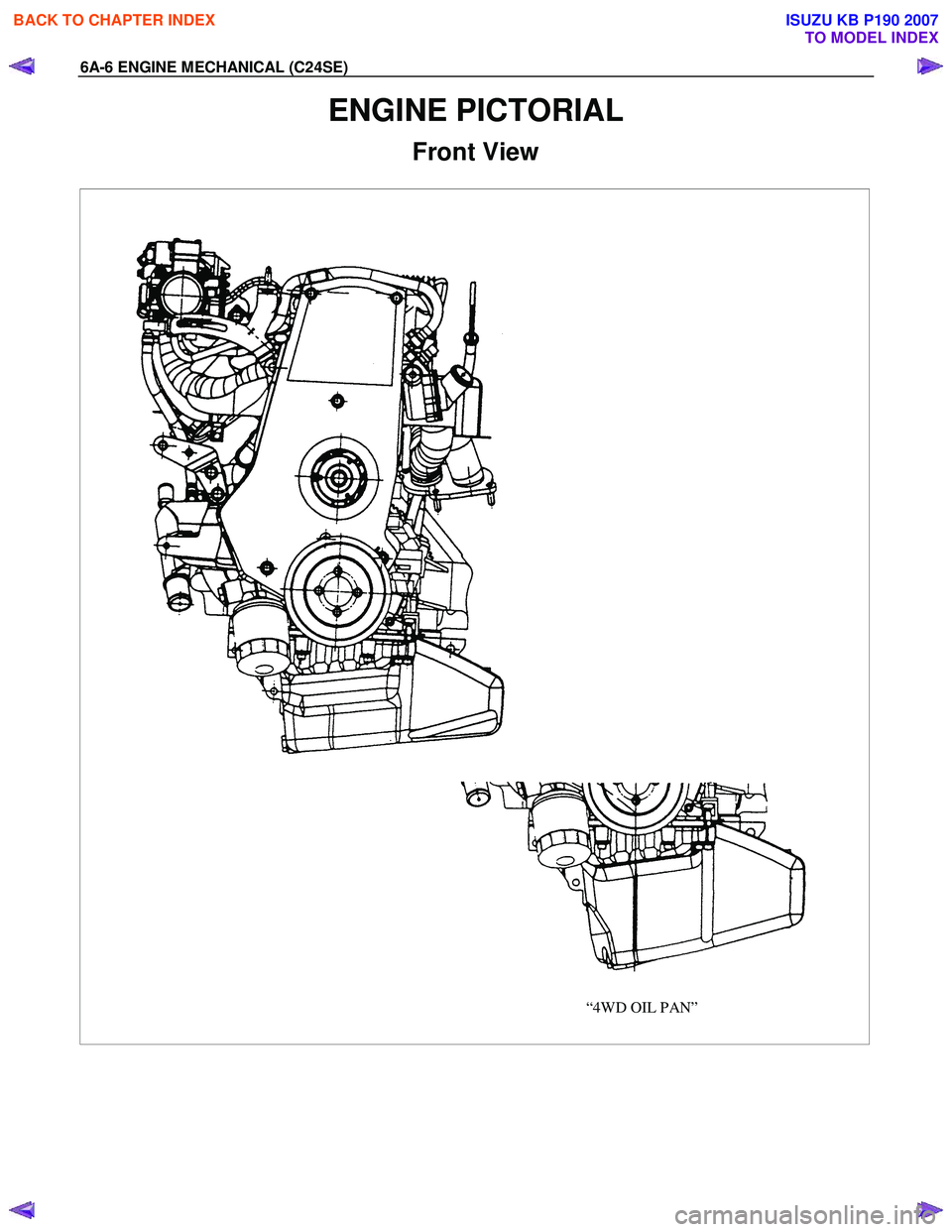

ENGINE PICTORIAL
Front View
“4WD OIL PAN”

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 2021 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE MECHANICAL (C24SE) 6A-7

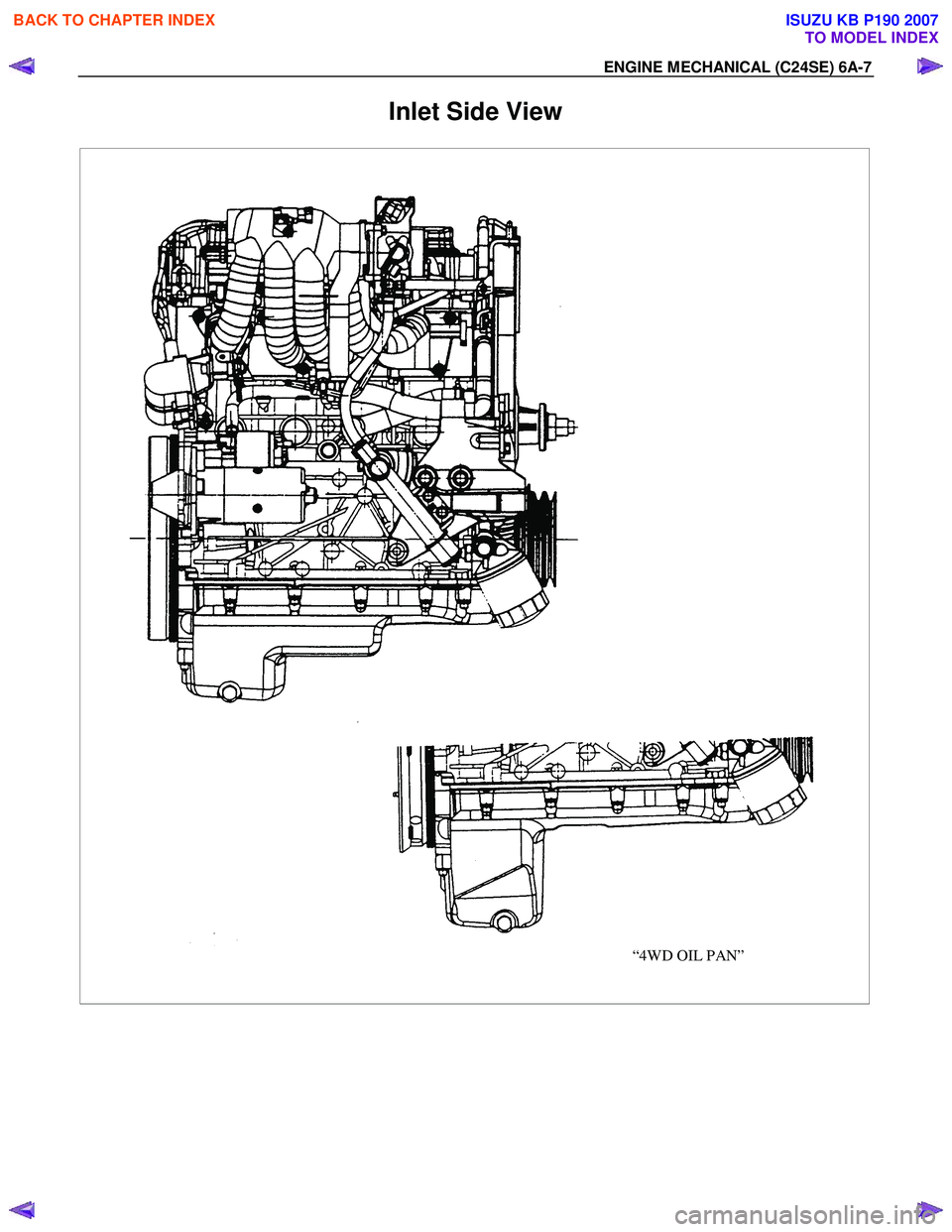

Inlet Side View
“4WD OIL PAN”

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 2022 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6A-8 ENGINE MECHANICAL (C24SE)

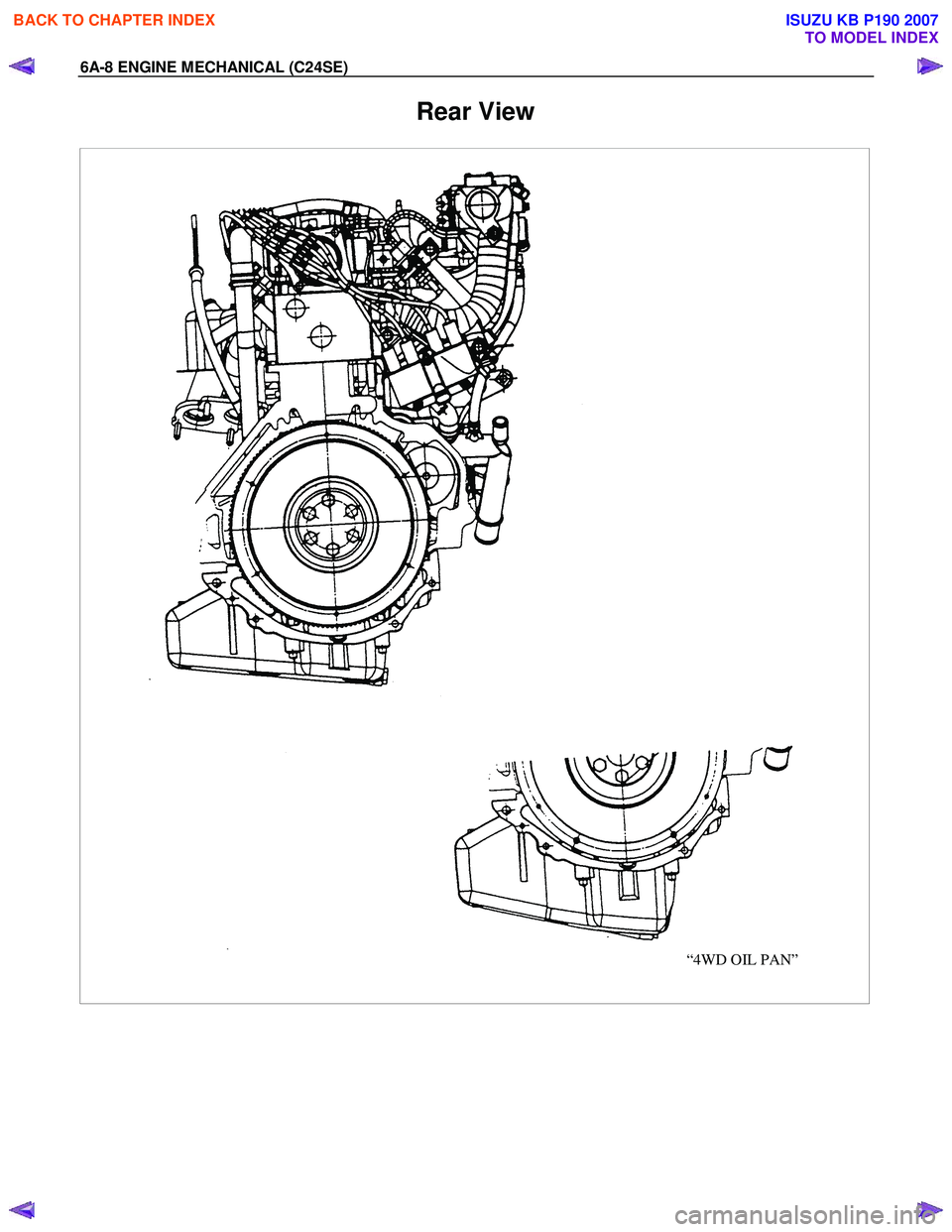

Rear View
“4WD OIL PAN”

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 2023 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE MECHANICAL (C24SE) 6A-9

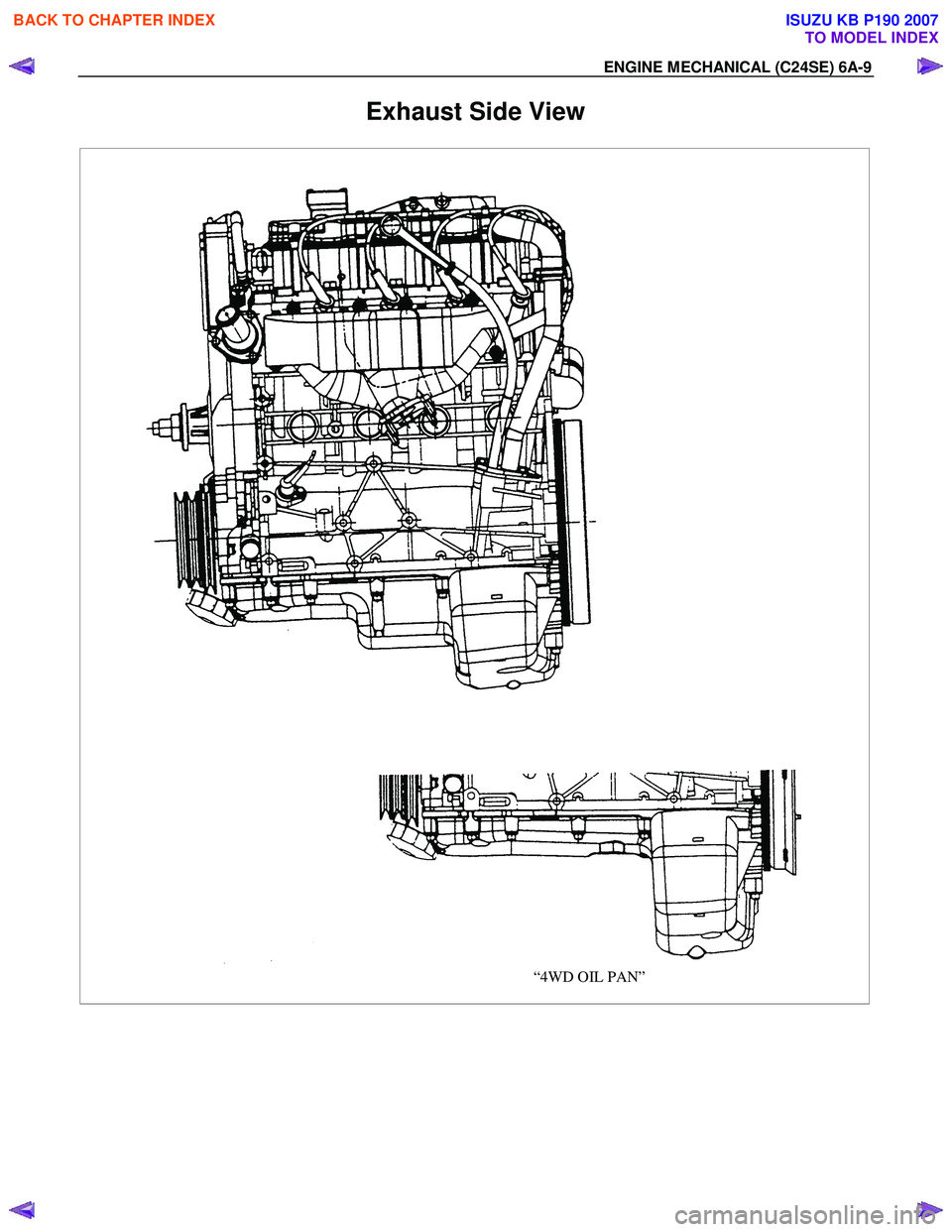

Exhaust Side View
“4WD OIL PAN”

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 2024 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6A-10 ENGINE MECHANICAL (C24SE)

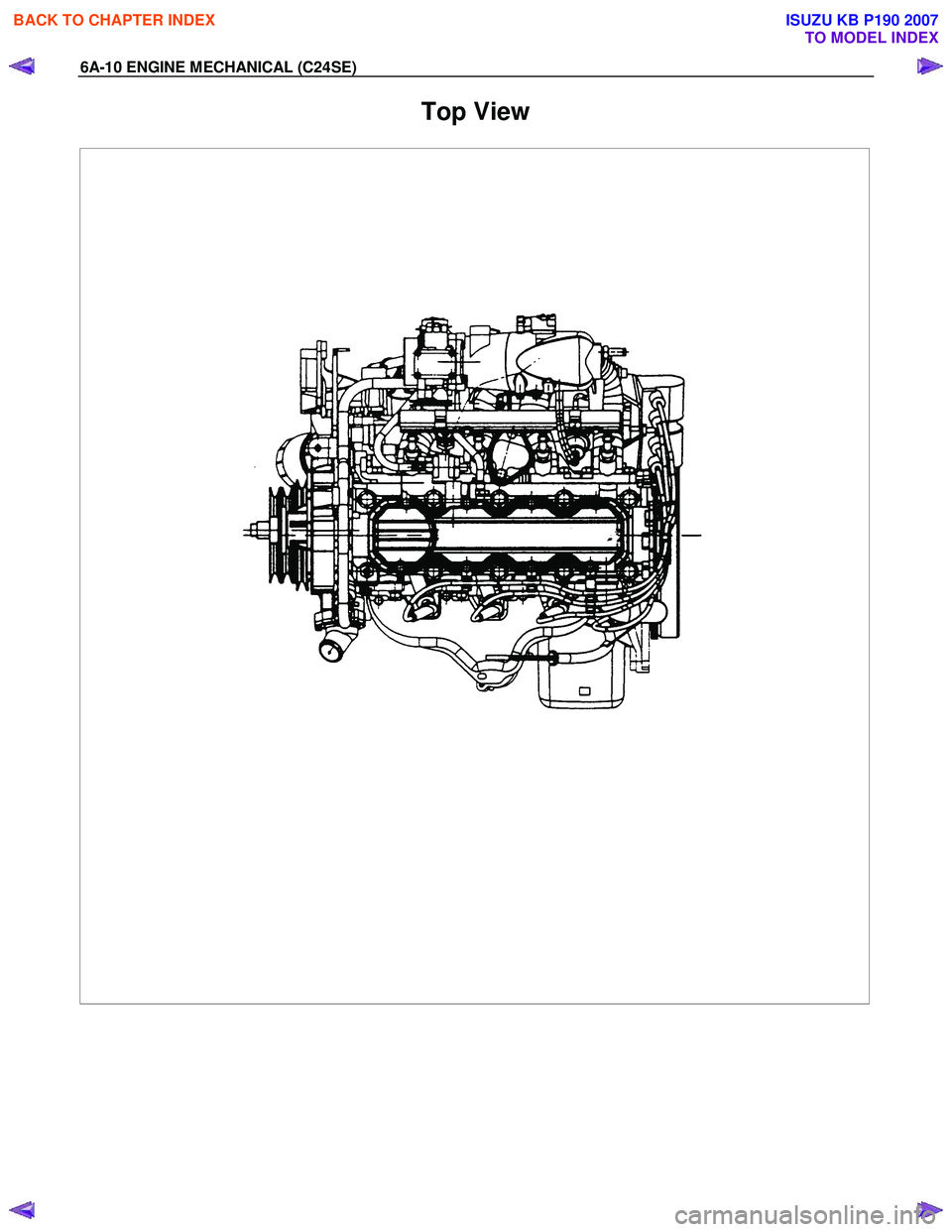

Top View

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
