Page 4545 of 6020
7A4-68 UNIT REPAIR (JR405E)

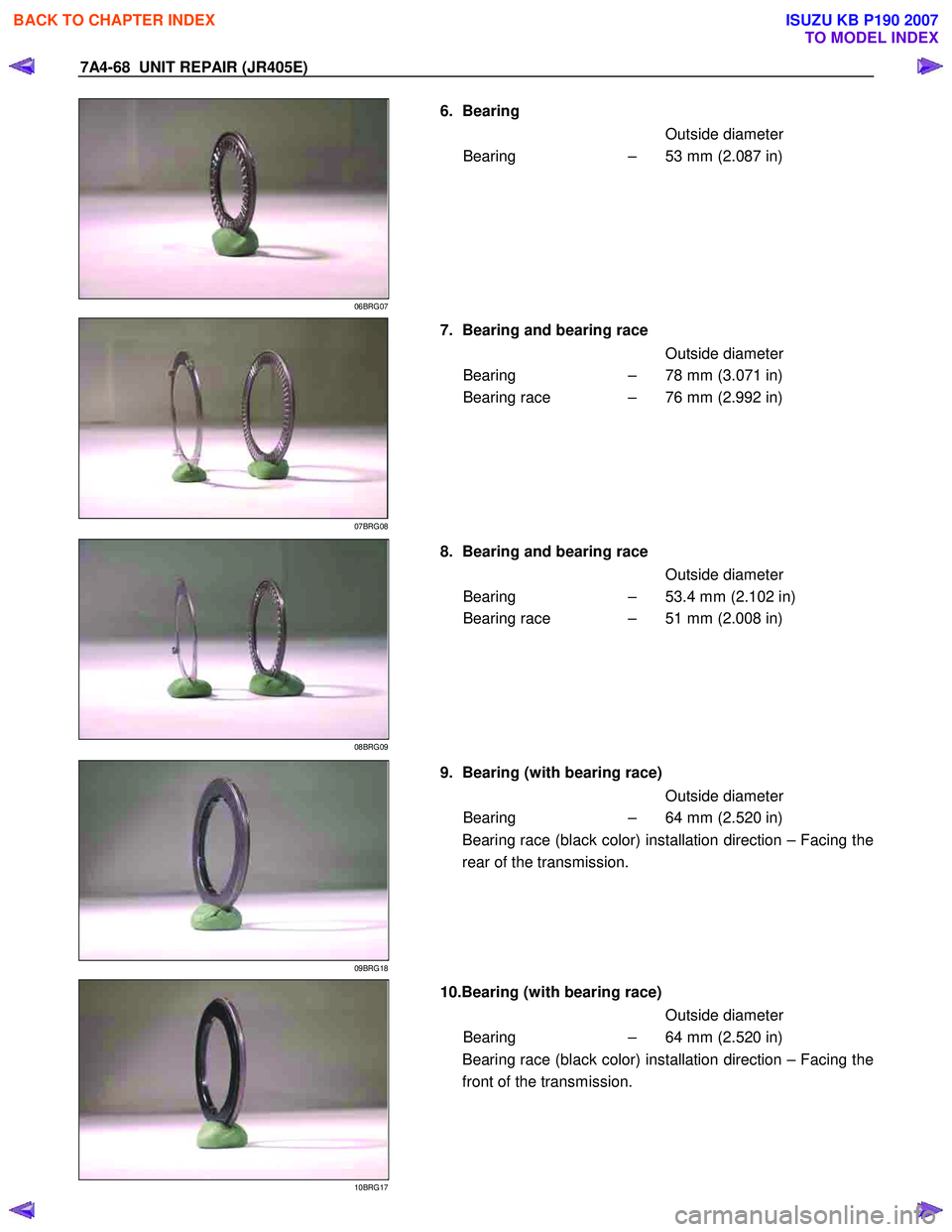

6. Bearing
Outside diameter
Bearing – 53 mm (2.087 in)
06BRG07
7. Bearing and bearing race
Outside diameter
Bearing – 78 mm (3.071 in)
Bearing race – 76 mm (2.992 in)
07BRG08
8. Bearing and bearing race
Outside diameter
Bearing – 53.4 mm (2.102 in)
Bearing race – 51 mm (2.008 in)
08BRG09
9. Bearing (with bearing race)
Outside diameter
Bearing – 64 mm (2.520 in)
09BRG18
Bearing race (black color) installation direction – Facing the
rear of the transmission.
10.Bearing (with bearing race)
Outside diameter
Bearing – 64 mm (2.520 in)
10BRG17
Bearing race (black color) installation direction – Facing the
front of the transmission.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4546 of 6020

UNIT REPAIR (JR405E) 7A4-69
AUTOMATIC TRANSMISSION
REASSEMBLY
Assembly cautions
• Use your bare hands or vinyl gloves to reassemble the
transmission. Do not use ordinary work gloves (loosen
threads from the gloves may fall into the transmission
and cause problems).
• Before installing the drive plates, immerse them in the
recommended automatic transmission fluid (BESCO
ATF III). If the drive plate is new, it must be immersed
for at least two hours to ensure oil penetration and
saturation of the facing.
•
Apply ATF to all sliding and contact surfaces before
assembly. Also apply ATF to seal rings and O-rings.
Assemble the parts carefully to avoid damaging them.
• Replace any snap ring that appears worn, bent out o
f
shape, or damaged.
• If any part contacting the transmission case is damaged,
it must be replaced with a new part.
• Be careful not to damage the plates during reassembl
y
(oil leakage from the plate will result).
• If you are reusing a seal, remove the old adhesive agent
and clean the surface with cleaning oil before applying
the new adhesive agent.
• W ait at least two hours after installing the oil seals
before installing the plates.
• Do not replace O-rings, snap rings, bearings, and/o
r
bearing races with inferior substitutes.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4547 of 6020
7A4-70 UNIT REPAIR (JR405E)

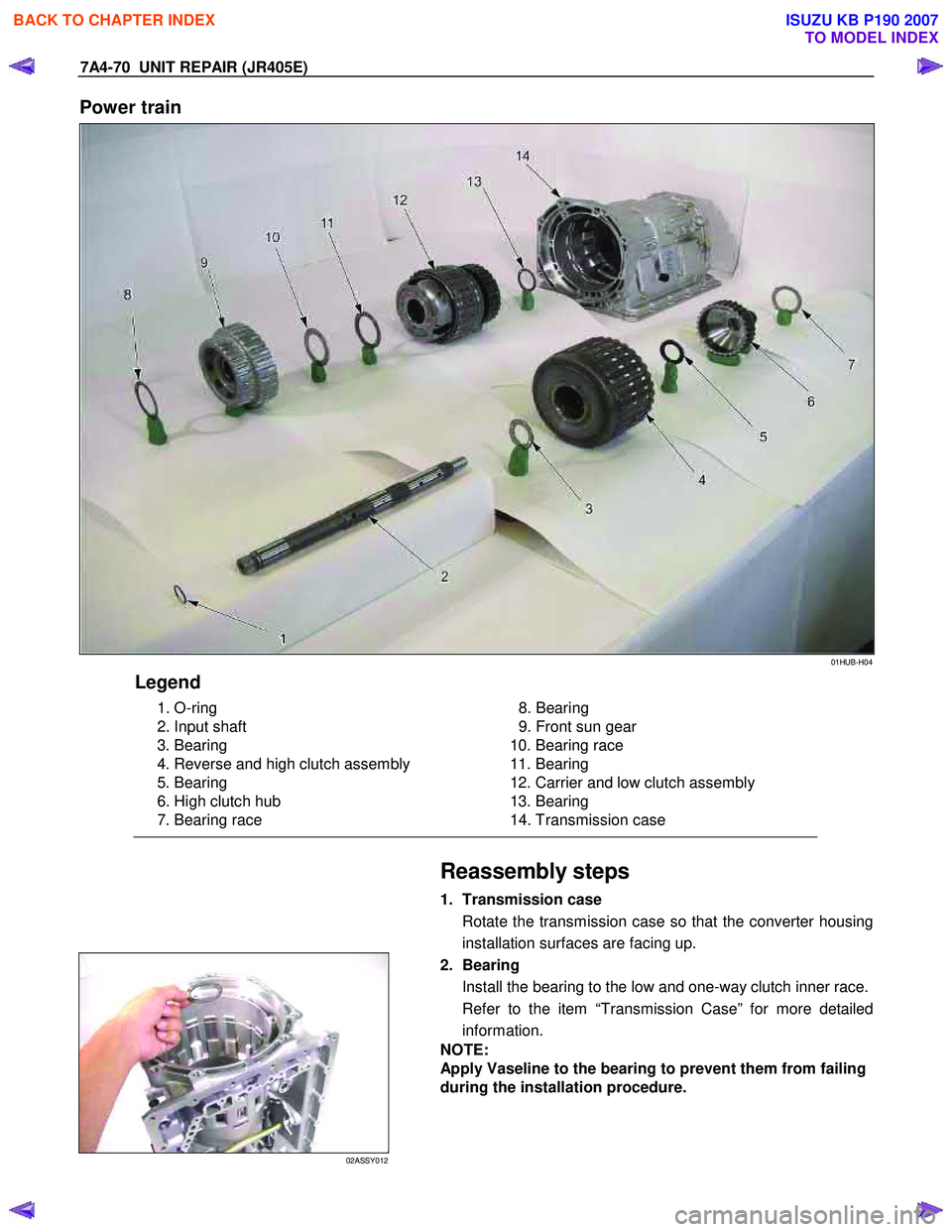

Power train
01HUB-H04
Legend
1. O-ring
2. Input shaft
3. Bearing
4. Reverse and high clutch assembly
5. Bearing
6. High clutch hub
7. Bearing race
8. Bearing
9. Front sun gear
10. Bearing race
11. Bearing
12. Carrier and low clutch assembly
13. Bearing
14. Transmission case
Reassembly steps
1. Transmission case
Rotate the transmission case so that the converter housing
installation surfaces are facing up.
02ASSY012
2. Bearing
Install the bearing to the low and one-way clutch inner race.
Refer to the item “Transmission Case” for more detailed
information.
NOTE:
Apply Vaseline to the bearing to prevent them from failing
during the installation procedure.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4548 of 6020
UNIT REPAIR (JR405E) 7A4-71
03ASSY013

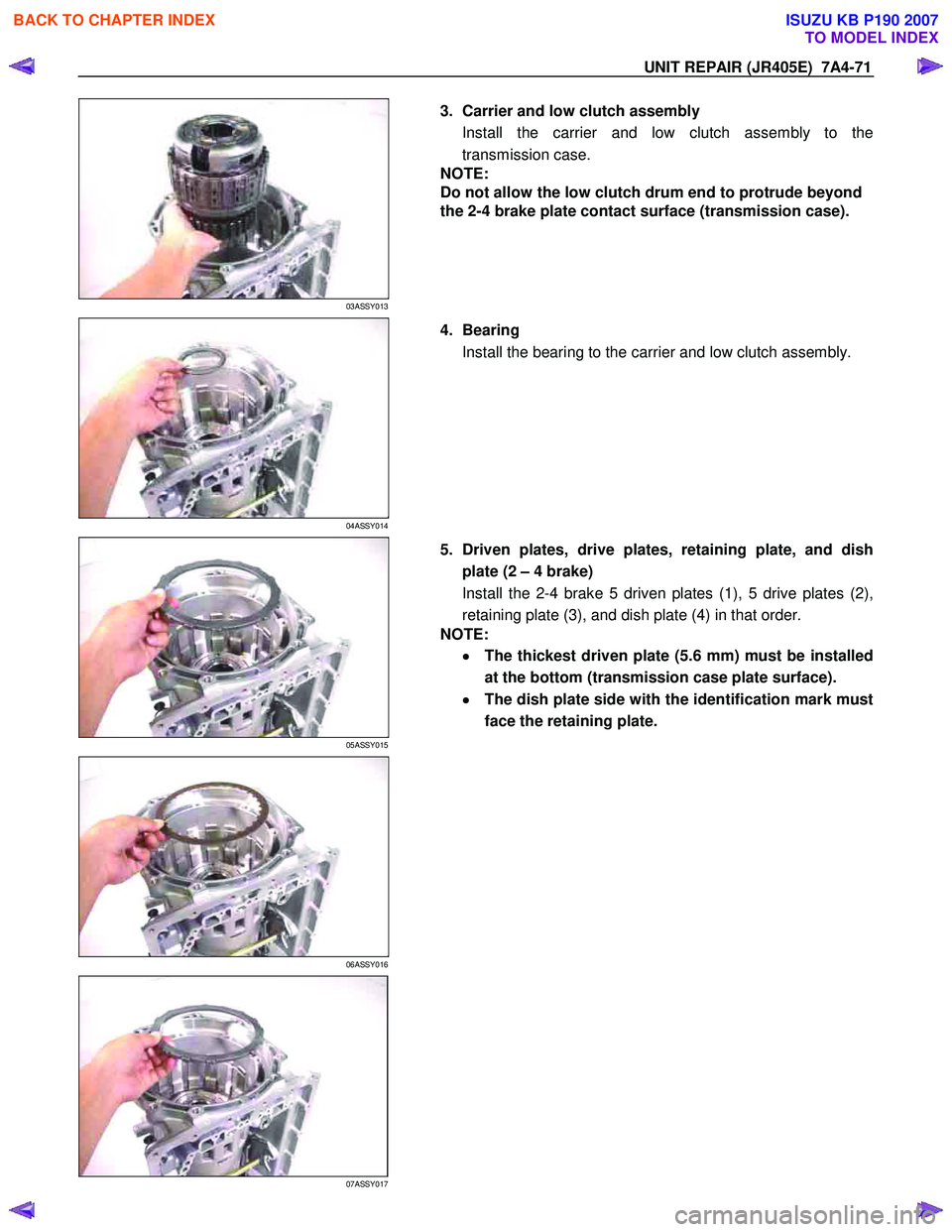

3. Carrier and low clutch assembly
Install the carrier and low clutch assembly to the
transmission case.
NOTE:
Do not allow the low clutch drum end to protrude beyond
the 2-4 brake plate contact surface (transmission case).
04ASSY014
4. Bearing
Install the bearing to the carrier and low clutch assembly.
05ASSY015
5. Driven plates, drive plates, retaining plate, and dish
plate (2 – 4 brake)
Install the 2-4 brake 5 driven plates (1), 5 drive plates (2),
retaining plate (3), and dish plate (4) in that order.
NOTE:
•
••
•
The thickest driven plate (5.6 mm) must be installed
at the bottom (transmission case plate surface).
•
••
•
The dish plate side with the identification mark must
face the retaining plate.
06ASSY016
07ASSY017
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4549 of 6020
7A4-72 UNIT REPAIR (JR405E)
08ASSY018
RTW 47ASH000401
09U-SPG2

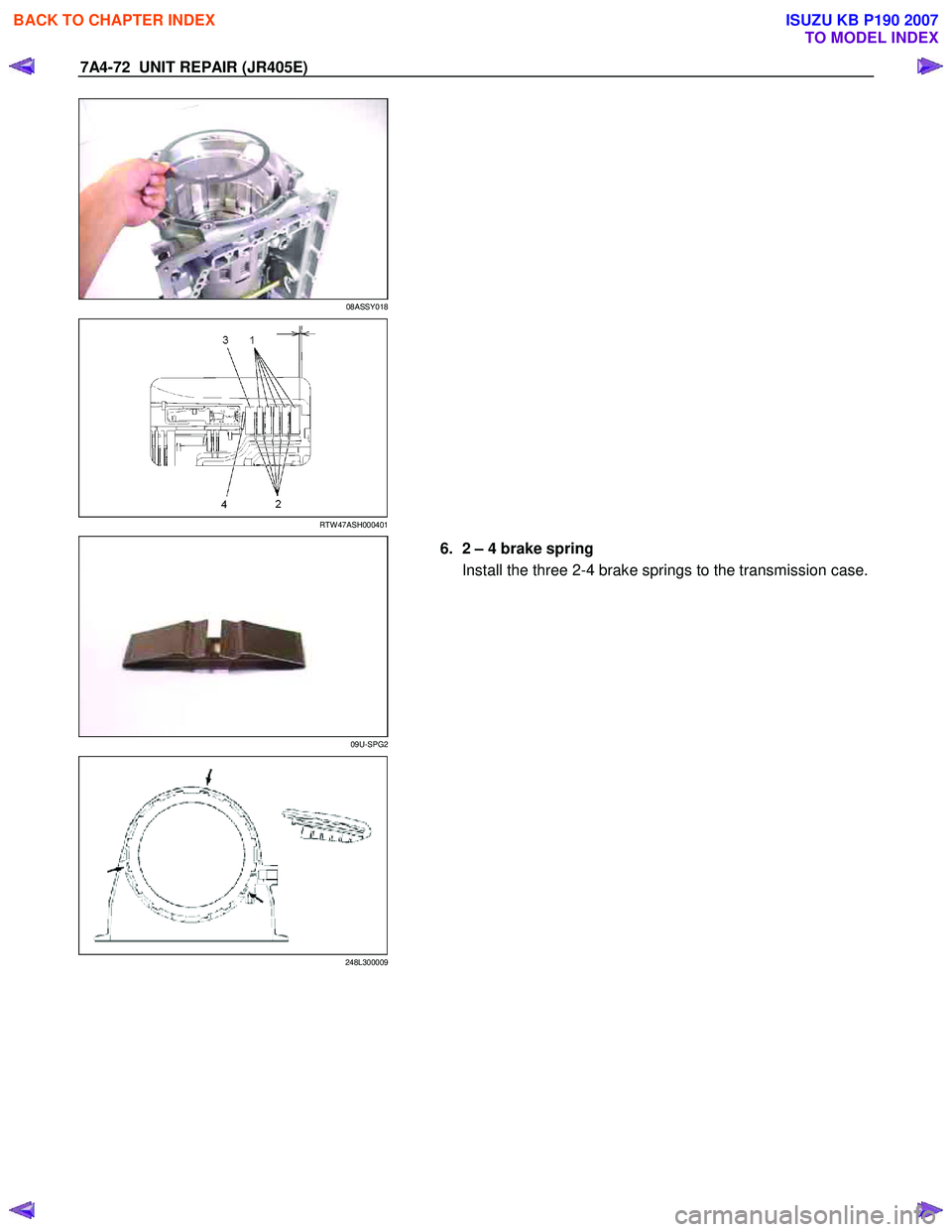

6. 2 – 4 brake spring
Install the three 2-4 brake springs to the transmission case.
248L300009
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4550 of 6020
UNIT REPAIR (JR405E) 7A4-73
10ASSY019

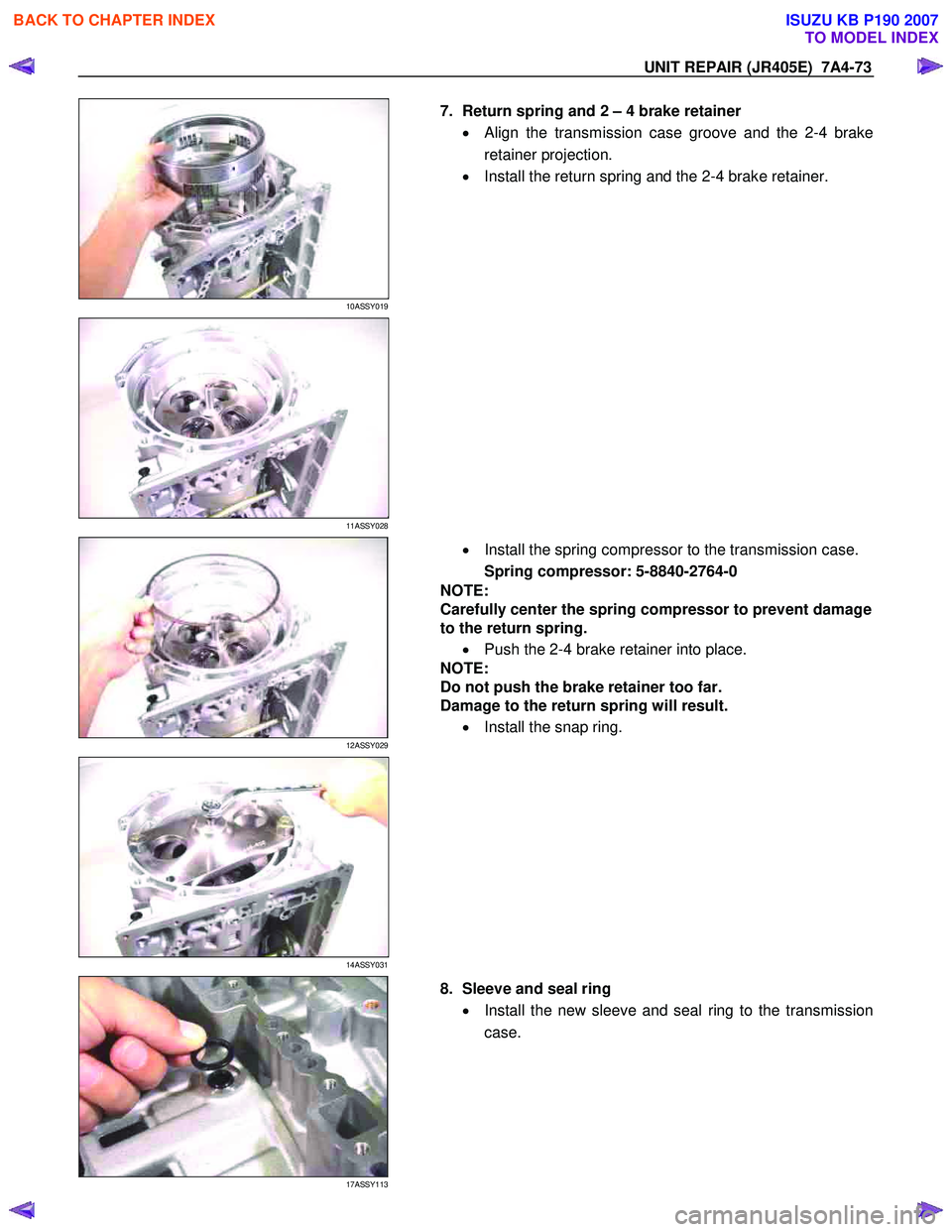

7. Return spring and 2 – 4 brake retainer
• Align the transmission case groove and the 2-4 brake
retainer projection.
• Install the return spring and the 2-4 brake retainer.
11ASSY028
12ASSY029
• Install the spring compressor to the transmission case.
Spring compressor: 5-8840-2764-0
NOTE:
Carefully center the spring compressor to prevent damage
to the return spring.
• Push the 2-4 brake retainer into place.
NOTE:
Do not push the brake retainer too far.
Damage to the return spring will result.
• Install the snap ring.
14ASSY031
17ASSY113
8. Sleeve and seal ring
• Install the new sleeve and seal ring to the transmission
case.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4551 of 6020
7A4-74 UNIT REPAIR (JR405E)
192-4B22
•

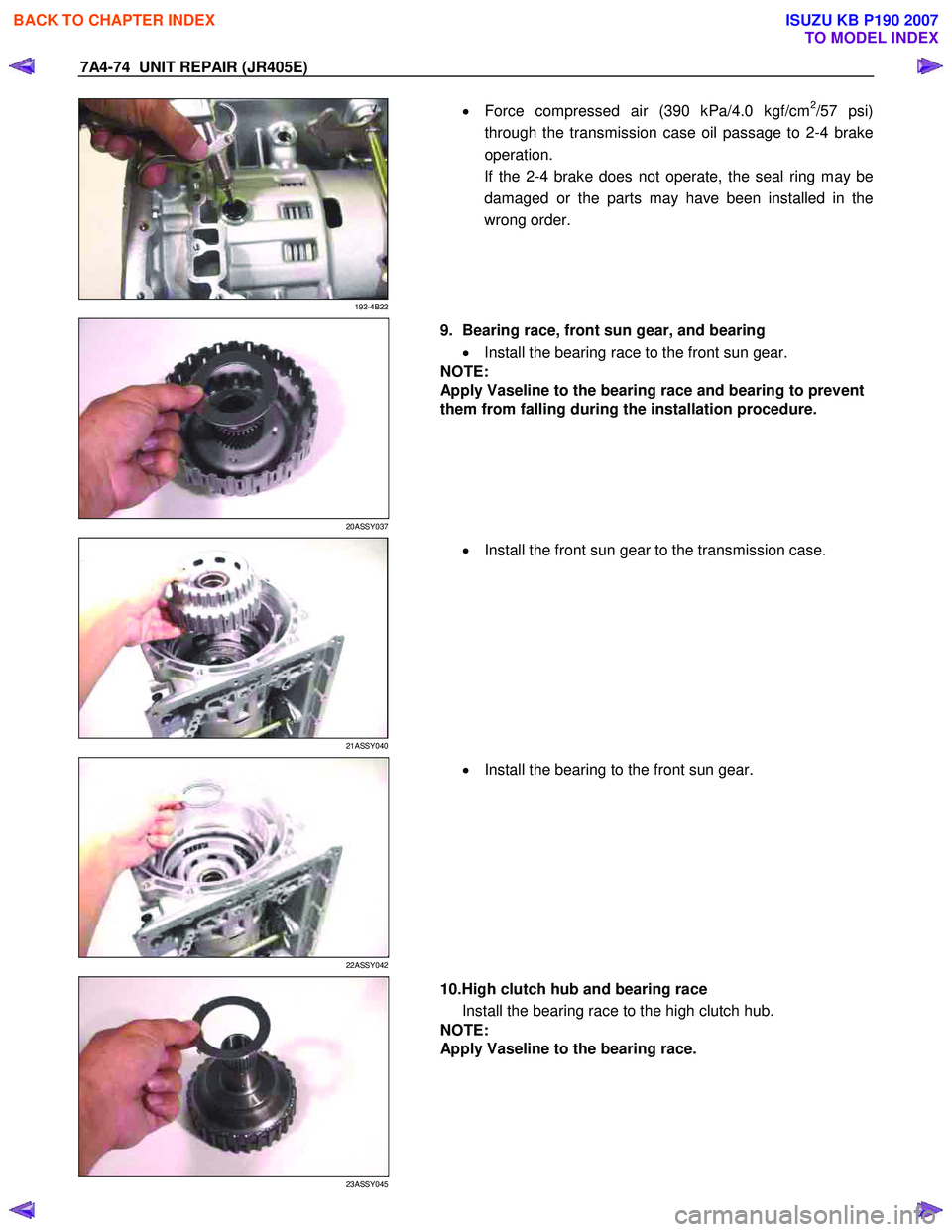

Force compressed air (390 kPa/4.0 kgf/cm2/57 psi)
through the transmission case oil passage to 2-4 brake
operation.
If the 2-4 brake does not operate, the seal ring may be
damaged or the parts may have been installed in the
wrong order.
20ASSY037
9. Bearing race, front sun gear, and bearing
• Install the bearing race to the front sun gear.
NOTE:
Apply Vaseline to the bearing race and bearing to prevent
them from falling during the installation procedure.
21ASSY040
• Install the front sun gear to the transmission case.
22ASSY042
• Install the bearing to the front sun gear.
23ASSY045
10.High clutch hub and bearing race
Install the bearing race to the high clutch hub.
NOTE:
Apply Vaseline to the bearing race.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 4552 of 6020
UNIT REPAIR (JR405E) 7A4-75
24ASSY047
•

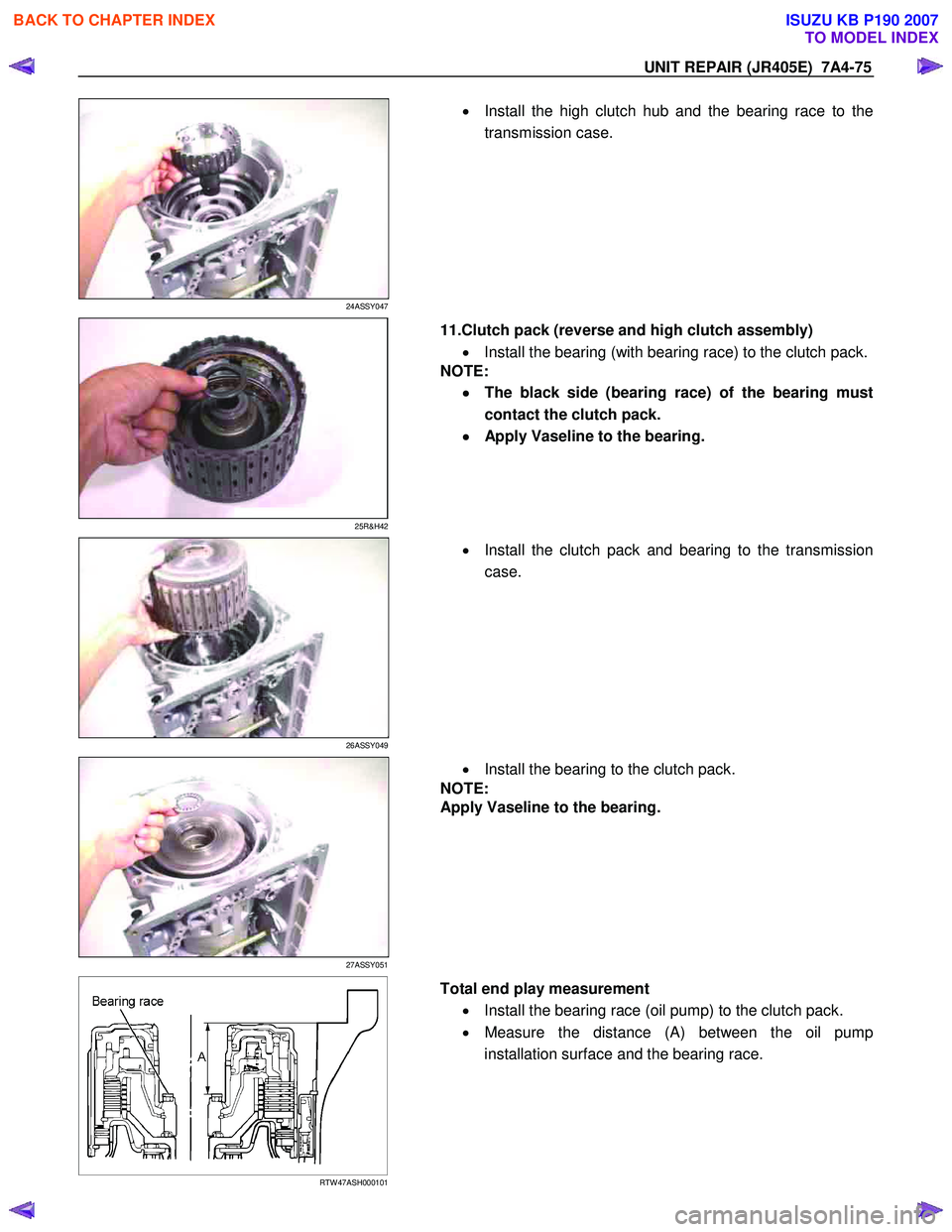

Install the high clutch hub and the bearing race to the
transmission case.
25R&H42
11.Clutch pack (reverse and high clutch assembly)
• Install the bearing (with bearing race) to the clutch pack.
NOTE:
•
••
•
The black side (bearing race) of the bearing must
contact the clutch pack.
•
••
•
Apply Vaseline to the bearing.
26ASSY049
•
Install the clutch pack and bearing to the transmission
case.
27ASSY051
•
Install the bearing to the clutch pack.
NOTE:
Apply Vaseline to the bearing.
RTW 47ASH000101
Total end play measurement
• Install the bearing race (oil pump) to the clutch pack.
• Measure the distance (A) between the oil pump
installation surface and the bearing race.
