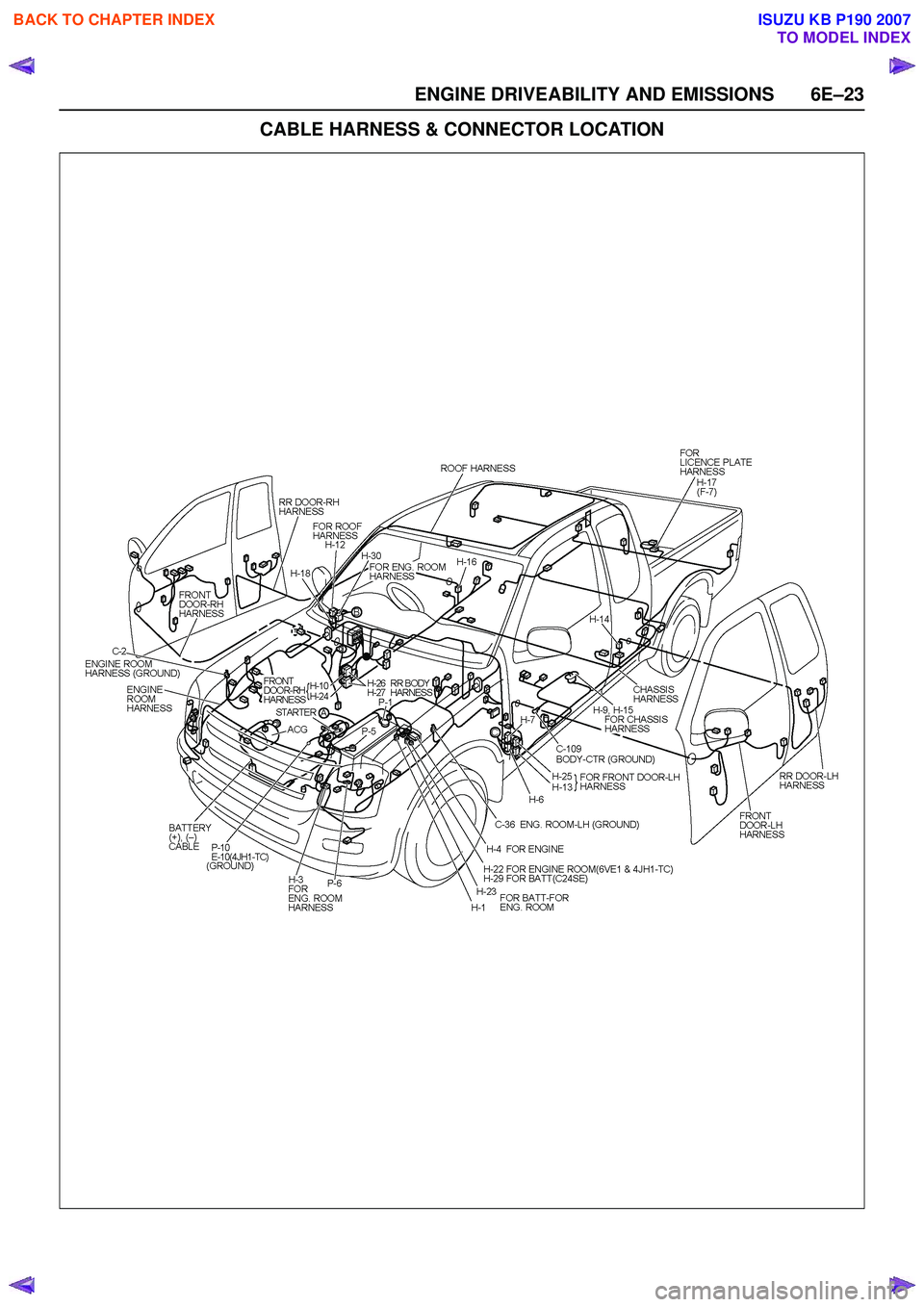

ISUZU KB P190 2007 Workshop Repair Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–23 CABLE HARNESS & CONNECTOR LOCATION BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 2194 of 6020

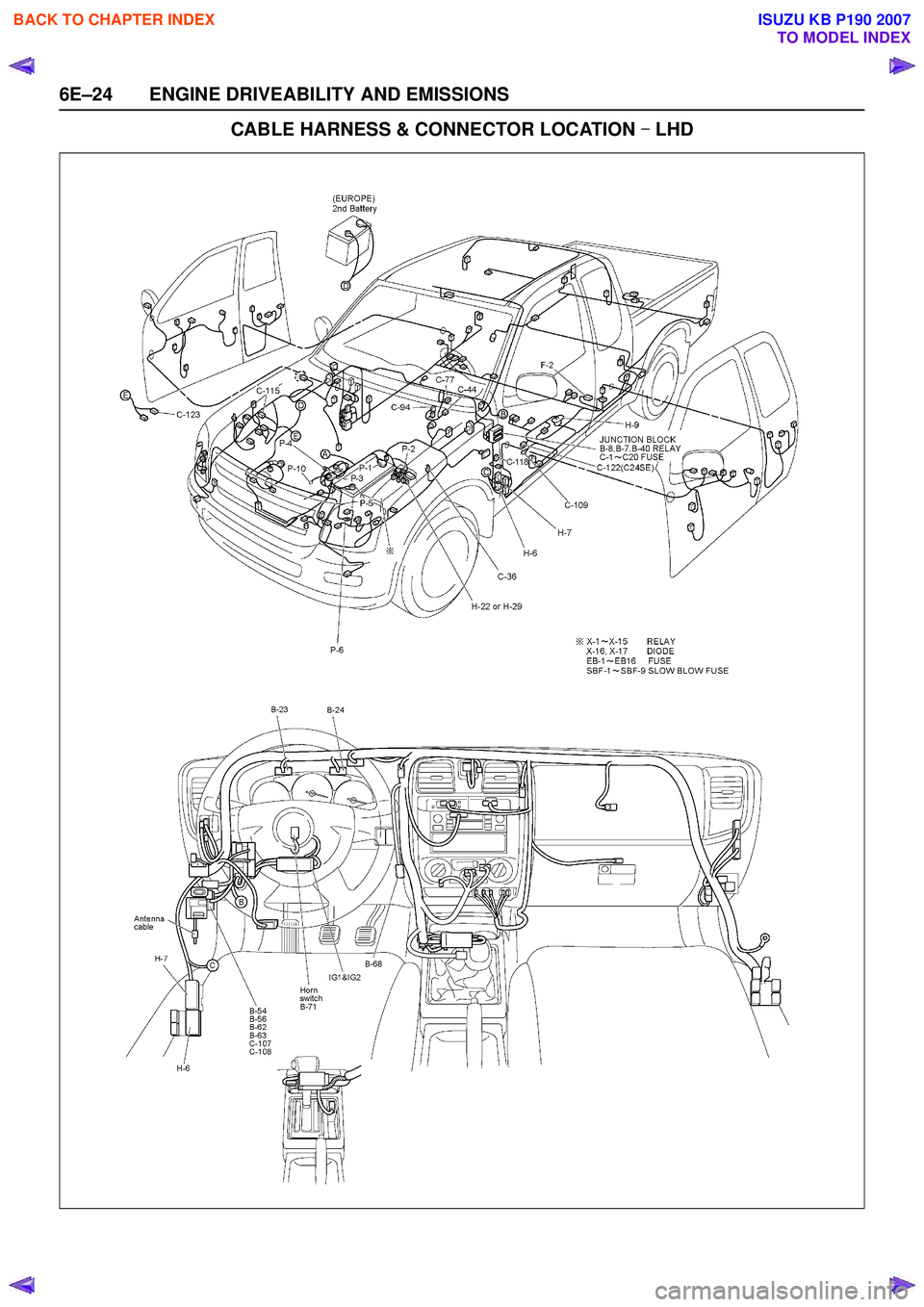

ISUZU KB P190 2007 Workshop Repair Manual 6E–24 ENGINE DRIVEABILITY AND EMISSIONS CABLE HARNESS & CONNECTOR LOCATION - -- - LHD BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 2195 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–25 CABLE HARNESS & CONNECTOR LOCATION - -- - RHD BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 2196 of 6020

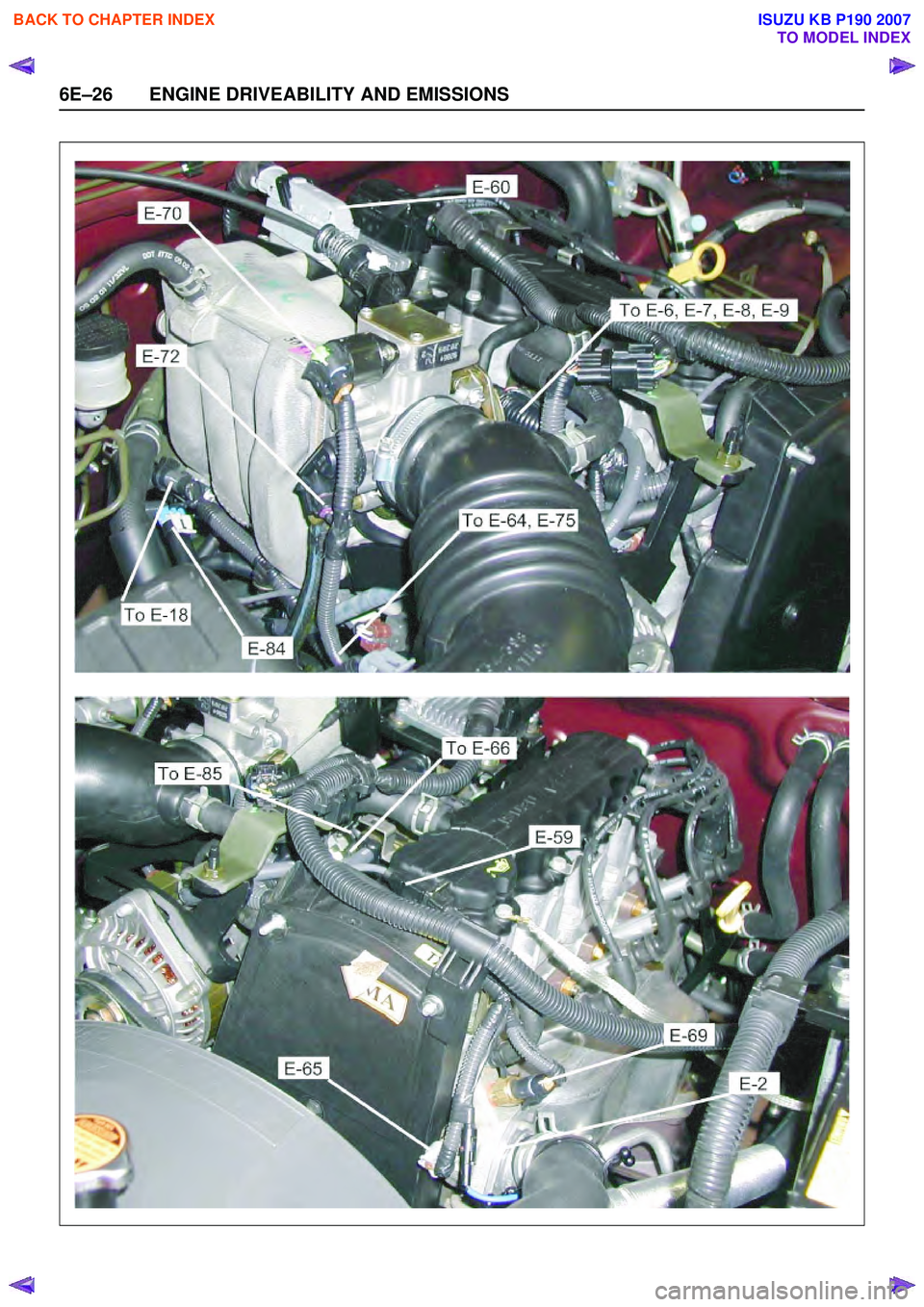

ISUZU KB P190 2007 Workshop Repair Manual 6E–26 ENGINE DRIVEABILITY AND EMISSIONS BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 2197 of 6020

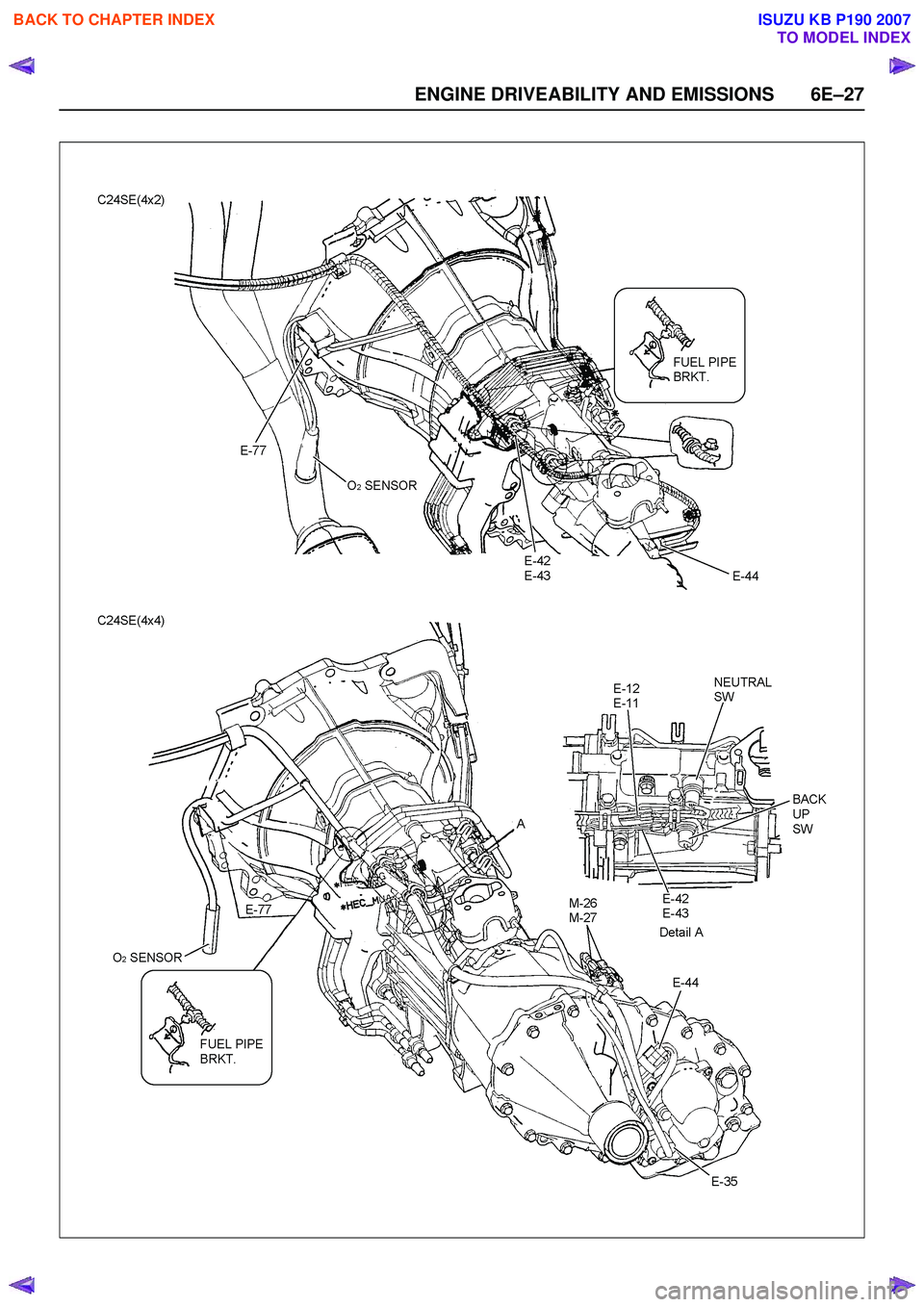

ISUZU KB P190 2007 Workshop Repair Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–27 BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007

Page 2198 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6E–28 ENGINE DRIVEABILITY AND EMISSIONS CONNECTOR LIST No.Connector face No.Connector face B-24 Green Meter-B C-122 CO Adjuster B-58 Black Check connector E-6 Fuel injector B-62 White Ignition switc

Page 2199 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–29 No.Connector face No.Connector face E-84 Knock sensor P-1 Silver Battery (+) E-85 MAP sensor P-2 Silver Relay & Fuse box F-2 White Fuel pump & sensor P-5 Silv

Page 2200 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 6E–30 ENGINE DRIVEABILITY AND EMISSIONS RELAY AND FUSE RELAY AND FUSE BOX LOCATION (LHD & RHD) LHDRHD BACK TO CHAPTER INDEX TO MODEL INDEX ISUZU KB P190 2007
