Page 3017 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–240 Page 6A1–240 Remove 1 Remove the skid plate. 2 Drain the radiator coolant, refer to Section 6B1 Engine Cooling – V6. 3 Disconnect the battery neg

Page 3018 of 6020

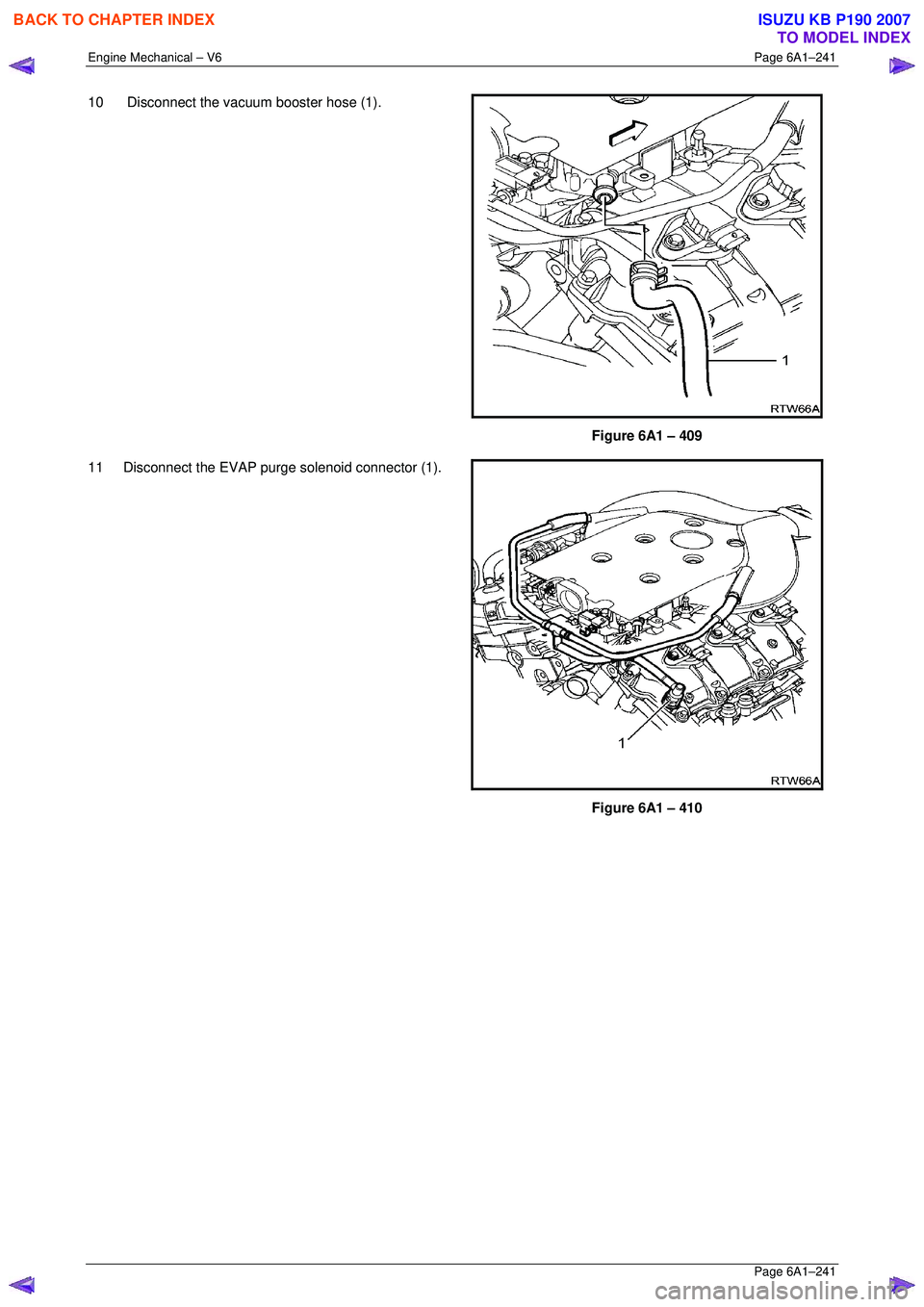

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–241 Page 6A1–241 10 Disconnect the vacuum booster hose (1). Figure 6A1 – 409 11 Disconnect the EVAP purge solenoid connector (1). Figure 6A1 –

Page 3019 of 6020

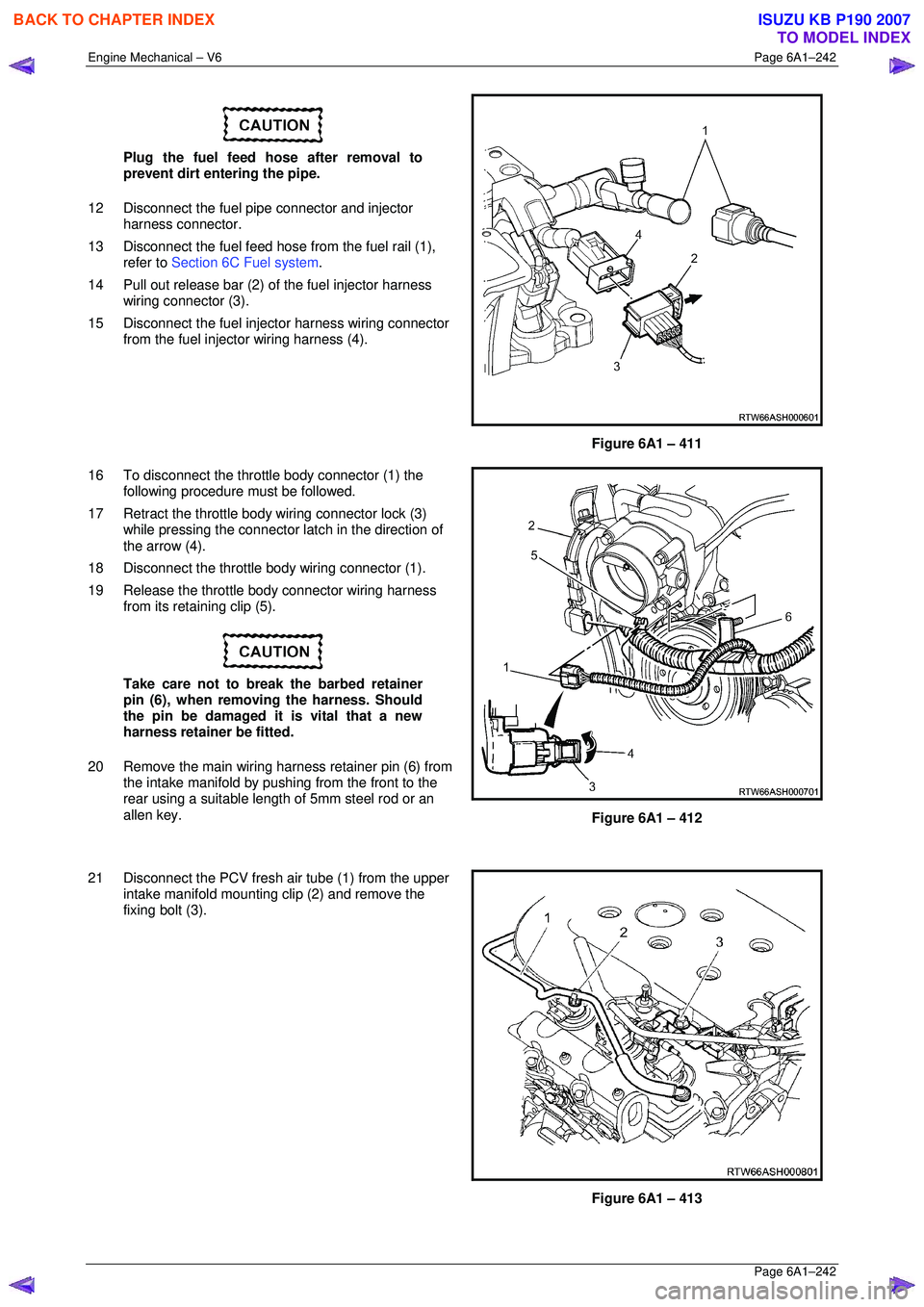

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–242 Page 6A1–242 Plug the fuel feed hose after removal to prevent dirt entering the pipe. 12 Disconnect the fuel pipe connector and injector harness con

Page 3020 of 6020

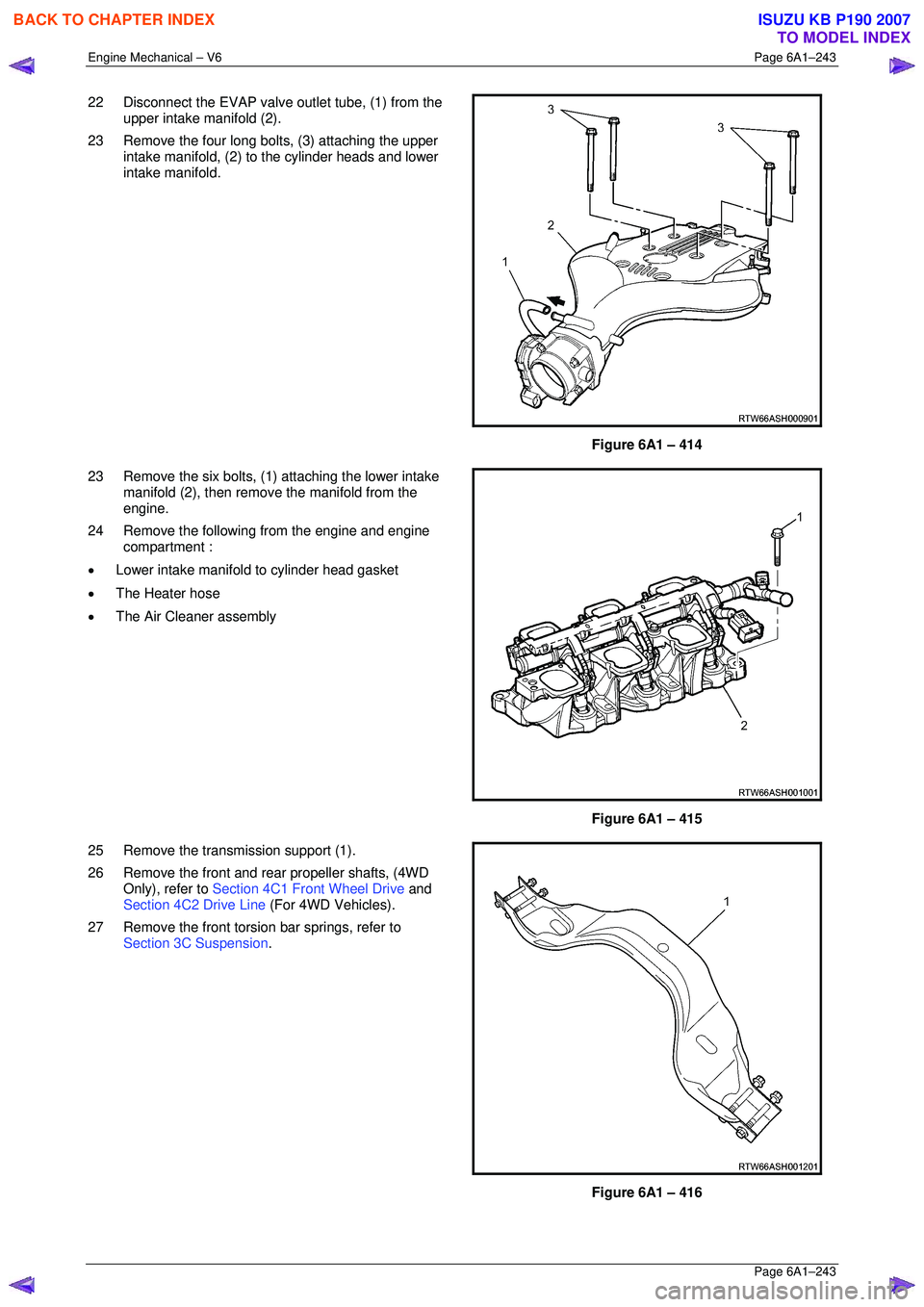

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–243 Page 6A1–243 22 Disconnect the EVAP valve outlet tube, (1) from the upper intake manifold (2). 23 Remove the four long bolts, (3) attaching the upper

Page 3021 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–244 Page 6A1–244 28 Remove the centre exhaust pipe (1), refer to Section 6F Exhaust System - V6 . Figure 6A1 – 417 29 Disconnect the two post-cata

Page 3022 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–245 Page 6A1–245 35 Disconnect the harness connector from the transmission, refer to Section 7B1 Manual Transmission – V6 or Section 7C1, Section 7C2, Sec

Page 3023 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–246 Page 6A1–246 Figure 6A1 – 423 Figure 6A1 – 424 42 Fit the engine lifting brackets (1), (EN–46114) and attach the engine hoist, raise the engi

Page 3024 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Engine Mechanical – V6 Page 6A1–247 Page 6A1–247 44 Remove the left-hand side engine mount (1), (automatic transmission only). Figure 6A1 – 426 45 Unclip the oil level s ensor harn
