Page 5489 of 6020

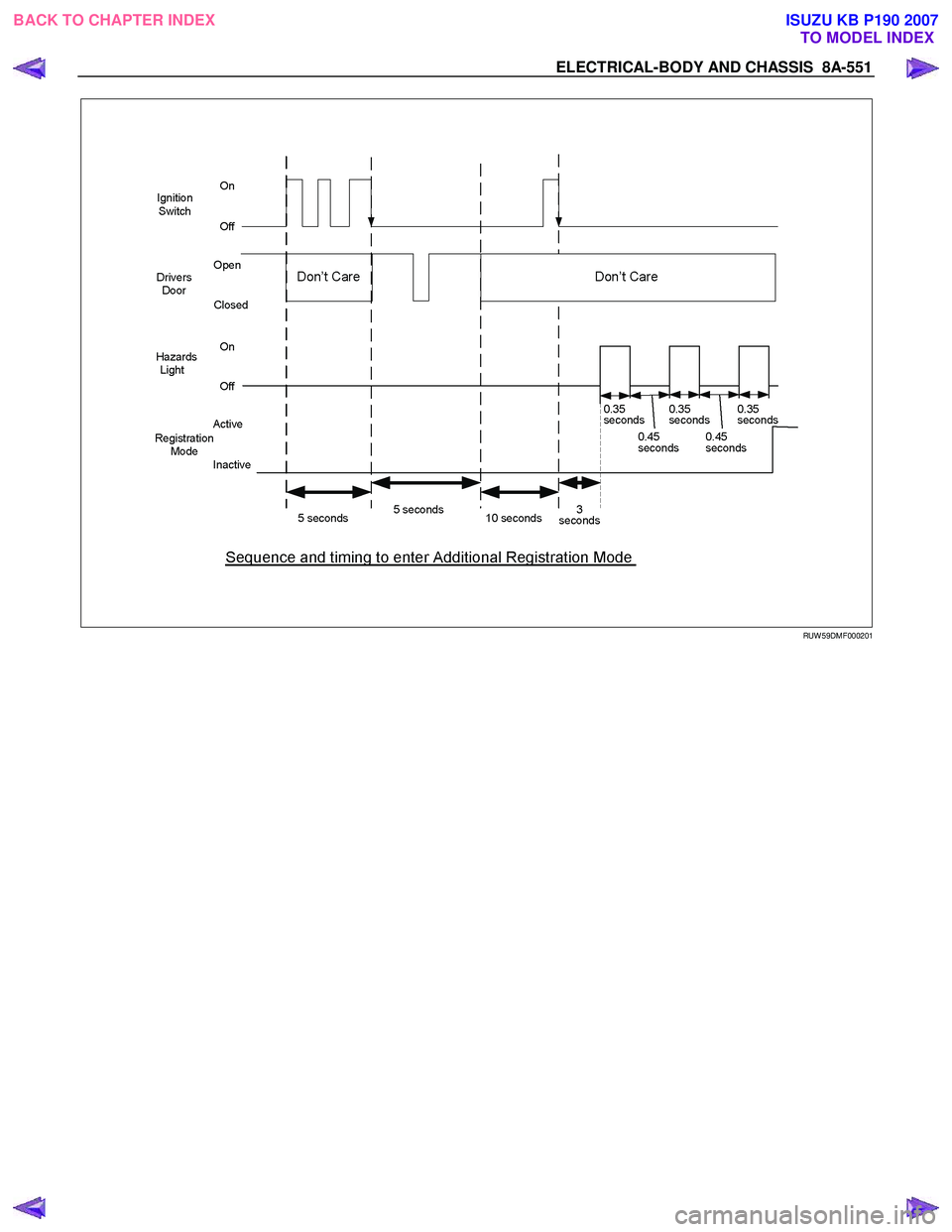

ELECTRICAL-BODY AND CHASSIS 8A-551
RUW 59DMF000201
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5490 of 6020
8A-552 ELECTRICAL-BODY AND CHASSIS
ID Code Check
Numbers of registered ID code shall be checked in this
mode.
Step Action Yes No
1 NOTE: Make sure that the all the doors are closed.
Is the action complete? Go to Step 2
2 Insert the ignition key into the key lock twice, and then re-
inserted.
NOTE: This step must be carried out within five seconds.
Count the number of times the hazard lights flash on and off.
This number is equal to the number of registrations.
Is the action complete? Go to Step 1 Go to Step 1
RUW 59DLF000101
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5491 of 6020

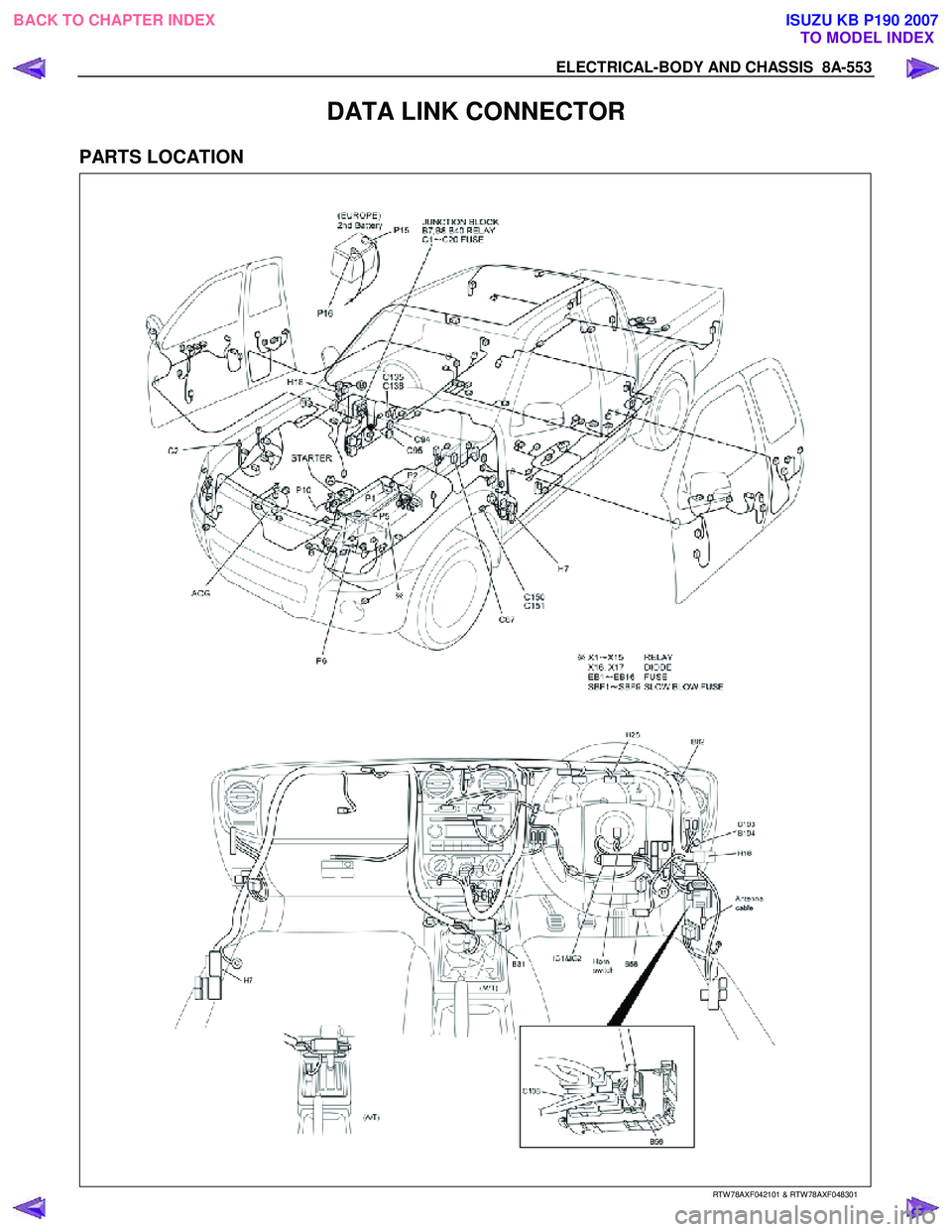

ELECTRICAL-BODY AND CHASSIS 8A-553
DATA LINK CONNECTOR
PARTS LOCATION
RTW 78AXF042101 & RTW 78AXF048301
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5492 of 6020

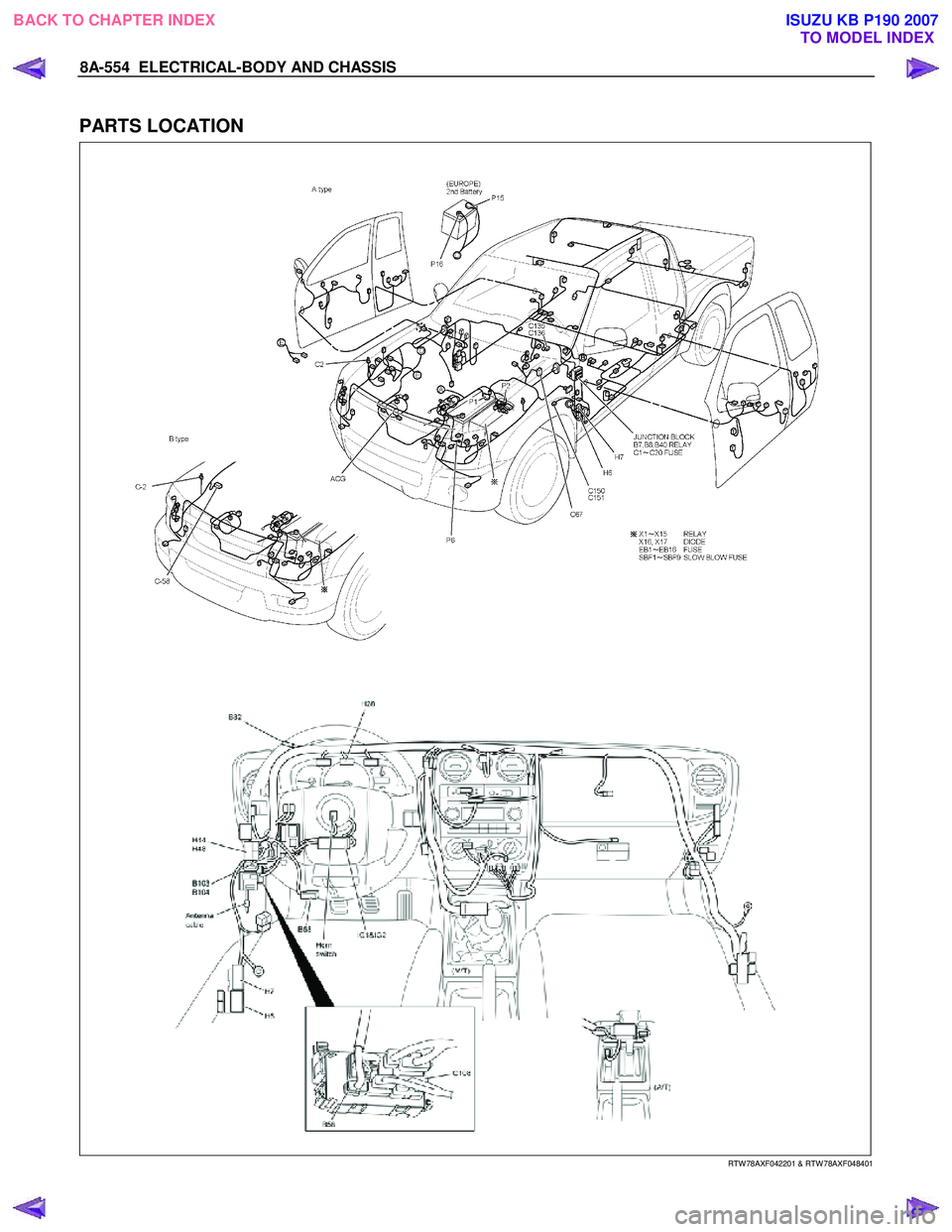

8A-554 ELECTRICAL-BODY AND CHASSIS
PARTS LOCATION
RTW 78AXF042201 & RTW 78AXF048401
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5493 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-555
CIRCUIT DIAGRAM HFV6
RTW 78AXF003901
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5494 of 6020
8A-556 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (RHD) SOUTH AFRICA
RTW 78AXF019601
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5495 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-557
CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (RHD) EXCEPT SOUTH AFRICA
RTW 78AXF034201
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5496 of 6020
8A-558 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM 4JA1T (L)
RTW 78AXF006401
