Page 5809 of 6020

ISUZU KB P190 2007 Workshop Repair Manual CAB 10-51 8. Body Side Rear Upper Trim Cover • Pry the trim cover clips free from the body panel. Important Operations - Installation 7. Tongue Side Seat Belt • Tighten the seat belt

Page 5810 of 6020

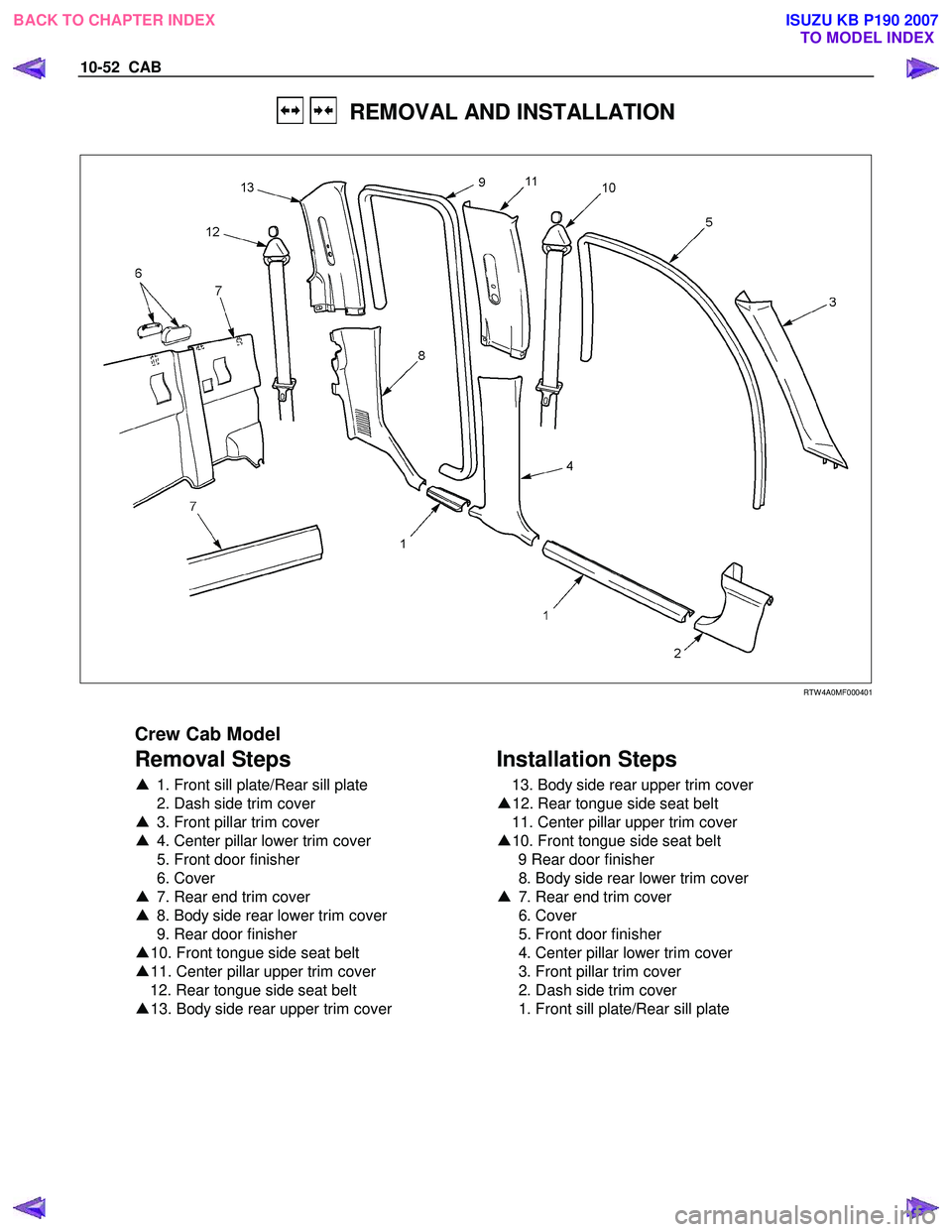

ISUZU KB P190 2007 Workshop Repair Manual 10-52 CAB REMOVAL AND INSTALLATION RTW 4A0MF000401 Crew Cab Model Removal Steps ▲ 1. Front sill plate/Rear sill plate 2. Dash side trim cover ▲ 3. Front pillar trim c

Page 5811 of 6020

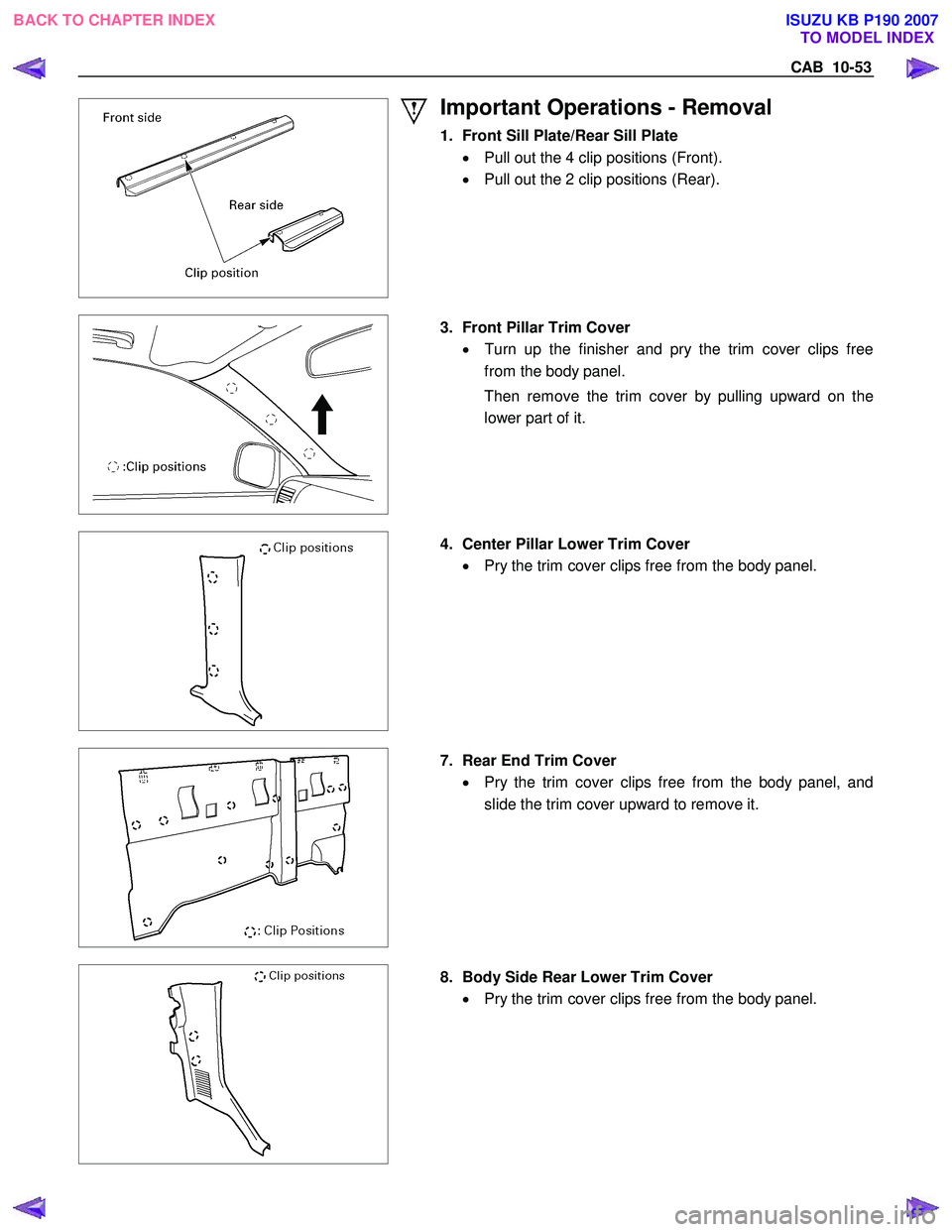

ISUZU KB P190 2007 Workshop Repair Manual CAB 10-53 Important Operations - Removal 1. Front Sill Plate/Rear Sill Plate • Pull out the 4 clip positions (Front). • Pull out the 2 clip positions (Rear). 3. Front Pillar Tri

Page 5812 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 10-54 CAB 10. Front Tongue Side Seat Belt 1) Pull out the adjuster knob. RTW 3A0SH000301 2) Open the through ring anchor cover and remove the seat belt upper anchor bolt. 11. Center

Page 5813 of 6020

ISUZU KB P190 2007 Workshop Repair Manual CAB 10-55 10. Front Tongue Side Seat Belt • Tighten the seat belt upper anchor bolt to the specified torque. Torque N ⋅m (kgf ⋅m/lb ⋅ft) 40 (4.1/30) 7. Rear End Trim Cover •

Page 5814 of 6020

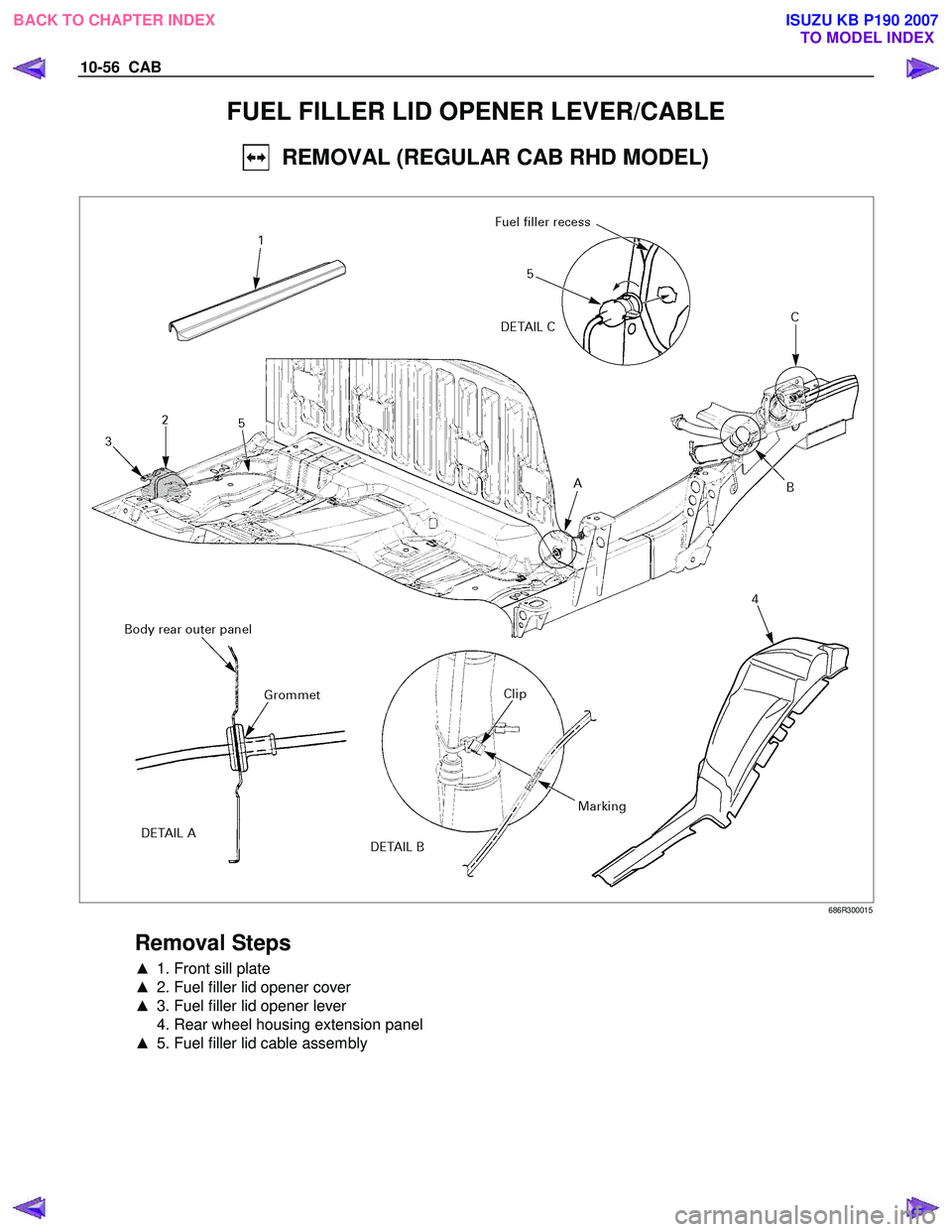

ISUZU KB P190 2007 Workshop Repair Manual 10-56 CAB FUEL FILLER LID OPENER LEVER/CABLE REMOVAL (REGULAR CAB RHD MODEL) 686R300015 Removal Steps ▲ 1. Front sill plate ▲ 2. Fuel filler lid opener cover ▲ 3. Fuel fill

Page 5815 of 6020

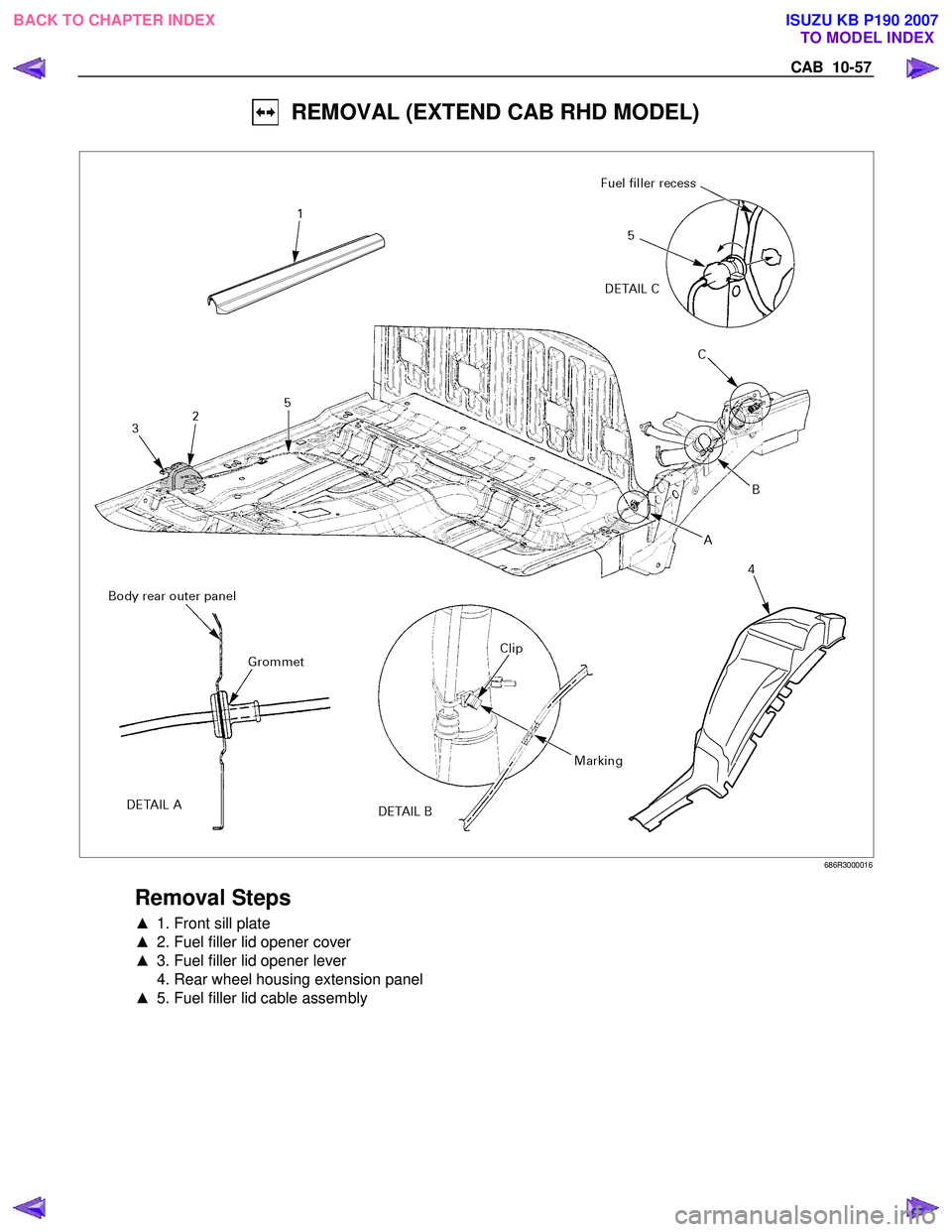

ISUZU KB P190 2007 Workshop Repair Manual CAB 10-57 REMOVAL (EXTEND CAB RHD MODEL) 686R3000016 Removal Steps ▲ 1. Front sill plate ▲ 2. Fuel filler lid opener cover ▲ 3. Fuel filler lid opener lever 4. Rear whee

Page 5816 of 6020

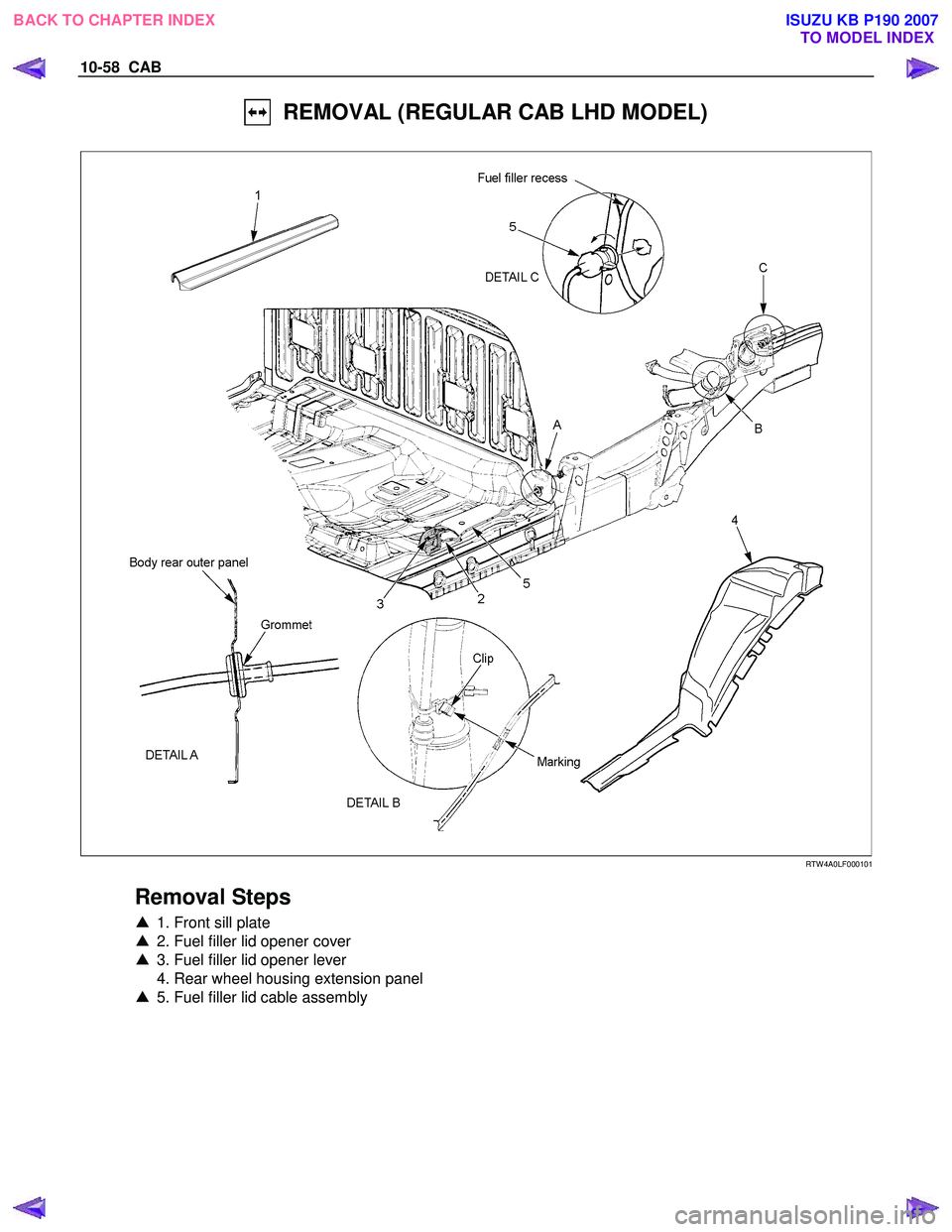

ISUZU KB P190 2007 Workshop Repair Manual 10-58 CAB REMOVAL (REGULAR CAB LHD MODEL) RTW 4A0LF000101 Removal Steps ▲ 1. Front sill plate ▲ 2. Fuel filler lid opener cover ▲ 3. Fuel filler lid opener lever
