ELECTRICAL-BODY AND CHASSIS 8A-279

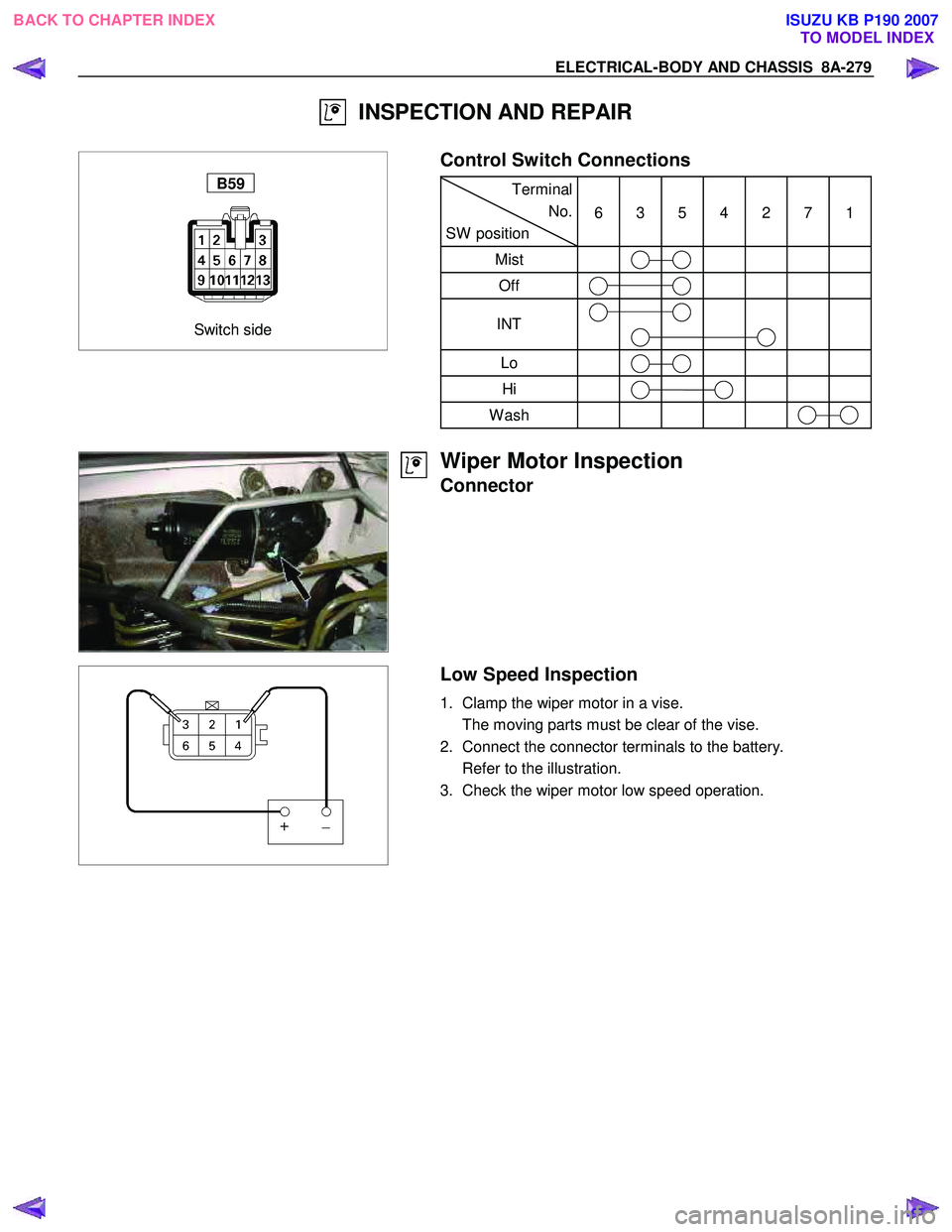

INSPECTION AND REPAIR
Switch side
B59
Control Switch Connections
Terminal
No.
SW position 6 3 5 4 2 7 1
Mist
Off
INT
Lo
Hi
Wash
Wiper Motor Inspection
Connector
Low Speed Inspection
1. Clamp the wiper motor in a vise.
The moving parts must be clear of the vise.
2. Connect the connector terminals to the battery.
Refer to the illustration.
3. Check the wiper motor low speed operation.
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5218 of 6020

8A-280 ELECTRICAL-BODY AND CHASSIS
High Speed Inspection
1. Clamp the wiper motor in a vise.
The moving parts must be clear of the vise.
2. Connect the connector terminals to the battery.
Refer to the illustration.
3. Check the wiper motor high speed operation.
Auto-Stop Inspection
1. Clamp the wiper motor in a vise.
The moving parts must be clear of the vise.
2. Connect the connector terminals to the battery.
Refer to the illustration.
3. Check the wiper motor low speed operation.
4. Disconnect the positive battery terminal.
This will stop the motor.
5. Connect the connector terminals No. 3 and No. 6 with a
lead wire.
Refer to the illustration.
6. Reconnect the positive battery terminal to connecto
r
terminal No. 4.
This will restart the motor.
Refer to the illustration.
7. Check the auto-stop operation.
Washer Motor Inspection
1. Fill the washer tank with washing solution.
2. Disconnect the motor connector.
3. Apply battery voltage to the washer motor connector.
4. Check the washer motor operation.
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5219 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-281
WIPER MOTOR AND LINKAGE

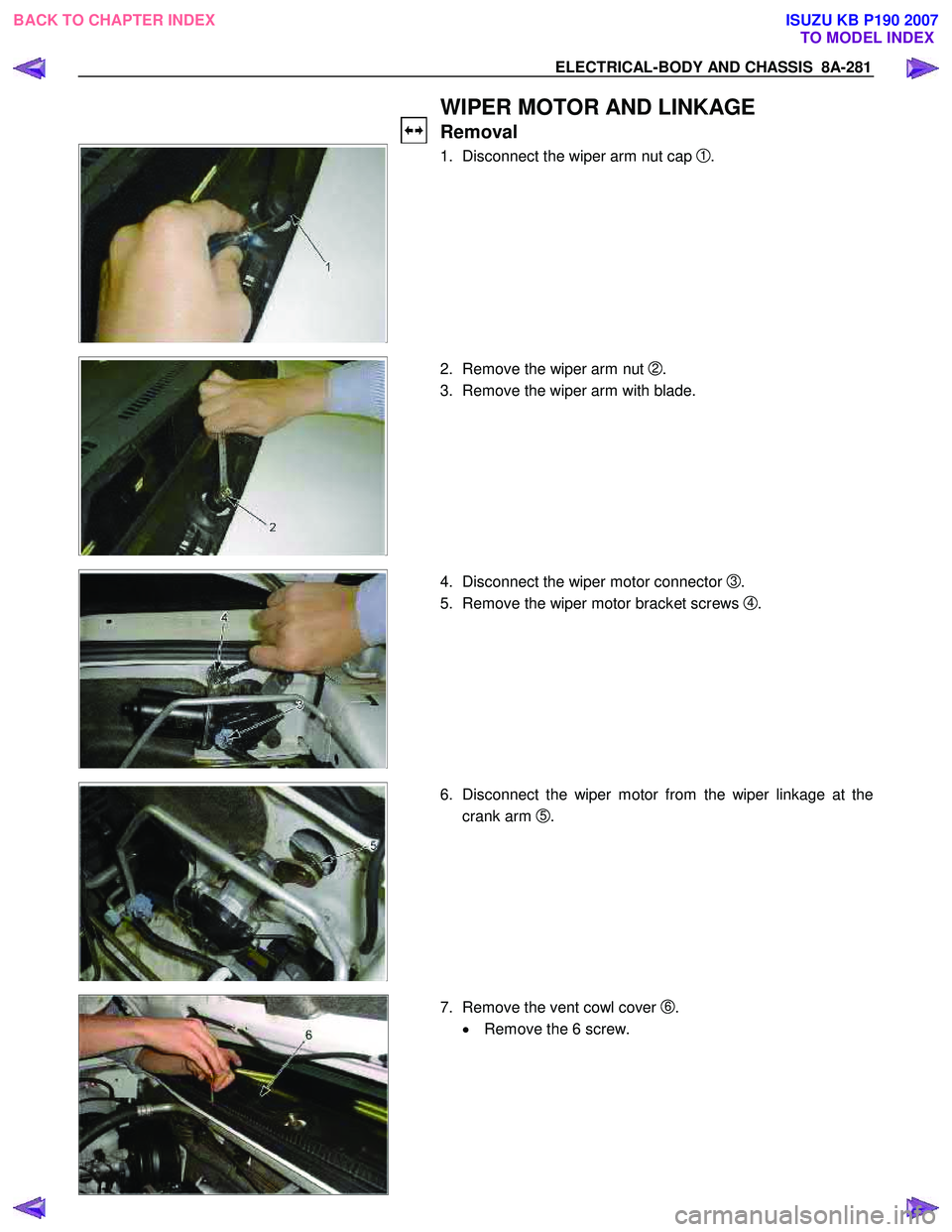

Removal
1. Disconnect the wiper arm nut cap
1 .
2. Remove the wiper arm nut
2.
3. Remove the wiper arm with blade.
4. Disconnect the wiper motor connector 3 .
5. Remove the wiper motor bracket screws
4 .
6. Disconnect the wiper motor from the wiper linkage at the
crank arm
5.
7. Remove the vent cowl cover
6.
• Remove the 6 screw.
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5220 of 6020

8A-282 ELECTRICAL-BODY AND CHASSIS
This illustration is based on RHD model

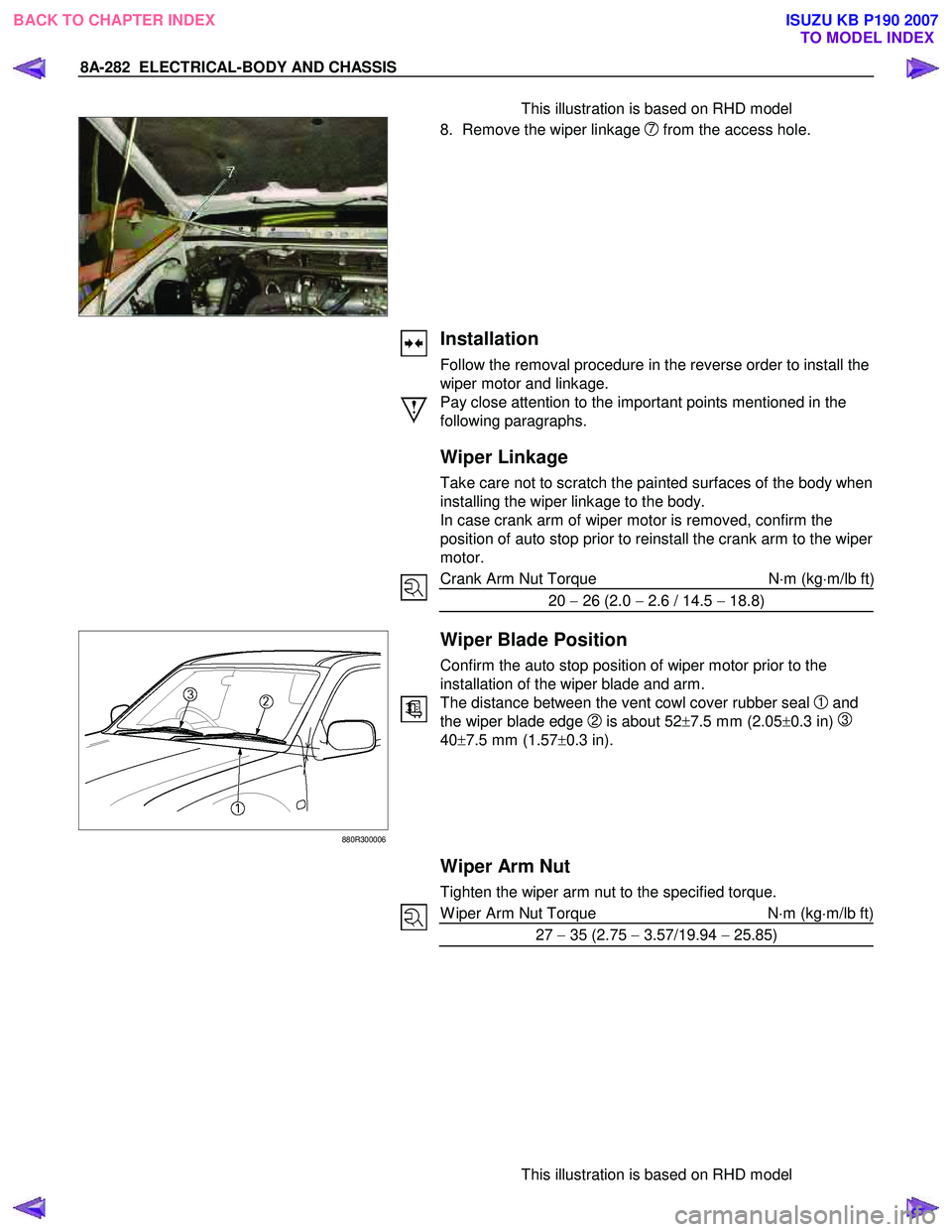

8. Remove the wiper linkage
7 from the access hole.
Installation
Follow the removal procedure in the reverse order to install the
wiper motor and linkage.
Pay close attention to the important points mentioned in the
following paragraphs.
Wiper Linkage
Take care not to scratch the painted surfaces of the body when
installing the wiper linkage to the body.
In case crank arm of wiper motor is removed, confirm the
position of auto stop prior to reinstall the crank arm to the wiper
motor.
Crank Arm Nut Torque N⋅m (kg ⋅m/lb ft
)
20 − 26 (2.0 − 2.6 / 14.5 − 18.8)
880R300006
Wiper Blade Position
Confirm the auto stop position of wiper motor prior to the
installation of the wiper blade and arm.
The distance between the vent cowl cover rubber seal
1 and
the wiper blade edge
2 is about 52±7.5 mm (2.05 ±0.3 in) 3
40 ±7.5 mm (1.57 ±0.3 in).
Wiper Arm Nut
Tighten the wiper arm nut to the specified torque.
W iper Arm Nut Torque N ⋅m (kg ⋅m/lb ft)
27 − 35 (2.75 − 3.57/19.94 − 25.85)
This illustration is based on RHD model
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5221 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-283
Windshield Washer Spray
Be sure that the engine hood is completely closed before
checking the windshield washer spray adjustment.
W indshield W asher Spray Position: Refer to the illustration.
RTW 38DSF000201
Connector
Be absolutely sure that the wiper motor connector is securely
connected.
This will prevent a poor contact and an open circuit.
Note:
Windshield wiper arm and blade assembly configurations
are different for the right-hand and left-hand side of the
vehicle.
Be careful not to confuse the right-hand and left-hand side
assemblies.
This illustration is based on RHD model
WASHER TANK MOTOR
Removal
1. Remove the head light.
• Refer to the head light in this manual.
2. Remove the inner liner.
3. Pull out the clip washer filler.
4. Remove the washer tank nuts.
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5222 of 6020
8A-284 ELECTRICAL-BODY AND CHASSIS

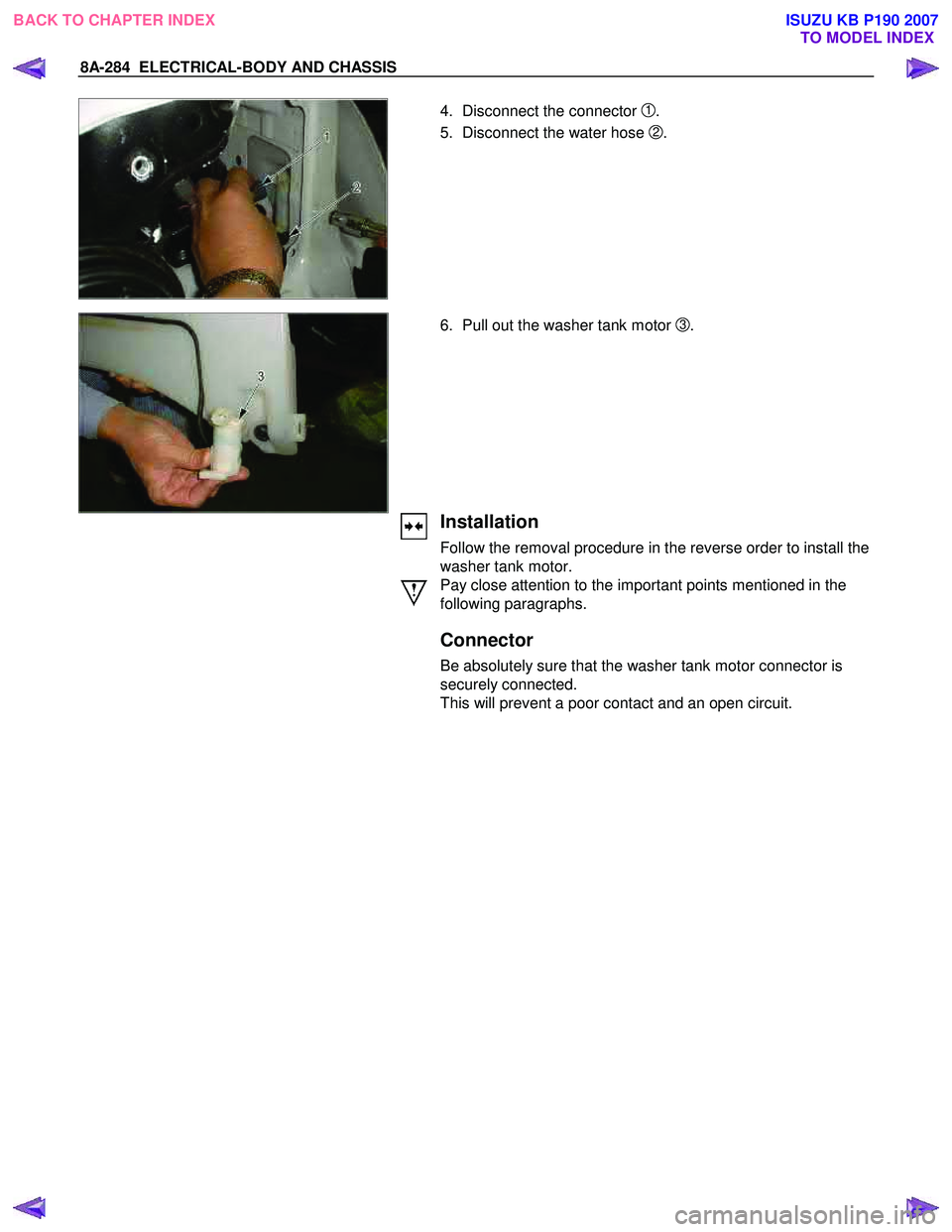

4. Disconnect the connector
1.
5. Disconnect the water hose
2.
6. Pull out the washer tank motor 3.
Installation
Follow the removal procedure in the reverse order to install the
washer tank motor.
Pay close attention to the important points mentioned in the
following paragraphs.
Connector
Be absolutely sure that the washer tank motor connector is
securely connected.
This will prevent a poor contact and an open circuit.
BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
Page 5223 of 6020
ELECTRICAL-BODY AND CHASSIS 8A-285

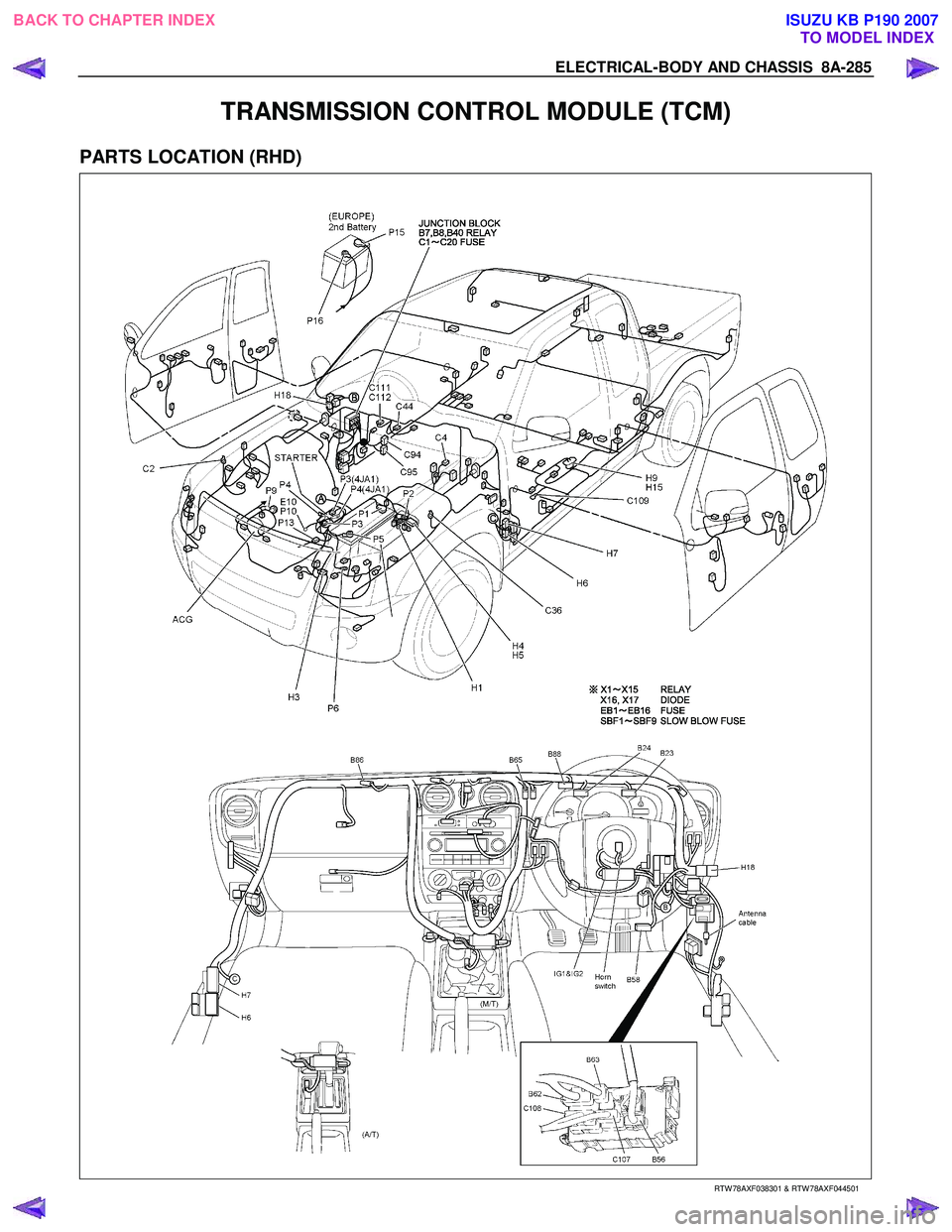

TRANSMISSION CONTROL MODULE (TCM)
PARTS LOCATION (RHD)
RTW 78AXF038301 & RTW 78AXF044501
BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
Page 5224 of 6020
8A-286 ELECTRICAL-BODY AND CHASSIS

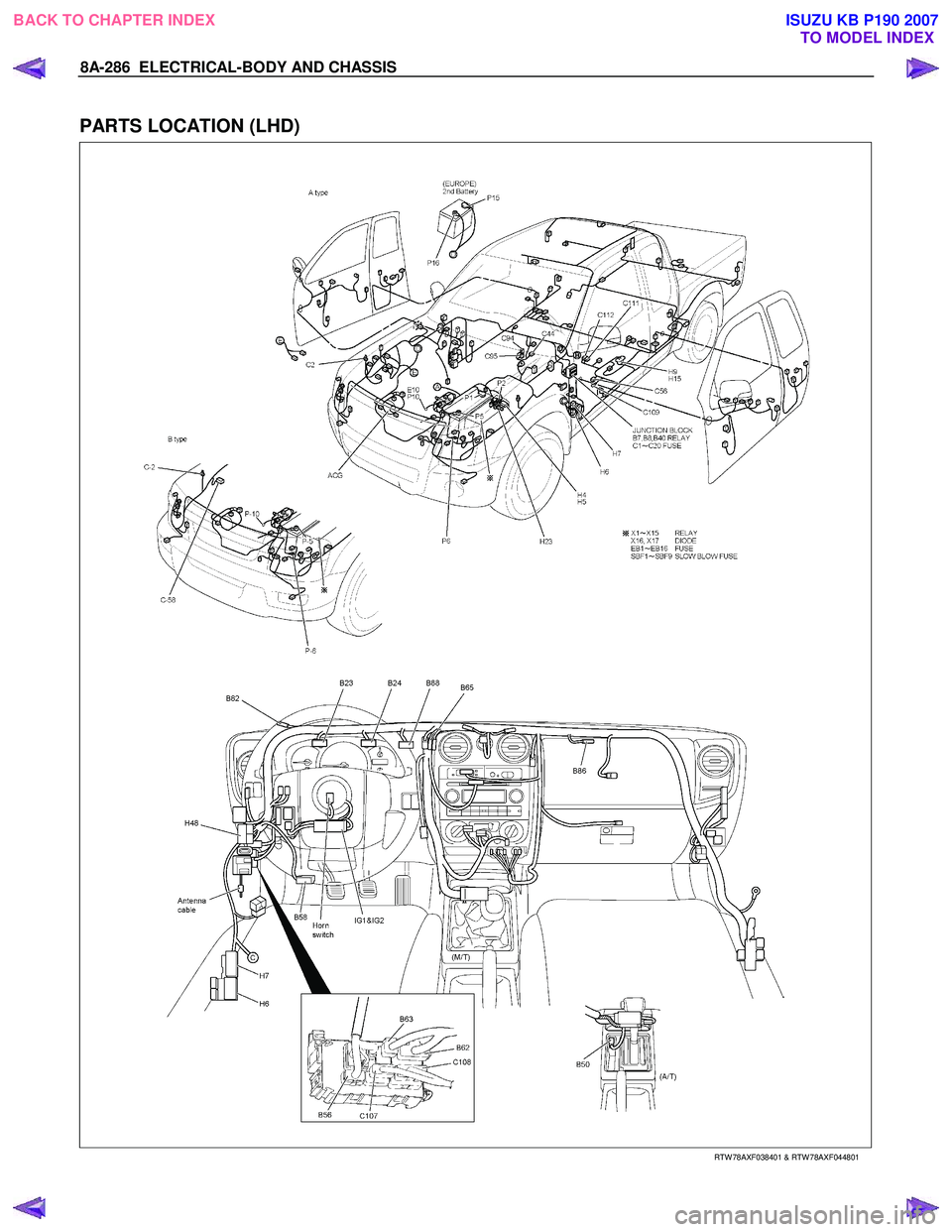

PARTS LOCATION (LHD)
