ISUZU KB P190 2007 Workshop Repair Manual 7A3-20 ON-VEHICLE SERVICE (AW30–40LE) Neutral Start Switch (Mode Switch) Inspection W ith a circuit tester, make a continuity test on the neutral start switch with the moving piece set in each

Page 4106 of 6020

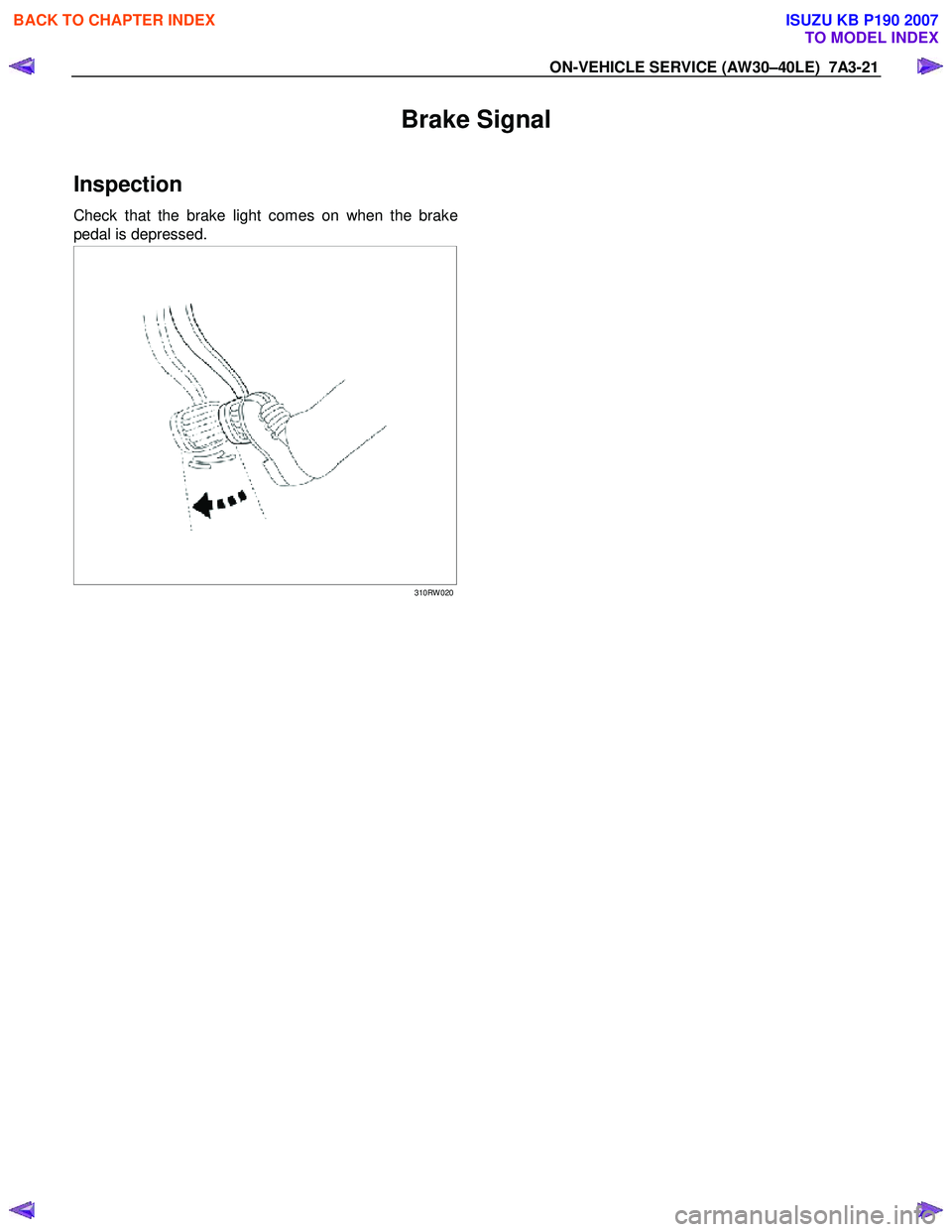

ISUZU KB P190 2007 Workshop Repair Manual ON-VEHICLE SERVICE (AW30–40LE) 7A3-21 Brake Signal Inspection Check that the brake light comes on when the brake pedal is depressed. 310RW 020 BACK TO CHAPTER INDEX TO

Page 4107 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 7A3-22 ON-VEHICLE SERVICE (AW30–40LE) Input and Output Revolution Sensor Inspection 1. Disconnect the input and output revolution sensor connector. 2. Use an ohmmeter to measure the resistanc

Page 4108 of 6020

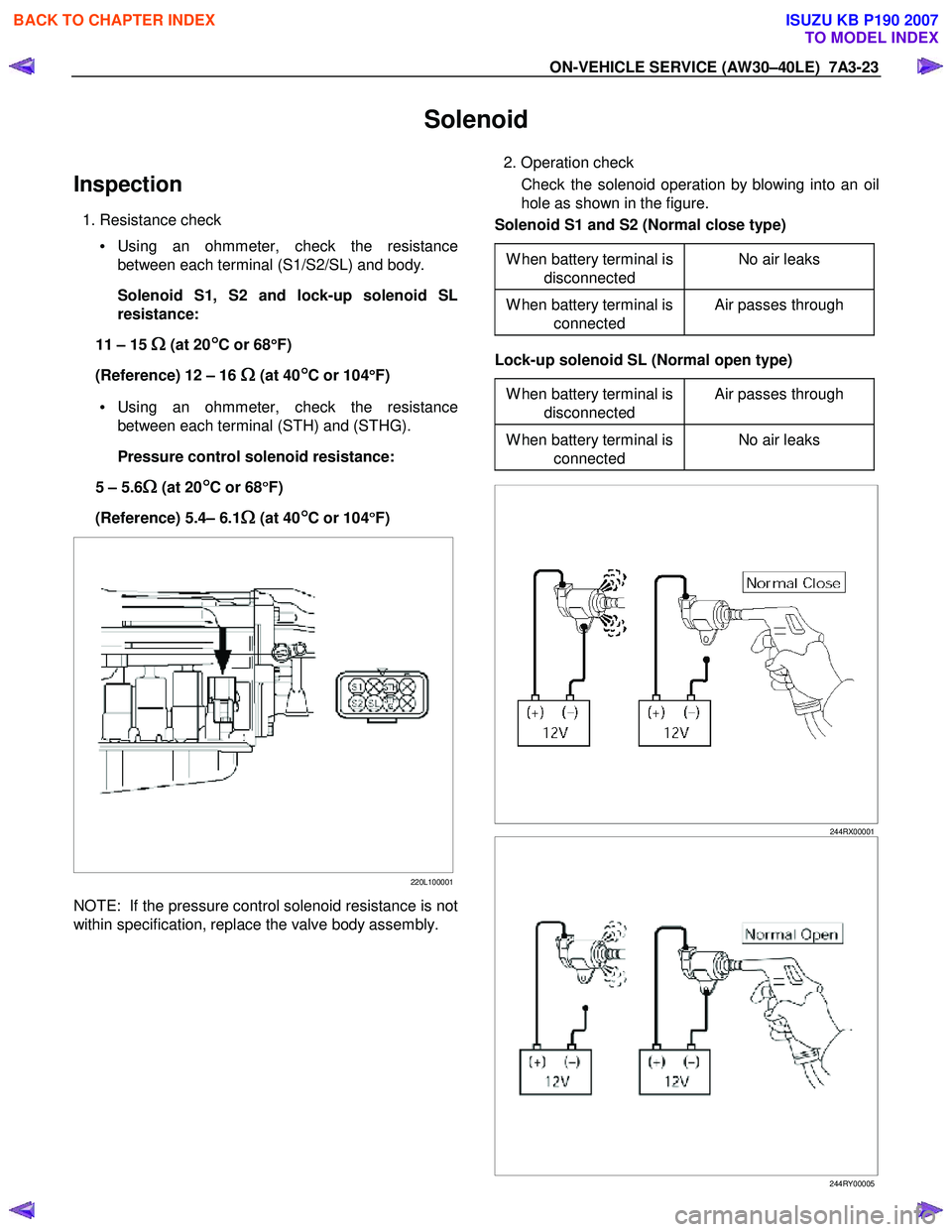

ISUZU KB P190 2007 Workshop Repair Manual ON-VEHICLE SERVICE (AW30–40LE) 7A3-23 Solenoid Inspection 1. Resistance check • Using an ohmmeter, check the resistance between each terminal (S1/S2/SL) and body. Solenoid S1, S2 and loc

Page 4109 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 7A3-24 ON-VEHICLE SERVICE (AW30–40LE) ATF Temperature Sensor Inspection 1. Disconnect the front side ATF cooler pipe from the elbow and remove the elbow. 2. Remove the ATF temperature sensor

Page 4110 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ON-VEHICLE SERVICE (AW30–40LE) 7A3-25 Select Lever RTW 77ALF000201 Legend 1. Rear console 2. Front console 3. Shift lock release button 4. Shift lock button spring 5. Upper

Page 4111 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 7A3-26 ON-VEHICLE SERVICE (AW30–40LE) Remove or Disconnect 1. Block the wheels. 2. Disconnect the negative battery cable. 3. Remove the rear console and the front console. 4. Remove the 2

Page 4112 of 6020

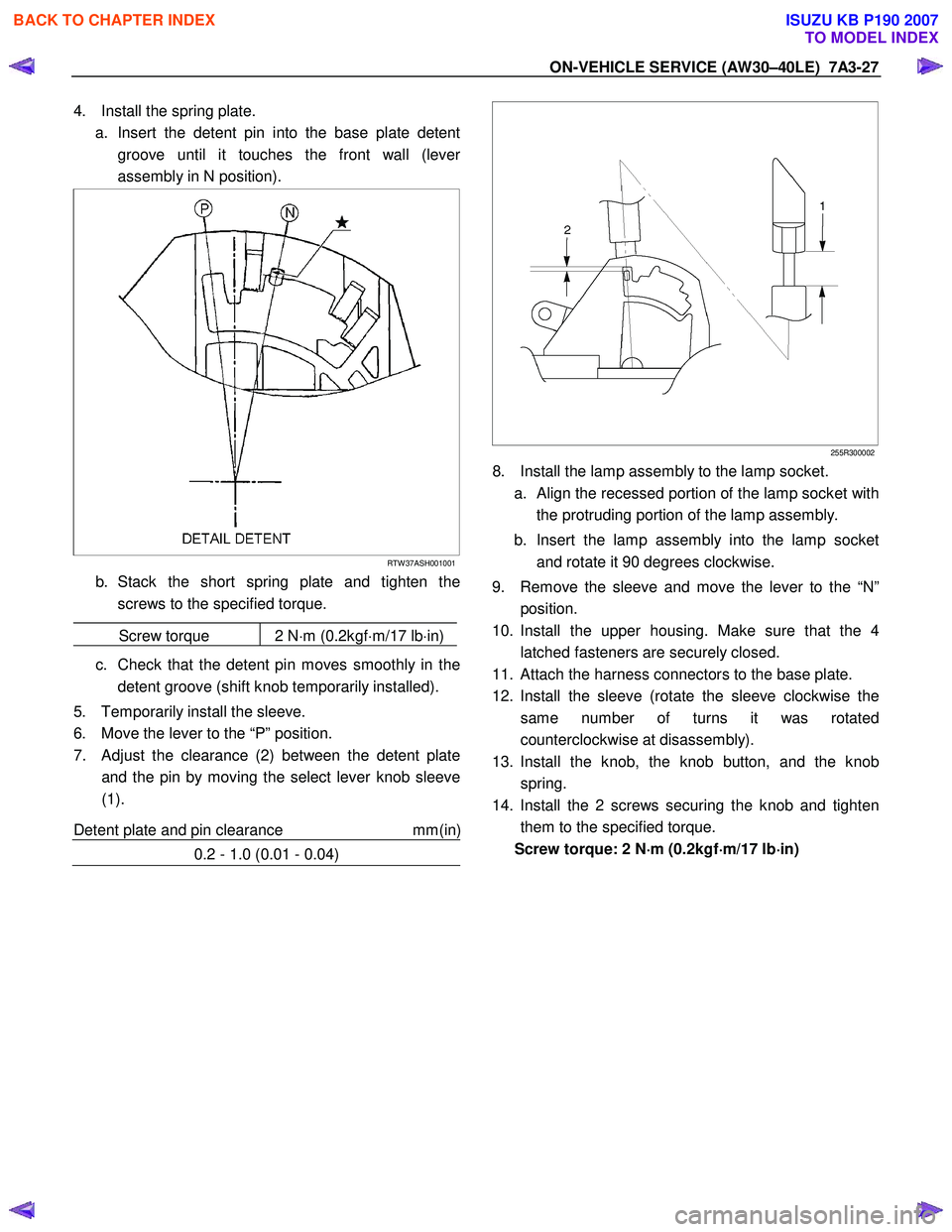

ISUZU KB P190 2007 Workshop Repair Manual ON-VEHICLE SERVICE (AW30–40LE) 7A3-27 4. Install the spring plate. a. Insert the detent pin into the base plate detent groove until it touches the front wall (leve r assembly in N position).
