ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-183 CIRCUIT DIAGRAM C24SE (RHD) WITH REAR FOG LIGHT RTW 780XF012401 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5122 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-184 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM HFV6 RTW 78AXF015101 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5123 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-185 CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA, 4JA1T (L) RTW 78AXF020101 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5124 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-186 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (LHD) G.EXP RTW 78AXF022901 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5125 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-187 RTW 780SH000601 FOG LIGHT (A type) Removal 1. Disconnect the fog light connector 1 . 2. Remove two attaching nuts 2. 3. Pull the fog light assembly to

Page 5126 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-188 ELECTRICAL-BODY AND CHASSIS RTW 780SH000801 FOG LIGHT ADJUSTMENT (A type) Vertical Adjustment Turn the adjusting screw with a screwdriver to adjust the aim of the fog light verticall

Page 5127 of 6020

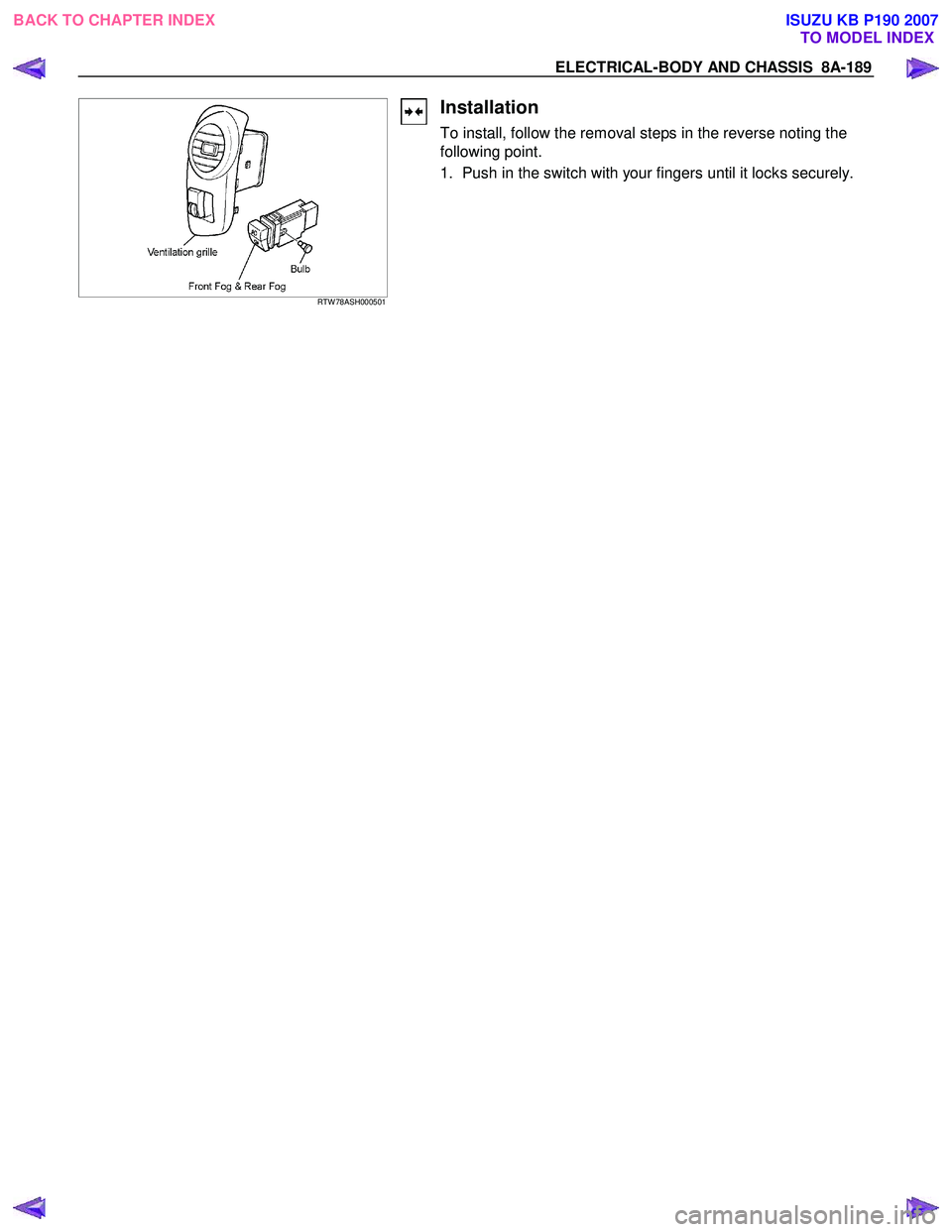

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-189 RTW 78ASH000501 Installation To install, follow the removal steps in the reverse noting the following point. 1. Push in the switch with your fingers unt

Page 5128 of 6020

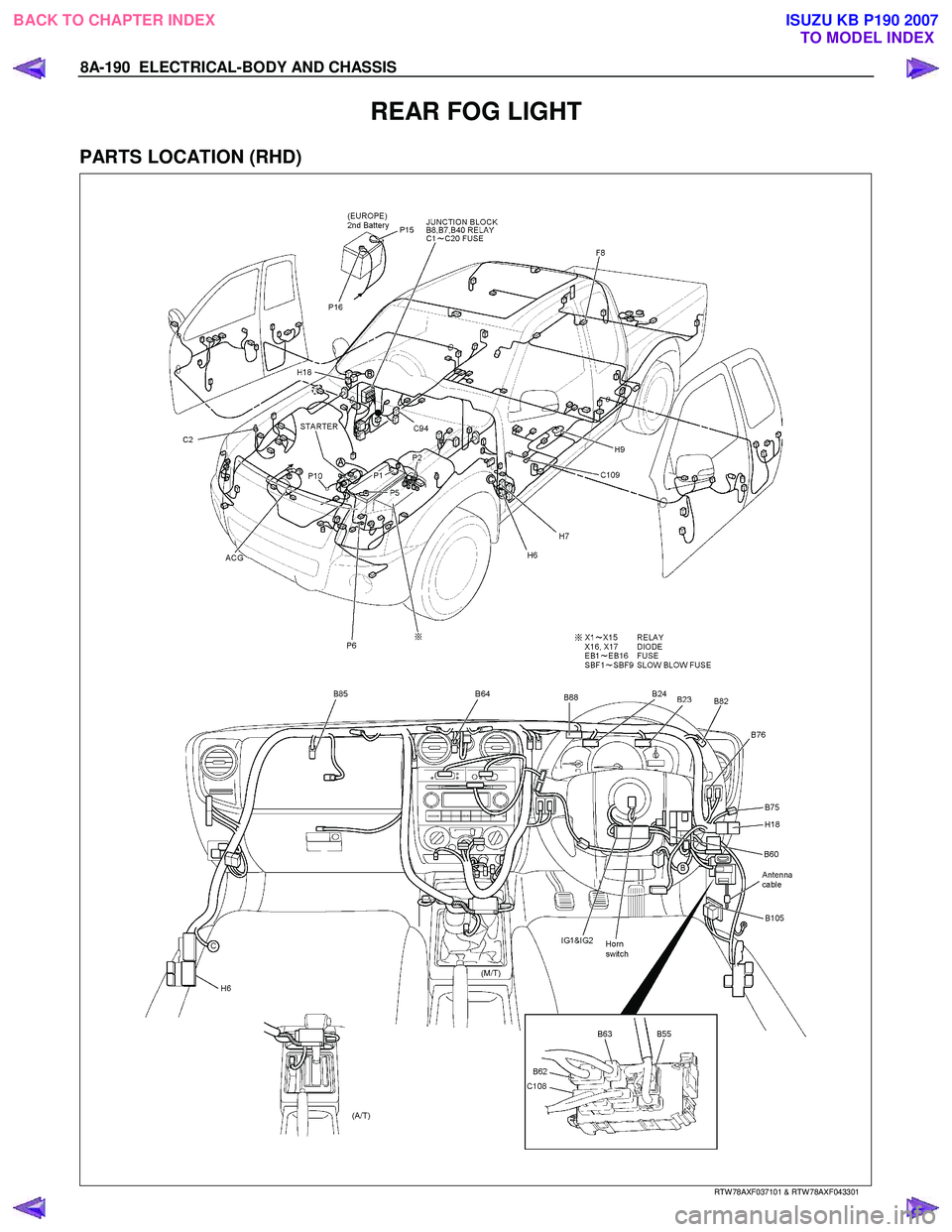

ISUZU KB P190 2007 Workshop Repair Manual 8A-190 ELECTRICAL-BODY AND CHASSIS REAR FOG LIGHT PARTS LOCATION (RHD) RTW 78AXF037101 & RTW 78AXF043301 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
