Page 6017 of 6020
ANTITHEFT SYSTEM 11B-63

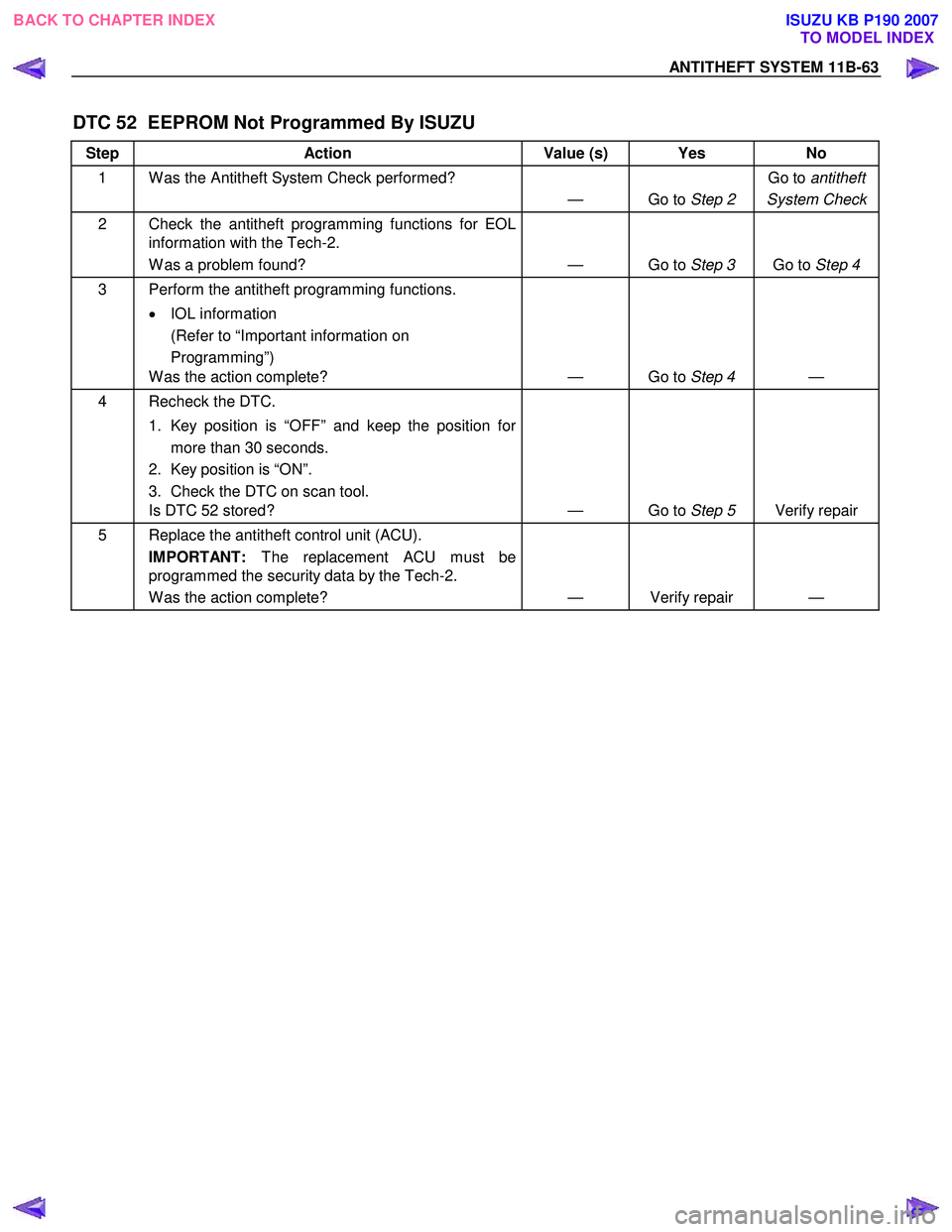

DTC 52 EEPROM Not Programmed By ISUZU
Step Action Value (s) Yes No
1 W as the Antitheft System Check performed?
— Go to Step 2 Go to
antitheft
System Check
2 Check the antitheft programming functions for EOL information with the Tech-2.
W as a problem found? — Go to Step 3 Go to Step 4
3 Perform the antitheft programming functions.
• IOL information
(Refer to “Important information on Programming”)
W as the action complete? — Go to Step 4 —
4 Recheck the DTC.
1. Key position is “OFF” and keep the position for more than 30 seconds.
2. Key position is “ON”.
3. Check the DTC on scan tool.
Is DTC 52 stored? — Go to Step 5 Verify repair
5 Replace the antitheft control unit (ACU).
IMPORTANT: The replacement ACU must be
programmed the security data by the Tech-2.
W as the action complete? — Verify repair —
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 6018 of 6020
11B-64 ANTITHEFT SYSTEM

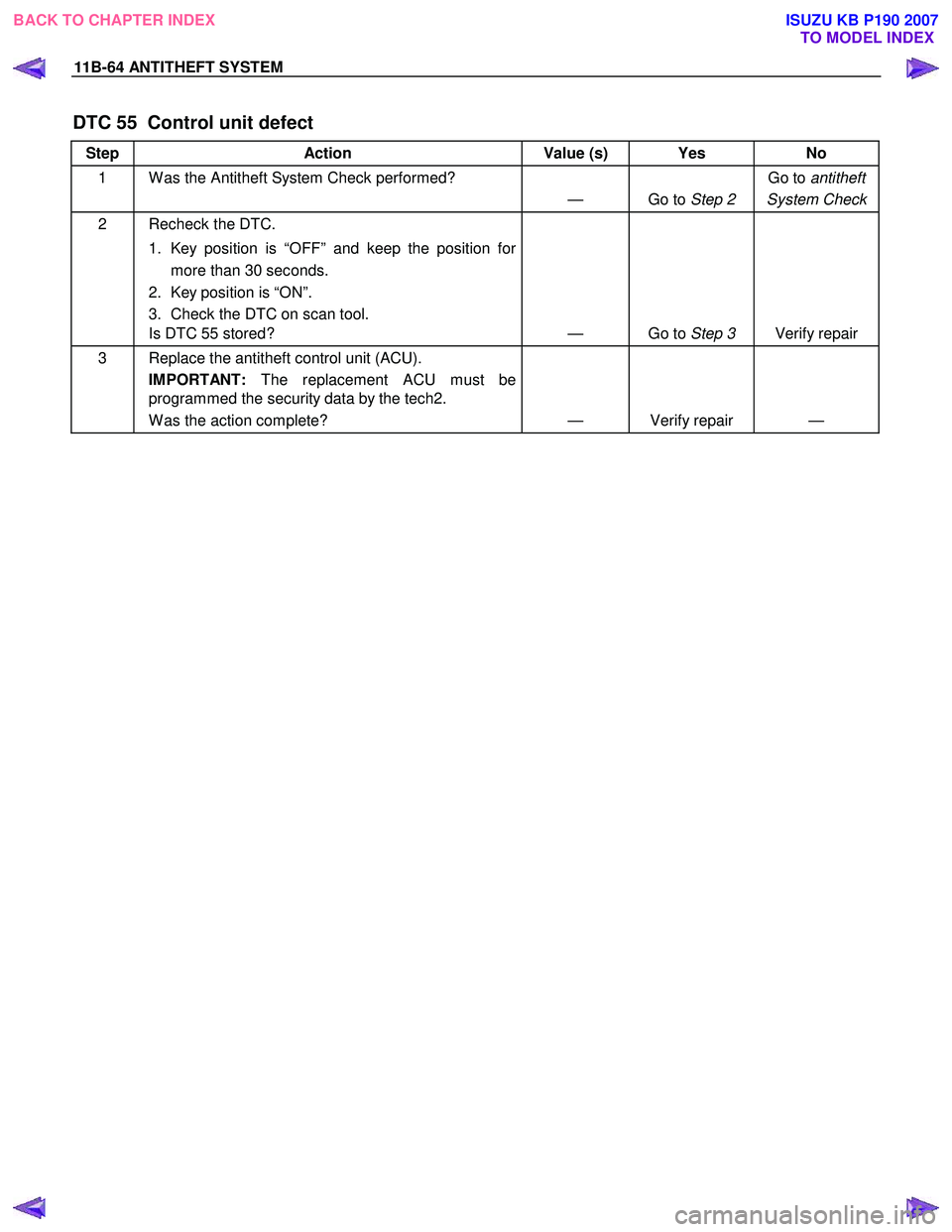

DTC 55 Control unit defect
Step Action Value (s) Yes No
1 W as the Antitheft System Check performed?
— Go to Step 2 Go to
antitheft
System Check
2 Recheck the DTC.
1. Key position is “OFF” and keep the position for more than 30 seconds.
2. Key position is “ON”.
3. Check the DTC on scan tool.
Is DTC 55 stored? — Go to Step 3 Verify repair
3 Replace the antitheft control unit (ACU).
IMPORTANT: The replacement ACU must be
programmed the security data by the tech2.
W as the action complete? — Verify repair —
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 6019 of 6020

ANTITHEFT SYSTEM 11B-65
DTC 123 Output flasher short circuit to ground or broken wire
Step Action Value (s) Yes No
1 W as the Antitheft System Check performed?
— Go to Step 2 Go to
antitheft
System Check
2 Recheck the DTC.
1. Key position is “OFF”.
2. Install the tech2 on vehicle.
3. Key position is “ON”.
4. Check the DTC on the tech2.
Is DTC 123 stored? — Go to Step 3 Refer to
Diagnostic Aids
3 1. Check the flasher circuit for an open, short to
ground, or short to voltage.
Also, check the flasher connector for damage.
2. If a problem found, repair as necessary.
W as the problem found? — Verify repair Go to Step 4
4 Check the flasher function.
1. Key position is “OFF”.
2. Connect a jumper wire between ACU terminal 28 and body ground.
3. Key position is “ON”.
4. Observe to operate flasher lamp.
If the problem found about the flasher lamp circuit,
repair as necessary.
W as the problem found? — Verify repair Go to Step 5
5 Replace the antitheft control unit (ACU).
IMPORTANT: The replacement ACU must be
programmed the security data by the tech2.
W as the action complete? — Verify repair —
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 6020 of 6020

11B-66 ANTITHEFT SYSTEM
DTC 125 Output Alarm Horn Broken Wire
Step Action Value (s) Yes No
1 W as the Antitheft System Check performed?
— Go to Step 2 Go to
antitheft
System Check
2 Recheck the DTC.
1. Key position is “OFF”.
2. Install the Tech-2 on vehicle.
3. Key position is “ON”.
4. Check the DTC on the Tech-2.
Is DTC 125 stored? — Go to Step 3 Refer to
Diagnostic Aids
3 1. Check the alarm horn circuit for an open, short to
ground, or short to voltage.
Also, check the alarm horn connector for damage.
2. If a problem found, repair as necessary.
W as the problem found? — Verify repair Go to Step 4
4 Check the alarm horn function.
1. Key position is “OFF”.
2. Connect a jumper wire between ACU terminal 5 and body ground.
3. Key position is “ON”.
4. Observe to operate sound with the alarm horn.
If the problem found about the alarm horn, replace as
necessary.
W as the problem found? — Verify repair Go to Step 5
5 Replace the antitheft control unit (ACU).
IMPORTANT: The replacement ACU must be
programmed the security data by the Tech-2.
W as the action complete? — Verify repair —
