ISUZU KB P190 2007 Workshop Repair Manual Automatic Transmission – 4L60E – General Information Page 7C1–17
7 Transmission Specifications
7.1 General
Type
Hydra-matic 4L60E
Special Features
Electronically controlled shift pattern,

Automatic Transmission – 4L60E – General Information Page 7C1–17
7 Transmission Specifications
7.1 General
Type
Hydra-matic 4L60E
Special Features
Electronically controlled shift pattern, feel and torque
Converter clutch operation
Overdrive 4th speed range
Selector Location ..................................................................................Floor mounted console
Gear Ratios Park (P) ....................................................................................................................... ........... –
Reverse (R) .................................................................................................................... ... 2.29
Neutral (N) .............................................................................................................................. –
Drive (D – 4) .................................................................................................................. ...... 0.7
Drive (D – 3) .................................................................................................................. ...... 1.0
Second (2) ......................................................................................................................... 1.63
First (1) ...................................................................................................................... ........ 3.06
Shift Speeds Refer to 7C3 Automatic Transmission – 4L60E – Hydraulic and Mechanical Diagnosis
Oil Pressure
Refer to 7C3 Automatic Transmission – 4L60E – Hydraulic and Mechanical Diagnosis
Torque Converter
Number of Elements .................................................................. 3 plus torque converter clutch
Torque Converter Diameter and End Play
HFV6 ........................................................................................................................... 258 mm
End Play .............................................................................................................. 0.1 – 0.5 mm
Lubricant
Type recommended ................................................................................................ Dexron
® III
Capacity......................... Nominal only. Check when transmission is at operating temperature
Service Refill ............................................................................................................... 4. 8 litres
Total (Dry)................................................................................................................... 8 .8 litres
Fluid Cooling.....................................Transmission fluid to engine coolant in one radiator tank
Clutches and Band 2 – 4 Band:
Type........................................................................................... Composition lined, steel band
Operation: ..................................................................................................................... .. Servo
Adjustment: ................................................................................................ Selective Apply Pin
Pin Size and Identification.
65.82 – 66.12 mm ...................................................................................................... 1 Groove
67.23 – 67.53 mm ...................................................................................................... 2 Groove
68.64 – 68.94 mm ....................................................................................................No Groove
Reverse Input Clutch Type................................................................................................................Multiple we t disc
Backing plate ........................................................................................................ (1) Select ive
Clutch plate (numbers):
Steel ....................................................................................................................................... 4
Composition............................................................................................................................ 4
Belleville ..................................................................................................................... ............ 1
Backing Plate ........................................................................................................ 1 (Selecti ve)
Backing plate, identification and thickness:

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 3778 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Automatic Transmission – 4L60E – General Information Page 7C1–18
2 ..................................................................................................................... 7.25 �

Automatic Transmission – 4L60E – General Information Page 7C1–18
'2' ..................................................................................................................... 7.25 – 7.41 mm
'3' ..................................................................................................................... 6.52 – 6.68 mm
'4' ..................................................................................................................... 5.79 – 5.95 mm
Backing plate travel ......................................................................................... 1.02 – 1.94 mm
Forward Clutch Type................................................................................................................Multiple we t disc
Clutch plate, (number):
Flat steel plates.............................................................................................................. ...... (5)
Composition plates ............................................................................................................. .(5)
Waved steel plate .............................................................................................................. .. (1)
Backing plate ........................................................................................................ (1) Select ive
Backing plate, identification and thickness:
'A' ..................................................................................................................... 6.97 – 7.07 mm
'B' ..................................................................................................................... 6.38 – 6.48 mm
'C'..................................................................................................................... 5.79 – 5.89 mm
'D'..................................................................................................................... 5.20 – 5.30 mm
'E' ..................................................................................................................... 4.61 – 4.71 mm
Backing plate travel ......................................................................................... 0.87 – 1.88 mm
Overrun Clutch Type................................................................................................................Multiple we t disc
Clutch plates, (number):
Flat steel ..................................................................................................................... ......... (2)
Composition.................................................................................................................... ..... (2)
3 – 4 Clutch Type................................................................................................................Multiple we t disc
Clutch plates, (number):
Flat steel ..................................................................................................................... ......... (5)
Composition.................................................................................................................... ..... (6)
Stepped apply plate ............................................................................................................ .(1)
Backing plate ........................................................................................................ (1) Select ive
Backing plate, identification and thickness:
'A' ..................................................................................................................... 5.88 – 5.68 mm
'B' ..................................................................................................................... 4.99 – 4.76 mm
'C'..................................................................................................................... 4.10 – 3.90 mm
Backing plate travel ......................................................................................... 2.10 – 0.90 mm
Low and Reverse Clutch Type................................................................................................................Multiple we t disc
Clutch plates (number):
Flat steel ..................................................................................................................... ......... (5)
Composition.................................................................................................................... ..... (5)
Waved flat steel ............................................................................................................... .... (1)
Selective flat steel plate ........................................................................................ (1) Selective
Selective plate, (identification) and thickness,
measured dimension:
28.06 – 27.54 mm (identification NONE) ......................................................... 1.68 – 1.83 mm
28.59 – 28.07 mm (identification '0') ................................................................ 1.17 – 1.31 mm
27.54 – 27.03 mm (identification '1') ................................................................ 2.20 – 2.34 mm
Transmission End Play Check
Transmission end play check specification ...................................................... 0.13 – 0.92 mm
Identification and washer thickness:
67..................................................................................................................... 1.87 – 1 .97 mm
68..................................................................................................................... 2.04 – 2 .14 mm

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 3779 of 6020

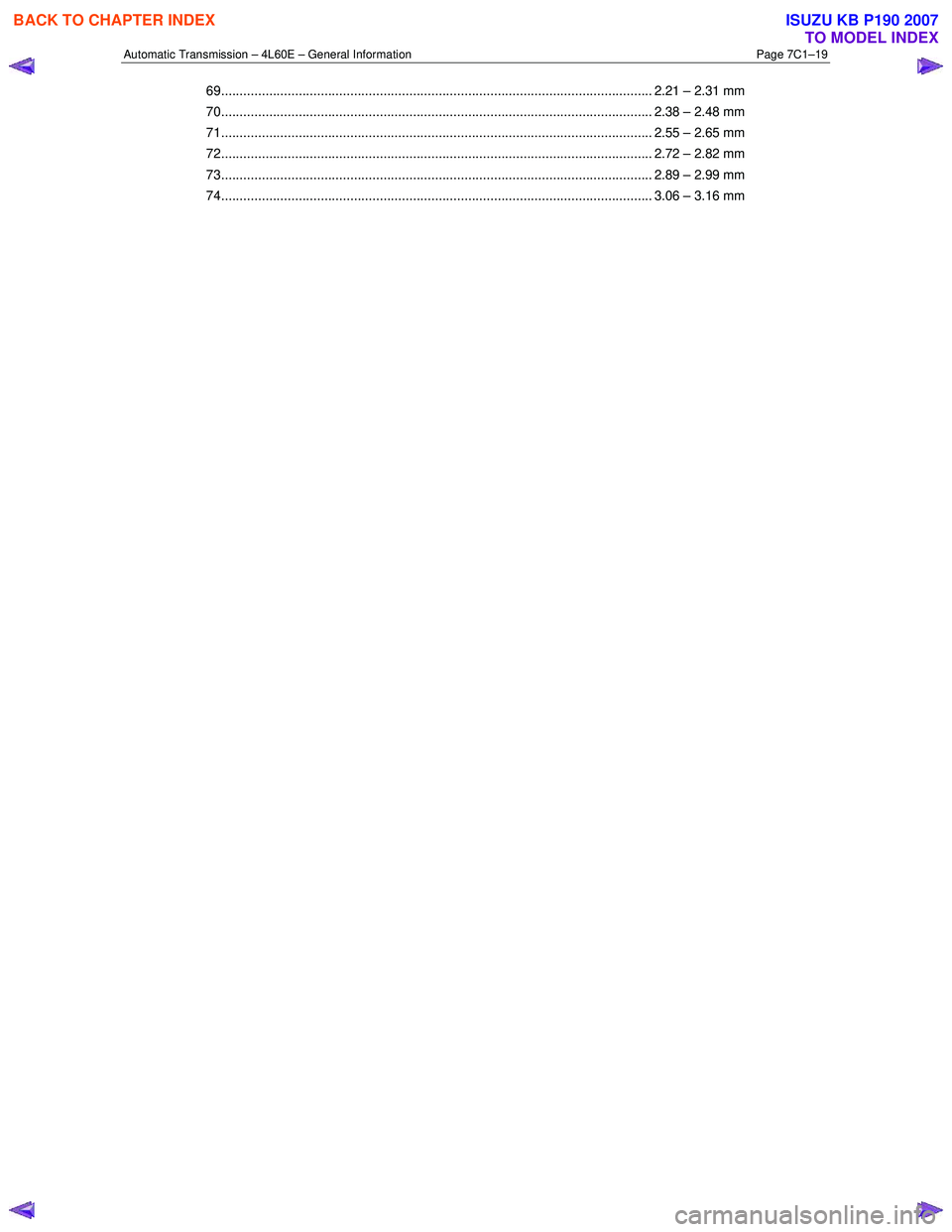

ISUZU KB P190 2007 Workshop Repair Manual Automatic Transmission – 4L60E – General Information Page 7C1–19
69..................................................................................................................... 2.21 –

Page 3780 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Automatic Transmission – 4L60E – General Information Page 7C1–20
8 Special Tools
The following pages list and illustrate the special service tools required. The tools are classified into the f

Page 3781 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Automatic Transmission – 4L60E – General Information Page 7C1–21

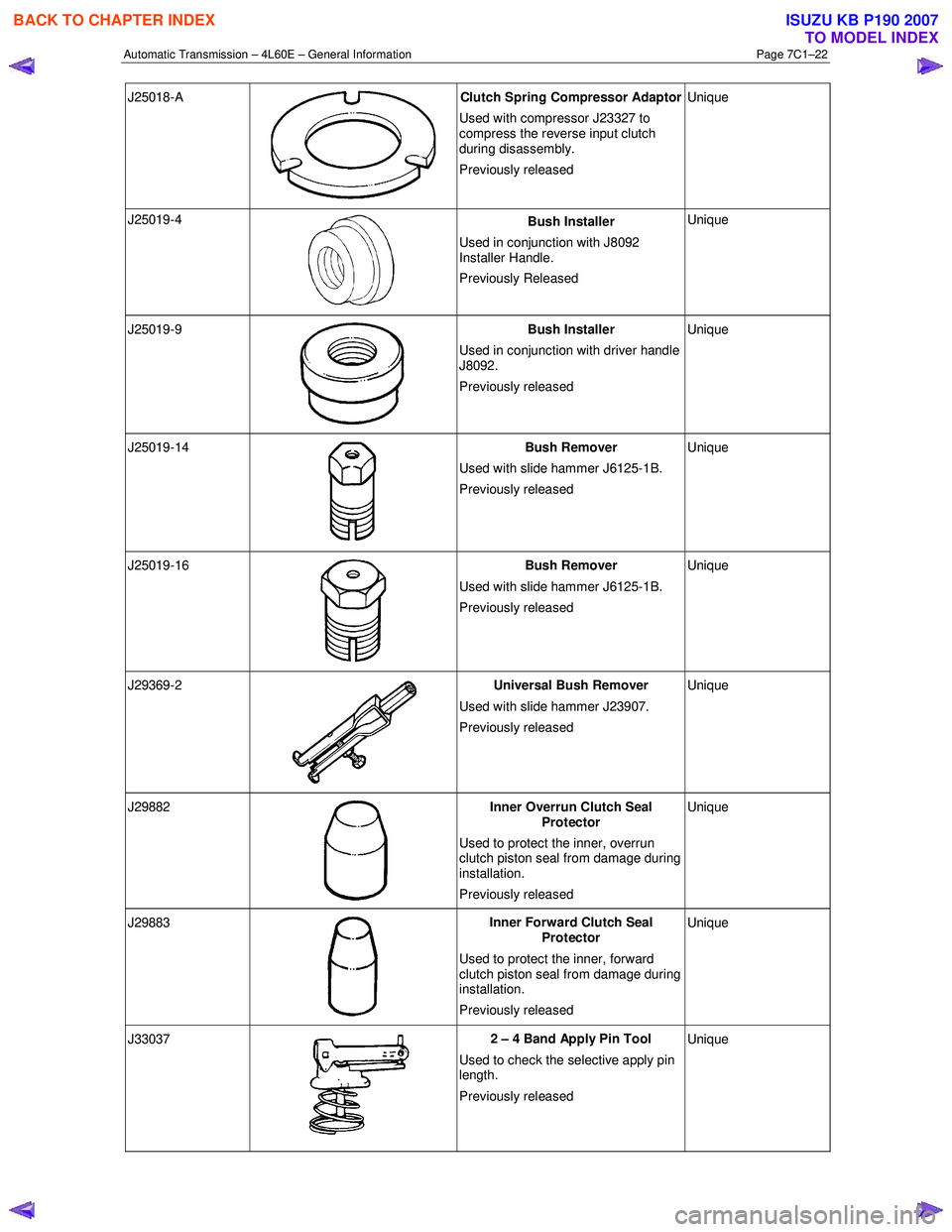

J21368
Oil Pump Alignment Band
Used to align the two oil pump
sections before tightening the
securing bolts.
Previously

Page 3782 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Automatic Transmission – 4L60E – General Information Page 7C1–22
J25018-A
Clutch Spring Compressor Adaptor
Used with compressor J23327 to
compress the reverse input clutch
during disasse

Page 3783 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Automatic Transmission – 4L60E – General Information Page 7C1–23
J34196-B
Bush Remover/Installer Set
Used for various applications,
described in the text.
Previously released Unique
J3

Page 3784 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Automatic Transmission – 4L60E – General Information Page 7C1–24
J39855-1
Stator Shaft Seal Expander
Used to expand the stator shaft seal
prior to installation.
Previously released Uniq
