ISUZU KB P190 2007 Workshop Repair Manual 7B1-26 Manual Transmission (MUX)
14. Install the plate spring.
Notice:
Painted identification color (Blue) side to be
Transmission rear side.
Legend 1. Transmission rear side
2. Painted area of

Page 4746 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Manual Transmission (MUX) 7B1-27

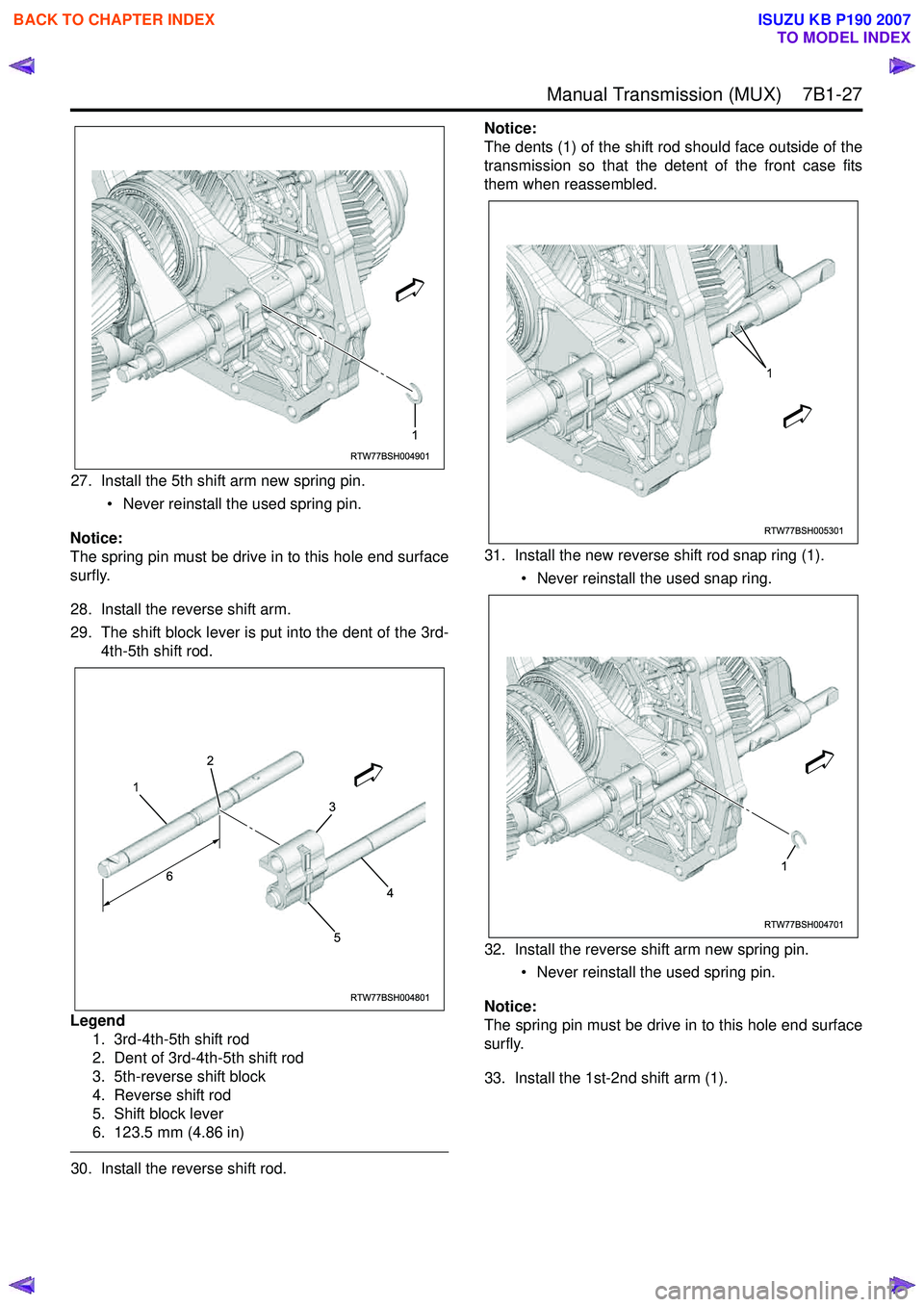

27. Install the 5th shift arm new spring pin.• Never reinstall the used spring pin.
Notice:
The spring pin must be drive in to this hole end surface
surfly.
28.

Page 4747 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 7B1-28 Manual Transmission (MUX)

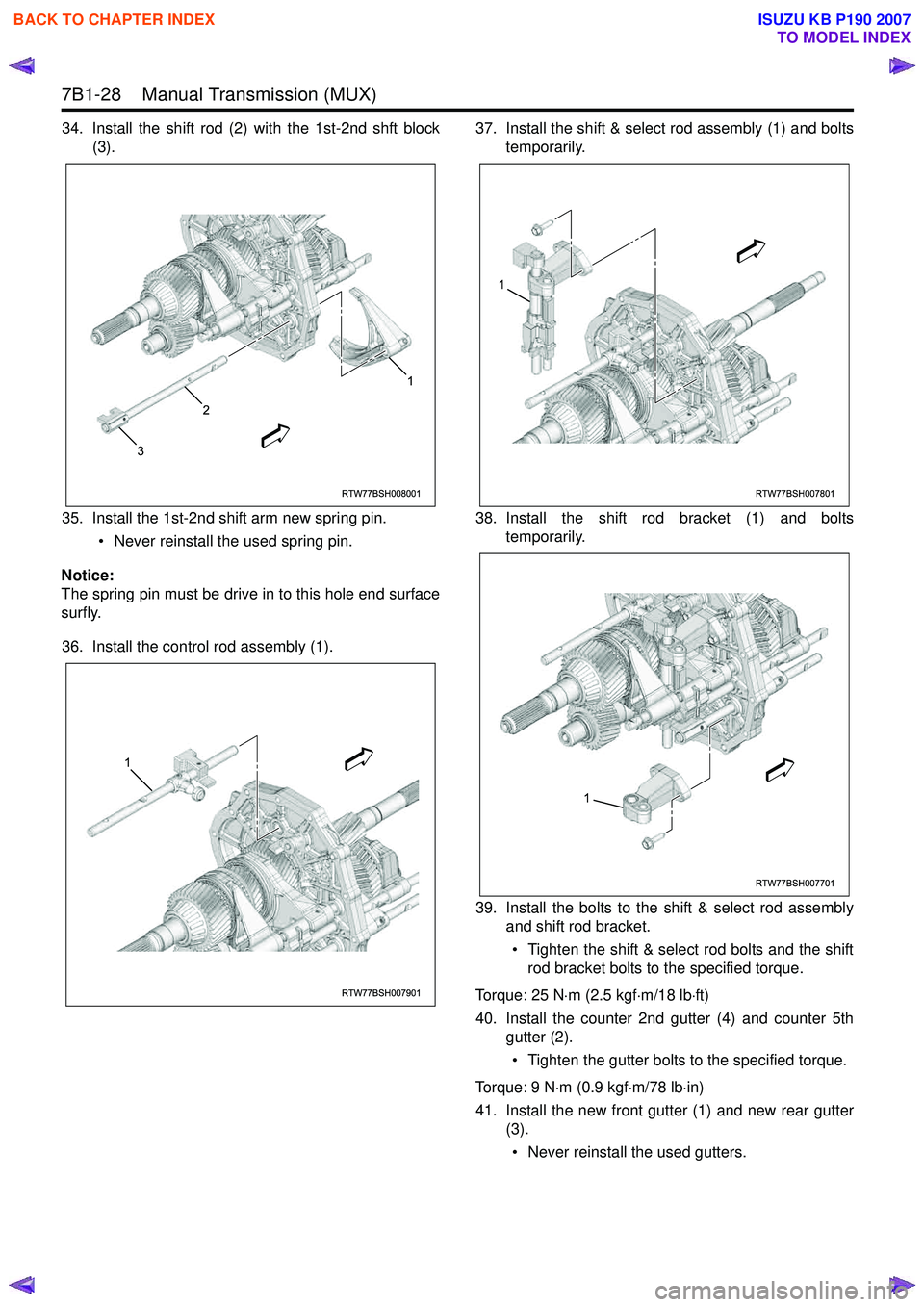

34. Install the shift rod (2) with the 1st-2nd shft block(3).
35. Install the 1st-2nd shift arm new spring pin. • Never reinstall the used spring pin.
Notice:
T

Page 4748 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Manual Transmission (MUX) 7B1-29
42. In order to protect the front oil seal lip, wrap a tapearound the spline portion of the input shaft.
43. Install the intermediate plate assembly with gear (1)

Page 4749 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 7B1-30 Manual Transmission (MUX)
• Apply recommended liquid gasket (LOCTITEFMD-127 or equivalent) with the width of 3 to 5
mm to the area marked in the figure below.
Notice:
Be careful of the i

Page 4750 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Manual Transmission (MUX) 7B1-31

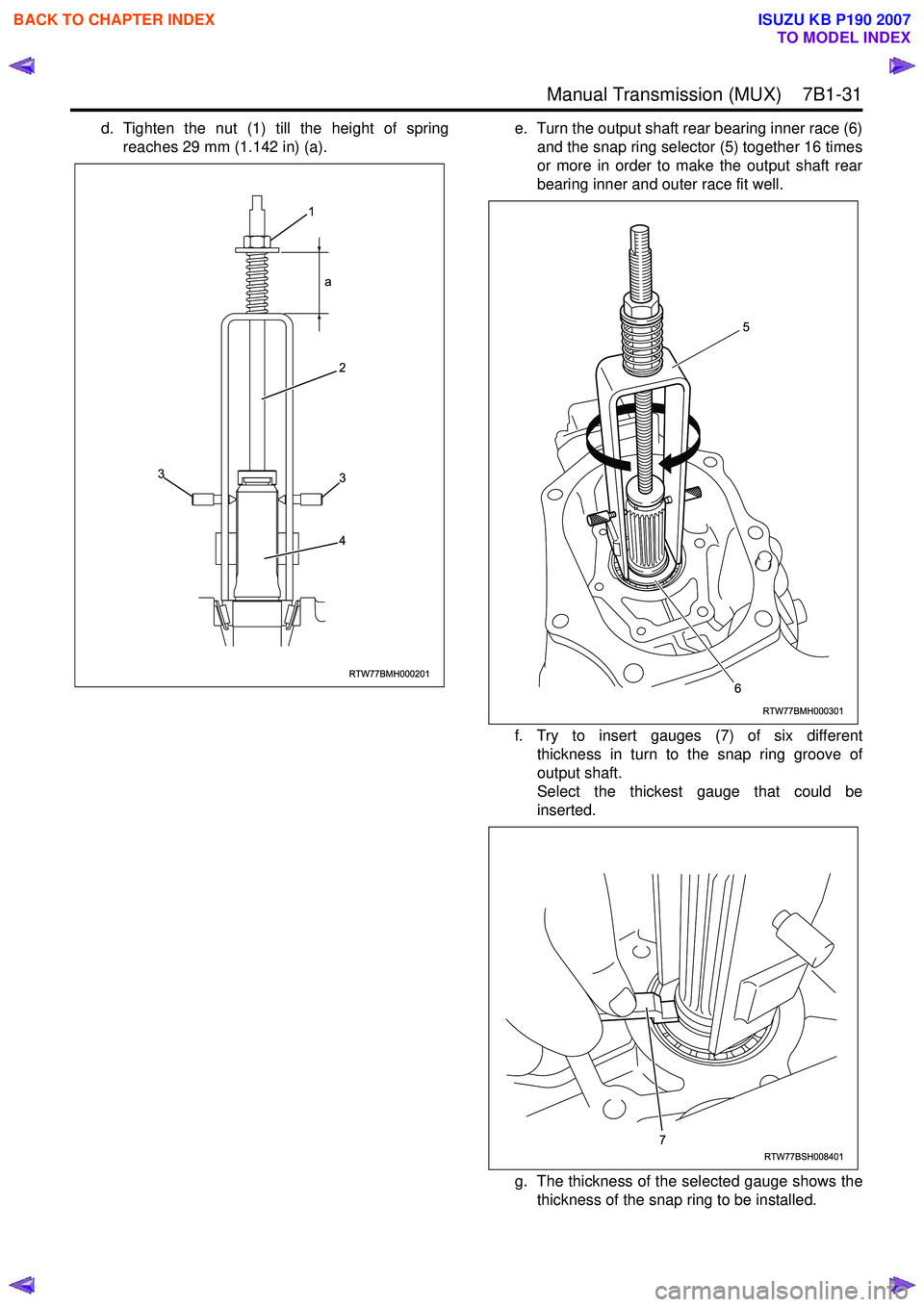

d. Tighten the nut (1) till the height of springreaches 29 mm (1.142 in) (a). e. Turn the output shaft rear bearing inner race (6)
and the snap ring selector (5) t

Page 4751 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 7B1-32 Manual Transmission (MUX)
Snap Ring Availability51. Install the new snap ring to the output shaft. • Never reinstall the used snap ring.
52. Install the speedometer drive gear. (4x2 model

7B1-32 Manual Transmission (MUX)
Snap Ring Availability51. Install the new snap ring to the output shaft. • Never reinstall the used snap ring.
52. Install the speedometer drive gear. (4x2 model)
53. Install the gear set clip. (4x2 model)
54. Install the end cover assembly.
• The gasket must be assembled. (4x2 model)
• Apply recommended liquid gasket (LOCTITE FMD-127 or equivalent) with the width of 3 to 5
mm to the area marked in the figure below. (4x4
model)
• Tighten the end cover bolts to the specified torque.
Torque: 23 N ⋅m (2.3 kgf ⋅m/17 lb ⋅ft)
55. Install the speedometer driven gear and plate. (4x2 model)
56. Install the control rod detent assembly.
• Tighten the three detent assemblies to thespecified torque.
Torque: 30 N ⋅m (3.1 kgf ⋅m/22 lb ⋅ft)
57. Install the new 5th detent assembly and new reverse detent assembly.
• Never reinstall the used detent assembly.
• Tighten the three detent assemblies to the specified torque. Torque: 30 N
⋅m (3.1 kgf ⋅m/22 lb ⋅ft)
58. Install the two harness brackets.
Torque: 8N ⋅m (0.8 kgf ⋅m/69 lb ⋅in)
59. Install the reverse switch (Connector color Brown), 1st switch (Connector color Gray) and neutral
switch (Connector color Brown) with gasket.
• Tighten the three switches to the specified torque.
Torque: 39 N ⋅m (4.0 kgf ⋅m/29 lb ⋅ft)
60. Install the control unit block by performing the following steps.
a. Push the control unit block ahead.
b. Install the control unit block.
c. Install the new taper bolt.
• Never reinstall the used taper bolt.
• Tighten the taper bolt to the specified torque.
Torque: 47 N ⋅m (4.8 kgf ⋅m/35 lb ⋅ft)
Important: • Must be checked no flaw to taper bolt.
• Must be checked no jam of foreign body before assembled.
• Must be checked same position upper surface of the taper bolt and the control unit block after
assembled.
61. Install the two dowels and quadrant box. • Apply recommended liquid gasket (LOCTITEFMD-127 or equivalent) with the width of 3 to 5
mm to the area marked in the figure below.
• Tighten the quadrant box bolts to the specified torque.
Torque: 23 N ⋅m (2.3 kgf ⋅m/17 lb ⋅ft)
62. Remove the tape from the spline portion of the input shaft.
Thickness
Identification color
2.1 mm(0.083 in) White
2.2 mm(0.087 in) Blue
2.3 mm(0.091 in) Green
2.4 mm(0.094 in) Yellow
2.5 mm(0.098 in) Orange
2.6 mm(0.102 in) Black
RTW77BSH005601
RTW77BSH005701

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Page 4752 of 6020

ISUZU KB P190 2007 Workshop Repair Manual Manual Transmission (MUX) 7B1-33
63. Install the front cover.• Tighten the front cover bolts to the specifiedtorque.
Torque: 23 N ⋅m (2.3 kgf ⋅m/17 lb ⋅ft)
64. After reassembling the trans
