ACTIVE TEST
Display item [Unit] Description
PUSH SW
[On/Off] Status of push-button ignition switch judged by BCM.
INFINITI QX56 2011 Factory Service Manual
WCS
DIAGNOSIS SYSTEM (BCM)WCS-21
< SYSTEM DESCRIPTION >
C
DE
F
G H
I
J
K L
M B A
O P
ACTIVE TEST
Display item [Unit] Description
PUSH SW
[On/Off] Status of push-button ignition switch judged by BCM.](/manual-img/42/57033/w960_57033-5424.png)
WCS
DIAGNOSIS SYSTEM (BCM)WCS-21
< SYSTEM DESCRIPTION >
C
DE
F
G H
I
J
K L
M B A
O P
ACTIVE TEST
Display item [Unit] Description
PUSH SW
[On/Off] Status of push-button ignition switch judged by BCM.
UNLK SEN-DR
[On/Off] Status of unlock sensor judged by BCM.
VEH SPEED 1
[km/h] Value of vehicle speed signal received from combination meter with CAN communication line.
TAIL LAMP SW
[On/Off] Status of lighting switch judged by BCM using the combination switch readout function.
FR FOG SW
[On/Off] Status of front fog lamp switch judged by BCM using the combination switch readout function.
DOOR SW-DR
[On/Off] Status of driver side door switch judged by BCM.
CDL LOCK SW
[On/Off] Status of door lock unlock switch judged by BCM.
Display item
[Unit] Description
SEAT BELT WARN TEST The seat belt warning chime operation can be checked by operating the relevant function (On/Off).
LIGHT WARN ALM The light warning chime operation can be checked by operating the relevant function (On/Off).
Revision: 2010 May2011 QX56
Page 5426 of 5598

WCS-22
< ECU DIAGNOSIS INFORMATION >
COMBINATION METER
ECU DIAGNOSIS INFORMATION
COMBINATION METER
Reference ValueINFOID:0000000006222688
VALUES ON THE DIAGNOSIS TOOL
Monitor Item Condition Value/Status
SPEED METER
[km/h] Ignition switch
ON
While driving Input value of vehicle speed signal
(CAN communication signal)
NOTE:
655.35 is displayed when the malfunc-
tion signal is received
SPEED OUTPUT
[km/h] Ignition switch
ON
While driving Output value of vehicle speed signal
(CAN communication signal)
NOTE:
655.35 is displayed when the malfunc-
tion signal is received
ODO OUTPUT
[km/h or mph] Ignition switch
ON
—Output value of odometer signal (CAN
communication signal)
TACHO METER
[rpm] Ignition switch
ON
Engine running Input value of engine speed signal
(CAN communication signal)
NOTE:
8191.875 is displayed when the mal-
function signal is received
FUEL METER
[L] Ignition switch
ON
— Input value of fuel level sensor signal
W TEMP METER
[ ° C] Ignition switch
ON
—Input value of engine coolant tempera-
ture signal (CAN communication sig-
nal)
NOTE:
215 is displayed when the malfunction
signal is input
ABS W/L Ignition switch
ONABS warning lamp ON On
ABS warning lamp OFF Off
VDC/TCS IND Ignition switch
ONVDC OFF indicator lamp ON On
VDC OFF indicator lamp OFF Off
SLIP IND Ignition switch
ONVDC warning lamp ON On
VDC warning lamp OFF Off
BRAKE W/L Ignition switch
ONBrake warning lamp ON On
Brake warning lamp OFF Off
DOOR W/L Ignition switch
ONDoor open warning ON On
Other than the above Off
HI-BEAM IND Ignition switch
ONHigh-beam indicator lamp ON On
High-beam indicator lamp OFF Off
TURN IND Ignition switch
ONTurn signal indicator lamp ON On
Turn signal indicator lamp OFF Off
FR FOG IND Ignition switch
ONNOTE:
This item is displayed, but cannot be moni-
tored.
Off
RR FOG IND Ignition switch
ONNOTE:
This item is displayed, but cannot be moni-
tored.
Off
Revision: 2010 May2011 QX56
Page 5427 of 5598

WCS
COMBINATION METERWCS-23
< ECU DIAGNOSIS INFORMATION >
C
DE
F
G H
I
J
K L
M B A
O P
LIGHT IND Ignition switch
ONTail lamp indicator lamp ON On
Tail lamp indicator lamp OFF Off
OIL W/L Ignition switch
ONOil pressure warning lamp ON On
Oil pressure warning lamp OFF Off
MIL Ignition switch
ONMalfunction indicator lamp ON On
Malfunction indicator lamp OFF Off
GLOW IND Ignition switch
ONNOTE:
This item is displayed, but cannot be moni-
tored.
Off
CRUISE IND Ignition switch
ONCRUISE indicator ON On
CRUISE indicator OFF Off
SET IND Ignition switch
ONSET indicator ON On
SET indicator OFF Off
CRUISE W/L Ignition switch
ONCRUISE warning lamp ON On
CRUISE warning lamp OFF Off
BA W/L Ignition switch
ONIBA OFF indicator lamp ON On
IBA OFF indicator lamp OFF Off
AT C / T - A M T W / L Ignition switch
ONA/T check warning lamp ON On
A/T check warning lamp OFF Off
ATF TEMP W/L Ignition switch
ONNOTE:
This item is displayed, but cannot be moni-
tored.
Off
4WD W/L Ignition switch
ON4WD warning lamp ON On
4WD warning lamp OFF Off
FUEL W/L Ignition switch
ONDuring low fuel warning indication On
Other than the above Off
WASHER W/L Ignition switch
ONDuring low washer fluid warning indication On
Other than the above Off
AIR PRES W/L Ignition switch
ONLow tire pressure
warning lamp ON On
Low tire pressure warning lamp OFF Off
KEY G/Y W/L Ignition switch
ONKEY warning lamp (G
reen/Yellow) ON On
KEY warning lamp (G reen/Yellow) OFF Off
KEY KNOB W/L Ignition switch
ONNOTE:
This item is displayed, but cannot be moni-
tored.
Off
AFS OFF IND Ignition switch
ONAFS OFF indicator lamp ON On
AFS OFF indicator lamp OFF Off
DDS W/L Ignition switch
ONNOTE:
This item is displayed, but cannot be moni-
tored.
Off
LANE W/L Ignition switch
ONLane departure warning lamp ON On
Lane departure warning lamp OFF Off
LDP IND Ignition switch
ONLDP ON indicator lamp ON On
LDP ON indicator lamp OFF Off
AT P W / L Ignition switch
ONATP warning lamp ON On
AT P w a r n i n g l a m p O F F O f f
Monitor Item Condition Value/Status
Revision: 2010 May2011 QX56
Page 5428 of 5598

WCS-24
< ECU DIAGNOSIS INFORMATION >
COMBINATION METER
DCA INDIgnition switch
ONNOTE:
This item is displayed, but cannot be moni-
tored.
Off
CHECK SUS IND Ignition switch
ONCK SUSP indicator lamp ON On
CK SUSP indicator lamp OFF Off
LCD Ignition switch
ON
During engine start in
formation indication B&P I
Ignition switch
ACC During engine start information indication B&P N
Ignition switch
LOCK During key ID warning indication ID NG
Ignition switch
LOCK During steering lock information indication ROTAT
Ignition switch
LOCK During P position warning indication SFT P
Ignition switch
LOCK During Intelligent Key insert information in-
dication
INSRT
Ignition switch
LOCK During Intelligent Key low battery warning
indication
BATT
Ignition switch
ON During take away warning indication NO KY
Ignition switch
LOCK During key warnin
g indication OUTKY
Ignition switch
ON During ACC warning indication LK WN
ACC TARGET Ignition switch
ONDuring vehicle ahead detection indicator in-
dication
On
Other than the above Off
ACC DISTANCE Ignition switch
ONWhen following distance set to “LONG” LONG
When following distance set to “MIDDLE” MID
When following distance set to “SHORT” SHORT
Set distance indicator not displayed Off
ACC OWN VHL Ignition switch
ONDuring own vehicle indicator indication On
Other than the above Off
ACC SET SPEED Ignition switch
ONDuring set vehicle speed indicator not dis-
played
Off
During set vehicle speed indicator dis-
played Indicates the set vehicle speed
ACC UNIT Ignition switch
ONSet vehicle speed indicator unit display ON On
Set vehicle speed indicator unit display OFF Off
Monitor Item Condition Value/Status
Revision: 2010 May2011 QX56
Page 5429 of 5598

WCS
COMBINATION METERWCS-25
< ECU DIAGNOSIS INFORMATION >
C
DE
F
G H
I
J
K L
M B A
O P
SHIFT IND Ignition switch
ONDuring the indication of “P” by shift position
indicator
P
During the indication of “R” by shift position
indicator R
During the indication of “N” by shift position
indicator N
During the indication of “D” by shift position
indicator D
During the indication of “M1” by shift posi-
tion indicator M1
During the indication of “M2” by shift posi-
tion indicator M2
During the indication of “M3” by shift posi-
tion indicator M3
During the indication of “M4” by shift posi-
tion indicator M4
During the indication of “M5” by shift posi-
tion indicator M5
During the indication of “M6” by shift posi-
tion indicator M6
During the indication of “M7” by shift posi-
tion indicator M7
4WD IND Ignition switch
ON4WD shift switch in AUTO position AUTO
4WD shift switch in 4H position LOCK
4WD shift switch in 4L position LOCK/4Lo
BSW IND Ignition switch
ONNOTE:
This item is displayed, but cannot be moni-
tored.
Off
BSW W/L Ignition switch
ONBSW warning lamp ON On
BSW warning lamp OFF Off
AT S MODE SW Ignition switch
ONSnow mode switch ON On
Snow mode switch OFF Off
M RANGE SW Ignition switch
ONSelector lever in manual mode position On
Other than the above Off
NM RANGE SW Ignition switch
ONSelector lever in manual mode position Off
Other than the above On
AT SFT UP SW Ignition switch
ONSelector lever in + position On
Other than the above Off
AT SFT DWN SW Ignition switch
ONSelector lever in – position On
Other than the above Off
PKB SW Ignition switch
ONParking brake switch ON On
Parking brake switch OFF Off
BUCKLE SW Ignition switch
ONDriver seat belt not fastened On
Driver seat belt fastened Off
BRAKE OIL SW Ignition switch
ONBrake fluid level switch ON On
Brake fluid level switch OFF Off
A/C AMP CONN Ignition switch
ONNOTE:
This item is displayed, but cannot be moni-
tored.
Off
Monitor Item Condition Value/Status
Revision: 2010 May2011 QX56
Page 5430 of 5598

WCS-26
< ECU DIAGNOSIS INFORMATION >
COMBINATION METER
NOTE:
Some items are not available according to vehicle specification.
TERMINAL LAYOUT
PHYSICAL VALUES
TOW MODE INDIgnition switch
ONTOW mode indicator lamp ON On
TOW mode indicator lamp OFF Off
ENTER SW Ignition switch
ONWhen switch (enter switch) is pressed
On
Other than above Off
SELECT SW Ignition switch
ONWhen switch (select switch) is pressed
On
Other than above Off
DISTANCE
[km] Ignition switch
ON
—Distance to empty calculated by com-
bination meter
OUTSIDE TEMP
[ ° C or °F] Ignition switch
ON
—Equivalent to ambient temperature
NOTE:
This may not match the indicated value
on the information display.
FUEL LOW SIG Ignition switch
ONDuring low fuel warning indication On
Other than above Off
BUZZER Ignition switch
ONBuzzer ON On
Buzzer OFF Off
Monitor Item Condition Value/Status
JPNIA0968GB
Te r m i n a l N o .
(Wire color) Description
ConditionVa l u e
(Approx.)
+ – Signal name Input/
Output
1
(Y) Ground Battery power supply Input Ignition
switch
OFF— Battery voltage
2
(GR) Ground Ignition signal Input Ignition
switch
ON
— Battery voltage
3
(B) Ground Ground — Ignition
switch
ON—0 V
7
(R) Ground TOW mode signal Input Ignition
switch
ONWhen TOW mode switch is
pressed
0 V
Other than the above 12 V
8
(P/L) Ground Trip reset switch signal Input Ignition
switch
ONWhen trip reset switch is
pressed
0 V
Other than the above 5 V
Revision: 2010 May2011 QX56
Page 5431 of 5598

WCS
COMBINATION METERWCS-27
< ECU DIAGNOSIS INFORMATION >
C
DE
F
G H
I
J
K L
M B A
O P
11
(G) Ground Enter switch signal Input Ignition
switch
ONWhen switch (enter
switch) is pressed
0 V
Other than the above 5 V
12
(O) Ground Select switch signal Input Ignition
switch
ONWhen switch (select
switch) is pressed
0 V
Other than the above 5 V
13
(W/R) Ground
Illumination control switch
signal (+) InputIgnition
switch
ON When switch [illumi-
nation control switch (+)] is
pressed
0 V
Other than the above 5 V
14
(R) Ground Illumination control switch
signal (
−) InputIgnition
switch
ON When switch [illumi-
nation control switch (
−)] is
pressed 0 V
Other than the above 5 V
15
(R/W) Ground Air bag signal Input Ignition
switch
ONAir bag warning lamp
ON
4 V
Air bag warning lamp
OFF 0 V
18
(W/R) Ground Ambient sensor signal Input — —
19
(V/W) Ground A/C auto amp. connection
recognition signal Input —When A/C auto amp. is
connected
5 V
Other than the above 0 V
20
(B) Ground Ambient sensor ground — Ignition
switch
ON—0 V
21
(L) —CAN-H — — — —
22
(P) —CAN-L — — — —
23
(B) Ground Ground — Ignition
switch
ON
—0 V
24
(V) Ground Fuel level sensor ground — Ignition
switch
ON—0 V
25
(O/L) Ground Alternator signal Input Ignition
switch
ONCharge warning lamp ON 2 V
Charge warning lamp OFF Battery voltage
26
(W) Ground Parking brake switch signal Input Ignition
switch
ONParking brake applied 0 V
Parking brake released 12 V
Te r m i n a l N o .
(Wire color) Description
ConditionVa l u e
(Approx.)
+ – Signal name Input/
Output

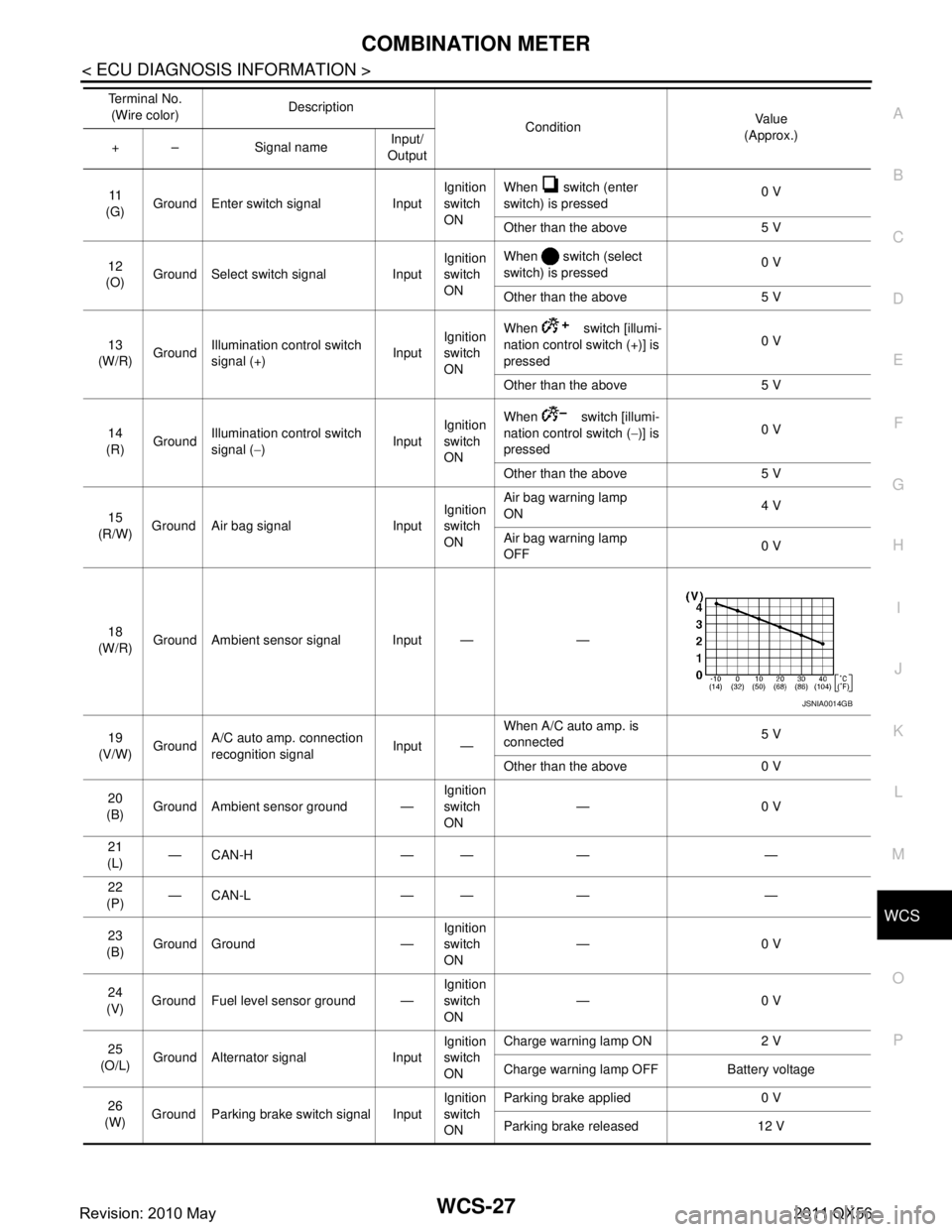

JSNIA0014GB
Revision: 2010 May2011 QX56
Page 5432 of 5598

WCS-28
< ECU DIAGNOSIS INFORMATION >
COMBINATION METER
28
(GR/R) Ground Security signal Input Ignition
switch
ONSecurity indicator lamp ON 0 V
Security indicator lamp
OFF
12 V
29
(BR) Ground Washer level switch signal Input Ignition
switch
ONWasher level switch ON 0 V
Washer level switch OFF 5 V
30
(SB) Ground
Vehicle speed signal
(2-pulse) OutputIgnition
switch
ON Speedometer operated
[When vehicle speed is ap-
prox. 40 km/h (25 MPH)] NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).
31
(BR/W) GroundVehicle speed signal
(8-pulse)
OutputIgnition
switch
ONSpeedometer operated
[When vehicle speed is ap-
prox. 40 km/h (25 MPH)] NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).
33
(W) Ground SNOW mode signal Input Ignition
switch
ONWhen SNOW mode switch
is pressed
12 V
Other than the above 0 V
34
(BR/Y) Ground Fuel level sensor signal Input Ignition
switch
ON
—
35
(O/B) Ground Seat belt buckle switch sig-
nal (driver side)
InputIgnition
switch
ON When driver side belts is
fastened
12 V
When driver side belts is
unfastened 0 V
36
(G/Y) Ground Passenger seat belt warn-
ing signal
InputIgnition
switch
ON When driver side seat
belt fastened
When getting in the pas- senger seat
When passenger seat belt fastened 12 V
When driver side seat belt fastened
When getting in the pas- senger seat
When passenger seat belt unfastened 0 V
Te r m i n a l N o .
(Wire color) Description
ConditionVa l u e
(Approx.)
+ – Signal name Input/
Output

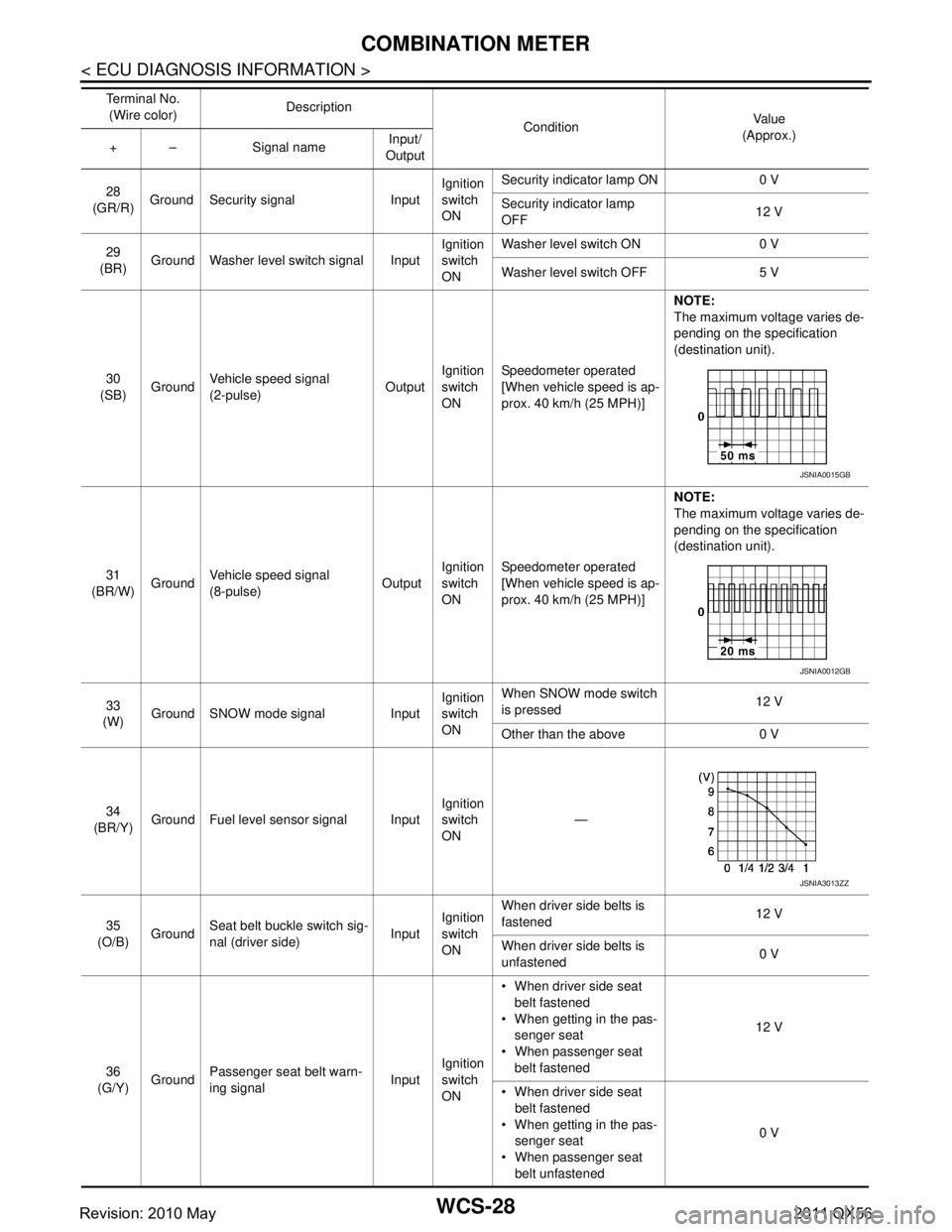

JSNIA0015GB
JSNIA0012GB
JSNIA3013ZZ
Revision: 2010 May2011 QX56
