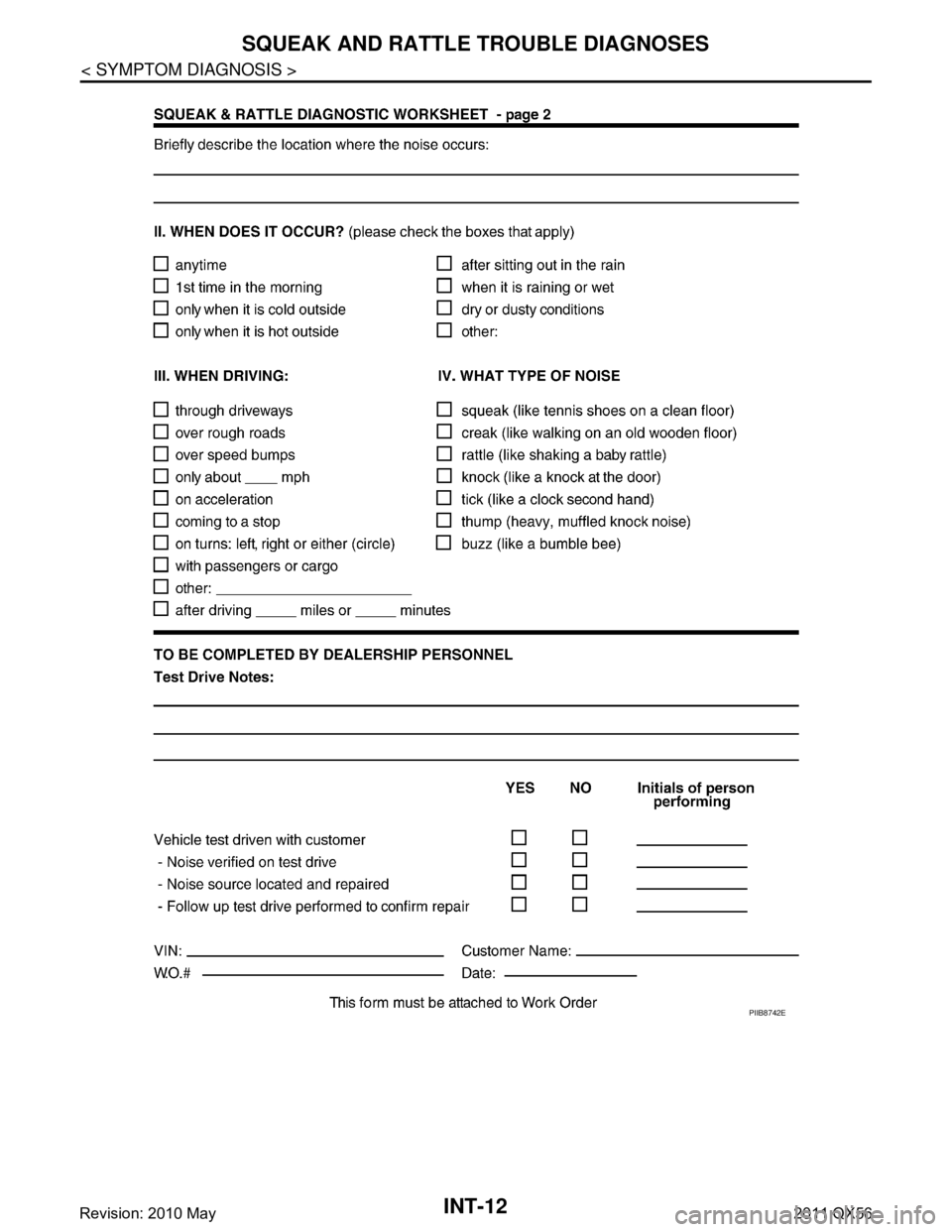

Page 3361 of 5598

INFINITI QX56 2011 Factory Service Manual INT-12 < SYMPTOM DIAGNOSIS > SQUEAK AND RATTLE TROUBLE DIAGNOSES PIIB8742E Revision: 2010 May2011 QX56

Page 3362 of 5598

INFINITI QX56 2011 Factory Service Manual FRONT DOOR FINISHERINT-13 < REMOVAL AND INSTALLATION > C DE F G H I K L M A B INT N O P REMOVAL AND INSTALLATION FRONT DOOR FINISHER Exploded ViewINFOID:0000000006220241 1. Front door panel 2. Front

Page 3363 of 5598

INFINITI QX56 2011 Factory Service Manual INT-14 < REMOVAL AND INSTALLATION > FRONT DOOR FINISHER Removal and Installation INFOID:0000000006220242 CAUTION:  When removing, always use a remover tool that is made of plastic.  Never damage th

Page 3364 of 5598

INFINITI QX56 2011 Factory Service Manual FRONT DOOR FINISHERINT-15 < REMOVAL AND INSTALLATION > C DE F G H I K L M A B INT N O P  Seat memory switch. Refer to ADP-137, "Removal and Installation".  Front door inside handle. Refer to DLK-

Page 3365 of 5598

INFINITI QX56 2011 Factory Service Manual INT-16 < REMOVAL AND INSTALLATION > REAR DOOR FINISHER REAR DOOR FINISHER Exploded ViewINFOID:0000000006220243 Removal and InstallationINFOID:0000000006220244 CAUTION:  When removing, always use a r

Page 3366 of 5598

INFINITI QX56 2011 Factory Service Manual REAR DOOR FINISHERINT-17 < REMOVAL AND INSTALLATION > C DE F G H I K L M A B INT N O P REMOVAL 1. Fully open door window. 2. Remove door finisher cap (1) using a small flat-bladed screw- driver (A) a

Page 3367 of 5598

INFINITI QX56 2011 Factory Service Manual INT-18 < REMOVAL AND INSTALLATION > BODY SIDE TRIM BODY SIDE TRIM Exploded ViewINFOID:0000000006220245 DASH SIDE FINISHER DASH SIDE FINISHER : Removal and InstallationINFOID:0000000006220246 CAUTION:

Page 3368 of 5598

INFINITI QX56 2011 Factory Service Manual BODY SIDE TRIMINT-19 < REMOVAL AND INSTALLATION > C DE F G H I K L M A B INT N O P 3. Disengage dash side finisher (1) fixing clips (A) using a remover tool (B) as shown by the arrow in the figure, a
