Page 4561 of 5598

INFINITI QX56 2011 Factory Service Manual
SE-102
< SYMPTOM DIAGNOSIS >
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) caus-
ing the noise.
SUNROOF/

SE-102
< SYMPTOM DIAGNOSIS >
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) caus-
ing the noise.
SUNROOF/HEADLINING
Noises in the sunroof/headlining area c an often be traced to one of the following:
1. Sunroof lid, rail, linkage or seals making a rattle or light knocking noise
2. Sunvisor shaft shaking in the holder
3. Front or rear windshield touching headlining and squeaking
Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.
SEATS
When isolating seat noise it's important to note the position the seats in and the load placed on the seat when
the noise occurs. These conditions should be duplicated when verifying and isolating the cause of the noise.
Cause of seat noise include:
1. Headrest rods and holder
2. A squeak between the seat pad cushion and frame
3. The rear seatback lock and bracket
These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs.Most of these incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.
UNDERHOOD
Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger compartment.
Causes of transmitted underhood noise include:
1. Any component mounted to the engine wall
2. Components that pass through the engine wall
3. Engine wall mounts and connectors
4. Loose radiator mounting pins
5. Hood bumpers out of adjustment
6. Hood striker out of adjustment
These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the \
vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.
Revision: 2010 May2011 QX56

Page 4562 of 5598

INFINITI QX56 2011 Factory Service Manual
SQUEAK AND RATTLE TROUBLE DIAGNOSESSE-103
< SYMPTOM DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
SE
N
O P

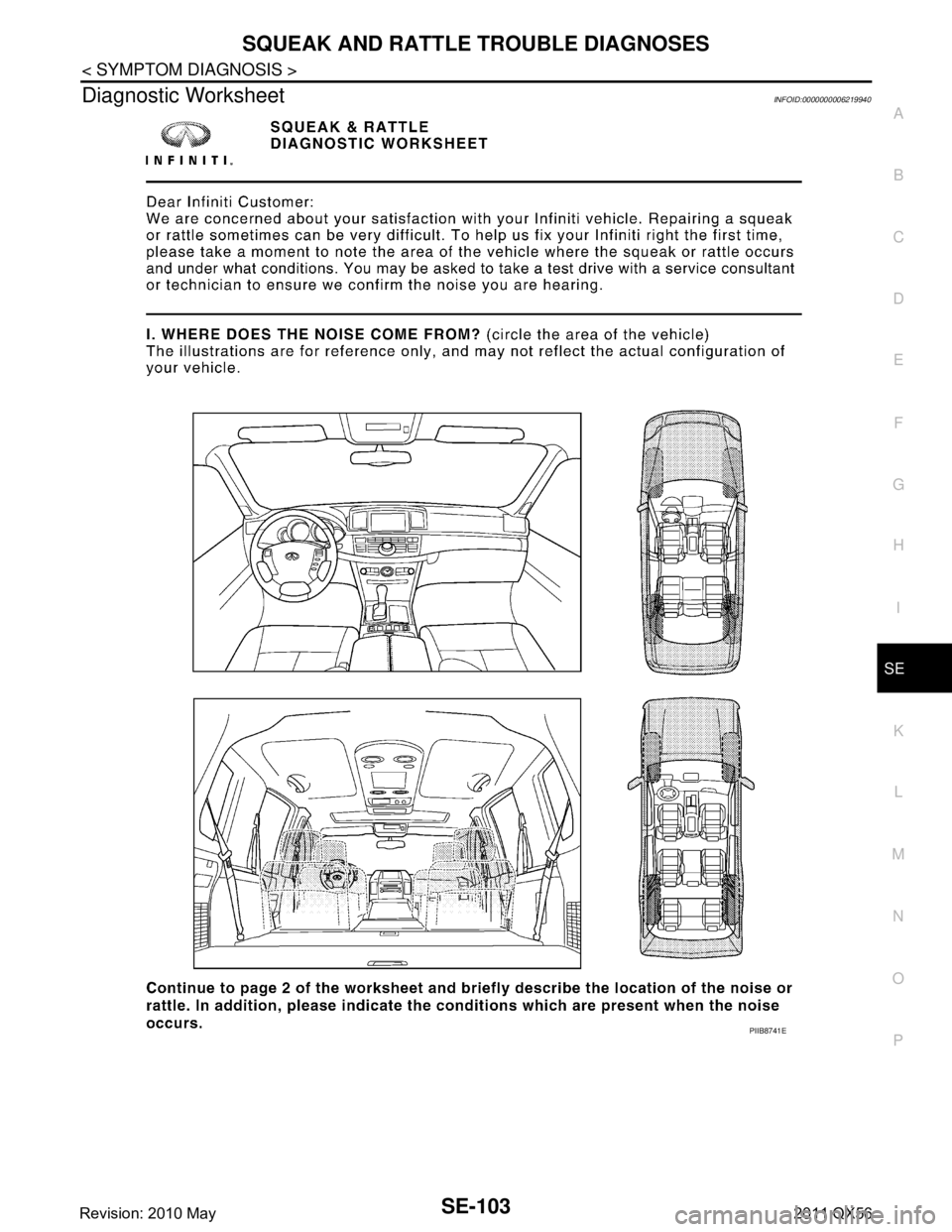

Diagnostic WorksheetINFOID:0000000006219940
PIIB8741E
Revision: 2010 May2011 QX56

Page 4563 of 5598

INFINITI QX56 2011 Factory Service Manual
SE-104
< SYMPTOM DIAGNOSIS >
SQUEAK AND RATTLE TROUBLE DIAGNOSES

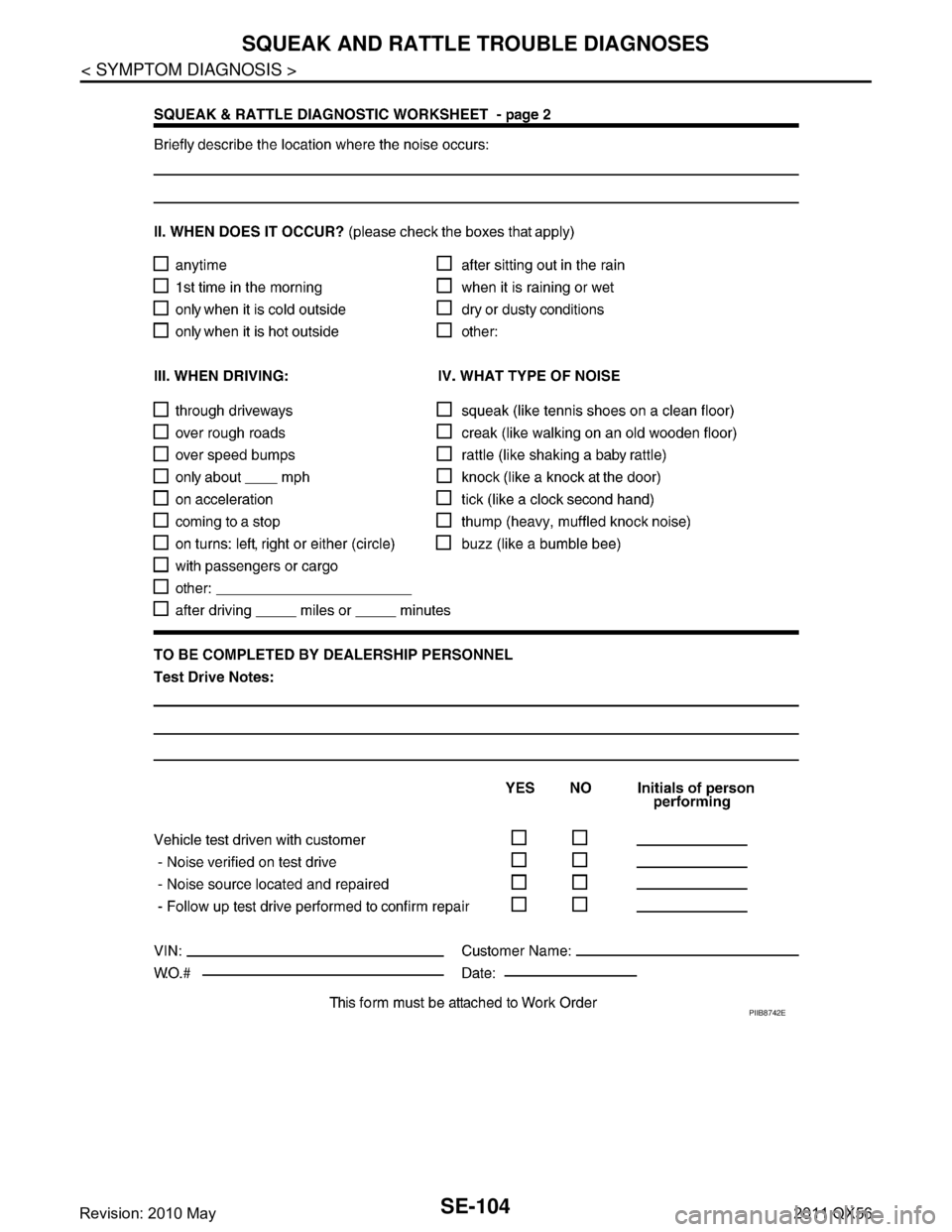

PIIB8742E
Revision: 2010 May2011 QX56

Page 4564 of 5598

INFINITI QX56 2011 Factory Service Manual
FRONT SEATSE-105
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
REMOVAL AND INSTALLATION
FRONT SEAT
Exploded ViewINFOID:0000000006217423
HEATER SEAT
DRIVER SEAT
JMJIA4283GB
Revision: 20

Page 4565 of 5598

INFINITI QX56 2011 Factory Service Manual
SE-106
< REMOVAL AND INSTALLATION >
FRONT SEAT
1. Headrest display escutcheon 2. Headrest display 3. Headrest trim
4. Headrest pad and frame 5. Headrest holder (free) 6. Headrest holder (locked)
7. S

Page 4566 of 5598

INFINITI QX56 2011 Factory Service Manual
FRONT SEATSE-107
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
PASSENGER SEAT
JMJIA4578GB
1. Headrest display 2. Headrest display escutcheon 3. Headrest trim
4. Headrest pad and frame

Page 4567 of 5598

INFINITI QX56 2011 Factory Service Manual
SE-108
< REMOVAL AND INSTALLATION >
FRONT SEAT
CLIMATE CONTROLLED SEAT
16. Rear outer slide cover 17. Lumber support unit assembly 18. Seat harness
19. Seat cushion outer finisher inside (front) 20.

Page 4568 of 5598

INFINITI QX56 2011 Factory Service Manual
FRONT SEATSE-109
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
DRIVER SEAT
JMJIA4285GB
1. Headrest display escutcheon 2. Headrest display 3. Headrest trim
4. Headrest pad and frame 5.
