FRONT FOG LAMP AIMING ADJUSTMENTEXL-123
< PERIODIC MAINTENANCE > [XENON TYPE]
C
D
E
F
G H
I
J
K
M A
B
EXL
N
O P
FRONT FOG LAMP AI MING ADJUSTMENT
DescriptionINFOID:0000000006213992
PREPARATION BEFORE ADJUSTING
NOTE:
For details, refer to the regulations in your own country.
Perform aiming if the vehicle front body has been repaired and/or the headlamp assembly has been
replaced.
Before performing aiming adjustm ent, check the following. Adjust the tire pressure to the specification.
Fill with fuel, engine coolant and each oil.
Maintain the unloaded vehicle condition. (Remove luggage from the passenger compartment and the trunk
room.)
NOTE:
Do not remove the temporary tire, jack and on-vehicle tool.
Wipe out dirt on the headlamp. CAUTION:
Never use organic solvent (thinner, gasoline etc.)
Ride alone on the driver seat.
AIMING ADJUSTMENT SCREW
Turn the aiming adjusting screw for adjustment.
For the position and direction of the adjusting screw, refer to the figure.
NOTE:
A screwdriver or hexagonal wrench [6 mm (0.24 in)] can be used
for adjustment.
Aiming Adjustment ProcedureINFOID:0000000006213993
1. Place the screen. NOTE:
Stop the vehicle facing the wall.
Place the board on a plain road vertically.
2. Face the vehicle with the screen. Maintain 10 m (32.8 ft) between the front fog lamp center and the
screen.
3. Start the engine. Turn the front fog lamp ON. NOTE:
Shut off the headlamp light with the board to pr event from illuminating the adjustment screen.
CAUTION:
Never cover the lens surface with a tape etc. The lens is made of resin.
4. Adjust the cutoff line height (A) with the aiming adjus tment screw so that the distance (X) between the hor-
izontal center line of front fog lamp (H) and (A) becomes 200 mm (7.87 in).
A: UP
B: DOWN
JPLIA0915ZZ
Revision: 2010 May2011 QX56
Page 2834 of 5598
EXL-124
< PERIODIC MAINTENANCE >[XENON TYPE]
FRONT FOG LAMP AIMING ADJUSTMENT
Front fog lamp light distribution on the screen
JPLIA0008ZZ
A : Cutoff line
B : High illuminance area
H : Horizontal center line of front fog lamp
V : Vertical center line of front fog lamp
X : Cutoff line height
Revision: 2010 May2011 QX56
Page 2835 of 5598
FRONT COMBINATION LAMPEXL-125
< REMOVAL AND INSTALLATION > [XENON TYPE]
C
D
E
F
G H
I
J
K
M A
B
EXL
N
O P
REMOVAL AND INSTALLATION
FRONT COMBINATION LAMP
Exploded ViewINFOID:0000000006369463
REMOVAL
DISASSEMBLY
CAUTION:
HID control unit and xenon bul b socket cannot be disassembled.
Removal and InstallationINFOID:0000000006369464
REMOVAL
CAUTION:
1. Front combination lamp
JMLIA1115ZZ

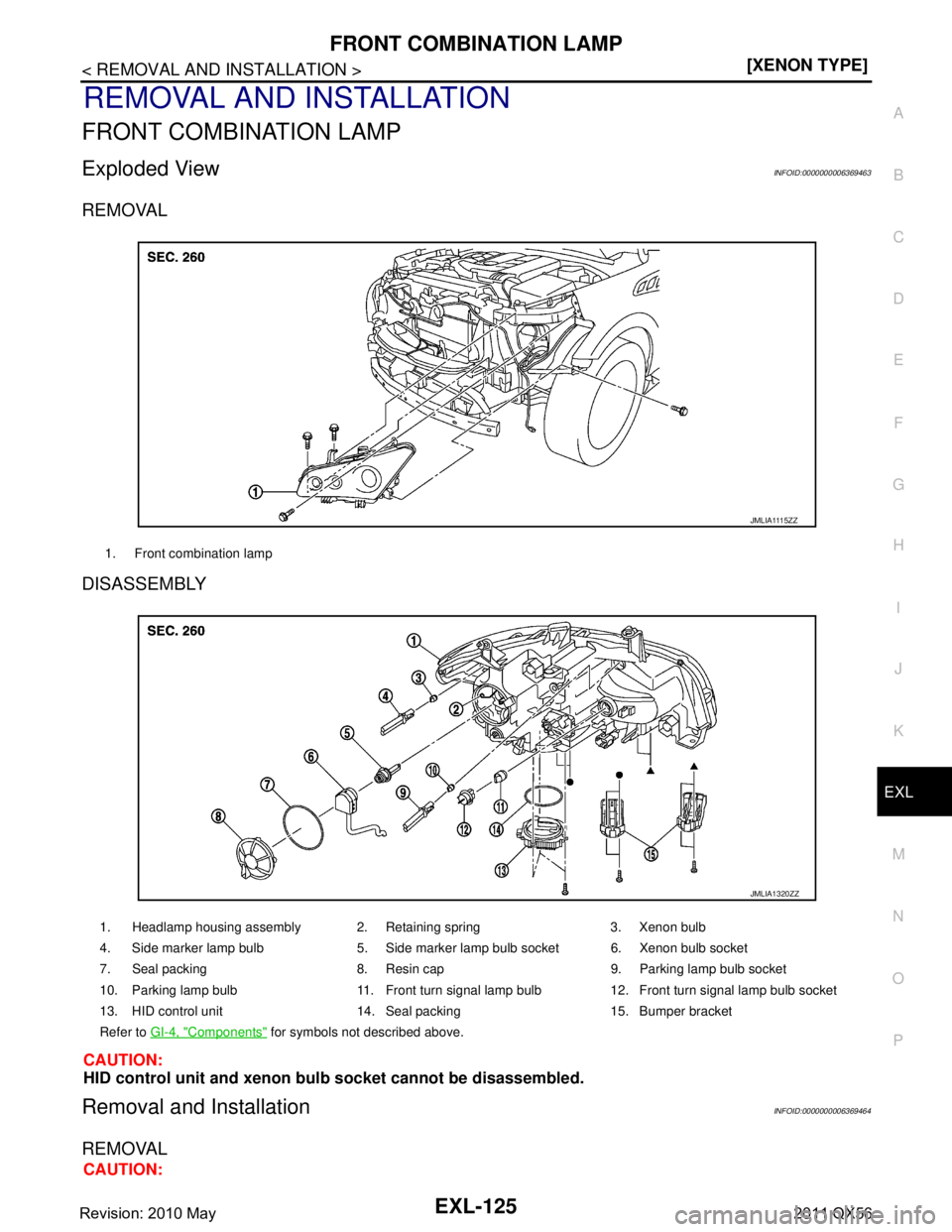

1. Headlamp housing assembly 2. Retaining spring 3. Xenon bulb
4. Side marker lamp bulb 5. Side marker lamp bulb socket 6. Xenon bulb socket
7. Seal packing 8. Resin cap 9. Parking lamp bulb socket
10. Parking lamp bulb 11. Front turn signal lamp bulb 12. Front turn signal lamp bulb socket
13. HID control unit 14. Seal packing 15. Bumper bracket
Refer to GI-4, "
Components" for symbols not described above.
JMLIA1320ZZ
Revision: 2010 May2011 QX56
Page 2836 of 5598
![INFINITI QX56 2011 Factory Service Manual
EXL-126
< REMOVAL AND INSTALLATION >[XENON TYPE]
FRONT COMBINATION LAMP
Disconnect the battery negative terminal or remove the fuse.
1. Remove front grille. Refer to
EXT-19, "
Removal and Installati INFINITI QX56 2011 Factory Service Manual
EXL-126
< REMOVAL AND INSTALLATION >[XENON TYPE]
FRONT COMBINATION LAMP
Disconnect the battery negative terminal or remove the fuse.
1. Remove front grille. Refer to
EXT-19, "
Removal and Installati](/manual-img/42/57033/w960_57033-2835.png)
EXL-126
< REMOVAL AND INSTALLATION >[XENON TYPE]
FRONT COMBINATION LAMP
Disconnect the battery negative terminal or remove the fuse.
1. Remove front grille. Refer to
EXT-19, "
Removal and Installation".
2. Remove front bumper molding. Refer to EXT-13, "
Removal and Installation".
3. Remove front bumper fascia. Refer to EXT-13, "
Removal and Installation".
4. Remove headlamp mounting bolts.
5. Pull out headlamp assembly forward vehicle.
6. Disconnect connectors before removing headlamp assembly.
INSTALLATION
Install in the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to EXL-121, "
description".
ReplacementINFOID:0000000006369465
CAUTION:
Disconnect the battery negative terminal or remove the fuse.
After installing the bulb, install the resin cap and the bulb socket securely for watertightness.
Never touch the glass of bu lb directly by hand. Keep grease an d other oily matters away from it.
Never touch bulb by hand while it is lit or right after being turned off.
Never leave bulb out of lamp reflector for a long ti me because dust, moisture smoke, etc. may affect
the performance of lamp. When replacing bulb, be sure to replace it with new one.
HEADLAMP BULB (HI/LO)
1. Remove fender protector. Refer to EXT-23, "FENDER PROTECTOR : Removal and Installation".

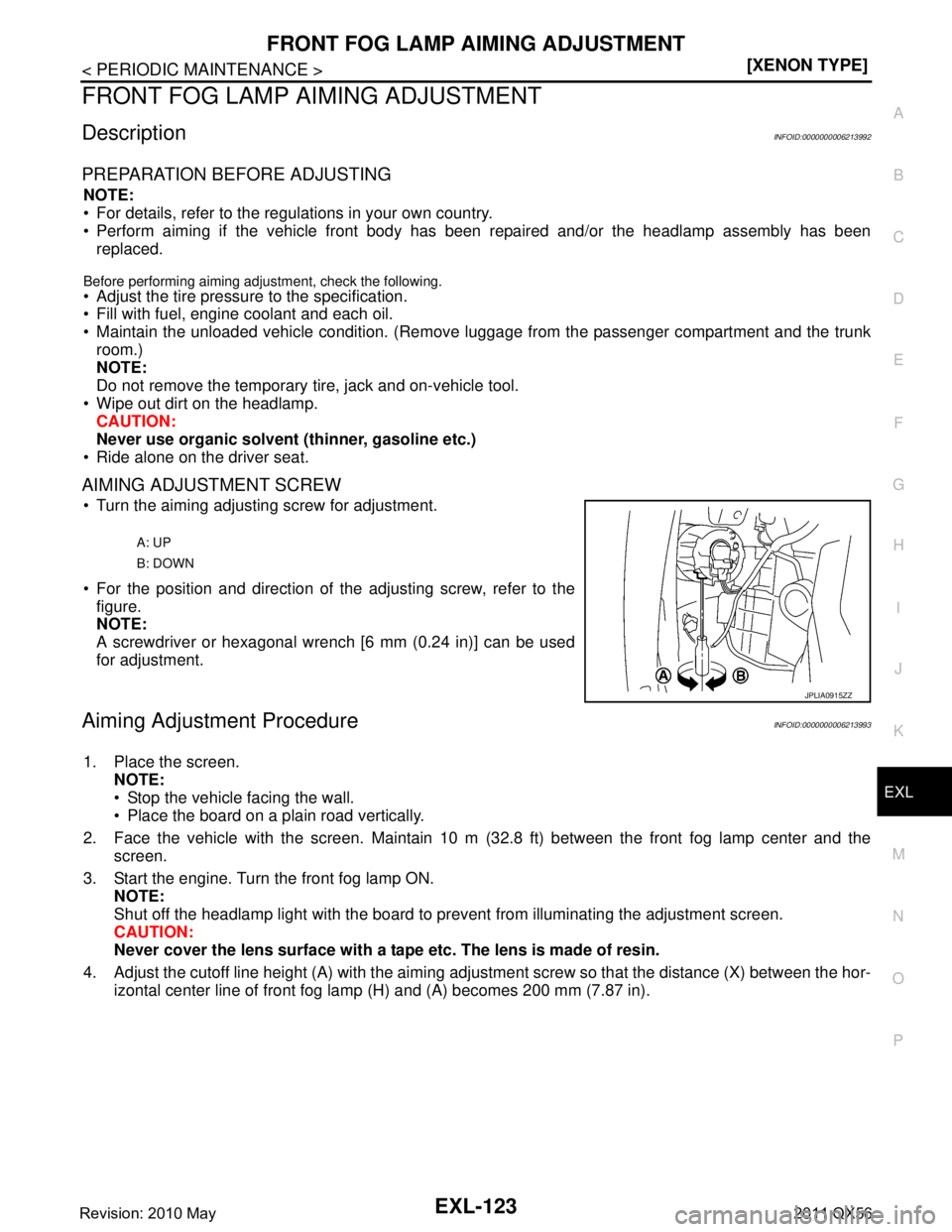

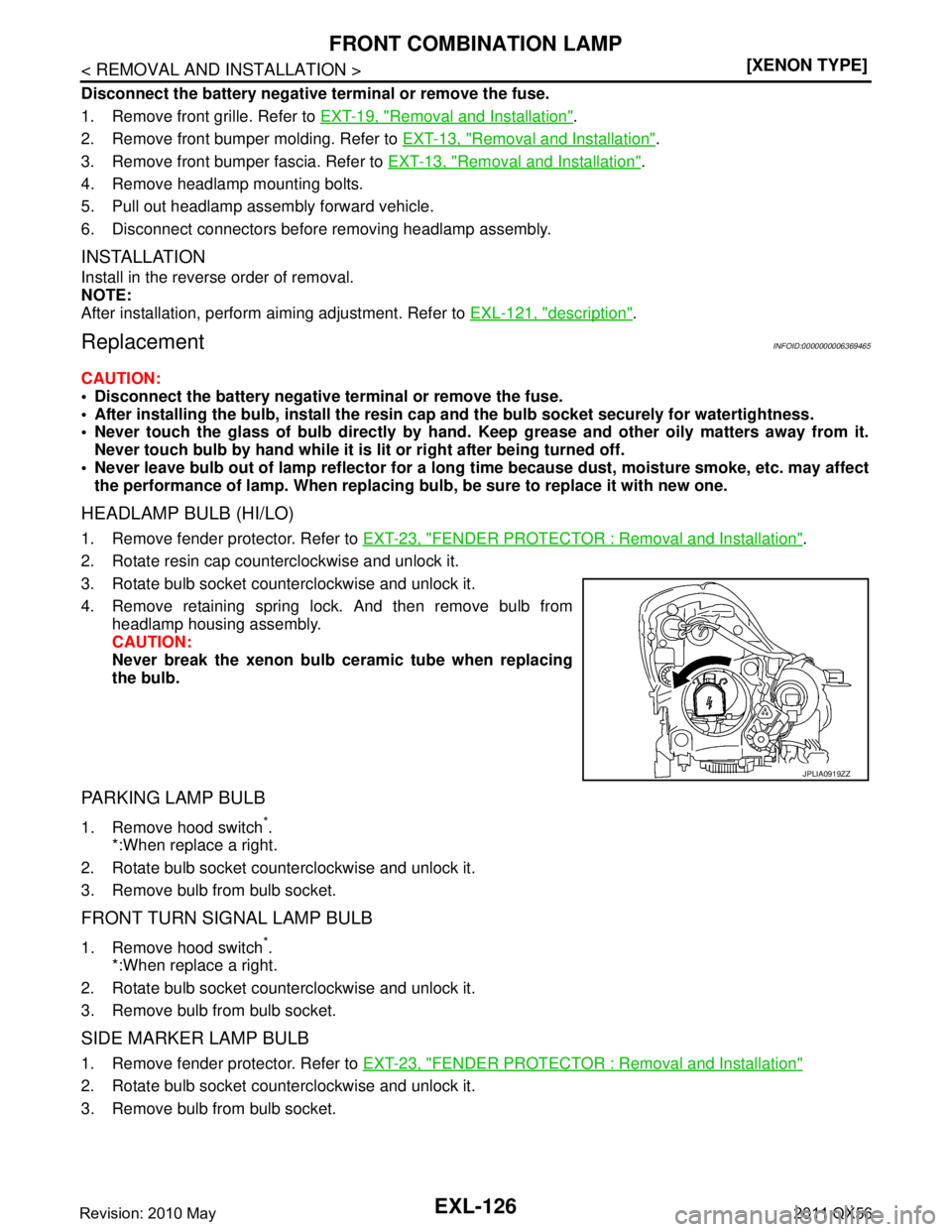

2. Rotate resin cap counterclockwise and unlock it.
3. Rotate bulb socket counterclockwise and unlock it.
4. Remove retaining spring lock. And then remove bulb from headlamp housing assembly.
CAUTION:
Never break the xenon bulb ceramic tube when replacing
the bulb.
PARKING LAMP BULB
1. Remove hood switch*.
*:When replace a right.
2. Rotate bulb socket counterclockwise and unlock it.
3. Remove bulb from bulb socket.
FRONT TURN SIGNAL LAMP BULB
1. Remove hood switch*.
*:When replace a right.
2. Rotate bulb socket counterclockwise and unlock it.
3. Remove bulb from bulb socket.
SIDE MARKER LAMP BULB
1. Remove fender protector. Refer to EXT-23, "FENDER PROTECTOR : Removal and Installation"
2. Rotate bulb socket counterclockwise and unlock it.
3. Remove bulb from bulb socket.
JPLIA0919ZZ
Revision: 2010 May2011 QX56
Page 2837 of 5598
FRONT COMBINATION LAMPEXL-127
< REMOVAL AND INSTALLATION > [XENON TYPE]
C
D
E
F
G H
I
J
K
M A
B
EXL
N
O P
Disassembly and AssemblyINFOID:0000000006369466
DISASSEMBLY
1. Rotate resin cap counterclockwise and unlock it.
2. Rotate xenon bulb socket counterclockwise and unlock it.
3. Remove retaining spring lock. Remove xenon bulb.
4. Remove bumper bracket.
5. Rotate parking lamp bulb socket counterclockwise and unlock it.
6. Remove bulb from parking lamp bulb socket.
7. Rotate front turn signal lamp bulb socket counterclockwise and unlock it.
8. Remove bulb from front turn signal lamp bulb socket.
9. Rotate side marker lamp bulb socket counterclockwise and unlock it.
10. Remove bulb from bulb socket.
ASSEMBLY
Assemble in the reverse order of disassembly.
CAUTION:
HID control unit and xenon bu lb socket cannot be disassembled.
After installing the bulb, install the resin cap and the bulb socket securely for watertightness.
Revision: 2010 May2011 QX56
Page 2838 of 5598
![INFINITI QX56 2011 Factory Service Manual
EXL-128
< REMOVAL AND INSTALLATION >[XENON TYPE]
FRONT FOG LAMP
FRONT FOG LAMP
Exploded ViewINFOID:0000000006369467
Removal and InstallationINFOID:0000000006369468
CAUTION:
Disconnect the battery neg INFINITI QX56 2011 Factory Service Manual
EXL-128
< REMOVAL AND INSTALLATION >[XENON TYPE]
FRONT FOG LAMP
FRONT FOG LAMP
Exploded ViewINFOID:0000000006369467
Removal and InstallationINFOID:0000000006369468
CAUTION:
Disconnect the battery neg](/manual-img/42/57033/w960_57033-2837.png)
EXL-128
< REMOVAL AND INSTALLATION >[XENON TYPE]
FRONT FOG LAMP
FRONT FOG LAMP
Exploded ViewINFOID:0000000006369467
Removal and InstallationINFOID:0000000006369468
CAUTION:
Disconnect the battery negative terminal or remove the fuse.
REMOVAL
1. Remove front fender protector. Refer to
EXT-23, "FENDER PROTECTOR : Removal and Installation".
2. Remove front fog lamp finisher.
3. Disconnect front fog lamp harness connector.
4. Remove front fog lamp fixing screw.
5. Disengage pawl, and then remove front fog lamp.
INSTALLATION
Install in the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to EXL-123, "
Description".
ReplacementINFOID:0000000006369469
CAUTION:
Disconnect the battery negative terminal or remove the fuse.
Never touch the glass of bulb directly by hand. Keep grease an d other oily matters away from it.
Never touch bulb by hand while it is lit or right after being turned off.
Never leave bulb out of lamp reflector for a long ti me because dust, moisture smoke, etc. may affect
the performance of lamp. When replacing bulb, be sure to replace it with new one.
FRONT FOG LAMP BULB
1. Remove front fender protector. Keep the service area. Refer to EXT-23, "FENDER PROTECTOR :
Removal and Installation".

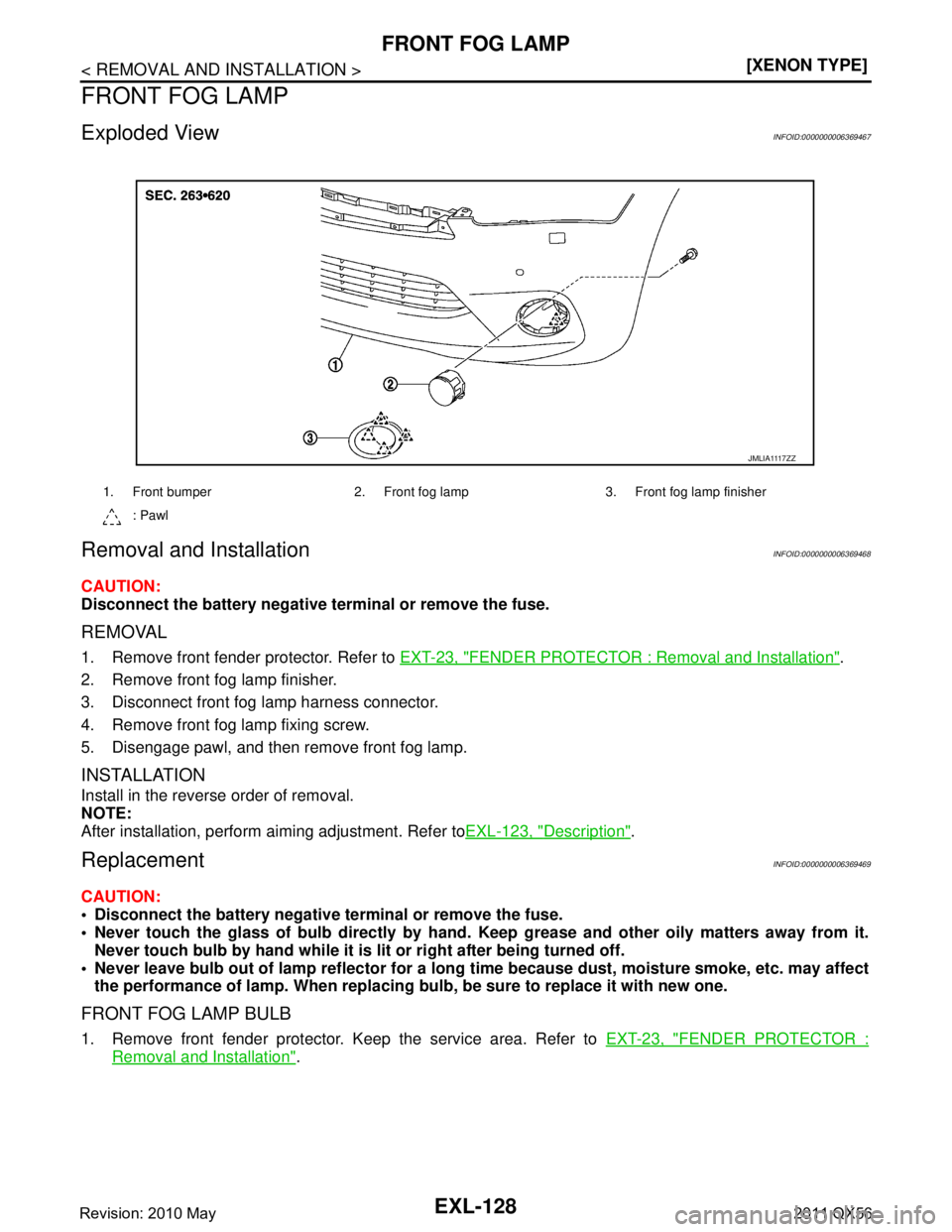

1. Front bumper 2. Front fog lamp 3. Front fog lamp finisher
: Pawl
JMLIA1117ZZ
Revision: 2010 May2011 QX56
Page 2839 of 5598
FRONT FOG LAMPEXL-129
< REMOVAL AND INSTALLATION > [XENON TYPE]
C
D
E
F
G H
I
J
K
M A
B
EXL
N
O P

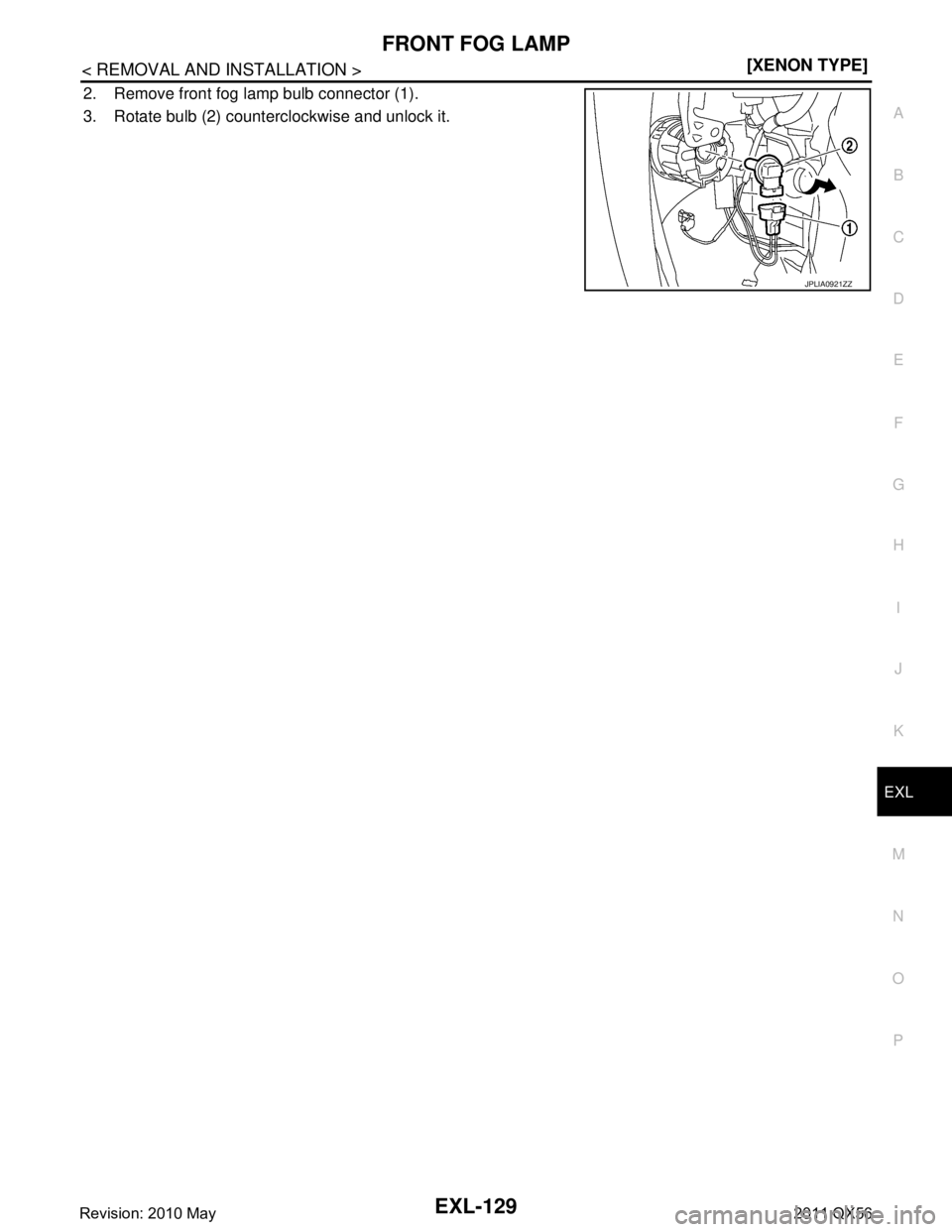

2. Remove front fog lamp bulb connector (1).
3. Rotate bulb (2) counterclockwise and unlock it.
JPLIA0921ZZ
Revision: 2010 May2011 QX56
Page 2840 of 5598
![INFINITI QX56 2011 Factory Service Manual
EXL-130
< REMOVAL AND INSTALLATION >[XENON TYPE]
SIDE TURN SIGNAL LAMP
SIDE TURN SIGNAL LAMP
Exploded ViewINFOID:0000000006369470
Removal and InstallationINFOID:0000000006369471
CAUTION:
Disconnect b INFINITI QX56 2011 Factory Service Manual
EXL-130
< REMOVAL AND INSTALLATION >[XENON TYPE]
SIDE TURN SIGNAL LAMP
SIDE TURN SIGNAL LAMP
Exploded ViewINFOID:0000000006369470
Removal and InstallationINFOID:0000000006369471
CAUTION:
Disconnect b](/manual-img/42/57033/w960_57033-2839.png)
EXL-130
< REMOVAL AND INSTALLATION >[XENON TYPE]
SIDE TURN SIGNAL LAMP
SIDE TURN SIGNAL LAMP
Exploded ViewINFOID:0000000006369470
Removal and InstallationINFOID:0000000006369471
CAUTION:
Disconnect battery negative terminal or remove the fuse.
REMOVAL
1. Remove the door mirror. Refer to
MIR-32, "DOOR MIRROR ASSEMBLY : Removal and Installation".
2. Remove the door mirror glass. Refer to MIR-35, "
GLASS MIRROR : Removal and Installation".
3. Remove the side camera finisher. Refer to MIR-33, "
DOOR MIRROR ASSEMBLY : Disassembly and
Assembly".
4. Remove side turn signal lamp fixing screws (E), and then remove side turn signal lamp (with side turn signal lamp models
only).
NOTE:
Pull slightly side camera finisher (1) covering side turn signal
lamp bottom screw.
INSTALLATION
Install in the reverse order of removal.

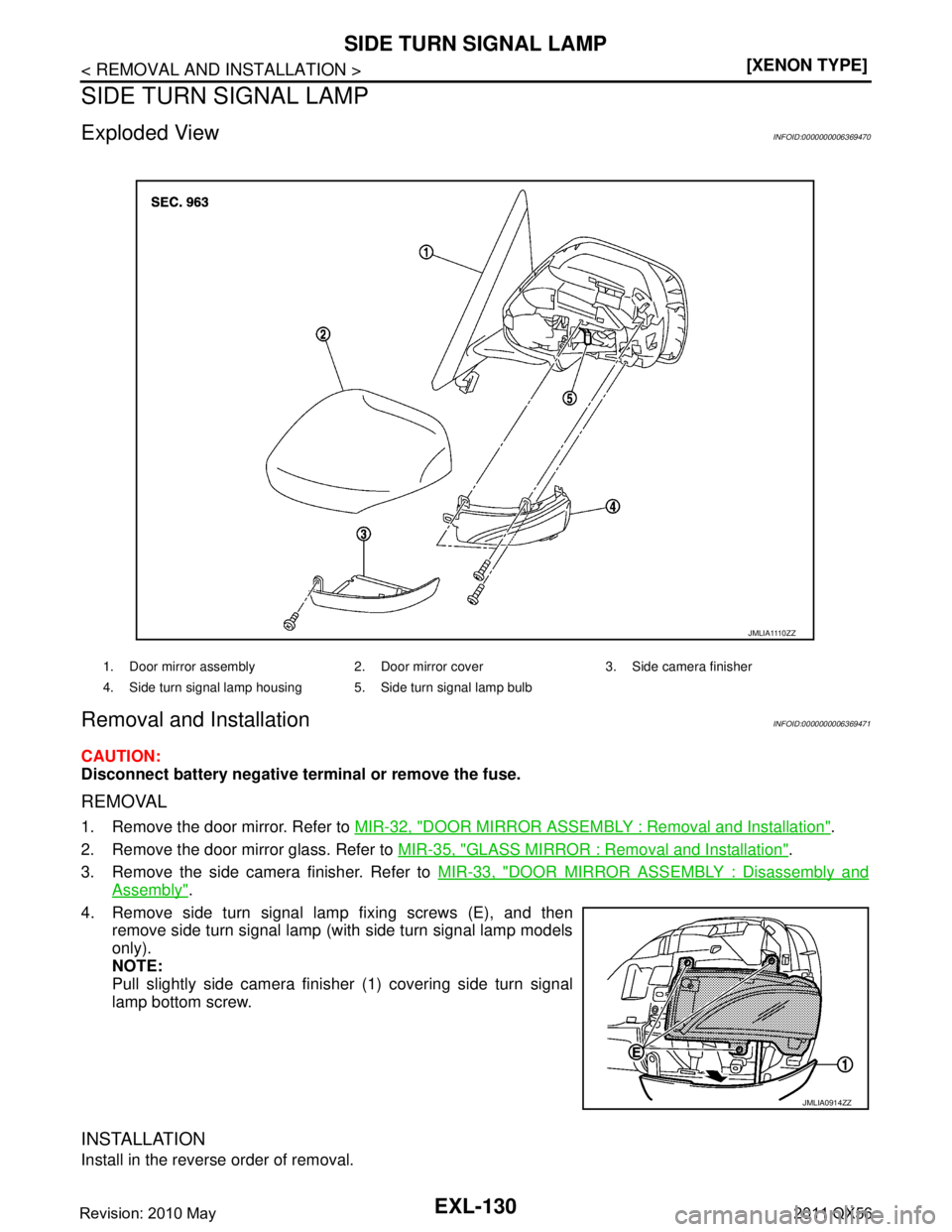

1. Door mirror assembly 2. Door mi rror cover 3. Side camera finisher
4. Side turn signal lamp housing 5. Side turn signal lamp bulb
JMLIA1110ZZ
JMLIA0914ZZ
Revision: 2010 May2011 QX56
