Page 3865 of 5598
PCS-24

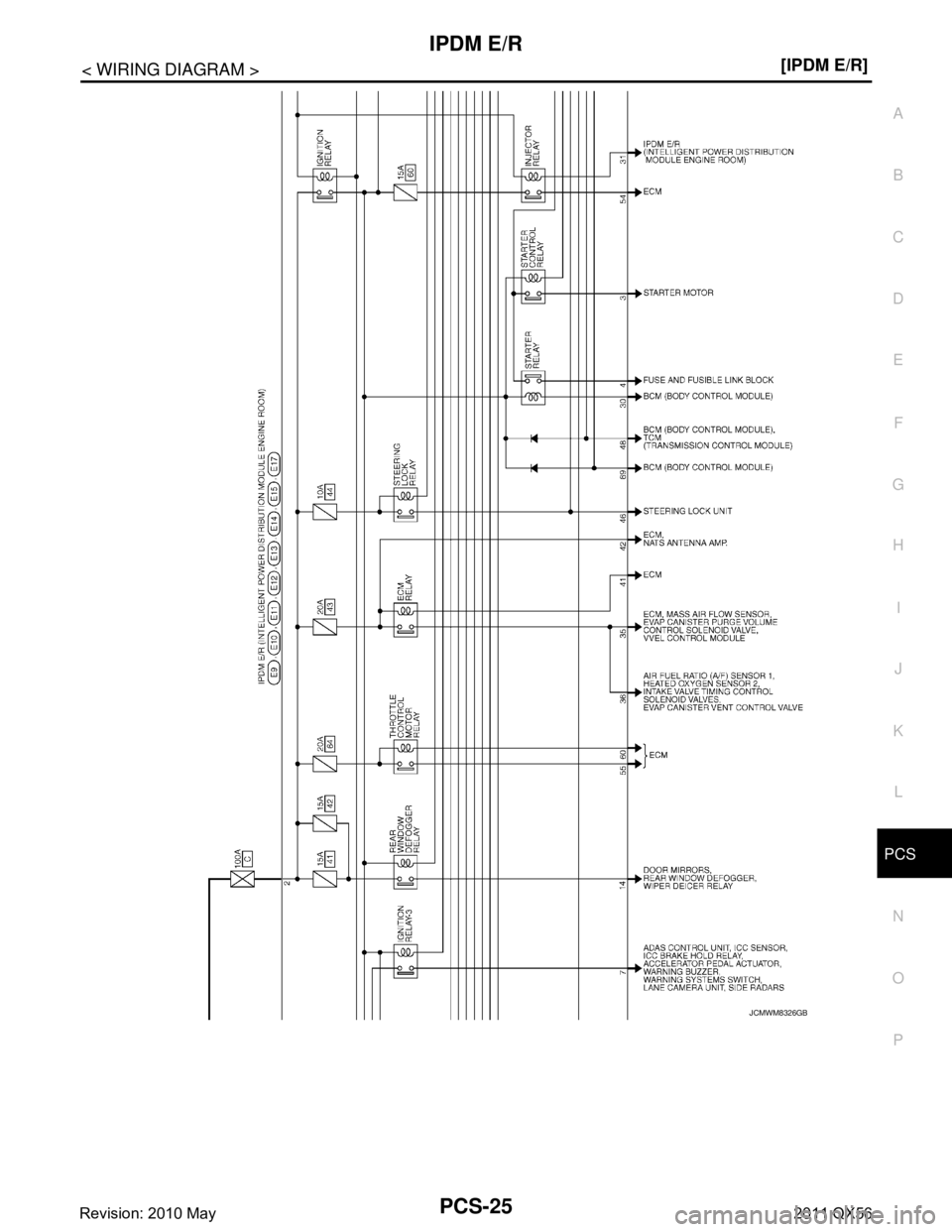

< WIRING DIAGRAM >[IPDM E/R]
IPDM E/R
WIRING DIAGRAM
IPDM E/R
Wiring DiagramINFOID:0000000006220175
JCMWM8325GB
Revision: 2010 May2011 QX56
Page 3866 of 5598
PCS
IPDM E/RPCS-25
< WIRING DIAGRAM > [IPDM E/R]
C
D
E
F
G H
I
J
K L
B A
O P
N
JCMWM8326GB
Revision: 2010 May2011 QX56
Page 3867 of 5598

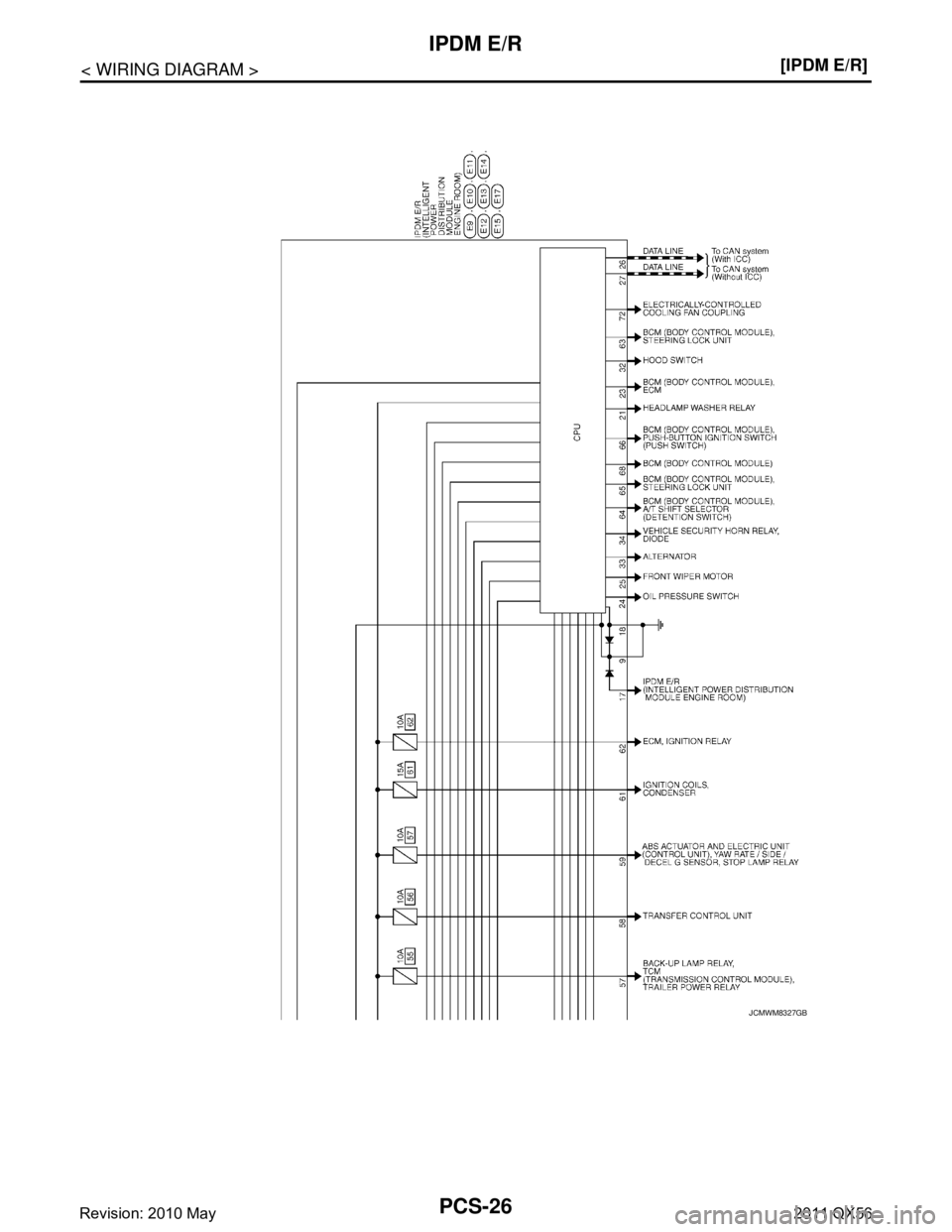

PCS-26
< WIRING DIAGRAM >[IPDM E/R]
IPDM E/R
JCMWM8327GB
Revision: 2010 May2011 QX56

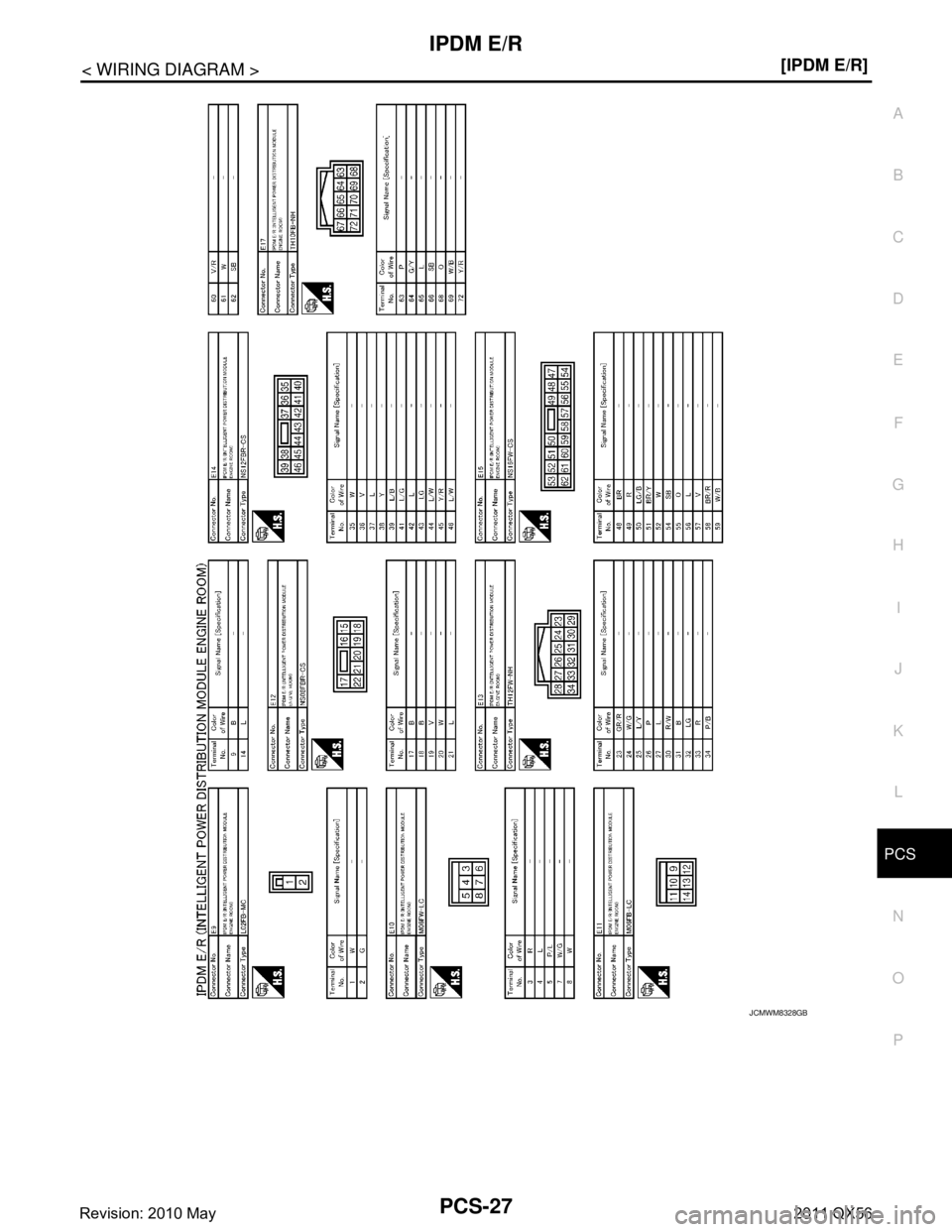

Page 3868 of 5598
PCS
IPDM E/RPCS-27
< WIRING DIAGRAM > [IPDM E/R]
C
D
E
F
G H
I
J
K L
B A
O P
N
JCMWM8328GB
Revision: 2010 May2011 QX56
Page 3869 of 5598
![INFINITI QX56 2011 Factory Service Manual
PCS-28
< DTC/CIRCUIT DIAGNOSIS >[IPDM E/R]
U1000 CAN COMM CIRCUIT
DTC/CIRCUIT DIAGNOSIS
U1000 CAN COMM CIRCUIT
DescriptionINFOID:0000000006220176
CAN (Controller Area Network) is a serial communicati INFINITI QX56 2011 Factory Service Manual
PCS-28
< DTC/CIRCUIT DIAGNOSIS >[IPDM E/R]
U1000 CAN COMM CIRCUIT
DTC/CIRCUIT DIAGNOSIS
U1000 CAN COMM CIRCUIT
DescriptionINFOID:0000000006220176
CAN (Controller Area Network) is a serial communicati](/manual-img/42/57033/w960_57033-3868.png)
PCS-28
< DTC/CIRCUIT DIAGNOSIS >[IPDM E/R]
U1000 CAN COMM CIRCUIT
DTC/CIRCUIT DIAGNOSIS
U1000 CAN COMM CIRCUIT
DescriptionINFOID:0000000006220176
CAN (Controller Area Network) is a serial communication
line for real time applications. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Modern
vehicle is equipped with many electronic control unit, and each control unit shares information and links with
other control units during operation (not independent). In CAN communication, control units are connected
with 2 communication lines (CAN-H line, CAN-L line) al lowing a high rate of information transmission with less
wiring. Each control unit transmits/receives data but selectively reads required data only.
CAN Communication Signal Chart. Refer to LAN-28, "
CAN COMMUNICATION SYSTEM : CAN Communica-
tion Signal Chart".
DTC LogicINFOID:0000000006220177
DTC DETECTION LOGIC
Diagnosis ProcedureINFOID:0000000006220178
1.PERFORM SELF DIAGNOSTIC
1. Turn the ignition switch ON and wait for 2 seconds or more.
2. Check “Self Diagnostic Result” of IPDM E/R.
Is DTC
“U1000” displayed?
YES >> Refer to LAN-18, "Trouble Diagnosis Flow Chart".
NO >> Refer to GI-40, "
Intermittent Incident".
DTCCONSULT-III display
description DTC Detection Condit
ion Possible cause
U1000 CAN COMM CIRCUIT When IPDM E/R cannot communicate CAN communi-
cation signal continuously for 2 seconds or more CAN communication system
Revision: 2010 May2011 QX56
Page 3870 of 5598
![INFINITI QX56 2011 Factory Service Manual
PCS
B2098 IGNITION RELAY ON STUCKPCS-29
< DTC/CIRCUIT DIAGNOSIS > [IPDM E/R]
C
D
E
F
G H
I
J
K L
B A
O P
N
B2098 IGNITION RELAY ON STUCK
DescriptionINFOID:0000000006220179
IPDM E/R operates the ign INFINITI QX56 2011 Factory Service Manual
PCS
B2098 IGNITION RELAY ON STUCKPCS-29
< DTC/CIRCUIT DIAGNOSIS > [IPDM E/R]
C
D
E
F
G H
I
J
K L
B A
O P
N
B2098 IGNITION RELAY ON STUCK
DescriptionINFOID:0000000006220179
IPDM E/R operates the ign](/manual-img/42/57033/w960_57033-3869.png)
PCS
B2098 IGNITION RELAY ON STUCKPCS-29
< DTC/CIRCUIT DIAGNOSIS > [IPDM E/R]
C
D
E
F
G H
I
J
K L
B A
O P
N
B2098 IGNITION RELAY ON STUCK
DescriptionINFOID:0000000006220179
IPDM E/R operates the ignition relay when it receives
an ignition switch ON signal from BCM via CAN com-
munication.
Turn the ignition relay OFF by pressing the push-butt on ignition switch once when the vehicle speed is 4 km/
h (2.5 MPH) or less.
Turn the ignition relay OFF with the following operat ion when the vehicle speed is more than 4 km/h (2.5
MPH) or when an abnormal condition occurs in CAN communication from the combination meter (Emer-
gency OFF)
- Press and hold the push-button ignition switch for 2 seconds or more.
- Press the push-button ignition switch 3 times within 1.5 seconds.
NOTE:
The ignition relay does not turn ON for 3 seconds af ter emergency OFF even if the push-button ignition switch
is pressed.
DTC LogicINFOID:0000000006220180
DTC DETECTION LOGIC
Diagnosis ProcedureINFOID:0000000006220181
1.PERFORM SELF DIAGNOSIS
1. Turn the ignition switch ON.
2. Erase “Self Diagnostic Result” of IPDM E/R.
3. Turn the ignition switch OFF, and wait for 1 second or more.
4. Turn the ignition switch ON. Check “Self Diagnostic Result” again.
Is DTC
“B2098” displayed?
YES >> Replace IPDM E/R. Refer to PCS-32, "Removal and Installation".
NO >> Refer to GI-40, "
Intermittent Incident".
DTCCONSULT-III dis-
play description DTC Detection Condit
ion Possible causes
B2098 IGN RELAY ON The ignition relay ON is detected for 1 second at ignition switch OFF
(CPU monitors the status at the contact and excitation coil circuits
of the ignition relay inside it) Ignition relay malfunction
Revision: 2010 May2011 QX56
Page 3871 of 5598
![INFINITI QX56 2011 Factory Service Manual
PCS-30
< DTC/CIRCUIT DIAGNOSIS >[IPDM E/R]
B2099 IGNITION RELAY OFF STUCK
B2099 IGNITION RELAY OFF STUCK
DescriptionINFOID:0000000006220182
IPDM E/R operates the ignition relay when it receives
an INFINITI QX56 2011 Factory Service Manual
PCS-30
< DTC/CIRCUIT DIAGNOSIS >[IPDM E/R]
B2099 IGNITION RELAY OFF STUCK
B2099 IGNITION RELAY OFF STUCK
DescriptionINFOID:0000000006220182
IPDM E/R operates the ignition relay when it receives
an](/manual-img/42/57033/w960_57033-3870.png)
PCS-30
< DTC/CIRCUIT DIAGNOSIS >[IPDM E/R]
B2099 IGNITION RELAY OFF STUCK
B2099 IGNITION RELAY OFF STUCK
DescriptionINFOID:0000000006220182
IPDM E/R operates the ignition relay when it receives
an ignition switch ON signal from BCM via CAN com-
munication.
Turn the ignition relay OFF by pressing the push-butt on ignition switch once when the vehicle speed is 4 km/
h (2.5 MPH) or less.
Turn the ignition relay OFF with the following operati on when the vehicle speed is more than 4 km/h (2.5
MPH) or when an abnormal condition occurs in CAN communication from the combination meter (Emer-
gency OFF)
- Press and hold the push-button ignition switch for 2 seconds or more.
- Press the push-button ignition switch 3 times within 1.5 seconds.
NOTE:
The ignition relay does not turn ON for 3 seconds af ter emergency OFF even if the push-button ignition switch
is pressed.
DTC LogicINFOID:0000000006220183
DTC DETECTION LOGIC
NOTE:
When IPDM E/R power supply voltage is low (Approx. 7 - 8 V for about 1 second), the “DTC: B2099” may be detected.
Diagnosis ProcedureINFOID:0000000006220184
1.PERFORM SELF DIAGNOSIS
1. Turn the ignition switch ON.
2. Erase “Self Diagnostic Result”.
3. Turn the ignition switch OFF.
4. Turn the ignition switch ON. Check “Self Diagnostic Result” again.
Is DTC
“B2099” displayed?
YES >> Replace IPDM E/R. Refer to PCS-32, "Removal and Installation".
NO >> Refer to GI-40, "
Intermittent Incident".
DTCCONSULT-III dis-
play description DTC Detection Condit
ion Possible causes
B2099 IGN RELAY OFF The ignition relay OFF is detected for 1 second at ignition switch ON
(CPU monitors the status at the contact and excitation coil circuits of
the ignition relay inside it) Ignition relay malfunction
Revision: 2010 May2011 QX56
Page 3872 of 5598
![INFINITI QX56 2011 Factory Service Manual
PCS
POWER SUPPLY AND GROUND CIRCUITPCS-31
< DTC/CIRCUIT DIAGNOSIS > [IPDM E/R]
C
D
E
F
G H
I
J
K L
B A
O P
N
POWER SUPPLY AND GROUND CIRCUIT
Diagnosis ProcedureINFOID:0000000006220185
1.CHECK FUSES A INFINITI QX56 2011 Factory Service Manual
PCS
POWER SUPPLY AND GROUND CIRCUITPCS-31
< DTC/CIRCUIT DIAGNOSIS > [IPDM E/R]
C
D
E
F
G H
I
J
K L
B A
O P
N
POWER SUPPLY AND GROUND CIRCUIT
Diagnosis ProcedureINFOID:0000000006220185
1.CHECK FUSES A](/manual-img/42/57033/w960_57033-3871.png)
PCS
POWER SUPPLY AND GROUND CIRCUITPCS-31
< DTC/CIRCUIT DIAGNOSIS > [IPDM E/R]
C
D
E
F
G H
I
J
K L
B A
O P
N
POWER SUPPLY AND GROUND CIRCUIT
Diagnosis ProcedureINFOID:0000000006220185
1.CHECK FUSES AND FUSIBLE LINK
Check that the following IPDM E/R fuses or fusible links are not blown.
Is the fuse fusing?
YES >> Replace the blown fuse or fusible link after repairing the affected circuit if a fuse or fusible link is blown.
NO >> GO TO 2.
2.CHECK POWER SUPPLY CIRCUIT
1. Turn the ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check voltage between IPDM E/R harness connector and the ground.
Is the measurement value normal?
YES >> GO TO 3.
NO >> Repair the harness or connector.
3.CHECK GROUND CIRCUIT
Check continuity between IPDM E/R harness connectors and the ground.
Does continuity exist?
YES >> INSPECTION END
NO >> Repair the harness or connector.
Signal name Fuses and fusible link No.
Battery power supply C (100 A)
N (60 A)
37 (10 A)
(+) (− ) Voltag e
(Approx.)
IPDM E/R
Connector Terminal
E9 1
Ground Battery voltage
2
E10 8
IPDM E/R
GroundContinuity
Connector Terminal
E11 9 Existed
E12 18
Revision: 2010 May2011 QX56
