Page 4825 of 5598

INFINITI QX56 2011 Factory Service Manual
SRC-32
< WIRING DIAGRAM >

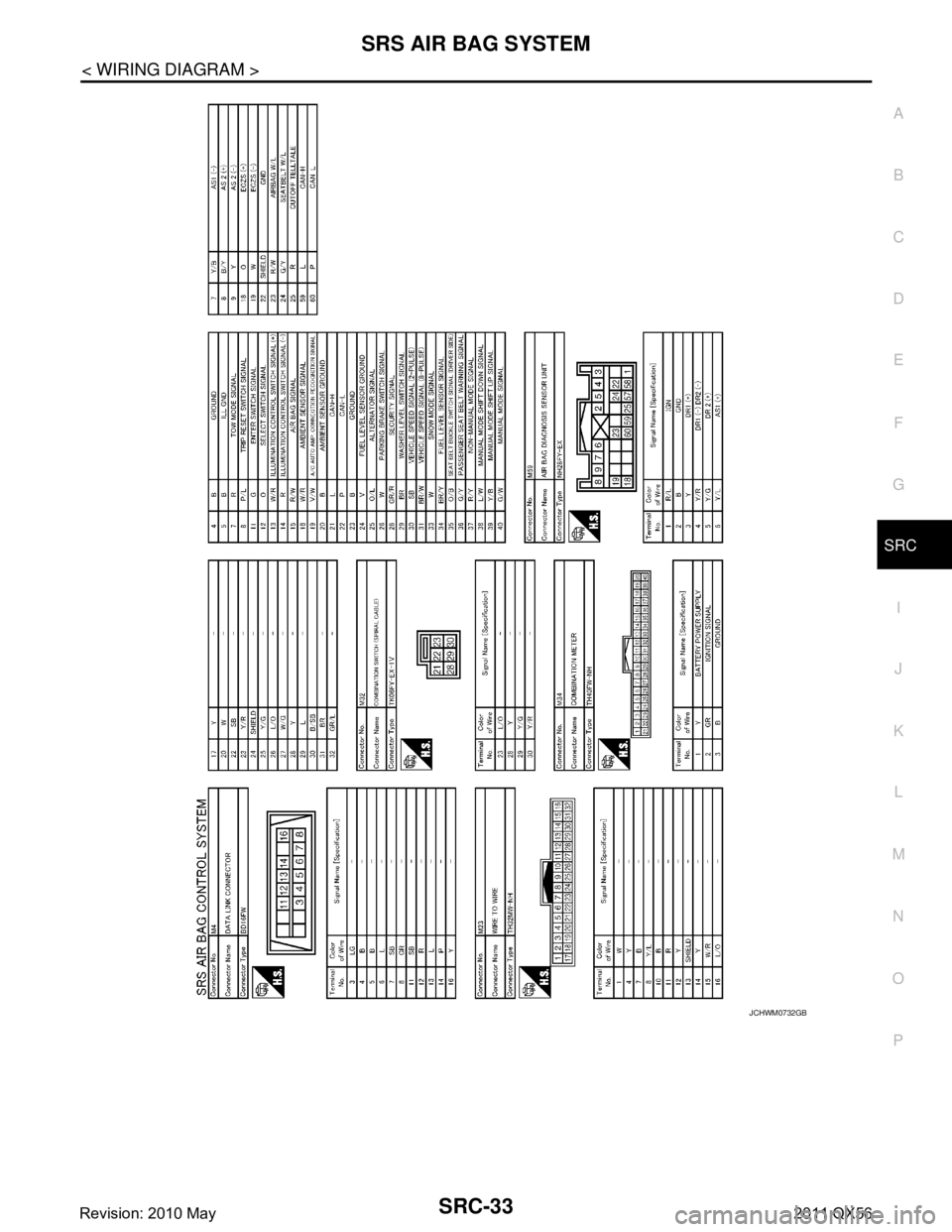

SRS AIR BAG SYSTEM

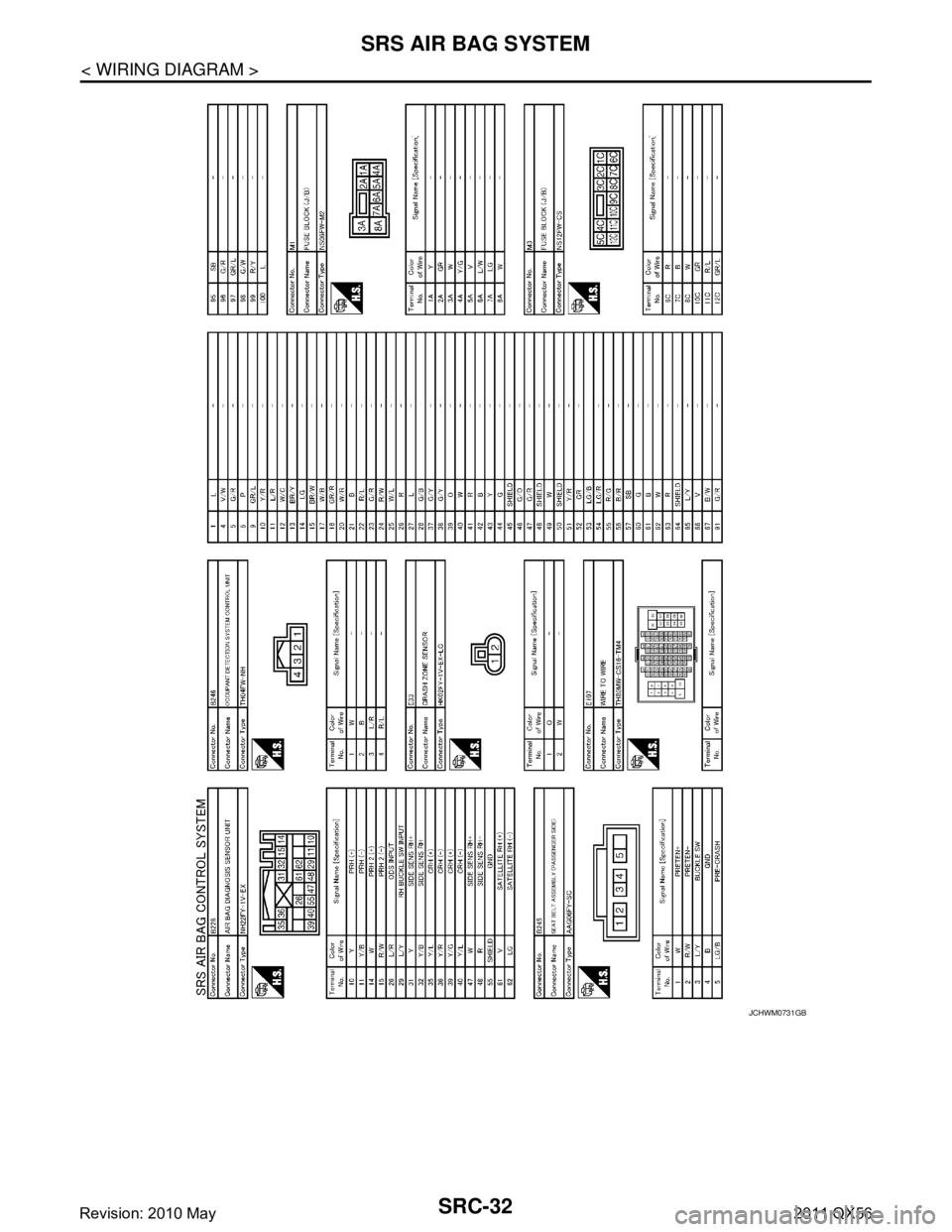

JCHWM0731GB
Revision: 2010 May2011 QX56

Page 4826 of 5598

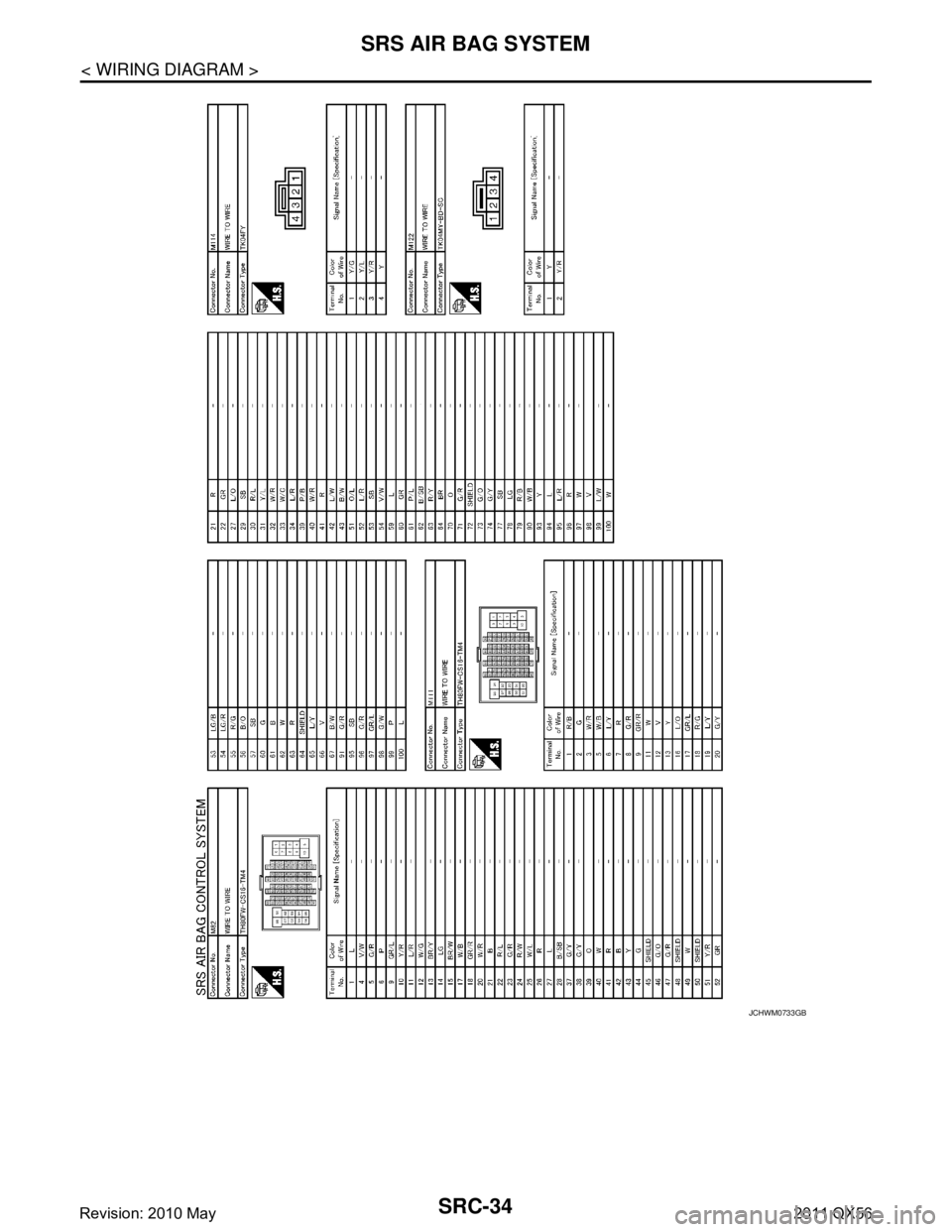

INFINITI QX56 2011 Factory Service Manual
SRS AIR BAG SYSTEMSRC-33
< WIRING DIAGRAM >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P
JCHWM0732GB
Revision: 2010 May2011 QX56

Page 4827 of 5598

INFINITI QX56 2011 Factory Service Manual
SRC-34
< WIRING DIAGRAM >

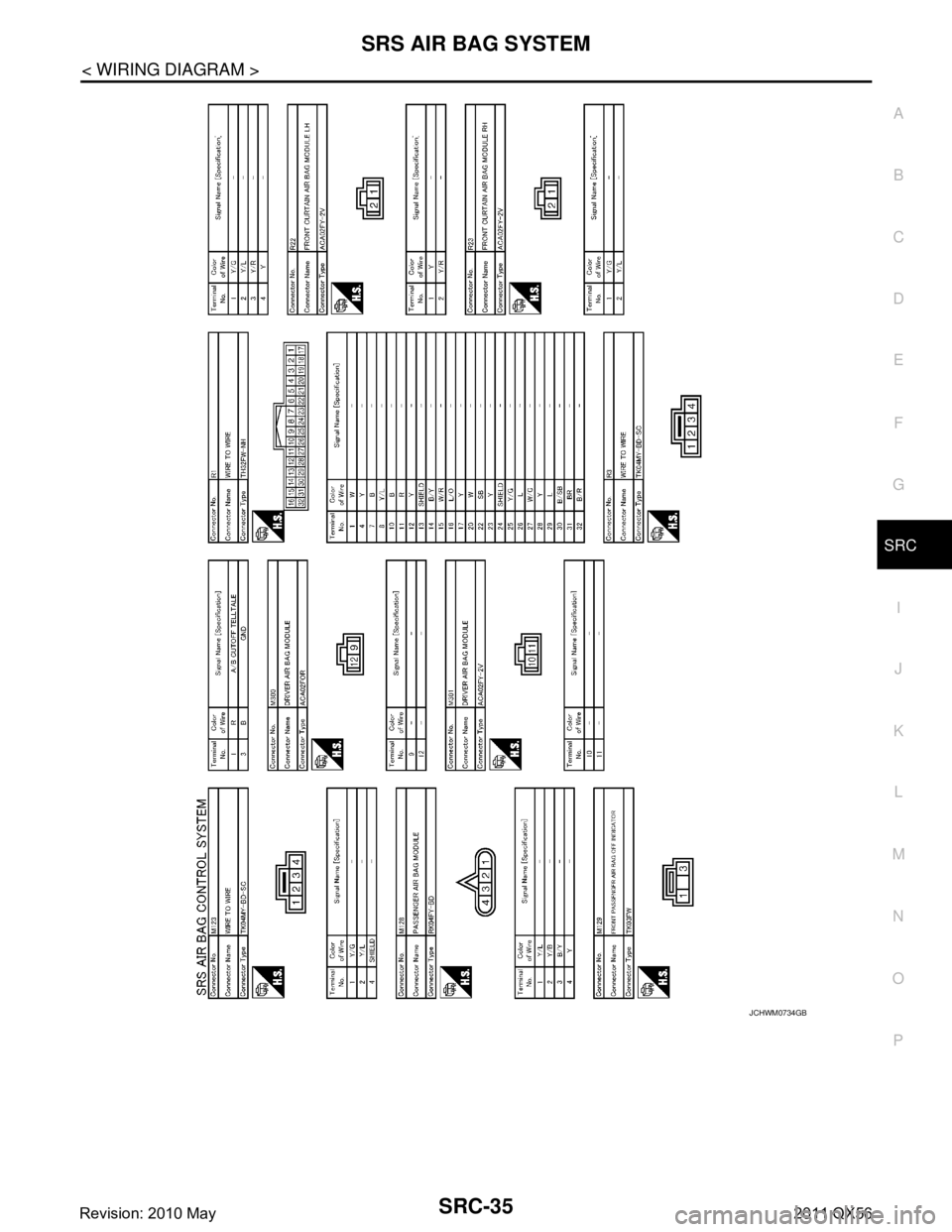

SRS AIR BAG SYSTEM
JCHWM0733GB
Revision: 2010 May2011 QX56

Page 4828 of 5598

INFINITI QX56 2011 Factory Service Manual
SRS AIR BAG SYSTEMSRC-35
< WIRING DIAGRAM >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P
JCHWM0734GB
Revision: 2010 May2011 QX56

Page 4829 of 5598

INFINITI QX56 2011 Factory Service Manual
SRC-36
< BASIC INSPECTION >
DIAGNOSIS AND REPAIR WORK FLOW
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work FlowINFOID:0000000006219958
OVERALL SEQUENCE
DETAILED FLOW

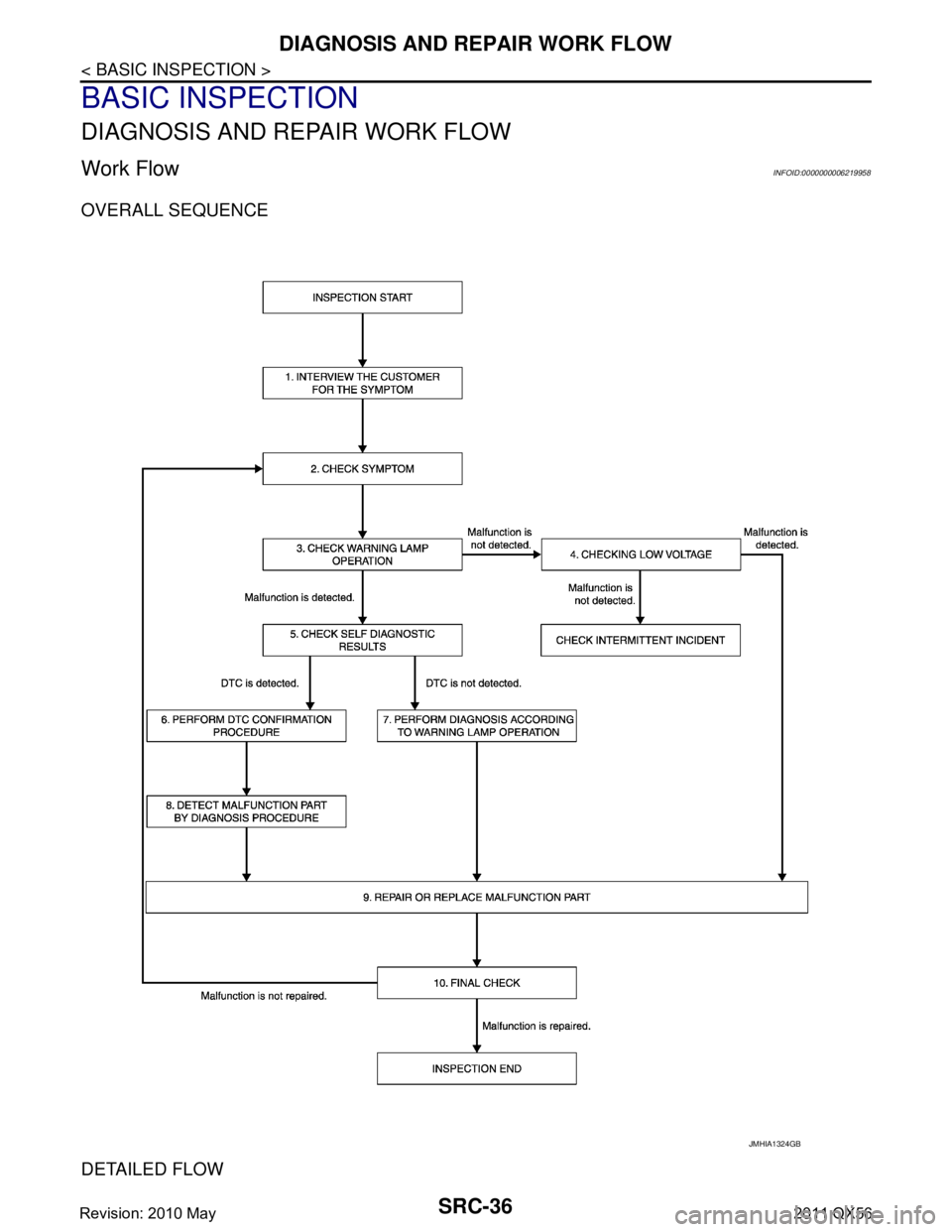

JMHIA1324GB
Revision: 2010 M

Page 4830 of 5598

INFINITI QX56 2011 Factory Service Manual
DIAGNOSIS AND REPAIR WORK FLOWSRC-37
< BASIC INSPECTION >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P
1.INTERVIEW THE CUSTOMER FOR THE SYMPTOM
Interview the customer for the symptom (the condi tion and the envi

Page 4831 of 5598

INFINITI QX56 2011 Factory Service Manual
SRC-38
< BASIC INSPECTION >
DIAGNOSIS AND REPAIR WORK FLOW
Repair or replace the malfunctioning part.>> GO TO 10.
10.FINAL CHECK
Check self diagnostic result and air bag warning lamp operation in the

Page 4832 of 5598

INFINITI QX56 2011 Factory Service Manual
INSPECTION AND ADJUSTMENTSRC-39
< BASIC INSPECTION >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P
INSPECTION AND ADJUSTMENT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPL ACING CONT

INSPECTION AND ADJUSTMENTSRC-39
< BASIC INSPECTION >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P
INSPECTION AND ADJUSTMENT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPL ACING CONTROL UNIT : Description
INFOID:0000000006219959
When replacing or removing and installing passenger seat, always perform zero point reset so that Occupant
Detection System is activated normally.
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement
INFOID:0000000006219960
WORK PROCEDURE WHEN REPLACING CONTROL UNIT
1.PERFORM ZERO POINT RESET
Perform zero point reset. Refer to SRC-39, "
ZERO POINT RESET : Special Repair Requirement".
>> END
ZERO POINT RESET
ZERO POINT RESET : DescriptionINFOID:0000000006219961
Zero point reset is an initializing procedure for occupant detection sensor that must be performed when replac-
ing or removing and installing passenger seat.
If zero point reset is not performed, the initializati on is incomplete and Occupant Detection System does not
operate normally.
NOTE:
When replacing passenger seat with a NISSAN genuine part, air bag warning lamp blinks if zero point reset
is incomplete.
When zero point reset is performed once after removal and installation of passenger seat, CONSULT-III dis-
plays “complete” and air bag warning does not blink.
When reinstalling passenger seat after removal, the initial value for occupant detection sensor changes, and
Occupant Detection System does not operate normally.
Always perform zero point reset after performing the work as per the following.
- Reinstallation of passenger seat
- Replacement of passenger seat with a seat that is zero point reset complete.
ZERO POINT RESET : Special Repair RequirementINFOID:0000000006219962
1.PERFORM ZERO POINT RESET
1. Perform zero point reset. NOTE:
When performing zero point reset, be careful of the items described as per the following.
Perform zero point reset after installing passenger seat to the vehicle
Do not put any objects on passenger seat
Do not apply excessive vibration to the vehicle
Do not touch the vehicle
Do not tilt the vehicle
2. Select start on “Zero point reset function” scr een from, WORK SUPPORT of CONSULT-III “OCCUPANT
DETECTION”.
3. “Zero point reset” starts.
>> GO TO 2.
2.CONFIRMATION OF SETTING
1. Proceed to “Zero point reset function” screen fr om work support of CONSULT-III “OCCUPANT DETEC-
TION”.
2. Check that “Complete” or “Incomplete” is displayed on “Zero point reset status”.
CAUTION:
Revision: 2010 May2011 QX56
