OPTICAL SENSOR
Exploded ViewINFOID:0000000006369472
Removal and InstallationINFOID:0000000006369473
REMOVAL
1. Insert an appropriate tool between the optical sensor and the instrument upper panel. Pull out the optical
sensor upward.
2. Disconnect optical sensor connector, and then remove optical sensor.
INSTALLATION
Install in the reverse order of removal.

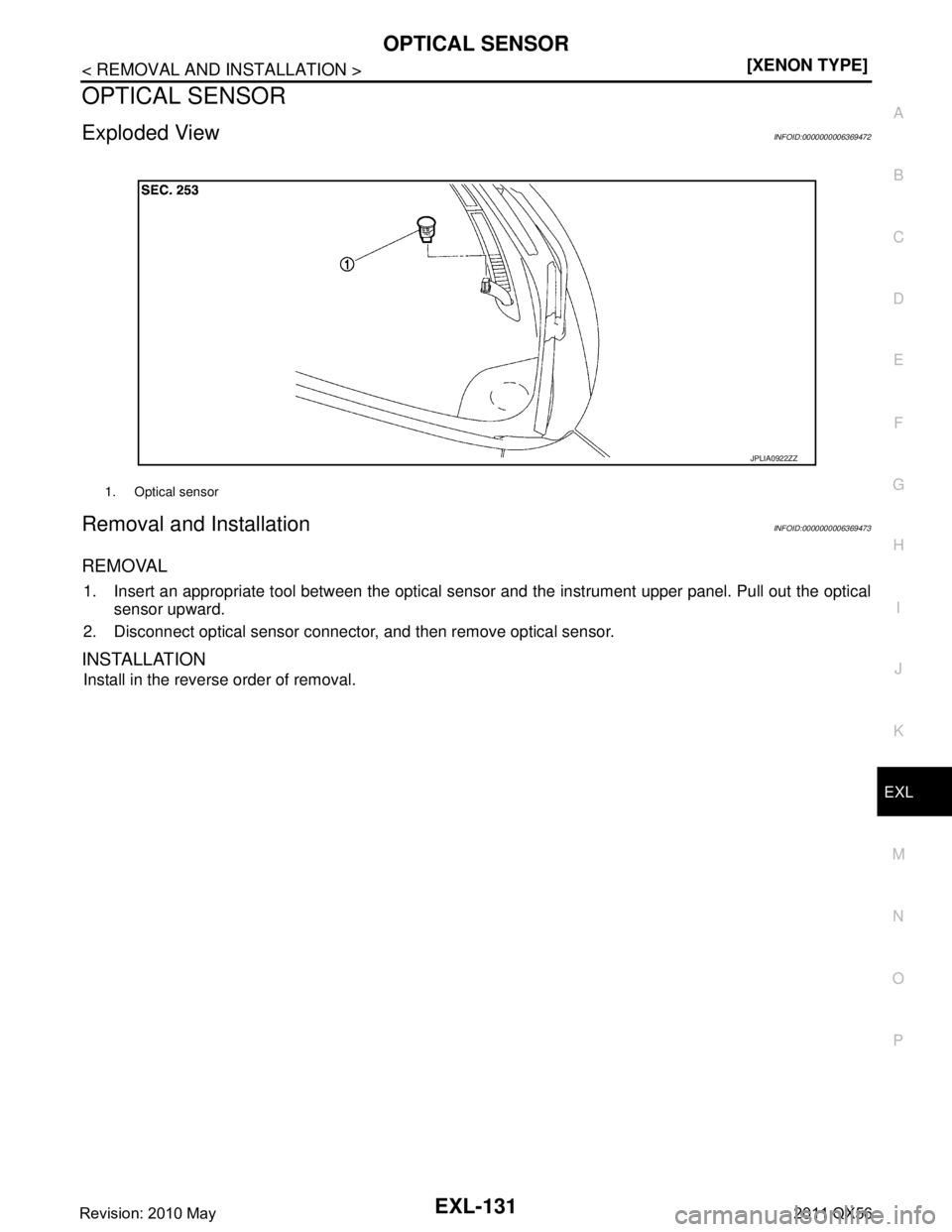

1. Optical sensor
JPLIA0922ZZ
Revision: 2010 May2011 QX56
Page 2842 of 5598
EXL-132
< REMOVAL AND INSTALLATION >[XENON TYPE]
LIGHTING & TURN SIGNAL SWITCH
LIGHTING & TURN
SIGNAL SWITCH
Exploded ViewINFOID:0000000006369474
The lighting & turn signal switch is integrated in the combination switch. BCS-82, "Removal and Installation".
Revision: 2010 May2011 QX56
Page 2843 of 5598
HAZARD SWITCHEXL-133
< REMOVAL AND INSTALLATION > [XENON TYPE]
C
D
E
F
G H
I
J
K
M A
B
EXL
N
O P
HAZARD SWITCH
Exploded ViewINFOID:0000000006369475
The hazard switch is integrated in the multifunction switch. Refer to AV-226, "Removal and Installation".
Revision: 2010 May2011 QX56
Page 2844 of 5598
EXL-134
< REMOVAL AND INSTALLATION >[XENON TYPE]
AFS SWITCH
AFS SWITCH
Exploded ViewINFOID:0000000006369476
Removal and InstallationINFOID:0000000006369477
REMOVAL
1. Remove instrument lower panel LH. Refer to
IP-14, "Removal and Installation".
2. Disengage pawl. And then remove AFS switch.
INSTALLATION
Install in the reverse order of removal.

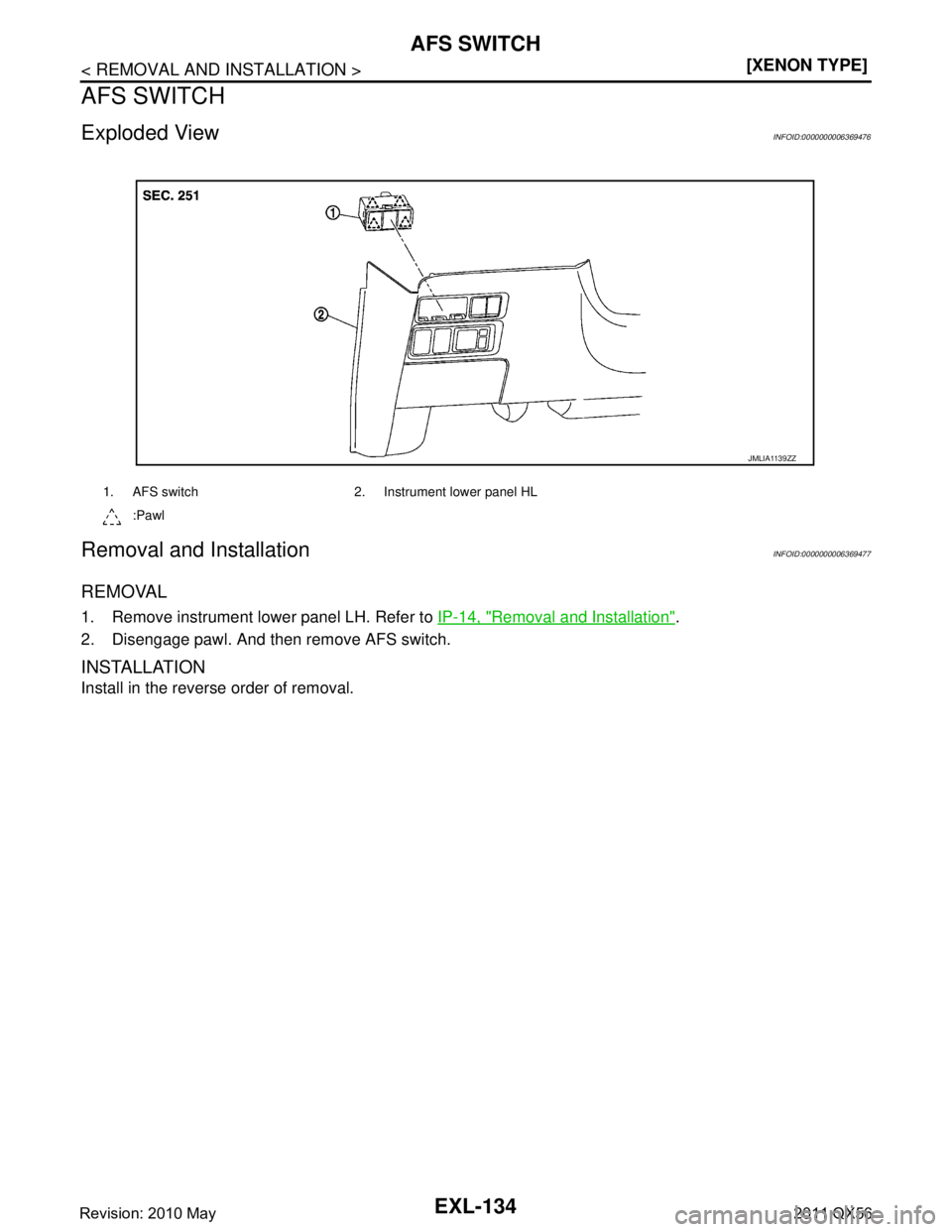

1. AFS switch 2. Instrument lower panel HL
:Pawl
JMLIA1139ZZ
Revision: 2010 May2011 QX56
Page 2845 of 5598
AFS CONTROL UNITEXL-135
< REMOVAL AND INSTALLATION > [XENON TYPE]
C
D
E
F
G H
I
J
K
M A
B
EXL
N
O P
AFS CONTROL UNIT
Exploded ViewINFOID:0000000006369478
Removal and InstallationINFOID:0000000006369479
REMOVAL
1. Remove instrument driver lower panel. Refer to IP-14, "Removal and Installation".
2. Remove AFS control unit mounting bolt.
3. Disconnect AFS control unit connector.
4. Remove AFS control unit.
INSTALLATION
Install in the reverse order of removal.

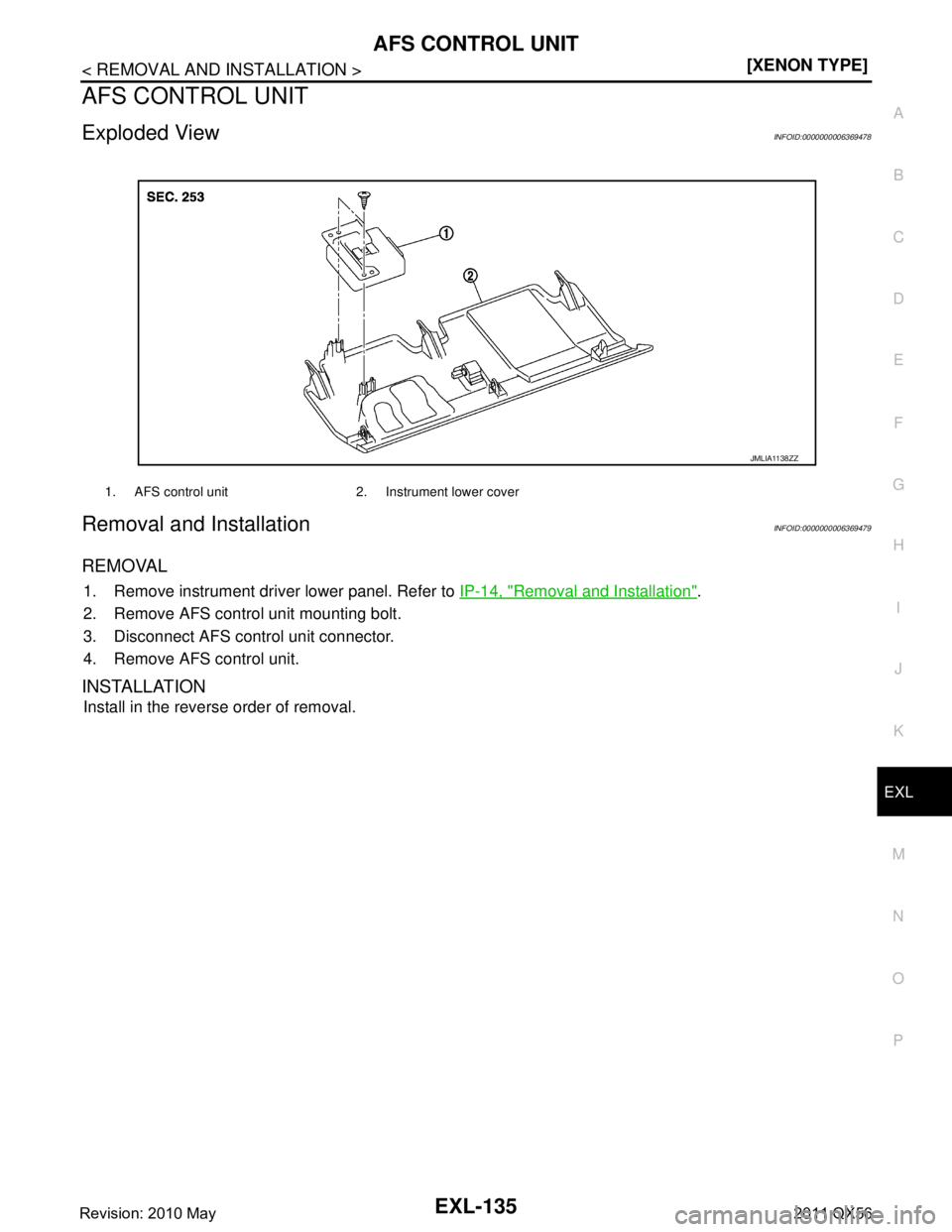

1. AFS control unit 2. Instrument lower cover
JMLIA1138ZZ
Revision: 2010 May2011 QX56
Page 2846 of 5598
EXL-136
< REMOVAL AND INSTALLATION >[XENON TYPE]
HEIGHT SENSOR
HEIGHT SENSOR
Exploded ViewINFOID:0000000006369480
FRONT HEIGHT SERSOR
REAR HEIGHT SENSOR
Removal and InstallationINFOID:0000000006369481
REMOVAL
Front height sensor
1. Disconnect height sensor connector.
2. Remove height sensor mounting nuts.

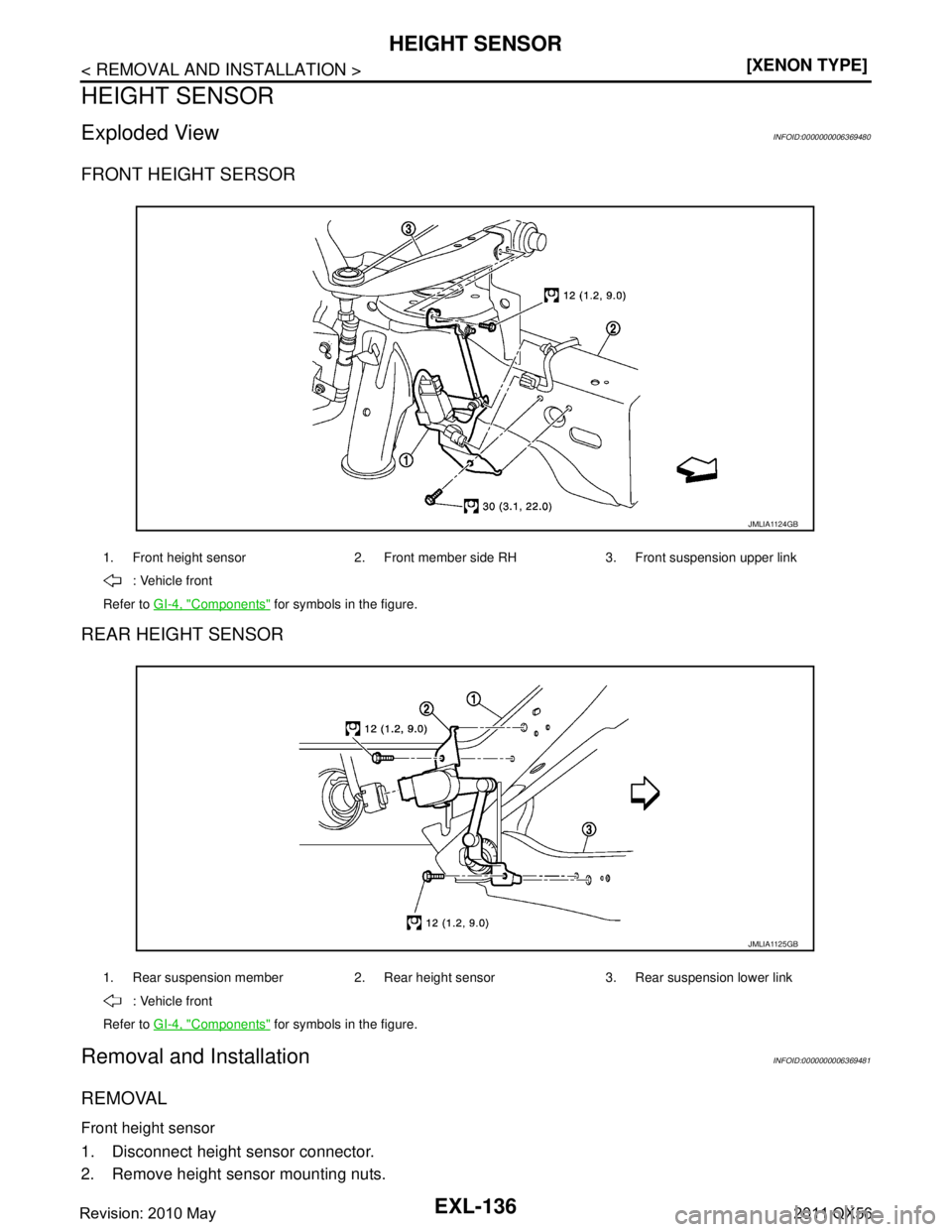

1. Front height sensor 2. Front member side RH 3. Front suspension upper link
: Vehicle front
Refer to GI-4, "
Components" for symbols in the figure.
JMLIA1124GB
1. Rear suspension member 2. Rear height sensor 3. Rear suspension lower link
: Vehicle front
Refer to GI-4, "
Components" for symbols in the figure.
JMLIA1125GB
Revision: 2010 May2011 QX56
Page 2847 of 5598
HEIGHT SENSOREXL-137
< REMOVAL AND INSTALLATION > [XENON TYPE]
C
D
E
F
G H
I
J
K
M A
B
EXL
N
O P
3. Remove height sensor.
Rear height sensor
1. Disconnect height sensor connector.
2. Remove height sensor mounting nuts.
3. Remove height sensor.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Perform the levelizer adjustment when removing the height sensor. Refer to EXL-61, "
LEVELIZER
ADJUSTMENT : Special Repair Requirement".
Revision: 2010 May2011 QX56
Page 2848 of 5598
EXL-138
< REMOVAL AND INSTALLATION >[XENON TYPE]
REAR COMBINATION LAMP
REAR COMBINATION LAMP
Exploded ViewINFOID:0000000006369482
REMOVAL
DISASSEMBLY
Removal and InstallationINFOID:0000000006369483
CAUTION:
Disconnect the battery negative terminal or remove the fuse.
REMOVAL
1. Remove rear combination lamp finisher.
2. Remove rear combination lamp mounting bolts.
3. Pull rear combination lamp toward vehicle outside.
4. Disconnect rear combination lamp connector.
5. Remove rear combination lamp.

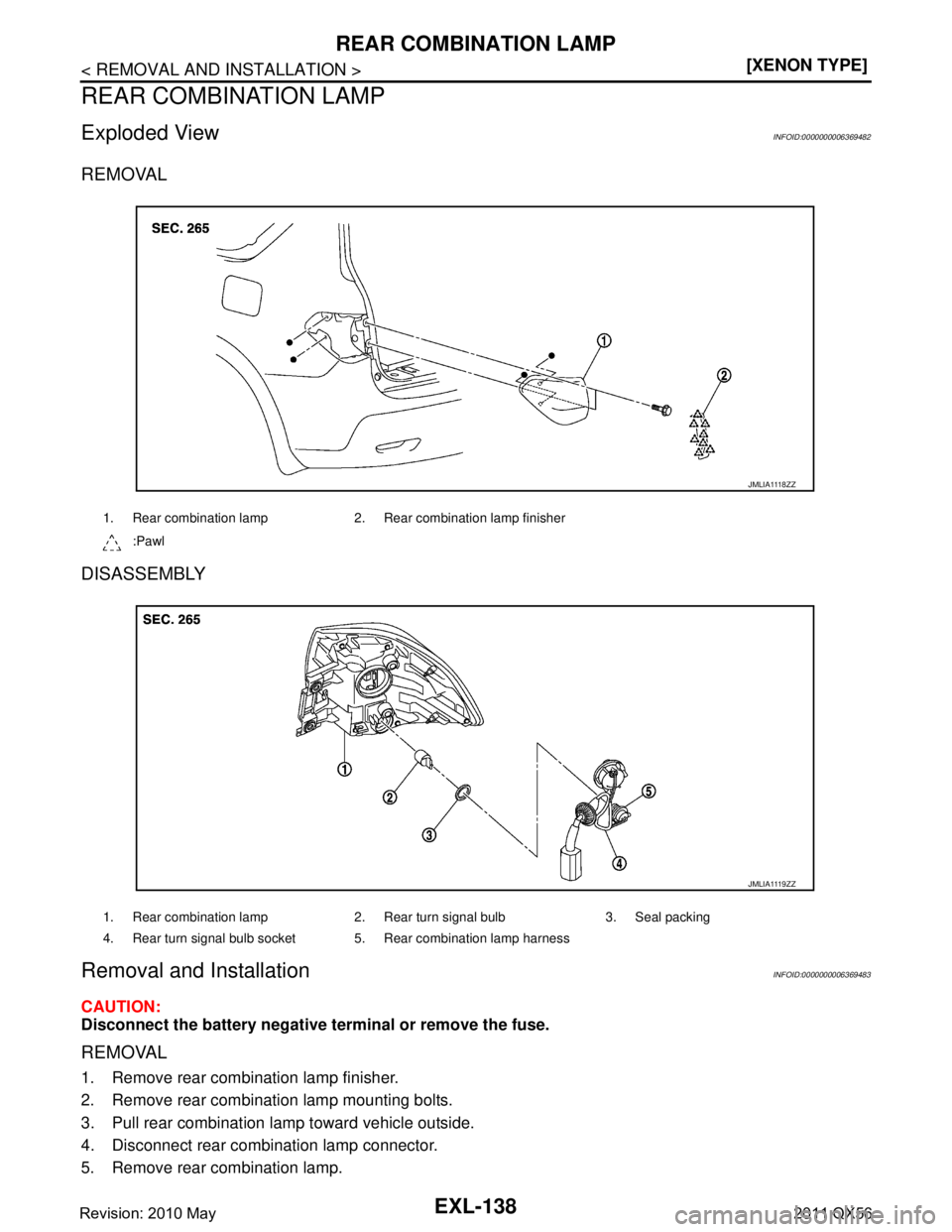

1. Rear combination lamp 2. Rear combination lamp finisher
:Pawl
JMLIA1118ZZ
1. Rear combination lamp 2. Rear turn signal bulb 3. Seal packing
4. Rear turn signal bulb socket 5. Rear combination lamp harness
JMLIA1119ZZ
