Page 2537 of 5598

INFINITI QX56 2011 Factory Service Manual LOW PRESSURE FUEL PUMPEC-513 < DTC/CIRCUIT DIAGNOSIS > [VK56VD] C D E F G H I J K L M A EC NP O YES >> GO TO 4. NO >> Repair or replace error-detected parts. 4.CHECK FUEL PUMP CONTROL CIRCUIT 1. Disc

Page 2538 of 5598

INFINITI QX56 2011 Factory Service Manual EC-514 < DTC/CIRCUIT DIAGNOSIS >[VK56VD] LOW PRESSURE FUEL PUMP Component Inspection (FPCM) INFOID:0000000006218020 1.CHECK FUEL PUMP CONTROL MODULE (FPCM) 1. Check the voltage between FPCM terminals

Page 2539 of 5598

INFINITI QX56 2011 Factory Service Manual MALFUNCTION INDICATOR LAMPEC-515 < DTC/CIRCUIT DIAGNOSIS > [VK56VD] C D E F G H I J K L M A EC NP O MALFUNCTION INDICATOR LAMP Component Function CheckINFOID:0000000006218021 1.CHECK MIL FUNCTION 1.

Page 2540 of 5598

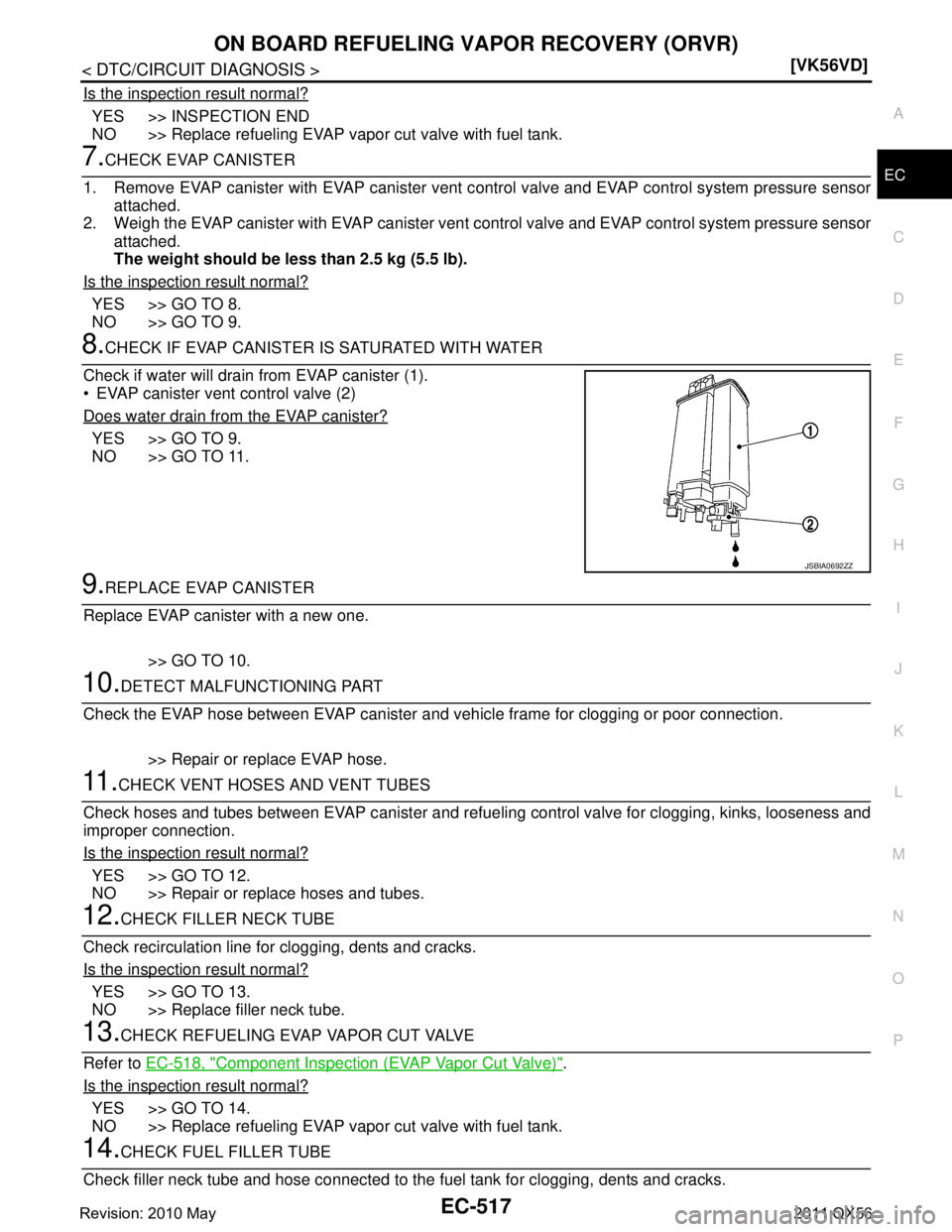

INFINITI QX56 2011 Factory Service Manual EC-516 < DTC/CIRCUIT DIAGNOSIS >[VK56VD] ON BOARD REFUELING VAPOR RECOVERY (ORVR) ON BOARD REFUELING VA POR RECOVERY (ORVR) Component Function CheckINFOID:0000000006256490 1.CHECK ORVR FUNCTION Check

Page 2541 of 5598

INFINITI QX56 2011 Factory Service Manual ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-517 < DTC/CIRCUIT DIAGNOSIS > [VK56VD] C D E F G H I J K L M A EC NP O Is the inspection result normal? YES >> INSPECTION END NO >> Replace refueling EVAP v

Page 2542 of 5598

INFINITI QX56 2011 Factory Service Manual EC-518 < DTC/CIRCUIT DIAGNOSIS >[VK56VD] ON BOARD REFUELING VAPOR RECOVERY (ORVR) Is the inspection result normal? YES >> GO TO 15. NO >> Replace fuel filler tube. 15.CHECK ONE-WAY FUEL VALVE-I Check

Page 2543 of 5598

INFINITI QX56 2011 Factory Service Manual ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-519 < DTC/CIRCUIT DIAGNOSIS > [VK56VD] C D E F G H I J K L M A EC NP O - Apply vacuum pressure to hose end [ −13.3 kPa ( −0.136 kg/cm3, −1.93 psi)] w

Page 2544 of 5598

INFINITI QX56 2011 Factory Service Manual EC-520 < DTC/CIRCUIT DIAGNOSIS >[VK56VD] REFRIGERANT PRESSURE SENSOR REFRIGERANT PRESSURE SENSOR Component Function CheckINFOID:0000000006218026 1.CHECK REFRIGERANT PRESSURE SENSOR FUNCTION 1. Start
