Page 2289 of 5598

INFINITI QX56 2011 Factory Service Manual
P0171, P0174 FUEL INJECTION SYSTEM FUNCTION
EC-265
< DTC/CIRCUIT DIAGNOSIS > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
5. Check the continuity between
A/F sensor 1 harness connector and ground, or EC

Page 2290 of 5598

INFINITI QX56 2011 Factory Service Manual
EC-266
< DTC/CIRCUIT DIAGNOSIS >[VK56VD]
P0171, P0174 FUEL INJECTION SYSTEM FUNCTION
WITH CONSULT-III
1. Start engine.
2. Perform “POWER BALANCE” in “A CTIVE TEST” mode with CONSULT-III.
3.

Page 2291 of 5598

INFINITI QX56 2011 Factory Service Manual
P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-267
< DTC/CIRCUIT DIAGNOSIS > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0172, P0175 FUEL INJE
CTION SYSTEM FUNCTION
DTC LogicINFOID:0000000006217827
DTC

P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-267
< DTC/CIRCUIT DIAGNOSIS > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0172, P0175 FUEL INJE
CTION SYSTEM FUNCTION
DTC LogicINFOID:0000000006217827
DTC DETECTION LOGIC
With the Air/Fuel Mixture Ratio Self-Learning Control, the actual mixture ratio can be brought closely to the
theoretical mixture ratio based on the mixture ratio f eedback signal from A/F sensor 1. The ECM calculates
the necessary compensation to co rrect the offset between the actual and the theoretical ratios.
In case the amount of the compensation value is extremely large (the actual mixture ratio is too rich), the ECM
judges the condition as the fuel injection system malfunc tion and illuminates the MIL (2 trip detection logic).
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE-I
1. Clear the mixture ratio self-learning value. Refer to EC-152, "
Work Procedure".
2. Start engine.
Is it difficult to start engine?
YES >> GO TO 3.
NO >> GO TO 4.
3.RESTART ENGINE
If it is difficult to start engine, the f uel injection system has a malfunction, too.
Crank engine while depressing accelerator pedal.
NOTE:
When depressing accelerator pedal three fourths (3/4) or more, the control system does not start the engine.
Do not depress accelerator pedal too much.
Does engine start?
YES >> Proceed to EC-268, "Diagnosis Procedure".
NO >> Remove spark plugs and check for fouling, etc.
4.PERFORM DTC CONFIRMATION PROCEDURE-II
1. Keep engine idle for at least 5 minutes.
2. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-268, "Diagnosis Procedure".
NO >> GO TO 5.
Sensor Input signal to ECM ECM function Actuator
A/F sensor 1 Density of oxygen in exhaust gas
(Mixture ratio feedback signal) Fuel injection control Fuel injector
DTC No. Trouble diagnosis name
(Trouble diagnosis content) DTC detecting condition Possible cause
P0172 FUEL SYS-RICH-B1
[Fuel injection system too
rich (bank 1)]
Fuel injection system does not operate properly.
The amount of mixture ratio compensation is too
large. (The mixture ratio is too rich.) A/F sensor 1
Fuel injector
Exhaust gas leakage
Incorrect fuel pressure
Mass air flow sensor
P0175 FUEL SYS-RICH-B2
[Fuel injection system too
rich (bank 2)]
Revision: 2010 May2011 QX56

Page 2292 of 5598

INFINITI QX56 2011 Factory Service Manual
EC-268
< DTC/CIRCUIT DIAGNOSIS >[VK56VD]
P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
5.PERFORM DTC CONFIRMATION PROCEDURE-III
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignitio

Page 2293 of 5598

INFINITI QX56 2011 Factory Service Manual
P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-269
< DTC/CIRCUIT DIAGNOSIS > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
5. Check the continuity between
A/F sensor 1 harness connector and ground, or EC

Page 2294 of 5598

INFINITI QX56 2011 Factory Service Manual
EC-270
< DTC/CIRCUIT DIAGNOSIS >[VK56VD]
P0172, P0175 FUEL INJECTION SYSTEM FUNCTION

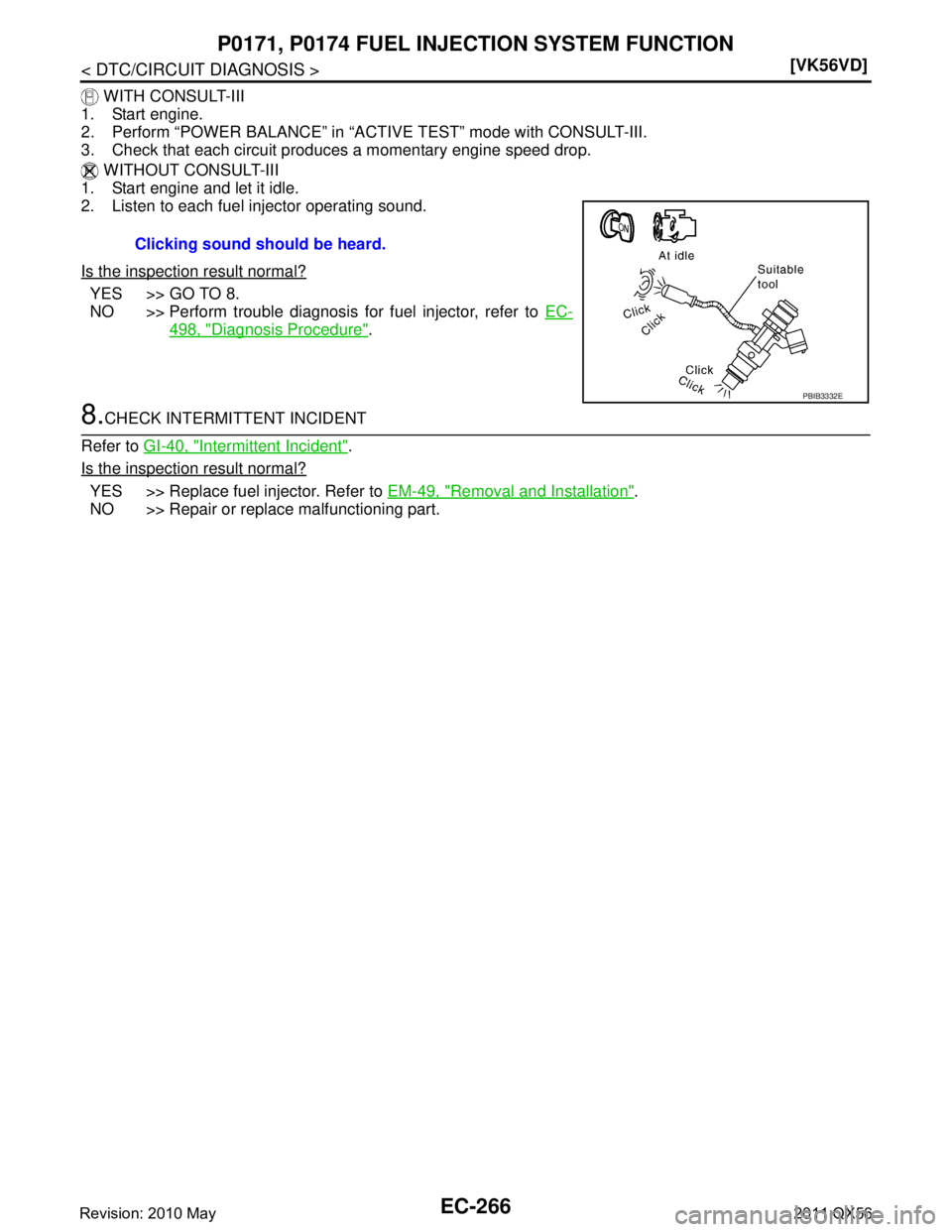

2. Listen to each fuel injector operating sound.
Is the inspection result normal?
YES >> GO TO 7.
NO >> Perform tr

Page 2295 of 5598

INFINITI QX56 2011 Factory Service Manual
P0181 FTT SENSOREC-271
< DTC/CIRCUIT DIAGNOSIS > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0181 FTT SENSOR
DTC LogicINFOID:0000000006288289
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITI

Page 2296 of 5598

INFINITI QX56 2011 Factory Service Manual
EC-272
< DTC/CIRCUIT DIAGNOSIS >[VK56VD]
P0181 FTT SENSOR
NO >> Proceed to
MWI-69, "Component Function Check".
2.CHECK FUEL TANK TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.

EC-272
< DTC/CIRCUIT DIAGNOSIS >[VK56VD]
P0181 FTT SENSOR
NO >> Proceed to
MWI-69, "Component Function Check".
2.CHECK FUEL TANK TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect “fuel level sensor uni t and fuel pump” harness connector.
3. Turn ignition switch ON.
4. Check the voltage between “fuel level sensor unit and fuel pump” harness connector and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
Harness for open or short between ECM and “fuel level sensor unit and fuel pump”
Loose or poor connection for each connector and harness
>> Repair open circuit, short to ground or short to power in harness or connector.
4.CHECK FUEL TANK TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect “combination meter” harness connector.
3. Check the continuity between “fuel level sensor unit and fuel pump” harness connector and “combination
meter” harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 6.
NO >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
Harness for open or short between “fuel level s ensor unit and fuel pump” and “combination meter”
Loose or poor connection for each connector and harness
>> Repair open circuit, short to ground or short to power in harness or connector.
6.CHECK FUEL TANK TEMPERATURE SENSOR
Refer to EC-273, "
Component Inspection (Fuel Tank Temperature Sensor)".
Is the inspection result normal?
YES >> GO TO 7.
NO >> Replace fuel level sensor unit and fuel pump. Refer to FL-5, "
Removal and Installation".
7.CHECK INTERMITTENT INCIDENT
Refer to GI-40, "
Intermittent Incident".
>> INSPECTION END
Fuel level sensor unit and fuel pump Ground Voltage (V)
Connector Terminal
C5 4 Ground Approx. 5
Fuel level sensor unit and fuel pump Combination meter
Continuity
Connector Terminal Connector Terminal
C5 5 M34 24 Existed
Revision: 2010 May2011 QX56
