Page 1817 of 5598

INFINITI QX56 2011 Factory Service Manual
STRUCTURE AND OPERATIONDLN-15
< SYSTEM DESCRIPTION > [TRANSFER: ATX90A]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P

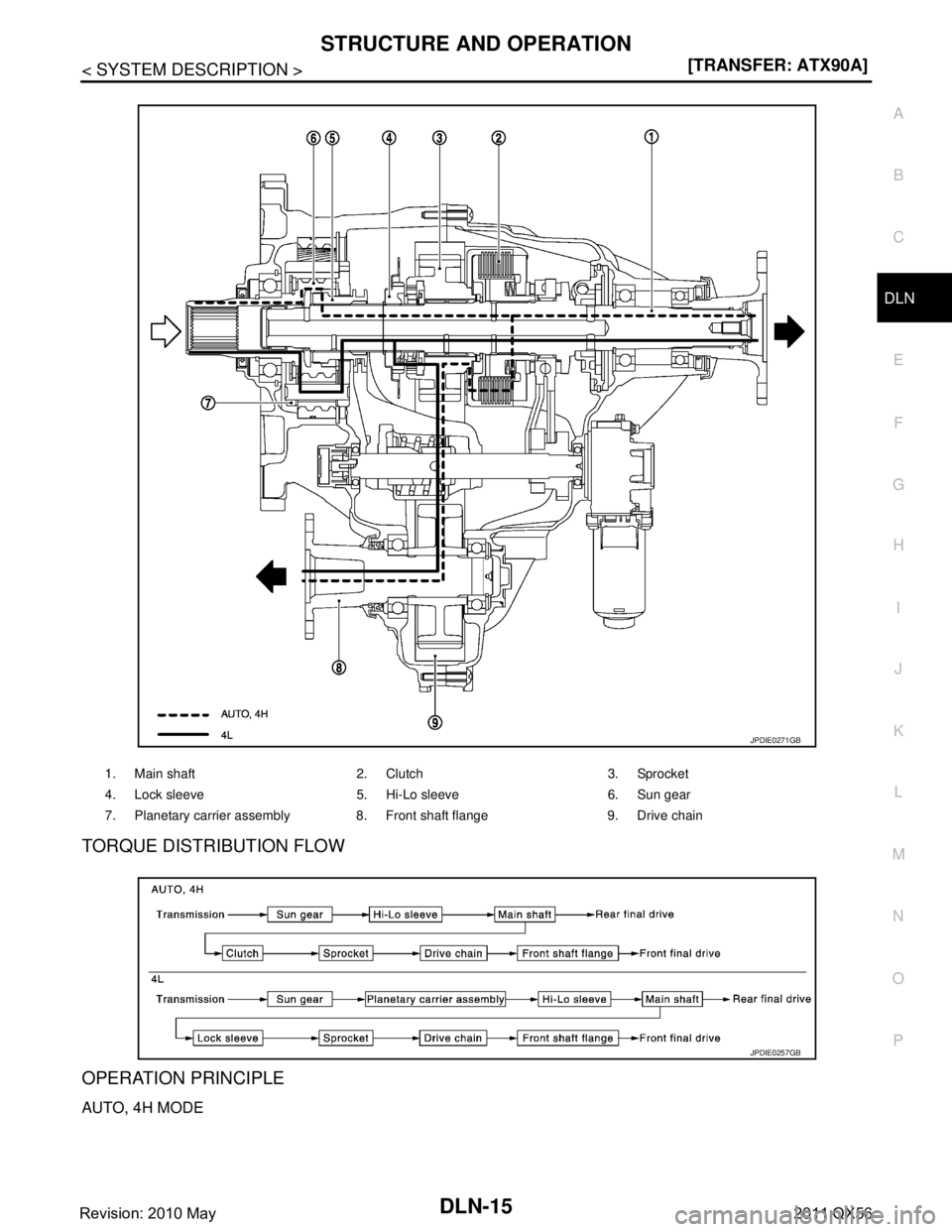

TORQUE DISTRIBUTION FLOW
OPERATION PRINCIPLE

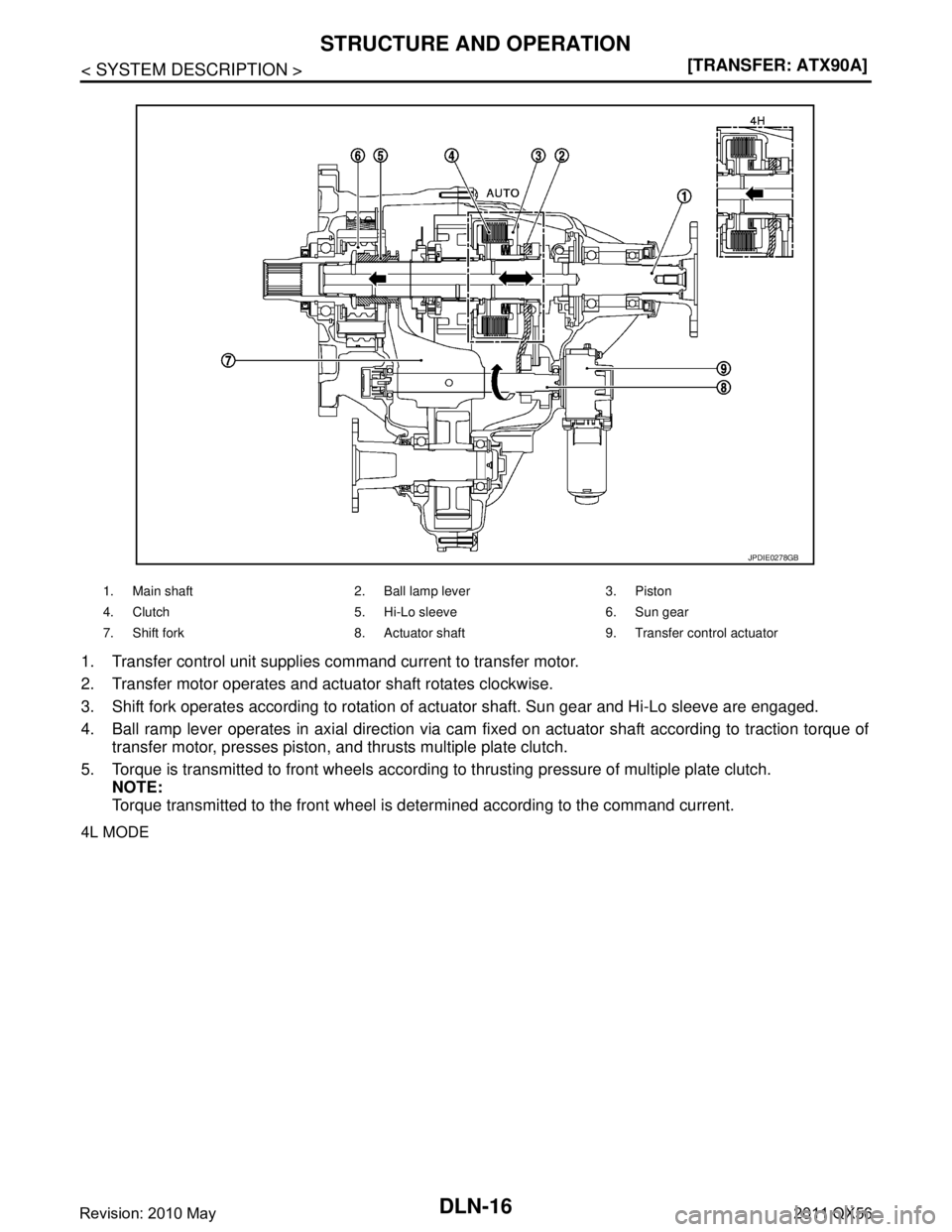

AUTO, 4H MODE
1. Main shaft 2. Clutch 3. Sprocket

Page 1818 of 5598

INFINITI QX56 2011 Factory Service Manual
DLN-16
< SYSTEM DESCRIPTION >[TRANSFER: ATX90A]
STRUCTURE AND OPERATION

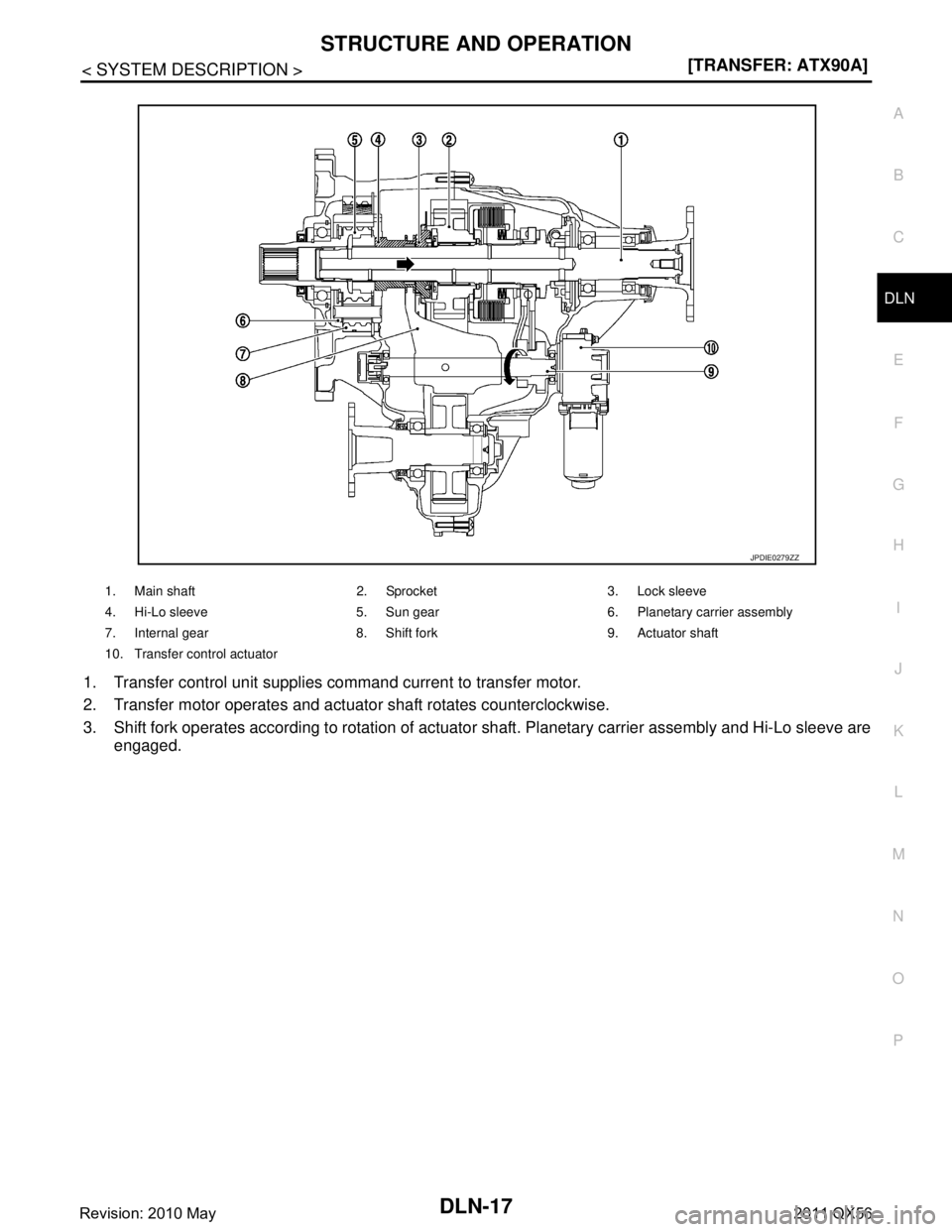

1. Transfer control unit supplies command current to transfer motor.
2. Transfer motor operates and actuator shaft rotates cloc

Page 1819 of 5598

INFINITI QX56 2011 Factory Service Manual
STRUCTURE AND OPERATIONDLN-17
< SYSTEM DESCRIPTION > [TRANSFER: ATX90A]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
1. Transfer control unit supplies command current to transfer motor.
2. Transfer motor operate

Page 1820 of 5598

INFINITI QX56 2011 Factory Service Manual
DLN-18
< SYSTEM DESCRIPTION >[TRANSFER: ATX90A]
SYSTEM
SYSTEM
4WD SYSTEM

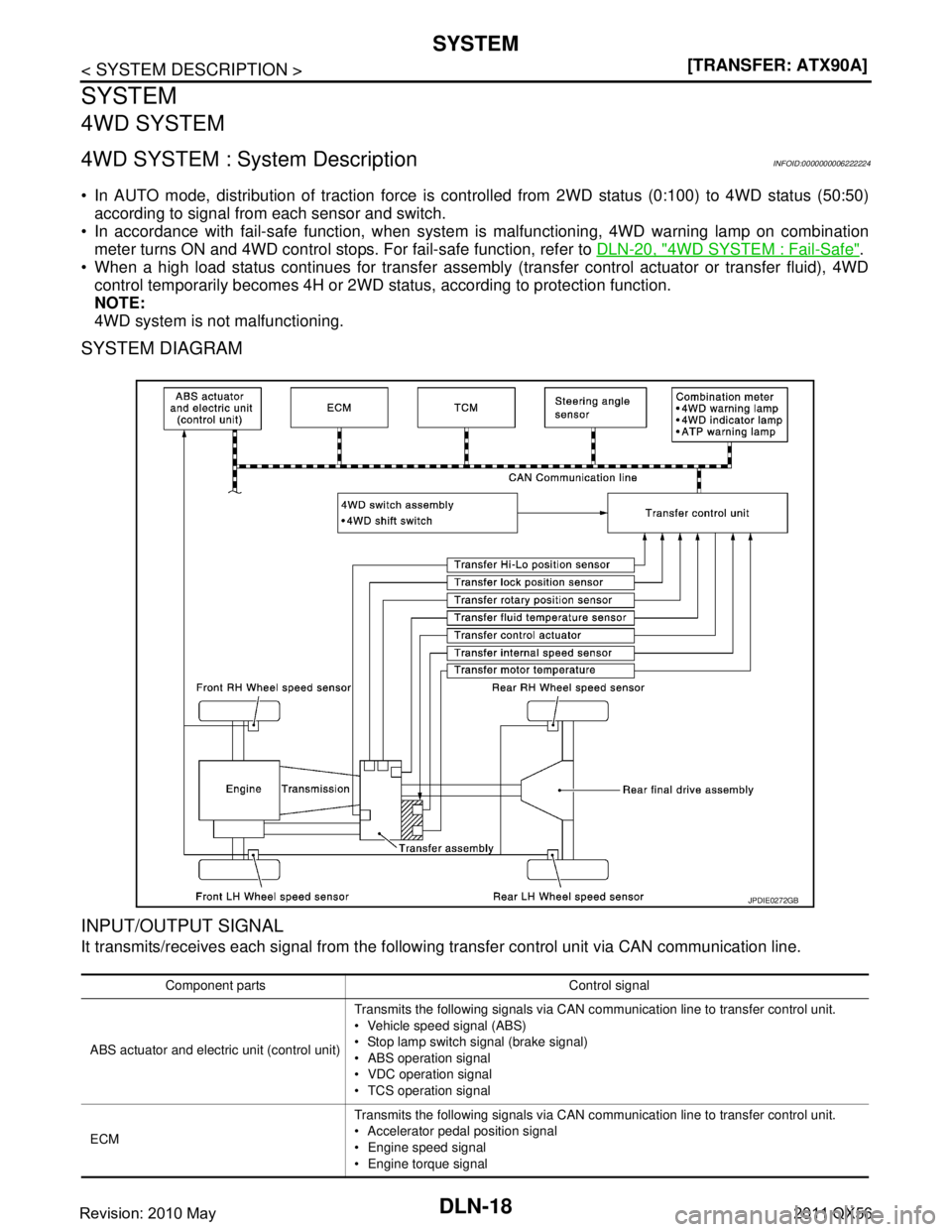

4WD SYSTEM : System DescriptionINFOID:0000000006222224
In AUTO mode, distribution of traction force is cont
rolled from 2WD

Page 1821 of 5598

INFINITI QX56 2011 Factory Service Manual
SYSTEMDLN-19
< SYSTEM DESCRIPTION > [TRANSFER: ATX90A]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P

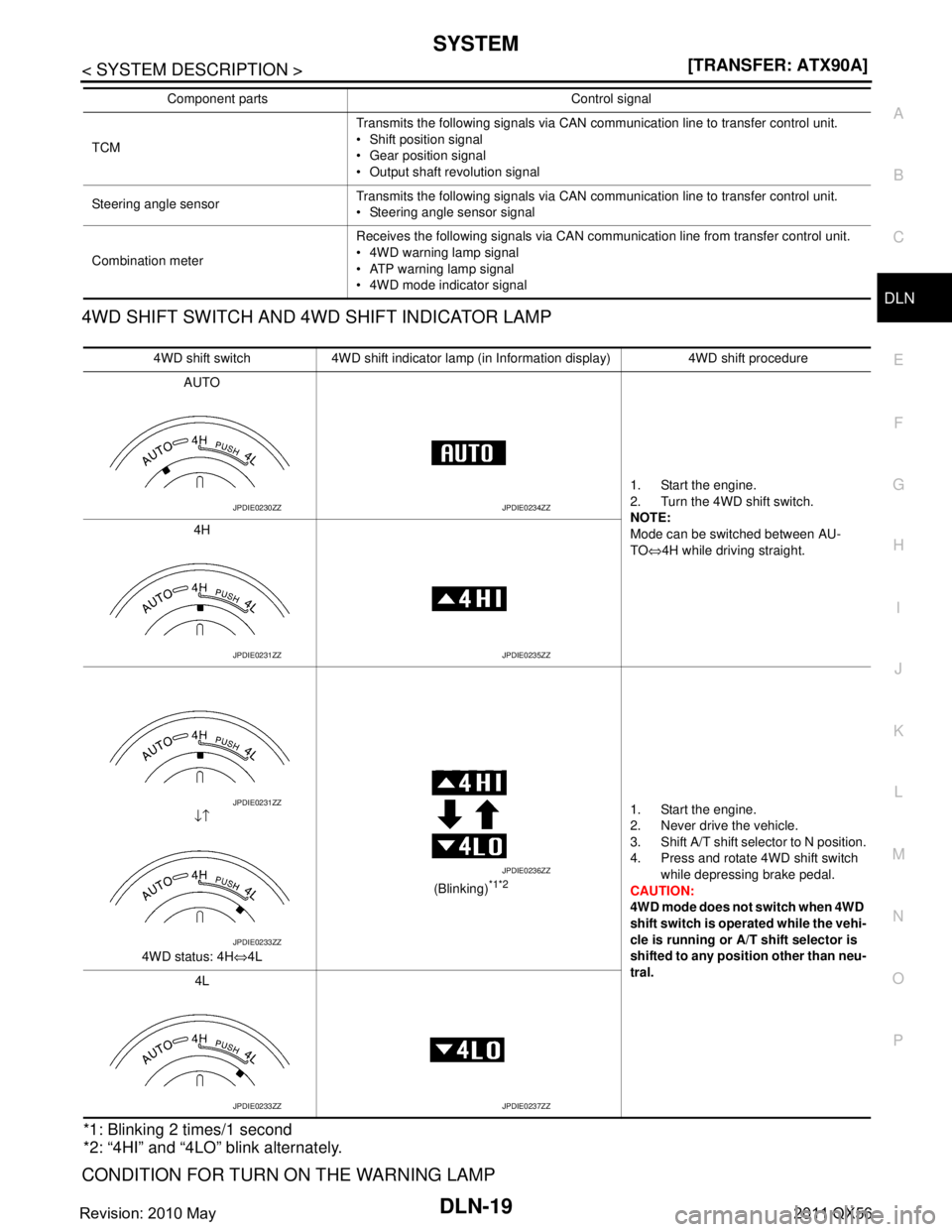

4WD SHIFT SWITCH AND 4WD SHIFT INDICATOR LAMP
*1: Blinking 2 times/1 second
*2: “4HI” and “4LO” blink a

Page 1822 of 5598

INFINITI QX56 2011 Factory Service Manual
DLN-20
< SYSTEM DESCRIPTION >[TRANSFER: ATX90A]
SYSTEM
4WD Warning Lamp
Turns ON when there is a malfunction in 4WD system. 4W
D warning lamp indicates the vehicle is in fail-safe
mode.
Also turn

Page 1823 of 5598

INFINITI QX56 2011 Factory Service Manual
DIAGNOSIS SYSTEM (TRANSFER CONTROL UNIT)
DLN-21
< SYSTEM DESCRIPTION > [TRANSFER: ATX90A]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
DIAGNOSIS SYSTEM (TRA NSFER CONTROL UNIT)
CONSULT-III FunctionINFOID:0000000

DIAGNOSIS SYSTEM (TRANSFER CONTROL UNIT)
DLN-21
< SYSTEM DESCRIPTION > [TRANSFER: ATX90A]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
DIAGNOSIS SYSTEM (TRA NSFER CONTROL UNIT)
CONSULT-III FunctionINFOID:0000000006222226
FUNCTION
CONSULT-III can display each diagnostic item using the diagnostic test modes as follows.
*: The following diagnosis information is erased by erasing.
DTC
ECU IDENTIFICATION
Transfer control unit part number can be read.
SELF DIAGNOSTIC RESULT
Refer to DLN-29, "DTC Index".
When "0" is displayed on self-diagnosis result.
The system is presently malfunctioning.
When except "0" is displayed on self-diagnosis result. System malfunction in the past is detec ted, but the system is presently normal.
NOTE:
Each time when ignition switch is turned OFF to ON, numerical number increases in 1 →2→ 3...110 →111 .
When the operation number of times exceeds 111, the number do not increase and “111” is displayed until
self-diagnosis is erased
*.
*: For “U1000” and “U1010”, the maximum value is “39”.
DATA MONITOR
X:Applicable
Diagnostic test mode Function
ECU Identification Transfer control unit part number can be read.
Self Diagnostic Result Self-diagnostic results can be read and erased quickly.*
Data Monitor Input/Output data in the transfer control unit can be read.
Work Support This mode enables a technican to adjust some devices faster and more accurately by following the
indications on the CONSULT-III
Monitor item (Unit) SELECT MONITOR ITEM
Remarks
ECU INPUT
SIGNALS MAIN SIG-
NALS
4WD MODE [BOTNG/SWTNG/4L/4H/AUTO] X Control status of 4WD mode is displayed.
2WD SW [On/Off] X 4WD shift switch (2WD) is not equipped, but it
is displayed.
AUTO SW [On/Off] X 4WD shift switch signal (AUTO) is displayed.
4H SW [On/Off] X 4WD shift switch signal (4H) is displayed.
4L SW [On/Off] X 4WD shift switch signal (4L) is displayed.
T/M RANGE [D/N/R/P] X A/T shift selector position via CAN communica-
tion line is displayed.
N RANGESW [On/Off] X A/T shift selector position (N) via CAN commu-
nication line is displayed.
R RANGE SW [On/Off] X A/T shift selector position (R) via CAN commu-
nication line is displayed.
ING SW [On/Off] X Ignition switch status is displayed.
TCS OPER [On/Off] X TCS operation status via CAN communication
line is displayed.
VDC OPER [On/Off] X VDC operation status via CAN communication
line is displayed.
Revision: 2010 May2011 QX56

Page 1824 of 5598

INFINITI QX56 2011 Factory Service Manual
DLN-22
< SYSTEM DESCRIPTION >[TRANSFER: ATX90A]
DIAGNOSIS SYSTEM (T
RANSFER CONTROL UNIT)
ABS OPER [On/Off] X ABS operation status via CAN communication
line is displayed.
SAND MODE IND [On/Off] Thi

DLN-22
< SYSTEM DESCRIPTION >[TRANSFER: ATX90A]
DIAGNOSIS SYSTEM (T
RANSFER CONTROL UNIT)
ABS OPER [On/Off] X ABS operation status via CAN communication
line is displayed.
SAND MODE IND [On/Off] This indicator is not equipped, but it is dis-
played.
ROCK MODE IND [On/Off] This indicator is not equipped, but it is dis-
played.
SNOW MODE IND [On/Off] This indicator is not equipped, but it is dis-
played.
ONROAD MODE IND [On/Off] This indicator is not equipped, but it is dis-
played.
SAND MODE SW [On/Off] X This switch is not equipped, but it is displayed.
ROCK MODE SW [On/Off] X This switch is not equipped, but it is displayed.
SNOW MODE SW [On/Off] X This switch is not equipped, but it is displayed.
ONROAD MODE SW [On/Off] X This switch is not equipped, but it is displayed.
HI/LO POSI SEN 3 [On/Off] X Transfer Hi-Lo position sensor (3) status is dis-
played.
HI/LO POSI SEN 1 [On/Off] X Transfer Hi-Lo position sensor (1) status is dis-
played.
LOCK POSI SEN [OPEN/LOCK/BAT/UNLEAN/HI
TEMP/ERROR/GND] X
Transfer lock position sensor signal is dis-
played.
ATP IND [On/Off] Control status of ATP warning lamp is dis-
played.
4WD FAILLAMP [On/Off] X Control status of ATP warning lamp is dis-
played.
4WD MODE IND [4L/LOCK/AUTO] X Control status of 4WD mode indicator lamp is
displayed.
(LOCK means 4H of 4WD mode)
MOTOR DRIVE B [HI/LO/PWM] X Driving status of transfer motor is displayed.
(Reverse side)
MOTOR DRIVE A [HI/LO/PWM] X Driving status of transfer motor is displayed.
(Drive side)
FLUID TEMP SEN [V] X Temperature of transfer fluid is displayed.
MOTOR TEMP [V] X Temperature of transfer motor is displayed.
C/U POWER SUP [V] X Power supply voltage value of transfer control
unit is displayed.
MOTOR POWER SUP [V] X Power supply voltage value of transfer motor
unit is displayed.
ROTARY POSI SEN [%] X Transfer rotary position sensor signal is dis-
played.
THRTL POSI SEN [%] X X Throttle opening status via CAN communica-
tion line is displayed.
AT R SPEED [km/h] X Output shaft revolution speed via CAN commu-
nication line is displayed.
T/M GEAR [0 - 7] X Current transmission gear via CAN communi-
cation line is displayed.
COMPR VHCL SPEED [km/h] X Vehicle speed calculated by transfer control
unit is displayed.
VHCL/S SEN-FR [km/h] X Wheel speed (front) average calculated by
transfer control.
Monitor item (Unit)
SELECT MONITOR ITEM
Remarks
ECU INPUT
SIGNALS MAIN SIG-
NALS
Revision: 2010 May2011 QX56
