Page 2873 of 5598

INFINITI QX56 2011 Factory Service Manual EXT-18 < REMOVAL AND INSTALLATION > REAR BUMPER  Bumper protector (LH and RH)  Bumper side reinforcement (LH and RH) 10. Remove energy absorber. INSTALLATION Note the following item, and then insta

Page 2874 of 5598

INFINITI QX56 2011 Factory Service Manual FRONT GRILLEEXT-19 < REMOVAL AND INSTALLATION > C DE F G H I J L M A B EXT N O P FRONT GRILLE Exploded ViewINFOID:0000000006367601 Removal and InstallationINFOID:0000000006367602 REMOVAL 1. Fully ope

Page 2875 of 5598

INFINITI QX56 2011 Factory Service Manual EXT-20 < REMOVAL AND INSTALLATION > FRONT GRILLE 4. Pull front grille toward the direction shown in the figure, and thendisengage front grille fixing clips. 5. Disconnect front camera harness connec

Page 2876 of 5598

INFINITI QX56 2011 Factory Service Manual COWL TOPEXT-21 < REMOVAL AND INSTALLATION > C DE F G H I J L M A B EXT N O P COWL TOP Exploded ViewINFOID:0000000006367603 Removal and InstallationINFOID:0000000006367604 REMOVAL 1. Fully open hood a

Page 2877 of 5598

INFINITI QX56 2011 Factory Service Manual EXT-22 < REMOVAL AND INSTALLATION > COWL TOP  EPT sealer INSTALLATION Note the following items and then, install in the reverse order of removal. CAUTION:  When installing cowl top cover, check tha

Page 2878 of 5598

INFINITI QX56 2011 Factory Service Manual FENDER PROTECTOREXT-23 < REMOVAL AND INSTALLATION > C DE F G H I J L M A B EXT N O P FENDER PROTECTOR FENDER PROTECTOR FENDER PROTECTOR : Exploded ViewINFOID:0000000006367605 FENDER PROTECTOR FENDER

Page 2879 of 5598

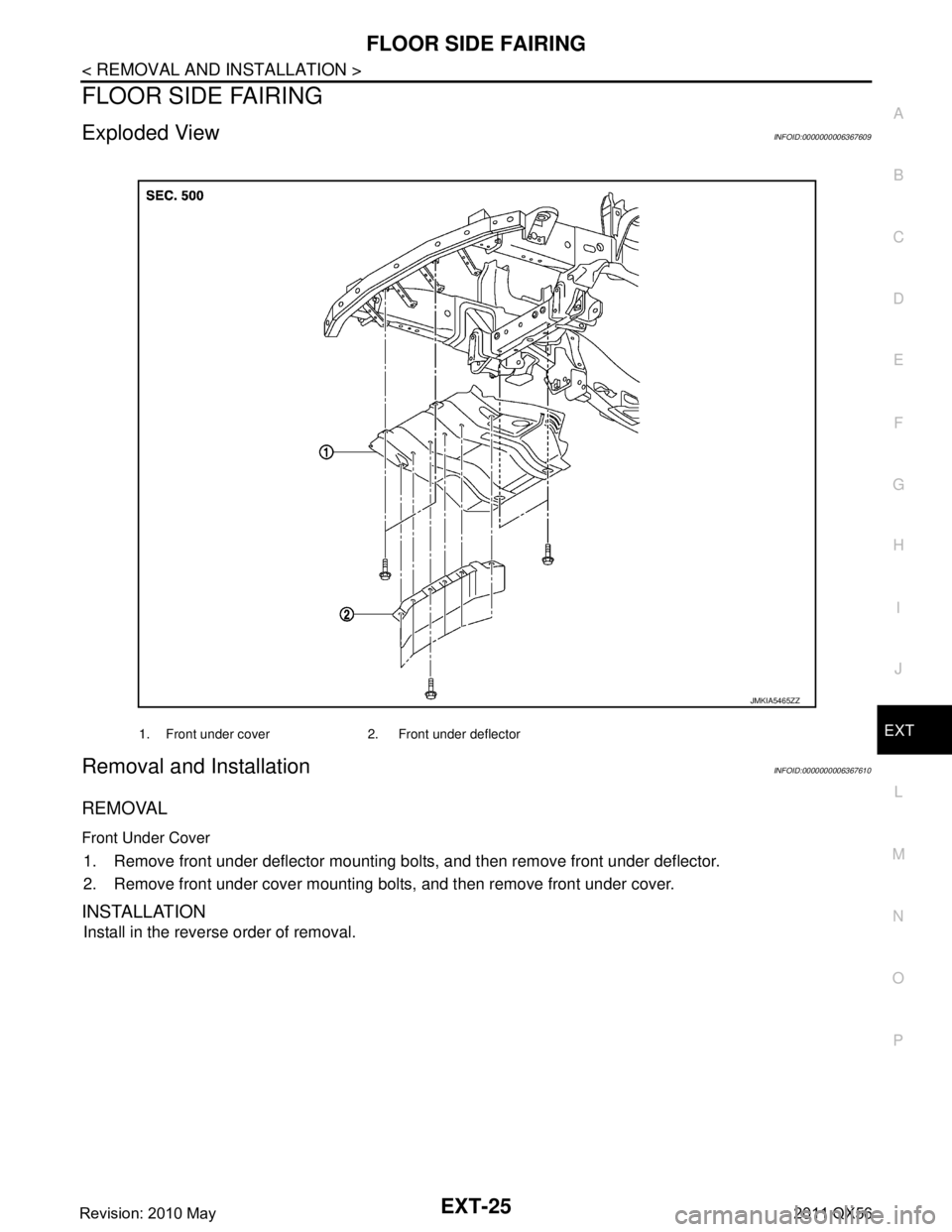

INFINITI QX56 2011 Factory Service Manual EXT-24 < REMOVAL AND INSTALLATION > FENDER PROTECTOR REAR WHEEL HOUSE PROTECTOR : Exploded View INFOID:0000000006367607 REAR WHEEL HOUSE PROTECTOR : Removal and InstallationINFOID:0000000006367608 R

Page 2880 of 5598

INFINITI QX56 2011 Factory Service Manual FLOOR SIDE FAIRINGEXT-25 < REMOVAL AND INSTALLATION > C DE F G H I J L M A B EXT N O P FLOOR SIDE FAIRING Exploded ViewINFOID:0000000006367609 Removal and InstallationINFOID:0000000006367610 REMOVAL
