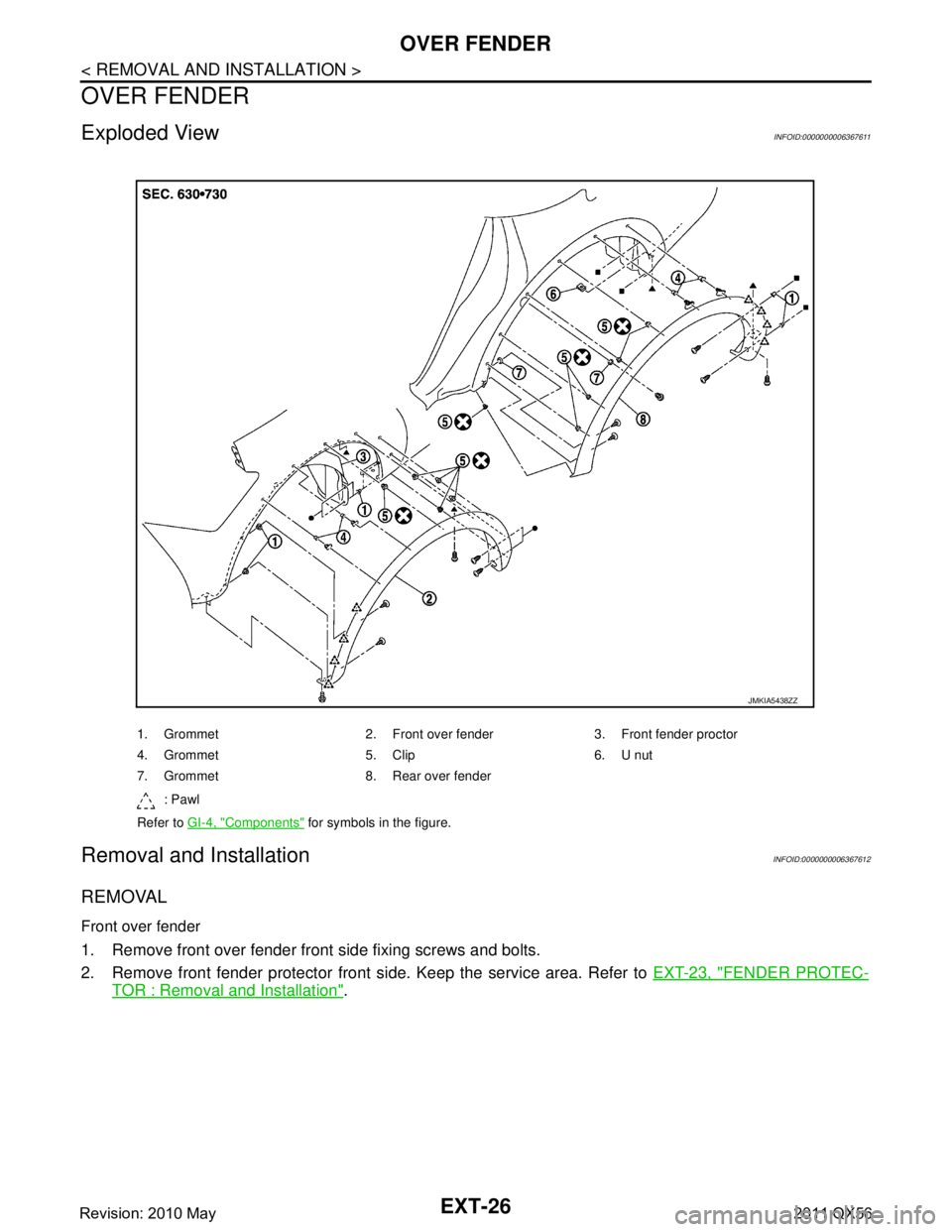

INFINITI QX56 2011 Factory Service Manual EXT-26 < REMOVAL AND INSTALLATION > OVER FENDER OVER FENDER Exploded ViewINFOID:0000000006367611 Removal and InstallationINFOID:0000000006367612 REMOVAL Front over fender 1. Remove front over fender

Page 2882 of 5598

INFINITI QX56 2011 Factory Service Manual OVER FENDEREXT-27 < REMOVAL AND INSTALLATION > C DE F G H I J L M A B EXT N O P 3. Disengage front over fender rear side fixing pawls from behind of front fender, and the pull front over fender front

Page 2883 of 5598

INFINITI QX56 2011 Factory Service Manual EXT-28 < REMOVAL AND INSTALLATION > OVER FENDER INSTALLATION Install in the reverse order of removal. CAUTION:  When installing, check visually the over fender and the clips, then replace them with

Page 2884 of 5598

INFINITI QX56 2011 Factory Service Manual ROOF RAILEXT-29 < REMOVAL AND INSTALLATION > C DE F G H I J L M A B EXT N O P ROOF RAIL Exploded ViewINFOID:0000000006367613 Removal and InstallationINFOID:0000000006367614 REMOVAL 1. Remove front ro

Page 2885 of 5598

INFINITI QX56 2011 Factory Service Manual EXT-30 < REMOVAL AND INSTALLATION > ROOF RAIL 3. Remove rear roof rail cover (1) with remover tool (A).CAUTION: Apply protective tape (B) around the roof rail. 4. Remove roof rail mounting bolts, and

Page 2886 of 5598

INFINITI QX56 2011 Factory Service Manual ROOF SIDE MOLDINGEXT-31 < REMOVAL AND INSTALLATION > C DE F G H I J L M A B EXT N O P ROOF SIDE MOLDING Exploded ViewINFOID:0000000006367615 Removal and InstallationINFOID:0000000006367616 REMOVAL 1.

Page 2887 of 5598

INFINITI QX56 2011 Factory Service Manual EXT-32 < REMOVAL AND INSTALLATION > DOOR OUTSIDE MOLDING DOOR OUTSIDE MOLDING Exploded ViewINFOID:0000000006367617 Removal and InstallationINFOID:0000000006367618 FRONT DOOR OUTSIDE MOLDING Removal 1

Page 2888 of 5598

INFINITI QX56 2011 Factory Service Manual DOOR OUTSIDE MOLDINGEXT-33 < REMOVAL AND INSTALLATION > C DE F G H I J L M A B EXT N O P 2. Twist and pull up to upper side, and then remove front door out- side molding (1). CAUTION:  Apply protect
