SIDE OIL SEALDLN-199
< REMOVAL AND INSTALLATION > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
SIDE OIL SEAL

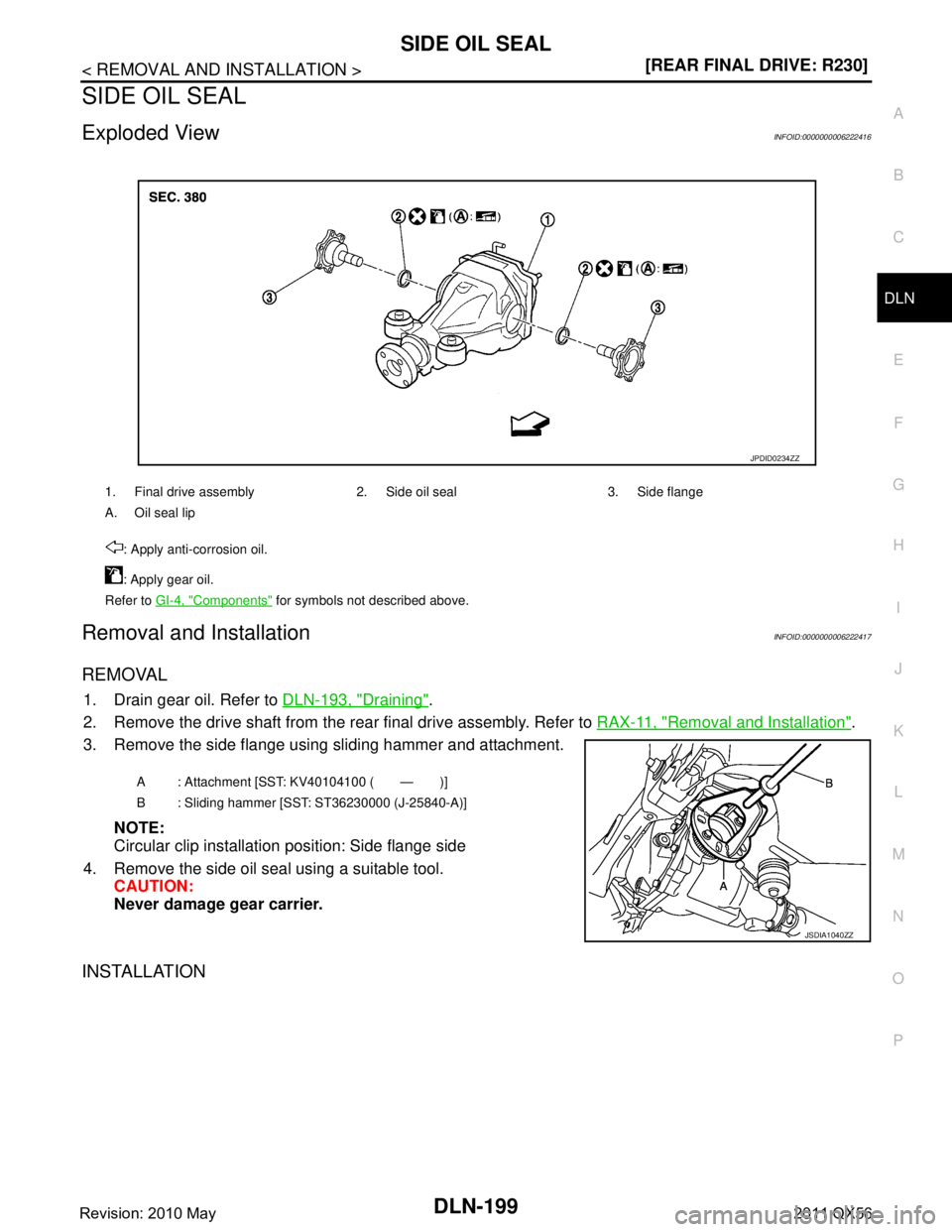

Exploded ViewINFOID:0000000006222416
Removal and InstallationINFOID:0000000006222417
REMOVAL
1. Drain gear oil. Refer to DLN-193, "Draining".
2. Remove the drive shaft from the rear final drive assembly. Refer to RAX-11, "
Removal and Installation".
3. Remove the side flange using sliding hammer and attachment.
NOTE:
Circular clip installation position: Side flange side
4. Remove the side oil seal using a suitable tool. CAUTION:
Never damage gear carrier.
INSTALLATION
1. Final drive assembly 2. Side oil seal 3. Side flange
A. Oil seal lip
: Apply anti-corrosion oil.
: Apply gear oil.
Refer to GI-4, "
Components" for symbols not described above.
JPDID0234ZZ
A : Attachment [SST: KV40104100 ( — )]
B : Sliding hammer [SST: ST36230000 (J-25840-A)]
JSDIA1040ZZ
Revision: 2010 May2011 QX56
Page 2002 of 5598
![INFINITI QX56 2011 Factory Service Manual
DLN-200
< REMOVAL AND INSTALLATION >[REAR FINAL DRIVE: R230]
SIDE OIL SEAL
1. Install side oil seal until it becomes flush with the case end,
using the drift (A) [SST: ST35271000 (J-26091)].
CAUTION: INFINITI QX56 2011 Factory Service Manual
DLN-200
< REMOVAL AND INSTALLATION >[REAR FINAL DRIVE: R230]
SIDE OIL SEAL
1. Install side oil seal until it becomes flush with the case end,
using the drift (A) [SST: ST35271000 (J-26091)].
CAUTION:](/manual-img/42/57033/w960_57033-2001.png)
DLN-200
< REMOVAL AND INSTALLATION >[REAR FINAL DRIVE: R230]
SIDE OIL SEAL
1. Install side oil seal until it becomes flush with the case end,
using the drift (A) [SST: ST35271000 (J-26091)].
CAUTION:
Never reuse side oil seal.
Never incline the new side oil seal when installing.
Apply multi-purpose grease to the lips of the new side oil
seal.
2. Install the side flange with the following procedure.
a. Install the protector [SST: KV38108000 ( — )] to the side oil seal as shown.
b. Insert the side flange until the se rrated part of the side flange
has engaged the serrated part of the side gear and remove the
Tool.
c. Drive in the side flange using suitable tool. NOTE:
Installation is completed when the driving sound of the side
flange turns into a sound which seems to affect the whole rear
final drive assembly.

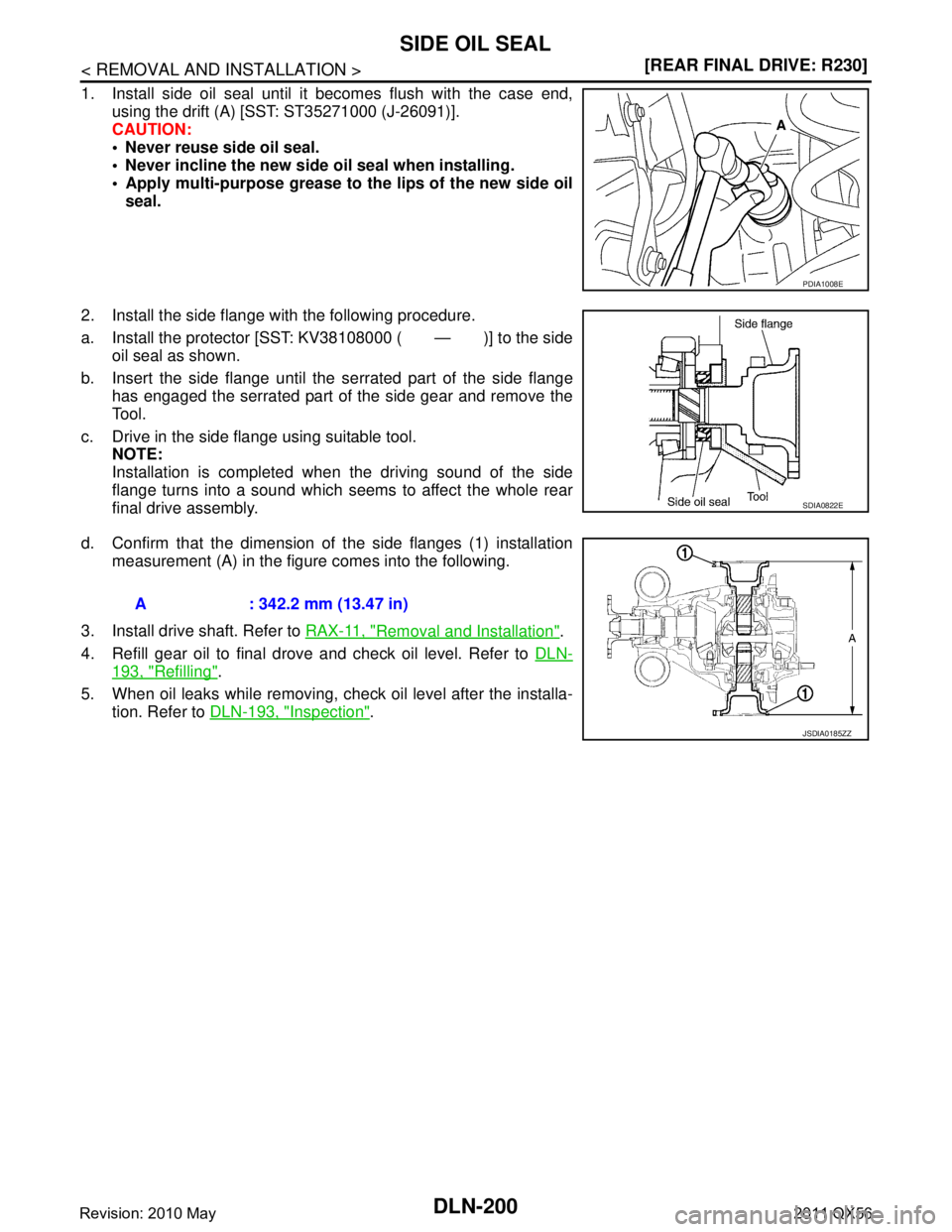

d. Confirm that the dimension of the side flanges (1) installation measurement (A) in the figure comes into the following.
3. Install drive shaft. Refer to RAX-11, "
Removal and Installation".
4. Refill gear oil to final drove and check oil level. Refer to DLN-
193, "Refilling".
5. When oil leaks while removing, check oil level after the installa- tion. Refer to DLN-193, "
Inspection".
PDIA1008E
SDIA0822E
A : 342.2 mm (13.47 in)
JSDIA0185ZZ
Revision: 2010 May2011 QX56
Page 2003 of 5598
REAR FINAL DRIVEDLN-201
< UNIT REMOVAL AND INSTALLATION > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
UNIT REMOVAL AND INSTALLATION
REAR FINAL DRIVE

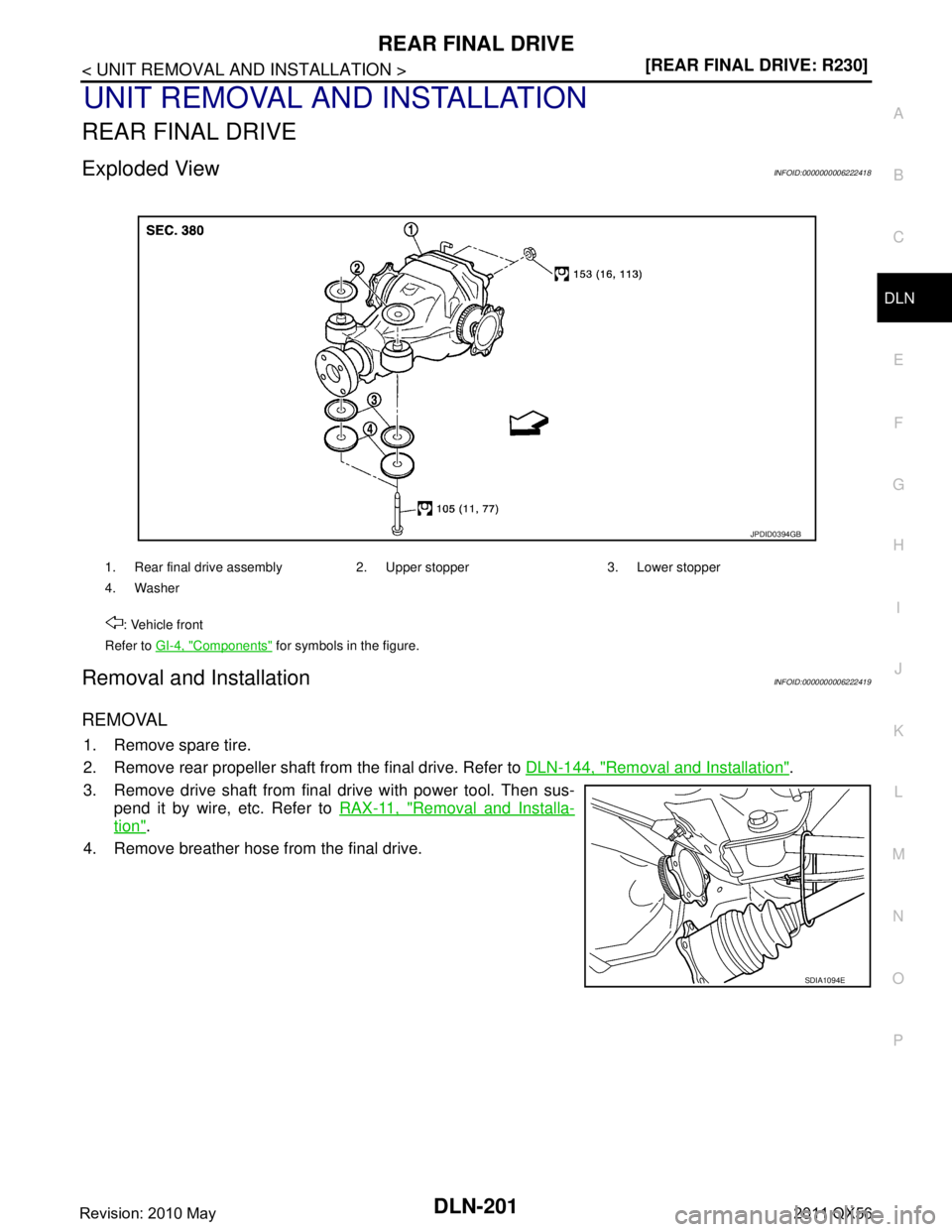

Exploded ViewINFOID:0000000006222418
Removal and InstallationINFOID:0000000006222419
REMOVAL
1. Remove spare tire.
2. Remove rear propeller shaft from the final drive. Refer to DLN-144, "
Removal and Installation".
3. Remove drive shaft from final drive with power tool. Then sus- pend it by wire, etc. Refer to RAX-11, "
Removal and Installa-
tion".
4. Remove breather hose from the final drive.
1. Rear final drive assembly 2. Upper stopper 3. Lower stopper
4. Washer
: Vehicle front
Refer to GI-4, "
Components" for symbols in the figure.
JPDID0394GB
SDIA1094E
Revision: 2010 May2011 QX56
Page 2004 of 5598
![INFINITI QX56 2011 Factory Service Manual
DLN-202
< UNIT REMOVAL AND INSTALLATION >[REAR FINAL DRIVE: R230]
REAR FINAL DRIVE
5. Set a suitable jack to rear final drive assembly.
CAUTION:
Never place a jack under the rear cover (aluminum case INFINITI QX56 2011 Factory Service Manual
DLN-202
< UNIT REMOVAL AND INSTALLATION >[REAR FINAL DRIVE: R230]
REAR FINAL DRIVE
5. Set a suitable jack to rear final drive assembly.
CAUTION:
Never place a jack under the rear cover (aluminum case](/manual-img/42/57033/w960_57033-2003.png)
DLN-202
< UNIT REMOVAL AND INSTALLATION >[REAR FINAL DRIVE: R230]
REAR FINAL DRIVE
5. Set a suitable jack to rear final drive assembly.
CAUTION:
Never place a jack under the rear cover (aluminum case).
6. Remove the mounting bolts and nuts connecting to the suspen- sion member with power tool. And then, remove rear final drive
assembly.
CAUTION:
Secure rear final drive assembly to a suitable jack while
removing it.
INSTALLATION
Note the following, and installation is in the reverse order of removal.
CAUTION:
Check that there are no pinched or restricted areas on the breather hose caused by bending or wind-
ing when installing it.

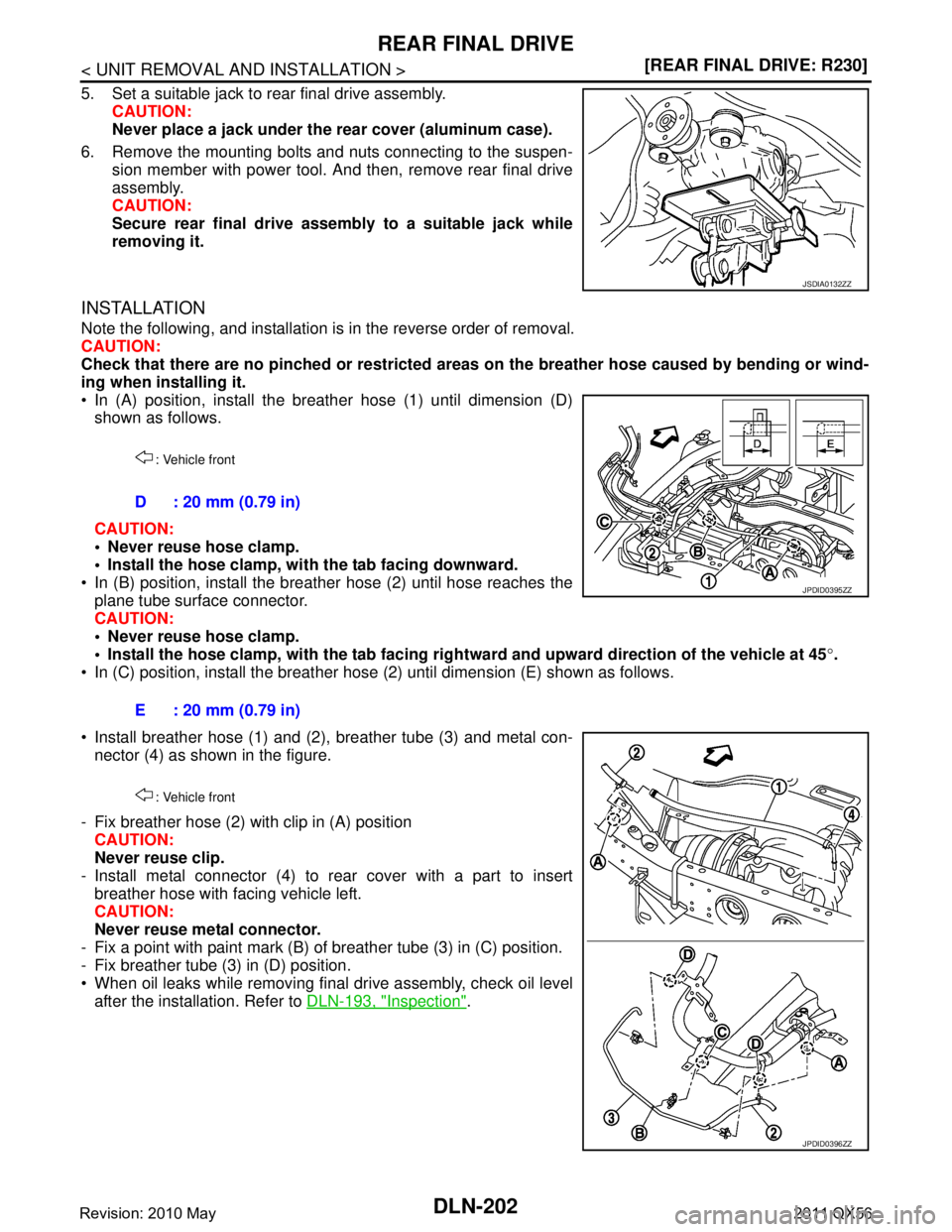

In (A) position, install the breather hose (1) until dimension (D) shown as follows.
CAUTION:
Never reuse hose clamp.
Install the hose clamp, wit h the tab facing downward.
In (B) position, install the breather hose (2) until hose reaches the
plane tube surface connector.
CAUTION:
Never reuse hose clamp.
Install the hose clamp, with the tab facing righ tward and upward direction of the vehicle at 45°.
In (C) position, install the breather hose (2) until dimension (E) shown as follows.
Install breather hose (1) and (2), breather tube (3) and metal con- nector (4) as shown in the figure.
- Fix breather hose (2) with clip in (A) position CAUTION:
Never reuse clip.
- Install metal connector (4) to rear cover with a part to insert breather hose with facing vehicle left.
CAUTION:
Never reuse metal connector.
- Fix a point with paint mark (B) of breather tube (3) in (C) position.
- Fix breather tube (3) in (D) position.
When oil leaks while removing final drive assembly, check oil level after the installation. Refer to DLN-193, "
Inspection".
JSDIA0132ZZ
: Vehicle front
D : 20 mm (0.79 in)
E : 20 mm (0.79 in)
: Vehicle front
JPDID0395ZZ
JPDID0396ZZ
Revision: 2010 May2011 QX56
Page 2005 of 5598
DIFFERENTIAL ASSEMBLYDLN-203
< UNIT DISASSEMBLY AND ASSEMBLY > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
UNIT DISASSEMBLY AND ASSEMBLY
DIFFERENTIAL ASSEMBLY
Exploded ViewINFOID:0000000006222420
1. Rear cover 2. Bearing cap 3. Side gear thrust washer
4. Side gear 5. Pinion mate thrust washer 6. Pinion mate gear
7. Pinion mate shaft 8. Lock pin 9. Side bearing
10. Side bearing adjusting washer 11. Drive pinion 12. Pinion height adjusting washer
13. Pinion rear bearing 14. Collapsible spacer 15. Side flange
16. Circlip 17. Side oil seal 18. Gear carrier
19. Pinion front bearing 20. Front oil seal 21. Companion flange
22. Drive pinion lock nut 23. Drive gear 24. Differential case
25. Gasket 26. Drain plug 27. Filler plug
A. Oil seal lip B. Screw hole C. Co mply with the assembly proce-
dure when tightening. Refer to DLN-
206, "Assembly".
: Apply gear oil. : Apply anti-corrosion oil.
JPDID0397GB
Revision: 2010 May2011 QX56
Page 2006 of 5598
![INFINITI QX56 2011 Factory Service Manual
DLN-204
< UNIT DISASSEMBLY AND ASSEMBLY >[REAR FINAL DRIVE: R230]
DIFFERENTIAL ASSEMBLY
Disassembly
INFOID:0000000006222421
1. Drain gear oil, if necessary.
2. Remove side flanges.
3. Remove rear cov INFINITI QX56 2011 Factory Service Manual
DLN-204
< UNIT DISASSEMBLY AND ASSEMBLY >[REAR FINAL DRIVE: R230]
DIFFERENTIAL ASSEMBLY
Disassembly
INFOID:0000000006222421
1. Drain gear oil, if necessary.
2. Remove side flanges.
3. Remove rear cov](/manual-img/42/57033/w960_57033-2005.png)
DLN-204
< UNIT DISASSEMBLY AND ASSEMBLY >[REAR FINAL DRIVE: R230]
DIFFERENTIAL ASSEMBLY
Disassembly
INFOID:0000000006222421
1. Drain gear oil, if necessary.
2. Remove side flanges.
3. Remove rear cover mounting bolts.
4 . R e m o v e r e a r c o v e r t o i n s e r t t h e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 (J-37228)] between gear carrier and rear cover.
CAUTION:
Never damage the mating surface.
Never insert flat-bladed screwdriver, this may damage themating surface.

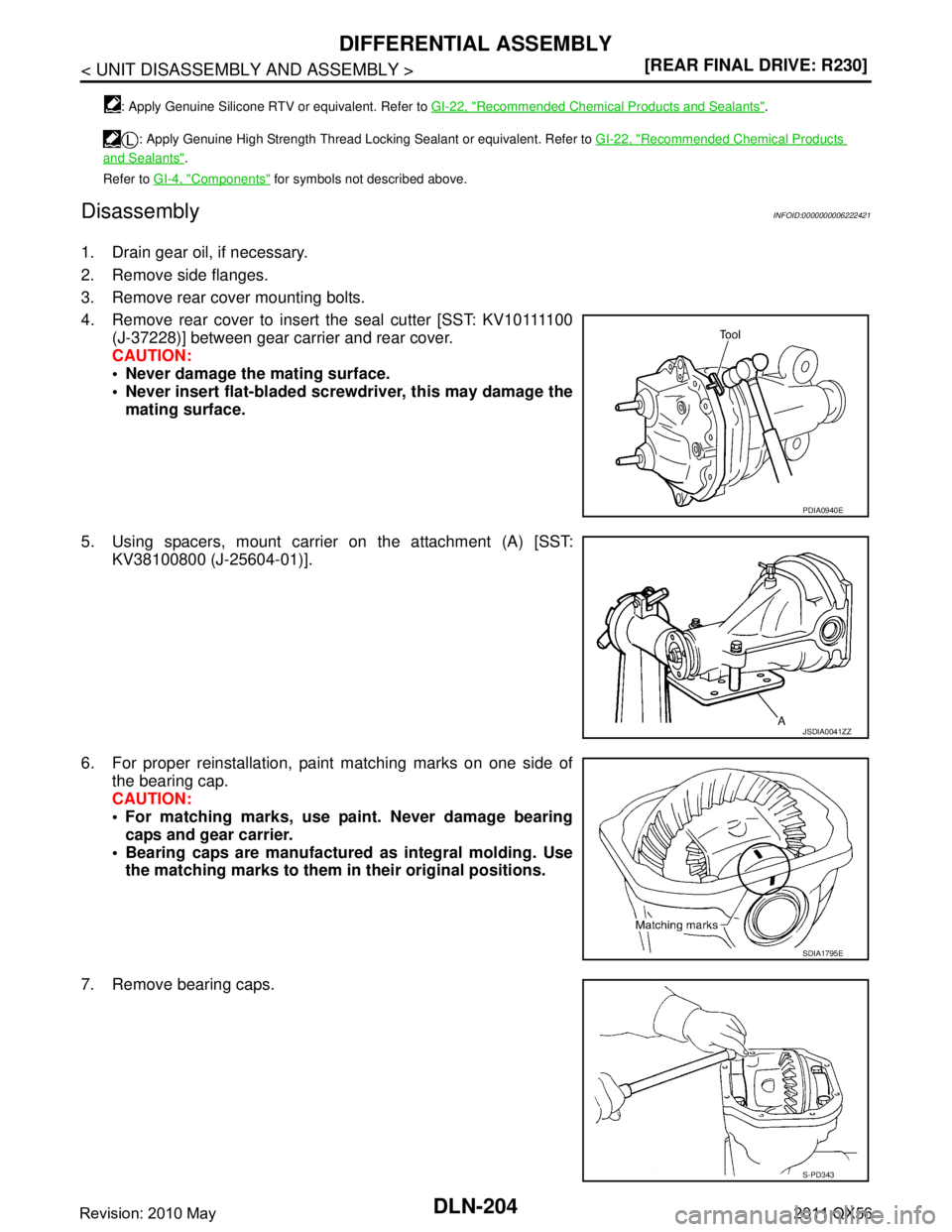

5. Using spacers, mount carrier on the attachment (A) [SST:
KV38100800 (J-25604-01)].
6. For proper reinstallation, paint matching marks on one side of the bearing cap.
CAUTION:
For matching marks, use paint. Never damage bearingcaps and gear carrier.
Bearing caps are manufactured as integral molding. Use the matching marks to them in their original positions.
7. Remove bearing caps.
: Apply Genuine Silicone RTV or equivalent. Refer to GI-22, "Recommended Chemical Products and Sealants".
: Apply Genuine High Strength Thread Locking Sealant or equivalent. Refer to GI-22, "
Recommended Chemical Products
and Sealants".
Refer to GI-4, "
Components" for symbols not described above.
PDIA0940E
JSDIA0041ZZ
SDIA1795E
S-PD343
Revision: 2010 May2011 QX56
Page 2007 of 5598
![INFINITI QX56 2011 Factory Service Manual
DIFFERENTIAL ASSEMBLYDLN-205
< UNIT DISASSEMBLY AND ASSEMBLY > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
8. Lift differential case assembly out with a suitable tool.
Keep side beari INFINITI QX56 2011 Factory Service Manual
DIFFERENTIAL ASSEMBLYDLN-205
< UNIT DISASSEMBLY AND ASSEMBLY > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
8. Lift differential case assembly out with a suitable tool.
Keep side beari](/manual-img/42/57033/w960_57033-2006.png)
DIFFERENTIAL ASSEMBLYDLN-205
< UNIT DISASSEMBLY AND ASSEMBLY > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
8. Lift differential case assembly out with a suitable tool.
Keep side bearing outer races together with inner race. Nevermix them up.
Also, keep side bearing adjusting washers together with bear-
ings.
9. Remove side bearing inner race. To prevent damage to bearing, engage puller jaws in groove
().
CAUTION:
To prevent damage to the side bearing and drive gear,place copper plates between these parts and vise.
It is not necessary to remove side bearing inner race
except when it is replaced.
10. For proper reinstallation, paint matching marks on one differen- tial case assembly.
CAUTION:
For matching marks, use paint. Never damage differential
case and drive gear.
11. Remove drive gear mounting bolts.
12. Tap drive gear off differential case assembly with a soft hammer. CAUTION:
Tap evenly all around to keep drive gear from bending.
PDIA0547E
SPD527
A : Puller [SST: ST33051001 (J-22888-20)]
B : Base [SST: KV40104730 ( — )]
PDIA0758J
PDIA0496E
Revision: 2010 May2011 QX56
Page 2008 of 5598
DLN-206
< UNIT DISASSEMBLY AND ASSEMBLY >[REAR FINAL DRIVE: R230]
DIFFERENTIAL ASSEMBLY
13. Remove lock pin of pinion mate shaft with a punch from drive
gear side.
14. Remove pinion mate shaft.
15. Turn pinion mate gear, then remove pinion mate gear, pinion mate thrust washer, side gear and side gear thrust washer from
differential case.
16. Perform inspection after disassembly. Refer to DLN-215,
"Inspection".
AssemblyINFOID:0000000006222422
1. Install side gear thrust washers with the same thickness as the
ones installed prior to disassembly or reinstall the old ones on
the side gears.
PDIA0759J
SDIA0031J
SDIA0032J
SDIA0193J
Revision: 2010 May2011 QX56
