Page 3377 of 5598

INFINITI QX56 2011 Factory Service Manual INT-28 < REMOVAL AND INSTALLATION > HEADLINING HEADLINING Exploded ViewINFOID:0000000006220256 1. Rear ventilator grille RH 2. Rear ventilator base RH 3. Rear ventilator garnish B RH 4. Rear ventilat

Page 3378 of 5598

INFINITI QX56 2011 Factory Service Manual HEADLININGINT-29 < REMOVAL AND INSTALLATION > C DE F G H I K L M A B INT N O P Removal and InstallationINFOID:0000000006220257 REMOVAL 1. Remove sun visor cap (1) using a remover tool (A), and then r

Page 3379 of 5598

INFINITI QX56 2011 Factory Service Manual INT-30 < REMOVAL AND INSTALLATION > HEADLINING 6. Disconnect harness connectors. Lane camera unit harness connector (1) (if equipped).  Inside mirror harness connector (2).  Light & rain sensor ha

Page 3380 of 5598

INFINITI QX56 2011 Factory Service Manual HEADLININGINT-31 < REMOVAL AND INSTALLATION > C DE F G H I K L M A B INT N O P 14. Remove luggage side lower finisher (LH and RH). Refer to INT-36, "LUGGAGE SIDE LOWER FINISHER : Removal and Install

Page 3381 of 5598

INFINITI QX56 2011 Factory Service Manual INT-32 < REMOVAL AND INSTALLATION > HEADLINING  Personal lamp assembly. Refer to INL-77, "Removal and Installation".  Rear ventilator grille assembly. Refer to VTL-13, " REAR VENTILATOR GRILLE : R

Page 3382 of 5598

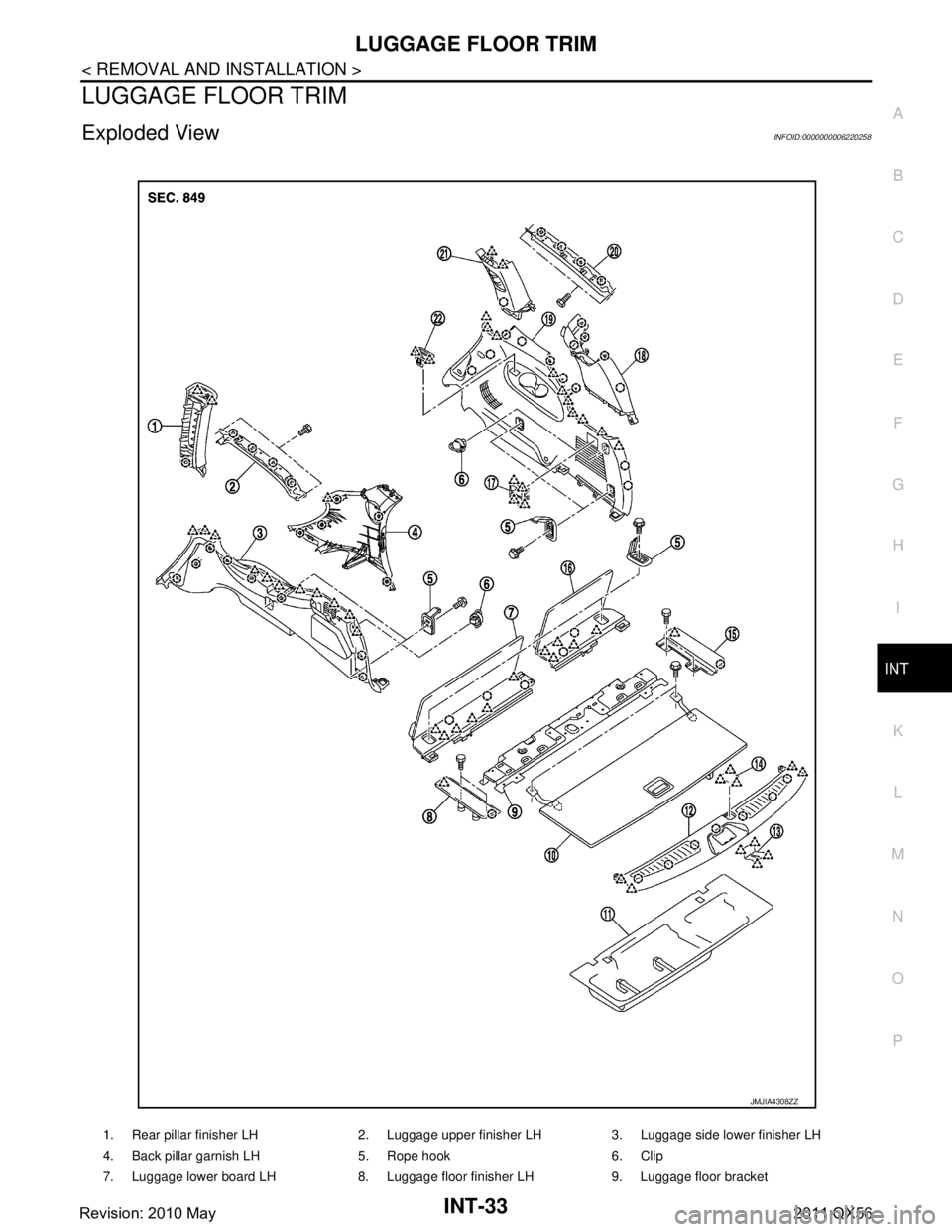

INFINITI QX56 2011 Factory Service Manual LUGGAGE FLOOR TRIMINT-33 < REMOVAL AND INSTALLATION > C DE F G H I K L M A B INT N O P LUGGAGE FLOOR TRIM Exploded ViewINFOID:0000000006220258 1. Rear pillar finisher LH 2. Luggage upper finisher LH

Page 3383 of 5598

INFINITI QX56 2011 Factory Service Manual INT-34 < REMOVAL AND INSTALLATION > LUGGAGE FLOOR TRIM *: Reclining switch (22) is also installed on luggage side lower finisher LH (3). LUGGAGE FLOOR REAR BOARD LUGGAGE FLOOR REAR BOARD : Removal an

Page 3384 of 5598

INFINITI QX56 2011 Factory Service Manual LUGGAGE FLOOR TRIMINT-35 < REMOVAL AND INSTALLATION > C DE F G H I K L M A B INT N O P 3. Disengage luggage floor board RH (1) fixing pawls and clips, and then remove luggage side finisher. 4. Diseng
