Page 2065 of 5598

INFINITI QX56 2011 Factory Service Manual
SYSTEMEC-41
< SYSTEM DESCRIPTION > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
COOLING FAN CONTROL : System DiagramINFOID:0000000006217703
COOLING FAN CONTROL : System DescriptionINFOID:0000000006217704

Page 2066 of 5598

INFINITI QX56 2011 Factory Service Manual
EC-42
< SYSTEM DESCRIPTION >[VK56VD]
SYSTEM
ELECTRIC IGNITION SYSTEM : System Diagram
INFOID:0000000006217705
ELECTRIC IGNITION SYSTEM : System DescriptionINFOID:0000000006217706
INPUT/OUTPUT SIGNAL

EC-42
< SYSTEM DESCRIPTION >[VK56VD]
SYSTEM
ELECTRIC IGNITION SYSTEM : System Diagram
INFOID:0000000006217705
ELECTRIC IGNITION SYSTEM : System DescriptionINFOID:0000000006217706
INPUT/OUTPUT SIGNAL CHART
*1: ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to the ECM via the CAN communication line.
SYSTEM DESCRIPTION
Ignition order: 1 - 8 - 7 - 3 - 6 - 5 - 4 - 2
The ignition timing is controlled by the ECM to maintain the best air-fuel ratio for every running condition of the
engine. The ignition timing data is stored in the ECM.
The ECM receives information such as the injection pulse width and camshaft position sensor signal. Comput-
ing this information, ignition signals are transmitted to the power transistor.
During the following conditions, the ignition timing is re vised by the ECM according to the other data stored in
the ECM.
At starting
During warm-up
At idle
At low battery voltage
During acceleration
The knock sensor retard system is designed only for emergencies. The basic ignition timing is programmed
within the anti-knocking zone, if recommended fuel is used under dry conditions. The retard system does not
operate under normal driving conditions. If engine knocking occurs, the knock sensor monitors the condition.
The signal is transmitted to the ECM. The ECM retards the ignition timing to eliminate the knocking condition.
JPBIA3271GB
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor Engine speed*
1
Piston position
Ignition timing
controlIgnition coil
(with power transistor)
Camshaft position sensor
Mass air flow sensor Amount of intake air
Engine coolant temperature sensor Engine coolant temperature
Throttle position sensor Throttle position
Accelerator pedal position sensor Accelerator pedal position
TCM Gear position
Battery
Battery voltage*
1
Knock sensor Engine knocking condition
Combination meterVehicle speed*
2
Revision: 2010 May2011 QX56

Page 2067 of 5598

INFINITI QX56 2011 Factory Service Manual
SYSTEMEC-43
< SYSTEM DESCRIPTION > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
INTAKE VALVE TIMING CONTROL
INTAKE VALVE TIMING CONTROL : System DiagramINFOID:0000000006217707
INTAKE VALVE TIMING CONT
RO

Page 2068 of 5598

INFINITI QX56 2011 Factory Service Manual
EC-44
< SYSTEM DESCRIPTION >[VK56VD]
SYSTEM
VVEL SYSTEM : System Diagram
INFOID:0000000006217709
VVEL SYSTEM : System DescriptionINFOID:0000000006217710
INPUT/OUTPUT SIGNAL CHART
SYSTEM DESCRIPTION
J

Page 2069 of 5598

INFINITI QX56 2011 Factory Service Manual
SYSTEMEC-45
< SYSTEM DESCRIPTION > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
VVEL (Variable Valve Event & Lift) is a system that
controls valve event and valve lift continuously.
ECM decides the targ

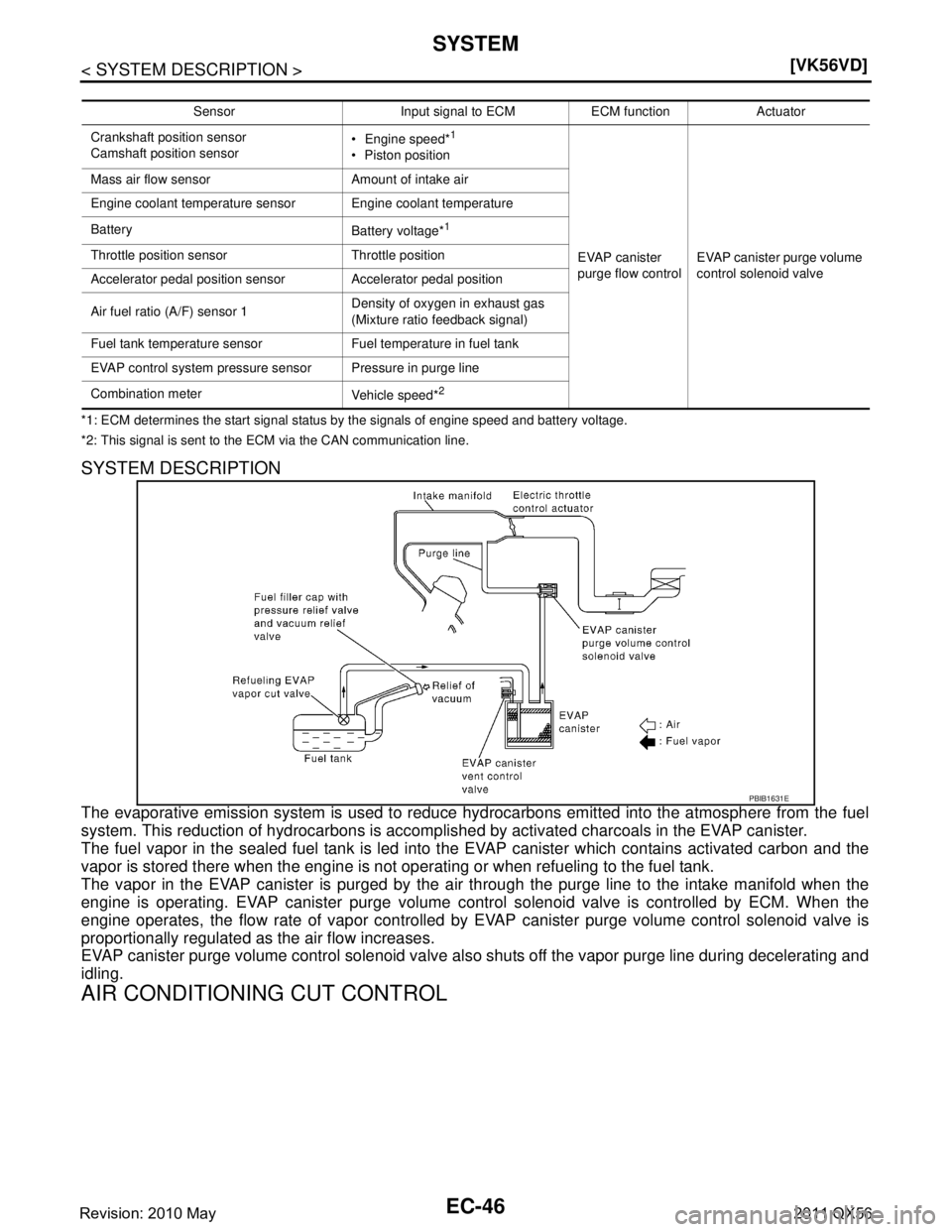

Page 2070 of 5598

INFINITI QX56 2011 Factory Service Manual
EC-46
< SYSTEM DESCRIPTION >[VK56VD]
SYSTEM
*1: ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to the ECM via the CAN communication

Page 2071 of 5598

INFINITI QX56 2011 Factory Service Manual
SYSTEMEC-47
< SYSTEM DESCRIPTION > [VK56VD]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

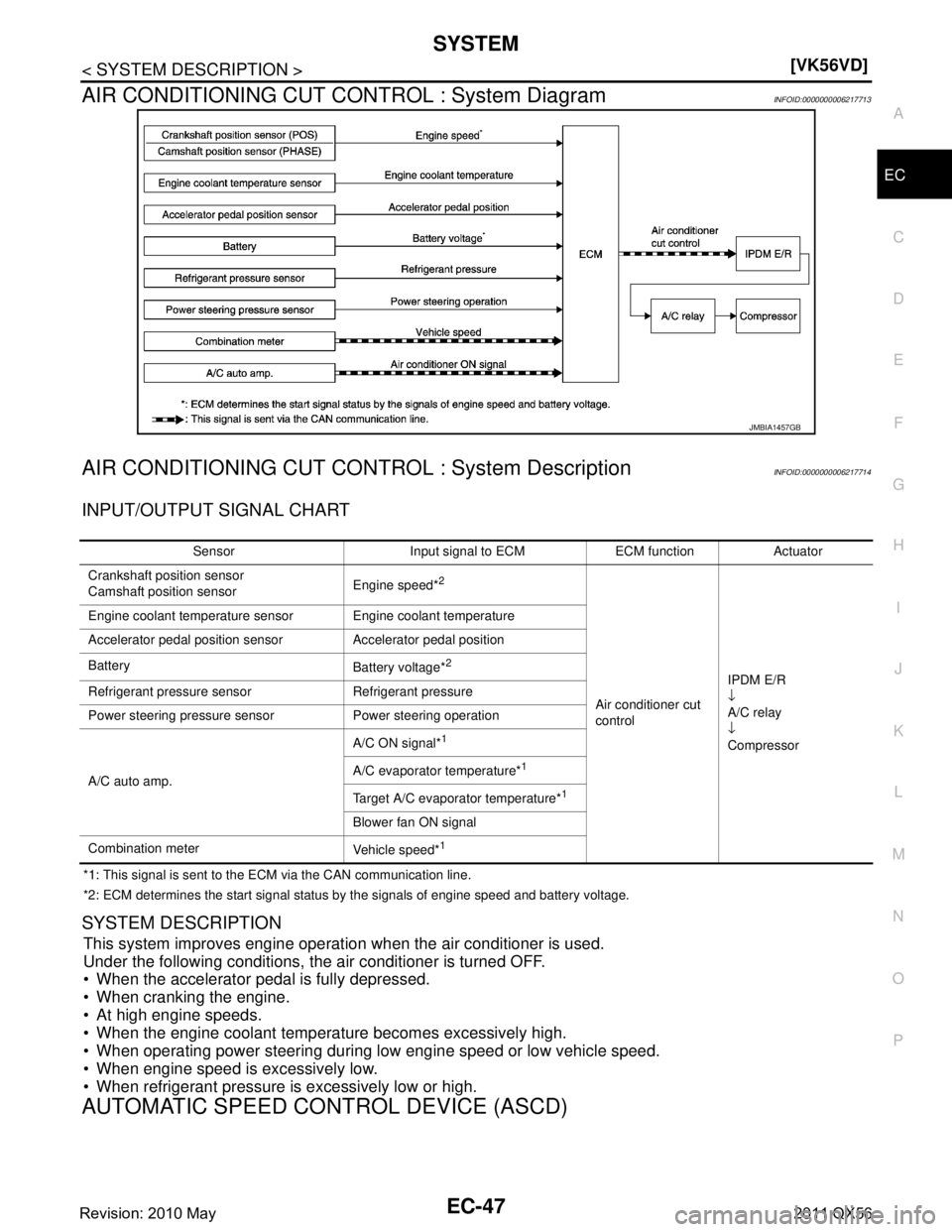

AIR CONDITIONING CUT CONTROL : System DiagramINFOID:0000000006217713
AIR CONDITIONING CUT CONTROL : System DescriptionINFOI

Page 2072 of 5598

INFINITI QX56 2011 Factory Service Manual
EC-48
< SYSTEM DESCRIPTION >[VK56VD]
SYSTEM
AUTOMATIC SPEED CONTROL DEVI CE (ASCD) : System Diagram
INFOID:0000000006217715
AUTOMATIC SPEED CONTROL DEVICE (ASCD) : System DescriptionINFOID:000000000

EC-48
< SYSTEM DESCRIPTION >[VK56VD]
SYSTEM
AUTOMATIC SPEED CONTROL DEVI CE (ASCD) : System Diagram
INFOID:0000000006217715
AUTOMATIC SPEED CONTROL DEVICE (ASCD) : System DescriptionINFOID:0000000006217716
INPUT/OUTPUT SIGNAL CHART
*: This signal is sent to the ECM via the CAN communication line
BASIC ASCD SYSTEM
Automatic Speed Control Device (ASCD) allows a dr iver to keep vehicle at predetermined constant speed
without depressing accelerator pedal. Driver can be set the vehicle speed in the set speed range.
ECM controls throttle angle of electric th rottle control actuator to regulate engine speed.
Operation status of ASCD is indicated in combination meter.
If any malfunction occurs in the ASCD system, it automatically deactivates the ASCD control.
Refer to EC-49, "
AUTMATIC SPEED CONTROL DEVICE (A SCD) : Switch Name and Function" for ASCD
operating instructions.
CAUTION:
Always drive vehicle in a safe manner according to traffic conditions and obey all traffic laws.
CAN COMMUNICATION
CAN COMMUNICATION : System DescriptionINFOID:0000000006217718
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication s peed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CA N communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
Refer to LAN-28, "
CAN COMMUNICATION SYSTEM : CAN Communication Signal Chart", about CAN com-
munication for detail.
JPBIA3272GB
Sensor Input signal to ECM ECM function Actuator
ASCD steering switch ASCD steering switch operation
ASCD vehicle speed control Electric throttle control ac-
tuator
Combination meter
ASCD brake switch
Brake pedal operation
Sto p l am p s w it ch
TCM Park/neutral position signal
Output shaft revolution signal*
Combination meter Vehicle speed signal*
Revision: 2010 May2011 QX56
