Page 4489 of 5598

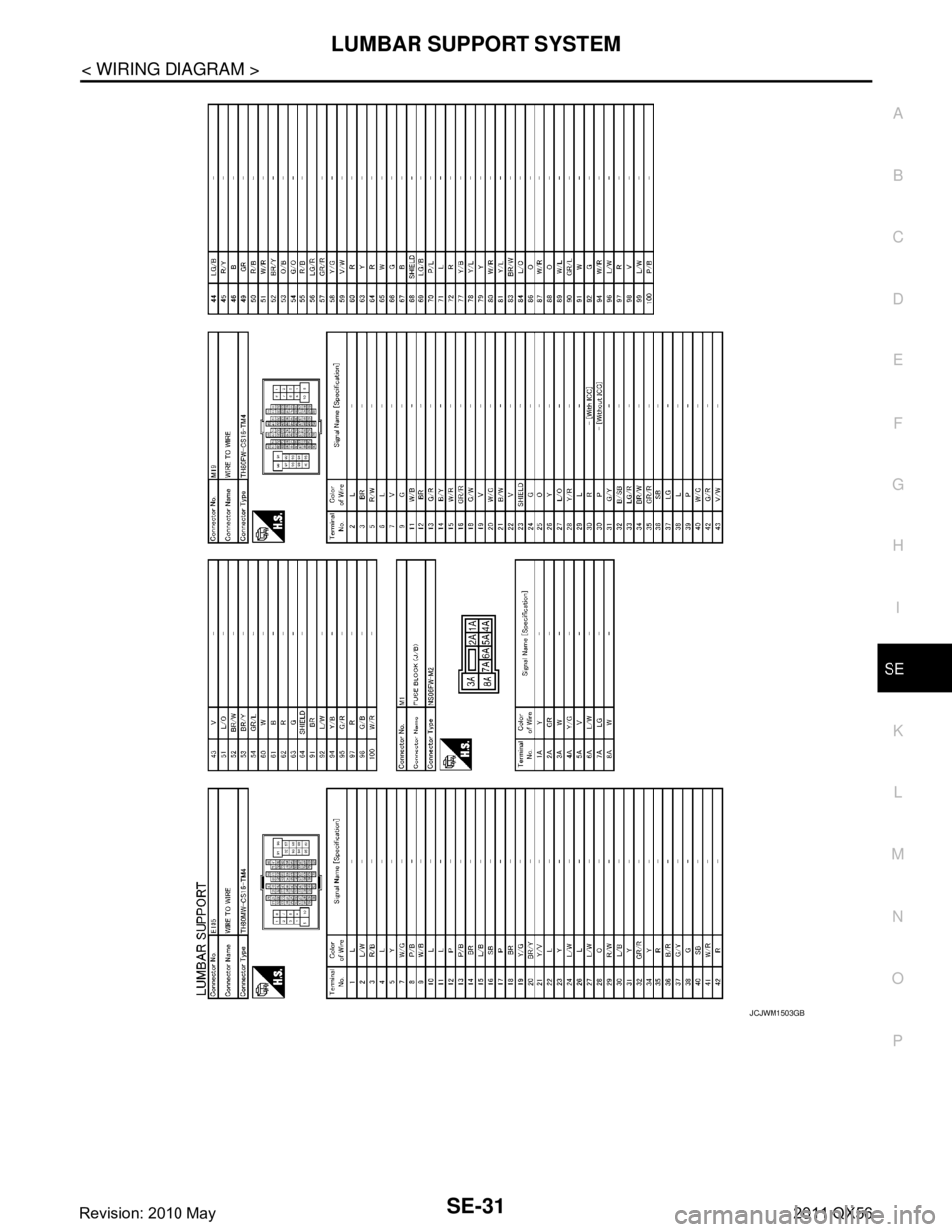

INFINITI QX56 2011 Factory Service Manual SE-30 < WIRING DIAGRAM > LUMBAR SUPPORT SYSTEM JCJWM1502GB Revision: 2010 May2011 QX56

Page 4490 of 5598

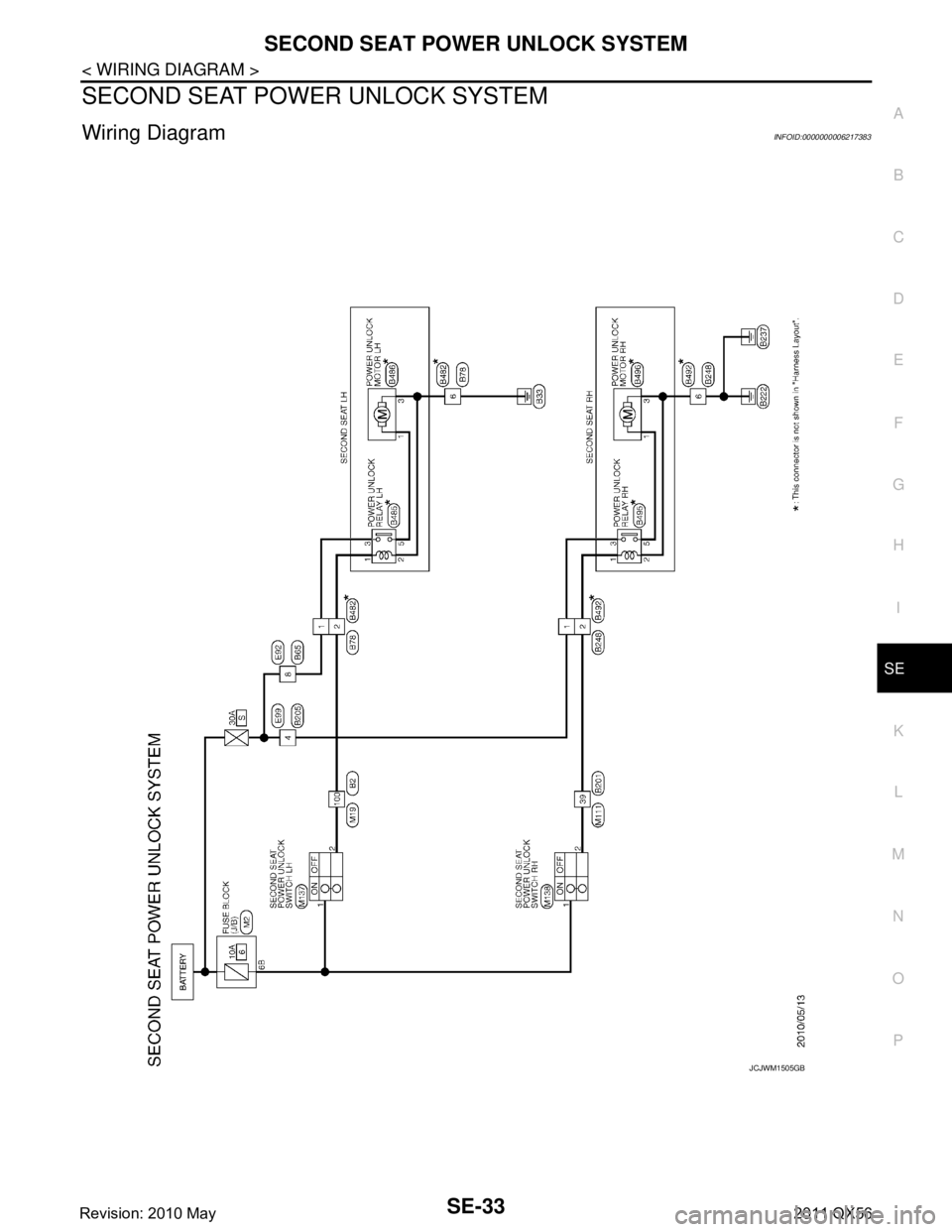

INFINITI QX56 2011 Factory Service Manual LUMBAR SUPPORT SYSTEMSE-31 < WIRING DIAGRAM > C DE F G H I K L M A B SE N O P JCJWM1503GB Revision: 2010 May2011 QX56

Page 4491 of 5598

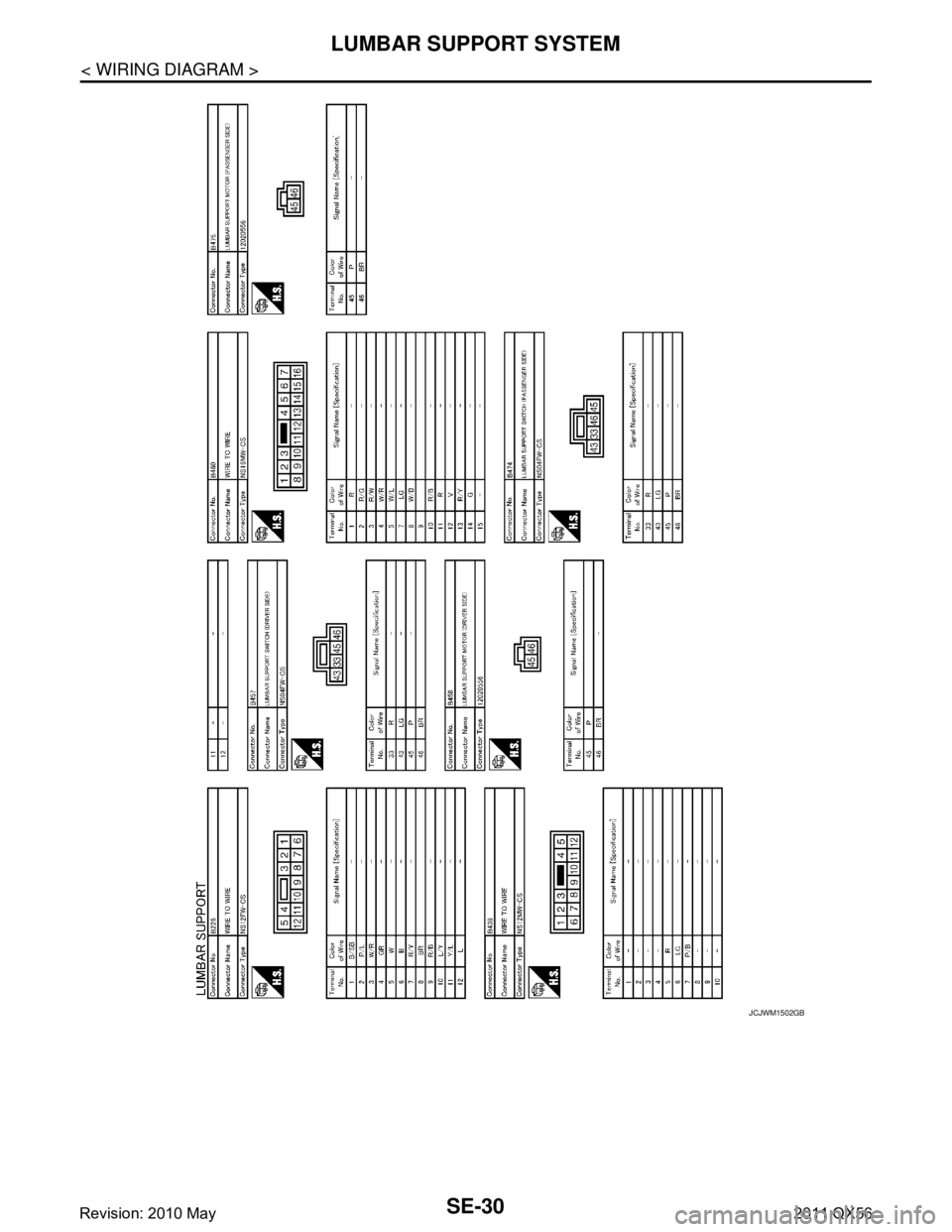

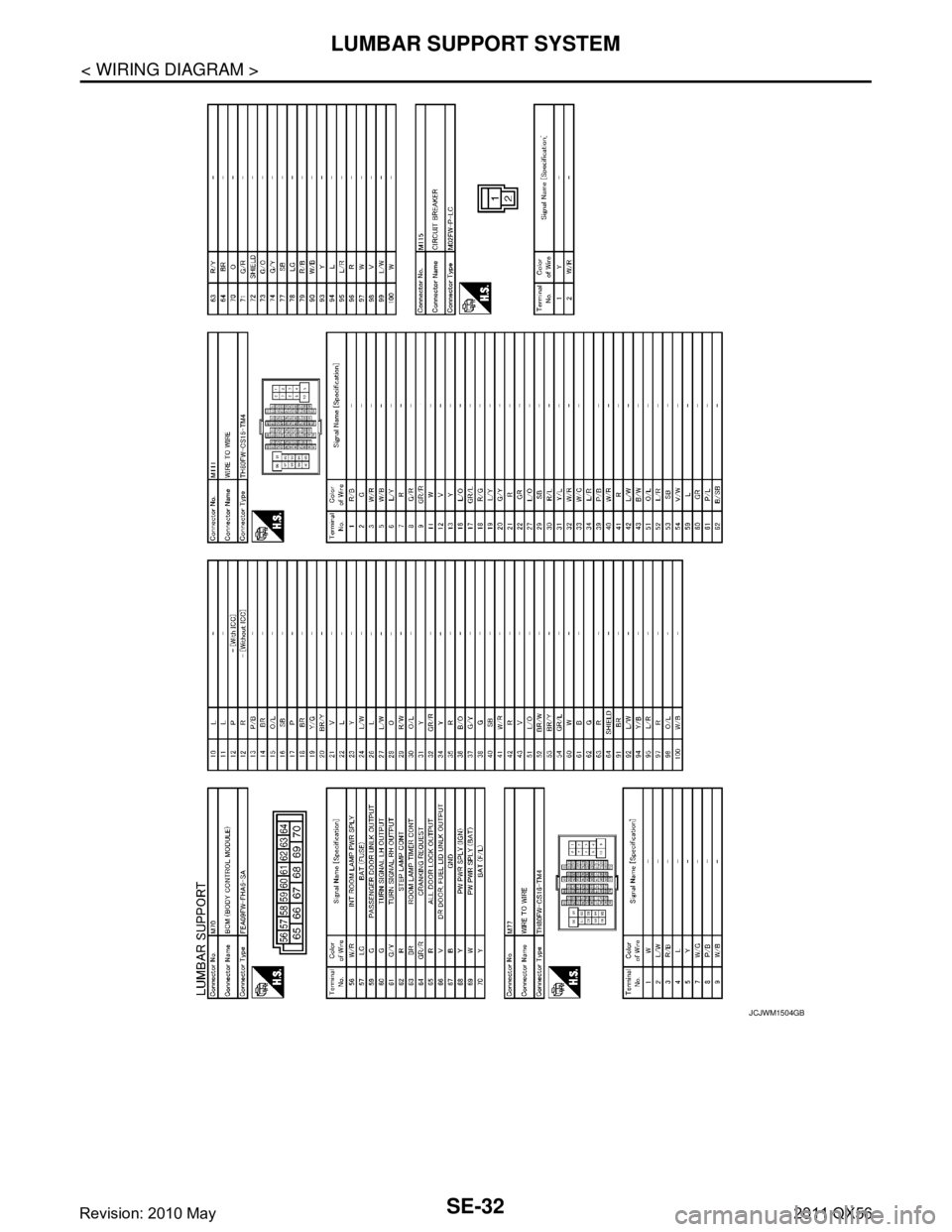

INFINITI QX56 2011 Factory Service Manual SE-32 < WIRING DIAGRAM > LUMBAR SUPPORT SYSTEM JCJWM1504GB Revision: 2010 May2011 QX56

Page 4492 of 5598

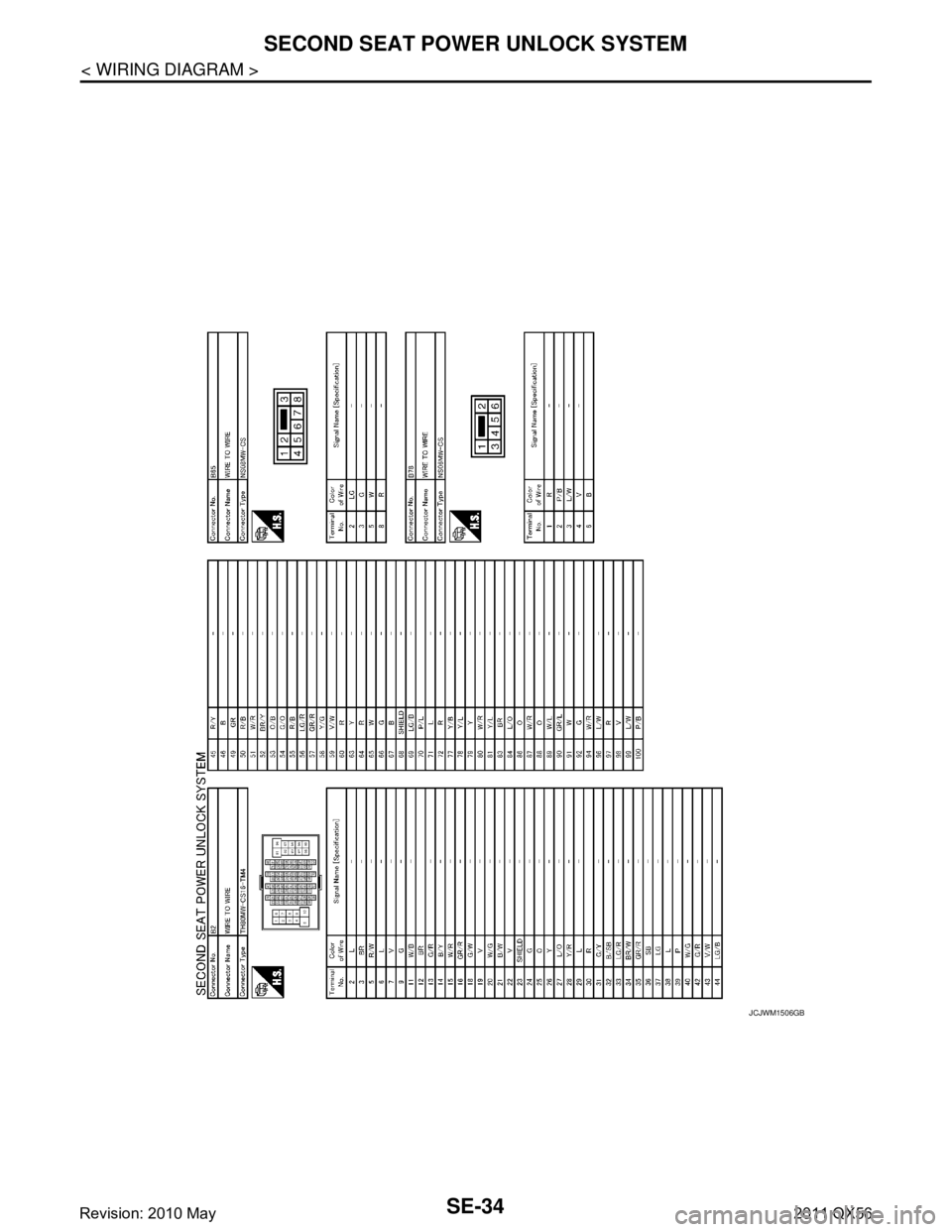

INFINITI QX56 2011 Factory Service Manual SECOND SEAT POWER UNLOCK SYSTEMSE-33 < WIRING DIAGRAM > C DE F G H I K L M A B SE N O P SECOND SEAT POWER UNLOCK SYSTEM Wiring DiagramINFOID:0000000006217383 JCJWM1505GB Revision: 2010 May2011 QX56

Page 4493 of 5598

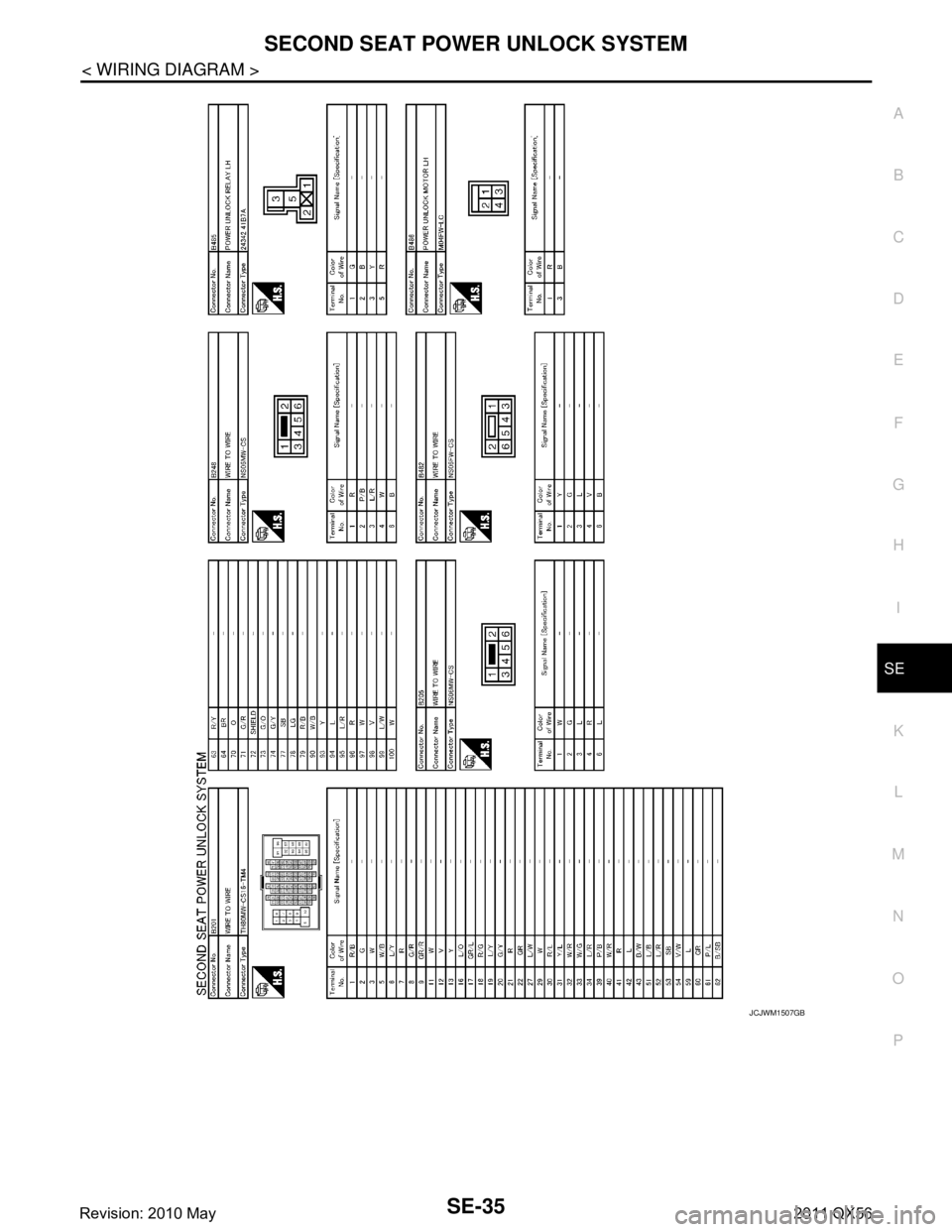

INFINITI QX56 2011 Factory Service Manual SE-34 < WIRING DIAGRAM > SECOND SEAT POWER UNLOCK SYSTEM JCJWM1506GB Revision: 2010 May2011 QX56

Page 4494 of 5598

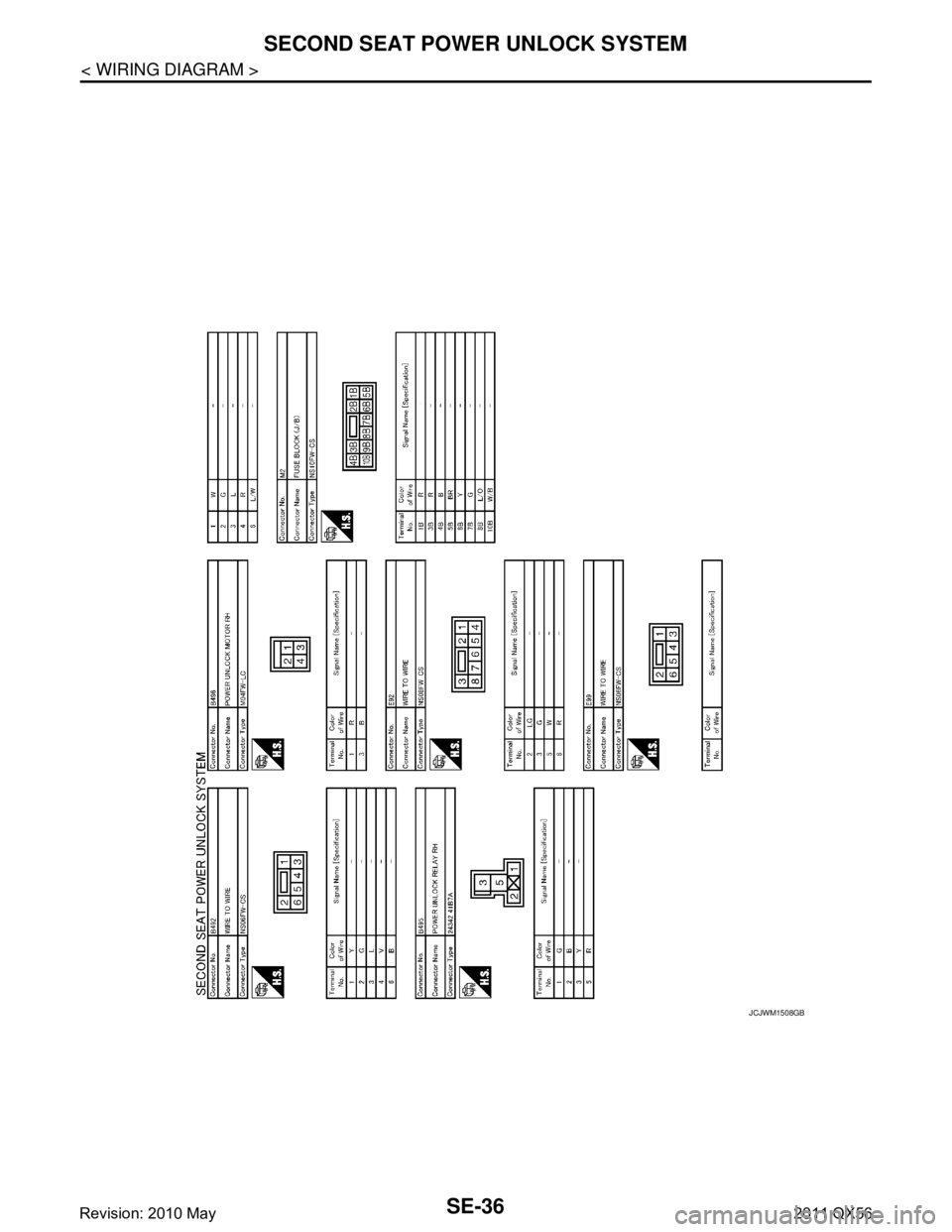

INFINITI QX56 2011 Factory Service Manual SECOND SEAT POWER UNLOCK SYSTEMSE-35 < WIRING DIAGRAM > C DE F G H I K L M A B SE N O P JCJWM1507GB Revision: 2010 May2011 QX56

Page 4495 of 5598

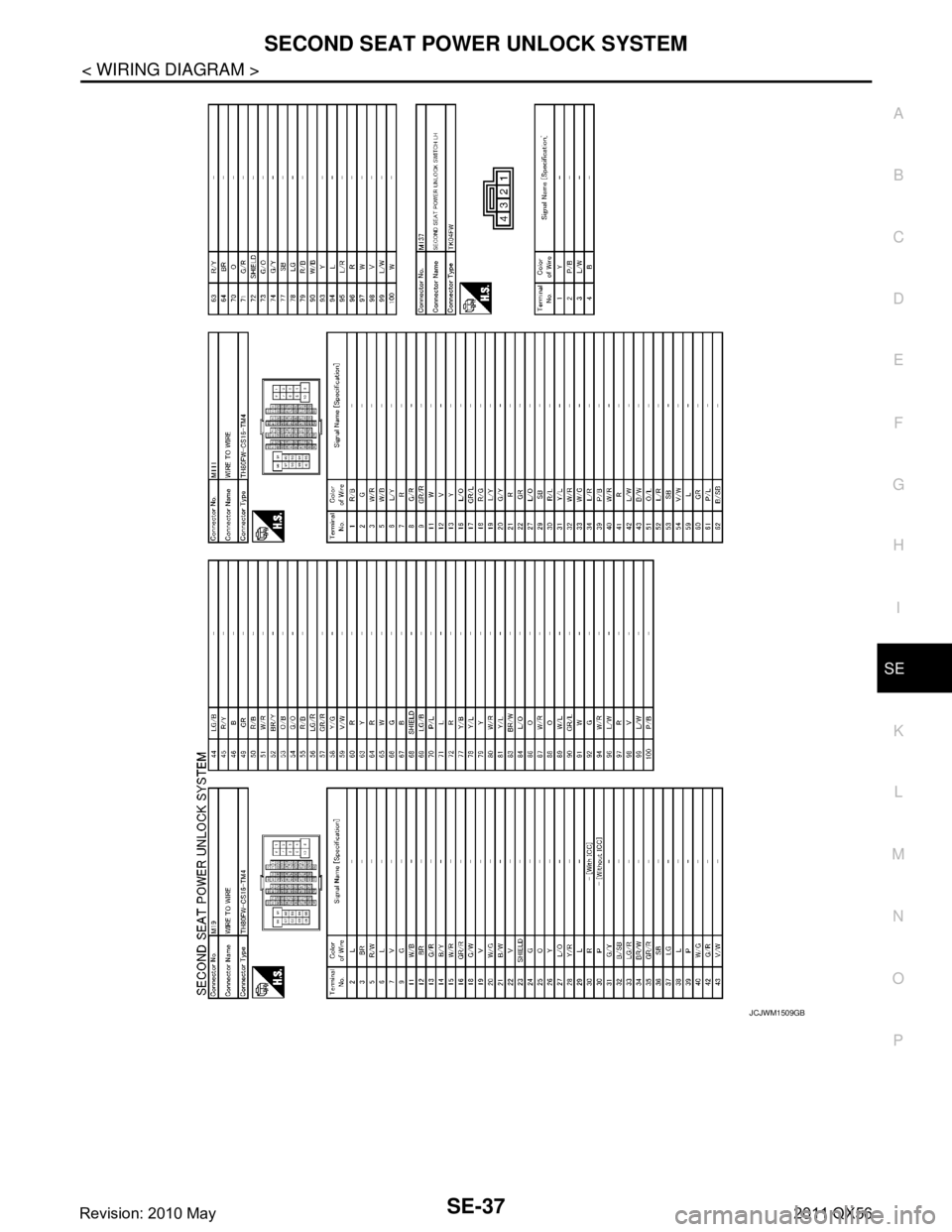

INFINITI QX56 2011 Factory Service Manual SE-36 < WIRING DIAGRAM > SECOND SEAT POWER UNLOCK SYSTEM JCJWM1508GB Revision: 2010 May2011 QX56

Page 4496 of 5598

INFINITI QX56 2011 Factory Service Manual SECOND SEAT POWER UNLOCK SYSTEMSE-37 < WIRING DIAGRAM > C DE F G H I K L M A B SE N O P JCJWM1509GB Revision: 2010 May2011 QX56
