Page 4569 of 5598

INFINITI QX56 2011 Factory Service Manual
SE-110
< REMOVAL AND INSTALLATION >
FRONT SEAT

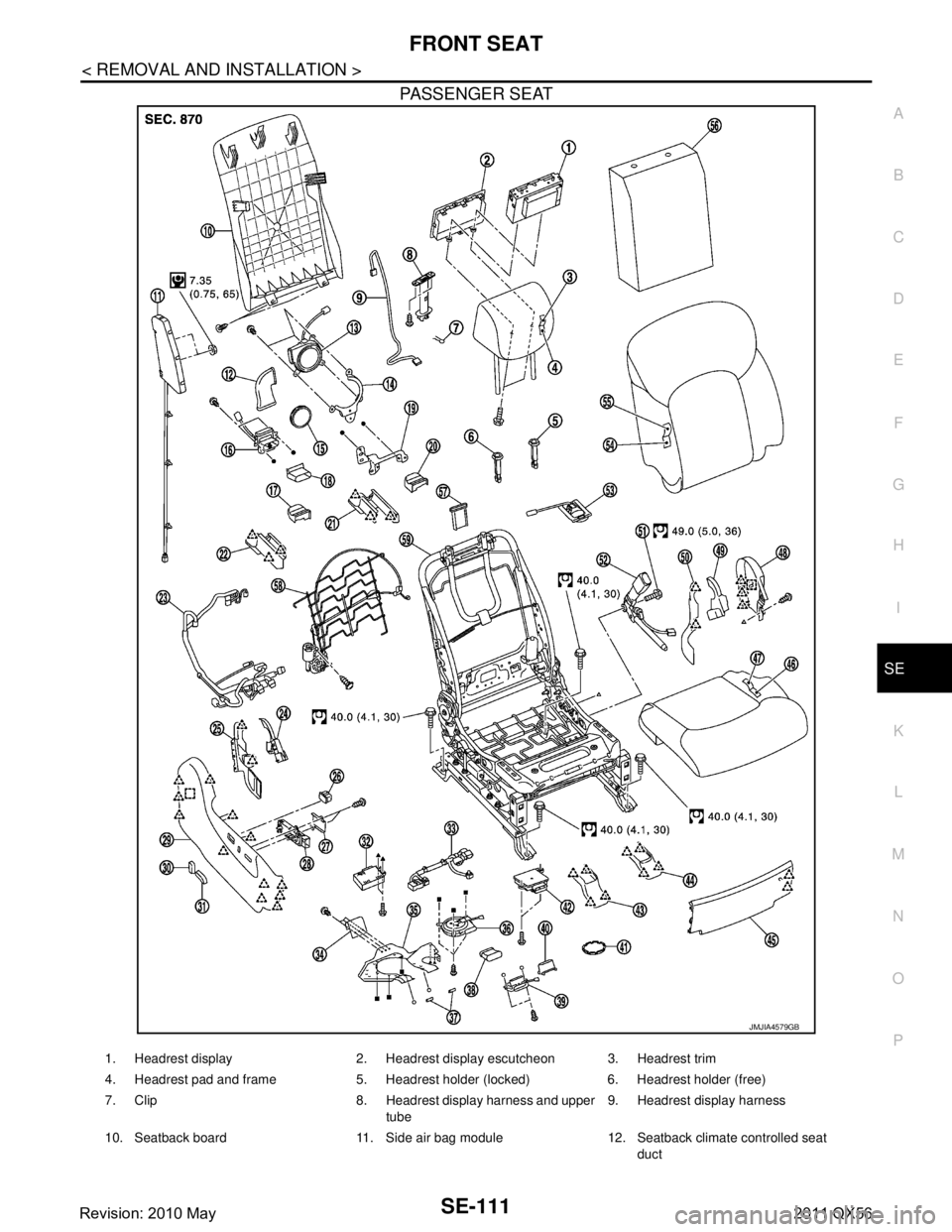

16. Seat cushion trim 17. Seat cushion pad 18. Seat control unit
19. Seat cushion front finisher 20. Front inner slide cover 21. Front outer slide cover

Page 4570 of 5598

INFINITI QX56 2011 Factory Service Manual
FRONT SEATSE-111
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
PASSENGER SEAT
JMJIA4579GB
1. Headrest display 2. Headrest display escutcheon 3. Headrest trim
4. Headrest pad and frame

Page 4571 of 5598

INFINITI QX56 2011 Factory Service Manual
SE-112
< REMOVAL AND INSTALLATION >
FRONT SEAT
Removal and Installation
INFOID:0000000006217424
REMOVAL
CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
When

SE-112
< REMOVAL AND INSTALLATION >
FRONT SEAT
Removal and Installation
INFOID:0000000006217424
REMOVAL
CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
When removing and installing, 2 workers are required so as to prevent it from dropping.
1. Remove the front slide cover.
a. Front outer slide cover Slide the seat to the rearmost position.
Pull up the front edge of the front slide cover to release the
pawls.
Slide the front slide cover forward to release the pawls.
13. Climate controlled seatback blower
motor 14. Climate controlled seatback blower
motor bracket 15. Seatback climate controlled seat
blower filter
16. Seatback thermal electric unit 17. Seat cushion lower outer finisher 18. Seatback climate controlled seat duct finisher
19. Seatback thermal electric unit brack- et 20. Seat cushion lower inner finisher 21. Rear inner slide cover
22. Rear outer slide cover 23. Seat harness 24. Seat cushion outer finisher inside (front)
25. Seat cushion outer finisher inside (rear) 26. Lumber support switch 27. Seat control switch cover
28. Seat control switch 29. Seat cushion outer finisher 30. Seat reclining switch knob
31. Seat slide and lifter switch knob 32. Climate controlled seat control unit 33. Seat cushion climate controlled seat harness
34. Seat cushion climate controlled seat hook (rear) 35. Seat cushion climate controlled seat
bracket 36. Climate controlled seat cushion
blower motor
37. Seat cushion climate controlled seat hook (front) 38. Seat cushion climate controlled seat
duct 39. Seat cushion thermal electric unit
40. Seat cushion climate controlled seat duct finisher 41. Seat cushion climate controlled seat
blower filter 42. Occupant detection system control
unit
43. Front outer slide cover 44. Front inner slide cover 45. Seat cushion front finisher
46. Seat cushion pad 47. Seat cushion trim 48. Seat cushion inner finisher
49. Seat cushion inner finisher inside (front) 50. Seat cushion inner finisher inside
(rear) 51. Anchor bolt
52. Seat belt buckle pre-tensioner 53. Foot welcome lamp 54. Seatback pad
55. Seatback trim 56. Seatback silencer 57. Headrest display harness lower tube
58. Lumber support unit assembly 59. Seat frame assembly : Pawl
: Metal clip
Refer to GI-4, "
Components" for symbols in the figure.
: Pawl
JMJIA3824ZZ
Revision: 2010 May2011 QX56

Page 4572 of 5598

INFINITI QX56 2011 Factory Service Manual
FRONT SEATSE-113
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
b. Front inner slide cover Slide the seat to the rearmost position.
Pull up the front edge of the front slide cover t

Page 4573 of 5598

INFINITI QX56 2011 Factory Service Manual
SE-114
< REMOVAL AND INSTALLATION >
FRONT SEAT
SEATBACK
SEATBACK : Disassembly and AssemblyINFOID:0000000006217425
DISASSEMBLY
1. Remove the seatback board.1. Remove the screws (A) on lower side of t

Page 4574 of 5598

INFINITI QX56 2011 Factory Service Manual
FRONT SEATSE-115
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
3. Remove the headrest holder from the seatback while pressing the pawls as shown by the arrows in the figure.
CAUTION:
B

Page 4575 of 5598

INFINITI QX56 2011 Factory Service Manual
SE-116
< REMOVAL AND INSTALLATION >
FRONT SEAT
SEAT CUSHION : Disa ssembly and Assembly
INFOID:0000000006217426
DISASSEMBLY
1. Remove the seat cushion outer finisher.
1. Remove the metal clips and pa

Page 4576 of 5598

INFINITI QX56 2011 Factory Service Manual
FRONT SEATSE-117
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
ASSEMBLY
Assemble in the reverse order of disassembly.
CAUTION:
Install the hog rings of seat cushion trim in positi on,

Load next 8 pages
