2011 INFINITI QX56 Factory Service Manual

warning lights service indicator parking sensors carplay wheel size gearbox

Page 2721 of 5598

INFINITI QX56 2011 Factory Service Manual
SYSTEMEXL-11
< SYSTEM DESCRIPTION > [XENON TYPE]
C
D
E
F
G H
I
J
K
M A
B
EXL
N
O P
*: With daytime running light system
AUTO LIGHT SYSTEM

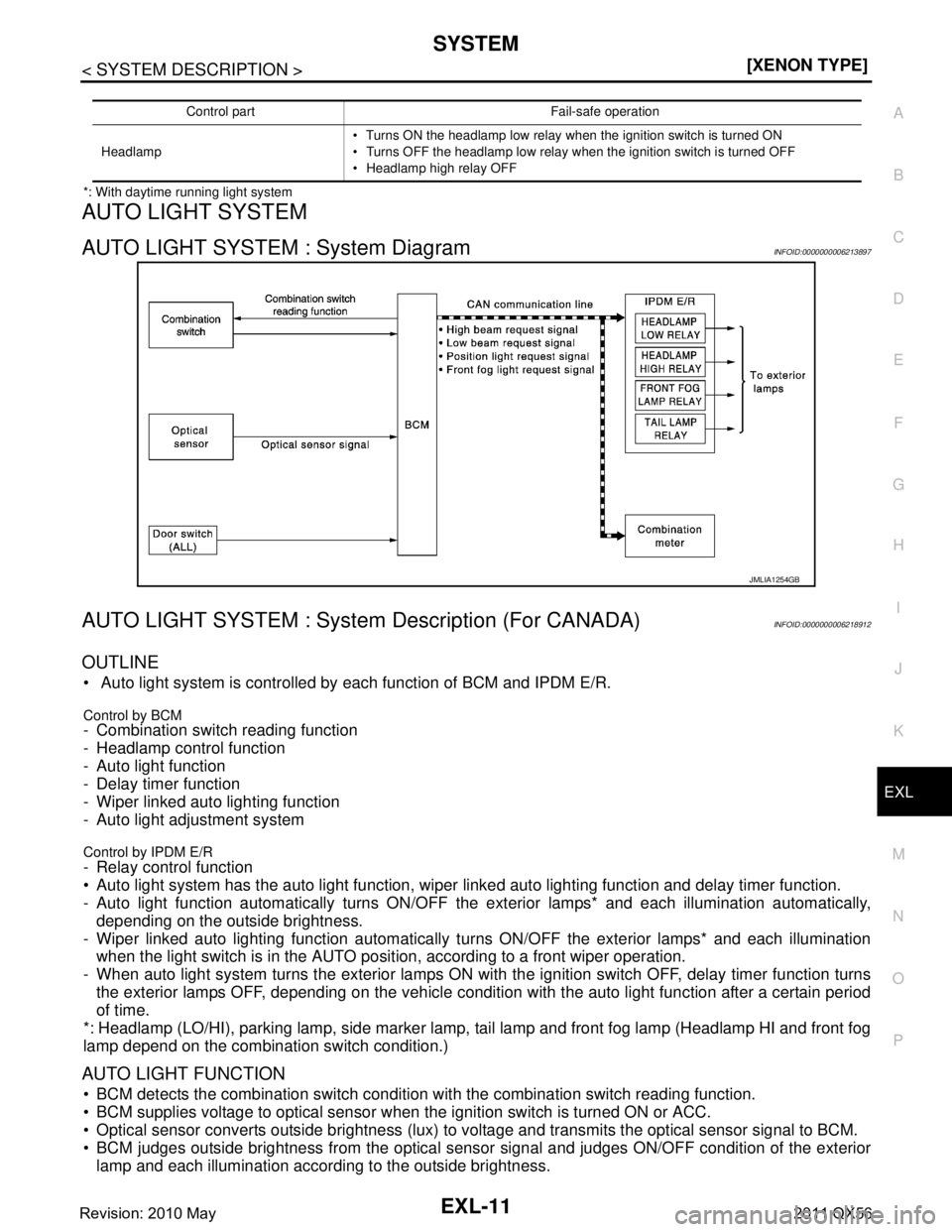

AUTO LIGHT SYSTEM : System DiagramINFOID:0000000006213897
AUT

SYSTEMEXL-11
< SYSTEM DESCRIPTION > [XENON TYPE]
C
D
E
F
G H
I
J
K
M A
B
EXL
N
O P
*: With daytime running light system
AUTO LIGHT SYSTEM
AUTO LIGHT SYSTEM : System DiagramINFOID:0000000006213897
AUTO LIGHT SYSTEM : System Description (For CANADA)INFOID:0000000006218912
OUTLINE
Auto light system is controlled by each function of BCM and IPDM E/R.
Control by BCM- Combination switch reading function
- Headlamp control function
- Auto light function
- Delay timer function
- Wiper linked auto lighting function
- Auto light adjustment system
Control by IPDM E/R
- Relay control function
Auto light system has the auto light function, wiper linked auto lighting function and delay timer function.
- Auto light function automatically turns ON/OFF the exterior lamps* and each illumination automatically,
depending on the outside brightness.
- Wiper linked auto lighting function automatically tu rns ON/OFF the exterior lamps* and each illumination
when the light switch is in the AUTO posit ion, according to a front wiper operation.
- When auto light system turns the exterior lamps ON wit h the ignition switch OFF, delay timer function turns
the exterior lamps OFF, depending on the vehicle condition with the auto light function after a certain period
of time.
*: Headlamp (LO/HI), parking lamp, side marker lamp, tail lamp and front fog lamp (Headlamp HI and front fog
lamp depend on the combination switch condition.)
AUTO LIGHT FUNCTION
BCM detects the combination switch conditi on with the combination switch reading function.
BCM supplies voltage to optical sensor when the ignition switch is turned ON or ACC.
Optical sensor converts outside brightness (lux) to voltage and transmits the optical sensor signal to BCM.
BCM judges outside brightness from the optical sens or signal and judges ON/OFF condition of the exterior
lamp and each illumination according to the outside brightness.
Control part Fail-safe operation
Headlamp Turns ON the headlamp low relay when the ignition switch is turned ON
Turns OFF the headlamp low relay when the ignition switch is turned OFF
Headlamp high relay OFF
JMLIA1254GB
Revision: 2010 May2011 QX56

Page 2722 of 5598

INFINITI QX56 2011 Factory Service Manual
EXL-12
< SYSTEM DESCRIPTION >[XENON TYPE]
SYSTEM
BCM transmits each request signal to IPDM E/R wit
h CAN communication according to ON/OFF condition
by the auto light function.
NOTE:
ON/OFF timing

EXL-12
< SYSTEM DESCRIPTION >[XENON TYPE]
SYSTEM
BCM transmits each request signal to IPDM E/R wit
h CAN communication according to ON/OFF condition
by the auto light function.
NOTE:
ON/OFF timing differs based on the sensit ivity from the setting. The setting can be set by CONSULT-III. Refer
to EXL-23, "
HEADLAMP : CONSULT-III Function (BCM - HEAD LAMP)".
AUTO LIGHT ADJUSTMENT SYSTEM
The auto light adjustment system automatically, dims/bri ghtens the display and combination meter, according
to brightness outside the vehicle, when lighting switch 1ST or lighting switch 2ND is operated. Refer to INL-11,
"AUTO LIGHT ADJUSTMENT SYSTEM : System Description".
DELAY TIMER FUNCTION
BCM turns the exterior lamp OFF depending on the vehicle condition with the auto light function when the igni-
tion switch is turned OFF.
Turns the exterior lamp OFF 5 minutes afte r detecting that any door opens. (Door switch ON).
Turns the exterior lamp OFF a certain period of time* after closing all doors. (Door switch ON →OFF).
Turns the exterior lamp OFF with the igni tion switch ACC or the light switch OFF.
*: The preset time is 45 seconds. The timer operat ing time can be set by CONSULT-III. Refer to EXL-23,
"HEADLAMP : CONSULT-III Function (BCM - HEAD LAMP)".
NOTE:
When any position other than the light switch AUTO is set, the auto light system function switches to the exte-
rior lamp battery saver function.
AUTO LIGHT SYSTEM : System De scription (Except for CANADA)INFOID:0000000006218908
OUTLINE
Auto light system is controlled by each function of BCM and IPDM E/R.
Control by BCM- Combination switch reading function
- Headlamp control function
- Auto light function
- Delay timer function
- Wiper linked auto lighting function
- Auto light adjustment system
Control by IPDM E/R- Relay control function
Auto light system has the auto light function (with twilight lighting function), wiper linked auto lighting function
and delay timer function.
- Auto light function automatically turns ON/OFF the exterior lamps* and each illumination automatically,
depending on the outside brightness.
- Wiper linked auto lighting function automatically turn s ON/OFF the exterior lamps* and each illumination
when the light switch is in the AUTO posit ion, according to a front wiper operation.
- When auto light system turns the exterior lamps ON with the ignition switch OFF, delay timer function turns the exterior lamps OFF, depending on the vehicle conditi on with the auto light function after a certain period
of time.
*: Headlamp (LO/HI), parking lamp, side marker lamp, tail lamp and front fog lamp (Headlamp HI and front fog
lamp depend on the combination switch condition.)
NOTE:
The settings of the twilight lighting function and the wiper linked auto lighting function can be changed with
CONSULT-III. Refer to EXL-23, "
HEADLAMP : CONSULT-III Function (BCM - HEAD LAMP)".
AUTO LIGHT FUNCTION (WITH TWILIGHT LIGHTING FUNCTION)
Description
BCM detects the combination switch conditi on with the combination switch reading function.
BCM supplies voltage to the optical sensor when the ignition switch is turned ON or ACC.
Optical sensor converts outside brightness (lux) to voltage and transmits the optical sensor signal to BCM.
When ignition switch is turned ON, BCM detects out side brightness from the optical sensor signal and
judges ON/OFF condition of the exterior lamp and each illumination, depending on the outside brightness
condition (standard or twilight).
Revision: 2010 May2011 QX56

Page 2723 of 5598

INFINITI QX56 2011 Factory Service Manual
SYSTEMEXL-13
< SYSTEM DESCRIPTION > [XENON TYPE]
C
D
E
F
G H
I
J
K
M A
B
EXL
N
O P
BCM transmits each request signal to IPDM E/R via CAN communication, according to ON/OFF condition by
the auto li

SYSTEMEXL-13
< SYSTEM DESCRIPTION > [XENON TYPE]
C
D
E
F
G H
I
J
K
M A
B
EXL
N
O P
BCM transmits each request signal to IPDM E/R via CAN communication, according to ON/OFF condition by
the auto light function.
NOTE:
As to ON/OFF timing, the sensitivity depends on sett ings. The settings can be changed with CONSULT-III.
Refer to EXL-23, "
HEADLAMP : CONSULT-III F unction (BCM - HEAD LAMP)".
Auto Lighting Timing Table
When the light switch is in AUTO position and the ignition switch is ON, the exterior lamps turns ON/OFF in the
following condition.
Standard Light ON
BCM turns exterior lamps ON when outside brightness obtained from the optical sensor signal is 1250 lx or
less for 3 seconds or more. And BCM turns exterior lamp OFF when outside brightness from the optical sen-
sor signal is 2500 lx or more for 5 seconds or more.
Twilight Light ON (Twili ght Lighting Function)
BCM detects twilight by filtered brightness.
BCM filters outside brightness to block the impact of the rapid change in brightness, based on the optical
sensor signal, and judges outside brightness.
BCM detects changes in outside brightness, based on outside brightness obtained from the optical sensor
signal and filtered brightness and judges ON/OFF of the exterior lamps.

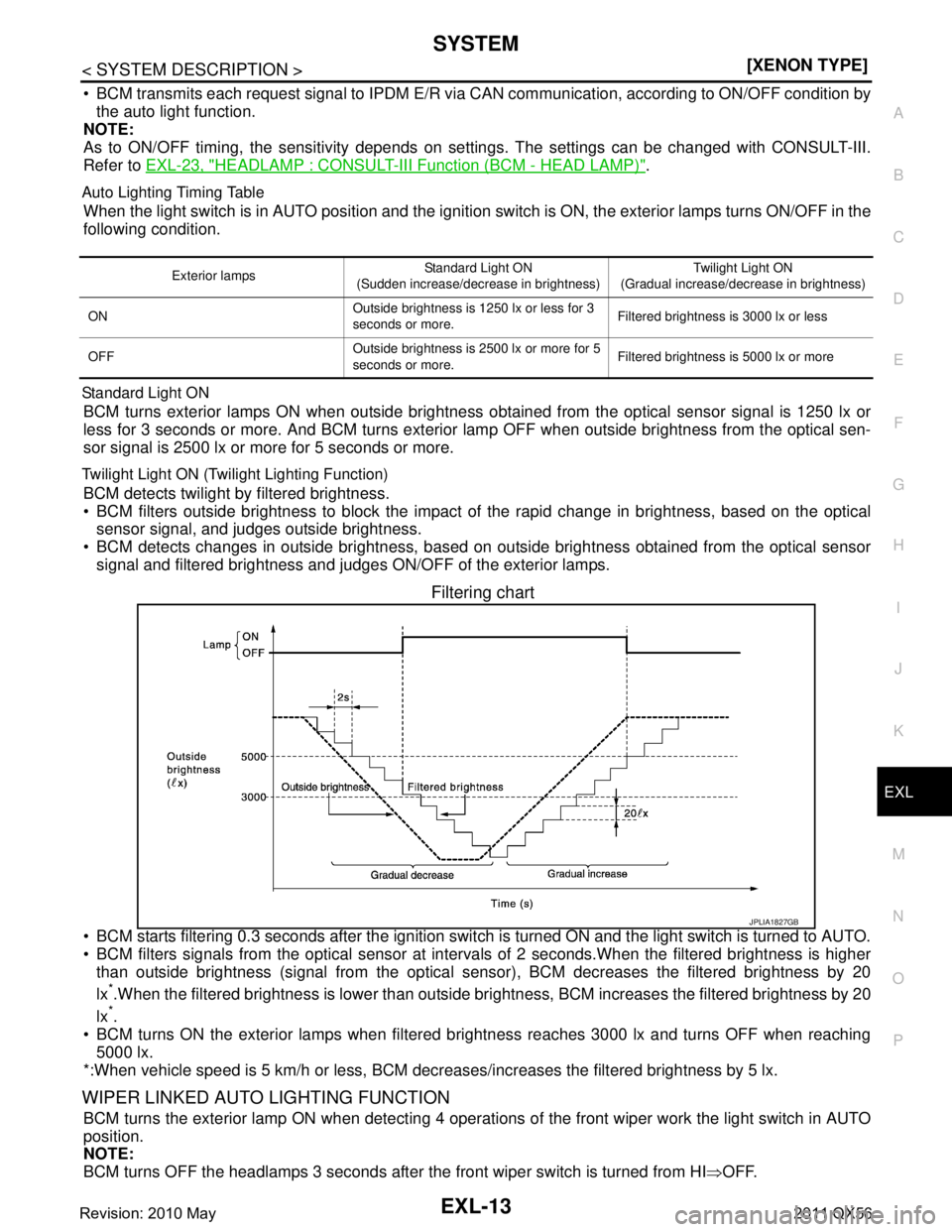

Filtering chart
BCM starts filtering 0.3 seconds after the ignition swit ch is turned ON and the light switch is turned to AUTO.
BCM filters signals from the optical sensor at intervals of 2 seconds.When the filtered brightness is higher
than outside brightness (signal from the optical sens or), BCM decreases the filtered brightness by 20
lx
*.When the filtered brightness is lower than outside bri ghtness, BCM increases the filtered brightness by 20
lx
*.
BCM turns ON the exterior lamps when filtered brightness reaches 3000 lx and turns OFF when reaching 5000 lx.
*:When vehicle speed is 5 km/h or less, BCM decr eases/increases the filtered brightness by 5 lx.
WIPER LINKED AUTO LIGHTING FUNCTION
BCM turns the exterior lamp ON when detecting 4 operations of the front wiper work the light switch in AUTO
position.
NOTE:
BCM turns OFF the headlamps 3 seconds after the front wiper switch is turned from HI⇒OFF.
Exterior lamps Standard Light ON
(Sudden increase/decrease in brightness) Twilight Light ON
(Gradual increase/decrease in brightness)
ON Outside brightness is 1250 lx or less for 3
seconds or more.Filtered brightness is 3000 lx or less
OFF Outside brightness is 2500 lx or more for 5
seconds or more.
Filtered brightness is 5000 lx or more
JPLIA1827GB
Revision: 2010 May2011 QX56

Page 2724 of 5598

INFINITI QX56 2011 Factory Service Manual
EXL-14
< SYSTEM DESCRIPTION >[XENON TYPE]
SYSTEM
AUTO LIGHT ADJUSTMENT SYSTEM
The auto light adjustment system automatically, dims/bri
ghtens the display and combination meter, according
to brightnes

EXL-14
< SYSTEM DESCRIPTION >[XENON TYPE]
SYSTEM
AUTO LIGHT ADJUSTMENT SYSTEM
The auto light adjustment system automatically, dims/bri
ghtens the display and combination meter, according
to brightness outside the vehicle, when lighting switch 1ST or lighting switch 2ND is operated. Refer to INL-11,
"AUTO LIGHT ADJUSTMENT SYSTEM : System Description".
DELAY TIMER FUNCTION
BCM turns the exterior lamp OFF depending on the vehicle condition with the auto light function when the igni-
tion switch is turned OFF.
Turns the exterior lamp OFF 5 minutes afte r detecting that any door opens. (Door switch ON).
Turns the exterior lamp OFF a certain period of time* after closing all doors. (Door switch ON →OFF).
Turns the exterior lamp OFF with the igni tion switch ACC or the light switch OFF.
*: The preset time is 45 seconds. The timer operat ing time can be set by CONSULT-III. Refer to EXL-23,
"HEADLAMP : CONSULT-III Function (BCM - HEAD LAMP)".
NOTE:
When any position other than the light switch AUTO is set, the auto light system function switches to the exte-
rior lamp battery saver function.
DAYTIME RUNNING LIGHT SYSTEM

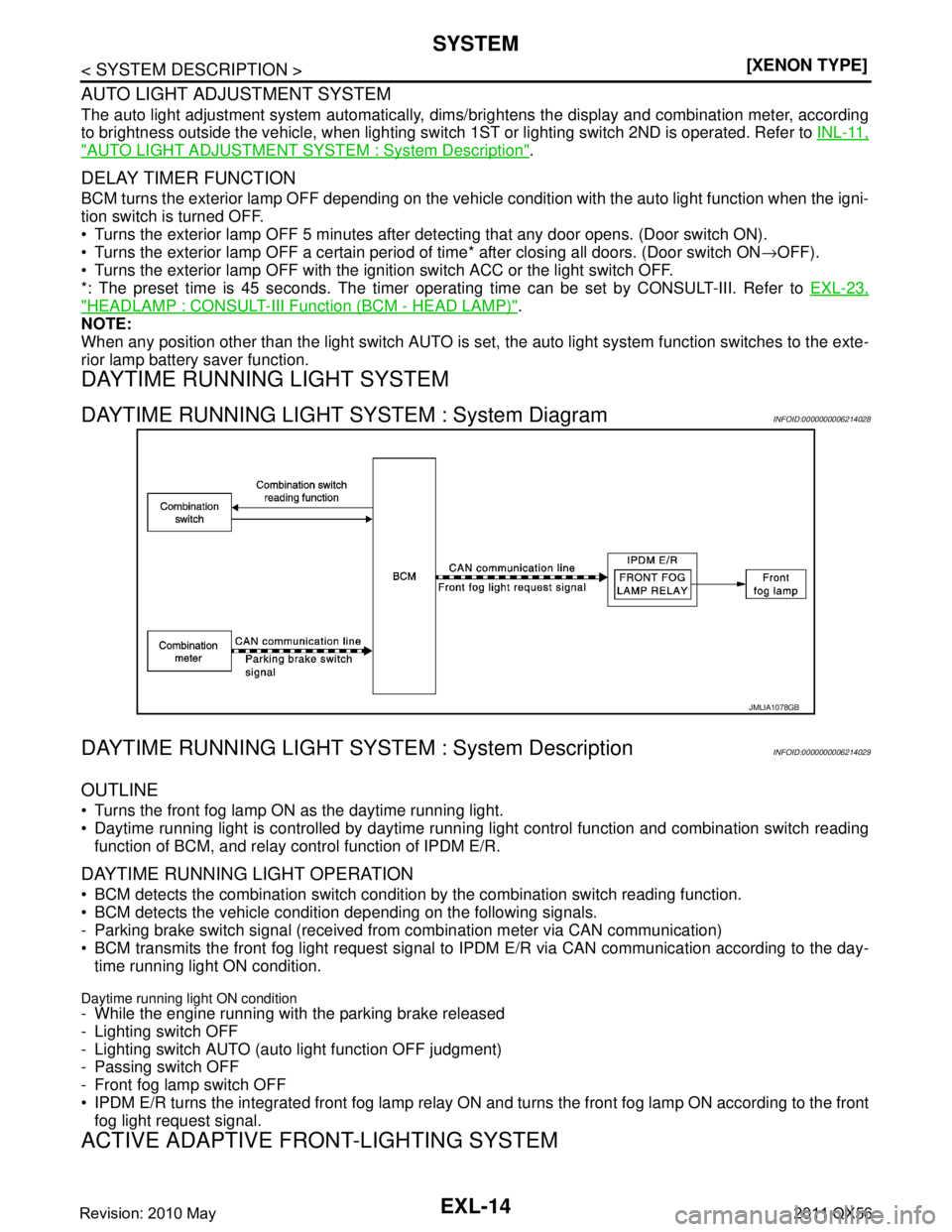

DAYTIME RUNNING LIGHT S YSTEM : System DiagramINFOID:0000000006214028
DAYTIME RUNNING LIGHT SYSTEM : System DescriptionINFOID:0000000006214029
OUTLINE
Turns the front fog lamp ON as the daytime running light.
Daytime running light is controlled by daytime runni ng light control function and combination switch reading
function of BCM, and relay c ontrol function of IPDM E/R.
DAYTIME RUNNING LIGHT OPERATION
BCM detects the combination switch conditi on by the combination switch reading function.
BCM detects the vehicle condition depending on the following signals.
- Parking brake switch signal (received from combination meter via CAN communication)
BCM transmits the front fog light request signal to IPDM E/R via CAN communication according to the day-
time running light ON condition.
Daytime running light ON condition- While the engine running with the parking brake released
- Lighting switch OFF
- Lighting switch AUTO (auto light function OFF judgment)
- Passing switch OFF
- Front fog lamp switch OFF
IPDM E/R turns the integrated front fog lamp relay ON and turns the front fog lamp ON according to the front
fog light request signal.
ACTIVE ADAPTIVE FRONT-LIGHTING SYSTEM
JMLIA1078GB
Revision: 2010 May2011 QX56

Page 2725 of 5598

INFINITI QX56 2011 Factory Service Manual
SYSTEMEXL-15
< SYSTEM DESCRIPTION > [XENON TYPE]
C
D
E
F
G H
I
J
K
M A
B
EXL
N
O P

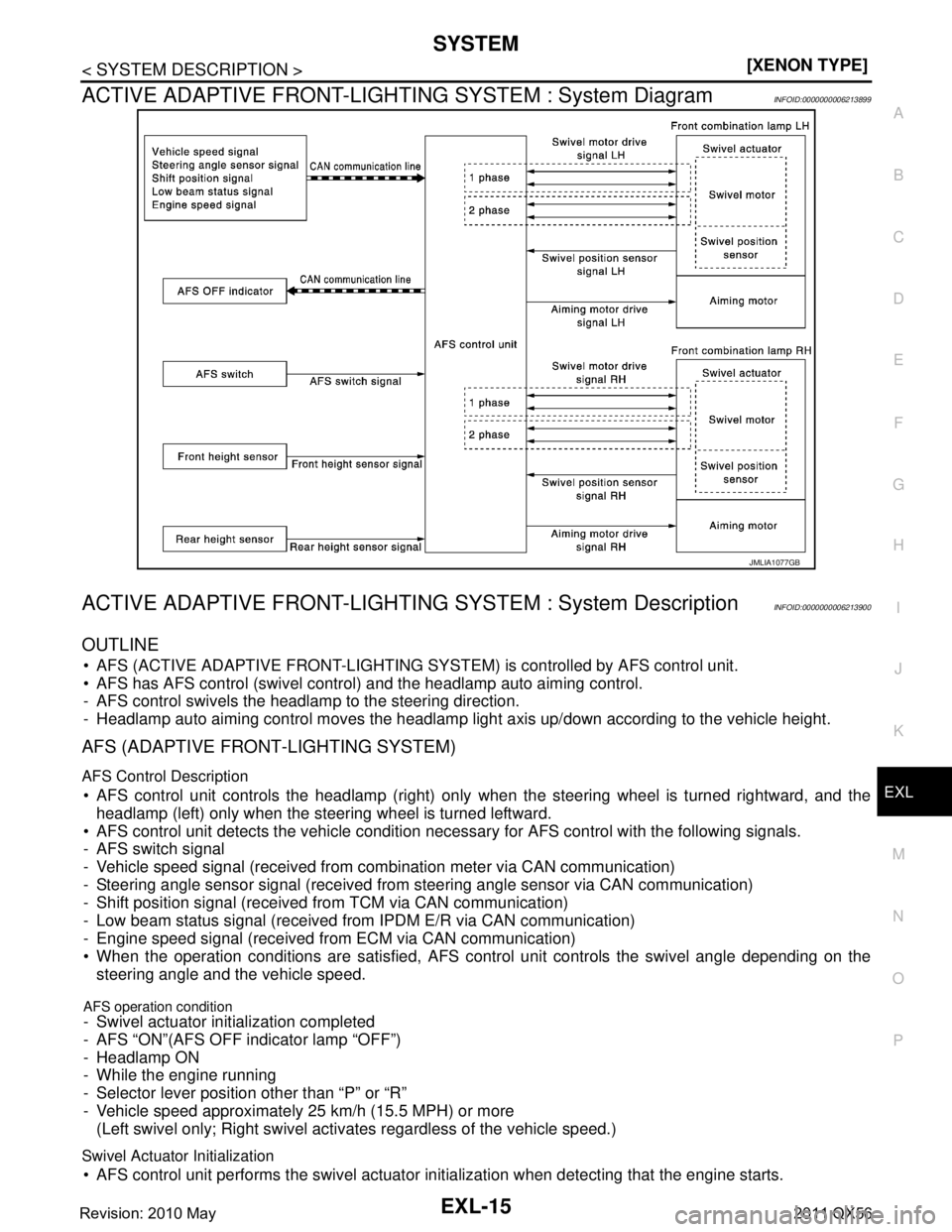

ACTIVE ADAPTIVE FRONT-LIGHTI NG SYSTEM : System DiagramINFOID:0000000006213899
ACTIVE ADAPTIVE FRONT-LIGHTING SYSTE

Page 2726 of 5598

INFINITI QX56 2011 Factory Service Manual
EXL-16
< SYSTEM DESCRIPTION >[XENON TYPE]
SYSTEM
- Swivels the headlamp to the vehicle-center side until it hits the stopper.
- Returns the swivel angle from the stopper. Completes t
he initializatio

EXL-16
< SYSTEM DESCRIPTION >[XENON TYPE]
SYSTEM
- Swivels the headlamp to the vehicle-center side until it hits the stopper.
- Returns the swivel angle from the stopper. Completes t
he initialization with regarding the returned position
as the swivel angle 0 ° (straight-forward position).
Swivel Operation
AFS control unit transmits the drive signal to the sw ivel actuator when activation conditions are satisfied.
And swivels the headlamp.
- The swivel starts after steering approximately 20 ° or more from straight-forward position.
NOTE:
The steering angle differs between right turn and left turn.
- The swivel angle becomes the maximum angle toward t he driving direction if the steering angle is approxi-
mately 90 ° or more depending on the vehicle speed. The swivel angle is maintained by shutting off the drive
signal.
- The swivel starts, and returns to the swivel angle 0 ° (straight-forward position) when the steering is returned
to the straight-forward position.
AFS control unit returns the swivel angle to the strai ght-forward position, and stops the swivel regardless of
the steering angle if the operation condition is not satisfied while the swivel angle is 0°.
AFS OFF Indicator Lamp
AFS control unit transmits AFS OFF indicator lamp signal to the combination meter via CAN communication.
Combination meter turns AFS OFF indicator lamp ON /OFF/blinking according to AFS OFF indicator lamp
signal.
- AFS OFF indicator lamp is turned ON for 1 second for the AFS OFF indicator lamp bulb check when the igni-
tion switch is turned ON. AFS OFF indicator lamp is turned OFF within 1 second when the engine starts.
- AFS OFF indicator lamp turns ON when AFS is switched to “OFF” by operating AFS switch.
- AFS OFF indicator lamp blinks (1 second each) if AFS control unit detects a specific DTC.
NOTE:
Combination meter blinks AFS OFF indicator lamp (approximately 1 second each) if AFS OFF indicator
lamp signal is not received from AFS control unit.
HEADLAMP AUTO AIMING
Headlamp Auto Aiming Control Description
AFS control unit controls the headl amp light axis height appropriately according to the vehicle height.
AFS control unit detects the vehicle condition necessa ry for headlamp auto aiming control with the following
signals.
- Height sensor signals (front and rear)
- Vehicle speed signal (received from combination meter via CAN communication)
- Low beam status signal (received from IPDM E/R via CAN communication)
- Engine speed signal (received from ECM via CAN communication)
When the operation conditions are satisfied, AFS cont rol unit transmits the aiming motor drive signal for
adjusting the headlamp axis height.
Headlamp auto aiming operation condition- Headlamp ON
- While the engine running
- Vehicle speed (Control mode is switched according to the driving condition.)
Headlamp Auto Aiming Operation
AFS control unit calculates the vehicle pitch angle fr om the front and rear height sensor signal. AFS control
unit judges the angle for adjusting the axis gap from the preset position.
AFS control unit controls the headlamp axis by c hanging the aiming motor drive signal output according to
the front and rear vehicle height when detecting the follo wing vehicle condition. Output is maintained if other
condition than following is detected.
- Engine starts.
- Headlamp is turned ON.
- Vehicle posture becomes stable after changing the v ehicle posture change is detected with the headlamp
ON and the vehicle stopped.
- Vehicle speed is maintained with the headlamp ON and the vehicle driven.
CAUTION:
Adjusted axis position may differ from the preset position although the headlamp auto aiming acti-
vates properly if the suspension is replaced or worn.
Revision: 2010 May2011 QX56

Page 2727 of 5598

INFINITI QX56 2011 Factory Service Manual
SYSTEMEXL-17
< SYSTEM DESCRIPTION > [XENON TYPE]
C
D
E
F
G H
I
J
K
M A
B
EXL
N
O P
ACTIVE ADAPTIVE FRONT-LIGHTING SYSTEM : Fail-SafeINFOID:0000000006422028
HEADLAMP AIMING CONTROL (MANUAL)
DTC Fail-

SYSTEMEXL-17
< SYSTEM DESCRIPTION > [XENON TYPE]
C
D
E
F
G H
I
J
K
M A
B
EXL
N
O P
ACTIVE ADAPTIVE FRONT-LIGHTING SYSTEM : Fail-SafeINFOID:0000000006422028
HEADLAMP AIMING CONTROL (MANUAL)
DTC Fail-safe AFS OFF indicator lamp Cancellation
U1000: CAN COMM CIRCUIT Right and left swivel motors
stop at the position when DTC
is detected.
Right and left aiming motors stop at the position when DTC
is detected. Blinks 1 second each. Ignition switch OFF
U1010: CONTROL UNIT (CAN) Right and left swivel motors
stop at the position when DTC
is detected.
Right and left aiming motors
stop at the position when DTC
is detected. Blinks 1 second each. Ignition switch OFF
B2503: SWIVEL ACTUATOR [RH] Right swivel motors stop at the
position when DT C is detected.
The signal, approximately 2 V
decreased from the levelizer
signal when DTC detected, is
output. Blinks 1 second each. Ignition switch OFF
B2504: SWIVEL ACTUATOR [LH] Left swivel motors stop at the
position when DT C is detected.
The signal, approximately 2 V decreased from the levelizer
signal when DTC detected, is
output. Blinks 1 second each. Ignition switch OFF
B2513: HI SEN UNUSUAL [FR] Right and left aiming motors
stop at the position when DTC
is detected. — Ignition switch OFF
B2514: HI SEN UNUSUAL [RR] Right and left aiming motors
stop at the position when DTC
is detected. — Ignition switch OFF
C0126: ST ANG SEN SIG Right and left swivel motor
swivel angle returns to 0 ° and
fixed. Blinks 1 second each. Ignition switch OFF
B2516: SHIFT SIG [P, R] Right and left swivel motor
swivel angle returns to 0 ° and
fixed. Blinks 1 second each. Ignition switch OFF
B2517: VEHICLE SPEED SIG Right and left swivel motor
swivel angle returns to 0 ° and
fixed.
Right and left aiming motors stop at the position when DTC
is detected. Blinks 1 second each. Ignition switch OFF
B2519: LEVELIZER CALIB Right and left aiming motors
stop at the position when DTC
is detected. —
When the levelizer adjustment is
completed.
C0428: ST ANGLE SEN CALIB Right and left swivel motor
swivel angle returns to 0 ° and
fixed. Blinks 1 second each.
When the steering angle sensor
neutral position registration is
competed.
B2521: ECU CIRC Right and left swivel motors
stop at the position when DTC
is detected.
Right and left aiming motors stop at the position when DTC
is detected. Blinks 1 second each. Ignition switch OFF
Revision: 2010 May2011 QX56

Page 2728 of 5598

INFINITI QX56 2011 Factory Service Manual
EXL-18
< SYSTEM DESCRIPTION >[XENON TYPE]
SYSTEM
HEADLAMP AIMING CONTROL (MA NUAL) : System Description
INFOID:0000000006216751
The headlamp levelizer adjusts the headlamp light axis upward and downw

Load next 8 pages

Page: < prev 1-10 ... 2689-2696 2697-2704 2705-2712 2713-2720 2721-2728 2729-2736 2737-2744 2745-2752 2753-2760 ... 5600 next >

rims open hood check oil headrest odometer wiper size
