Page 3281 of 5598

INFINITI QX56 2011 Factory Service Manual
INL-14
< SYSTEM DESCRIPTION >
DIAGNOSIS SYSTEM (BCM)
INT LAMP : CONSULT-III Fu nction (BCM - INT LAMP)
INFOID:0000000006216059
WORK SUPPORT
DATA MONITOR
JMLIA0961GB
Service item Setting item Setting

Page 3282 of 5598

INFINITI QX56 2011 Factory Service Manual
DIAGNOSIS SYSTEM (BCM)INL-15
< SYSTEM DESCRIPTION >
C
DE
F
G H
I
J
K
M A
B
INL
N
O P
ACTIVE TEST
BATTERY SAVER
BATTERY SAVER : CONSULT-III Function (BCM - BATTERY SAVER)INFOID:0000000006216060
WORK S

DIAGNOSIS SYSTEM (BCM)INL-15
< SYSTEM DESCRIPTION >
C
DE
F
G H
I
J
K
M A
B
INL
N
O P
ACTIVE TEST
BATTERY SAVER
BATTERY SAVER : CONSULT-III Function (BCM - BATTERY SAVER)INFOID:0000000006216060
WORK SUPPORT
*:Factory setting PUSH SW
[On/Off]
The switch status input from push-button ignition switch
UNLK SEN -DR
[On/Off] Driver door unlock status input from unlock sensor
DOOR SW-DR
[On/Off] The switch status input from door switch (driver side)
DOOR SW-AS
[On/Off] The switch status input from door switch (passenger side)
DOOR SW-RR
[On/Off] The switch status input from rear door switch RH
DOOR SW- RL
[On/Off] The switch status input from rear door switch LH
DOOR SW- BK
[On/Off] The switch status input from back door switch
CDL LOCK SW
[On/Off] Lock switch status input from door lock and unlock switch
CDL UNLOCK SW
[On/Off] Unlock switch status input from door lock and unlock switch
KEY CYL LK-SW
[On/Off] Lock switch status received from door key cylinder switch
KEY CYL UN-SW
[On/Off] Unlock switch status received from door key cylinder switch
TRNK/HAT MNTR
[On/Off] NOTE:
The item is indicated, but not monitored.
RKE-LOCK
[On/Off] Lock signal status received from remote keyless entry receiver
RKE-UNLOCK
[On/Off] Unlock signal status received from remote keyless entry receiver
Monitor item
[Unit] Description
Test item Operation Description
INT LAMP OnOutputs the interior room lamp control signal to turn the interior room lamps ON.
[Map lamp, personal lamp, foot lamp (when applicable lamps switch is in DOOR po-
sition.)]
Off Stops the interior room lamp control signal to turn the interior room lamps OFF.
STEP LAMP TEST On Outputs the step lamp control signal to turn the step lamps ON.
Off Stops the step lamp control signal to turn the step lamps ON.
Service item Setting item Setting
ROOM LAMP TIMER SET MODE 1
*30 min.
Sets the interior room lamp battery saver timer operating
time.
MODE 2 60 min.
BATTERY SAVER SET On
*With the exterior lamp battery saver function
Off Without the exterior lamp battery saver function
Revision: 2010 May2011 QX56

Page 3283 of 5598

INFINITI QX56 2011 Factory Service Manual
INL-16
< SYSTEM DESCRIPTION >
DIAGNOSIS SYSTEM (BCM)
DATA MONITOR
ACTIVE TEST
*: Each lamp switch is in ON position.Monitor item
[Unit] Description
REQ SW-DR
[On/Off] The switch status input from doo

Page 3284 of 5598

INFINITI QX56 2011 Factory Service Manual
BCM
INL-17
< ECU DIAGNOSIS INFORMATION >
C
D E
F
G H
I
J
K
M A
B
INL
N
O P
ECU DIAGNOSIS INFORMATION
BCM
List of ECU ReferenceINFOID:0000000006216061
ECU Reference
BCM BCS-33, "
Reference Value"
BCS-

Page 3285 of 5598

INFINITI QX56 2011 Factory Service Manual
INL-18
< WIRING DIAGRAM >

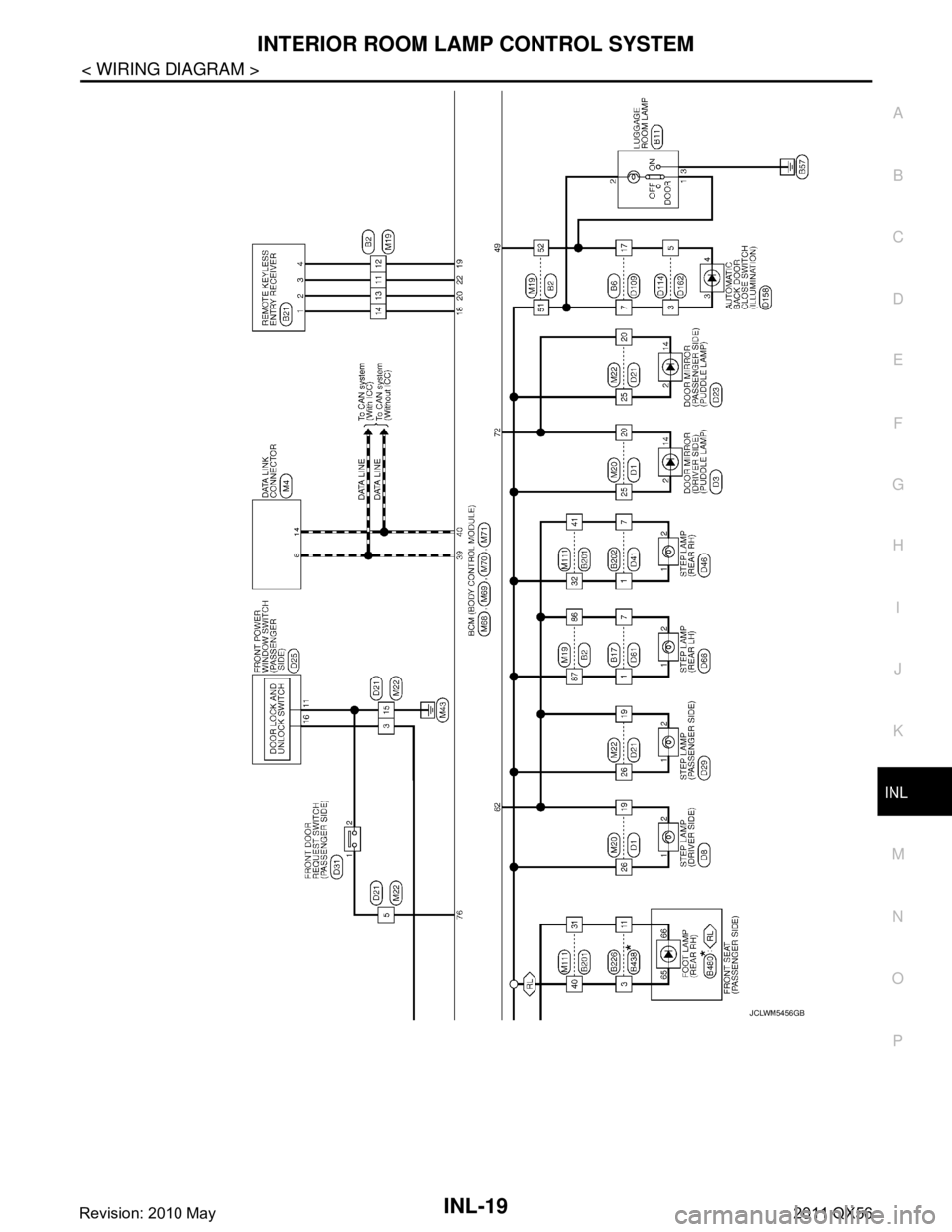

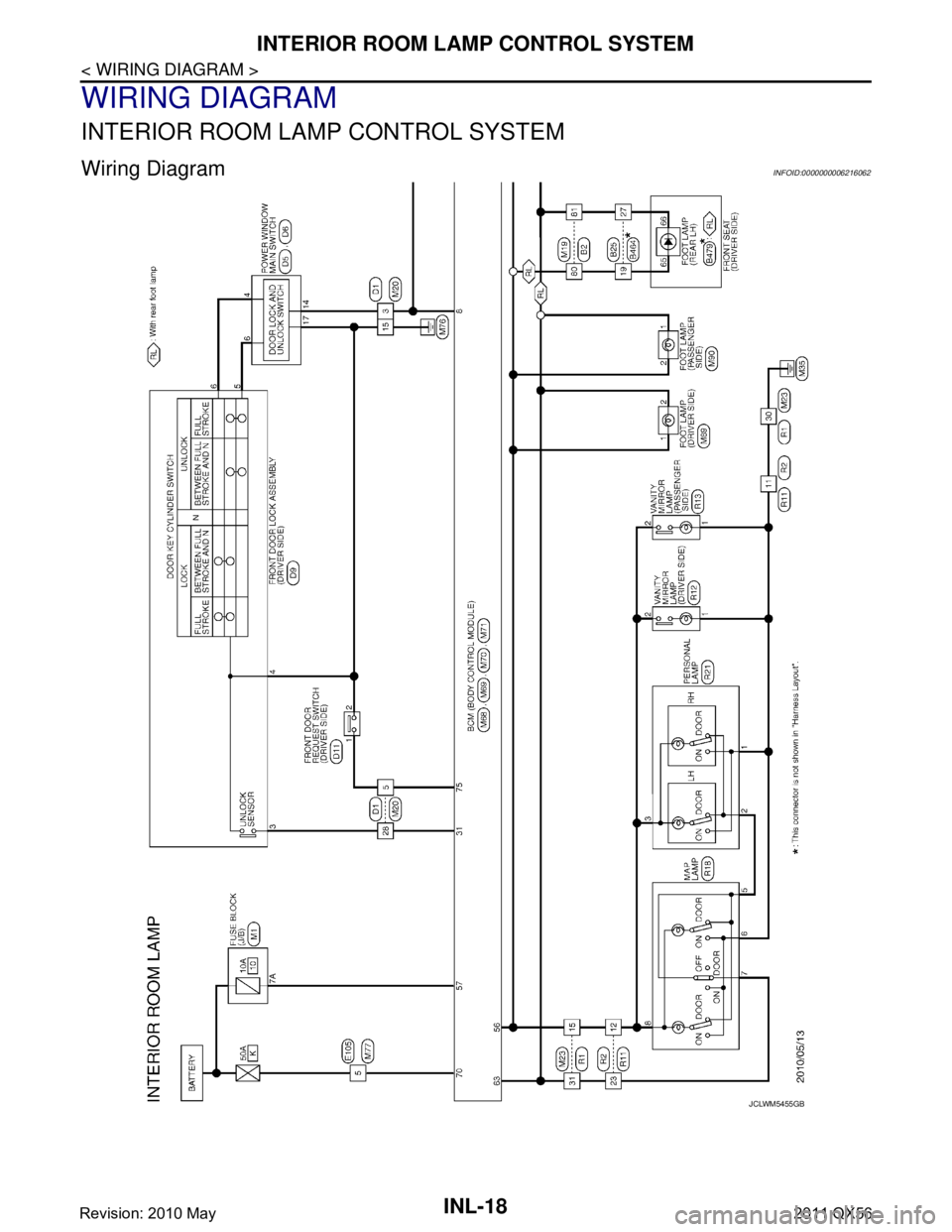

INTERIOR ROOM LAMP CONTROL SYSTEM
WIRING DIAGRAM
INTERIOR ROOM LAMP CONTROL SYSTEM
Wiring DiagramINFOID:0000000006216062
JCLWM5455GB
Revision: 2010 May2011 QX56

Page 3286 of 5598

INFINITI QX56 2011 Factory Service Manual
INTERIOR ROOM LAMP CONTROL SYSTEMINL-19
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K
M A
B
INL
N
O P

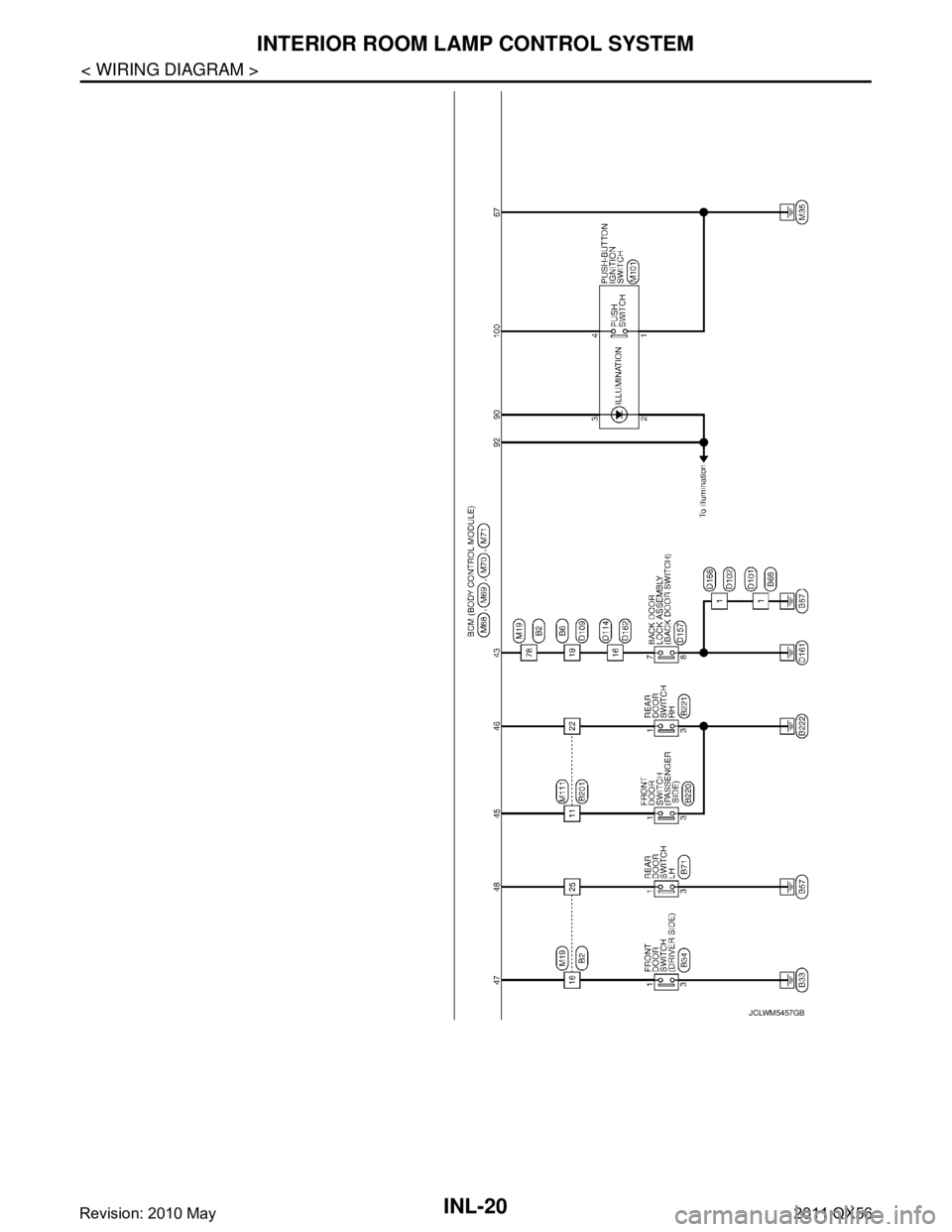

JCLWM5456GB
Revision: 2010 May2011 QX56

Page 3287 of 5598

INFINITI QX56 2011 Factory Service Manual
INL-20
< WIRING DIAGRAM >
INTERIOR ROOM LAMP CONTROL SYSTEM

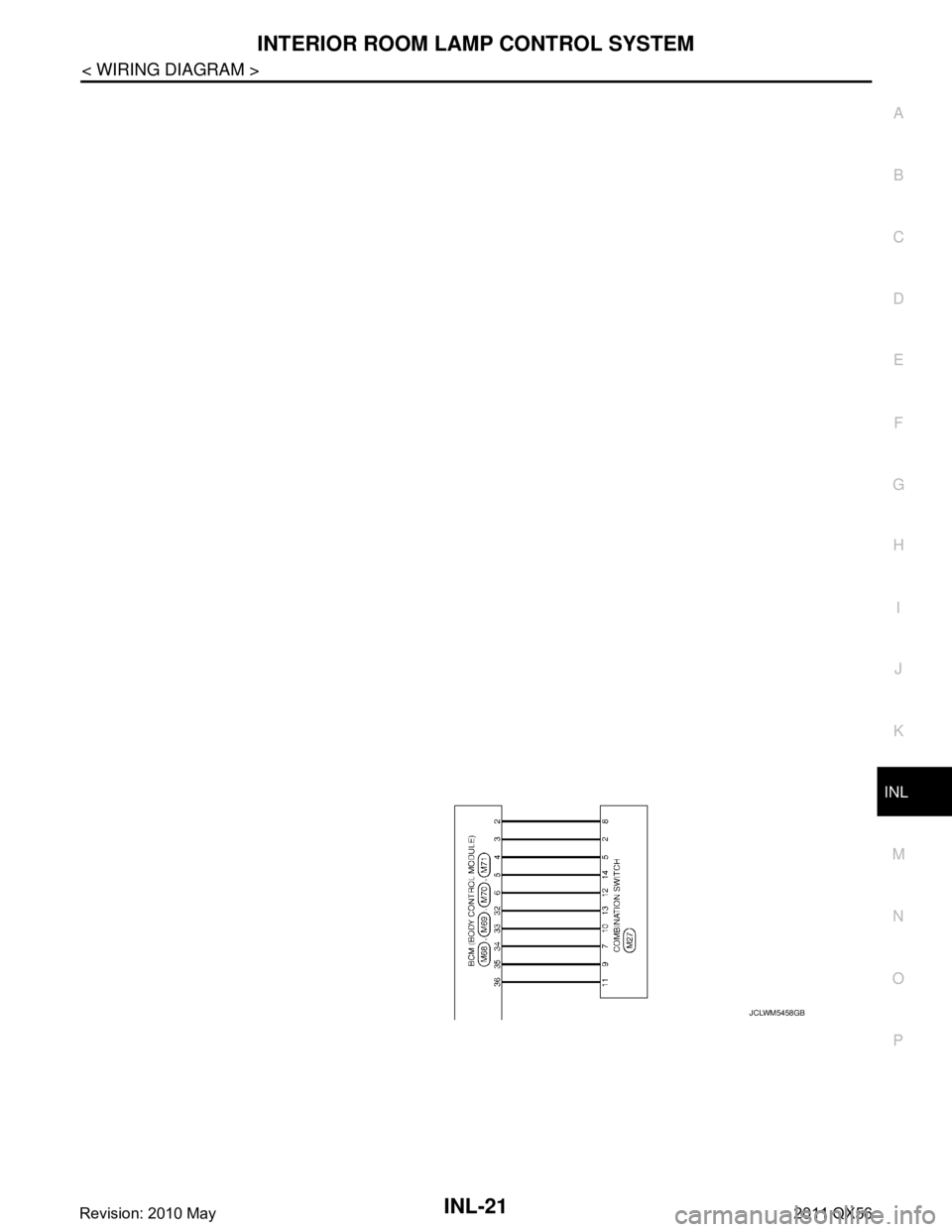

JCLWM5457GB
Revision: 2010 May2011 QX56

Page 3288 of 5598

INFINITI QX56 2011 Factory Service Manual
INTERIOR ROOM LAMP CONTROL SYSTEMINL-21
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K
M A
B
INL
N
O P
JCLWM5458GB
Revision: 2010 May2011 QX56
