SR-22
< REMOVAL AND INSTALLATION >

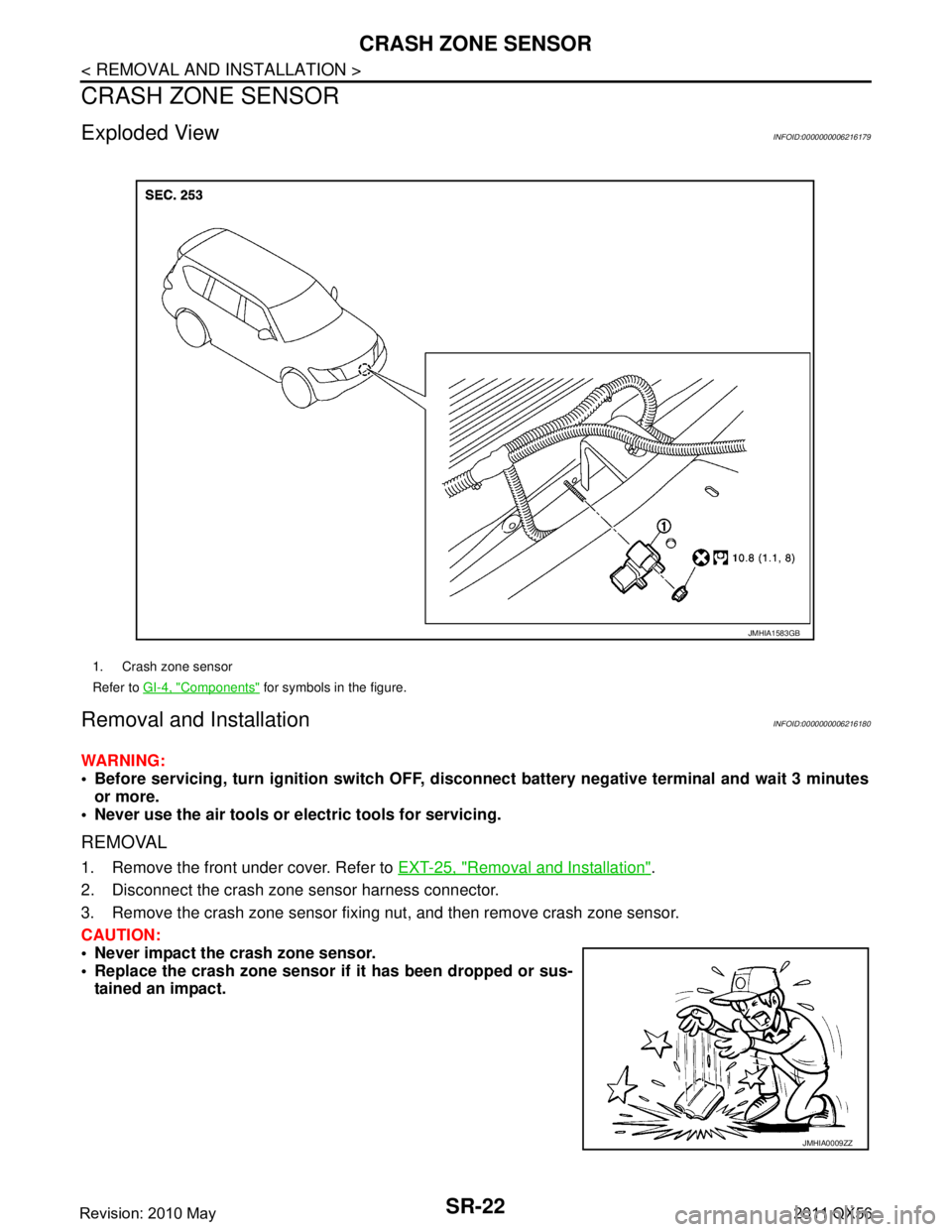

CRASH ZONE SENSOR
CRASH ZONE SENSOR
Exploded ViewINFOID:0000000006216179
Removal and InstallationINFOID:0000000006216180
WARNING:
Before servicing, turn ignition switch OFF, disconnect battery ne gative terminal and wait 3 minutes
or more.
Never use the air tools or electric tools for servicing.
REMOVAL
1. Remove the front under cover. Refer to EXT-25, "Removal and Installation".
2. Disconnect the crash zone sensor harness connector.
3. Remove the crash zone sensor fixing nut, and then remove crash zone sensor.
CAUTION:
Never impact the crash zone sensor.
Replace the crash zone sensor if it has been dropped or sus-
tained an impact.
1. Crash zone sensor
Refer to GI-4, "
Components" for symbols in the figure.
JMHIA1583GB
JMHIA0009ZZ
Revision: 2010 May2011 QX56
Page 4786 of 5598
CRASH ZONE SENSORSR-23
< REMOVAL AND INSTALLATION >
C
DE
F
G
I
J
K L
M A
B
SR
N
O P
Replace the crash zone sensor of deployed driver air bag and deployed front passenger air bag.
INSTALLATION
Note the following item, and install in the reverse order of removal.
CAUTION:
Never use the old fixing nut afte r removal, replace with the new nut.
Never damage the harness co nnector while installing.
If malfunction is detected by the air bag warnin g lamp, after repair or replacement of the malfunc-
tioning parts, reset the memory using sel f-diagnosis or CONSULT-III. Refer to SRC-14, "
On Board
Diagnosis Function" or SRC-19, "CONSULT-III Function".
After the work is completed, check that no system malfunction is detected by air bag warning lamp.
Revision: 2010 May2011 QX56
Page 4787 of 5598

SR-24
< REMOVAL AND INSTALLATION >
SIDE AIR BAG (SATELLITE) SENSOR
SIDE AIR BAG (SATELLITE) SENSOR
Exploded ViewINFOID:0000000006113063
Removal and InstallationINFOID:0000000006113064
WARNING:
Before servicing, turn ignition switch OFF, disconnect battery ne gative terminal and wait 3 minutes
or more.
Never use the air tools or electric tools for servicing.
REMOVAL
SIDE AIR BAG FRONT (SATELLITE) SENSOR LH
1. Remove the center pillar lower garnish LH. Refer to INT-22, "CENTER PILLAR LOWER GARNISH :
Removal and Installation".
2. Remove the side air bag front (satellite) sensor LH fixing nut.
3. Disconnect the side air bag front (satellite) sensor LH harness connector, and then remove side air bag
front (satellite) sensor LH.
SIDE AIR BAG FRONT (SATELLITE) SENSOR RH
1. Remove the center pillar lower garnish RH. Refer to INT-22, "CENTER PILLAR LOWER GARNISH :
Removal and Installation".
1. Side air bag rear (satellite) sensor 2. Bracket * 3. Side air bag front (satellite) sensor
: Vehicle front
*: Side air bag rear (satellite) sensor RH side only
Refer to GI-4, "
Components" for symbols in the figure.
JMHIA1477GB
Revision: 2010 May2011 QX56
Page 4788 of 5598

SIDE AIR BAG (SATELLITE) SENSOR
SR-25
< REMOVAL AND INSTALLATION >
C
D E
F
G
I
J
K L
M A
B
SR
N
O P
2. Remove the front seat belt retractor. Refer to SB-6, "SEAT BELT RETRACTOR : Removal and Installa-
tion".
3. Remove the side air bag front (satellite) sensor RH fixing nut.
4. Disconnect the side air bag front (satellite) sens or RH harness connector, and then remove side air bag
front (satellite) sensor RH.
SIDE AIR BAG REAR (SATELLITE) SENSOR LH
1. Remove the luggage side lower finisher LH. Refer to INT-36, "LUGGAGE SIDE LOWER FINISHER :
Removal and Installation".
2. Remove the side air bag rear (satellite) sensor LH fixing nut.
3. Disconnect the side air bag rear (satellite) sensor LH harness connector, and then remove side air bag
rear (satellite) sensor LH.
SIDE AIR BAG REAR (SATELLITE) SENSOR RH
1. Remove the luggage side lower finisher RH. Refer to INT-36, "LUGGAGE SIDE LOWER FINISHER :
Removal and Installation".
2. Remove the shield bracket fixing screw, and then remove shield bracket.
3. Remove the side air bag rear (satellite) sensor RH fixing nut.
4. Disconnect the side air bag rear (satellite) sensor RH harness connector, and then remove side air bag rear (satellite) sensor RH.
CAUTION:
Never impact the side air bag (satellite) sensor.
Replace the side air bag (sat ellite) sensor if it has been
dropped or sustained an impact.
Replace the satellite sensor of deployed front side air bag module and deployed side curtain air bag
module.
INSTALLATION
Note the following item, and install in the reverse order of removal.
CAUTION:
Never use the old fixing nut afte r removal, replace with the new nut.
Never damage the harness connector while installing
If malfunction is detected by the air bag warnin g lamp, after repair or replacement of the malfunc-
tioning parts, reset the memory using sel f-diagnosis or CONSULT-III. Refer to SRC-14, "
On Board
Diagnosis Function" or SRC-19, "CONSULT-III Function".
After the work is completed, check that no system malfunction is detected by air bag warning lamp.
JMHIA0009ZZ
Revision: 2010 May2011 QX56
Page 4789 of 5598

SR-26
< REMOVAL AND INSTALLATION >
DIAGNOSIS SENSOR UNIT
DIAGNOSIS SENSOR UNIT
Exploded ViewINFOID:0000000006113065
Removal and InstallationINFOID:0000000006113066
WARNING:
Before servicing, turn ignition switch OFF, disconnect battery ne gative terminal and wait 3 minutes
or more.
Before disconnecting the air bag diagnosis sensor unit harness conn ectors, be sure to disconnect
the each harness connector of the air bag module and seat belt pre-tensioner to prevent air bag
deployment by static electricity and seat belt pre-tensioner operation.
Never use the air tools or electric tools for servicing.
When replacing the air bag diagno sis sensor unit, always check with th e parts department for the lat-
est parts information. Installing an incorrect air bag diagnosis sen sor unit may or may not cause the
air bag warning lamp to illuminate and may cause in correct deployment of the supplemental air bags
and seat belt pre-tensioners in a collision r esulting in serious personal injury or death.
REMOVAL
1. Always check the air bag diagnosis sensor unit E CU discriminated number (identification number) using
CONSULT-III.
2. Disconnect the each connector of all air bag modules and pre-tensioner seat belts.
3. Remove the console finisher assembly. Refer to IP-25, "
Removal and Installation".
4. Remove the diagnosis sensor unit fixing bolts, ground bolt, and then remove diagnosis sensor unit.
5. Disconnect the diagnosis sensor unit harness connector.
1. Diagnosis sensor unit
Refer to GI-4, "
Components" for symbols in the figure.
JMHIA1478GB
Revision: 2010 May2011 QX56
Page 4790 of 5598

DIAGNOSIS SENSOR UNITSR-27
< REMOVAL AND INSTALLATION >
C
DE
F
G
I
J
K L
M A
B
SR
N
O P
CAUTION:
Never impact the diagnosis sensor unit.
Replace the diagnosis sensor uni t if it has been dropped or
sustained an impact.
Replace the diagnosis sensor unit of deployed SRS air bag and deployed front seat belt pre-ten-
sioner.
INSTALLATION
Install in the revers order of removal.
CAUTION:
Never use the old fixing bolts afte r removal, replace with the new bolts.
Never damage the harness co nnector while installing.
If malfunction is detected by the air bag warnin g lamp, after repair or replacement of the malfunc-
tioning parts, reset the memory using sel f-diagnosis or CONSULT-III. Refer to SRC-14, "
On Board
Diagnosis Function" or SRC-19, "CONSULT-III Function".
After the work is completed, check that no system malfunction is detected by air bag warning lamp.
After replacing the air bag diag nosis sensor unit, confirm using CO NSULT-III that the ECU discrimi-
nated number (identification nu mber) of the new replacement air bag sensor unit matches the ECU
discriminated number (identification number) of the replaced (old) air bag diagnosis sensor unit.
NOTE:
If the ECU discriminated number of the new replacement air bag diagnosis sensor unit differs from the ECU
discriminated number of the replaced air bag diagnosis sens or unit, reconfirm the parts information and verify
that the correct air bag diagnosis sensor unit was installed.
JMHIA0009ZZ
Revision: 2010 May2011 QX56
Page 4791 of 5598
SR-28
< REMOVAL AND INSTALLATION >
SEAT BELT PRE-TENSIONER
SEAT BELT PRE-TENSIONER
Exploded ViewINFOID:0000000006113067
Refer to SB-6, "SEAT BELT RETRACTOR : Exploded View".
Removal and InstallationINFOID:0000000006113068
For removal and installation procedures, refer to SB-6, "SEAT BELT RETRACTOR : Removal and Installa-
tion".
Revision: 2010 May2011 QX56
Page 4792 of 5598
LAP PRE-TENSIONERSR-29
< REMOVAL AND INSTALLATION >
C
DE
F
G
I
J
K L
M A
B
SR
N
O P
LAP PRE-TENSIONER
Exploded ViewINFOID:0000000006418803
Refer to SB-6, "SEAT BELT RETRACTOR : Exploded View".
Removal and InstallationINFOID:0000000006156561
For removal and installation procedures, refer to SB-8, "SEAT BELT BUCKLE : Removal and Installation".
