INFINITI QX56 2011 Factory Service Manual LOW TIRE PRESSURE WARNING CONTROL UNIT WT-15 < ECU DIAGNOSIS INFORMATION > C D F G H I J K L M A B WT N O P Te r m i n a l N o . (Wire color) Description Condition Value (Approx.) Signal name Input/

Page 5466 of 5598

INFINITI QX56 2011 Factory Service Manual WT-16 < ECU DIAGNOSIS INFORMATION > LOW TIRE PRESSURE WARNING CONTROL UNIT 5 (R/L) Ground Tire pressure receiver front RH signal Input Ignition switch ONStandby status Approx. 4.5 V When signal is

Page 5467 of 5598

INFINITI QX56 2011 Factory Service Manual LOW TIRE PRESSURE WARNING CONTROL UNIT WT-17 < ECU DIAGNOSIS INFORMATION > C D F G H I J K L M A B WT N O P *: Power is supplied to the tire pressure receiver from the low tire pressure warning cont

Page 5468 of 5598

INFINITI QX56 2011 Factory Service Manual WT-18 < ECU DIAGNOSIS INFORMATION > LOW TIRE PRESSURE WARNING CONTROL UNIT DTC Index INFOID:0000000006225499 NOTE: If some DTCs are displayed at the same time, refer to WT-17, " DTC Inspection Prior

Page 5469 of 5598

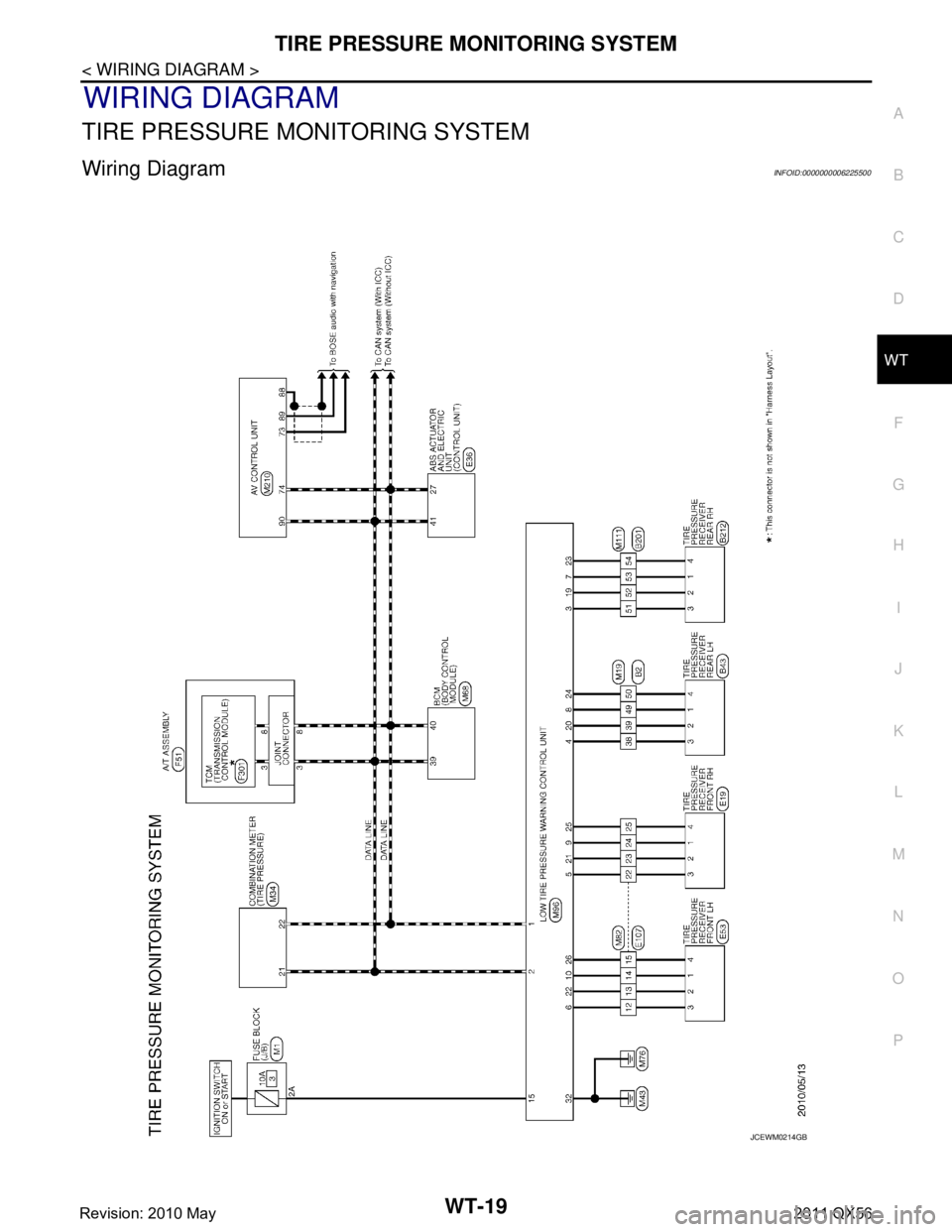

INFINITI QX56 2011 Factory Service Manual TIRE PRESSURE MONITORING SYSTEMWT-19 < WIRING DIAGRAM > C DF G H I J K L M A B WT N O P WIRING DIAGRAM TIRE PRESSURE MO NITORING SYSTEM Wiring DiagramINFOID:0000000006225500 JCEWM0214GB Revision: 201

Page 5470 of 5598

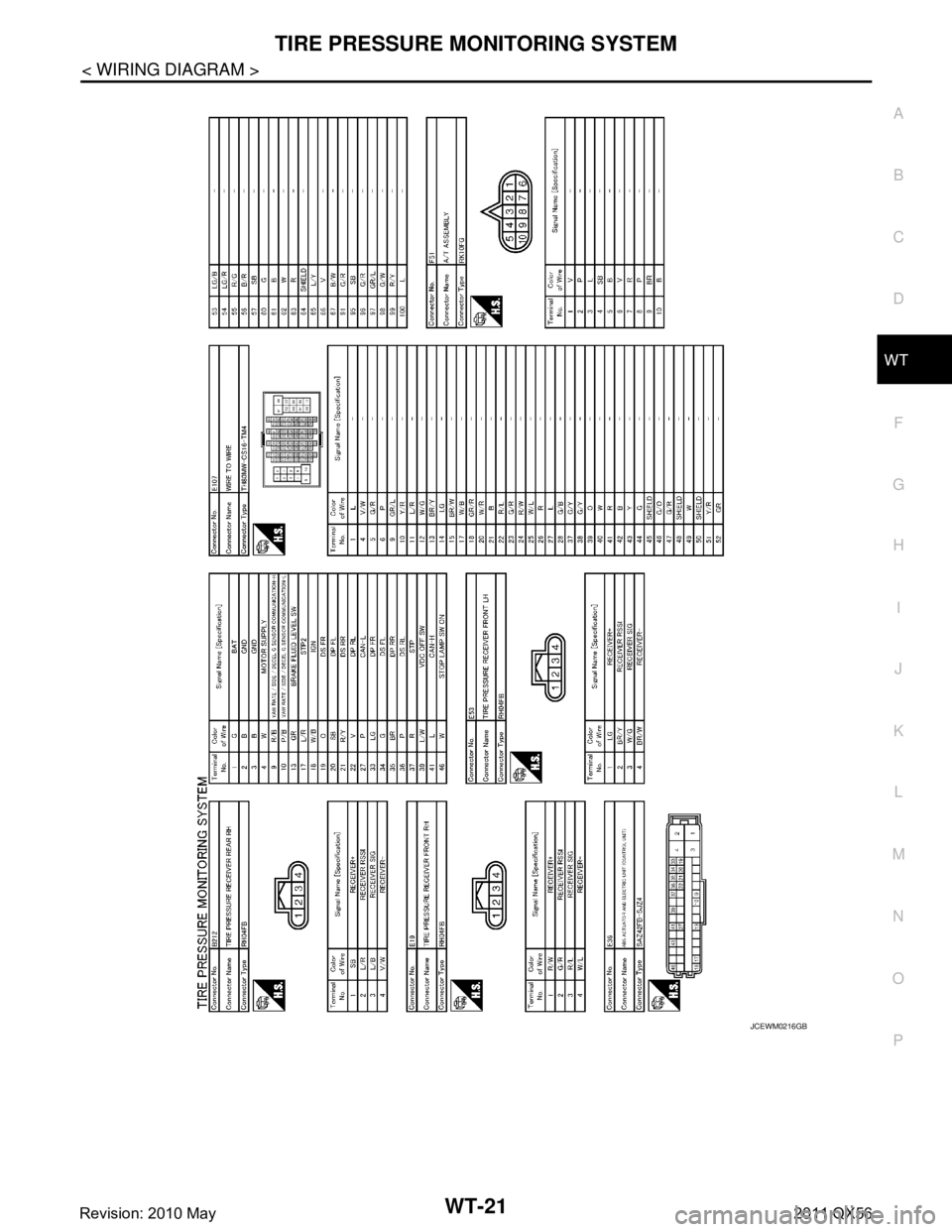

INFINITI QX56 2011 Factory Service Manual WT-20 < WIRING DIAGRAM > TIRE PRESSURE MONITORING SYSTEM JCEWM0215GB Revision: 2010 May2011 QX56

Page 5471 of 5598

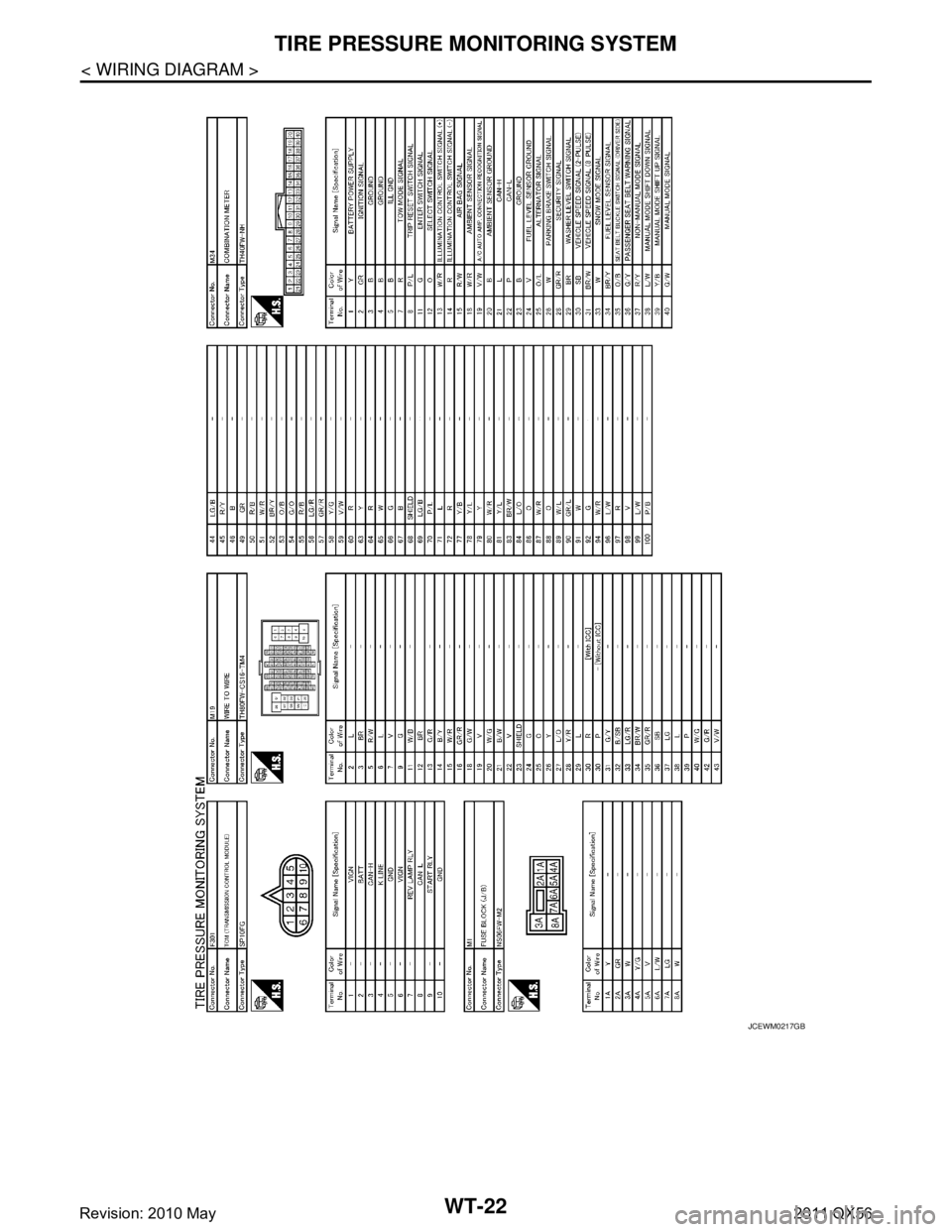

INFINITI QX56 2011 Factory Service Manual TIRE PRESSURE MONITORING SYSTEMWT-21 < WIRING DIAGRAM > C DF G H I J K L M A B WT N O P JCEWM0216GB Revision: 2010 May2011 QX56

Page 5472 of 5598

INFINITI QX56 2011 Factory Service Manual WT-22 < WIRING DIAGRAM > TIRE PRESSURE MONITORING SYSTEM JCEWM0217GB Revision: 2010 May2011 QX56
