Page 3737 of 5598
MIR-32
< REMOVAL AND INSTALLATION >
OUTSIDE MIRROR
OUTSIDE MIRROR
Exploded ViewINFOID:0000000006257236
DOOR MIRROR ASSEMBLY
DOOR MIRROR ASSEMBLY : Removal and InstallationINFOID:0000000006257237
REMOVAL
1. Remove front door finisher and door mirror corner cover. Refer to INT-14, "Removal and Installation".
2. Disconnect door mirror assembly harness connector.
3. Remove door mirror mounting nuts, and then remove door mirror assembly.
1. Door mirror cover 2. Glas s mirror 3. Actuator assembly
4. Connector 5. Door mirror co ver 6. Side camera finisher
7. Around view camera 8. Side turn signal lamp 9. Housing
10. Bracket 11. Power fold unit 12. Base cover
13. Puddle lamp 14. Base : Clip
: Pawl
JMLIA1144ZZ
Revision: 2010 May2011 QX56
Page 3738 of 5598

OUTSIDE MIRRORMIR-33
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
K
M A
B
MIR
N
O P
INSTALLATION
Note the following item, and then install in the reverse order of removal.
CAUTION:
Perform camera image calibration (with side camera models). Refer to AV-112, "
Work Procedure".
DOOR MIRROR ASSEMBLY : Disassembly and AssemblyINFOID:0000000006257238
DISASSEMBLY
1. Remove door mirror assembly from front door panel. Refer to MIR-32, "DOOR MIRROR ASSEMBLY :
Removal and Installation".
2. Remove glass mirror. Refer to MIR-35, "
GLASS MIRROR : Removal and Installation".
3. Remove door mirror cover. Refer to MIR-36, "
DOOR MIRROR COVER : Removal and Installation".
4. Remove actuator. 1. Remove actuator (1) fixing screws (A).
2. Disconnect the harness connec tors behind the actuator.
NOTE:
Disconnect the harness connector (B) of automatic driving posi-
tion system (2) if equipped.
5. Remove side camera finisher assembly (1). 1. Remove side camera finisher fixing screw (A).
JMLIA0910ZZ
JMLIA0911ZZ
JMLIA0912ZZ
Revision: 2010 May2011 QX56
Page 3739 of 5598

MIR-34
< REMOVAL AND INSTALLATION >
OUTSIDE MIRROR
2. Disconnect harness connector (B), and remove screws (C)and pawl (D) fixing the side camera finisher (1) to housing.
3. Remove side turn signal lamp fixing screws (E), and then remove side turn signal lamp.
NOTE:
Pull slightly side camera finisher (1) covering side turn sig-
nal lamp bottom screw.
4. Remove side camera finisher assembly.
5. Remove around view camera. Refer to AV-233, "
Removal and Installation".
6. Remove all the harness connector terminal from the connector. NOTE:
Write a short note to describe connector terminal layout before starting operation.
7. Remove base. 1. Remove base cover. Remove base cover fixing pawls with a flat-bladed screw-
driver (A) wrapped into a tape.
CAUTION:
Apply protective tape (B) aro und the base to protect the
surface from damage.
2. Remove puddle lamp. Refer to INL-79, "
Removal and Installation".
3. Remove base mounting bolts located under base cover.
4. Remove base.
8. Remove the fixing screws (A), and then remove power fold unit and bracket from housing.
JMLIA0913ZZ
JMLIA0914ZZ
: Pawl
JMLIA1146ZZ
JMLIA0923ZZ
Revision: 2010 May2011 QX56

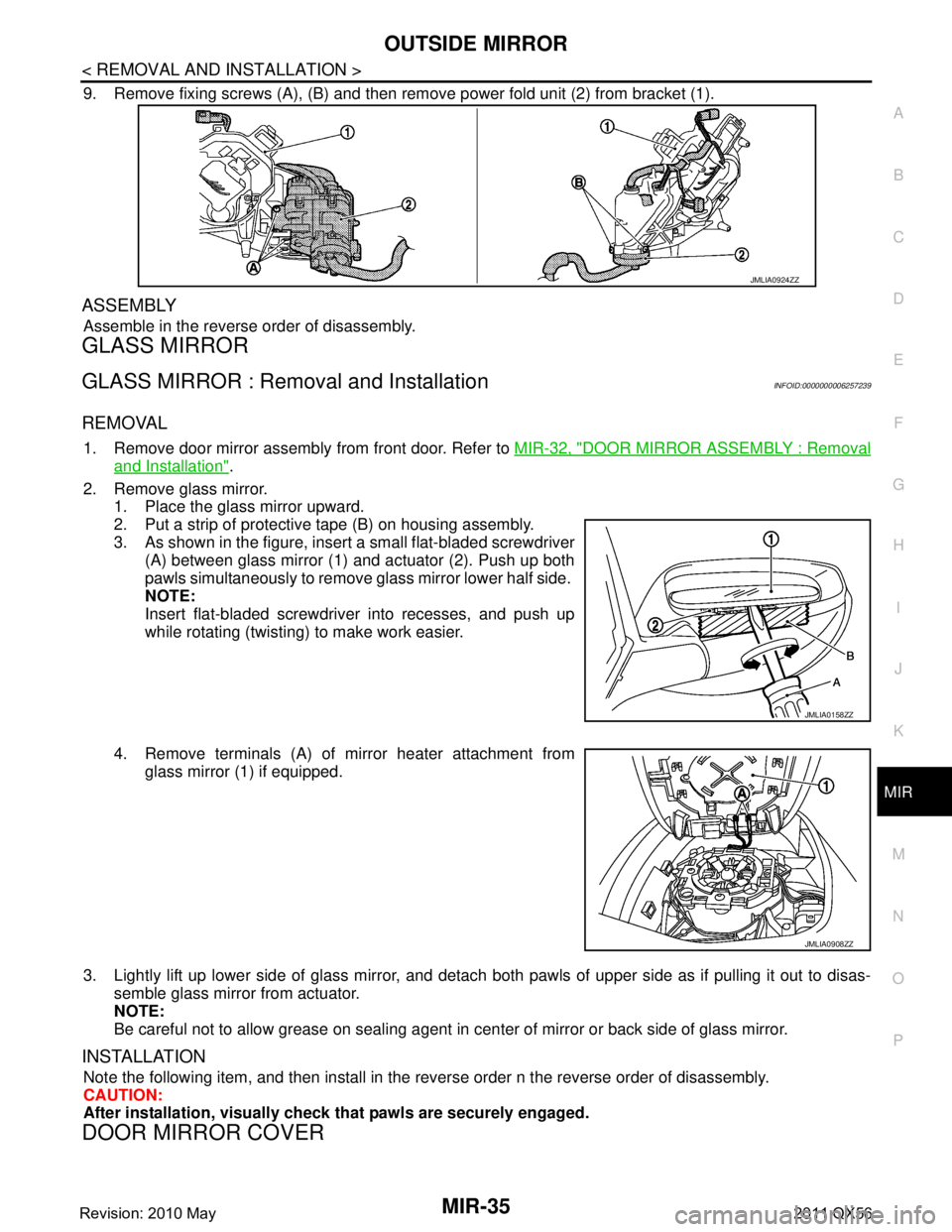

Page 3740 of 5598

OUTSIDE MIRRORMIR-35
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
K
M A
B
MIR
N
O P
9. Remove fixing screws (A), (B) and then remove power fold unit (2) from bracket (1).
ASSEMBLY
Assemble in the reverse order of disassembly.
GLASS MIRROR
GLASS MIRROR : Removal and InstallationINFOID:0000000006257239
REMOVAL
1. Remove door mirror assembly from front door. Refer to MIR-32, "DOOR MIRROR ASSEMBLY : Removal
and Installation".
2. Remove glass mirror. 1. Place the glass mirror upward.
2. Put a strip of protective tape (B) on housing assembly.
3. As shown in the figure, insert a small flat-bladed screwdriver (A) between glass mirror (1) and actuator (2). Push up both
pawls simultaneously to remove glass mirror lower half side.
NOTE:
Insert flat-bladed screwdriver into recesses, and push up
while rotating (twisting) to make work easier.
4. Remove terminals (A) of mi rror heater attachment from
glass mirror (1) if equipped.
3. Lightly lift up lower side of glass mirror, and detach both pawls of upper side as if pulling it out to disas- semble glass mirror from actuator.
NOTE:
Be careful not to allow grease on sealing agent in center of mirror or back side of glass mirror.
INSTALLATION
Note the following item, and then install in the reverse order n the reverse order of disassembly.
CAUTION:
After installation, visually check that pawls are securely engaged.
DOOR MIRROR COVER
JMLIA0924ZZ
JMLIA0158ZZ
JMLIA0908ZZ
Revision: 2010 May2011 QX56

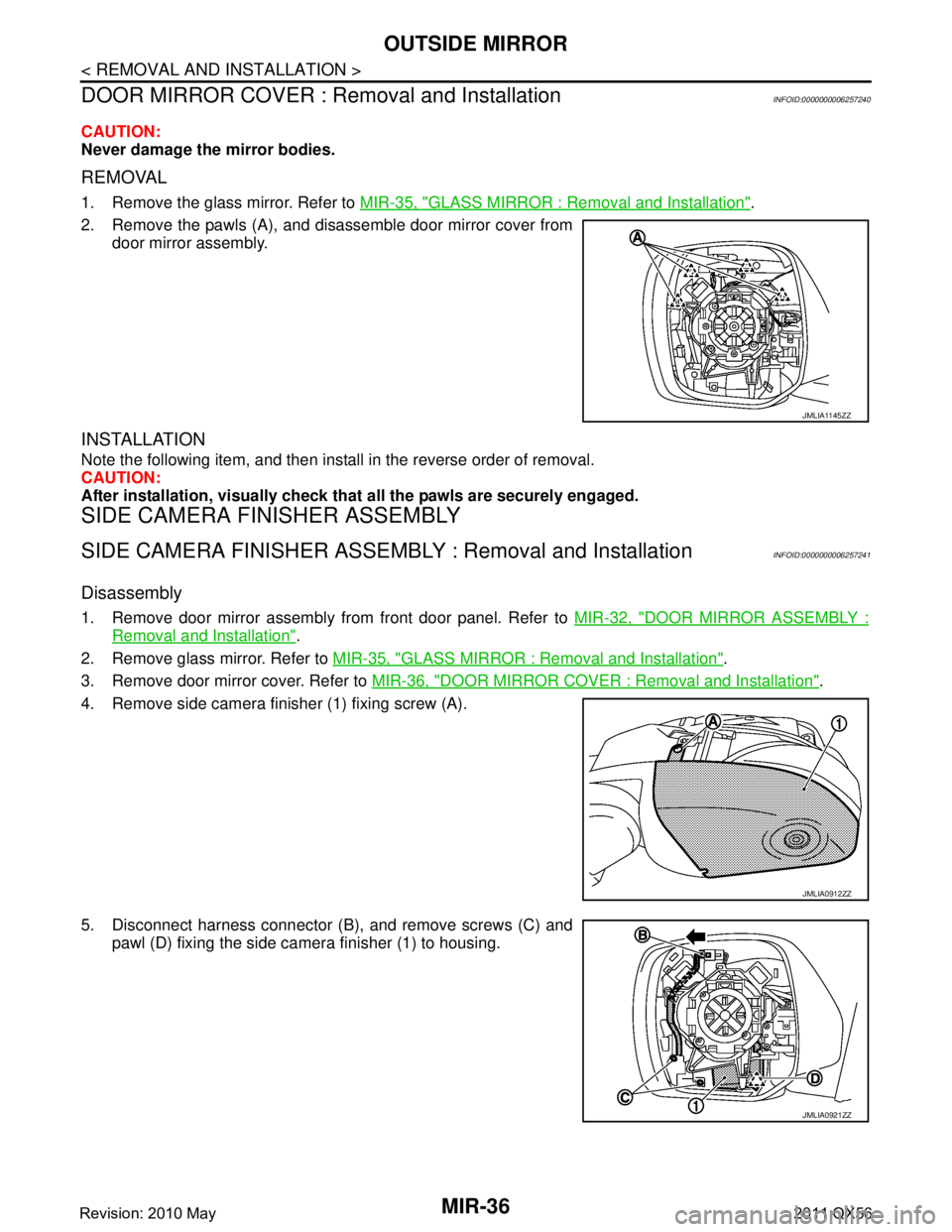

Page 3741 of 5598

MIR-36
< REMOVAL AND INSTALLATION >
OUTSIDE MIRROR
DOOR MIRROR COVER : Re moval and Installation
INFOID:0000000006257240
CAUTION:
Never damage the mirror bodies.
REMOVAL
1. Remove the glass mirror. Refer to MIR-35, "GLASS MIRROR : Removal and Installation".
2. Remove the pawls (A), and disassemble door mirror cover from door mirror assembly.
INSTALLATION
Note the following item, and then install in the reverse order of removal.
CAUTION:
After installation, visually check that all the pawls are securely engaged.
SIDE CAMERA FINISHER ASSEMBLY
SIDE CAMERA FINISHER ASSEMBLY : Removal and InstallationINFOID:0000000006257241
Disassembly
1. Remove door mirror assembly from front door panel. Refer to MIR-32, "DOOR MIRROR ASSEMBLY :
Removal and Installation".
2. Remove glass mirror. Refer to MIR-35, "
GLASS MIRROR : Removal and Installation".
3. Remove door mirror cover. Refer to MIR-36, "
DOOR MIRROR COVER : Removal and Installation".
4. Remove side camera finisher (1) fixing screw (A).
5. Disconnect harness connector (B), and remove screws (C) and pawl (D) fixing the side camera finisher (1) to housing.
JMLIA1145ZZ
JMLIA0912ZZ
JMLIA0921ZZ
Revision: 2010 May2011 QX56
Page 3742 of 5598
OUTSIDE MIRRORMIR-37
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
K
M A
B
MIR
N
O P
6. Remove side turn signal lamp fixing screws (E) and remove side turn signal lamp.
NOTE:
Pull slightly side camera finisher (1) covering side turn signal
lamp bottom screw.
7. Remove side camera finisher assembly.
8. Remove around view camera. Refer to AV-233, "
Removal and Installation".
Assembly
Assemble in the reverse order of disassembly.
JMLIA0914ZZ
Revision: 2010 May2011 QX56

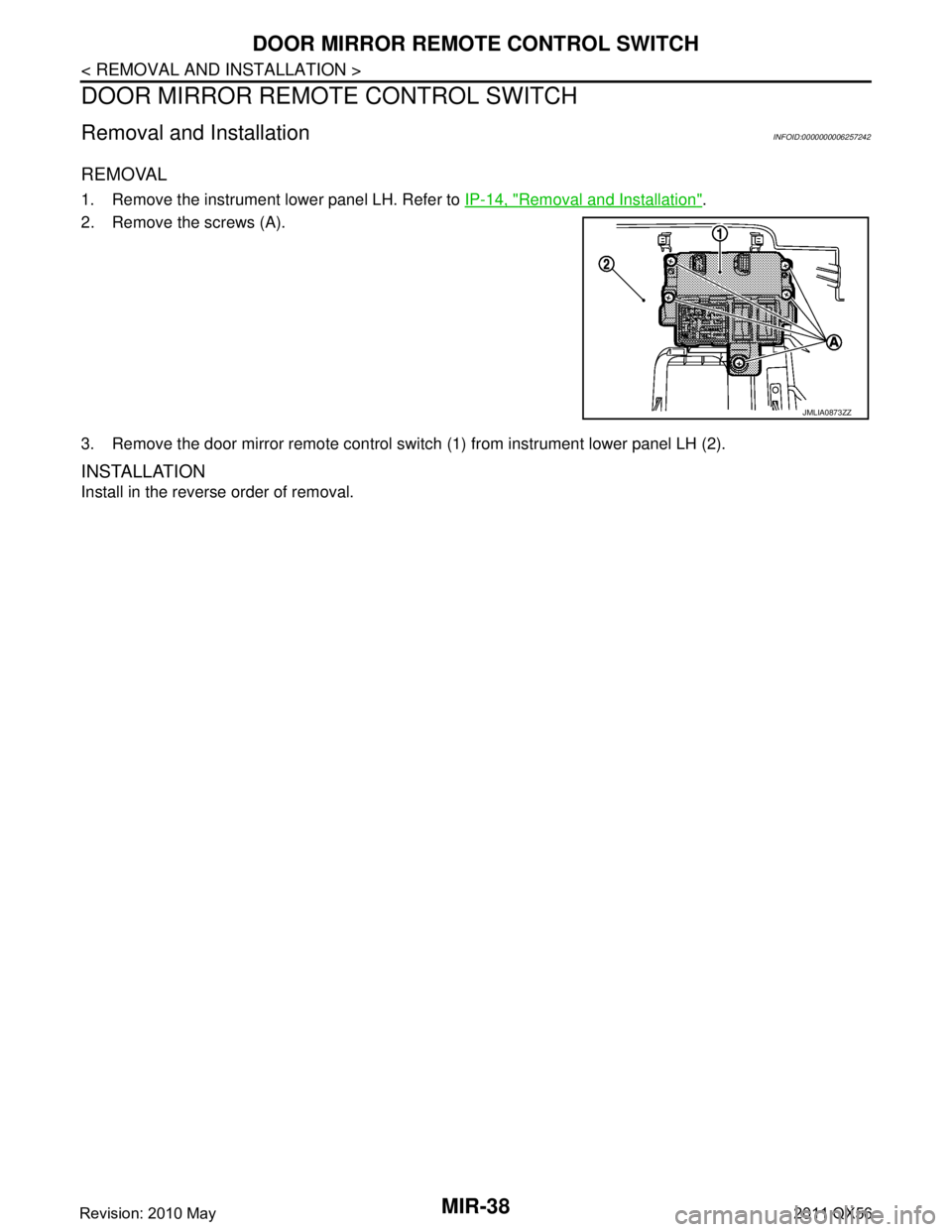

Page 3743 of 5598
MIR-38
< REMOVAL AND INSTALLATION >
DOOR MIRROR REMOTE CONTROL SWITCH
DOOR MIRROR REMOTE CONTROL SWITCH
Removal and InstallationINFOID:0000000006257242
REMOVAL
1. Remove the instrument lower panel LH. Refer to IP-14, "Removal and Installation".
2. Remove the screws (A).
3. Remove the door mirror remote control switch (1) from instrument lower panel LH (2).
INSTALLATION
Install in the reverse order of removal.
JMLIA0873ZZ
Revision: 2010 May2011 QX56
Page 3744 of 5598

MWI
MWI-1
DRIVER INFORMATION & MULTIMEDIA
C
DE
F
G H
I
J
K L
M B
SECTION MWI
A
O P
CONTENTS
METER, WARNING LAMP & INDICATOR
PRECAUTION ................ ...............................4
PRECAUTIONS .............................................. .....4
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
4
PREPARATION ............................................5
PREPARATION .............................................. .....5
Commercial Service Tools .................................. ......5
SYSTEM DESCRIPTION ..............................6
COMPONENT PARTS ................................... .....6
METER SYSTEM .........................................................6
METER SYSTEM : Component Parts Location .. ......6
METER SYSTEM : Component Description .............7
CLOCK .................................................................. ......7
CLOCK : Component Parts Location ........................8
SYSTEM ..............................................................9
METER SYSTEM .........................................................9
METER SYSTEM : System Diagram ........................9
METER SYSTEM : System Description ....................9
METER SYSTEM : Fail-Safe ..................................12
SPEEDOMETER ................ ........................................13
SPEEDOMETER : System Diagram ................... ....13
SPEEDOMETER : System Description ...................13
TACHOMETER ...................................................... ....13
TACHOMETER : System Diagram .........................14
TACHOMETER : System Description .....................14
ENGINE COOLANT TEMPERATURE GAUGE .... ....14
ENGINE COOLANT TEMPERATURE GAUGE :
System Diagram ......................................................
14
ENGINE COOLANT TEMPERATURE GAUGE :
System Description .................................................
14
FUEL GAUGE ........................................................ ....14
FUEL GAUGE : System Diagram ............................14
FUEL GAUGE : System Description .......................14
ENGINE OIL PRESSURE GAUGE ............................15
ENGINE OIL PRESSURE GAUGE : System Dia-
gram .................................................................... ....
15
ENGINE OIL PRESSURE GAUGE : System De-
scription ...................................................................
15
VOLTMETER ......................................................... ....15
VOLTMETER : System Diagram .............................15
VOLTMETER : System Description .........................15
OIL PRESSURE WARNING LAMP ...........................15
OIL PRESSURE WARNING LAMP : System Dia-
gram .................................................................... ....
15
OIL PRESSURE WARNING LAMP : System De-
scription ...................................................................
16
MASTER WARNING LAMP ................................... ....16
MASTER WARNING LAMP : System Diagram .......16
MASTER WARNING LAMP : System Description ....16
METER ILLUMINATION CONTROL ..................... ....16
METER ILLUMINATION CONTROL : System Di-
agram ......................................................................
16
METER ILLUMINATION CONTROL : System De-
scription ...................................................................
16
METER EFFECT FUNCTION ................................ ....17
METER EFFECT FUNCTION : System Diagram ....17
METER EFFECT FUNCTION : System Descrip-
tion ...........................................................................
17
INFORMATION DISPLAY ...................................... ....19
INFORMATION DISPLAY : System Diagram ..........19
INFORMATION DISPLAY : System Description .....20
OPERATION .....................................................28
Switch Name and Function ......................................28
Revision: 2010 May2011 QX56
