Page 3409 of 5598

INFINITI QX56 2011 Factory Service Manual INSTRUMENT PANEL ASSEMBLYIP-19 < REMOVAL AND INSTALLATION > C DE F G H I K L M A B IP N O P 3. Remove center console assembly front fixing screws (B). 4. Lift up center console assembly back side, an

Page 3410 of 5598

INFINITI QX56 2011 Factory Service Manual IP-20 < REMOVAL AND INSTALLATION > INSTRUMENT PANEL ASSEMBLY 25. Remove steering column covers.1. Remove steering column cover fixing screws (A). 2. Pull up steering column upper cover (1), and then

Page 3411 of 5598

INFINITI QX56 2011 Factory Service Manual INSTRUMENT PANEL ASSEMBLYIP-21 < REMOVAL AND INSTALLATION > C DE F G H I K L M A B IP N O P 33. Remove cluster lid C lower. 1. Disengage cluster lid C lower fixing metal clips with remover tool (A).

Page 3412 of 5598

INFINITI QX56 2011 Factory Service Manual IP-22 < REMOVAL AND INSTALLATION > INSTRUMENT PANEL ASSEMBLY 38. Pull back instrument panel assembly, and then remove front squawker LH harness (1) fixing clip (A) fromfront ventilator duct (2). 39.

Page 3413 of 5598

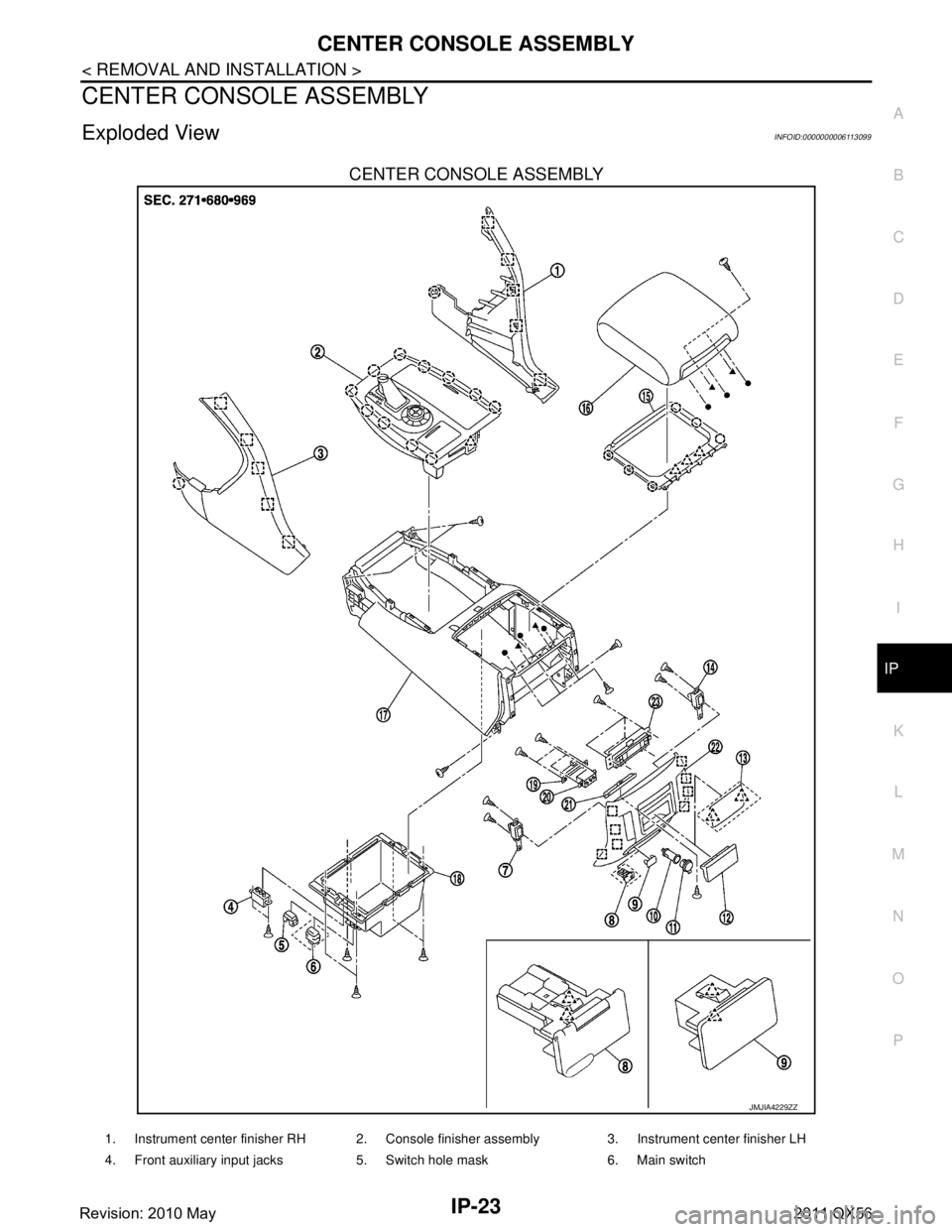

INFINITI QX56 2011 Factory Service Manual CENTER CONSOLE ASSEMBLYIP-23 < REMOVAL AND INSTALLATION > C DE F G H I K L M A B IP N O P CENTER CONSOLE ASSEMBLY Exploded ViewINFOID:0000000006113099 CENTER CONSOLE ASSEMBLY JMJIA4229ZZ 1. Instrume

Page 3414 of 5598

INFINITI QX56 2011 Factory Service Manual IP-24 < REMOVAL AND INSTALLATION > CENTER CONSOLE ASSEMBLY CONSOLE FINISHER ASSEMBLY 7. Second heated seat switch LH 8. 120W unit 9. Mask 10. Inner socket 11. Socket knob 12. Console ashtray 13. Mas

Page 3415 of 5598

INFINITI QX56 2011 Factory Service Manual CENTER CONSOLE ASSEMBLYIP-25 < REMOVAL AND INSTALLATION > C DE F G H I K L M A B IP N O P Removal and InstallationINFOID:0000000006113100 CAUTION: When removing, always use a remover tool that is ma

Page 3416 of 5598

INFINITI QX56 2011 Factory Service Manual IP-26 < REMOVAL AND INSTALLATION > CENTER CONSOLE ASSEMBLY 5. Remove instrument center finisher LH.1. Pull the instrument center finisher LH lower side, and thendisengage the fixing clip. 2. Pull bac
