Page 3297 of 5598

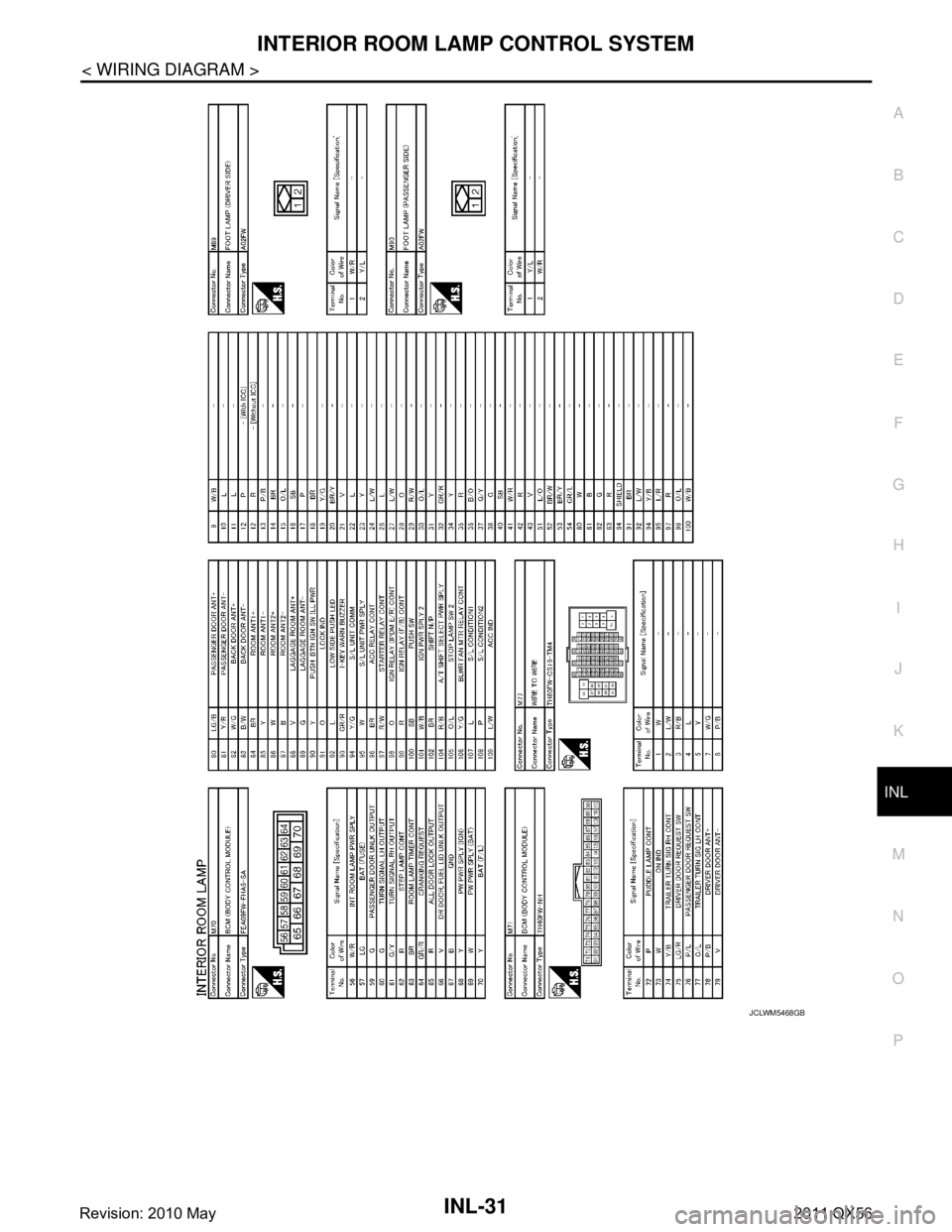

INFINITI QX56 2011 Factory Service Manual INL-30 < WIRING DIAGRAM > INTERIOR ROOM LAMP CONTROL SYSTEM JCLWM5467GB Revision: 2010 May2011 QX56

Page 3298 of 5598

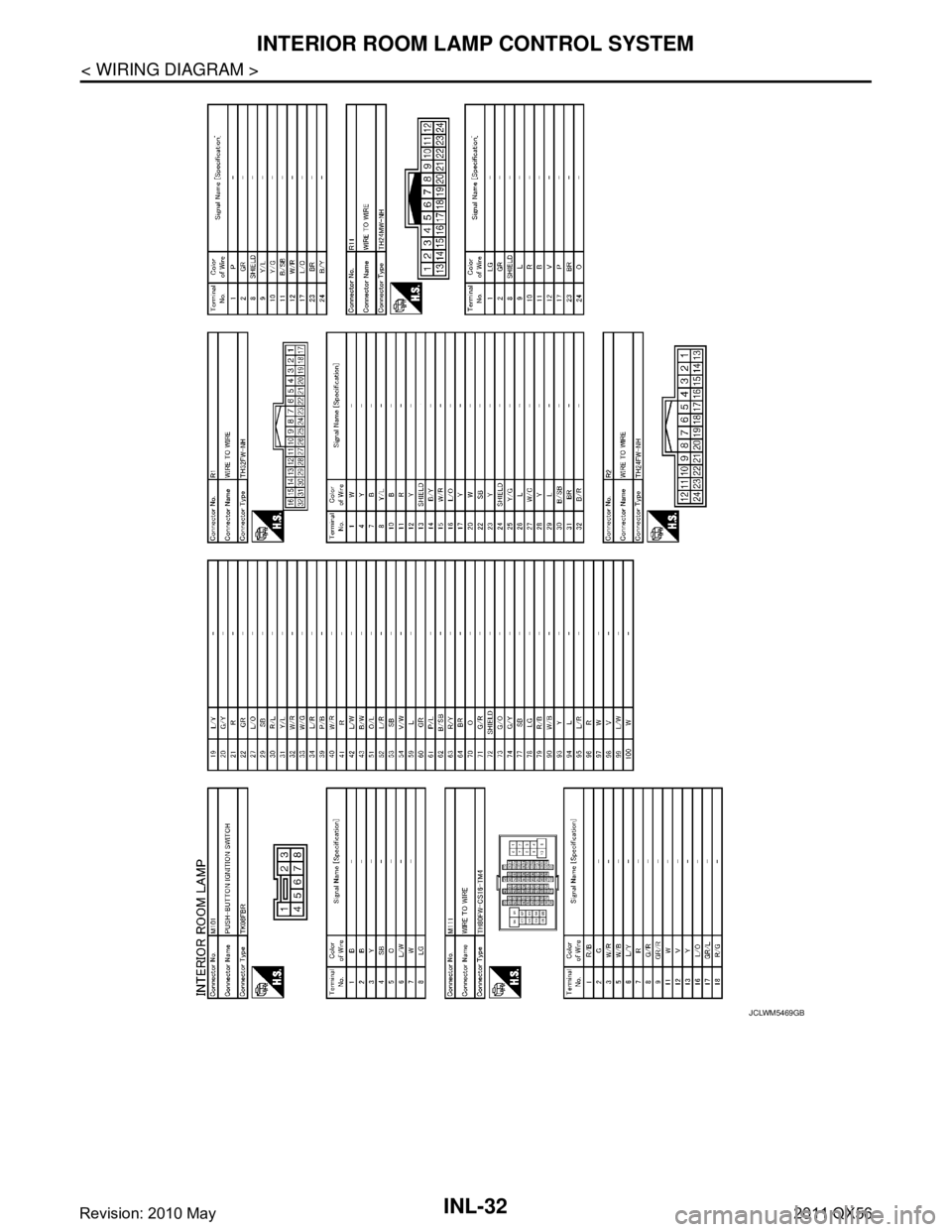

INFINITI QX56 2011 Factory Service Manual INTERIOR ROOM LAMP CONTROL SYSTEMINL-31 < WIRING DIAGRAM > C DE F G H I J K M A B INL N O P JCLWM5468GB Revision: 2010 May2011 QX56

Page 3299 of 5598

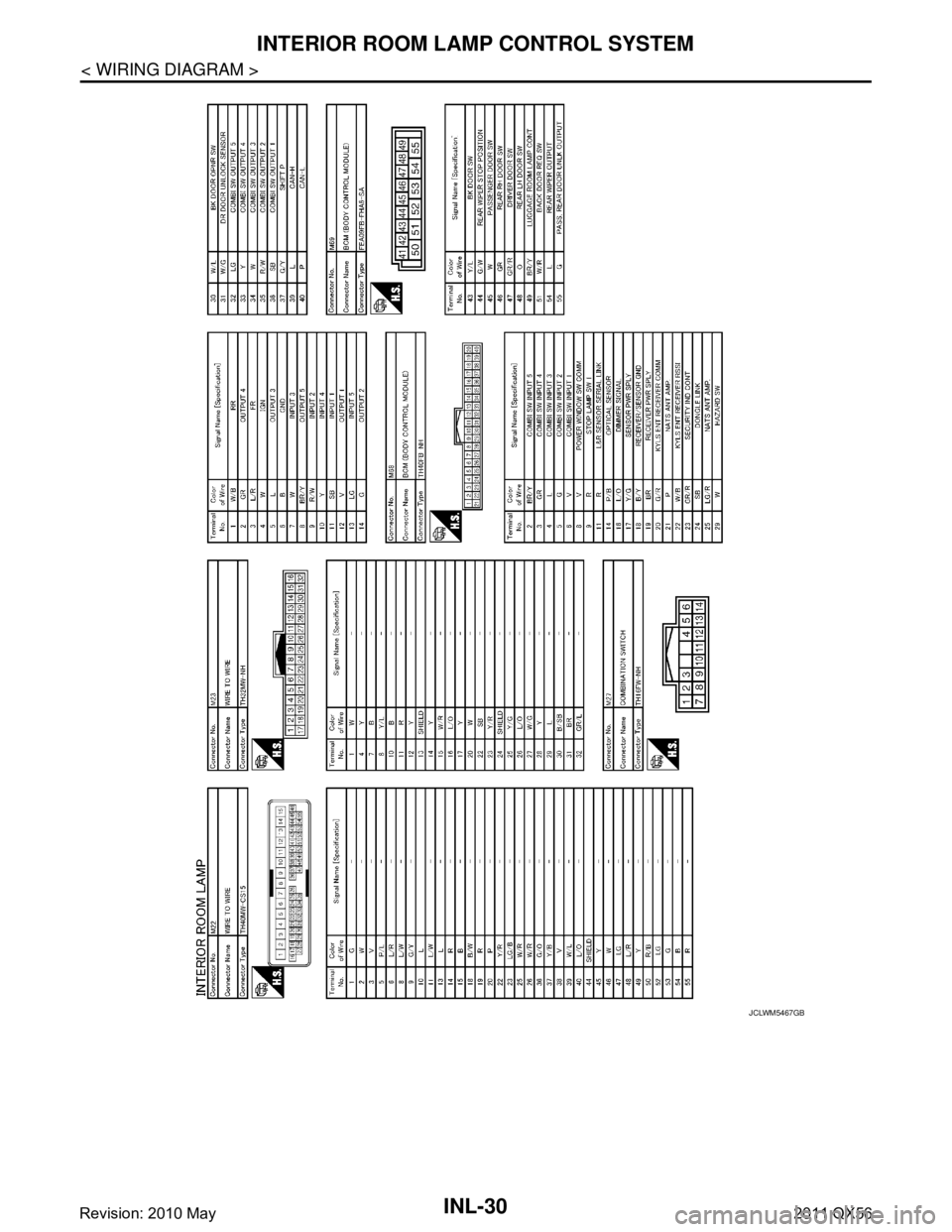

INFINITI QX56 2011 Factory Service Manual INL-32 < WIRING DIAGRAM > INTERIOR ROOM LAMP CONTROL SYSTEM JCLWM5469GB Revision: 2010 May2011 QX56

Page 3300 of 5598

INFINITI QX56 2011 Factory Service Manual INTERIOR ROOM LAMP CONTROL SYSTEMINL-33 < WIRING DIAGRAM > C DE F G H I J K M A B INL N O P JCLWM5470GB Revision: 2010 May2011 QX56

Page 3301 of 5598

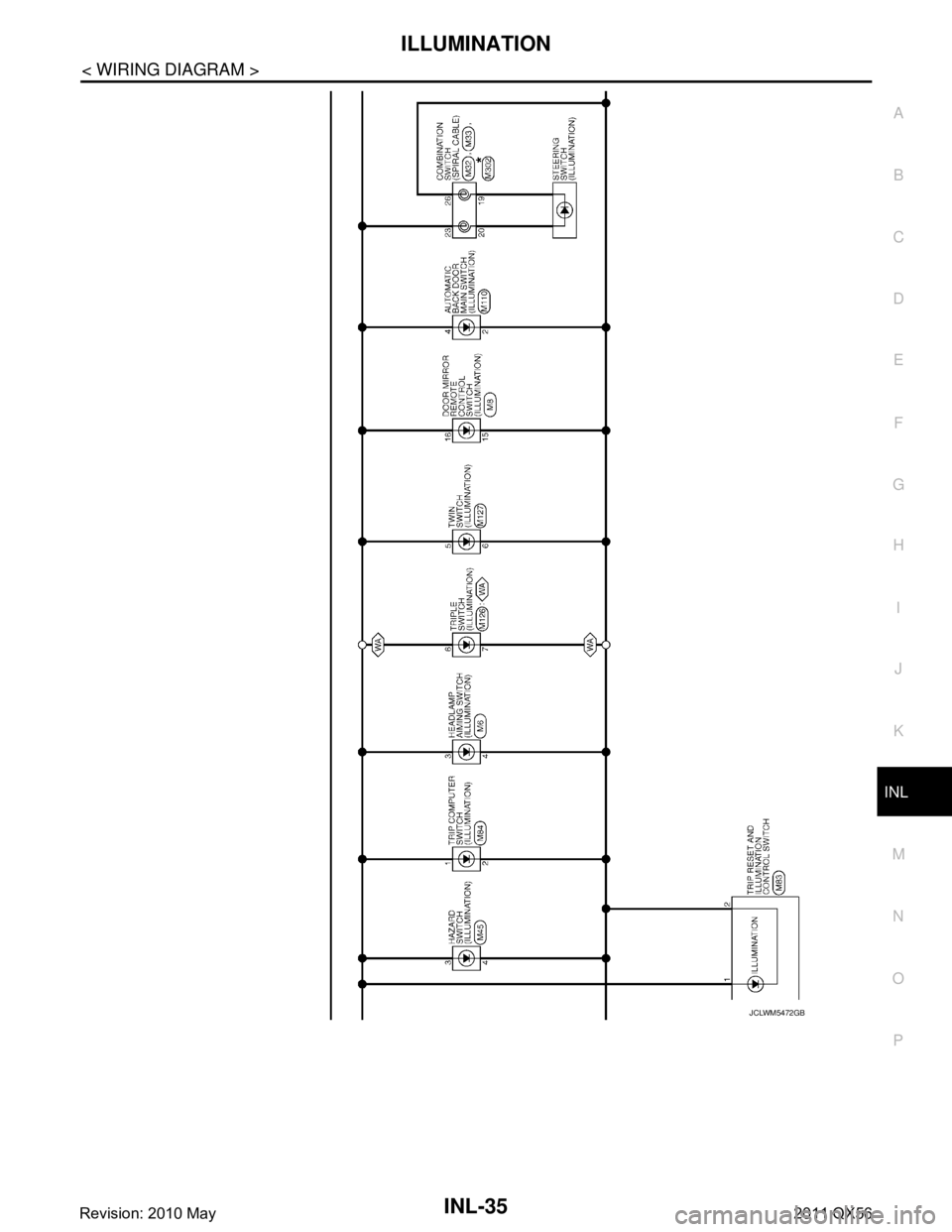

INFINITI QX56 2011 Factory Service Manual INL-34 < WIRING DIAGRAM > ILLUMINATION ILLUMINATION Wiring DiagramINFOID:0000000006216063 JCLWM5471GB Revision: 2010 May2011 QX56

Page 3302 of 5598

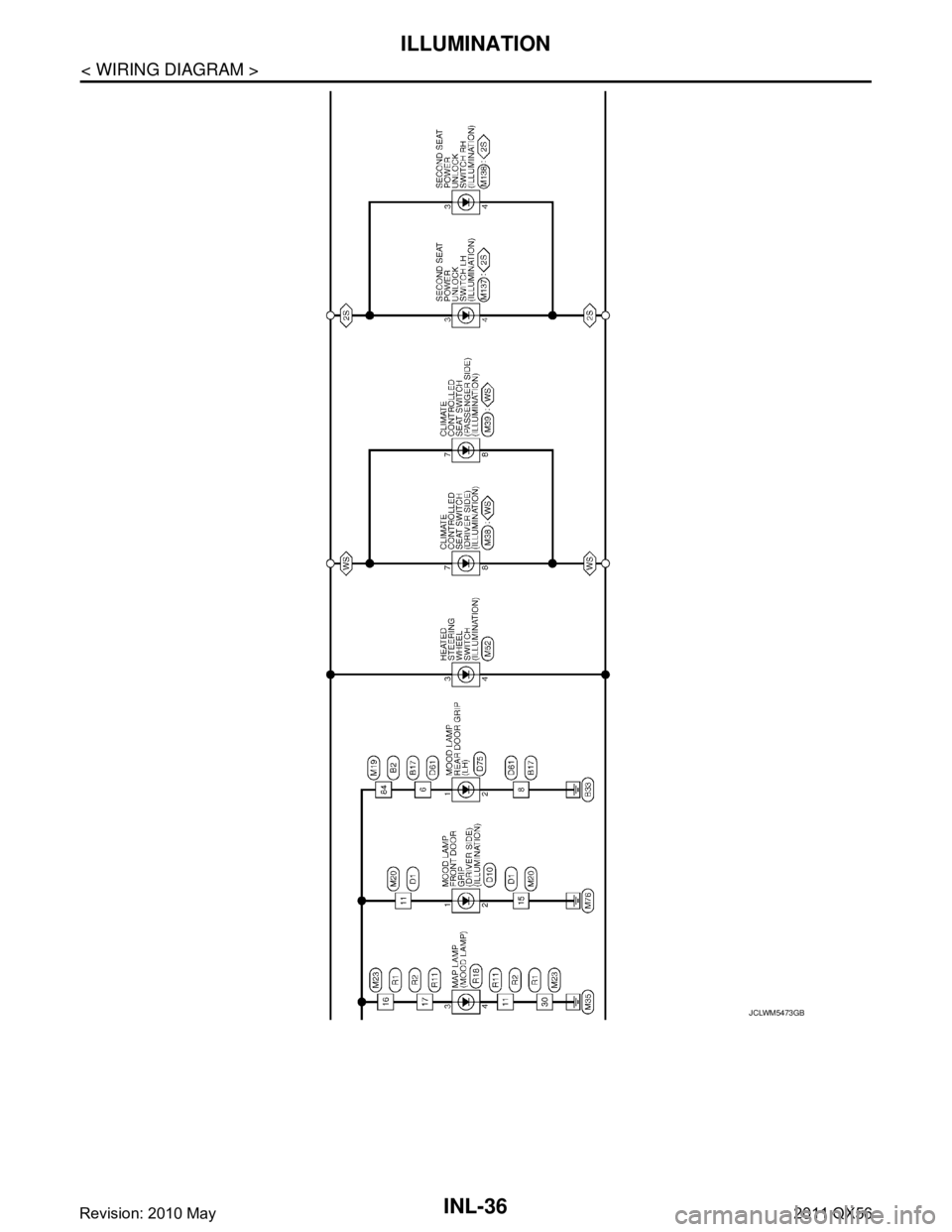

INFINITI QX56 2011 Factory Service Manual ILLUMINATIONINL-35 < WIRING DIAGRAM > C DE F G H I J K M A B INL N O P JCLWM5472GB Revision: 2010 May2011 QX56

Page 3303 of 5598

INFINITI QX56 2011 Factory Service Manual INL-36 < WIRING DIAGRAM > ILLUMINATION JCLWM5473GB Revision: 2010 May2011 QX56

Page 3304 of 5598

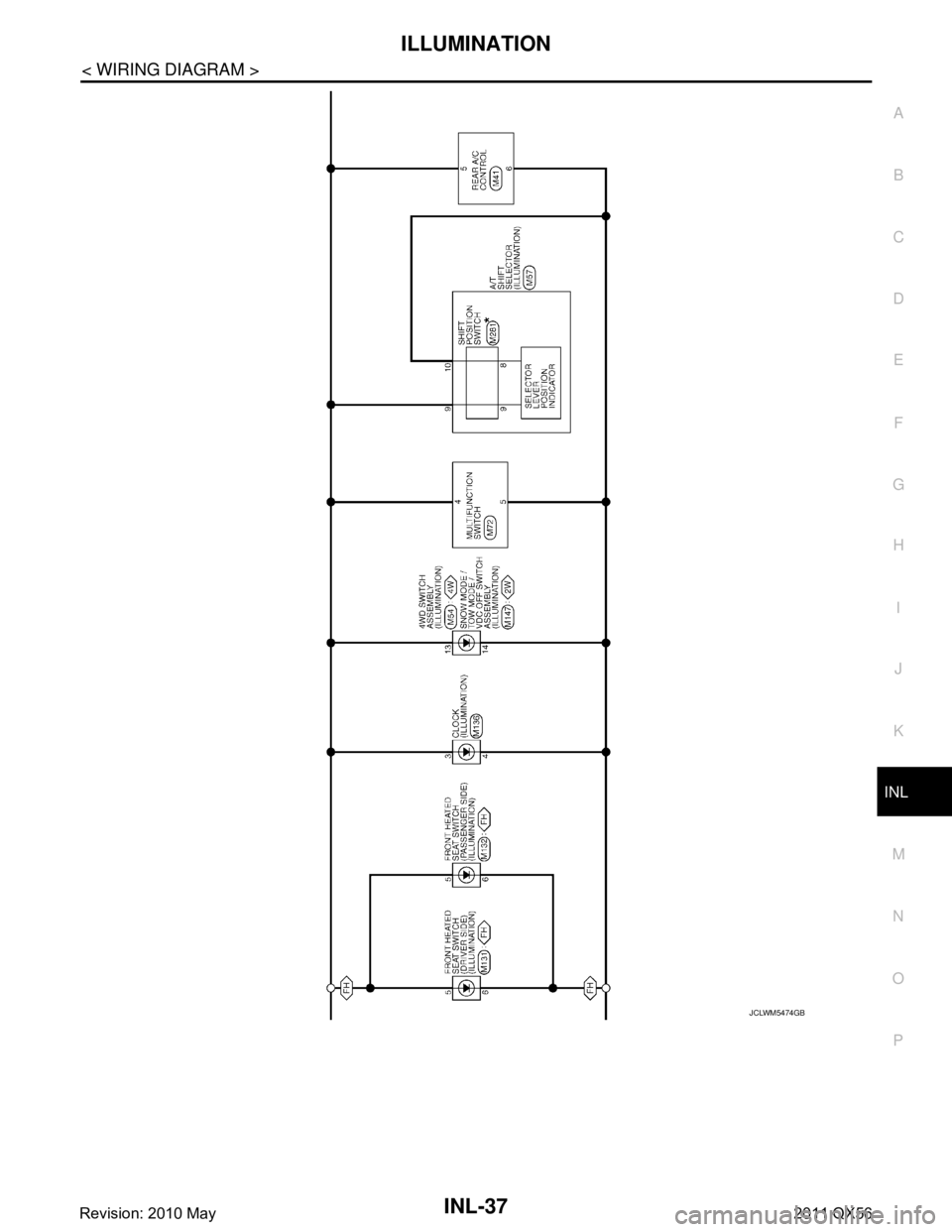

INFINITI QX56 2011 Factory Service Manual ILLUMINATIONINL-37 < WIRING DIAGRAM > C DE F G H I J K M A B INL N O P JCLWM5474GB Revision: 2010 May2011 QX56
