Page 5257 of 5598

INFINITI QX56 2011 Factory Service Manual SYSTEM SYMPTOMTM-169 < SYMPTOM DIAGNOSIS > [7AT: RE7R01B] C EF G H I J K L M A B TM N O P SYMPTOM TABLE 2 Symptom Diagnostic item Control cable Output speed sensor Vehicle speed signal Accelerator pe

Page 5258 of 5598

INFINITI QX56 2011 Factory Service Manual TM-170 < SYMPTOM DIAGNOSIS >[7AT: RE7R01B] SYSTEM SYMPTOM *: Parts behind drum support is impossible to perform inspection by disassembly. Refer to TM-16, "TRANSMISSION : Cross-Sectional View".Sympt

Page 5259 of 5598

INFINITI QX56 2011 Factory Service Manual SYSTEM SYMPTOMTM-171 < SYMPTOM DIAGNOSIS > [7AT: RE7R01B] C EF G H I J K L M A B TM N O P *: Parts behind drum support is impossible to perform inspection by disassembly. Refer to TM-16, "TRANSMISSI

Page 5260 of 5598

INFINITI QX56 2011 Factory Service Manual TM-172 < SYMPTOM DIAGNOSIS >[7AT: RE7R01B] SYSTEM SYMPTOM SymptomDiagnostic item Oil pump Torque converter Low brake* Front brake High and low reverse clutch Input clutch Direct clutch 2346 brake Rev

Page 5261 of 5598

INFINITI QX56 2011 Factory Service Manual SYSTEM SYMPTOMTM-173 < SYMPTOM DIAGNOSIS > [7AT: RE7R01B] C EF G H I J K L M A B TM N O P *: Parts behind drum support is impossible to perform inspection by disassembly. Refer to TM-16, "TRANSMISSI

Page 5262 of 5598

INFINITI QX56 2011 Factory Service Manual TM-174 < SYMPTOM DIAGNOSIS >[7AT: RE7R01B] SYSTEM SYMPTOM *: Parts behind drum support is impossible to perform inspection by disassembly. Refer to TM-16, "TRANSMISSION : Cross-Sectional View".Sympt

Page 5263 of 5598

INFINITI QX56 2011 Factory Service Manual A/T FLUIDTM-175 < PERIODIC MAINTENANCE > [7AT: RE7R01B] C EF G H I J K L M A B TM N O P PERIODIC MAINTENANCE A/T FLUID InspectionINFOID:0000000006288673 FLUID LEAKAGE  Check transaxle surrounding ar

Page 5264 of 5598

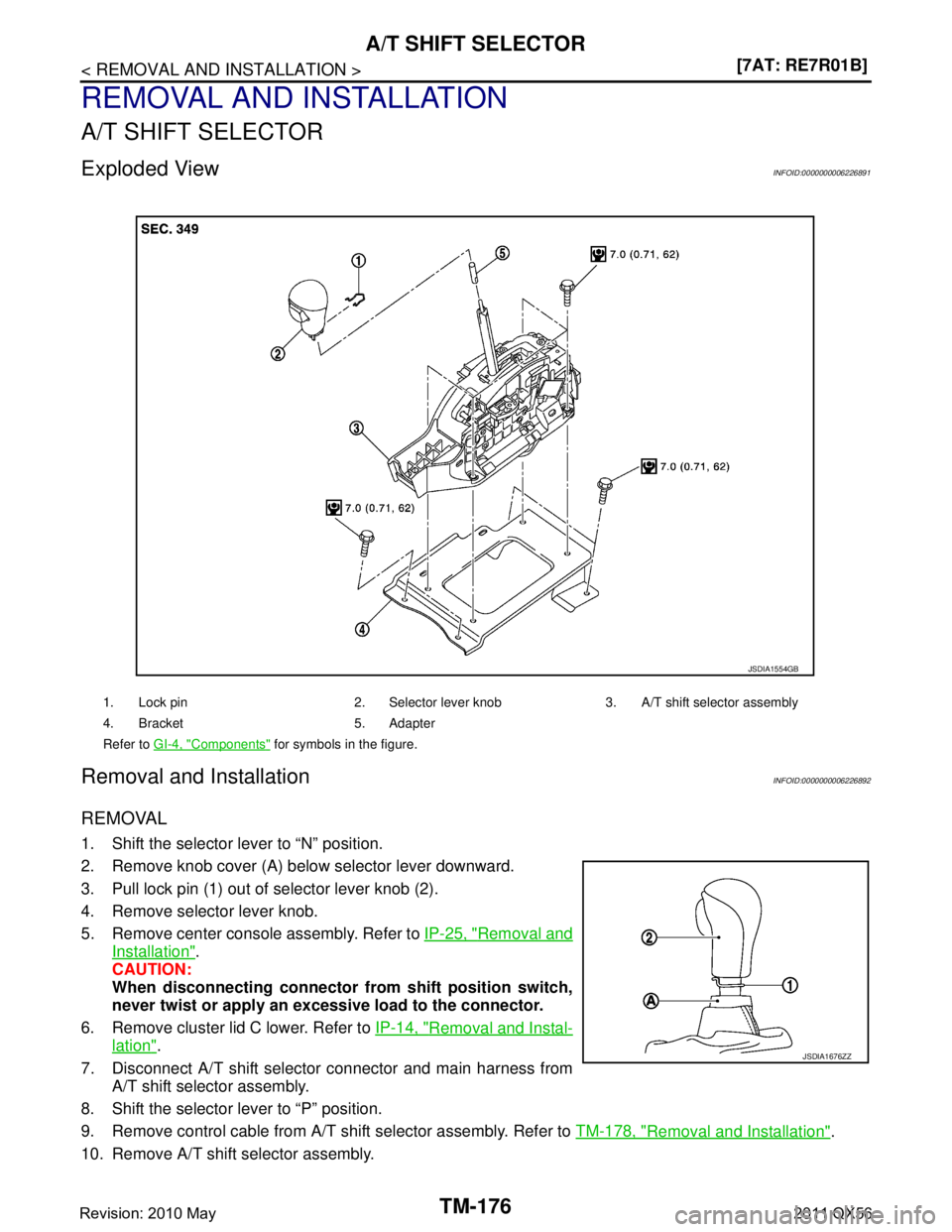

INFINITI QX56 2011 Factory Service Manual TM-176 < REMOVAL AND INSTALLATION >[7AT: RE7R01B] A/T SHIFT SELECTOR REMOVAL AND INSTALLATION A/T SHIFT SELECTOR Exploded ViewINFOID:0000000006226891 Removal and InstallationINFOID:0000000006226892 R
