Page 433 of 5598

INFINITI QX56 2011 Factory Service Manual BCS BCM BCS-45 < ECU DIAGNOSIS INFORMATION > C D E F G H I J K L B A O P N 35 (R/W) Ground Combination switch OUTPUT 2 OutputCombination switch (Wiper volume dial 4) All switches OFF 7.0 - 8.0 V L

Page 434 of 5598

INFINITI QX56 2011 Factory Service Manual BCS-46 < ECU DIAGNOSIS INFORMATION > BCM 44 (G/W) Ground Rear wiper stop po- sition InputIgnition switch ON Rear wiper stop position 12 V Any position other than rear wiper stop position 0 V 45 (W)

Page 435 of 5598

INFINITI QX56 2011 Factory Service Manual BCS BCM BCS-47 < ECU DIAGNOSIS INFORMATION > C D E F G H I J K L B A O P N 55 (G) Ground Rear door UNLOCK Output Rear door UNLOCK (Actuator is acti- vated) 12 V Other then UNLOCK (Ac- tuator is not a

Page 436 of 5598

INFINITI QX56 2011 Factory Service Manual BCS-48 < ECU DIAGNOSIS INFORMATION > BCM 66 (V) Ground Driver door, fuel lid UNLOCK OutputDriver door, fuel lid UNLOCK (Actuator is acti- vated) 12 V Other then UNLOCK (Ac- tuator is not activated)

Page 437 of 5598

INFINITI QX56 2011 Factory Service Manual BCS BCM BCS-49 < ECU DIAGNOSIS INFORMATION > C D E F G H I J K L B A O P N 78 (P/B) Ground Driver door antenna (+) OutputWhen the driver door request switch is operat- ed with ignition switch OFF

Page 438 of 5598

INFINITI QX56 2011 Factory Service Manual BCS-50 < ECU DIAGNOSIS INFORMATION > BCM 81 (Y/R) Ground Passenger door an- tenna (-) OutputWhen the pas- senger door re- quest switch is operated with ignition switch OFF When Intelligent Key is

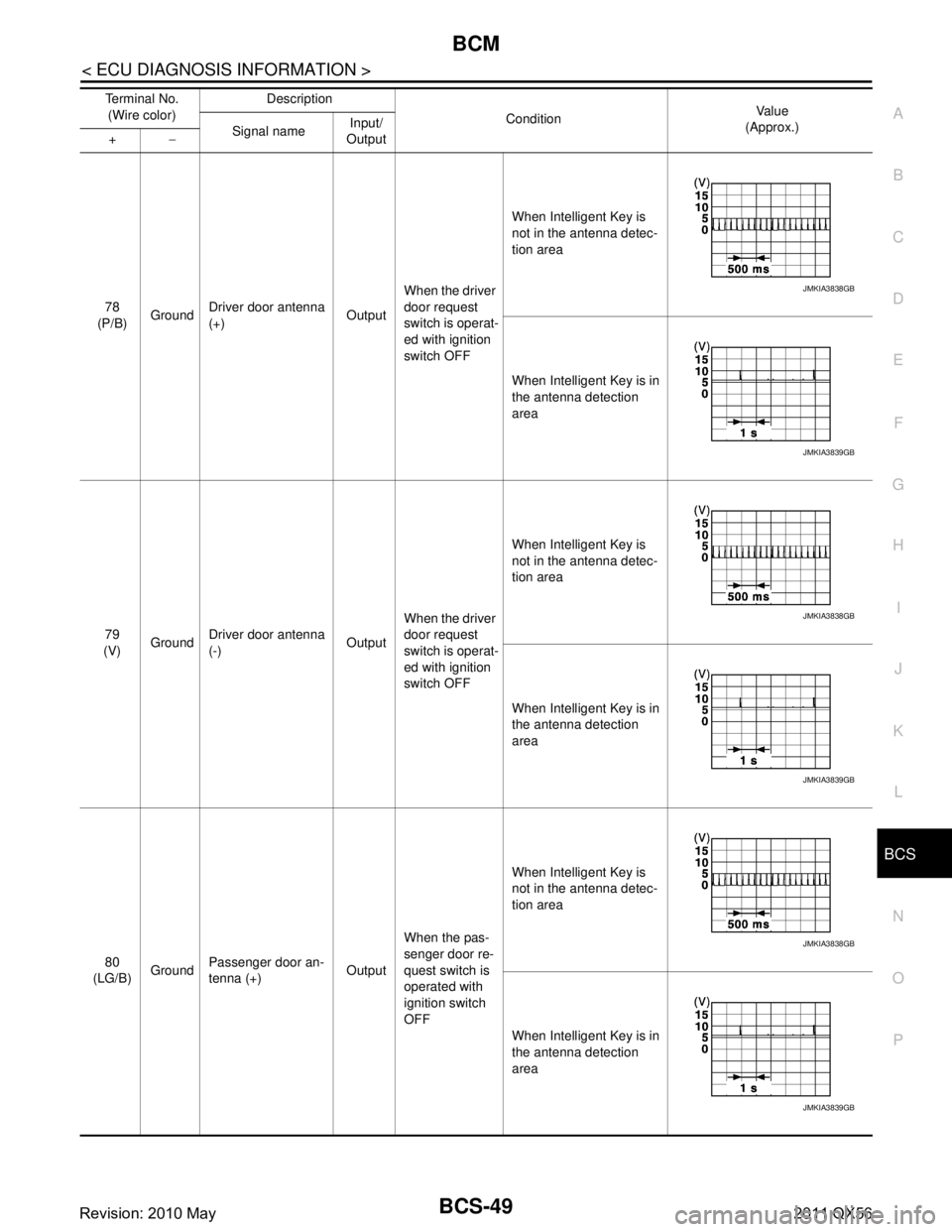

Page 439 of 5598

INFINITI QX56 2011 Factory Service Manual BCS BCM BCS-51 < ECU DIAGNOSIS INFORMATION > C D E F G H I J K L B A O P N 84 (BR) Ground Room antenna 1 (+) (Instrument center) Output Ignition switch OFF When Intelligent Key is not in the anten

Page 440 of 5598

INFINITI QX56 2011 Factory Service Manual BCS-52 < ECU DIAGNOSIS INFORMATION > BCM 87 (B) Ground Room antenna 2 ( −) (Console) Output Ignition switch OFF When Intelligent Key is not in the antenna detec- tion area When Intelligent Key i
