Page 1297 of 5598

INFINITI QX56 2011 Factory Service Manual
DAS-332
< BASIC INSPECTION >[LDW & LDP]
DIAGNOSIS AND REPAIR WORK FLOW
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work FlowINFOID:0000000006223727

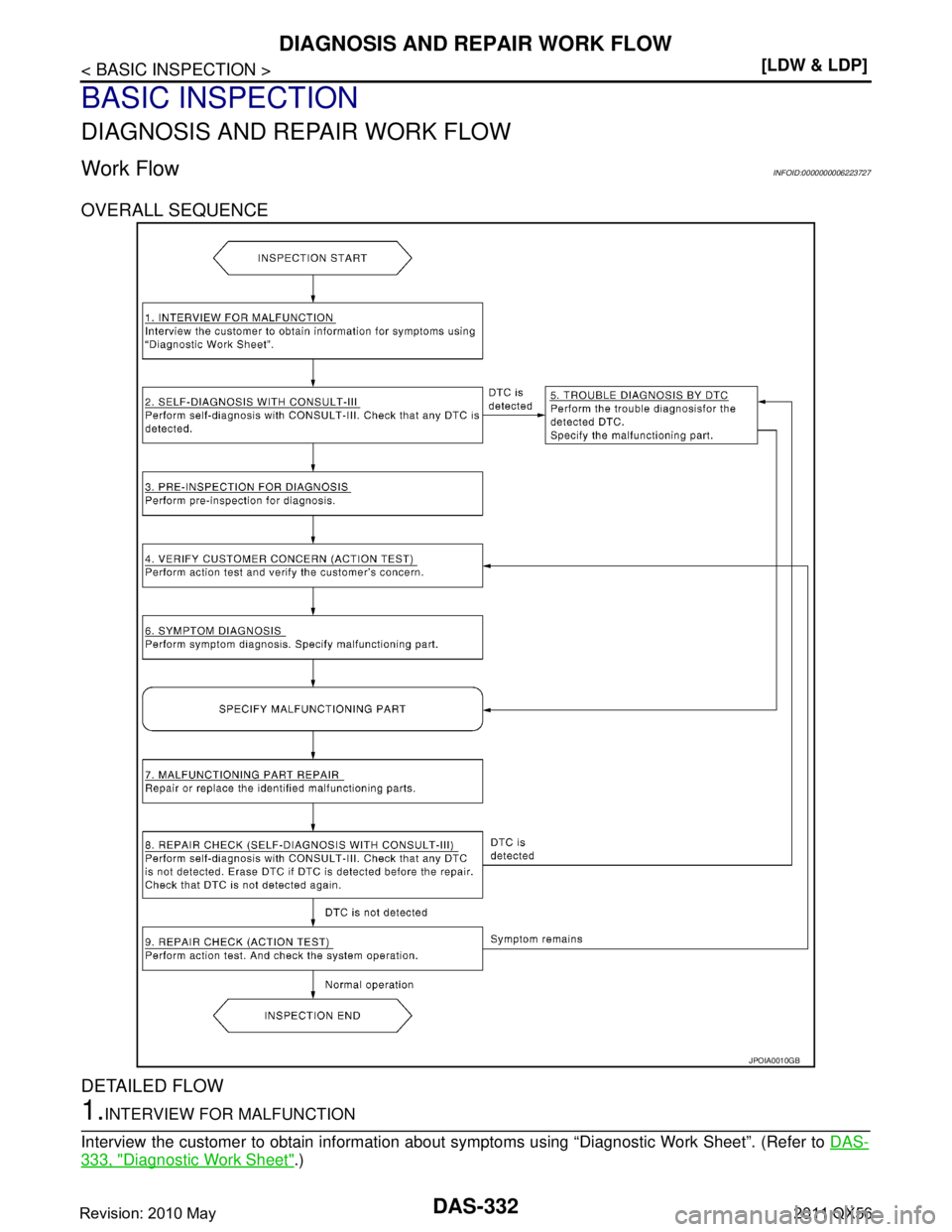

OVERALL SEQUENCE
DETAILED FLOW
1.INTERVIEW FOR

Page 1298 of 5598

INFINITI QX56 2011 Factory Service Manual
DAS
DIAGNOSIS AND REPAIR WORK FLOWDAS-333
< BASIC INSPECTION > [LDW & LDP]
C
D
E
F
G H
I
J
K L
M B
N P A
>> GO TO 2.
2.SELF-DIAGNOSIS WITH CONSULT-III
1. Perform “All DTC Reading” with CONSULT-II

Page 1299 of 5598

INFINITI QX56 2011 Factory Service Manual
DAS-334
< BASIC INSPECTION >[LDW & LDP]
DIAGNOSIS AND REPAIR WORK FLOW
Utilize a work sheet sample to organize all of the information for troubleshooting.
KEY POINTS WHAT..... System and functions

Page 1300 of 5598

INFINITI QX56 2011 Factory Service Manual
DAS
PRE-INSPECTION FOR DIAGNOSISDAS-335
< BASIC INSPECTION > [LDW & LDP]
C
D
E
F
G H
I
J
K L
M B
N P A
PRE-INSPECTION FOR DIAGNOSIS
Inspection ProcedureINFOID:0000000006223729
1.CHECK CAMERA LENS AND

Page 1301 of 5598

INFINITI QX56 2011 Factory Service Manual
DAS-336
< BASIC INSPECTION >[LDW & LDP]
ACTION TEST
ACTION TEST
DescriptionINFOID:0000000006223730
Perform action test to verify the customers concern.
Perform action test and check the syst
em

DAS-336
< BASIC INSPECTION >[LDW & LDP]
ACTION TEST
ACTION TEST
DescriptionINFOID:0000000006223730
Perform action test to verify the customer's concern.
Perform action test and check the syst
em operation after system diagnosis.
WARNING:
Be careful of traffic conditions and safety ar ound the vehicle when performing road test.
CAUTION:
Fully understand the following it ems well before the road test;
- Precautions: Refer to DAS-273, "
Precaution for LDW/LDP System Service".
- System description for LDW: Refer to DAS-277, "
LANE DEPARTURE WARNING (LDW) SYSTEM :
System Description".
- System description for LDP: Refer to DAS-280, "
LANE DEPARTURE PREVENTION (LDP) SYSTEM :
System Description".
- Handling precaution: Refer to DAS-288, "
Precautions for Lane Departure Warning/Lane Departure
Prevention".
Inspection ProcedureINFOID:0000000006223731
WARNING:
Be careful of traffic conditions and safety ar ound the vehicle when performing road test.
CAUTION:
Fully understand the following it ems well before the road test;
- Precautions: Refer to DAS-273, "
Precaution for LDW/LDP System Service".
- System description for LDW: Refer to DAS-277, "
LANE DEPARTURE WARNING (LDW) SYSTEM :
System Description".
- System description for LDP: Refer to DAS-280, "
LANE DEPARTURE PREVENTION (LDP) SYSTEM :
System Description".
- Handling precaution: Refer to DAS-288, "
Precautions for Lane Departure Warning/Lane Departure
Prevention".
1.ACTION TEST FOR LDW
1. Drive the vehicle.
2. Turn warning systems switch ON (w arning systems ON indicator is ON).
NOTE:
LDP system is OFF.
3. Check the LDW operation according to the following table.
NOTE:
Vehicle condition/ Driver's operation Action Warning sys-
tems ON indi- cator Indication on the combination
meter Buzzer
Less than
Approx. 60 km/h (40 MPH) Close to lane marker No action ON OFF —
Approx. 70 km/h (45 MPH) or more Close to lane marker
Warning
Buzzer sounds
Warning lamp
blinks ON
Short contin-
uous beeps
Close to lane marker
Turn signal ON (Deviate side) No action ON OFF —
JPOIA0018GB
Revision: 2010 May2011 QX56

Page 1302 of 5598

INFINITI QX56 2011 Factory Service Manual
DAS
ACTION TESTDAS-337
< BASIC INSPECTION > [LDW & LDP]
C
D
E
F
G H
I
J
K L
M B
N P A
After the operating conditions of warning are satisf ied, the warning continues until the vehicle speed
reaches a

Page 1303 of 5598

INFINITI QX56 2011 Factory Service Manual
DAS-338
< BASIC INSPECTION >[LDW & LDP]
ACTION TEST
NOTE:
After the operating conditions are satisfied, the c
ontrol continues until the vehicle speed reaches approxi-
mately 60 km/h (40 MPH). Refer

Page 1304 of 5598

INFINITI QX56 2011 Factory Service Manual
DAS
ADDITIONAL SERVICE WHEN REPLACING LANE CAMERA UNITDAS-339
< BASIC INSPECTION > [LDW & LDP]
C
D
E
F
G H
I
J
K L
M B
N P A
ADDITIONAL SERVICE WHEN RE PLACING LANE CAMERA UNIT
DescriptionINFOID:0000
