PWO-34
< REMOVAL AND INSTALLATION >[AC 120 V OUTLET]
INVERTER UNIT
REMOVAL AND INSTALLATION
INVERTER UNIT
Removal and InstallationINFOID:0000000006257131
REMOVAL
1. Remove console body assembly. Refer to
IP-23, "Exploded View".
2. Disconnect inverter unit connector.
3. Remove mounting bolt.
4. Remove inverter unit.
INSTALLATION
Install in the reverse order of removal.
Revision: 2010 May2011 QX56
Page 4194 of 5598
PWO
AC 120V OUTLET MAIN SWPWO-35
< REMOVAL AND INSTALLATION > [AC 120 V OUTLET]
C
D
E
F
G H
I
J
K L
B A
O P
N
AC 120V OUTLET MAIN SW
Removal and InstallationINFOID:0000000006257132
REMOVAL
1. Remove console body assembly. Refer to
IP-23, "Exploded View".
2. Disengage pawl. Then remove AC 120 V outlet main switch from center console assembly.
INSTALLATION
Install in the reverse order of removal.
Revision: 2010 May2011 QX56
Page 4195 of 5598
PWO-36
< REMOVAL AND INSTALLATION >[AC 120 V OUTLET]
AC 120 V OUTLET
AC 120 V OUTLET
Removal and InstallationINFOID:0000000006257133
REMOVAL
1. Remove console rear finisher. Refer to
IP-23, "Exploded View".
2. Push the pawl from the back of the console rear finisher to remove the AC 120 V outlet.
INSTALLATION
Install in the reverse order of removal.
Revision: 2010 May2011 QX56
Page 4196 of 5598
PWO
SERVICE DATA AND SPECIFICATIONS (SDS)
PWO-37
< SERVICE DATA AND SPECIFICATIONS (SDS) [AC 120 V OUTLET]
C
D
E
F
G H
I
J
K L
B A
O P
N
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
AC 120 V Power OutletINFOID:0000000006257135
Rated voltage AC 120 V
Maximum electric capacity 150 W or less (Total)
Maximum current 1.25 A or less (Total)
Revision: 2010 May2011 QX56
Page 4197 of 5598

RAX-1
TRANSMISSION & DRIVELINE
CEF
G H
I
J
K L
M
SECTION RAX
A
B
RAX
N
O P
CONTENTS
REAR AXLE
PRECAUTION ................ ...............................2
PRECAUTIONS .............................................. .....2
Precautions for Drive Shaft ................................. ......2
PREPARATION ............................................3
PREPARATION .............................................. .....3
Special Service Tools .......................................... ......3
Commercial Service Tools ........................................3
SYMPTOM DIAGNOSIS ...............................4
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING ........................ .....
4
NVH Troubleshooting Chart ................................ ......4
PERIODIC MAINTENANCE ..........................5
REAR WHEEL HUB AND HOUSING ............ .....5
Inspection ............................................................ ......5
REAR DRIVE SHAFT ..........................................6
Inspection ............................................................ ......6
REMOVAL AND INSTALLATION ................7
REAR WHEEL HUB AND HOUSING ................7
Exploded View ..................................................... .....7
Removal and Installation ..........................................7
Inspection .................................................................9
REAR DRIVE SHAFT ........................................11
Exploded View .........................................................11
Removal and Installation .........................................11
WHEEL SIDE ......................................................... ....12
WHEEL SIDE : Disassembly and Assembly ...........12
FINAL DRIVE SIDE ................................................ ....15
FINAL DRIVE SIDE : Disassembly and Assembly ....15
Inspection ................................................................16
SERVICE DATA AND SPECIFICATIONS
(SDS) ............... .............................................
18
SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................
18
Wheel Hub and Bearing Assembly ...................... ....18
Drive Shaft ...............................................................18
Revision: 2010 May2011 QX56
Page 4198 of 5598
RAX-2
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precautions for Drive ShaftINFOID:0000000006225459
• Observe the following precautions when disassembling and assembling drive shaft.
- Never disassemble joint sub-assembly because it is non-overhaul parts.
- Perform work in a location which is as dust-free as possible.
- Clean the parts, before disassembling and assembling.
- Prevent the entry of foreign objects during disassembly of the service location.
- Reassemble disassembled parts carefully in the correct order. If work is interrupted, a clean cover must be placed over parts.
- Use paper waste. Do not use fabric shop clot hs because of the danger of lint adhering to parts.
- Clean disassembled parts (except for rubber parts) with kerosene which shall be removed by blowing with
air or wiping with paper waste.
Revision: 2010 May2011 QX56
Page 4199 of 5598
PREPARATIONRAX-3
< PREPARATION >
CEF
G H
I
J
K L
M A
B
RAX
N
O P
PREPARATION
PREPARATION

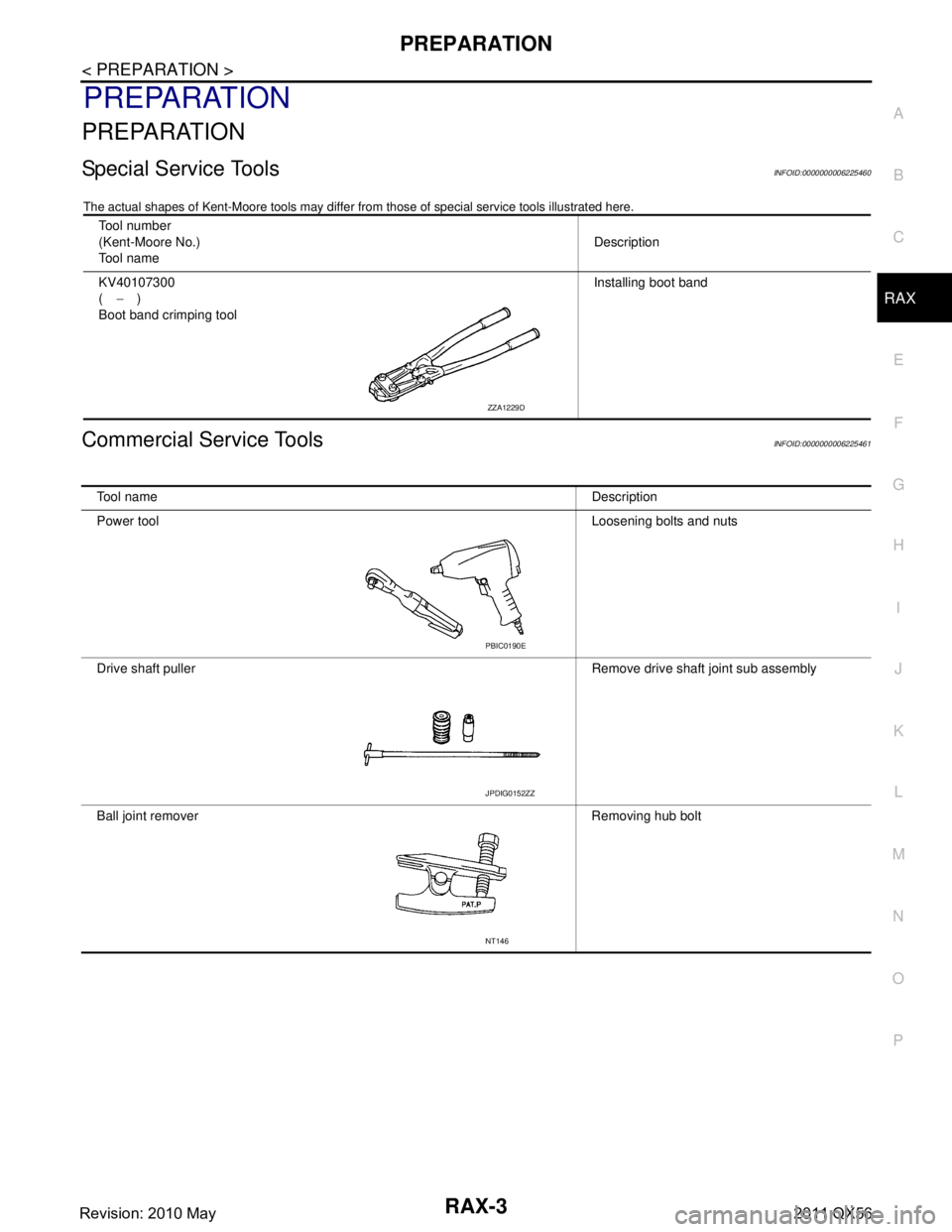

Special Service ToolsINFOID:0000000006225460
