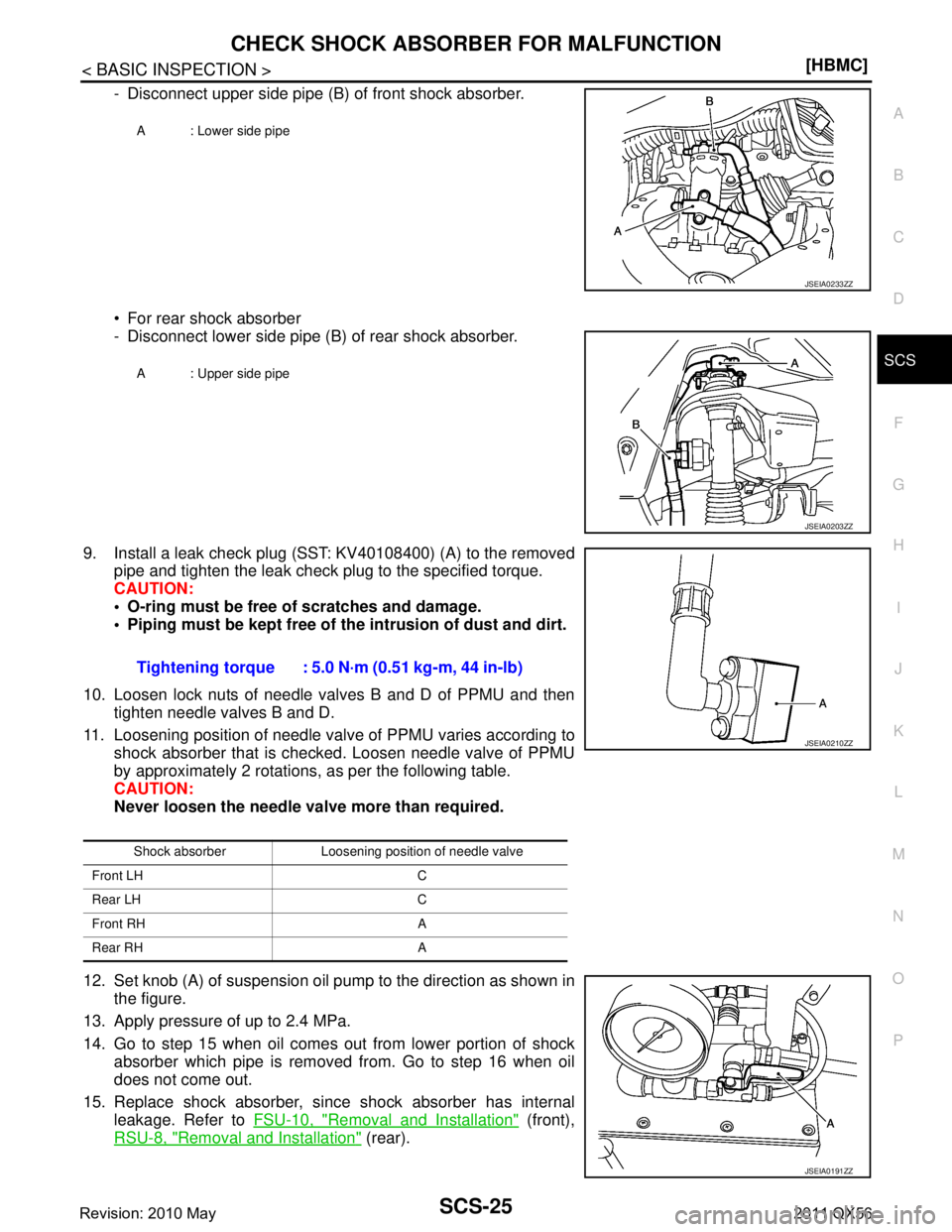

CHECK SHOCK ABSORBER FOR MALFUNCTIONSCS-25
< BASIC INSPECTION > [HBMC]
C
D
F
G H
I
J
K L
M A
B
SCS
N
O P
- Disconnect upper side pipe (B) of front shock absorber.
For rear shock absorber
- Disconnect lower side pipe (B ) of rear shock absorber.
9. Install a leak check plug (SST: KV40108400) (A) to the removed pipe and tighten the leak check plug to the specified torque.
CAUTION:
O-ring must be free of scratches and damage.
Piping must be kept free of the intrusion of dust and dirt.
10. Loosen lock nuts of needle valves B and D of PPMU and then tighten needle valves B and D.
11. Loosening position of needle valve of PPMU varies according to shock absorber that is che cked. Loosen needle valve of PPMU
by approximately 2 rotations, as per the following table.
CAUTION:
Never loosen the needle valve more than required.
12. Set knob (A) of suspension oil pump to the direction as shown in the figure.
13. Apply pressure of up to 2.4 MPa.
14. Go to step 15 when oil comes out from lower portion of shock absorber which pipe is removed from. Go to step 16 when oil
does not come out.
15. Replace shock absorber, since shock absorber has internal leakage. Refer to FSU-10, "
Removal and Installation" (front),
RSU-8, "
Removal and Installation" (rear).
A : Lower side pipe
JSEIA0233ZZ
A : Upper side pipe
JSEIA0203ZZ
Tightening torque : 5.0 N·m (0.51 kg-m, 44 in-lb)
Shock absorber Loosening position of needle valve
Front LH C
Rear LH C
Front RH A
Rear RH A
JSEIA0210ZZ
JSEIA0191ZZ
Revision: 2010 May2011 QX56
Page 4386 of 5598
![INFINITI QX56 2011 Factory Service Manual
SCS-26
< BASIC INSPECTION >[HBMC]
CHECK SHOCK ABSORBER FOR MALFUNCTION
16. Shock absorber that is checked
is normal. Set knob (A) of sus-
pension oil pump to the direction as shown in the figure and INFINITI QX56 2011 Factory Service Manual
SCS-26
< BASIC INSPECTION >[HBMC]
CHECK SHOCK ABSORBER FOR MALFUNCTION
16. Shock absorber that is checked
is normal. Set knob (A) of sus-
pension oil pump to the direction as shown in the figure and](/manual-img/42/57033/w960_57033-4385.png)
SCS-26
< BASIC INSPECTION >[HBMC]
CHECK SHOCK ABSORBER FOR MALFUNCTION
16. Shock absorber that is checked
is normal. Set knob (A) of sus-
pension oil pump to the direction as shown in the figure and
check that reading of pressure gauge is 0 MPa.
17. Tighten the loosened needle valve of PPMU.
18. Remove leak check plug from pipe. Install pipe to lower portion of shock absorber and tighten pipe to the specified torque.
CAUTION:
O-ring must be free of scratches and damage.
Piping must be kept free of th e intrusion of dust and dirt.
19. Check other shock absorbers in accor dance with procedures of steps 8 to 18.
20. Tighten needle valves A, C, and E of PPMU to t he specified torque, after completion of check.
21. Loosen needle valves B and D of PPMU by approximat ely 2 rotations and then tighten lock nuts to the
specified torque.
CAUTION:
Never loosen the needle valve more than required. Tightening torque : 5.0 N·
m (0.51 kg-m, 44 in-lb)
Tightening torque : 8.3 N· m (0.85 kg-m, 73 in-lb)
Tightening torque : 20 N·m (2.0 kg-m, 15 ft-lb)
JSEIA0193ZZ
Revision: 2010 May2011 QX56
Page 4387 of 5598
![INFINITI QX56 2011 Factory Service Manual

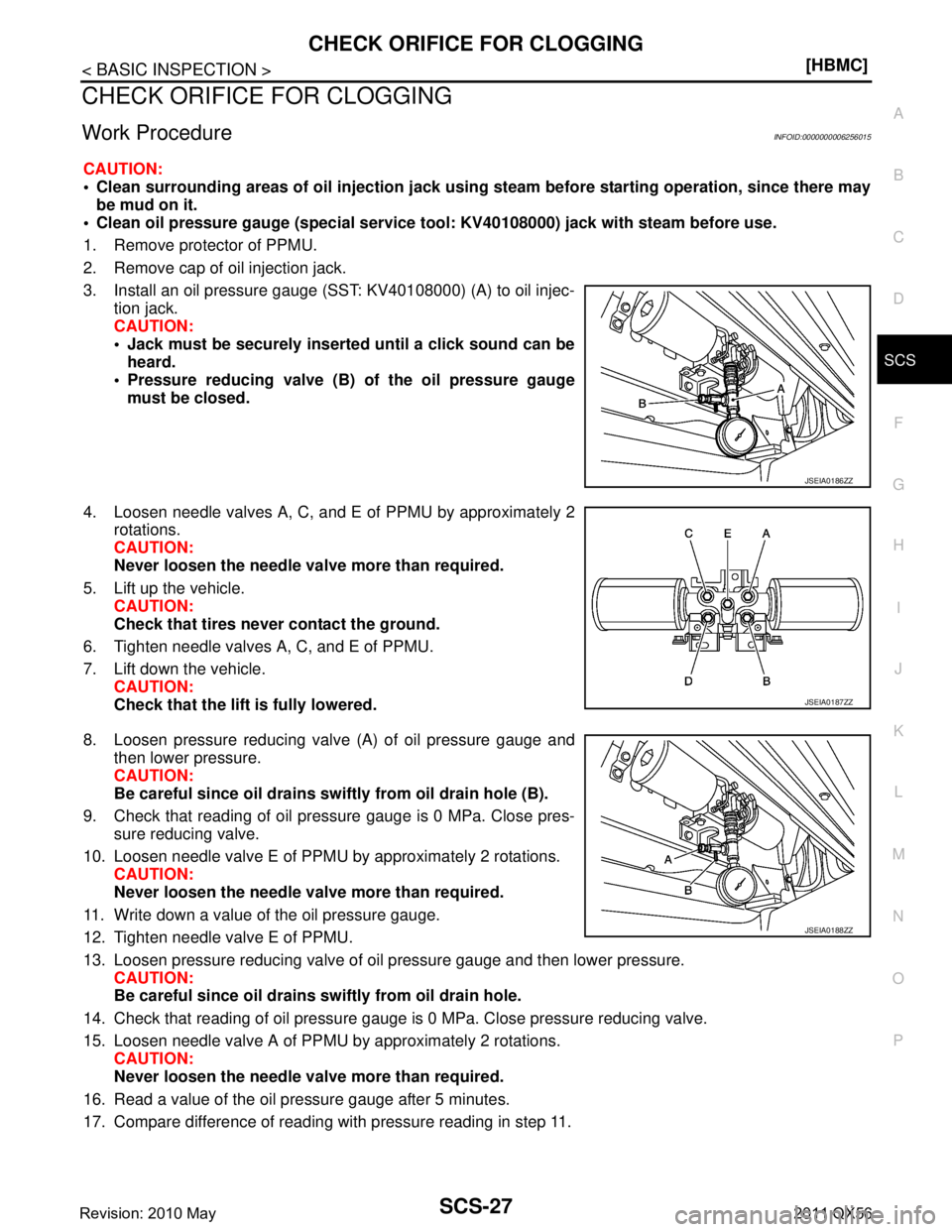

CHECK ORIFICE FOR CLOGGINGSCS-27
< BASIC INSPECTION > [HBMC]
C
D
F
G H
I
J
K L
M A
B
SCS
N
O P
CHECK ORIFICE FOR CLOGGING
Work ProcedureINFOID:0000000006256015
CAUTION:
Clean surrounding areas of o INFINITI QX56 2011 Factory Service Manual
CHECK ORIFICE FOR CLOGGINGSCS-27
< BASIC INSPECTION > [HBMC]
C
D
F
G H
I
J
K L
M A
B
SCS
N
O P
CHECK ORIFICE FOR CLOGGING
Work ProcedureINFOID:0000000006256015
CAUTION:
Clean surrounding areas of o](/manual-img/42/57033/w960_57033-4386.png)
CHECK ORIFICE FOR CLOGGINGSCS-27
< BASIC INSPECTION > [HBMC]
C
D
F
G H
I
J
K L
M A
B
SCS
N
O P
CHECK ORIFICE FOR CLOGGING
Work ProcedureINFOID:0000000006256015
CAUTION:
Clean surrounding areas of oil inj ection jack using steam before starting operation, since there may
be mud on it.
Clean oil pressure gauge (special service tool: KV40108000) jack with steam before use.
1. Remove protector of PPMU.
2. Remove cap of oil injection jack.
3. Install an oil pressure gauge (SST: KV40108000) (A) to oil injec- tion jack.
CAUTION:
Jack must be securely inserted until a click sound can beheard.
Pressure reducing valve (B) of the oil pressure gauge
must be closed.
4. Loosen needle valves A, C, and E of PPMU by approximately 2 rotations.
CAUTION:
Never loosen the needle valve more than required.
5. Lift up the vehicle. CAUTION:
Check that tires never contact the ground.
6. Tighten needle valves A, C, and E of PPMU.
7. Lift down the vehicle. CAUTION:
Check that the lift is fully lowered.
8. Loosen pressure reducing valve (A) of oil pressure gauge and then lower pressure.
CAUTION:
Be careful since oil drains sw iftly from oil drain hole (B).
9. Check that reading of oil pressure gauge is 0 MPa. Close pres- sure reducing valve.
10. Loosen needle valve E of PPMU by approximately 2 rotations. CAUTION:
Never loosen the needle valve more than required.
11. Write down a value of the oil pressure gauge.
12. Tighten needle valve E of PPMU.
13. Loosen pressure reducing valve of oil pressure gauge and then lower pressure. CAUTION:
Be careful since oil drains swiftly from oil drain hole.
14. Check that reading of oil pressure gauge is 0 MPa. Close pressure reducing valve.
15. Loosen needle valve A of PPMU by approximately 2 rotations. CAUTION:
Never loosen the needle valve more than required.
16. Read a value of the oil pressure gauge after 5 minutes.
17. Compare difference of reading with pressure reading in step 11.
JSEIA0186ZZ
JSEIA0187ZZ
JSEIA0188ZZ
Revision: 2010 May2011 QX56
Page 4388 of 5598
![INFINITI QX56 2011 Factory Service Manual
SCS-28
< BASIC INSPECTION >[HBMC]
CHECK ORIFICE FOR CLOGGING
18. Tighten needle valve A of PPMU.
19. Loosen pressure reducing valve of oil pressure gauge and then lower pressure.
CAUTION:
Be careful INFINITI QX56 2011 Factory Service Manual
SCS-28
< BASIC INSPECTION >[HBMC]
CHECK ORIFICE FOR CLOGGING
18. Tighten needle valve A of PPMU.
19. Loosen pressure reducing valve of oil pressure gauge and then lower pressure.
CAUTION:
Be careful](/manual-img/42/57033/w960_57033-4387.png)
SCS-28
< BASIC INSPECTION >[HBMC]
CHECK ORIFICE FOR CLOGGING
18. Tighten needle valve A of PPMU.
19. Loosen pressure reducing valve of oil pressure gauge and then lower pressure.
CAUTION:
Be careful since oil drains swiftly from oil drain hole.
20. Check that reading of oil pressure gauge is 0 MPa. Close pressure reducing valve.
21. Loosen needle valve C of PPMU by approximately 2 rotations. CAUTION:
Never loosen the needle valve more than required.
22. Read a value of the oil pressure gauge after 5 minutes.
23. Compare difference of reading with pressure reading in step 11.
24. Tighten needle valve C of PPMU.
25. Loosen pressure reducing valve of oil pressure gauge and then lower pressure. CAUTION:
Be careful since oil drains swiftly from oil drain hole.
26. Check that reading of oil pressure gauge is 0 MPa.
27. Remove oil pressure gauge.
28. Tighten needle valves A, C, and E of PPMU to the specified torque. Pressure difference
0.2 MPa or more : Replace the PPMU. Refer to SCS-39, "
PPMU,
MIDDLE TUBE ASSEMBLY, PPMU PIPE : Removal
and Installation".
0.2 MPa or less : Normal
Pressure difference 0.2 MPa or more : Replace the PPMU. Refer to SCS-39, "
PPMU,
MIDDLE TUBE ASSEMBLY, PPMU PIPE : Remov-
al and Installation".
0.2 MPa or less : Normal
: 8.3 N·m (0.85 kg-m, 73 in-lb)
Revision: 2010 May2011 QX56
Page 4389 of 5598
![INFINITI QX56 2011 Factory Service Manual

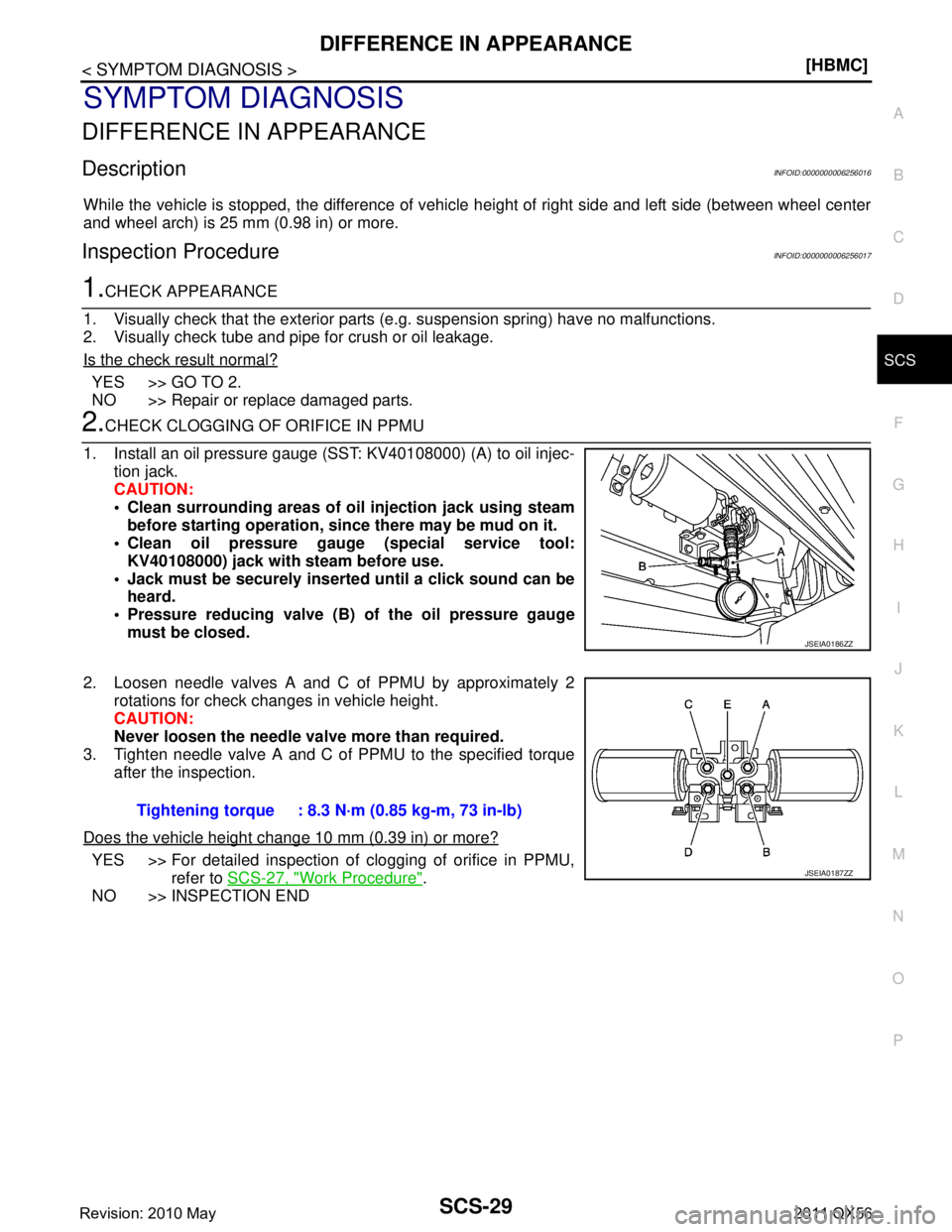

DIFFERENCE IN APPEARANCESCS-29
< SYMPTOM DIAGNOSIS > [HBMC]
C
D
F
G H
I
J
K L
M A
B
SCS
N
O P
SYMPTOM DIAGNOSIS
DIFFERENCE IN APPEARANCE
DescriptionINFOID:0000000006256016
While the vehicle is stoppe INFINITI QX56 2011 Factory Service Manual
DIFFERENCE IN APPEARANCESCS-29
< SYMPTOM DIAGNOSIS > [HBMC]
C
D
F
G H
I
J
K L
M A
B
SCS
N
O P
SYMPTOM DIAGNOSIS
DIFFERENCE IN APPEARANCE
DescriptionINFOID:0000000006256016
While the vehicle is stoppe](/manual-img/42/57033/w960_57033-4388.png)
DIFFERENCE IN APPEARANCESCS-29
< SYMPTOM DIAGNOSIS > [HBMC]
C
D
F
G H
I
J
K L
M A
B
SCS
N
O P
SYMPTOM DIAGNOSIS
DIFFERENCE IN APPEARANCE
DescriptionINFOID:0000000006256016
While the vehicle is stopped, the difference of vehicle height of right side and left side (between wheel center
and wheel arch) is 25 mm (0.98 in) or more.
Inspection ProcedureINFOID:0000000006256017
1.CHECK APPEARANCE
1. Visually check that the exterior parts (e.g. suspension spring) have no malfunctions.
2. Visually check tube and pipe for crush or oil leakage.
Is the check result normal?
YES >> GO TO 2.
NO >> Repair or replace damaged parts.
2.CHECK CLOGGING OF ORIFICE IN PPMU
1. Install an oil pressure gauge (SST: KV40108000) (A) to oil injec- tion jack.
CAUTION:
Clean surrounding areas of oi l injection jack using steam
before starting oper ation, since there may be mud on it.
Clean oil pressure gauge (special service tool:
KV40108000) jack with steam before use.
Jack must be securely inserted until a click sound can be heard.
Pressure reducing valve (B) of the oil pressure gauge
must be closed.
2. Loosen needle valves A and C of PPMU by approximately 2 rotations for check changes in vehicle height.
CAUTION:
Never loosen the needle valve more than required.
3. Tighten needle valve A and C of PPMU to the specified torque after the inspection.
Does the vehicle height change 10 mm (0.39 in) or more?
YES >> For detailed inspection of clogging of orifice in PPMU, refer to SCS-27, "
Work Procedure".
NO >> INSPECTION END
JSEIA0186ZZ
Tightening torque : 8.3 N· m (0.85 kg-m, 73 in-lb)
JSEIA0187ZZ
Revision: 2010 May2011 QX56
Page 4390 of 5598
![INFINITI QX56 2011 Factory Service Manual

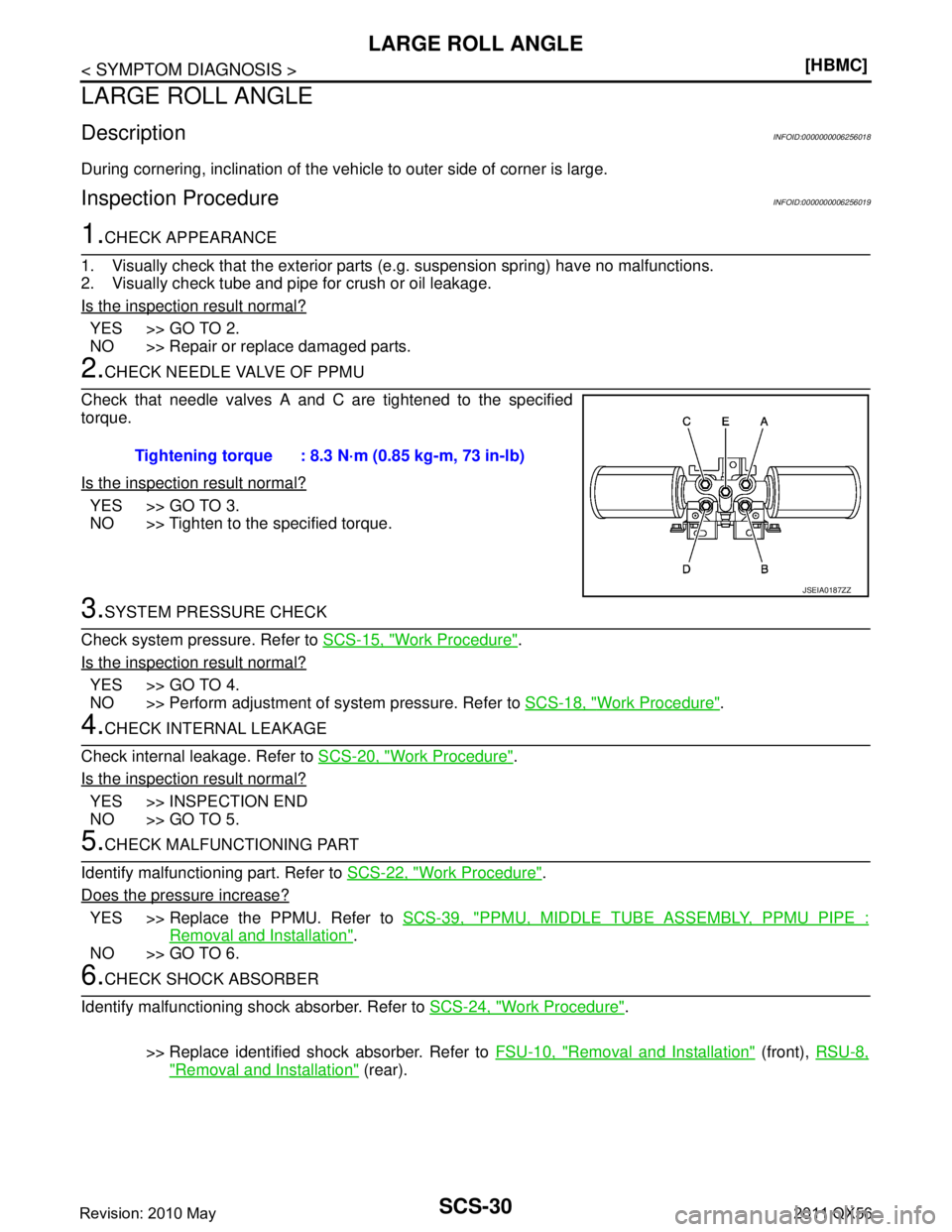

SCS-30
< SYMPTOM DIAGNOSIS >[HBMC]
LARGE ROLL ANGLE
LARGE ROLL ANGLE
DescriptionINFOID:0000000006256018
During cornering, inclination of the vehi
cle to outer side of corner is large.
Inspection Pro INFINITI QX56 2011 Factory Service Manual
SCS-30
< SYMPTOM DIAGNOSIS >[HBMC]
LARGE ROLL ANGLE
LARGE ROLL ANGLE
DescriptionINFOID:0000000006256018
During cornering, inclination of the vehi
cle to outer side of corner is large.
Inspection Pro](/manual-img/42/57033/w960_57033-4389.png)
SCS-30
< SYMPTOM DIAGNOSIS >[HBMC]
LARGE ROLL ANGLE
LARGE ROLL ANGLE
DescriptionINFOID:0000000006256018
During cornering, inclination of the vehi
cle to outer side of corner is large.
Inspection ProcedureINFOID:0000000006256019
1.CHECK APPEARANCE
1. Visually check that the exterior parts (e.g. suspension spring) have no malfunctions.
2. Visually check tube and pipe for crush or oil leakage.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace damaged parts.
2.CHECK NEEDLE VALVE OF PPMU
Check that needle valves A and C are tightened to the specified
torque.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Tighten to the specified torque.
3.SYSTEM PRESSURE CHECK
Check system pressure. Refer to SCS-15, "
Work Procedure".
Is the inspection result normal?
YES >> GO TO 4.
NO >> Perform adjustment of system pressure. Refer to SCS-18, "
Work Procedure".
4.CHECK INTERNAL LEAKAGE
Check internal leakage. Refer to SCS-20, "
Work Procedure".
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 5.
5.CHECK MALFUNCTIONING PART
Identify malfunctioning part. Refer to SCS-22, "
Work Procedure".
Does the pressure increase?
YES >> Replace the PPMU. Refer to SCS-39, "PPMU, MIDDLE TUBE ASSEMBLY, PPMU PIPE :
Removal and Installation".
NO >> GO TO 6.
6.CHECK SHOCK ABSORBER
Identify malfunctioning shock absorber. Refer to SCS-24, "
Work Procedure".
>> Replace identified shock absorber. Refer to FSU-10, "
Removal and Installation" (front), RSU-8,
"Removal and Installation" (rear).
Tightening torque : 8.3 N·
m (0.85 kg-m, 73 in-lb)
JSEIA0187ZZ
Revision: 2010 May2011 QX56
Page 4391 of 5598
HYDRAULIC BODY-MOTION CONTROL SYSTEMSCS-31
< REMOVAL AND INSTALLATION > [HBMC]
C
D
F
G H
I
J
K L
M A
B
SCS
N
O P

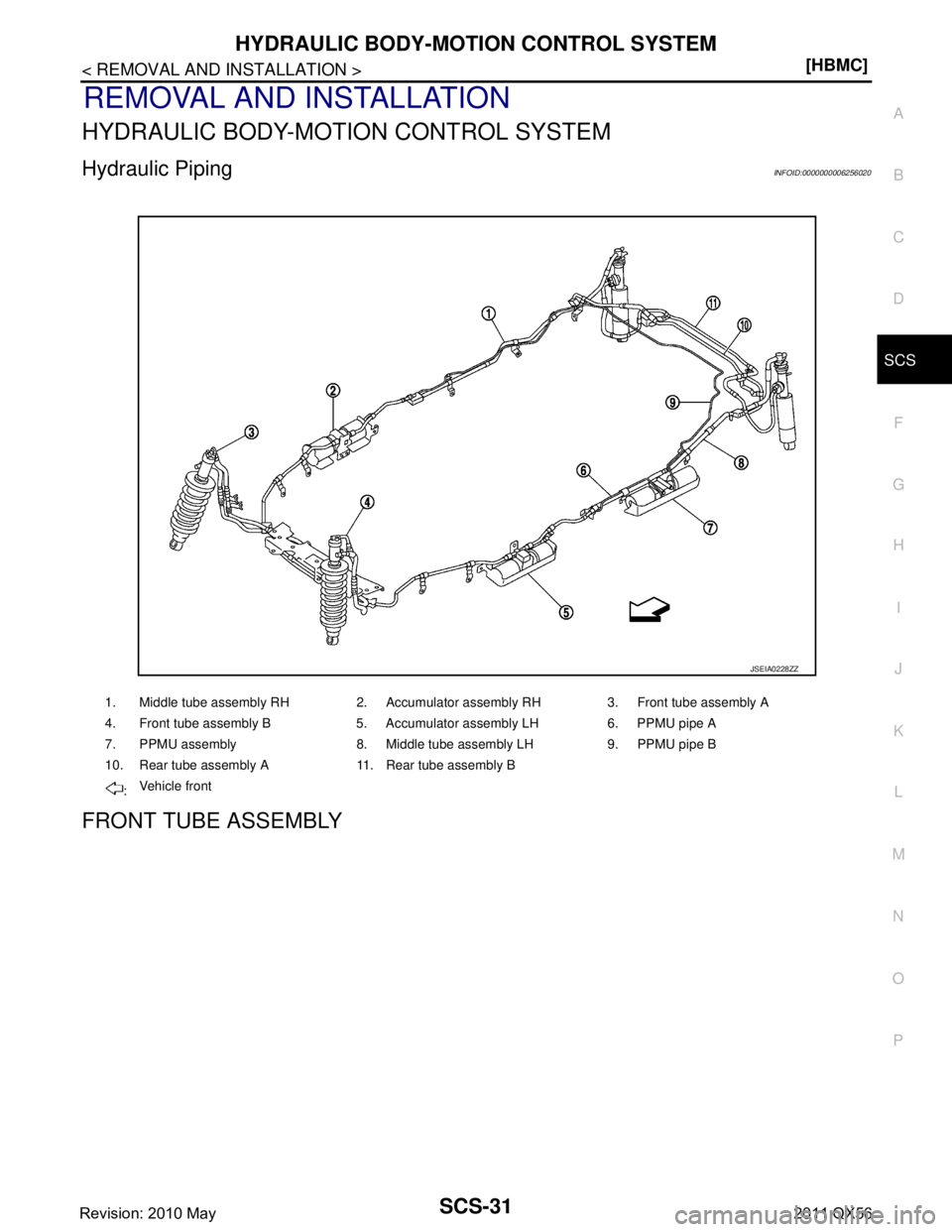

REMOVAL AND INSTALLATION
HYDRAULIC BODY-MOT ION CONTROL SYSTEM
Hydraulic PipingINFOID:0000000006256020
FRONT TUBE ASSEMBLY
1. Middle tube assembly RH 2. Accumulator assembly RH 3. Front tube assembly A
4. Front tube assembly B 5. Accumulator assembly LH 6. PPMU pipe A
7. PPMU assembly 8. Middle tube assembly LH 9. PPMU pipe B
10. Rear tube assembly A 11. Rear tube assembly B
:Vehicle front
JSEIA0228ZZ
Revision: 2010 May2011 QX56
Page 4392 of 5598
SCS-32
< REMOVAL AND INSTALLATION >[HBMC]
HYDRAULIC BODY-MOTION CONTROL SYSTEM

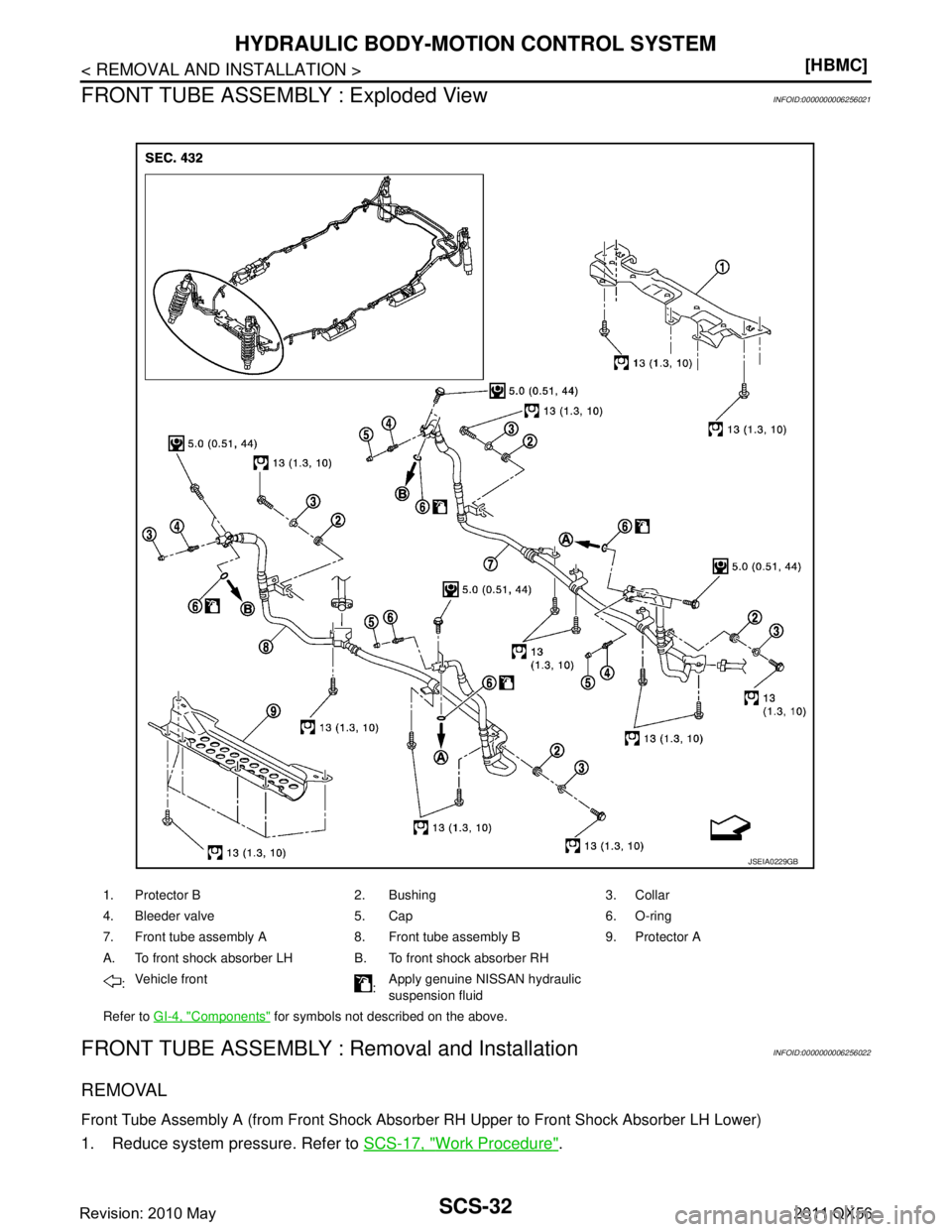

FRONT TUBE ASSEMBLY : Exploded View
INFOID:0000000006256021
FRONT TUBE ASSEMBLY : Removal and InstallationINFOID:0000000006256022
REMOVAL
Front Tube Assembly A (from Front Shock Absorber RH Upper to Front Shock Absorber LH Lower)
1. Reduce system pressure. Refer to SCS-17, "Work Procedure".
1. Protector B 2. Bushing 3. Collar
4. Bleeder valve 5. Cap 6. O-ring
7. Front tube assembly A 8. Front tube assembly B 9. Protector A
A. To front shock absorber LH B. To front shock absorber RH
:Vehicle front
:Apply genuine NISSAN hydraulic
suspension fluid
Refer to GI-4, "
Components" for symbols not described on the above.
JSEIA0229GB
Revision: 2010 May2011 QX56
